8-73 — BLOWER UNIT (#32691) — 112 parça

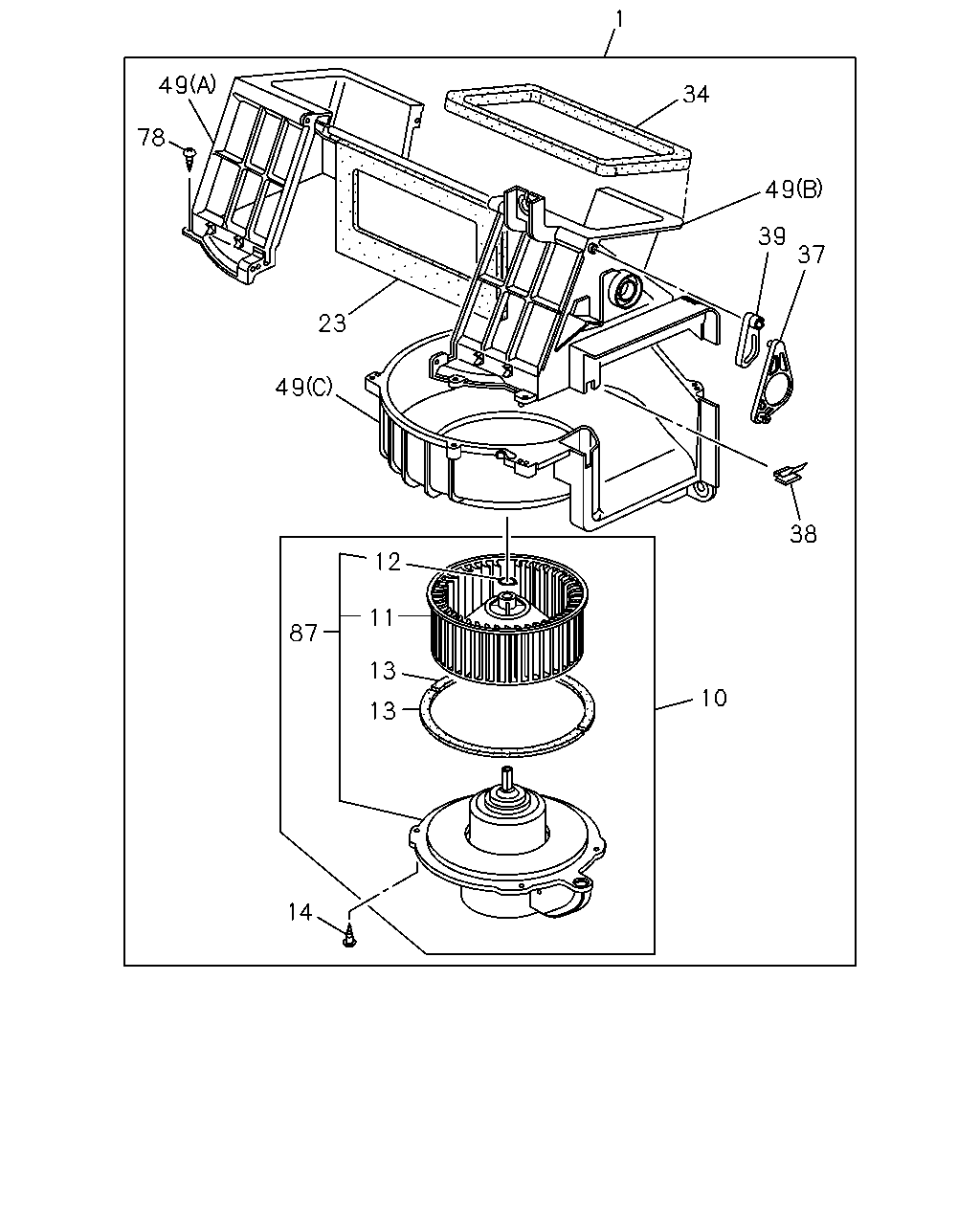

çizim 36460
1 49 34 78 49 39 37 23 49 38 12 11 87 13 10 13 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.855 BLOWER ASM
USA 		8-97137-510-0 01 1 9811-9907 ●
1 08.855 BLOWER ASM
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97137-510-0 01 1 9811-9907 ●
1 08.855 BLOWER ASM
USA 		8-97231-612-0 01 1 9908-0012 ●
1 08.855 BLOWER ASM
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97231-612-0 01 1 9908-0012 ●
1 08.855 BLOWER ASM
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97231-612-0 01 1 0101- ●
1 08.855 BLOWER ASM
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97109-567-0 01 1 9811-9907 ●
1 08.855 BLOWER ASM
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97231-610-1 01 1 9908- ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
USA 		8-97103-726-0 01 1 9811-9907 ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
USA 		8-97231-636-0 01 1 9908-0012 ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
USA 		8-97231-636-0 01 1 0101- ●
11 08.857 IMPELLER; FAN MOTOR
USA 		8-97089-700-0 01 1 9811-0012 ● ●
11 08.857 IMPELLER; FAN MOTOR
USA 		8-97089-700-0 01 1 0101- ●
12 08.857 RING; SNAP,FAN MOTOR
USA 		8-94243-962-0 01 1 9811-0012 ● ●
12 08.857 RING; SNAP,FAN MOTOR
USA 		8-94243-962-0 01 1 0101- ●
13 08.856 LINING; BLOWER UNIT
USA 		8-94324-816-0 02 1 9811-0012 ● ●
13 08.856 LINING; BLOWER UNIT
USA 		8-94324-816-0 02 1 0101- ●
14 08.857 SCREW; COVER TO CASE
10.240 M5X20 USA 		9-09829-324-1 04 1 9811-9907 ●
14 08.857 SCREW; COVER TO CASE
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 10.240 M5X20 USA 		9-09829-324-1 04 1 9811-9907 ●
14 08.857 SCREW; COVER TO CASE
08.846 M5X16 USA 		8-94248-820-0 04 1 9908-0012 ●
14 08.857 SCREW; COVER TO CASE
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 08.846 M5X16 USA 		8-94248-820-0 04 1 9908-0012 ●
14 08.857 SCREW; COVER TO CASE
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 08.846 M5X16 USA 		8-94248-820-0 04 1 0101- ●
14 08.857 SCREW; COVER TO CASE
AIR CONDITIONER AUTOMATIC CONT(C61) 08.846 M5X16 USA 		8-94248-820-0 04 1 9811-9907 ●
14 08.857 SCREW; COVER TO CASE
AIR CONDITIONER AUTOMATIC CONT(C61) 10.240 M5X20 USA 		9-09829-324-1 05 1 9908- ●
23 08.857 SHUTTER; BLOWER UNIT
USA 		8-97178-260-0 01 1 9811-0012 ●
23 08.857 SHUTTER; BLOWER UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97178-260-0 01 1 9811-0012 ●
23 08.857 SHUTTER; BLOWER UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97178-260-0 01 1 0101- ●
23 08.857 SHUTTER; BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-94324-818-2 01 1 9811- ●
34 08.856 LINING; BLOWER UNIT
USA 		8-94324-821-0 01 1 9908-0012 ●
34 08.856 LINING; BLOWER UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-94324-821-0 01 1 9908-0012 ●
34 08.856 LINING; BLOWER UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-94324-821-0 01 1 0101- ●
34 08.856 LINING; BLOWER UNIT
USA 		8-94327-437-0 01 1 9811-9907 ● ●
34 08.856 LINING; BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-94327-437-0 01 1 9908- ●
37 09.786 LEVER; MODE LEVER
USA 		8-94327-435-2 01 1 9811-0012 ● ●
37 09.786 LEVER; MODE LEVER
USA 		8-94327-435-2 01 1 0101- ●
38 09.787 CLIP; BLOWER UNIT
USA 		8-94337-654-0 01 1 9811-0012 ●
38 09.787 CLIP; BLOWER UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-94337-654-0 01 1 9811-0012 ●
38 09.787 CLIP; BLOWER UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-94337-654-0 01 1 0101- ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
USA 		8-97178-223-0 01 1 9811-9907 ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97178-223-0 01 1 9811-9907 ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
USA 		8-97327-436-0 01 1 9908-0012 ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97327-436-0 01 1 9908-0012 ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97327-436-0 01 1 0101- ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97096-069-0 01 1 9811- ●
49 08.857 CASE; BLOWER UNIT
(A) USA 		8-94327-430-1 01 1 9811-0012 ● ●
49 08.857 CASE; BLOWER UNIT
(A) USA 		8-94327-430-1 01 1 0101- ●
49 08.857 CASE; BLOWER UNIT
(B) USA 		8-94327-431-1 01 1 9811-0012 ● ●
49 08.857 CASE; BLOWER UNIT
(B) USA 		8-94327-431-1 01 1 0101- ●
49 08.857 CASE; BLOWER UNIT
(C) USA 		8-94327-432-1 01 1 9811-0012 ● ●
49 08.857 CASE; BLOWER UNIT
(C) USA 		8-94327-432-1 01 1 0101- ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 USA 		8-94324-850-0 08 1 9811-9907 ●
78 08.857 SCREW; CASE TO CASE
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 M4X16 USA 		8-94324-850-0 08 1 9811-9907 ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 USA 		8-94324-850-0 08 1 9908-0012 ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 USA 		8-94324-850-0 08 1 0101- ●
78 08.857 SCREW; CASE TO CASE
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 M4X16 USA 		8-94324-850-0 10 1 9811-9907 ●
87 08.855 MOTOR ASM; FAN 8-97106-493-3 01 1 9811-0012 ● ●
87 08.855 MOTOR ASM; FAN 8-97106-493-3 01 1 0101- ●

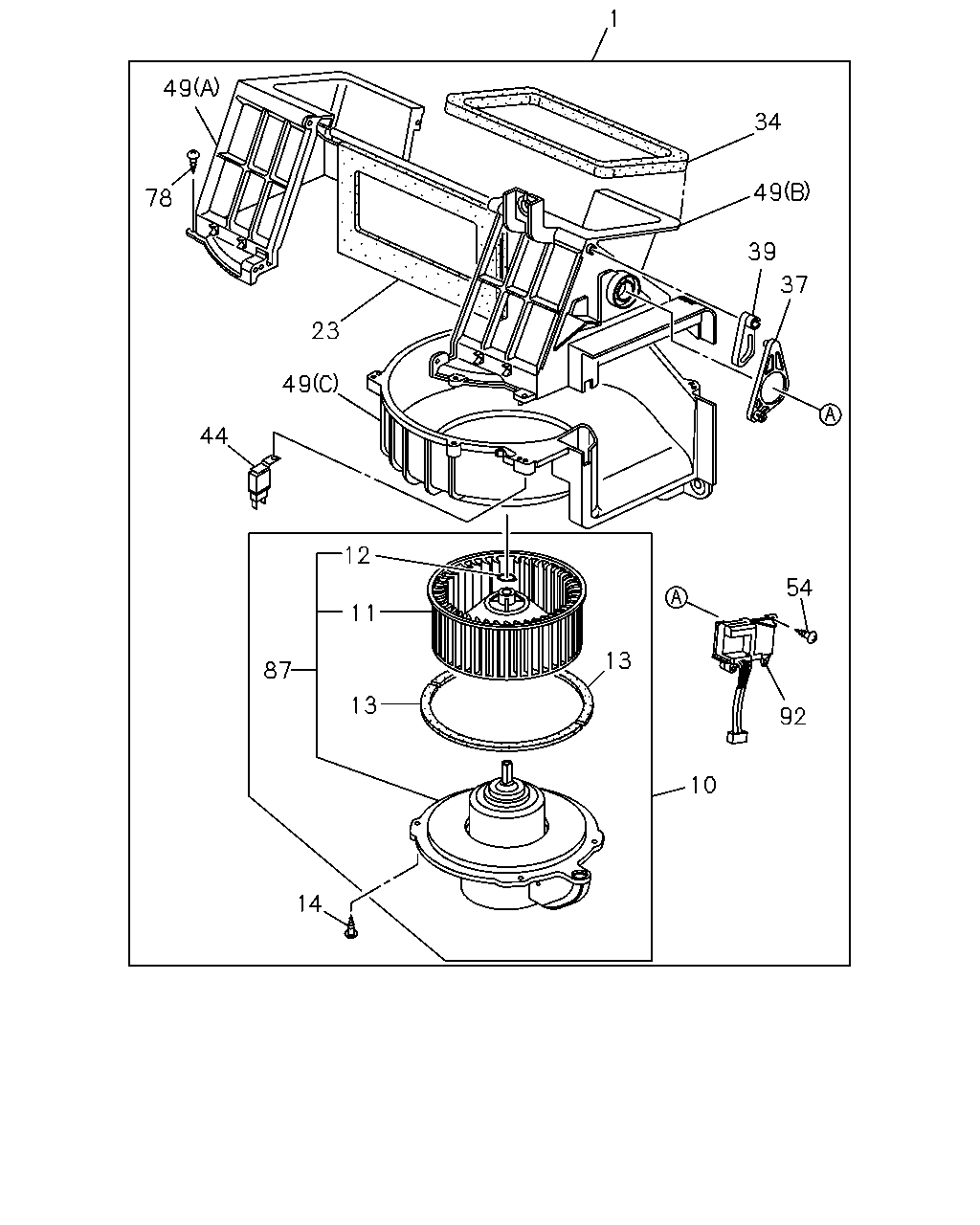

çizim 36936
1 49 34 49 78 39 37 23 49 44 12 54 11 13 87 13 92 10 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.855 BLOWER ASM
USA 		8-97137-510-0 01 1 9811-9907 ●
1 08.855 BLOWER ASM
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97137-510-0 01 1 9811-9907 ●
1 08.855 BLOWER ASM
USA 		8-97231-612-0 01 1 9908-0012 ●
1 08.855 BLOWER ASM
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97231-612-0 01 1 9908-0012 ●
1 08.855 BLOWER ASM
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97231-612-0 01 1 0101- ●
1 08.855 BLOWER ASM
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97109-567-0 01 1 9811-9907 ●
1 08.855 BLOWER ASM
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97231-610-1 01 1 9908- ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
USA 		8-97103-726-0 01 1 9811-9907 ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
USA 		8-97231-636-0 01 1 9908-0012 ● ●
10 08.855 MOTOR ASM; FAN,BLOWER UNIT
USA 		8-97231-636-0 01 1 0101- ●
11 08.857 IMPELLER; FAN MOTOR
USA 		8-97089-700-0 01 1 9811-0012 ● ●
11 08.857 IMPELLER; FAN MOTOR
USA 		8-97089-700-0 01 1 0101- ●
12 08.857 RING; SNAP,FAN MOTOR
USA 		8-94243-962-0 01 1 9811-0012 ● ●
12 08.857 RING; SNAP,FAN MOTOR
USA 		8-94243-962-0 01 1 0101- ●
13 08.856 LINING; BLOWER UNIT
USA 		8-94324-816-0 02 1 9811-0012 ● ●
13 08.856 LINING; BLOWER UNIT
USA 		8-94324-816-0 02 1 0101- ●
14 08.857 SCREW; COVER TO CASE
10.240 M5X20 USA 		9-09829-324-1 04 1 9811-9907 ●
14 08.857 SCREW; COVER TO CASE
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 10.240 M5X20 USA 		9-09829-324-1 04 1 9811-9907 ●
14 08.857 SCREW; COVER TO CASE
08.846 M5X16 USA 		8-94248-820-0 04 1 9908-0012 ●
14 08.857 SCREW; COVER TO CASE
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 08.846 M5X16 USA 		8-94248-820-0 04 1 9908-0012 ●
14 08.857 SCREW; COVER TO CASE
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 08.846 M5X16 USA 		8-94248-820-0 04 1 0101- ●
14 08.857 SCREW; COVER TO CASE
AIR CONDITIONER AUTOMATIC CONT(C61) 08.846 M5X16 USA 		8-94248-820-0 04 1 9811-9907 ●
14 08.857 SCREW; COVER TO CASE
AIR CONDITIONER AUTOMATIC CONT(C61) 10.240 M5X20 USA 		9-09829-324-1 05 1 9908- ●
23 08.857 SHUTTER; BLOWER UNIT
USA 		8-97178-260-0 01 1 9811-0012 ●
23 08.857 SHUTTER; BLOWER UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97178-260-0 01 1 9811-0012 ●
23 08.857 SHUTTER; BLOWER UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97178-260-0 01 1 0101- ●
23 08.857 SHUTTER; BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-94324-818-2 01 1 9811- ●
34 08.856 LINING; BLOWER UNIT
USA 		8-94324-821-0 01 1 9908-0012 ●
34 08.856 LINING; BLOWER UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-94324-821-0 01 1 9908-0012 ●
34 08.856 LINING; BLOWER UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-94324-821-0 01 1 0101- ●
34 08.856 LINING; BLOWER UNIT
USA 		8-94327-437-0 01 1 9811-9907 ● ●
34 08.856 LINING; BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-94327-437-0 01 1 9908- ●
37 09.786 LEVER; MODE LEVER
USA 		8-94327-435-2 01 1 9811-0012 ● ●
37 09.786 LEVER; MODE LEVER
USA 		8-94327-435-2 01 1 0101- ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
USA 		8-97178-223-0 01 1 9811-9907 ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97178-223-0 01 1 9811-9907 ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
USA 		8-97327-436-0 01 1 9908-0012 ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97327-436-0 01 1 9908-0012 ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97327-436-0 01 1 0101- ●
39 09.786 LEVER; SHUTTER,BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97096-069-0 01 1 9811- ●
44 08.855 RELAY; BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97011-283-0 01 1 9811- ●
49 08.857 CASE; BLOWER UNIT
(A) USA 		8-94327-430-1 01 1 9811-0012 ● ●
49 08.857 CASE; BLOWER UNIT
(A) USA 		8-94327-430-1 01 1 0101- ●
49 08.857 CASE; BLOWER UNIT
(B) USA 		8-94327-431-1 01 1 9811-0012 ● ●
49 08.857 CASE; BLOWER UNIT
(B) USA 		8-94327-431-1 01 1 0101- ●
49 08.857 CASE; BLOWER UNIT
(C) USA 		8-94327-432-1 01 1 9811-0012 ● ●
49 08.857 CASE; BLOWER UNIT
(C) USA 		8-94327-432-1 01 1 0101- ●
54 08.856 SCREW; ACTUATOR TO CASE
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 M4X16 USA 		8-94324-850-0 03 1 9811- ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 USA 		8-94324-850-0 08 1 9811-9907 ●
78 08.857 SCREW; CASE TO CASE
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 M4X16 USA 		8-94324-850-0 08 1 9811-9907 ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 USA 		8-94324-850-0 08 1 9908-0012 ● ●
78 08.857 SCREW; CASE TO CASE
08.852 M4X16 USA 		8-94324-850-0 08 1 0101- ●
78 08.857 SCREW; CASE TO CASE
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 M4X16 USA 		8-94324-850-0 10 1 9811-9907 ●
87 08.855 MOTOR ASM; FAN 8-97106-493-3 01 1 9811-0012 ● ●
87 08.855 MOTOR ASM; FAN 8-97106-493-3 01 1 0101- ●
92 08.857 ACTUATOR; BLOWER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97076-079-0 01 1 9811- ●
