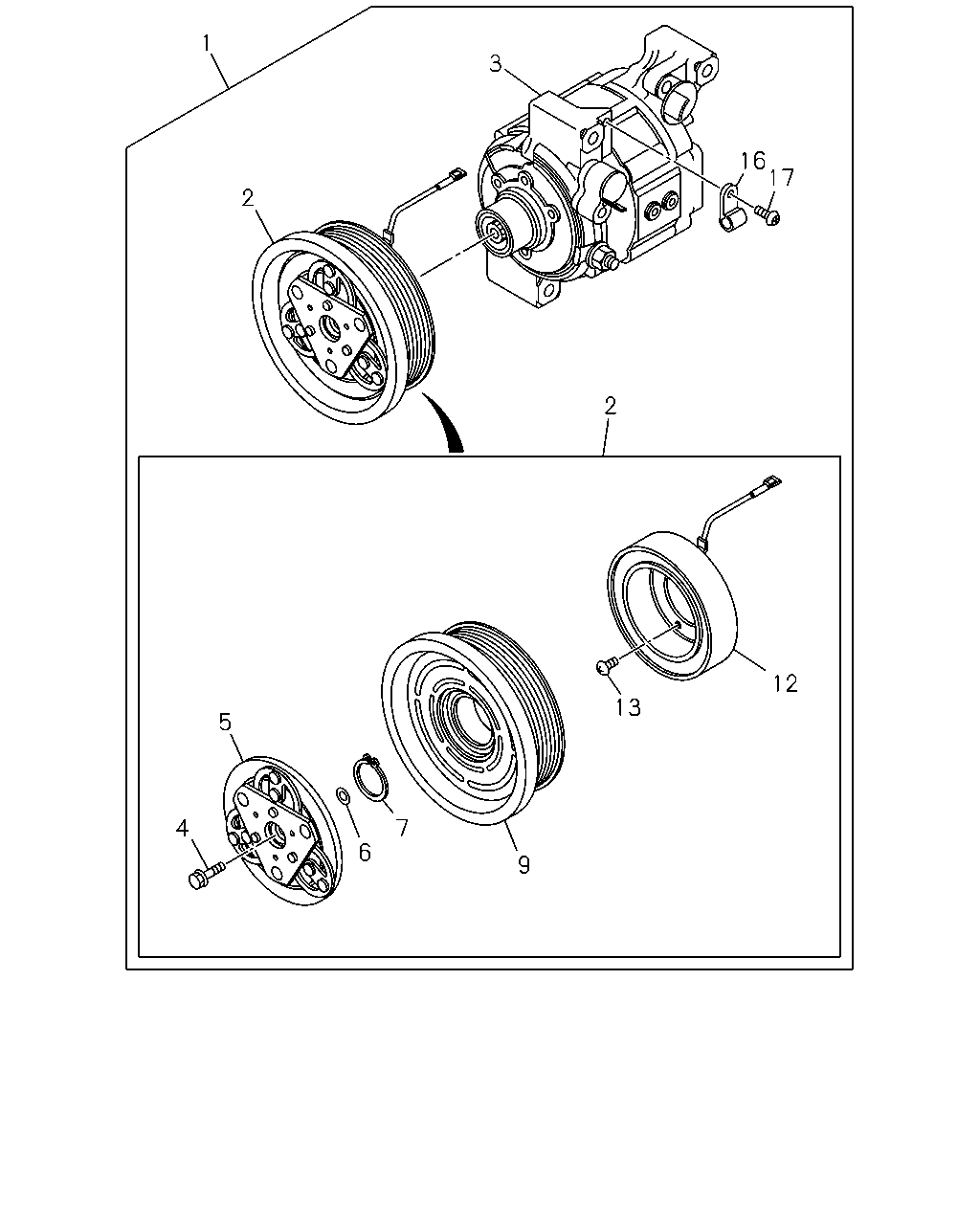

8-71 — COMPRESSOR; AIR CONDITIONING (#32690) — 57 parça

1 3 16 17 2 2 12 13 5 7 4 6 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.170 COMPRESSOR ASM; A/C USA	8-97216-176-0	01	1	9811-9811	●
1	09.170 COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97216-176-0	01	1	9811-9811		●
1	09.170 COMPRESSOR ASM; A/C USA	8-97215-976-0	01	1	9812-0012	●
1	09.170 COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97215-976-0	01	1	9812-0012		●
1	09.170 COMPRESSOR ASM; A/C USA	8-97215-976-0	01	1	0101-0106		●
1	09.170 COMPRESSOR ASM; A/C USA	8-97302-176-0	01	1	0107-0108		●
1	09.170 COMPRESSOR ASM; A/C USA	8-97287-641-2	01	1	0109-		●
2	09.188 CLUTCH; MAGNET,A/C USA	8-97219-703-0	01	1	9811-9811	●
2	09.188 CLUTCH; MAGNET,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97219-703-0	01	1	9811-9811		●
2	09.188 CLUTCH; MAGNET,A/C USA	8-97219-705-0	01	1	9812-0012	●
2	09.188 CLUTCH; MAGNET,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97219-705-0	01	1	9812-0012		●
2	09.188 CLUTCH; MAGNET,A/C USA	8-97219-705-0	01	1	0101-0202		●
2	09.188 CLUTCH; MAGNET,A/C USA	8-97354-093-0	01	1	0203-0206		●
2	09.188 CLUTCH; MAGNET,A/C USA	8-97357-133-0	01	1	0207-		●
3	09.170 COMPRESSOR ASM; A/C USA	8-97045-490-0	01	1	9811-9811	●
3	09.170 COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97045-490-0	01	1	9811-9811		●
3	09.170 COMPRESSOR ASM; A/C USA	8-97219-711-0	01	1	9812-0012	●
3	09.170 COMPRESSOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97219-711-0	01	1	9812-0012		●
3	09.170 COMPRESSOR ASM; A/C USA	8-97219-711-0	01	1	0101-0108		●
3	09.170 COMPRESSOR ASM; A/C USA	8-97288-500-0	01	1	0109-		●
4	09.181 BOLT; MAGNET CLU USA	8-97305-414-0	01	1	0004-0012	●
4	09.181 BOLT; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97305-414-0	01	1	0004-0012		●
4	09.181 BOLT; MAGNET CLU USA	8-97305-414-0	01	1	0101-		●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C USA	8-97305-285-0	01	1	0004-0012	●
5	09.181 ARMATURE ASM; MAGNET CLU,A/C AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97305-285-0	01	1	0004-0012		●
6	09.181 SHIM; MAGNET CLU T=0.1 USA	8-94120-721-0	AR	1	0004-0012	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) T=0.1 USA	8-94120-721-0	AR	1	0004-0012		●
6	09.181 SHIM; MAGNET CLU T=0.1 USA	8-94120-721-0	AR	1	0101-		●
6	09.181 SHIM; MAGNET CLU T=0.5 USA	8-94120-723-0	AR	1	0004-0012	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) T=0.5 USA	8-94120-723-0	AR	1	0004-0012		●
6	09.181 SHIM; MAGNET CLU T=0.5 USA	8-94120-723-0	AR	1	0101-		●
6	09.181 SHIM; MAGNET CLU 09.188 T=0.8 USA	8-94380-751-0	AR	1	0004-0012	●
6	09.181 SHIM; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 09.188 T=0.8 USA	8-94380-751-0	AR	1	0004-0012		●
6	09.181 SHIM; MAGNET CLU 09.188 T=0.8 USA	8-94380-751-0	AR	1	0101-		●
6	09.181 SHIM; MAGNET CLU T=0.3 USA	8-94120-722-0	AR	1	0109-		●
7	09.181 RING; SNAP,PULLEY USA	8-94380-752-0	01	1	0004-0012	●
7	09.181 RING; SNAP,PULLEY AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-94380-752-0	01	1	0004-0012		●
7	09.181 RING; SNAP,PULLEY USA	8-94380-752-0	01	1	0101-		●
9	09.181 PULLEY; MAGNET CLU USA	8-97219-706-0	01	1	0004-0012	●
9	09.181 PULLEY; MAGNET CLU AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97219-706-0	01	1	0004-0012		●
9	09.181 PULLEY; MAGNET CLU USA	8-97219-706-0	01	1	0101-0206		●
9	09.181 PULLEY; MAGNET CLU USA	8-97357-139-0	01	1	0207-		●
12	09.186 COIL; FIELD,MAGNET CLU USA	8-97305-284-0	01	1	0004-0012	●
12	09.186 COIL; FIELD,MAGNET CLU AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97305-284-0	01	1	0004-0012		●
13	09.186 SCREW; COIL FIELD USA	8-94164-438-0	03	1	0004-0012	●
13	09.186 SCREW; COIL FIELD AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-94164-438-0	03	1	0004-0012		●
13	09.186 SCREW; COIL FIELD USA	8-94164-438-0	03	1	0101-		●
16	09.181 CLIP; WIRE,MAGNET CLU USA	8-97305-286-0	01	1	0004-0012	●
16	09.181 CLIP; WIRE,MAGNET CLU AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97305-286-0	01	1	0004-0012		●
16	09.181 CLIP; WIRE,MAGNET CLU USA	8-97305-286-0	01	1	0101-0106		●
16	09.181 CLIP; WIRE,MAGNET CLU USA	8-97322-720-0	01	1	0107-0108		●
16	09.181 CLIP; WIRE,MAGNET CLU USA	8-97305-286-0	01	1	0109-0202		●
16	09.181 CLIP; WIRE,MAGNET CLU USA	8-97354-094-0	01	1	0203-		●
17	09.181 SCREW; WIRE CLIP MAGNET CLU USA	8-97305-287-0	01	1	0004-0012	●
17	09.181 SCREW; WIRE CLIP MAGNET CLU AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97305-287-0	01	1	0004-0012		●
17	09.181 SCREW; WIRE CLIP MAGNET CLU USA	8-97305-287-0	01	1	0101-0202		●
17	09.181 SCREW; WIRE CLIP MAGNET CLU USA	8-97024-419-0	01	1	0203-		●
