8-65 — CONTROL LEVER; HEATER AND AIR CON (#32689) — 56 parça

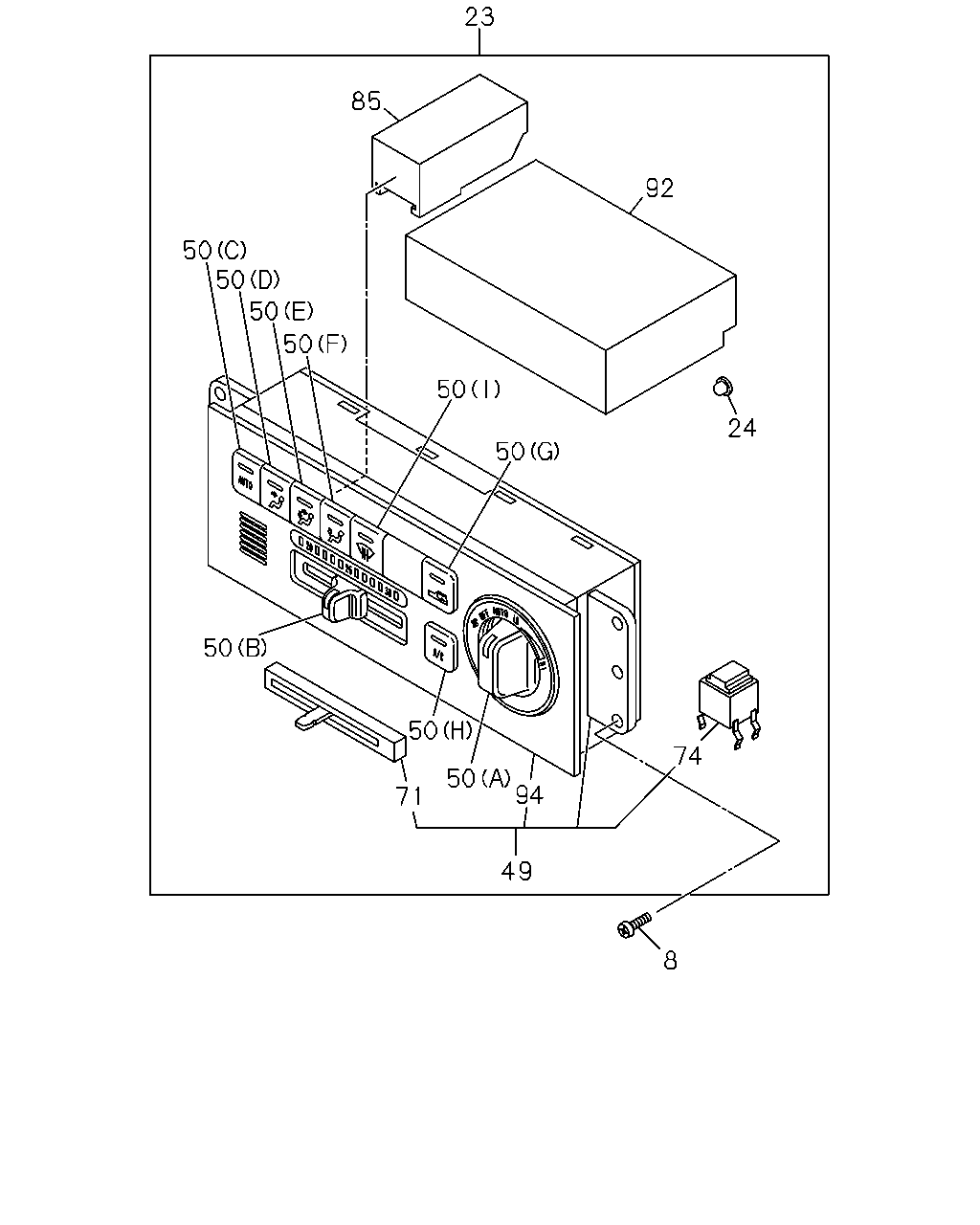

23 85 92 50 50 50 50 50 24 50 50 50 74 50 94 71 49 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	08.852 SCREW; CONT LVR TO INST PNL 09.743 M5X16 USA	8-94295-854-0	04	1	9811-0012	●	●
8	08.852 SCREW; CONT LVR TO INST PNL 09.743 M5X16 USA	8-94295-854-0	04	1	0101-		●
23	08.852 BEZEL; CONT LEVER AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97137-514-2	01	1	9811-		●
24	08.991 BULB; CONT LEVER AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97207-178-0	04	1	9811-		●
49	08.849 PANEL; CONT AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97188-563-2	01	1	9811-		●
50	08.852 KNOB; CONT PANEL AIR CONDITIONER AUTOMATIC CONT(C61) (B) USA	8-97112-614-0	01	1	9811-		●
50	08.852 KNOB; CONT PANEL AIR CONDITIONER AUTOMATIC CONT(C61) (C) USA	8-97122-455-0	01	1	9811-		●
50	08.852 KNOB; CONT PANEL AIR CONDITIONER AUTOMATIC CONT(C61) (D) USA	8-97122-456-0	01	1	9811-		●
50	08.852 KNOB; CONT PANEL AIR CONDITIONER AUTOMATIC CONT(C61) (E) USA	8-97122-457-0	01	1	9811-		●
50	08.852 KNOB; CONT PANEL AIR CONDITIONER AUTOMATIC CONT(C61) (F) USA	8-97122-458-0	01	1	9811-		●
50	08.852 KNOB; CONT PANEL AIR CONDITIONER AUTOMATIC CONT(C61) (I)	8-97122-460-0	01	1	9811-		●
50	08.852 KNOB; CONT PANEL AIR CONDITIONER AUTOMATIC CONT(C61) (G) USA	8-97122-461-0	01	1	9811-		●
50	08.852 KNOB; CONT PANEL AIR CONDITIONER AUTOMATIC CONT(C61) (H) USA	8-97122-462-0	01	1	9811-		●
50	08.852 KNOB; CONT PANEL AIR CONDITIONER AUTOMATIC CONT(C61) (A) USA	8-97200-154-0	01	1	9811-		●
71	08.849 RESISTOR; CONT PANEL AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97123-992-0	01	1	9811-		●
74	08.852 SWITCH; CONT PANEL AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97123-991-0	07	1	9811-		●
85	08.852 ASPIRATOR AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97077-720-1	01	1	9811-		●
92	08.849 CASE; CONT UNIT AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97123-993-0	01	1	9811-		●
94	08.849 PANEL; BEZEL AIR CONDITIONER AUTOMATIC CONT(C61)	8-97122-464-1	01	1	9811-		●

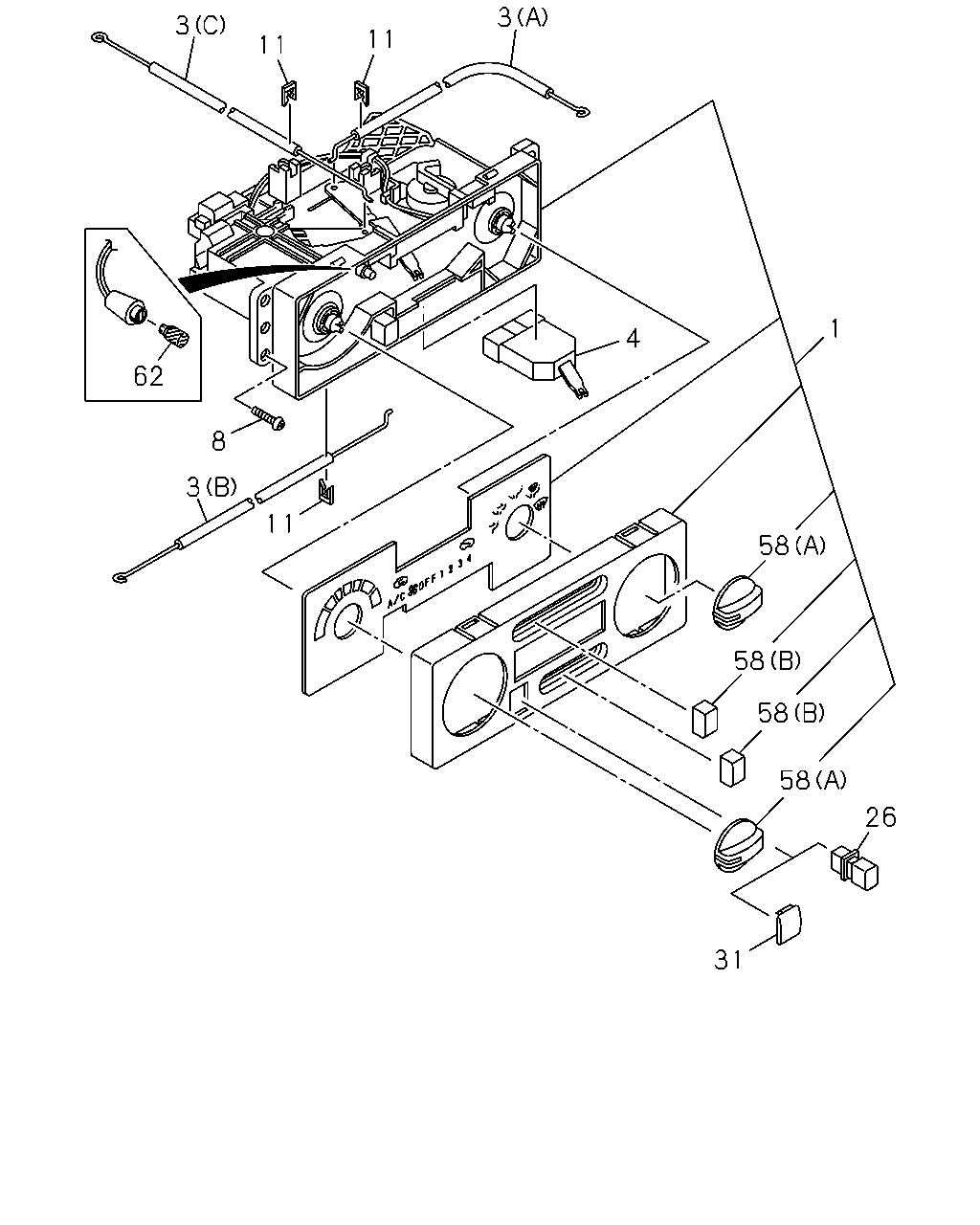

3 3 11 11 1 4 62 8 3 11 58 58 58 58 26 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.849 LEVER SUB ASM; HTR CONT USA	8-97184-443-0	01	1	9811-9901	●
1	08.849 LEVER SUB ASM; HTR CONT EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA	8-97184-443-0	01	1	9811-9901		●
1	08.849 LEVER SUB ASM; HTR CONT USA	8-97223-871-1	01	1	9902-0012	●
1	08.849 LEVER SUB ASM; HTR CONT AIR CONDITIONER MANUAL CONT(C60) USA	8-97223-871-1	01	1	9902-0012		●
1	08.849 LEVER SUB ASM; HTR CONT AIR CONDITIONER MANUAL CONT(C60) USA	8-97223-871-1	01	1	0101-		●
3	09.787 CABLE; HTR CONT LVR (A) USA	8-97208-458-0	01	1	9811-9901	●
3	09.787 CABLE; HTR CONT LVR EXC. AIR CONDITIONER AUTOMATIC CONT(C61) (A) USA	8-97208-458-0	01	1	9811-9901		●
3	09.787 CABLE; HTR CONT LVR (A) USA	8-97223-872-1	01	1	9902-0012	●
3	09.787 CABLE; HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) (A) USA	8-97223-872-1	01	1	9902-0012		●
3	09.787 CABLE; HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) (A) USA	8-97223-872-1	01	1	0101-		●
3	09.787 CABLE; HTR CONT LVR (B) USA	8-97208-459-0	01	1	9811-0012	●
3	09.787 CABLE; HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) (B) USA	8-97208-459-0	01	1	9811-0012		●
3	09.787 CABLE; HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) (B) USA	8-97208-459-0	01	1	0101-		●
3	09.787 CABLE; HTR CONT LVR (C) USA	8-97208-460-0	01	1	9811-0012	●
3	09.787 CABLE; HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) (C) USA	8-97208-460-0	01	1	9811-0012		●
3	09.787 CABLE; HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) (C) USA	8-97208-460-0	01	1	0101-		●
4	08.552 SWITCH; FAN,HTR CONT LVR USA	8-97189-389-0	01	1	9811-0012	●
4	08.552 SWITCH; FAN,HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) USA	8-97189-389-0	01	1	9811-0012		●
4	08.552 SWITCH; FAN,HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) USA	8-97189-389-0	01	1	0101-		●
8	08.852 SCREW; CONT LVR TO INST PNL 09.743 M5X16 USA	8-94295-854-0	04	1	9811-0012	●	●
8	08.852 SCREW; CONT LVR TO INST PNL 09.743 M5X16 USA	8-94295-854-0	04	1	0101-		●
11	09.787 CLIP; CABLE,HTR CONT LVR USA	8-97184-442-0	03	1	9811-0012	●
11	09.787 CLIP; CABLE,HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) USA	8-97184-442-0	03	1	9811-0012		●
11	09.787 CLIP; CABLE,HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) USA	8-97184-442-0	03	1	0101-		●
26	09.172 SWITCH; A/C,HTR CONT LVR USA	8-97178-789-0	01	1	9811-0012	●
26	09.172 SWITCH; A/C,HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) USA	8-97178-789-0	01	1	9811-0012		●
26	09.172 SWITCH; A/C,HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) USA	8-97178-789-0	01	1	0101-		●
31	08.850 COVER; HOLE,CONT LEVER EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER AUTOMATIC CONT(C61) USA	8-97178-788-0	01	1	9811-0003		●
58	09.787 KNOB; LVR,HTR CONT LVR (A) USA	8-97189-390-0	02	1	9811-0012	●
58	09.787 KNOB; LVR,HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) (A) USA	8-97189-390-0	02	1	9811-0012		●
58	09.787 KNOB; LVR,HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) (A) USA	8-97189-390-0	02	1	0101-		●
58	09.787 KNOB; LVR,HTR CONT LVR (B) USA	8-97189-391-0	02	1	9811-0012	●
58	09.787 KNOB; LVR,HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) (B) USA	8-97189-391-0	02	1	9811-0012		●
58	09.787 KNOB; LVR,HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) (B) USA	8-97189-391-0	02	1	0101-		●
62	08.991 BULB; HTR CONT LVR USA	8-97184-447-0	01	1	9811-0012	●
62	08.991 BULB; HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) USA	8-97184-447-0	01	1	9811-0012		●
62	08.991 BULB; HTR CONT LVR AIR CONDITIONER MANUAL CONT(C60) USA	8-97184-447-0	01	1	0101-		●
