◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#32688) — 174 parça

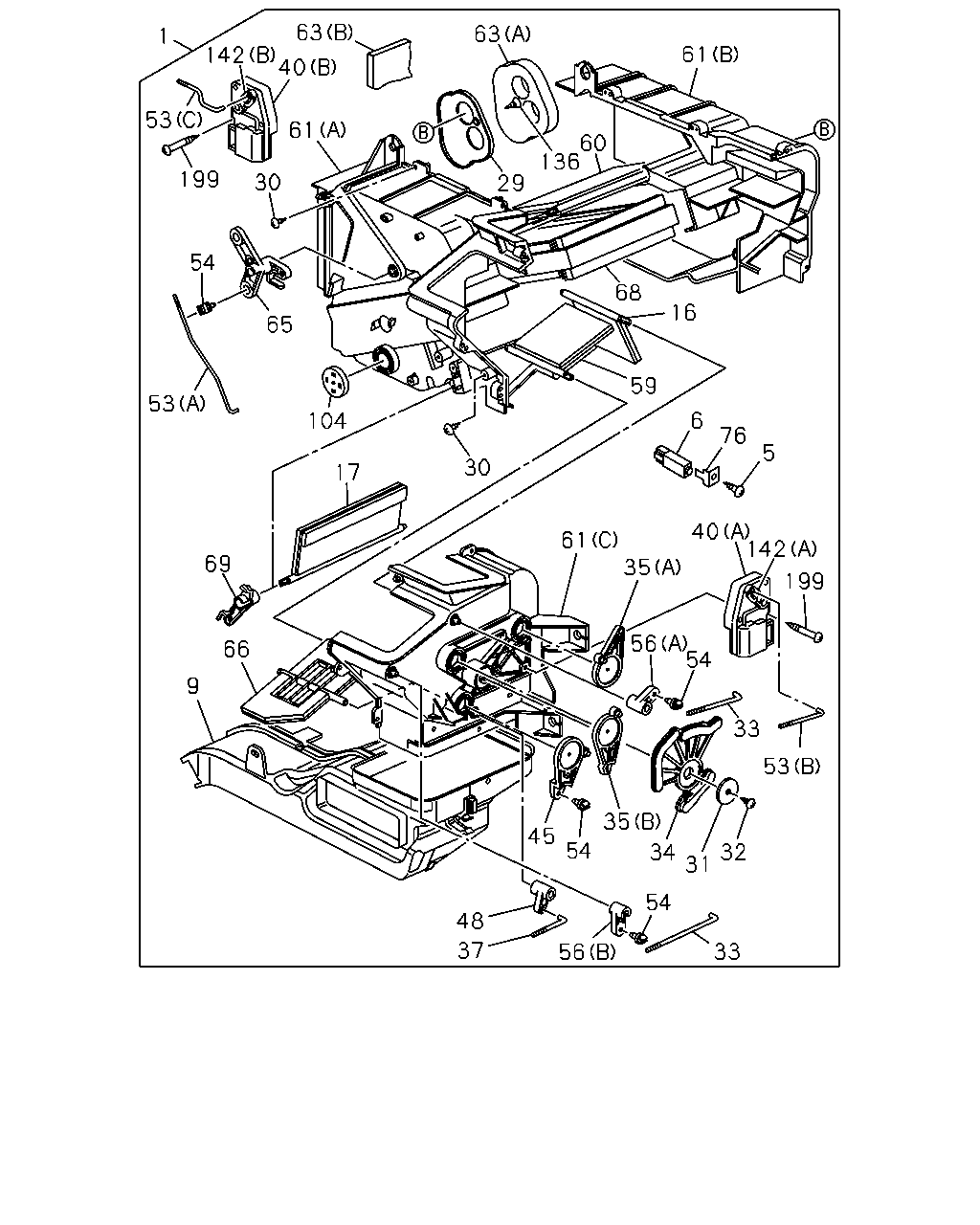

çizim 3499
63 63 1 61 142 40 61 199 30 53 60 136 29 54 68 16 65 59 53 6 104 76 5 30 17 40 142 199 56 54 61 35 69 66 9 33 53 35 45 54 34 32 31 54 48 37 56 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.845 HEATER UNIT
USA 		8-97137-506-0 01 1 9811-0012 ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97176-133-1 01 1 9811-0012 ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97258-990-1 01 1 0101- ●
1 08.845 HEATER UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97144-199-0 01 1 9811- ●
5 08.854 SCREW; BRKT
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 M4X16 USA 		8-94324-850-0 01 1 0101- ●
6 08.855 RESISTOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97289-110-0 01 1 0101- ●
9 08.854 DUCT; HTR UNIT
USA 		8-97181-290-0 01 1 9811-0012 ● ●
9 08.854 DUCT; HTR UNIT
USA 		8-97181-290-0 01 1 0101- ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
USA 		8-97161-526-0 01 1 9811-0012 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
USA 		8-97161-526-0 01 1 0101- ●
17 09.786 SHUTTER; HTR UNIT,CENTER
USA 		8-94328-641-0 01 1 9811-0012 ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
USA 		8-94328-641-0 01 1 0101- ●
29 08.857 COVER; HTR UNIT
08.845 USA 		8-97045-865-0 01 1 9811-0012 ●
29 08.857 COVER; HTR UNIT
08.854 USA 		8-97045-862-0 01 1 9811- ●
30 08.845 SCREW; HTR UNIT
08.852 M4X16 USA 		8-94324-850-0 13 1 9811-0012 ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 M4X16 USA 		8-94324-850-0 12 1 0101- ●
30 08.845 SCREW; HTR UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 M4X16 USA 		8-94324-850-0 13 1 0101- ●
31 08.852 WASHER; HTR UNIT
USA 		8-94129-950-0 01 1 9811-0012 ● ●
31 08.852 WASHER; HTR UNIT
USA 		8-94129-950-0 01 1 0101- ●
32 08.852 SCREW; HTR UNIT
10.240 M5X20 USA 		9-09829-324-1 01 1 9811-0009 ● ●
32 08.852 SCREW; HTR UNIT
10.240 M5X20 USA 		9-09829-324-1 01 1 0010-0012 ●
32 08.852 SCREW; HTR UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 10.240 M5X20 USA 		9-09829-324-1 01 1 0010-0012 ●
32 08.852 SCREW; HTR UNIT
10.240 M5X20 USA 		9-09829-324-1 01 1 0101- ●
32 08.852 SCREW; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 16.085 M5X16 TAPPING USA 		9-09829-323-1 01 1 0010-0012 ●
33 09.786 ROD; SHUTTER LEVER
08.852 USA 		8-94328-635-0 02 1 9811-0012 ● ●
33 09.786 ROD; SHUTTER LEVER
08.852 USA 		8-94328-635-0 02 1 0101- ●
34 09.786 LEVER; SHUTTER,HTR UNIT
USA 		8-97045-861-0 01 1 9811-0012 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97045-861-0 01 1 9811-0012 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97045-861-0 01 1 0101- ●
34 09.786 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97111-577-1 01 1 9811- ●
35 08.852 LEVER; SHUTTER,HTR UNIT
(A) USA 		8-94328-645-1 01 1 9811-0012 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
(A) USA 		8-94328-645-1 01 1 0101- ●
35 08.852 LEVER; SHUTTER,HTR UNIT
(B) USA 		8-97045-860-0 01 1 9811-0012 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
(B) USA 		8-97045-860-0 01 1 0101- ●
37 08.852 ROD; LEVER
USA 		8-94324-848-0 01 1 9811-0012 ● ●
37 08.852 ROD; LEVER
USA 		8-94324-848-0 01 1 0101- ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) (A) USA 		8-97111-576-0 01 1 9811- ●
40 08.854 ACTUATOR; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) (B) USA 		8-97120-826-0 01 1 9811- ●
45 09.786 LEVER; SHUTTER,HTR UNIT
USA 		8-94328-646-1 01 1 9811-0012 ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
USA 		8-94328-646-1 01 1 0101- ●
48 09.786 LEVER; HTR UNIT
08.852 USA 		8-94328-627-0 01 1 9811-0012 ● ●
48 09.786 LEVER; HTR UNIT
08.852 USA 		8-94328-627-0 01 1 0101- ●
53 08.866 ROD; SHUTTER LEVER
(A) USA 		8-94324-846-0 01 1 9811-0012 ● ●
53 08.866 ROD; SHUTTER LEVER
(A) USA 		8-94324-846-0 01 1 0101- ●
53 08.866 ROD; SHUTTER LEVER
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 (B) USA 		8-94328-635-0 01 1 9811- ●
53 08.866 ROD; SHUTTER LEVER
AIR CONDITIONER AUTOMATIC CONT(C61) (C) USA 		8-97076-075-0 01 1 9811- ●
54 08.854 CLIP; SHUTTER LEVER
09.786 USA 		8-94248-794-0 04 1 9811-0012 ●
54 08.854 CLIP; SHUTTER LEVER
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 09.786 USA 		8-94248-794-0 04 1 9811-0012 ●
54 08.854 CLIP; SHUTTER LEVER
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 09.786 USA 		8-94248-794-0 04 1 0101- ●
54 08.854 CLIP; SHUTTER LEVER
AIR CONDITIONER AUTOMATIC CONT(C61) 09.786 USA 		8-94248-794-0 06 1 9811- ●
56 09.786 LEVER; SHUTTER,HTR UNIT
08.852 (A) USA 		8-94328-649-0 01 1 9811-0012 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
08.852 (A) USA 		8-94328-649-0 01 1 0101- ●
56 09.786 LEVER; SHUTTER,HTR UNIT
(B) USA 		8-97045-859-0 01 1 9811-0012 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
(B) USA 		8-97045-859-0 01 1 0101- ●
59 08.845 SHUTTER; HTR UNIT,SIDE
USA 		8-97130-339-0 01 1 9811-0012 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
USA 		8-97130-339-0 01 1 0101- ●
60 08.854 DOOR; MIX,HTR UNIT 8-94324-833-0 01 1 9811-0012 ● ●
60 08.854 DOOR; MIX,HTR UNIT 8-94324-833-0 01 1 0101- ●
61 08.854 CASE; HTR UNIT
(A) 		8-94328-636-3 01 1 9811-0012 ● ●
61 08.854 CASE; HTR UNIT
(A) 		8-94328-636-3 01 1 0101- ●
61 08.854 CASE; HTR UNIT
(B) USA 		8-94328-637-3 01 1 9811-0012 ● ●
61 08.854 CASE; HTR UNIT
(B) USA 		8-94328-637-3 01 1 0101- ●
61 08.854 CASE; HTR UNIT
(C) USA 		8-94328-638-2 01 1 9811-0012 ● ●
61 08.854 CASE; HTR UNIT
(C) USA 		8-94328-638-2 01 1 0101- ●
63 08.856 LINING; HTR UNIT
(A) USA 		8-97181-812-0 01 1 9811-0012 ●
63 08.856 LINING; HTR UNIT
(A) USA 		8-97069-415-1 01 1 9811- ●
63 08.856 LINING; HTR UNIT
(B) USA 		8-97081-291-1 01 1 9811- ●
65 09.786 LEVER; MIX,DOOR
USA 		8-94328-642-0 01 1 9811-0012 ●
65 09.786 LEVER; MIX,DOOR
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-94328-642-0 01 1 9811-0012 ●
65 09.786 LEVER; MIX,DOOR
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-94328-642-0 01 1 0101- ●
65 09.786 LEVER; MIX,DOOR
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97076-074-0 01 1 9811- ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
08.854 USA 		8-94328-630-0 01 1 9811-0012 ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
08.854 USA 		8-94328-630-0 01 1 0101- ●
68 08.854 CORE; HTR UNIT
USA 		8-94328-640-2 01 1 9811-0012 ●
68 08.854 CORE; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97170-860-0 01 1 9811-0009 ●
68 08.854 CORE; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97165-570-0 01 1 0010-0012 ●
68 08.854 CORE; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97170-860-0 01 1 0101- ●
68 08.854 CORE; HTR UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97170-854-0 01 1 9811- ●
69 08.852 LEVER; SHUTTER,HTR UNIT
USA 		8-97045-858-0 01 1 9811-0012 ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
USA 		8-97045-858-0 01 1 0101- ●
76 08.854 BRACKET; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97289-112-0 01 1 0101- ●
104 08.854 CAP; CASE,HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 08.845 USA 		8-94328-658-0 01 1 9811- ●
136 08.850 SCREW; PLATE
USA 		8-97045-863-0 01 1 9811-0012 ● ●
136 08.850 SCREW; PLATE
USA 		8-97045-863-0 01 1 0101- ●
142 08.854 LEVER; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) (A) USA 		8-97142-812-0 01 1 9811- ●
142 08.854 LEVER; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) (B) USA 		8-97188-871-0 01 1 9811- ●
199 08.854 SCREW; ACTUATOR
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 USA 		8-94348-809-0 04 1 9811- ●

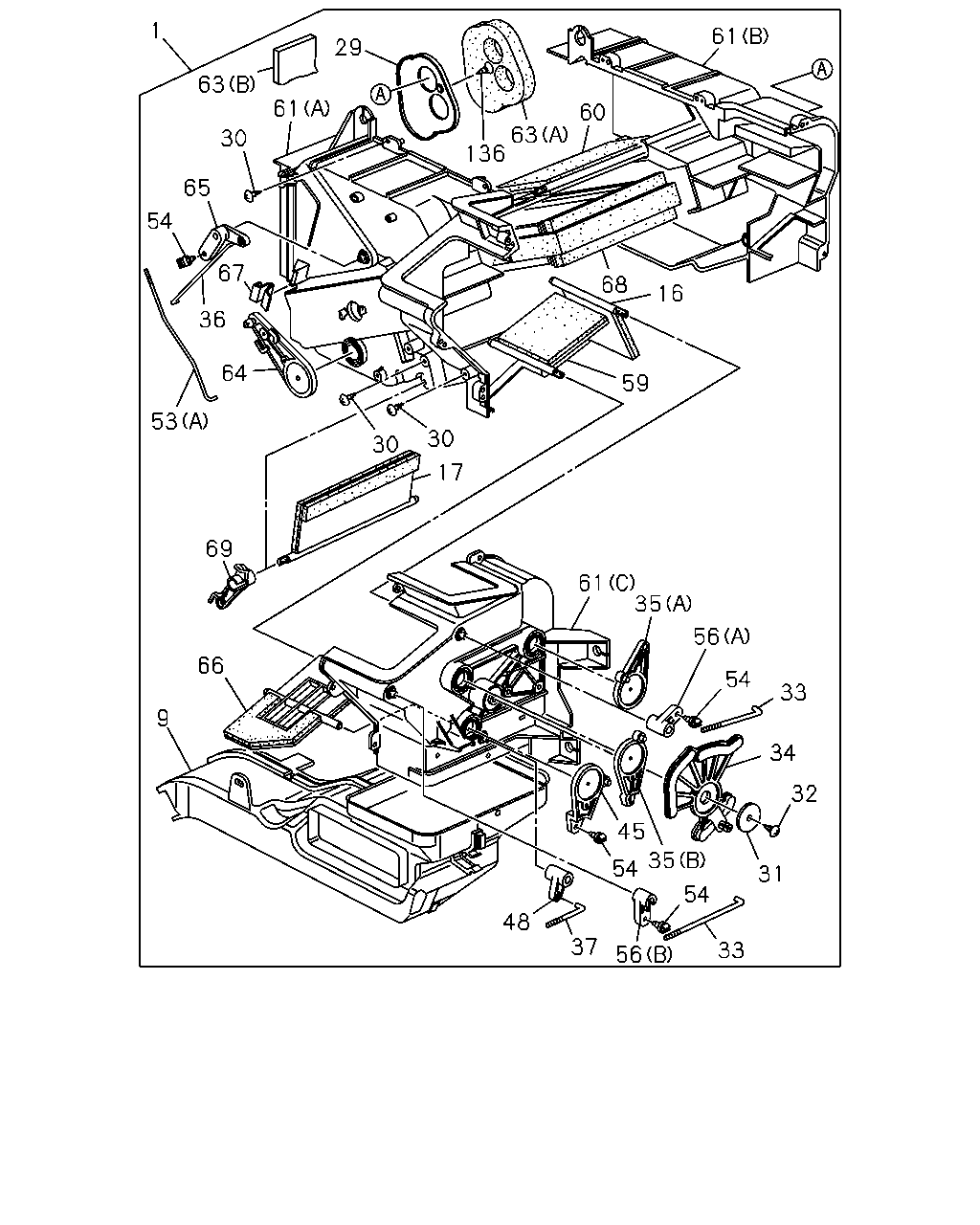

çizim 3500
1 61 29 63 61 60 63 136 30 65 54 67 68 16 36 64 59 53 30 17 30 69 61 35 56 66 54 33 9 34 32 45 35 54 31 54 48 37 33 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 08.845 HEATER UNIT
USA 		8-97137-506-0 01 1 9811-0012 ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97176-133-1 01 1 9811-0012 ●
1 08.845 HEATER UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97258-990-1 01 1 0101- ●
1 08.845 HEATER UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97144-199-0 01 1 9811- ●
9 08.854 DUCT; HTR UNIT
USA 		8-97181-290-0 01 1 9811-0012 ● ●
9 08.854 DUCT; HTR UNIT
USA 		8-97181-290-0 01 1 0101- ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
USA 		8-97161-526-0 01 1 9811-0012 ● ●
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
USA 		8-97161-526-0 01 1 0101- ●
17 09.786 SHUTTER; HTR UNIT,CENTER
USA 		8-94328-641-0 01 1 9811-0012 ● ●
17 09.786 SHUTTER; HTR UNIT,CENTER
USA 		8-94328-641-0 01 1 0101- ●
29 08.857 COVER; HTR UNIT
08.845 USA 		8-97045-865-0 01 1 9811-0012 ●
29 08.857 COVER; HTR UNIT
08.854 USA 		8-97045-862-0 01 1 9811- ●
30 08.845 SCREW; HTR UNIT
08.852 M4X16 USA 		8-94324-850-0 13 1 9811-0012 ● ●
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 M4X16 USA 		8-94324-850-0 12 1 0101- ●
30 08.845 SCREW; HTR UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 M4X16 USA 		8-94324-850-0 13 1 0101- ●
31 08.852 WASHER; HTR UNIT
USA 		8-94129-950-0 01 1 9811-0012 ● ●
31 08.852 WASHER; HTR UNIT
USA 		8-94129-950-0 01 1 0101- ●
32 08.852 SCREW; HTR UNIT
10.240 M5X20 USA 		9-09829-324-1 01 1 9811-0009 ● ●
32 08.852 SCREW; HTR UNIT
10.240 M5X20 USA 		9-09829-324-1 01 1 0010-0012 ●
32 08.852 SCREW; HTR UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 10.240 M5X20 USA 		9-09829-324-1 01 1 0010-0012 ●
32 08.852 SCREW; HTR UNIT
10.240 M5X20 USA 		9-09829-324-1 01 1 0101- ●
32 08.852 SCREW; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) 16.085 M5X16 TAPPING USA 		9-09829-323-1 01 1 0010-0012 ●
33 09.786 ROD; SHUTTER LEVER
08.852 USA 		8-94328-635-0 02 1 9811-0012 ● ●
33 09.786 ROD; SHUTTER LEVER
08.852 USA 		8-94328-635-0 02 1 0101- ●
34 09.786 LEVER; SHUTTER,HTR UNIT
USA 		8-97045-861-0 01 1 9811-0012 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97045-861-0 01 1 9811-0012 ●
34 09.786 LEVER; SHUTTER,HTR UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97045-861-0 01 1 0101- ●
34 09.786 LEVER; SHUTTER,HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97111-577-1 01 1 9811- ●
35 08.852 LEVER; SHUTTER,HTR UNIT
(A) USA 		8-94328-645-1 01 1 9811-0012 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
(A) USA 		8-94328-645-1 01 1 0101- ●
35 08.852 LEVER; SHUTTER,HTR UNIT
(B) USA 		8-97045-860-0 01 1 9811-0012 ● ●
35 08.852 LEVER; SHUTTER,HTR UNIT
(B) USA 		8-97045-860-0 01 1 0101- ●
36 08.852 ROD; HTR UNIT
09.786 USA 		8-94324-847-0 01 1 9811-0012 ●
36 08.852 ROD; HTR UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 09.786 USA 		8-94324-847-0 01 1 9811-0012 ●
36 08.852 ROD; HTR UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 09.786 USA 		8-94324-847-0 01 1 0101- ●
37 08.852 ROD; LEVER
USA 		8-94324-848-0 01 1 9811-0012 ● ●
37 08.852 ROD; LEVER
USA 		8-94324-848-0 01 1 0101- ●
45 09.786 LEVER; SHUTTER,HTR UNIT
USA 		8-94328-646-1 01 1 9811-0012 ● ●
45 09.786 LEVER; SHUTTER,HTR UNIT
USA 		8-94328-646-1 01 1 0101- ●
48 09.786 LEVER; HTR UNIT
08.852 USA 		8-94328-627-0 01 1 9811-0012 ● ●
48 09.786 LEVER; HTR UNIT
08.852 USA 		8-94328-627-0 01 1 0101- ●
53 08.866 ROD; SHUTTER LEVER
(A) USA 		8-94324-846-0 01 1 9811-0012 ● ●
53 08.866 ROD; SHUTTER LEVER
(A) USA 		8-94324-846-0 01 1 0101- ●
53 08.866 ROD; SHUTTER LEVER
AIR CONDITIONER AUTOMATIC CONT(C61) 08.852 (B) USA 		8-94328-635-0 01 1 9811- ●
53 08.866 ROD; SHUTTER LEVER
AIR CONDITIONER AUTOMATIC CONT(C61) (C) USA 		8-97076-075-0 01 1 9811- ●
54 08.854 CLIP; SHUTTER LEVER
09.786 USA 		8-94248-794-0 04 1 9811-0012 ●
54 08.854 CLIP; SHUTTER LEVER
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 09.786 USA 		8-94248-794-0 04 1 9811-0012 ●
54 08.854 CLIP; SHUTTER LEVER
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 09.786 USA 		8-94248-794-0 04 1 0101- ●
54 08.854 CLIP; SHUTTER LEVER
AIR CONDITIONER AUTOMATIC CONT(C61) 09.786 USA 		8-94248-794-0 06 1 9811- ●
56 09.786 LEVER; SHUTTER,HTR UNIT
08.852 (A) USA 		8-94328-649-0 01 1 9811-0012 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
08.852 (A) USA 		8-94328-649-0 01 1 0101- ●
56 09.786 LEVER; SHUTTER,HTR UNIT
(B) USA 		8-97045-859-0 01 1 9811-0012 ● ●
56 09.786 LEVER; SHUTTER,HTR UNIT
(B) USA 		8-97045-859-0 01 1 0101- ●
59 08.845 SHUTTER; HTR UNIT,SIDE
USA 		8-97130-339-0 01 1 9811-0012 ● ●
59 08.845 SHUTTER; HTR UNIT,SIDE
USA 		8-97130-339-0 01 1 0101- ●
60 08.854 DOOR; MIX,HTR UNIT 8-94324-833-0 01 1 9811-0012 ● ●
60 08.854 DOOR; MIX,HTR UNIT 8-94324-833-0 01 1 0101- ●
61 08.854 CASE; HTR UNIT
(A) 		8-94328-636-3 01 1 9811-0012 ● ●
61 08.854 CASE; HTR UNIT
(A) 		8-94328-636-3 01 1 0101- ●
61 08.854 CASE; HTR UNIT
(B) USA 		8-94328-637-3 01 1 9811-0012 ● ●
61 08.854 CASE; HTR UNIT
(B) USA 		8-94328-637-3 01 1 0101- ●
61 08.854 CASE; HTR UNIT
(C) USA 		8-94328-638-2 01 1 9811-0012 ● ●
61 08.854 CASE; HTR UNIT
(C) USA 		8-94328-638-2 01 1 0101- ●
63 08.856 LINING; HTR UNIT
(A) USA 		8-97181-812-0 01 1 9811-0012 ●
63 08.856 LINING; HTR UNIT
(A) USA 		8-97069-415-1 01 1 9811- ●
63 08.856 LINING; HTR UNIT
(B) USA 		8-97081-291-1 01 1 9811- ●
64 09.786 LEVER; MIX,DOOR 8-94324-840-1 01 1 9811-0012 ●
64 09.786 LEVER; MIX,DOOR
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 		8-94324-840-1 01 1 9811-0012 ●
64 09.786 LEVER; MIX,DOOR
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 		8-94324-840-1 01 1 0101- ●
65 09.786 LEVER; MIX,DOOR
USA 		8-94328-642-0 01 1 9811-0012 ●
65 09.786 LEVER; MIX,DOOR
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-94328-642-0 01 1 9811-0012 ●
65 09.786 LEVER; MIX,DOOR
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-94328-642-0 01 1 0101- ●
65 09.786 LEVER; MIX,DOOR
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97076-074-0 01 1 9811- ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
08.854 USA 		8-94328-630-0 01 1 9811-0012 ● ●
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
08.854 USA 		8-94328-630-0 01 1 0101- ●
67 08.854 CLIP; HTR UNIT
09.787 USA 		8-94337-654-0 02 1 9811-0012 ●
67 08.854 CLIP; HTR UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 09.787 USA 		8-94337-654-0 02 1 9811-0012 ●
67 08.854 CLIP; HTR UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) 09.787 USA 		8-94337-654-0 02 1 0101- ●
68 08.854 CORE; HTR UNIT
USA 		8-94328-640-2 01 1 9811-0012 ●
68 08.854 CORE; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97170-860-0 01 1 9811-0009 ●
68 08.854 CORE; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97165-570-0 01 1 0010-0012 ●
68 08.854 CORE; HTR UNIT
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97170-860-0 01 1 0101- ●
68 08.854 CORE; HTR UNIT
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97170-854-0 01 1 9811- ●
69 08.852 LEVER; SHUTTER,HTR UNIT
USA 		8-97045-858-0 01 1 9811-0012 ● ●
69 08.852 LEVER; SHUTTER,HTR UNIT
USA 		8-97045-858-0 01 1 0101- ●
136 08.850 SCREW; PLATE
USA 		8-97045-863-0 01 1 9811-0012 ● ●
136 08.850 SCREW; PLATE
USA 		8-97045-863-0 01 1 0101- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
