8-52 — PIPING; AIR CONDITIONING (#32687) — 40 parça

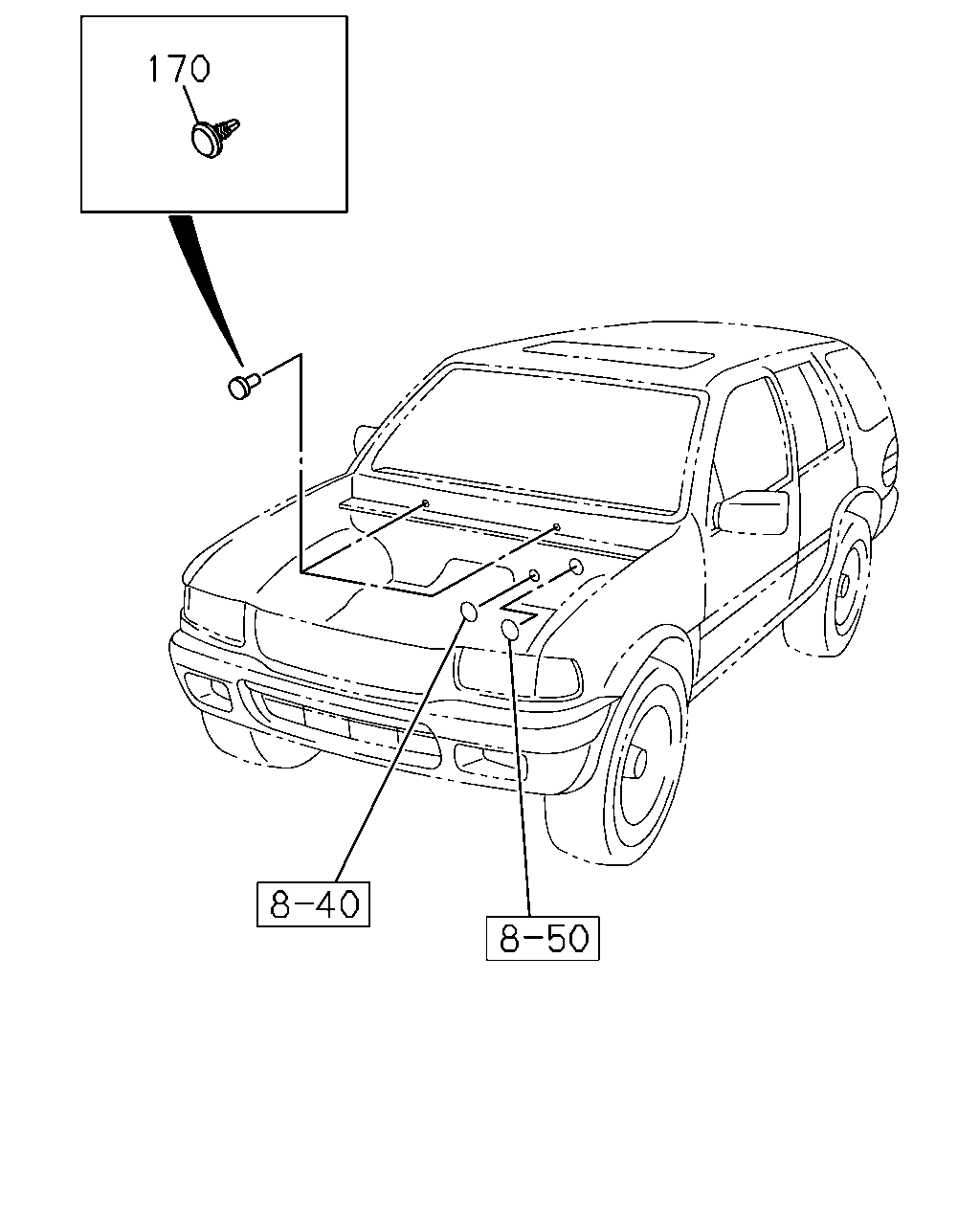

çizim 3223
170
BalonParca AdiParca NoAdetTipApplied Date A B
170 09.220 PLUG; HOLE
16.067 		8-94279-922-0 02 1 9811-0012 ● ●
170 09.220 PLUG; HOLE
16.067 		8-94279-922-0 02 1 0101- ●

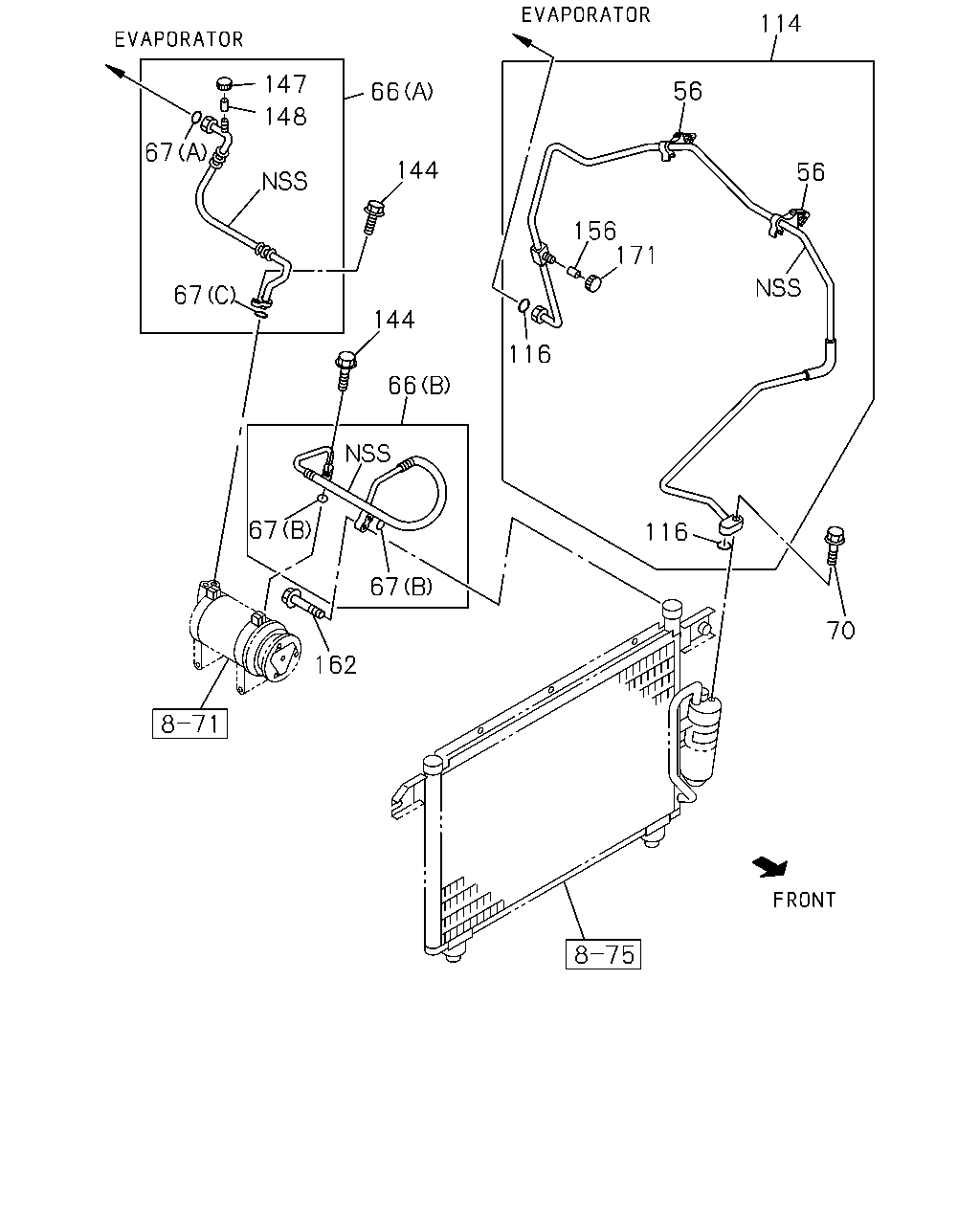

çizim 36447
114 147 56 66 148 67 144 56 156 171 67 144 116 66 67 116 67 70 162
BalonParca AdiParca NoAdetTipApplied Date A B
56 09.242 CLIP; PIPE,A/C
09.196 USA 		8-94457-163-0 02 1 9811-0012 ● ●
56 09.242 CLIP; PIPE,A/C
09.196 USA 		8-94457-163-0 02 1 0101- ●
66 09.225 HOSE; FLEX,A/C
(B) USA 		8-97128-670-1 01 1 9811-0012 ●
66 09.225 HOSE; FLEX,A/C
(A) USA 		8-97165-999-0 01 1 9811-9811 ●
66 09.225 HOSE; FLEX,A/C
(A) USA 		8-97215-979-0 01 1 9812-0012 ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (B) USA 		8-97128-668-2 01 1 9811-0012 ●
66 09.225 HOSE; FLEX,A/C
(B) USA 		8-97258-496-0 01 1 0101-0108 ●
66 09.225 HOSE; FLEX,A/C
(A) USA 		8-97301-142-0 01 1 0109- ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) USA 		8-97143-178-1 01 1 9811-9811 ●
66 09.225 HOSE; FLEX,A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) (A) USA 		8-97215-978-0 01 1 9812-0012 ●
66 09.225 HOSE; FLEX,A/C
(A) USA 		8-97215-978-0 01 1 0101-0108 ●
66 09.225 HOSE; FLEX,A/C
(B) USA 		8-97287-632-0 01 1 0109- ●
67 09.260 GASKET; FLEX HOSE
(B) ID=15.5 USA 		8-97161-777-0 02 1 9811-0012 ● ●
67 09.260 GASKET; FLEX HOSE
(B) ID=15.5 USA 		8-97161-777-0 02 1 0101- ●
67 09.260 GASKET; FLEX HOSE
09.225 (A),(C) ID=18.3 USA 		8-97161-778-0 02 1 9811-9811 ● ●
67 09.260 GASKET; FLEX HOSE
09.225 (A) ID=18.3 USA 		8-97161-778-0 01 1 9812-0012 ● ●
67 09.260 GASKET; FLEX HOSE
09.225 (A) ID=18.3 USA 		8-97161-778-0 01 1 0101- ●
67 09.260 GASKET; FLEX HOSE
(C) ID=21.3 USA 		8-97223-125-0 01 1 9812-0012 ● ●
67 09.260 GASKET; FLEX HOSE
(C) ID=21.3 USA 		8-97223-125-0 01 1 0101- ●
70 00.206 BOLT; PIPE TO BODY
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9811-0012 ● ●
70 00.206 BOLT; PIPE TO BODY
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0101- ●
114 09.220 PIPE; TANK TO EVAP
USA 		8-97137-516-2 01 1 9811-0012 ● ●
114 09.220 PIPE; TANK TO EVAP
USA 		8-97215-974-1 01 1 0101-0108 ●
114 09.220 PIPE; TANK TO EVAP
USA 		8-97301-107-0 01 1 0109- ●
116 09.225 GASKET; PIPE
09.195 USA 		8-97161-776-0 02 1 9811-0012 ● ●
116 09.225 GASKET; PIPE
09.195 USA 		8-97161-776-0 02 1 0101- ●
144 09.242 BOLT; CONN TO CMPR
02.559 M8X25 FLANGE USA 		0-28680-825-0 02 1 9811-0012 ● ●
144 09.242 BOLT; CONN TO CMPR
02.559 M8X25 FLANGE USA 		0-28680-825-0 02 1 0101- ●
147 09.242 CAP; FLEX HOSE
USA 		8-97113-884-0 01 1 9811-0012 ● ●
147 09.242 CAP; FLEX HOSE
USA 		8-97113-884-0 01 1 0101- ●
148 09.262 VALVE; FLEX HOSE
USA 		8-97094-695-0 01 1 9812-0003 ● ●
148 09.262 VALVE; FLEX HOSE
USA 		8-97094-695-0 01 1 0101- ●
156 09.198 VALVE; PIPE
09.262 USA 		8-97094-695-0 01 1 9811-0012 ● ●
156 09.198 VALVE; PIPE
09.262 USA 		8-97094-695-0 01 1 0101- ●
162 09.173 BOLT; FLEX HOSE
02.559 M8X25 FLANGE USA 		0-28680-825-0 01 1 9811-0012 ● ●
162 09.173 BOLT; FLEX HOSE
02.559 M8X25 FLANGE USA 		0-28680-825-0 01 1 0101- ●
171 09.242 CAP; PIPE
USA 		8-97113-883-0 01 1 9811-0012 ● ●
171 09.242 CAP; PIPE
USA 		8-97113-883-0 01 1 0101- ●
