8-45 — HEATER PIPING (#32685) — 28 parça

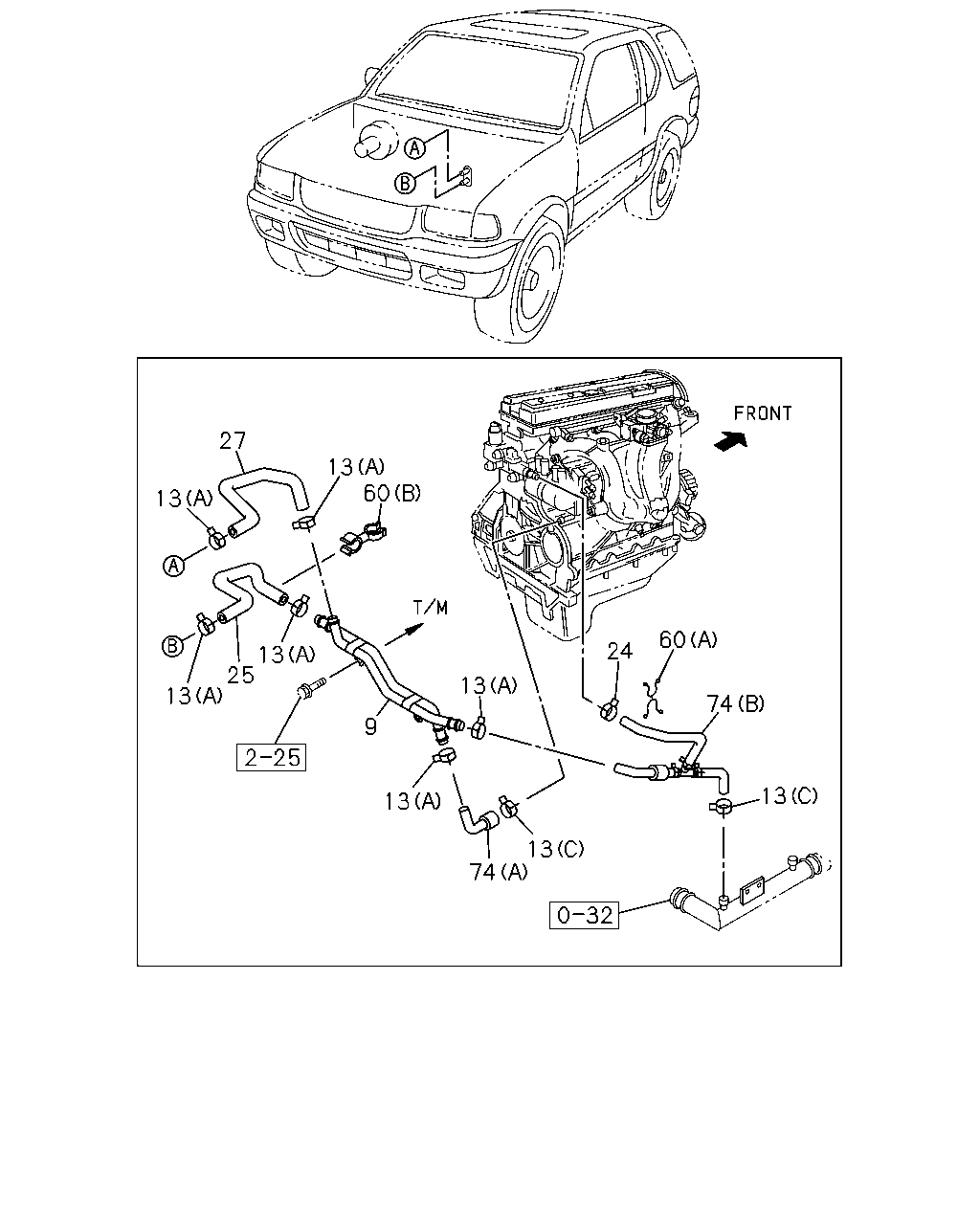

çizim 36448
27 13 60 13 60 24 13 25 13 13 74 9 13 13 13 74
BalonParca AdiParca NoAdetTipApplied Date A B
9 08.846 PIPE; HTR
USA 		8-97164-903-0 01 1 9811-0012 ●
13 08.846 CLIP; HTR HOSE
(C) ID=23 		8-94382-402-0 02 1 9811-0012 ●
13 08.846 CLIP; HTR HOSE
(A) ID=22 		8-94382-401-0 02 1 9811-0012 ● ●
13 08.846 CLIP; HTR HOSE
(A) ID=22 		8-94382-401-0 02 1 9811-0012 ●
13 08.846 CLIP; HTR HOSE
(A) ID=22 		8-94382-401-0 02 1 9811-0012 ●
13 08.846 CLIP; HTR HOSE
(A) ID=22 		8-94382-401-0 02 1 0101- ●
13 08.846 CLIP; HTR HOSE
(B) ID=25 		8-97208-001-1 02 1 9811- ●
24 08.846 CLAMP; WATER HOSE
ID=22 		8-94382-401-0 01 1 9811-0012 ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
USA 		8-97165-992-0 01 1 9811-0012 ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
USA 		8-97144-261-1 01 1 9811- ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
USA 		8-97165-991-0 01 1 9811-0012 ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
USA 		8-97144-258-1 01 1 9811- ●
60 01.166 CLIP; HOSE
09.242 (A) ID=12.5 & 24 		5-09709-034-0 01 1 9811-0012 ●
60 01.166 CLIP; HOSE
06.672 (B) ID=20.2X2 THA 		8-94480-371-0 01 1 9811-0012 ●
74 08.866 HOSE; WATER,ENG TO PIPE
(A) USA 		8-97164-946-0 01 1 9811-0012 ●
74 08.866 HOSE; WATER,ENG TO PIPE
(B) USA 		8-97164-947-1 01 1 9811-0012 ●

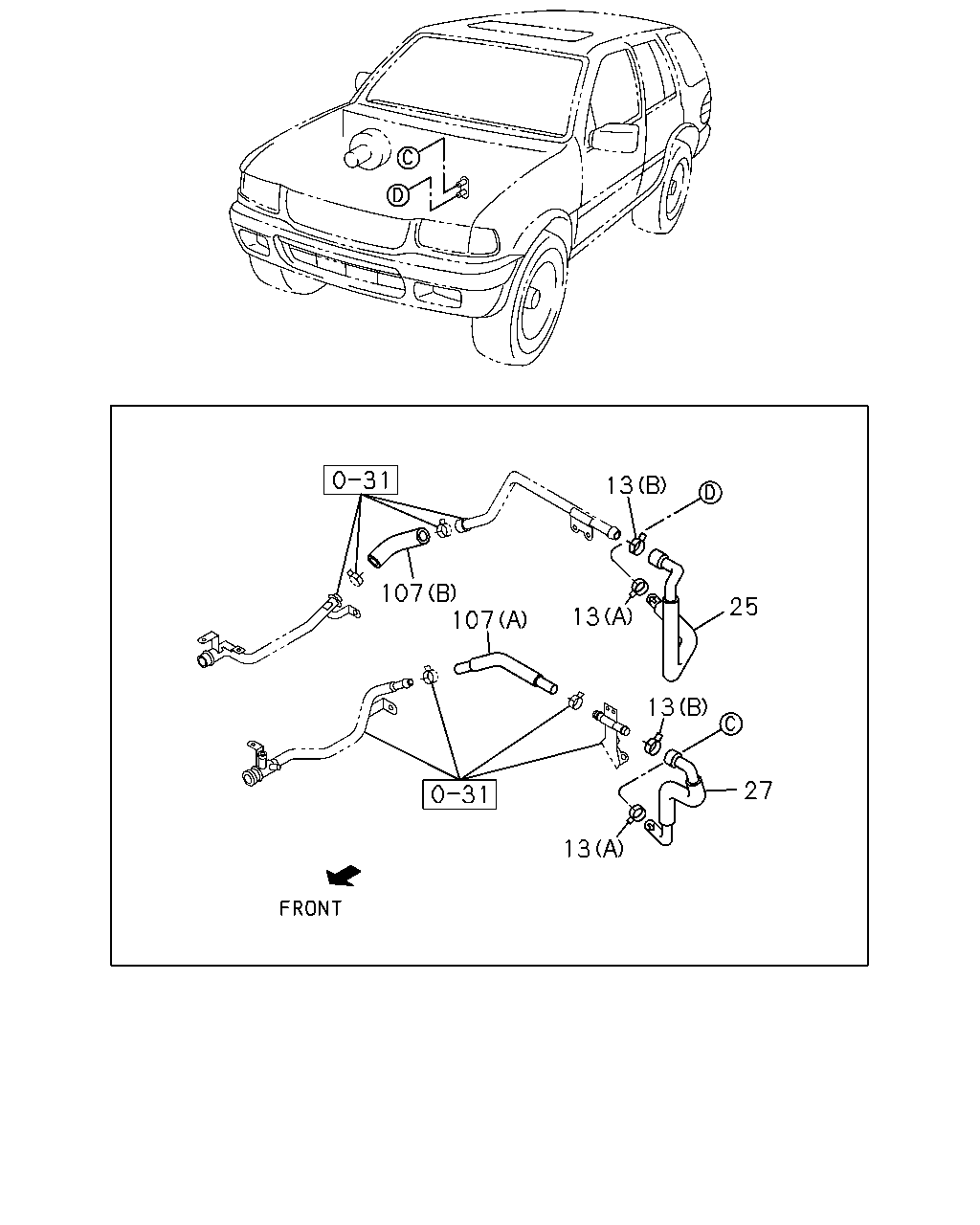

çizim 36623
13 107 107 13 25 13 27 13
BalonParca AdiParca NoAdetTipApplied Date A B
13 08.846 CLIP; HTR HOSE
(C) ID=23 		8-94382-402-0 02 1 9811-0012 ●
13 08.846 CLIP; HTR HOSE
(A) ID=22 		8-94382-401-0 02 1 9811-0012 ● ●
13 08.846 CLIP; HTR HOSE
(A) ID=22 		8-94382-401-0 02 1 9811-0012 ●
13 08.846 CLIP; HTR HOSE
(A) ID=22 		8-94382-401-0 02 1 9811-0012 ●
13 08.846 CLIP; HTR HOSE
(A) ID=22 		8-94382-401-0 02 1 0101- ●
13 08.846 CLIP; HTR HOSE
(B) ID=25 		8-97208-001-1 02 1 9811- ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
USA 		8-97165-992-0 01 1 9811-0012 ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
USA 		8-97144-261-1 01 1 9811- ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
USA 		8-97165-991-0 01 1 9811-0012 ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
USA 		8-97144-258-1 01 1 9811- ●
107 08.864 HOSE; WATER,HTR
(B) FEED 		8-97160-625-2 01 1 9811- ●
107 08.864 HOSE; WATER,HTR
(A) RETURN 		8-97160-626-3 01 1 9811- ●
