◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#32683) — 30 parça

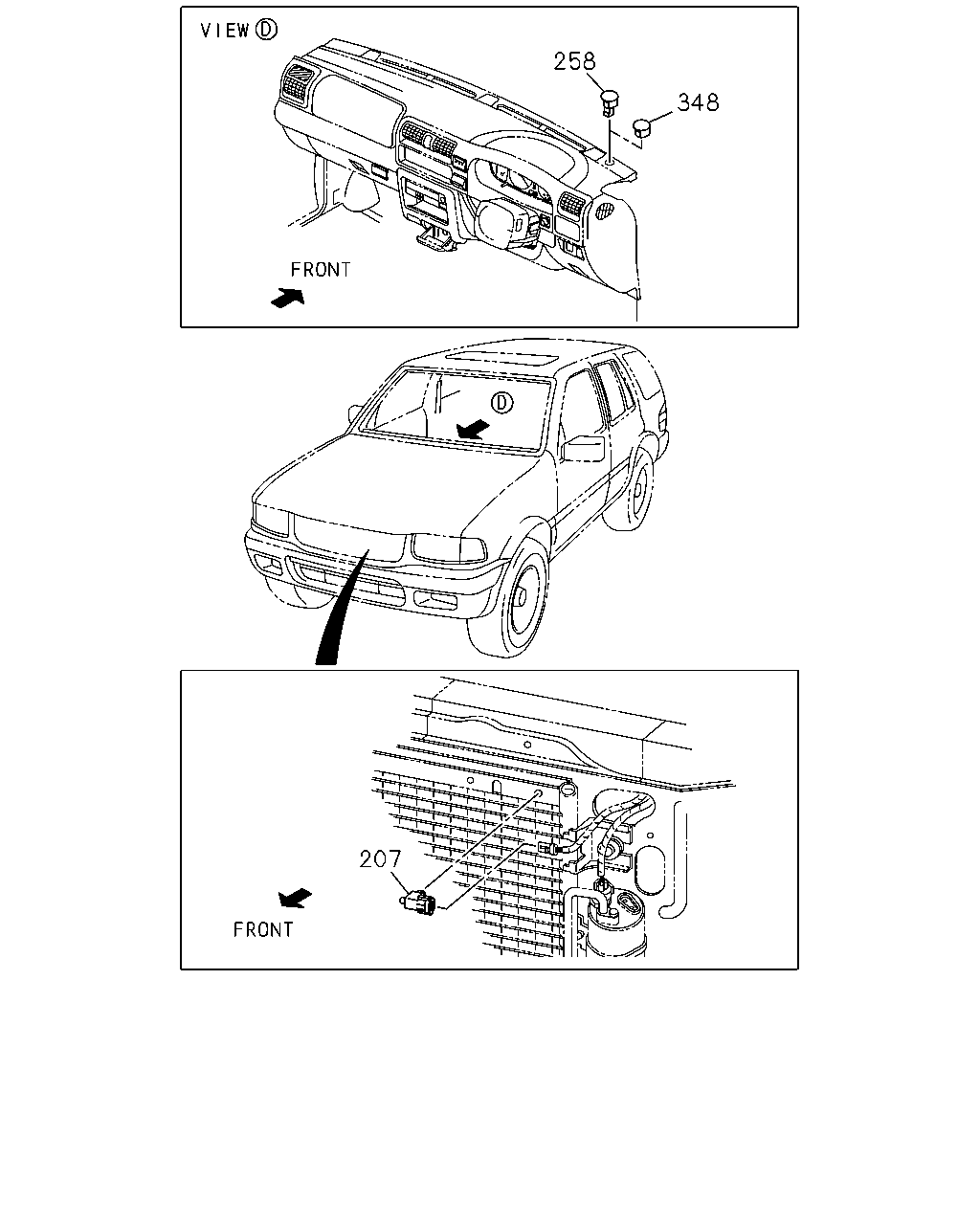

çizim 3956
258 348 207
BalonParca AdiParca NoAdetTipApplied Date A B
207 08.845 SENSOR; AMBIENT
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97177-549-0 01 1 9811- ●
258 08.845 SENSOR; SUN
AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97177-550-1 01 1 9811- ●
348 08.850 COVER; SUN SENSOR
USA 		8-97177-551-1 01 1 9811-0012 ●
348 08.850 COVER; SUN SENSOR
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97177-551-1 01 1 9811-0012 ●
348 08.850 COVER; SUN SENSOR
EXC. AIR CONDITIONER AUTOMATIC CONT(C61) USA 		8-97177-551-1 01 1 0101- ●

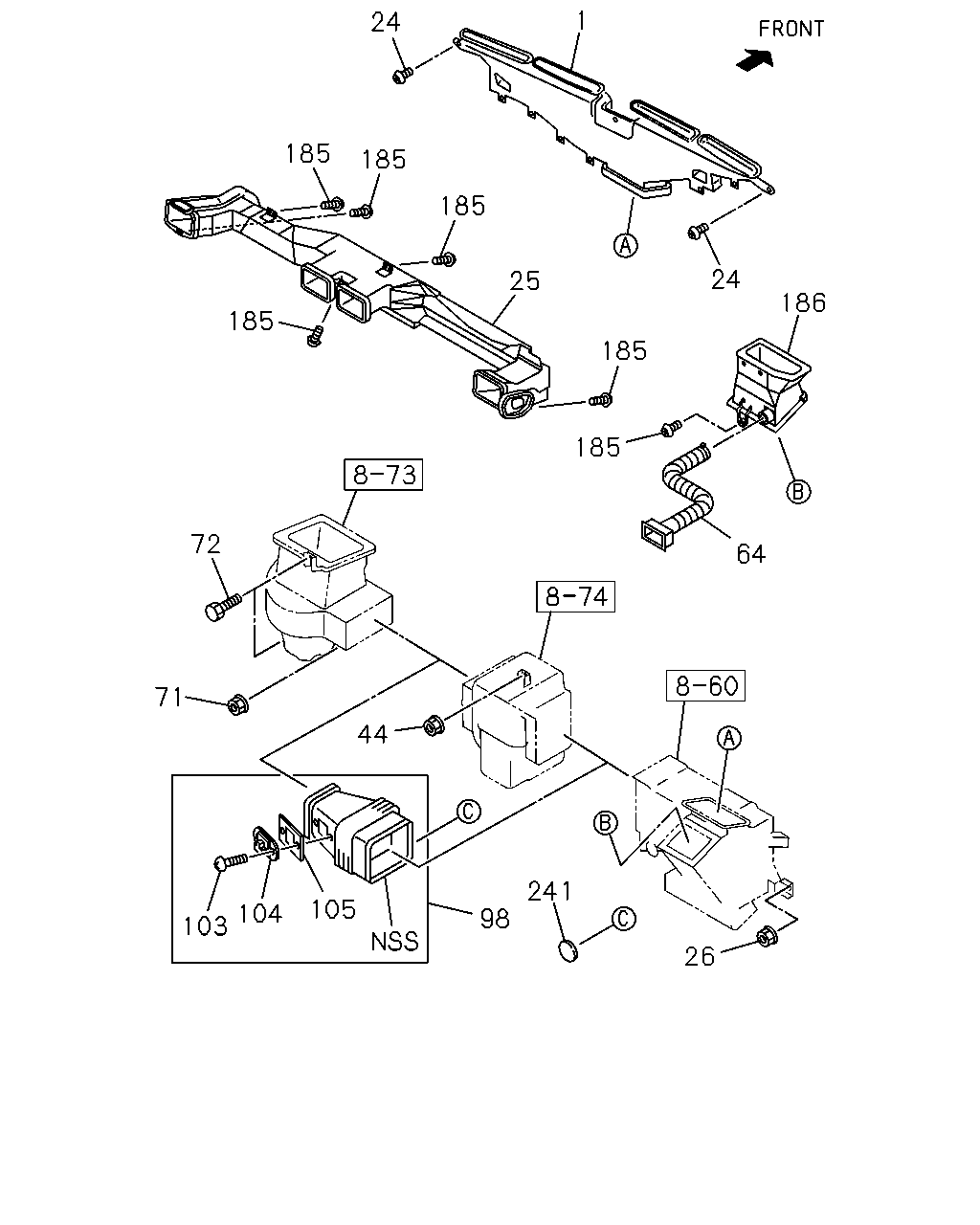

çizim 36449
1 24 185 185 185 24 25 186 185 185 185 72 64 71 44 241 98 105 104 103 26
BalonParca AdiParca NoAdetTipApplied Date A B
1 09.779 NOZZLE; DEFROSTER,INST PNL
USA 		8-97121-713-0 01 1 9811-0012 ● ●
1 09.779 NOZZLE; DEFROSTER,INST PNL
USA 		8-97121-713-0 01 1 0101- ●
24 03.890 SCREW; NOZZLE TO INST PNL
09.743 M5X16 USA 		8-94295-854-0 02 1 9811-0012 ● ●
24 03.890 SCREW; NOZZLE TO INST PNL
09.743 M5X16 USA 		8-94295-854-0 02 1 0101- ●
25 09.786 DUCT; CENTER
USA 		8-97121-719-0 01 1 9811-0012 ● ●
25 09.786 DUCT; CENTER
USA 		8-97121-719-1 01 1 0101- ●
26 08.845 NUT; HTR
07.833 M6 FLANGE 		8-97063-399-0 04 1 9811-0012 ● ●
26 08.845 NUT; HTR
07.833 M6 FLANGE 		8-97063-399-0 04 1 0101- ●
44 09.222 NUT; EVAP
07.833 M6 FLANGE 		8-97063-399-0 02 1 9811-0012 ● ●
44 09.222 NUT; EVAP
07.833 M6 FLANGE 		8-97063-399-0 02 1 0101- ●
64 09.264 DUCT; VENT,DRIVER SIDE
USA 		8-97121-722-0 01 1 9811-0003 ● ●
71 08.845 NUT; BLOWER UNIT TO DASH
07.833 M6 FLANGE 		8-97063-399-0 01 1 9811-0012 ● ●
71 08.845 NUT; BLOWER UNIT TO DASH
07.833 M6 FLANGE 		8-97063-399-0 01 1 0101- ●
72 08.857 BOLT; BLOWER UNIT
06.635 M6X16 FLANGE 		0-28480-616-0 02 1 9811-0012 ● ●
72 08.857 BOLT; BLOWER UNIT
06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0101- ●
98 09.262 DUCT; BLOWER UNIT TO HTR UNIT
EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER AUTOMATIC CONT(C61) USA 		8-94376-107-0 01 1 9811-0003 ●
103 08.855 SCREW; TAPPING,RESISTOR FIX
EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER AUTOMATIC CONT(C61) 09.789 M4X16 TAPPING USA 		1-83579-114-0 02 1 9811-0003 ●
104 08.855 RESISTOR; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER AUTOMATIC CONT(C61) USA 		8-97045-850-0 01 1 9811-0003 ●
105 08.856 PLATE; HTR DUCT
EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER AUTOMATIC CONT(C61) 00.030 USA 		8-97045-851-0 01 1 9811-0003 ●
185 09.262 SCREW; VENT DUCT
09.743 M5X16 USA 		8-94295-854-0 06 1 9811-0012 ● ●
185 09.262 SCREW; VENT DUCT
09.743 M5X16 USA 		8-94295-854-0 06 1 0101- ●
186 09.786 DUCT; VENTILATOR
USA 		8-97121-721-0 01 1 9811-0003 ● ●
186 09.786 DUCT; VENTILATOR
USA 		8-97215-962-0 01 1 0004-0012 ● ●
186 09.786 DUCT; VENTILATOR
USA 		8-97215-962-0 01 1 0101- ●
241 16.550 PLUG; RUBBER,EVAP DRAIN HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60), AIRCONDITIONER AUTOMATIC CONT(C61) 00.206 		8-94222-309-1 01 1 9811-0003 ●
