8-28 — CHASSIS ELECTRICAL (#32682) — 62 parça

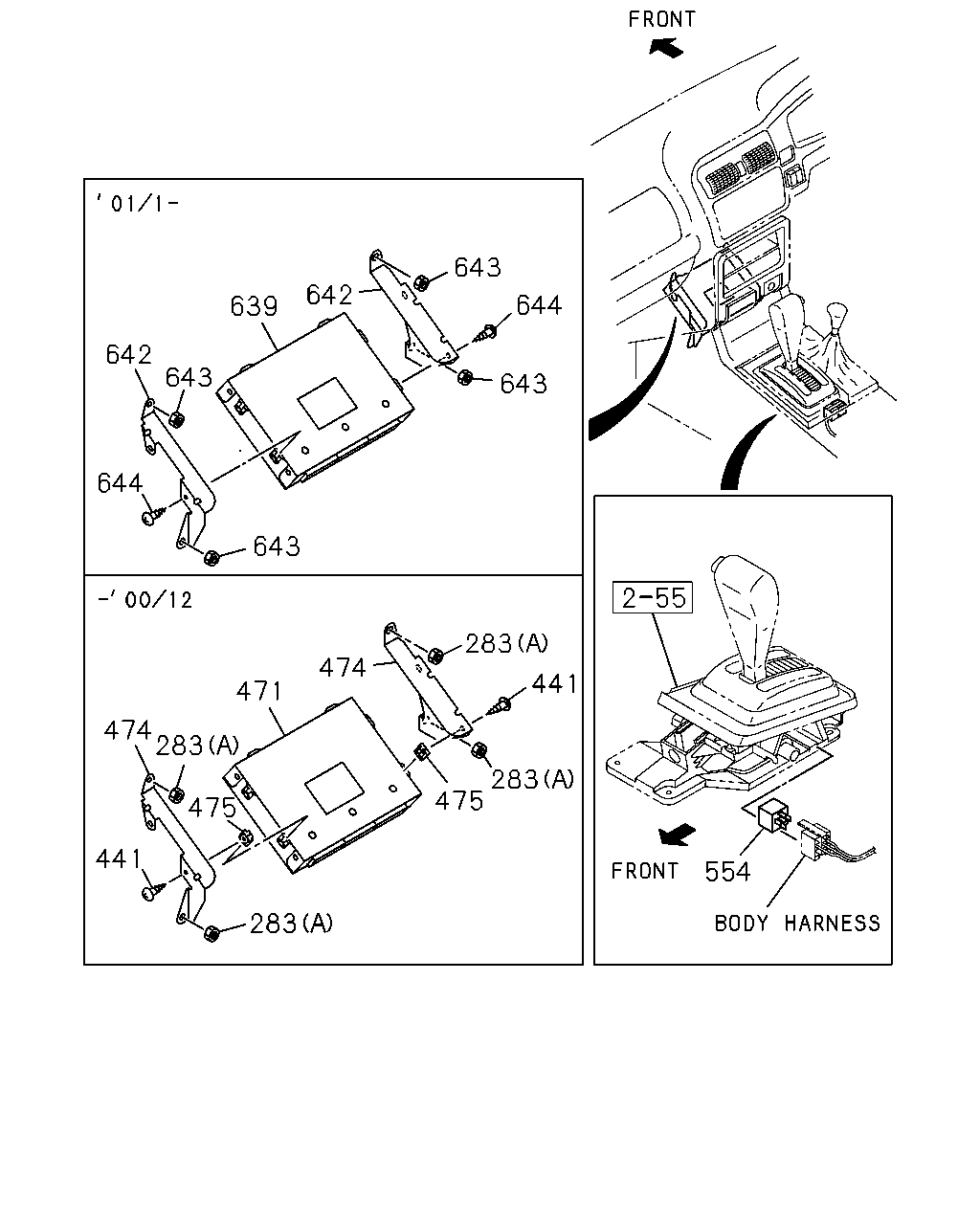

çizim 36621
643 644 642 639 642 643 643 644 643 283 474 441 471 283 475 474 283 475 441 554 283
BalonParca AdiParca NoAdetTipApplied Date A B
283 02.810 NUT; BRKT
04.594 (A) M6 FLANGE 		0-91150-106-0 04 1 9811-0012 ●
283 02.810 NUT; BRKT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0101- ●
441 02.575 SCREW; CONT UNIT
06.514 M4X10 TAPPING W/PL WASHER 		0-74100-410-0 04 1 9811-0012 ●
471 09.766 CONTROL MODULE; POWER TRAIN
A/T THM 4 SPEED(RMQ) USA 		8-12207-159-0 01 1 9811-0108 ●
471 09.766 CONTROL MODULE; POWER TRAIN
A/T THM 4 SPEED(RMQ) USA 		8-97300-748-2 01 1 0109- ●
471 09.766 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) USA 		8-12207-169-0 01 1 9811-0108 ●
471 09.766 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) USA 		8-97300-749-1 01 1 0109- ●
474 09.766 BRACKET; PCM 8-97125-870-1 01 1 9811-0012 ●
474 09.766 BRACKET; PCM 8-97125-869-1 01 1 9811-0012 ●
474 09.766 BRACKET; PCM 8-97208-955-1 01 1 0101- ●
475 09.765 GROMMET; PCM
04.342 		8-97110-216-1 04 1 9811-0012 ●
554 02.510 RELAY; SHIFT LOCK
A/T THM 4 SPEED(RMQ) 12V OMRON USA 		8-97125-441-1 01 1 9811- ●
639 07.450 CONTROL UNIT; SUSP
ACTIVE RIDE CONTROL(7WD) 		8-97238-570-1 01 1 0101- ●
642 07.450 BRACKET; CONT UNIT,SUSP
ACTIVE RIDE CONTROL(7WD) 09.766 		8-97125-870-1 01 1 0101- ●
642 07.450 BRACKET; CONT UNIT,SUSP
ACTIVE RIDE CONTROL(7WD) 09.766 		8-97125-869-1 01 1 0101- ●
643 07.450 NUT; BRKT,CONT UNIT
ACTIVE RIDE CONTROL(7WD) 04.594 M6 FLANGE 		0-91150-106-0 04 1 0101- ●
644 07.450 SCREW; CONT UNIT,SUSP
ACTIVE RIDE CONTROL(7WD) 16.545 M4X10 W/PL WASHER 		9-03900-410-0 04 1 0101- ●

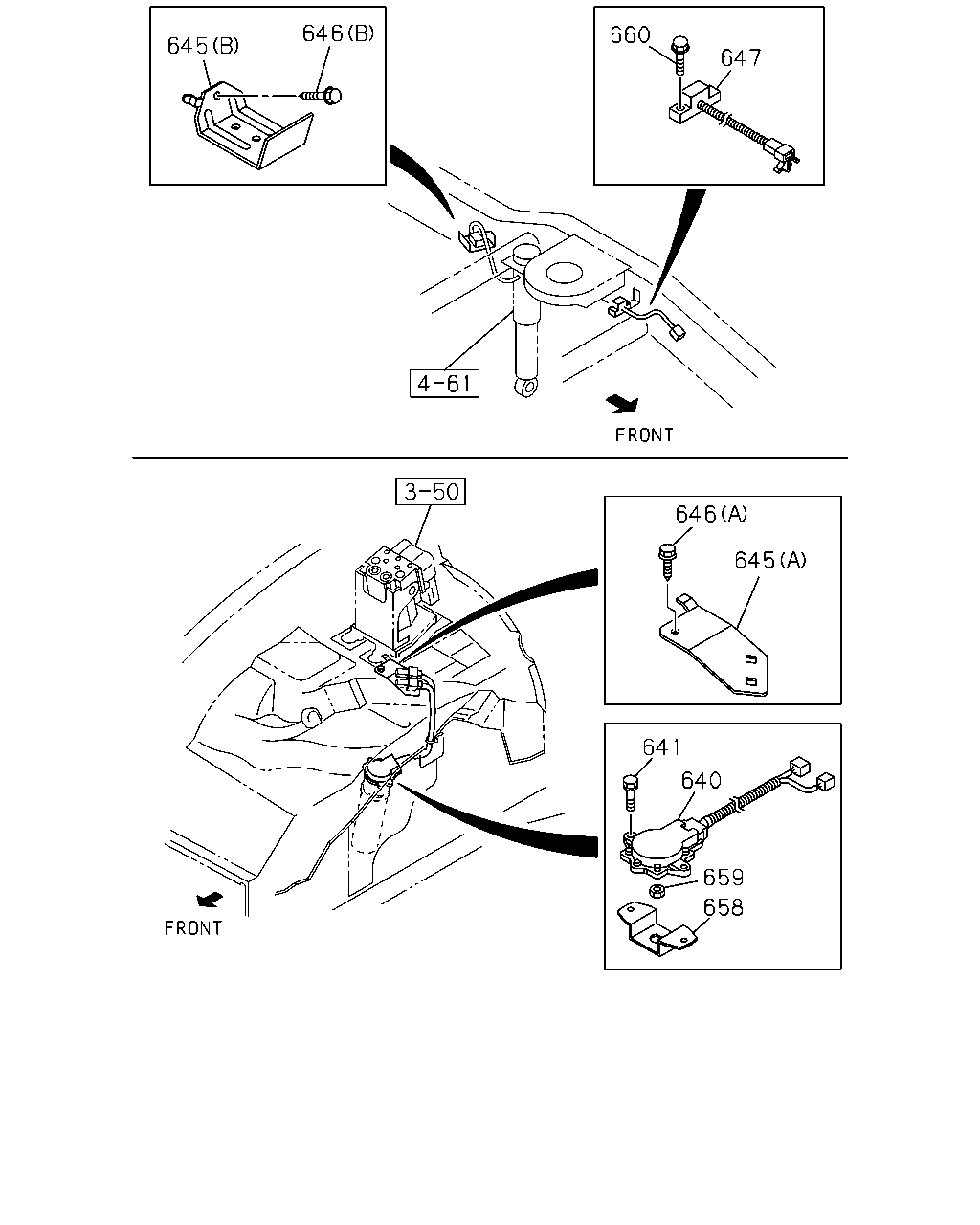

çizim 39145
646 660 645 647 646 645 641 640 659 658
BalonParca AdiParca NoAdetTipApplied Date A B
640 07.450 ACTUATOR; S/ABS
ACTIVE RIDE CONTROL(7WD) 		8-97214-166-3 02 1 0101- ●
641 07.450 BOLT; ACTUATOR
ACTIVE RIDE CONTROL(7WD) 03.162 M5X20 W/LK WASHER 		8-94428-007-0 04 1 0101- ●
645 07.450 BRACKET; CONNECTOR
ACTIVE RIDE CONTROL(7WD) (A) 		8-97216-512-3 01 1 0101- ●
645 07.450 BRACKET; CONNECTOR
ACTIVE RIDE CONTROL(7WD) (B) 		8-97216-513-0 02 1 0101- ●
646 07.450 BOLT; BRKT,CONNECTOR
ACTIVE RIDE CONTROL(7WD) 06.635 (A) M6X16 FLANGE 		0-28480-616-0 01 1 0101- ●
646 07.450 BOLT; BRKT,CONNECTOR
ACTIVE RIDE CONTROL(7WD) 04.595 (B) M8X20 FLANGE 		0-28480-820-0 02 1 0101- ●
647 07.450 SENSOR; VERTICAL G
ACTIVE RIDE CONTROL(7WD) 		8-97214-138-1 01 1 0101- ●
658 07.450 BRACKET; ACTUATOR,S/ABS
ACTIVE RIDE CONTROL(7WD) 07.380 		8-97220-374-0 02 1 0101- ●
659 07.450 NUT; BRKT,ACTUATOR
ACTIVE RIDE CONTROL(7WD) 07.347 M12 		9-99111-412-0 02 1 0101- ●
660 07.450 BOLT; BRKT,SENSOR
ACTIVE RIDE CONTROL(7WD) 02.559 M6X25 FLANGE 		0-28480-625-0 02 1 0101- ●

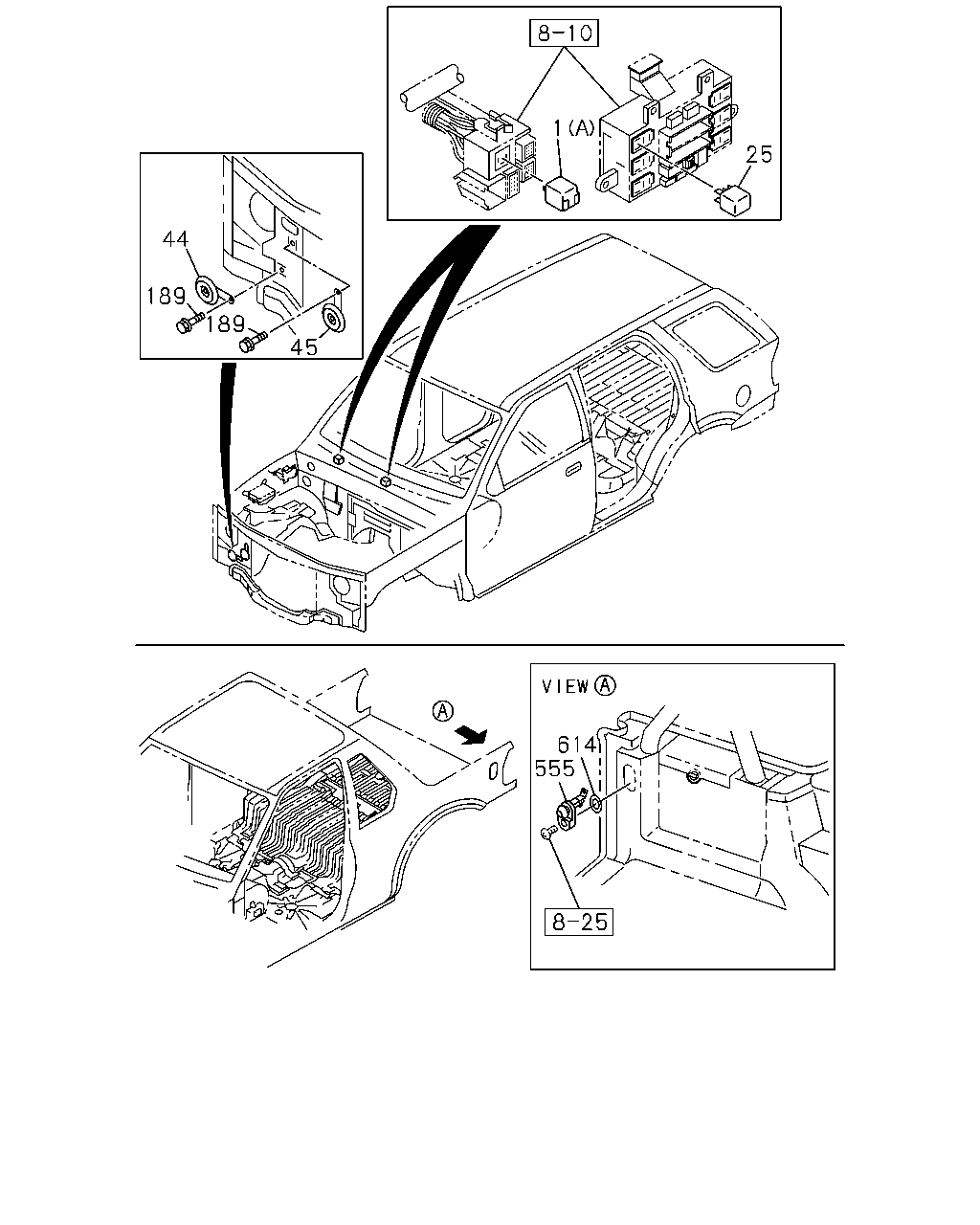

çizim 39180
1 25 44 189 45 189 614 555
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.575 UNIT; FLASHER
(A) USA 		8-97147-862-1 01 1 9811-0012 ● ●
1 02.575 UNIT; FLASHER
(B) 		8-97245-152-0 01 1 0101- ●
25 02.100 RELAY; TAIL LAMP
USA 		8-97125-444-0 01 1 9811-0012 ● ●
25 02.100 RELAY; TAIL LAMP
USA 		8-97125-444-0 01 1 0101- ●
44 02.810 HORN; HIGH NOTE
USA 		8-97148-561-2 01 1 9811-0012 ● ●
44 02.810 HORN; HIGH NOTE
USA 		8-97148-561-2 01 1 0101- ●
45 02.810 HORN; LOW NOTE
USA 		8-97148-563-2 01 1 9811-0012 ● ●
45 02.810 HORN; LOW NOTE
USA 		8-97148-563-2 01 1 0101- ●
189 02.812 BOLT; HORN
02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9811-0012 ● ●
189 02.812 BOLT; HORN
02.343 M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0101- ●
555 09.765 SWITCH; TAIL GATE
11.950 		8-97031-640-2 01 1 9811-0012 ●
614 09.988 WASHER; PL,SW
02.334 ID=8.4 OD=26 		9-09164-808-0 01 1 9811-9904 ●

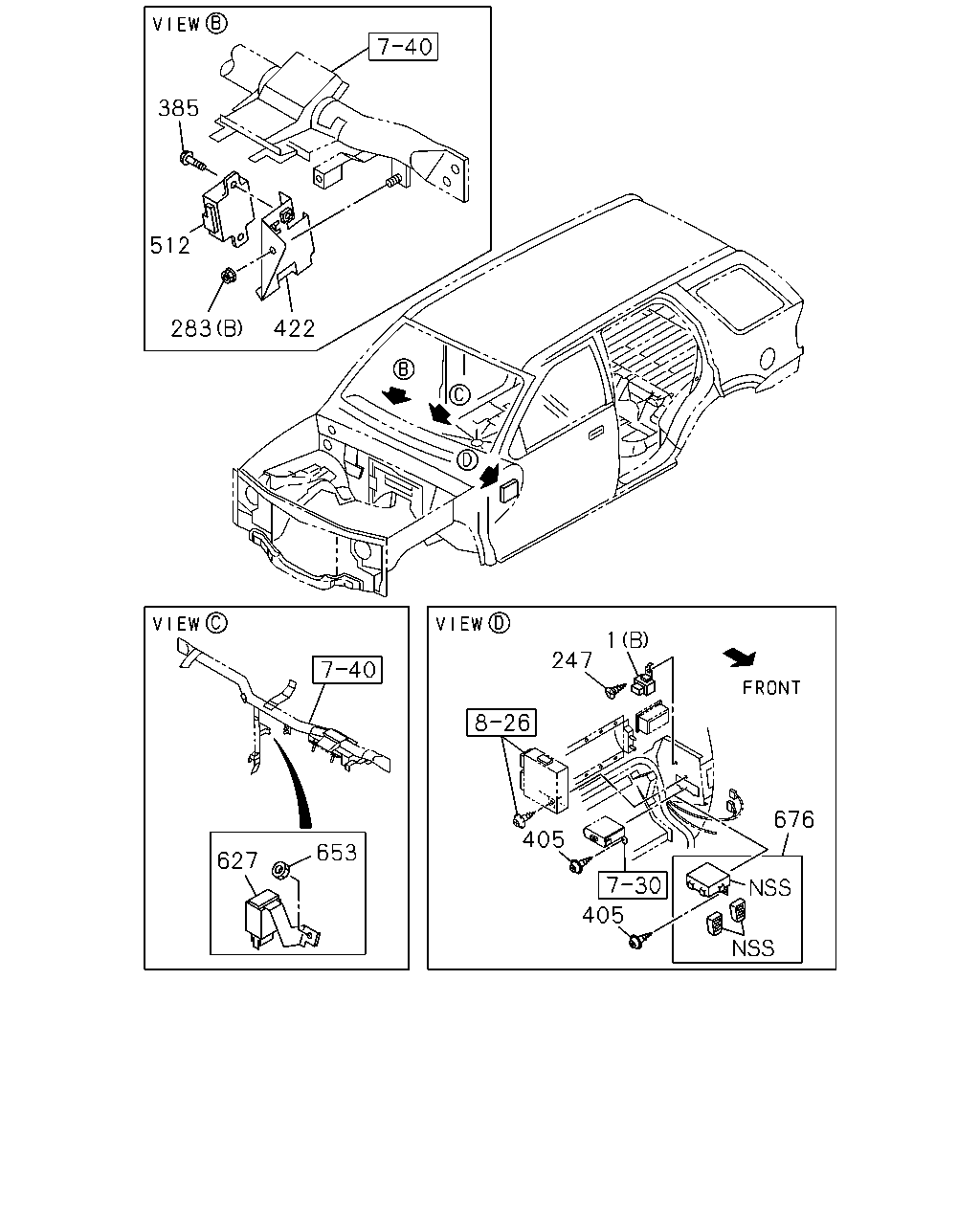

çizim 39212
385 512 283 422 1 247 676 405 653 627 405
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.575 UNIT; FLASHER
(A) USA 		8-97147-862-1 01 1 9811-0012 ● ●
1 02.575 UNIT; FLASHER
(B) 		8-97245-152-0 01 1 0101- ●
247 03.415 SCREW; BRKT
08.913 M5X12 		8-94120-094-0 01 1 0101- ●
283 02.810 NUT; BRKT
04.594 (A) M6 FLANGE 		0-91150-106-0 04 1 9811-0012 ●
283 02.810 NUT; BRKT
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0101- ●
385 03.670 BOLT; CONT UNIT
06.635 M6X16 FLANGE 		0-28480-616-0 01 1 0101- ●
405 02.500 SCREW; CONTROLLER
08.913 M5X12 		8-94120-094-0 02 1 9811- ●
422 03.415 BRACKET; CONT UNIT
USA 		8-97244-760-0 01 1 0101- ●
512 16.263 CONTROL UNIT; IMMOBILIZER
USA 		8-97244-759-0 01 1 0101- ●
627 02.440 CONTROLLER; SHIFT ON THE FLY 8-97225-536-2 01 1 0101- ●
653 02.440 NUT; CONTROLLER,SHIFT ON THE FLY
EXC. ACTIVE RIDE CONTROL(7WD) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0101- ●
676 07.450 CONTROL UNIT; KEYLESS ENTRY
USA 		8-97226-834-0 01 1 0101- ●

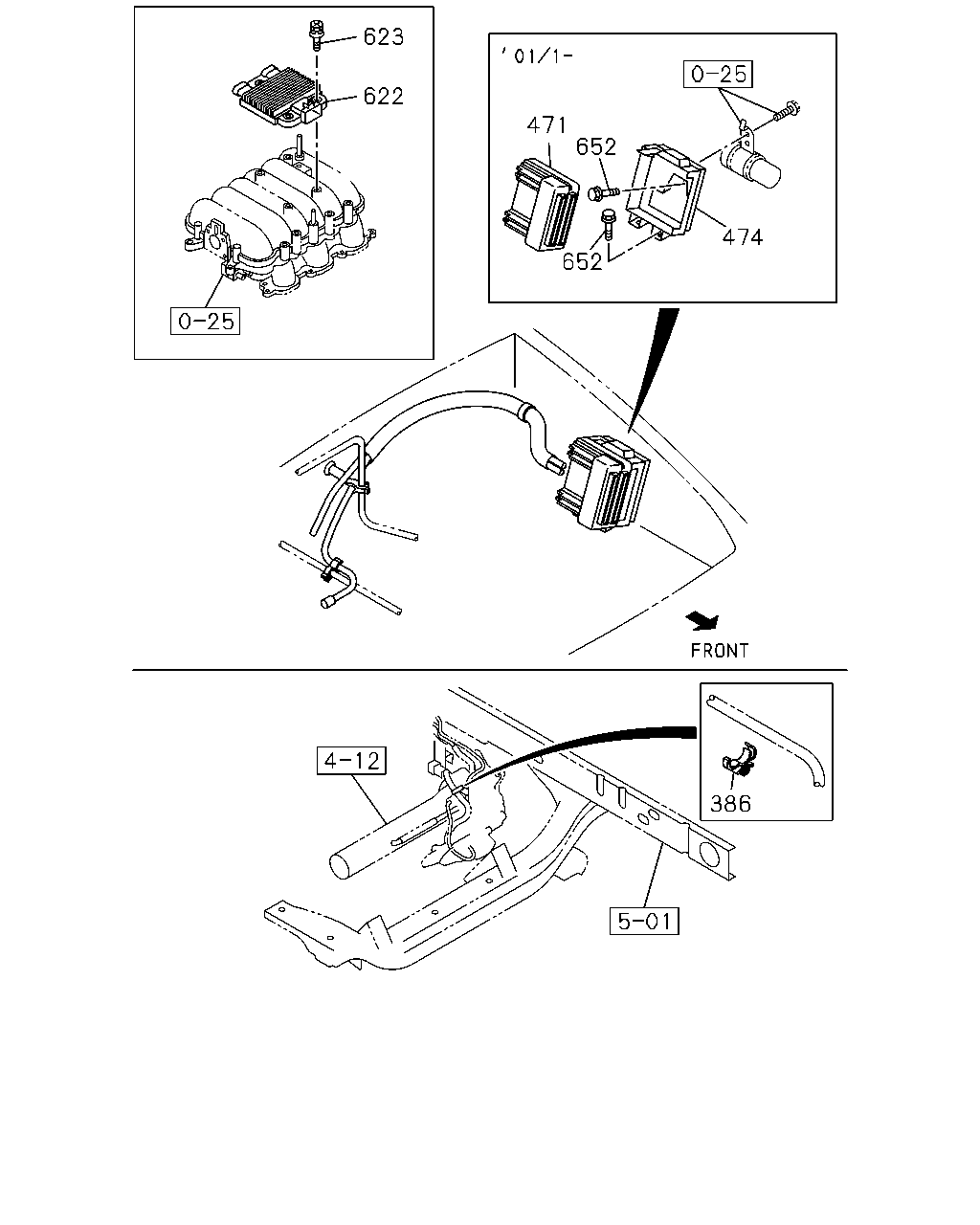

çizim 39213
623 622 471 652 474 652 386
BalonParca AdiParca NoAdetTipApplied Date A B
386 02.559 CLIP; HARNESS
ID=7-10 THA 		8-94472-578-0 01 1 0101- ●
471 09.766 CONTROL MODULE; POWER TRAIN
A/T THM 4 SPEED(RMQ) USA 		8-12207-159-0 01 1 9811-0108 ●
471 09.766 CONTROL MODULE; POWER TRAIN
A/T THM 4 SPEED(RMQ) USA 		8-97300-748-2 01 1 0109- ●
471 09.766 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) USA 		8-12207-169-0 01 1 9811-0108 ●
471 09.766 CONTROL MODULE; POWER TRAIN
M/T MUA 5 SPEED(RMN) USA 		8-97300-749-1 01 1 0109- ●
474 09.766 BRACKET; PCM 8-97125-870-1 01 1 9811-0012 ●
474 09.766 BRACKET; PCM 8-97125-869-1 01 1 9811-0012 ●
474 09.766 BRACKET; PCM 8-97208-955-1 01 1 0101- ●
622 01.150 MODULE ASM; SENSOR,ION 8-09383-689-0 01 1 0101- ●
623 01.150 BOLT; MODULE
14.865 M5X12 		8-94386-089-0 03 1 0101- ●
652 09.765 BOLT; BRKT,PCM
06.635 M6X16 FLANGE 		0-28480-616-0 03 1 0101- ●
