◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#32681) — 12 parça

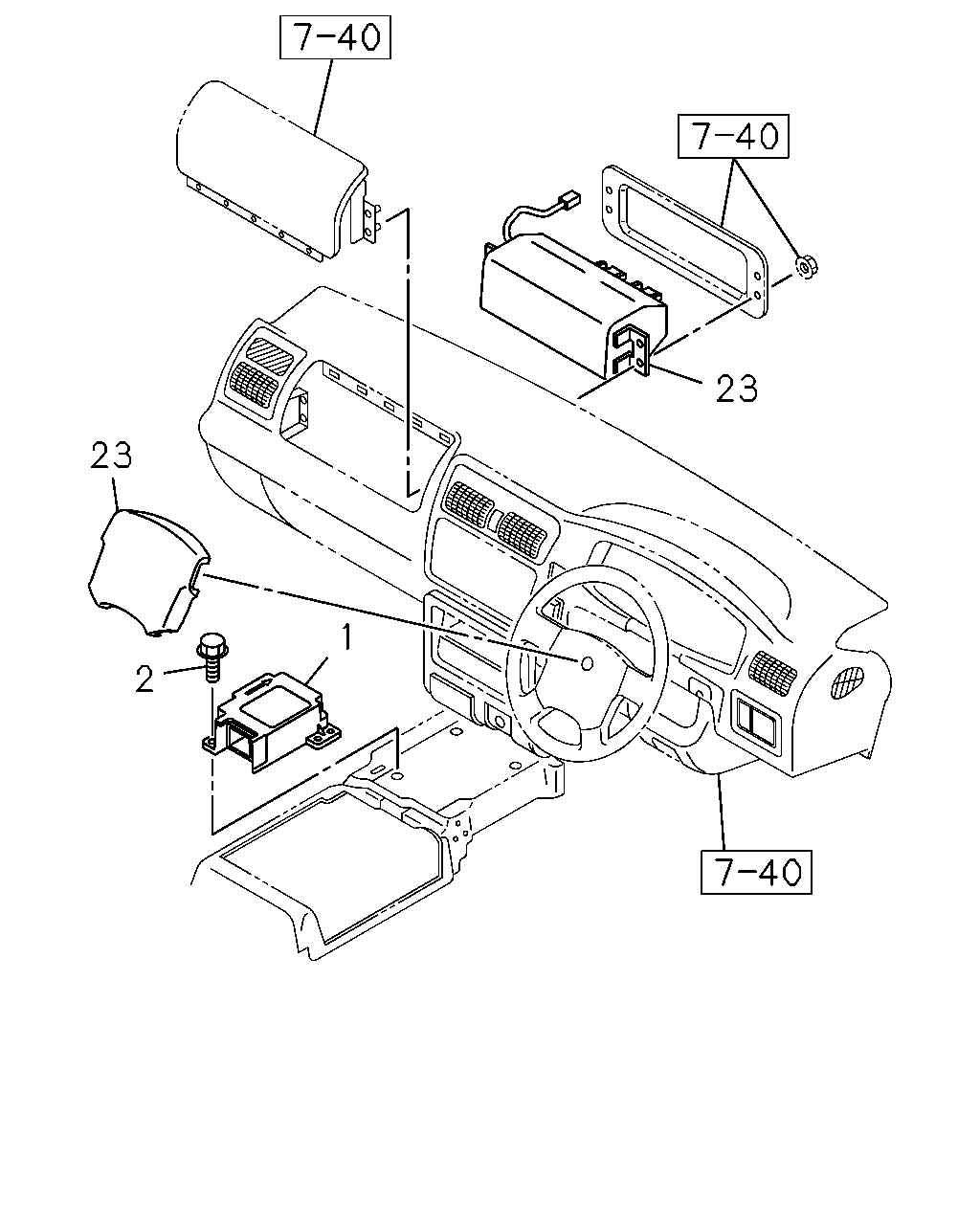

çizim 4132
23 23 1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.559 CONTROL UNIT; SIR
USA 		8-09352-679-0 01 1 9811-0012 ● ●
1 02.559 CONTROL UNIT; SIR
USA 		8-09352-679-2 01 1 0101- ●
2 06.870 BOLT; CONT UNIT,SIR
M6X18 W/PL WASHER 		8-97105-796-0 03 1 9811-0012 ● ●
2 06.870 BOLT; CONT UNIT,SIR
M6X18 W/PL WASHER 		8-97105-796-0 03 1 0101- ●
23 02.559 AIR BAG UNIT
DRIVER SIDE BLACK USA 		8-97198-488-4 01 1 9811-0003 ● ●
23 02.559 AIR BAG UNIT
DRIVER SIDE BLACK USA 		8-97293-613-4 01 1 0004-0012 ● ●
23 02.559 AIR BAG UNIT
DRIVER SIDE BLACK USA 		8-97293-613-4 01 1 0101-0108 ●
23 02.559 AIR BAG UNIT
DRIVER SIDE BLACK USA 		8-97299-332-1 01 1 0109- ●
23 02.559 AIR BAG UNIT
PASSENGER SIDE USA 		8-97200-907-1 01 1 9811-0003 ● ●
23 02.559 AIR BAG UNIT
PASSENGER SIDE USA 		8-97238-110-2 01 1 0004-0012 ● ●
23 02.559 AIR BAG UNIT
PASSENGER SIDE USA 		8-97238-110-2 01 1 0101-0108 ●
23 02.559 AIR BAG UNIT
PASSENGER SIDE USA 		8-97304-993-0 01 1 0109- ●
