Isuzu WW
▶
SUV
▶
UES
▶
50807 - UES(AUSTRALIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#32680) — 40 parça
Tümü
A - UES5VC
B - UES5VF
◀

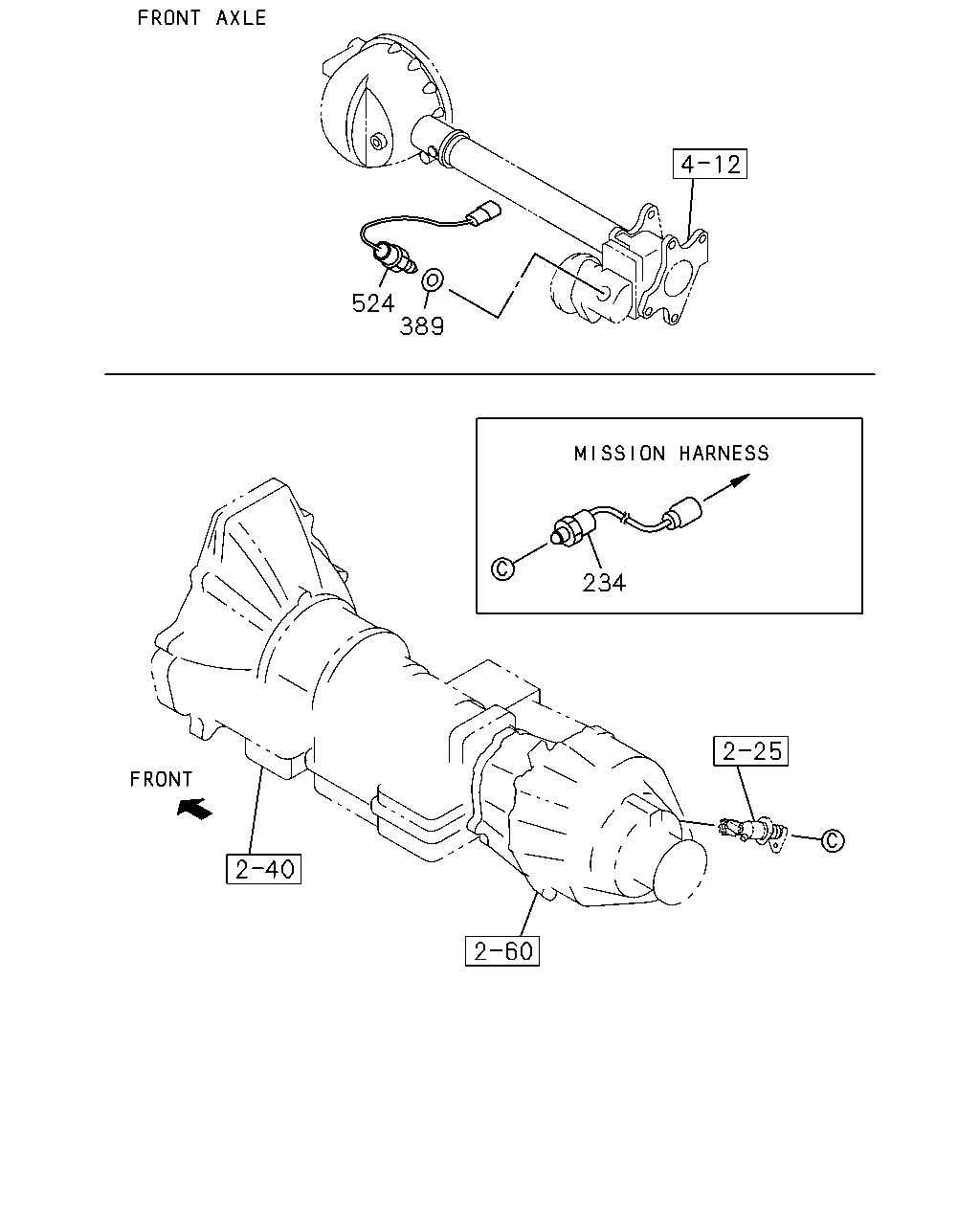

[826A] SPD SENSOR AND DIFF SWITCH (5 parça)

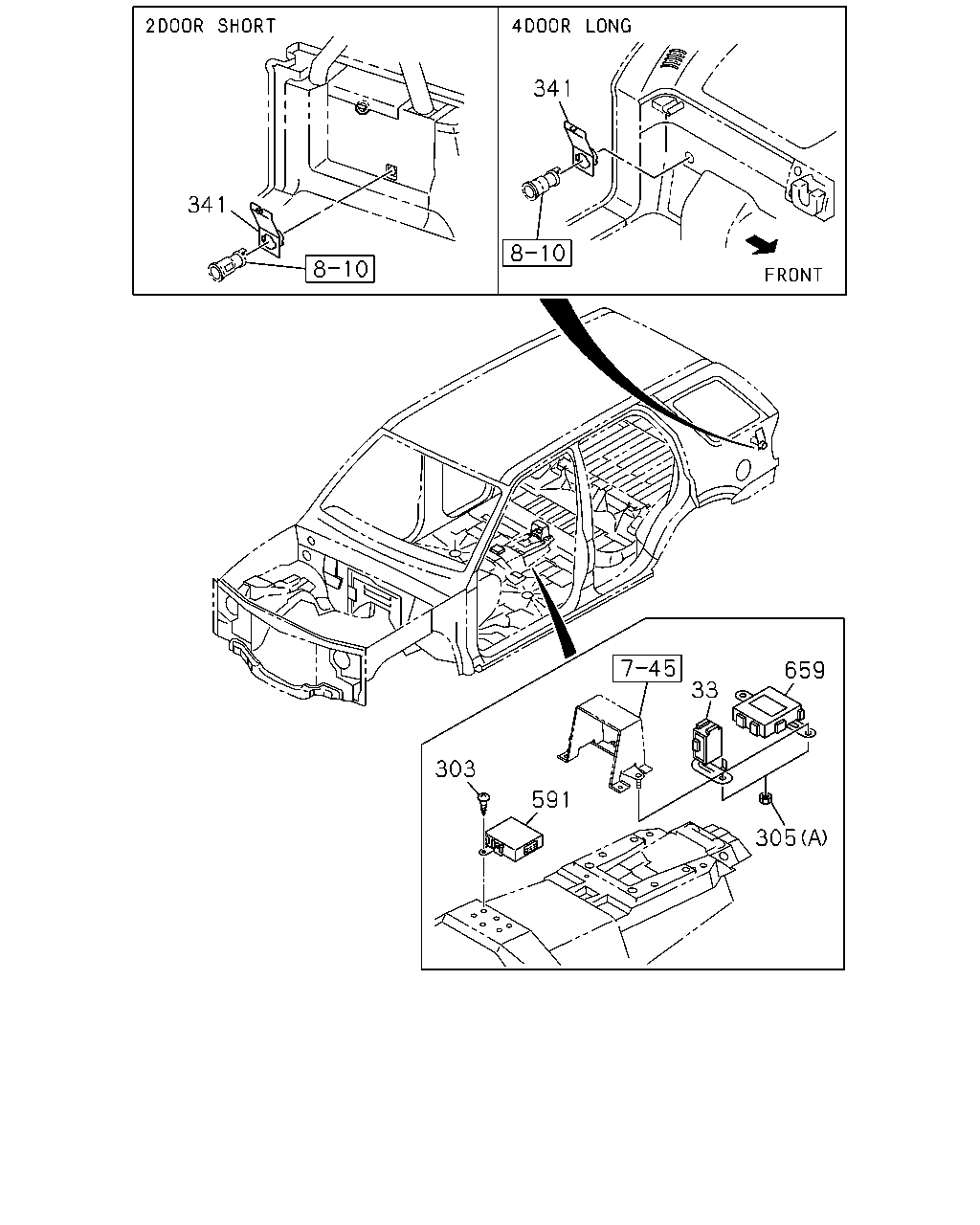

[826A] REAR (13 parça)

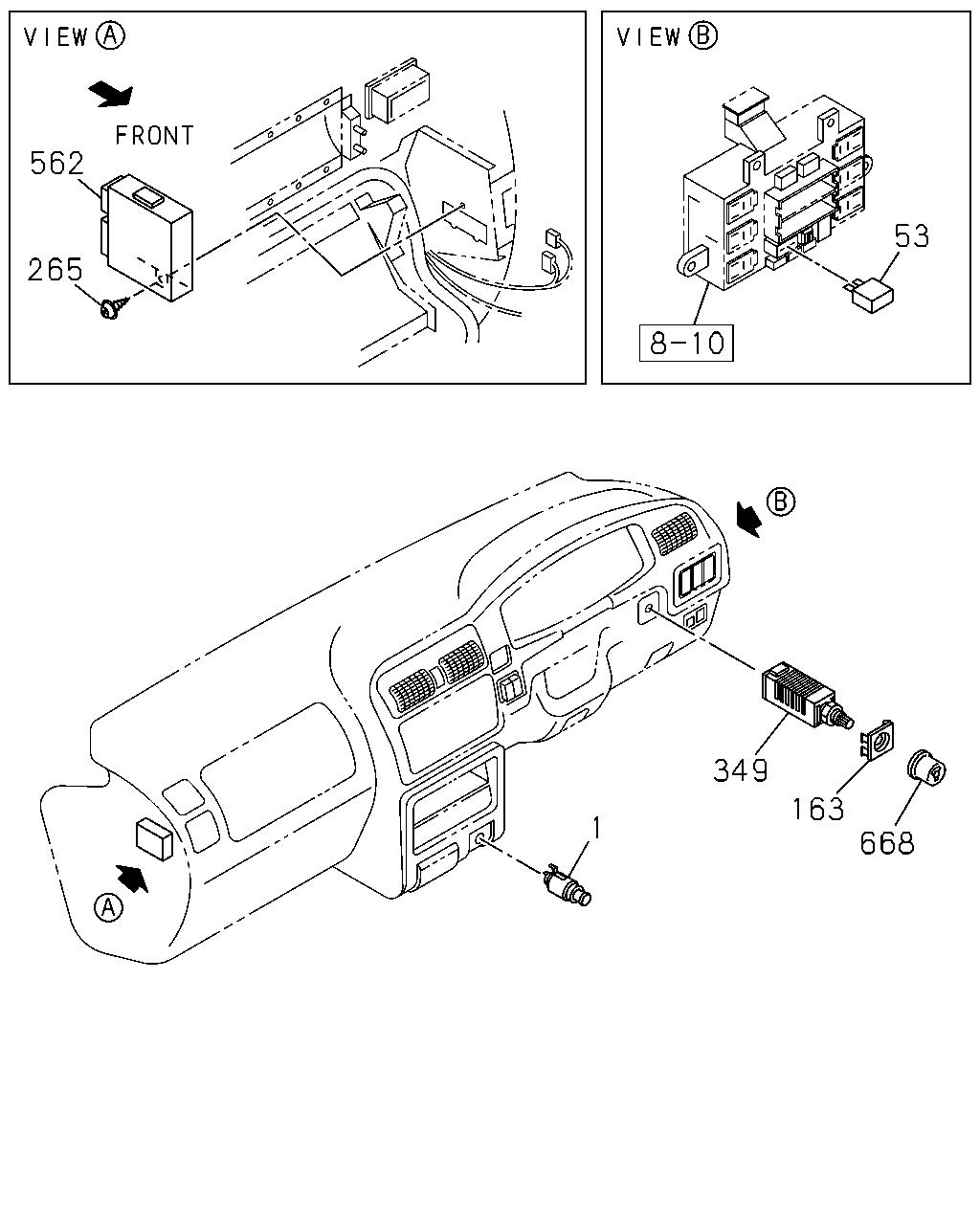

[826A] FRONT (14 parça)

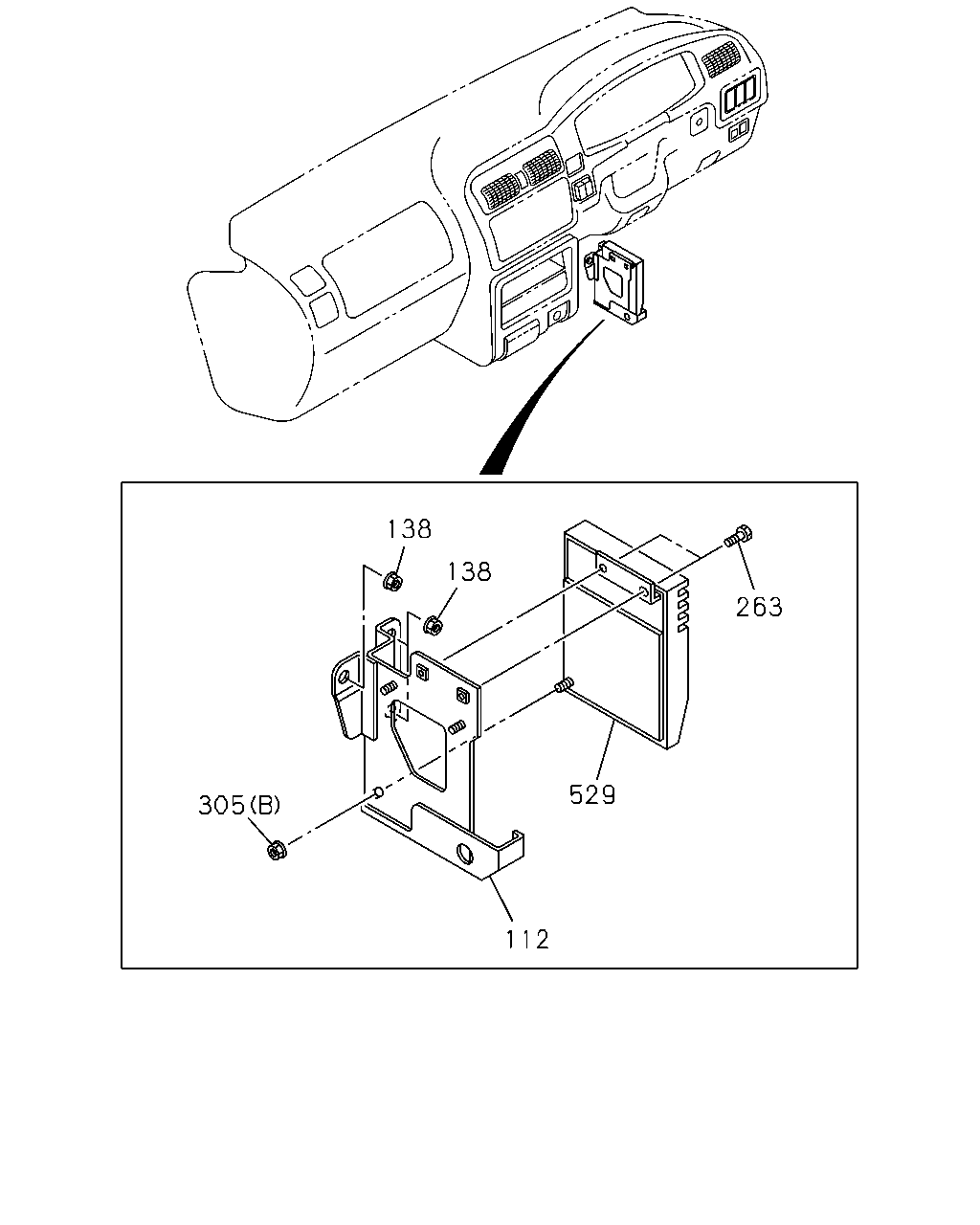

[826A] TOD CONTROL UNIT (8 parça)
▶
524
389
234
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
234
03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK
8-97129-704-0
01
1
9811-0012
●
●
234
03.682 SENSOR; VEHICLE SPD
8-97129-727-0
01
1
0101-0302
●
234
03.682 SENSOR; VEHICLE SPD
8-97365-743-0
01
1
0303-
●
389
09.709 GASKET; SWITCH
08.955 ID=14.2 OD=20.0
9-09571-414-0
01
1
9811-0012
●
●
524
09.755 SWITCH; DIFF
USA
8-97142-332-1
01
1
9811-0012
●
●
341
341
659
33
303
591
305
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
33
02.510 CONTROL UNIT; AUTO CRUISE
AUTO CRUISE CONT<K30> USA
8-97182-877-0
01
1
9811-0012
●
303
04.224 SCREW; CONT UNIT
16.190 M5X12 TAPPING USA
9-09829-321-1
02
1
9811-0012
●
●
303
04.224 SCREW; CONT UNIT
EXC. TORQUE ON DEMAND(7HA) 16.190 M5X12 TAPPING USA
9-09829-321-1
02
1
0101-
●
305
08.915 NUT; CONT UNIT
AUTO CRUISE CONT<K30> 07.833 (A) M6 FLANGE
8-97063-399-0
01
1
9811-0012
●
305
08.915 NUT; CONT UNIT
07.833 (A) M6 FLANGE
8-97063-399-0
02
1
0101-
●
305
08.915 NUT; CONT UNIT
TORQUE ON DEMAND(7HA) 04.594 (B) M6 FLANGE
0-91150-106-0
01
1
0101-
●
341
04.115 COVER ASM
8-97146-121-0
01
1
9811-9911
●
●
341
04.115 COVER ASM
BLACK USA
8-97293-933-0
01
1
9912-0012
●
●
341
04.115 COVER ASM
BLACK USA
8-97293-933-0
01
1
0101-
●
591
04.115 CONTROL UNIT; TRANSFER
USA
8-97165-958-0
01
1
9811-0012
●
●
591
04.115 CONTROL UNIT; TRANSFER
EXC. TORQUE ON DEMAND(7HA) USA
8-97165-958-0
01
1
0101-
●
659
02.510 CONTROL UNIT; INDICATOR
8-97211-828-1
01
1
0101-0108
●
659
02.510 CONTROL UNIT; INDICATOR
8-97302-231-1
01
1
0109-
●
562
53
265
349
163
1
668
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
09.709 LIGHTER; CIGAR
8-97100-029-0
01
1
9811-0012
●
●
1
09.709 LIGHTER; CIGAR
8-97100-029-0
01
1
0101-
●
53
02.510 BREAKER; ELEC CIRCUIT
02.485
8-97106-113-0
01
1
9811-0012
●
●
53
02.510 BREAKER; ELEC CIRCUIT
02.485
8-97106-113-0
01
1
0101-
●
163
16.081 BEZEL; RHEOSTAT
L=130.0
8-94434-436-1
01
1
0101-
●
265
02.500 SCREW; BRKT,CONT UNIT
10.240 M5X14
8-94120-095-0
01
1
9811-0012
●
●
265
02.500 SCREW; BRKT,CONT UNIT
08.913 M5X12
8-94120-094-0
01
1
0101-
●
349
02.490 CONTROL; ILLUMINATION
USA
8-97130-283-0
01
1
0101-
●
562
16.341 CONTROL UNIT; ALARM
USA
8-97148-693-2
01
1
9811-0012
●
562
16.341 CONTROL UNIT; ALARM
A/T THM 4 SPEED(RMQ) USA
8-97124-978-1
01
1
9811-0012
●
562
16.341 CONTROL UNIT; ALARM
USA
8-97240-466-0
01
1
0101-0108
●
562
16.341 CONTROL UNIT; ALARM
USA
8-97264-780-0
01
1
0109-
●
562
16.341 CONTROL UNIT; ALARM
M/T MUA 5 SPEED(RMN) USA
8-97124-977-2
01
1
9811-0012
●
668
02.490 KNOB; ILLUMINATION CONT
USA
8-94361-874-0
01
1
0101-
●
138
138
263
529
305
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
112
02.500 BRACKET; CONT UNIT
TORQUE ON DEMAND(7HA)
8-97256-715-0
01
1
0101-
●
138
02.458 NUT; BRKT
TORQUE ON DEMAND(7HA) 07.633 M8 FLANGE USA
0-91150-108-0
03
1
0101-
●
263
04.115 BOLT; CONT UNIT
TORQUE ON DEMAND(7HA) 16.585 M6X14 FLANGE
8-94327-380-0
02
1
0101-
●
305
08.915 NUT; CONT UNIT
AUTO CRUISE CONT<K30> 07.833 (A) M6 FLANGE
8-97063-399-0
01
1
9811-0012
●
305
08.915 NUT; CONT UNIT
07.833 (A) M6 FLANGE
8-97063-399-0
02
1
0101-
●
305
08.915 NUT; CONT UNIT
TORQUE ON DEMAND(7HA) 04.594 (B) M6 FLANGE
0-91150-106-0
01
1
0101-
●
529
04.115 CONTROL UNIT; TOD
TORQUE ON DEMAND(7HA) USA
8-97245-973-0
01
1
0101-0206
●
529
04.115 CONTROL UNIT; TOD
TORQUE ON DEMAND(7HA) USA
8-97319-481-0
01
1
0207-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
