◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#32679) — 144 parça

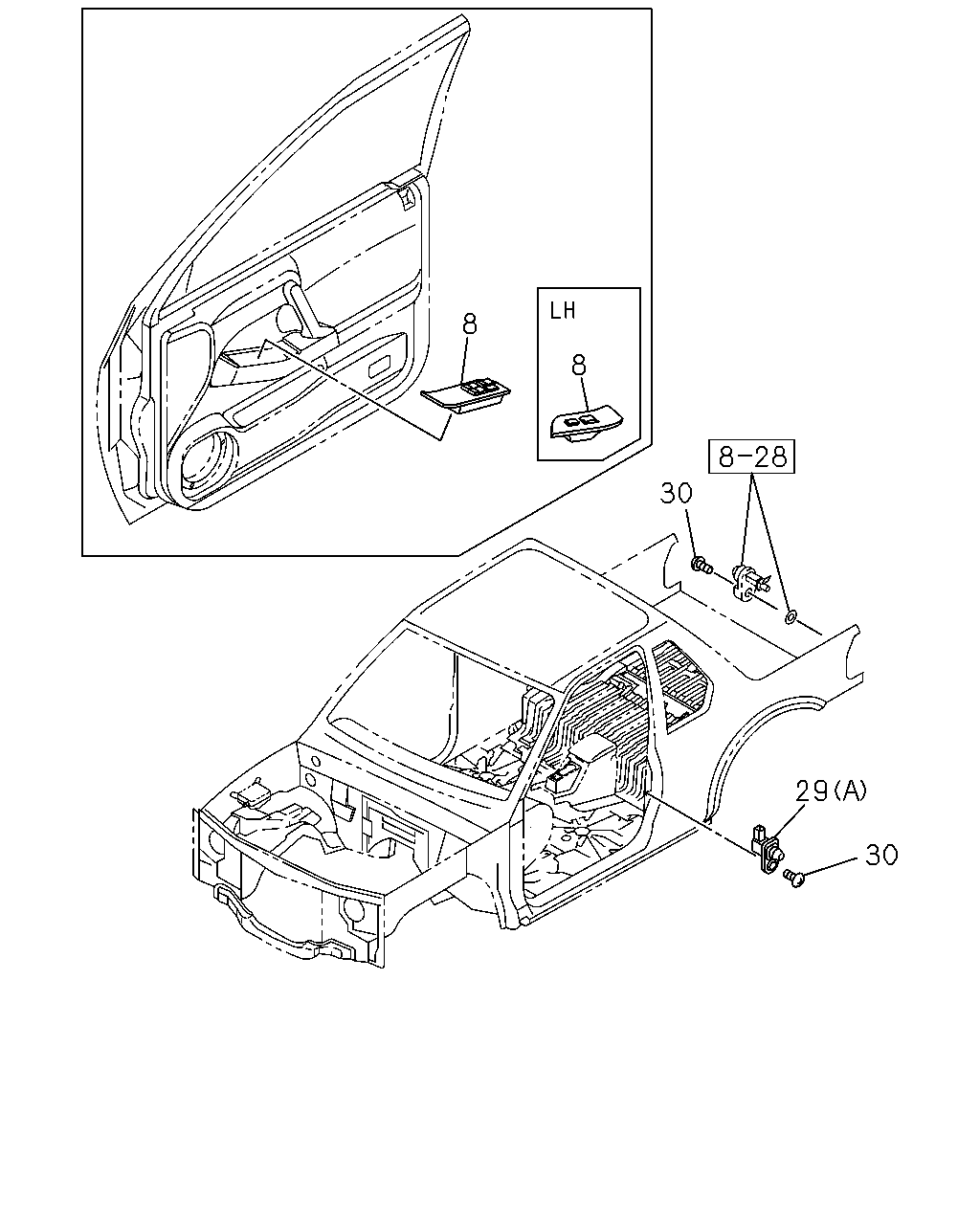

çizim 4130
8 8 30 29 30
BalonParca AdiParca NoAdetTipApplied Date A B
8 16.263 SWITCH; POWER WINDOW
USA 		8-97187-847-0 01 1 9811-9906 ●
8 16.263 SWITCH; POWER WINDOW
USA 		8-97225-549-0 01 1 9907-0012 ●
8 16.263 SWITCH; POWER WINDOW
BLACK USA 		8-97294-972-1 01 1 0101- ●
8 16.263 SWITCH; POWER WINDOW
USA 		8-97206-478-1 01 1 9811-0012 ● ●
8 16.263 SWITCH; POWER WINDOW
USA 		8-97184-736-0 01 1 9811-9906 ●
8 16.263 SWITCH; POWER WINDOW
USA 		8-97225-548-0 01 1 9907-0012 ●
8 16.263 SWITCH; POWER WINDOW
BLACK USA 		8-97294-969-2 01 1 0101- ●
29 16.263 SWITCH; DOOR
(A) 		8-97168-207-0 02 1 9811-0012 ● ●
29 16.263 SWITCH; DOOR
(A) 		8-97168-207-0 02 1 0101- ●
29 16.263 SWITCH; DOOR
(B) 		8-97031-639-2 02 1 9811- ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 02 1 9811-9904 ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 03 1 9905-0012 ●
30 16.263 SCREW; DOOR SW
03.890 M5X16 TAPPING 		9-07076-516-0 01 1 9811-9904 ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 04 1 9811- ●

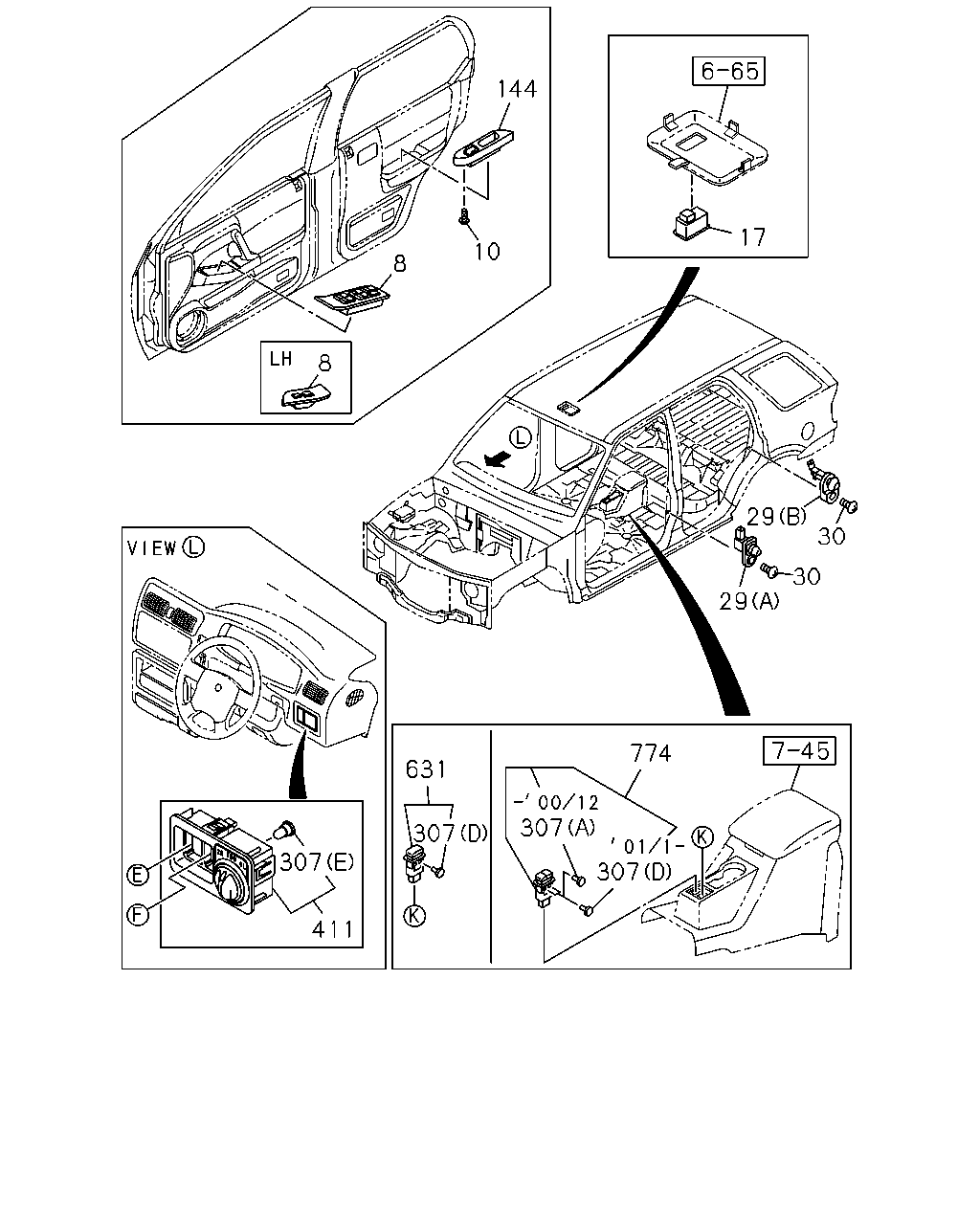

çizim 36622
144 10 8 8 307 411 631 307 307 307 774 29 29 30 30 17
BalonParca AdiParca NoAdetTipApplied Date A B
8 16.263 SWITCH; POWER WINDOW
USA 		8-97187-847-0 01 1 9811-9906 ●
8 16.263 SWITCH; POWER WINDOW
USA 		8-97225-549-0 01 1 9907-0012 ●
8 16.263 SWITCH; POWER WINDOW
BLACK USA 		8-97294-972-1 01 1 0101- ●
8 16.263 SWITCH; POWER WINDOW
USA 		8-97206-478-1 01 1 9811-0012 ● ●
8 16.263 SWITCH; POWER WINDOW
USA 		8-97184-736-0 01 1 9811-9906 ●
8 16.263 SWITCH; POWER WINDOW
USA 		8-97225-548-0 01 1 9907-0012 ●
8 16.263 SWITCH; POWER WINDOW
BLACK USA 		8-97294-969-2 01 1 0101- ●
10 03.885 SCREW; POWER WINDOW SW
06.514 M3X10 TAPPING 		9-07076-310-0 06 1 9811- ●
17 16.742 SWITCH; SUNROOF
SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA 		8-97135-928-2 01 1 9811-0108 ●
17 16.742 SWITCH; SUNROOF
SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA 		8-97297-812-0 01 1 0109- ●
29 16.263 SWITCH; DOOR
(A) 		8-97168-207-0 02 1 9811-0012 ● ●
29 16.263 SWITCH; DOOR
(A) 		8-97168-207-0 02 1 0101- ●
29 16.263 SWITCH; DOOR
(B) 		8-97031-639-2 02 1 9811- ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 02 1 9811-9904 ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 03 1 9905-0012 ●
30 16.263 SCREW; DOOR SW
03.890 M5X16 TAPPING 		9-07076-516-0 01 1 9811-9904 ●
30 16.263 SCREW; DOOR SW
10.240 M5X14 		8-94120-095-0 04 1 9811- ●
144 16.283 SWITCH; POWER WINDOW,RR
USA 		8-97122-102-1 02 1 9811- ●
307 08.991 BULB ASM; SW
(A) WHITE USA 		8-97207-552-0 03 1 9811-0012 ● ●
307 08.991 BULB ASM; SW
ACTIVE RIDE CONTROL(7WD) (D) WHITE USA 		8-97225-933-0 01 1 0101- ●
307 08.991 BULB ASM; SW
(C) USA 		8-97229-470-0 01 1 9811-0012 ● ●
307 08.991 BULB ASM; SW
(C) USA 		8-97229-470-0 01 1 0101- ●
307 08.991 BULB ASM; SW
FOG LAMP HALOGEN<T37> (A) WHITE USA 		8-97207-552-0 01 1 9811-0003 ● ●
307 08.991 BULB ASM; SW
FOG LAMP HALOGEN<T37> (A) WHITE USA 		8-97207-552-0 01 1 0004-0012 ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (A) WHITE USA 		8-97207-552-0 01 1 0004-0012 ●
307 08.991 BULB ASM; SW
EXC. TORQUE ON DEMAND(7HA) (A) WHITE USA 		8-97207-552-0 01 1 0101- ●
307 08.991 BULB ASM; SW
(A) WHITE USA 		8-97207-552-0 01 1 0101- ●
307 08.991 BULB ASM; SW
FOG LAMP HALOGEN<T37> (A) WHITE USA 		8-97207-552-0 01 1 0101- ●
307 08.991 BULB ASM; SW
FOG LAMP HALOGEN<T37> (A) GREEN USA 		8-97229-469-0 01 1 9811-0003 ● ●
307 08.991 BULB ASM; SW
FOG LAMP HALOGEN<T37> (A) GREEN USA 		8-97229-469-0 01 1 0004-0012 ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (A) GREEN USA 		8-97229-469-0 01 1 0004-0012 ●
307 08.991 BULB ASM; SW
(A) GREEN USA 		8-97229-469-0 01 1 0101- ●
307 08.991 BULB ASM; SW
FOG LAMP HALOGEN<T37> (A) GREEN USA 		8-97229-469-0 01 1 0101- ●
307 08.991 BULB ASM; SW
A/T THM 4 SPEED(RMQ) (B) WHITE USA 		8-97207-552-0 02 1 9811-0012 ●
307 08.991 BULB ASM; SW
(D) WHITE USA 		8-97225-933-0 02 1 0101- ●
307 08.991 BULB ASM; SW
A/T THM 4 SPEED(RMQ) (D) WHITE USA 		8-97225-933-0 02 1 0101- ●
307 08.991 BULB ASM; SW
TORQUE ON DEMAND(7HA) (E) USA 		8-97264-948-0 01 1 0101- ●
411 09.755 SWITCH; TRANSFER
TORQUE ON DEMAND(7HA) BLACK USA 		8-97295-018-2 01 1 0101-0108 ●
411 09.755 SWITCH; TRANSFER
TORQUE ON DEMAND(7HA) BLACK USA 		8-97390-714-2 01 1 0109- ●
631 04.054 SWITCH; SPORTS MODE
ACTIVE RIDE CONTROL(7WD) USA 		8-97215-836-2 01 1 0101- ●
774 04.054 SWITCH; POWER & WINTER
A/T THM 4 SPEED(RMQ) USA 		8-97122-096-2 01 1 9811-0012 ●
774 04.054 SWITCH; POWER & WINTER
A/T THM 4 SPEED(RMQ) USA 		8-97239-238-1 01 1 0101- ●

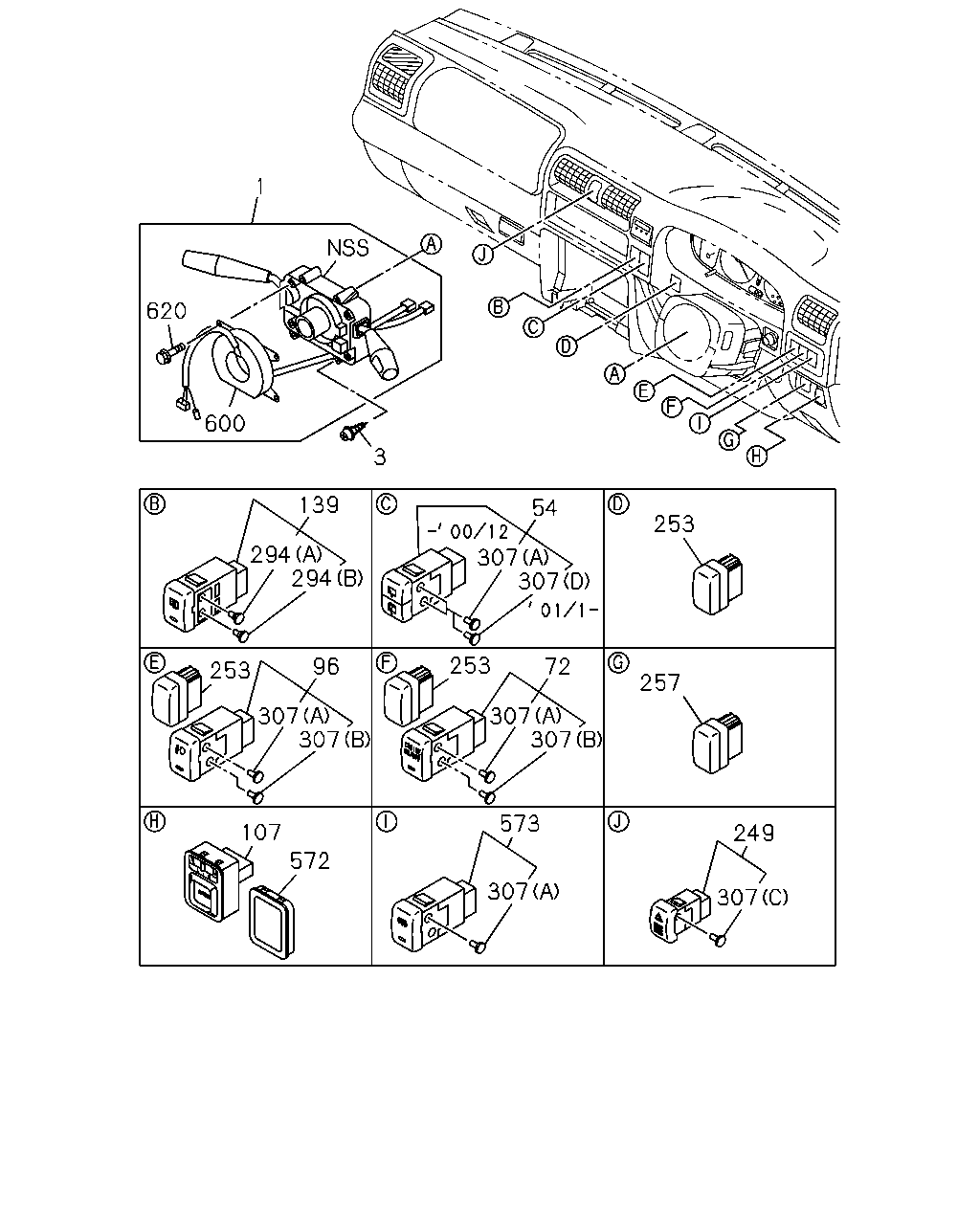

çizim 38837
1 620 600 3 139 54 253 307 307 294 294 253 96 72 253 257 307 307 307 307 573 107 572 249 307 307
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.895 SWITCH; COMB 8-97211-386-5 01 1 9811-0012 ●
1 02.895 SWITCH; COMB
EXC. AUTO CRUISE CONT<K30> 		8-97211-386-5 01 1 9811-0012 ●
1 02.895 SWITCH; COMB
AUTO CRUISE CONT<K30> 		8-97211-385-5 01 1 9811-0012 ●
1 02.895 SWITCH; COMB 8-97226-843-4 01 1 0101- ●
3 02.897 SCREW; COMB SW
06.512 M5X14 W/LK WASHER 		9-03910-514-0 04 1 9811-0012 ● ●
3 02.897 SCREW; COMB SW
06.512 M5X14 W/LK WASHER 		9-03910-514-0 04 1 0101- ●
54 16.067 SWITCH; RR WIPER
USA 		8-97122-103-2 01 1 9811-0012 ● ●
54 16.067 SWITCH; RR WIPER
USA 		8-97239-237-0 01 1 0101- ●
72 02.485 SWITCH; CRUISE CONT
AUTO CRUISE CONT<K30> USA 		8-97122-094-2 01 1 9811-0012 ●
72 02.485 SWITCH; CRUISE CONT
USA 		8-97122-094-2 01 1 0101- ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP HALOGEN<T37> USA 		8-97125-279-2 01 1 9811-0012 ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP HALOGEN<T37> USA 		8-97125-279-2 01 1 0101- ●
107 10.186 SWITCH; REMOTE CONT,MIRROR
USA 		8-97125-271-1 01 1 9811-0012 ● ●
107 10.186 SWITCH; REMOTE CONT,MIRROR
USA 		8-97125-271-1 01 1 0101- ●
139 09.778 SWITCH; RR DEFOGGER
USA 		8-97204-392-0 01 1 9811-0012 ● ●
139 09.778 SWITCH; RR DEFOGGER
USA 		8-97239-232-0 01 1 0101- ●
249 02.485 SWITCH; HAZARD
USA 		8-97122-095-1 01 1 9811-0012 ● ●
249 02.485 SWITCH; HAZARD
USA 		8-97122-095-1 01 1 0101- ●
253 16.081 COVER; SW HOLE
USA 		8-97122-099-1 01 1 9811-0012 ● ●
253 16.081 COVER; SW HOLE
EXC. FOG LAMP HALOGEN<T37> USA 		8-97122-099-1 01 1 9811-0012 ● ●
253 16.081 COVER; SW HOLE
EXC. FOG LAMP HALOGEN<T37> USA 		8-97122-099-1 01 1 0101-0108 ●
253 16.081 COVER; SW HOLE
USA 		8-97122-099-1 01 1 0109- ●
253 16.081 COVER; SW HOLE
EXC. FOG LAMP HALOGEN<T37> USA 		8-97122-099-1 01 1 0109- ●
257 16.081 COVER; HOLE,SW 8-97081-617-1 01 1 9811-0012 ● ●
257 16.081 COVER; HOLE,SW 8-97081-617-1 01 1 0101-0102 ●
257 16.081 COVER; HOLE,SW 8-97081-617-1 01 1 0103- ●
294 08.991 BULB; DEFOGGER SW
(A) WHITE USA 		8-97207-552-0 01 1 9811-0012 ● ●
294 08.991 BULB; DEFOGGER SW
(A) WHITE USA 		8-97225-933-0 01 1 0101- ●
294 08.991 BULB; DEFOGGER SW
(B) AMBER USA 		8-97207-553-0 01 1 9811-0012 ● ●
294 08.991 BULB; DEFOGGER SW
(B) AMBER USA 		8-97207-553-0 01 1 0101- ●
307 08.991 BULB ASM; SW
(A) WHITE USA 		8-97207-552-0 03 1 9811-0012 ● ●
307 08.991 BULB ASM; SW
ACTIVE RIDE CONTROL(7WD) (D) WHITE USA 		8-97225-933-0 01 1 0101- ●
307 08.991 BULB ASM; SW
(C) USA 		8-97229-470-0 01 1 9811-0012 ● ●
307 08.991 BULB ASM; SW
(C) USA 		8-97229-470-0 01 1 0101- ●
307 08.991 BULB ASM; SW
FOG LAMP HALOGEN<T37> (A) WHITE USA 		8-97207-552-0 01 1 9811-0003 ● ●
307 08.991 BULB ASM; SW
FOG LAMP HALOGEN<T37> (A) WHITE USA 		8-97207-552-0 01 1 0004-0012 ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (A) WHITE USA 		8-97207-552-0 01 1 0004-0012 ●
307 08.991 BULB ASM; SW
EXC. TORQUE ON DEMAND(7HA) (A) WHITE USA 		8-97207-552-0 01 1 0101- ●
307 08.991 BULB ASM; SW
(A) WHITE USA 		8-97207-552-0 01 1 0101- ●
307 08.991 BULB ASM; SW
FOG LAMP HALOGEN<T37> (A) WHITE USA 		8-97207-552-0 01 1 0101- ●
307 08.991 BULB ASM; SW
FOG LAMP HALOGEN<T37> (A) GREEN USA 		8-97229-469-0 01 1 9811-0003 ● ●
307 08.991 BULB ASM; SW
FOG LAMP HALOGEN<T37> (A) GREEN USA 		8-97229-469-0 01 1 0004-0012 ● ●
307 08.991 BULB ASM; SW
AUTO CRUISE CONT<K30> (A) GREEN USA 		8-97229-469-0 01 1 0004-0012 ●
307 08.991 BULB ASM; SW
(A) GREEN USA 		8-97229-469-0 01 1 0101- ●
307 08.991 BULB ASM; SW
FOG LAMP HALOGEN<T37> (A) GREEN USA 		8-97229-469-0 01 1 0101- ●
307 08.991 BULB ASM; SW
A/T THM 4 SPEED(RMQ) (B) WHITE USA 		8-97207-552-0 02 1 9811-0012 ●
307 08.991 BULB ASM; SW
(D) WHITE USA 		8-97225-933-0 02 1 0101- ●
307 08.991 BULB ASM; SW
A/T THM 4 SPEED(RMQ) (D) WHITE USA 		8-97225-933-0 02 1 0101- ●
307 08.991 BULB ASM; SW
TORQUE ON DEMAND(7HA) (E) USA 		8-97264-948-0 01 1 0101- ●
572 10.186 LID; SW
EXC. DOOR MIRROR ELEC CONT W/DEF<7EV>, DOOR MIRROR ELEC CONT W/DEF BODY COLOR KEYED <7PP> USA 		8-97124-674-0 01 1 9811-0003 ●
573 09.755 SWITCH; 4WD
USA 		8-97122-097-1 01 1 9811-0012 ● ●
573 09.755 SWITCH; 4WD
EXC. TORQUE ON DEMAND(7HA) USA 		8-97122-097-1 01 1 0101- ●
600 02.895 COIL ASM; SIR 8-97212-349-3 01 1 9811-0012 ● ●
600 02.895 COIL ASM; SIR 8-97212-349-4 01 1 0101- ●
620 02.895 SCREW; COIL,COMB SW
THA 		8-97166-506-0 06 1 9811-0012 ● ●
620 02.895 SCREW; COIL,COMB SW
THA 		8-97166-506-0 06 1 0101- ●

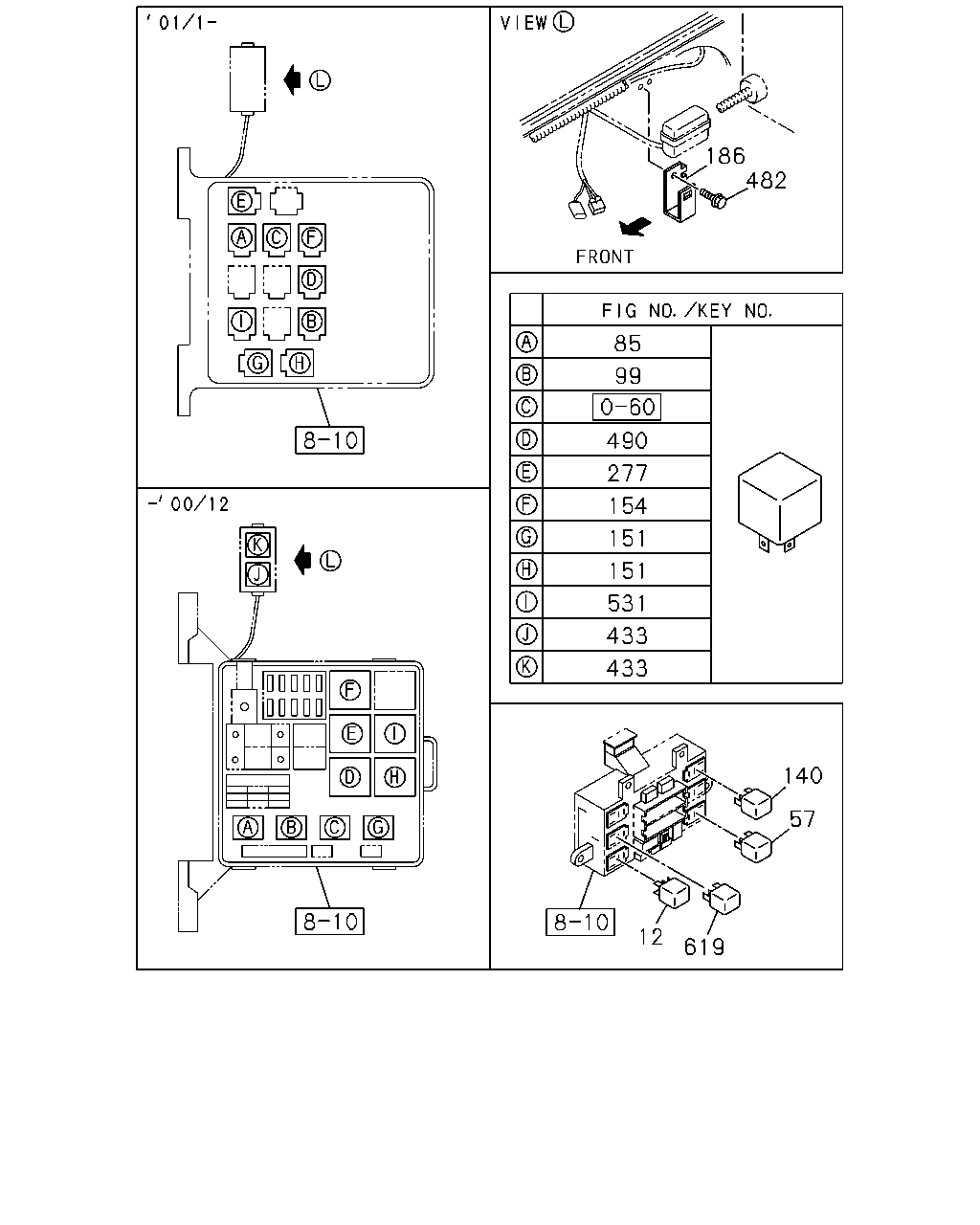

çizim 38839
186 482 85 99 490 277 154 151 151 531 433 433 140 57 12 619
BalonParca AdiParca NoAdetTipApplied Date A B
12 08.852 RELAY; POWER WINDOW
02.100 USA 		8-97125-444-0 01 1 9811-0012 ● ●
12 08.852 RELAY; POWER WINDOW
02.100 USA 		8-97125-444-0 01 1 0101- ●
57 08.840 RELAY; SEAT HTR
02.100 USA 		8-97125-444-0 01 1 9811-0012 ● ●
57 08.840 RELAY; SEAT HTR
02.100 USA 		8-97125-444-0 01 1 0101- ●
85 02.485 RELAY; HEADLAMP
02.510 12V OMRON USA 		8-97125-441-1 01 1 9811-0012 ● ●
85 02.485 RELAY; HEADLAMP
02.515 USA 		8-97231-264-0 01 1 0101- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP HALOGEN<T37> 02.510 12V OMRON USA 		8-97125-441-1 01 1 9811-0012 ● ●
99 02.485 RELAY; FOG LAMP
FOG LAMP HALOGEN<T37> 02.515 USA 		8-97231-264-0 01 1 0101- ●
140 09.778 RELAY; RR DEFOGGER
02.100 USA 		8-97125-444-0 01 1 9811-0012 ● ●
140 09.778 RELAY; RR DEFOGGER
02.100 USA 		8-97125-444-0 01 1 0101- ●
151 09.277 RELAY; HTR & A/C
02.510 12V OMRON USA 		8-97125-441-1 01 1 9811-0012 ● ●
151 09.277 RELAY; HTR & A/C
02.510 12V OMRON USA 		8-97125-441-1 01 1 9811-0012 ●
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61) 02.510 12V OMRON USA 		8-97125-441-1 01 1 9811-0012 ●
151 09.277 RELAY; HTR & A/C
02.510 12V OMRON USA 		8-97125-441-1 01 1 0101-0202 ●
151 09.277 RELAY; HTR & A/C
02.510 12V OMRON USA 		8-97125-441-1 01 1 0101-0202 ●
151 09.277 RELAY; HTR & A/C
USA 		8-97332-169-0 01 1 0203- ●
151 09.277 RELAY; HTR & A/C
USA 		8-97332-169-0 01 1 0203- ●
154 09.277 RELAY; CONDENSER FAN
A/T THM 4 SPEED(RMQ) AIR CONDITIONER AUTOMATIC CONT(C61) 02.510 12V OMRON USA 		8-97125-441-1 01 1 9811-0012 ●
154 09.277 RELAY; CONDENSER FAN
A/T THM 4 SPEED(RMQ) 02.515 USA 		8-97231-264-0 01 1 0101- ●
186 09.277 BRACKET; RELAY BOX 8-97183-113-0 01 1 9811-0012 ●
186 09.277 BRACKET; RELAY BOX
ACTIVE RIDE CONTROL(7WD) 		8-97183-113-0 01 1 0101- ●
277 03.900 RELAY; FUEL PUMP
02.510 12V OMRON USA 		8-97125-441-1 01 1 9811-0012 ● ●
277 03.900 RELAY; FUEL PUMP
02.510 12V OMRON USA 		8-97125-441-1 01 1 0101-0202 ●
277 03.900 RELAY; FUEL PUMP
09.277 USA 		8-97332-169-0 01 1 0203- ●
433 09.277 RELAY; RAD FAN
02.510 12V OMRON USA 		8-97125-441-1 02 1 9811-0012 ●
482 09.277 BOLT; BRKT
06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9811-0012 ●
482 09.277 BOLT; BRKT
ACTIVE RIDE CONTROL(7WD) 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 0101- ●
490 09.277 RELAY; THERMO
02.510 12V OMRON USA 		8-97125-441-1 01 1 9811-0012 ● ●
490 09.277 RELAY; THERMO
02.515 USA 		8-97231-264-0 01 1 0101- ●
531 02.515 RELAY; ECU
02.510 12V OMRON USA 		8-97125-441-1 01 1 9811-0012 ● ●
531 02.515 RELAY; ECU
USA 		8-97231-264-0 01 1 0101- ●
619 16.742 RELAY; SUNROOF
SUN ROOF SLIDING ELEC<CF5> 02.100 USA 		8-97125-444-0 01 1 0111-0204 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
