8-21 — METER ASM (#32678) — 88 parça

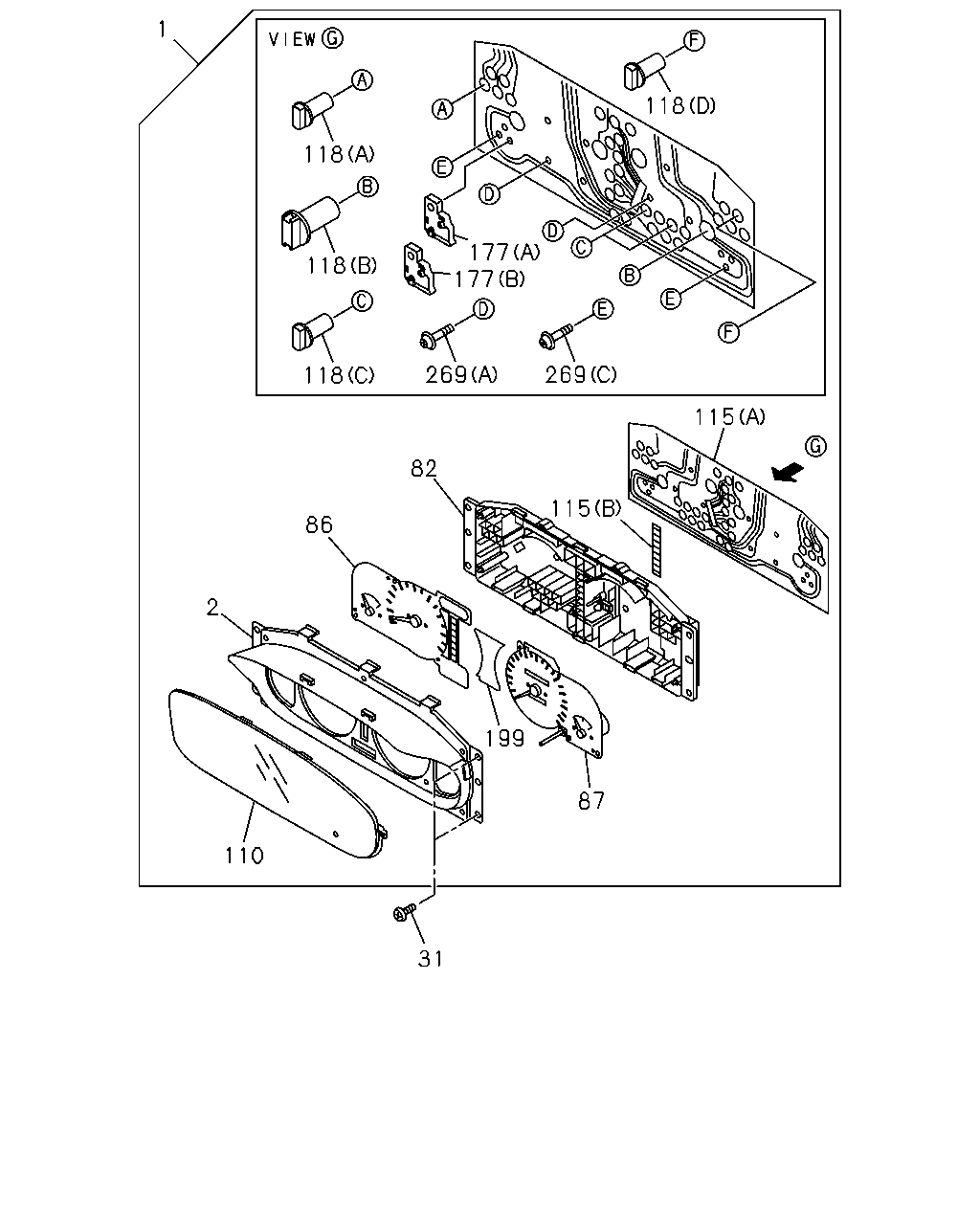

1 118 118 177 177 118 269 269 118 115 82 115 86 2 199 87 110 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.735 METER COMPL; CLUSTER USA	8-97184-605-2	01	1	9811-0012	●
1	09.735 METER COMPL; CLUSTER A/T THM 4 SPEED(RMQ) TORQUE ON DEMAND(7HA) USA	8-97223-915-0	01	1	0101-		●
1	09.735 METER COMPL; CLUSTER A/T THM 4 SPEED(RMQ) USA	8-97184-607-3	01	1	9811-0012		●
1	09.735 METER COMPL; CLUSTER A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) USA	8-97223-914-0	01	1	0101-		●
1	09.735 METER COMPL; CLUSTER M/T MUA 5 SPEED(RMN) USA	8-97184-606-3	01	1	9811-0012		●
1	09.735 METER COMPL; CLUSTER M/T MUA 5 SPEED(RMN) USA	8-97223-913-0	01	1	0101-		●
2	09.735 PANEL; CLUSTER USA	8-97178-033-0	01	1	9811-0012	●	●
2	09.735 PANEL; CLUSTER USA	8-97231-562-0	01	1	0101-		●
31	09.761 SCREW; METER,INST PANEL 09.743 M5X16 USA	8-94295-854-0	04	1	9811-0012	●	●
31	09.761 SCREW; METER,INST PANEL 09.743 M5X16 USA	8-94295-854-0	04	1	0101-		●
82	09.743 CASE ASM; CLUSTER METER USA	8-97178-035-0	01	1	9811-0012	●	●
86	09.750 TACHOMETER; CLUSTER METER USA	8-97211-333-0	01	1	9811-0012	●
86	09.750 TACHOMETER; CLUSTER METER A/T THM 4 SPEED(RMQ) USA	8-97211-335-0	01	1	9811-0012		●
86	09.750 TACHOMETER; CLUSTER METER M/T MUA 5 SPEED(RMN) USA	8-97211-334-0	01	1	9811-0012		●
87	09.761 SPEEDOMETER USA	8-97178-022-0	01	1	9811-0012	●	●
110	09.748 GLASS; CLUSTER METER USA	8-97178-031-0	01	1	9811-0012	●	●
110	09.748 GLASS; CLUSTER METER USA	8-97231-561-0	01	1	0101-		●
115	09.744 CIRCUIT; PRINTED,CLUSTER METER (A) USA	8-97178-037-0	01	1	9811-0012	●	●
115	09.744 CIRCUIT; PRINTED,CLUSTER METER A/T THM 4 SPEED(RMQ) (B) USA	8-97178-043-0	01	1	9811-0012		●
118	08.991 BULB; CLUSTER METER M/T MUA 5 SPEED(RMN),A/T THM 4 SPEED(RMQ) (B) 14V 3.4W WITH BULB CAP USA	8-97178-046-0	AR	1	9811-0012	●	●
118	08.991 BULB; CLUSTER METER M/T MUA 5 SPEED(RMN),A/T THM 4 SPEED(RMQ) (A) 14V 1.4W USA	8-97178-047-0	AR	1	9811-0012	●	●
118	08.991 BULB; CLUSTER METER (A) 14V 1.4W USA	8-97178-047-0	AR	1	0101-		●
118	08.991 BULB; CLUSTER METER M/T MUA 5 SPEED(RMN),A/T THM 4 SPEED(RMQ) (C) 14V 2W USA	8-97178-048-0	AR	1	9811-0012	●	●
118	08.991 BULB; CLUSTER METER (C) 14V 2W USA	8-97178-048-0	AR	1	0101-		●
118	08.991 BULB; CLUSTER METER M/T MUA 5 SPEED(RMN),A/T THM 4 SPEED(RMQ) (D) 14V 1.4W USA	8-97178-049-0	AR	1	9811-0012	●	●
118	08.991 BULB; CLUSTER METER (E) 14V 3.4W USA	8-97182-029-0	AR	1	0101-		●
118	08.991 BULB; CLUSTER METER (F) 14V 80MA USA	8-97253-899-0	AR	1	0101-		●
118	08.991 BULB; CLUSTER METER 14V 2W USA	8-97331-581-0	AR	1	0212-		●
177	09.748 COVER; WIRE HOLE (A) CIRCUIT USA	8-97178-041-0	01	1	9811-0012	●	●
177	09.748 COVER; WIRE HOLE (B) COVER USA	8-97178-044-0	01	1	9811-0012	●	●
199	09.772 LENS; WARNING LAMP A/T THM 4 SPEED(RMQ) USA	8-97178-042-0	01	1	9811-0012		●
199	09.772 LENS; WARNING LAMP A/T THM 4 SPEED(RMQ) USA	8-97231-564-0	01	1	0101-		●
199	09.772 LENS; WARNING LAMP M/T MUA 5 SPEED(RMN) USA	8-97231-565-0	01	1	0101-		●
269	09.743 SCREW; METER CLUSTER (B) M5X16 USA	8-94295-854-0	05	1	9811-0012	●	●
269	09.743 SCREW; METER CLUSTER (B) M5X16 USA	8-94295-854-0	05	1	0101-		●
269	09.743 SCREW; METER CLUSTER (A) M3X13 USA	8-97178-050-0	07	1	9811-0012	●	●
269	09.743 SCREW; METER CLUSTER (C) M3X14 USA	8-97178-051-0	06	1	9811-0012	●	●

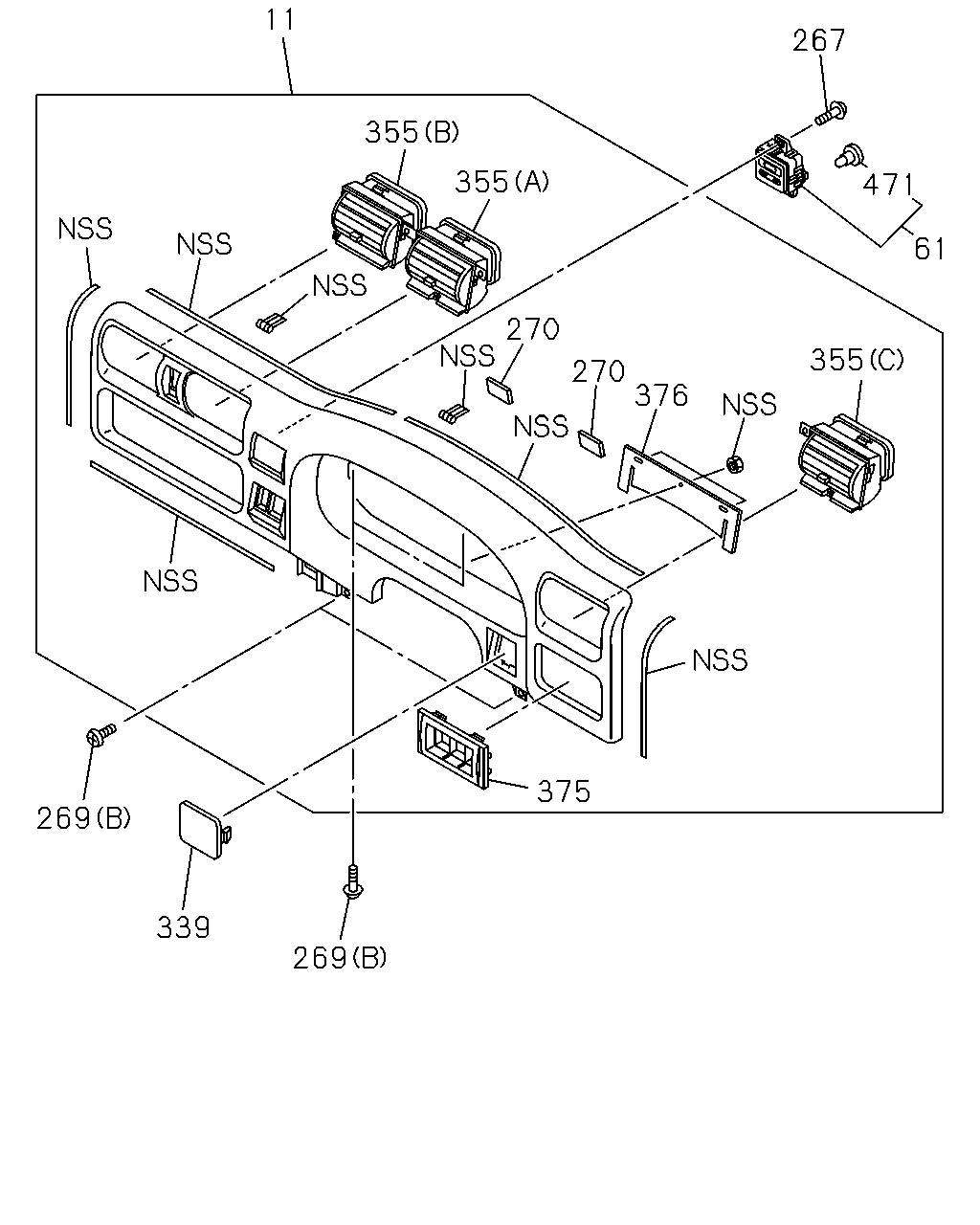

11 267 355 355 471 61 270 355 270 376 375 269 339 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	09.743 CLUSTER ASM; METER BLACK USA	8-97159-965-5	01	1	9811-0012	●	●
11	09.743 CLUSTER ASM; METER BLACK USA	8-97159-965-5	01	1	0101-0101		●
11	09.743 CLUSTER ASM; METER BLACK USA	8-97294-903-1	01	1	0101-		●
61	09.772 CLOCK; DIGITAL USA	8-97122-098-0	01	1	9811-0012	●	●
61	09.772 CLOCK; DIGITAL USA	8-97122-098-0	01	1	0101-		●
267	09.772 SCREW; CLOCK 09.743 M5X16 USA	8-94295-854-0	02	1	9811-0012	●	●
267	09.772 SCREW; CLOCK 09.743 M5X16 USA	8-94295-854-0	02	1	0101-		●
269	09.743 SCREW; METER CLUSTER (B) M5X16 USA	8-94295-854-0	05	1	9811-0012	●	●
269	09.743 SCREW; METER CLUSTER (B) M5X16 USA	8-94295-854-0	05	1	0101-		●
269	09.743 SCREW; METER CLUSTER (A) M3X13 USA	8-97178-050-0	07	1	9811-0012	●	●
269	09.743 SCREW; METER CLUSTER (C) M3X14 USA	8-97178-051-0	06	1	9811-0012	●	●
270	09.743 CUSHION; METER CLUSTER USA	8-97146-571-1	01	1	9811-0012	●	●
270	09.743 CUSHION; METER CLUSTER USA	8-97146-571-1	01	1	0101-		●
339	09.743 BEZEL; SW,CLUSTER METER BLACK USA	8-97143-346-0	01	1	9811-0012	●	●
355	09.748 GRILLE; VENT (A) BLACK USA	8-97195-897-1	01	1	9811-0012	●	●
355	09.748 GRILLE; VENT (A) BLACK USA	8-97195-897-1	01	1	0101-		●
355	09.748 GRILLE; VENT (B) BLACK USA	8-97195-898-1	01	1	9811-0012	●	●
355	09.748 GRILLE; VENT (B) BLACK USA	8-97195-898-1	01	1	0101-		●
355	09.748 GRILLE; VENT (C) BLACK USA	8-97195-899-1	01	1	9811-0012	●	●
355	09.748 GRILLE; VENT (C) BLACK USA	8-97195-899-1	01	1	0101-		●
375	09.743 BEZEL; SW,RR DEF BLACK USA	8-97294-901-3	01	1	9811-0012	●	●
375	09.743 BEZEL; SW,RR DEF EXC. TORQUE ON DEMAND(7HA) BLACK USA	8-97294-901-3	01	1	0101-		●
376	09.744 SKIRT; CLUSTER USA	8-97146-556-1	01	1	9811-0012	●	●
376	09.744 SKIRT; CLUSTER USA	8-97146-556-1	01	1	0101-		●
471	08.991 BULB; CLOCK USA	8-97329-219-0	01	1	9811-		●

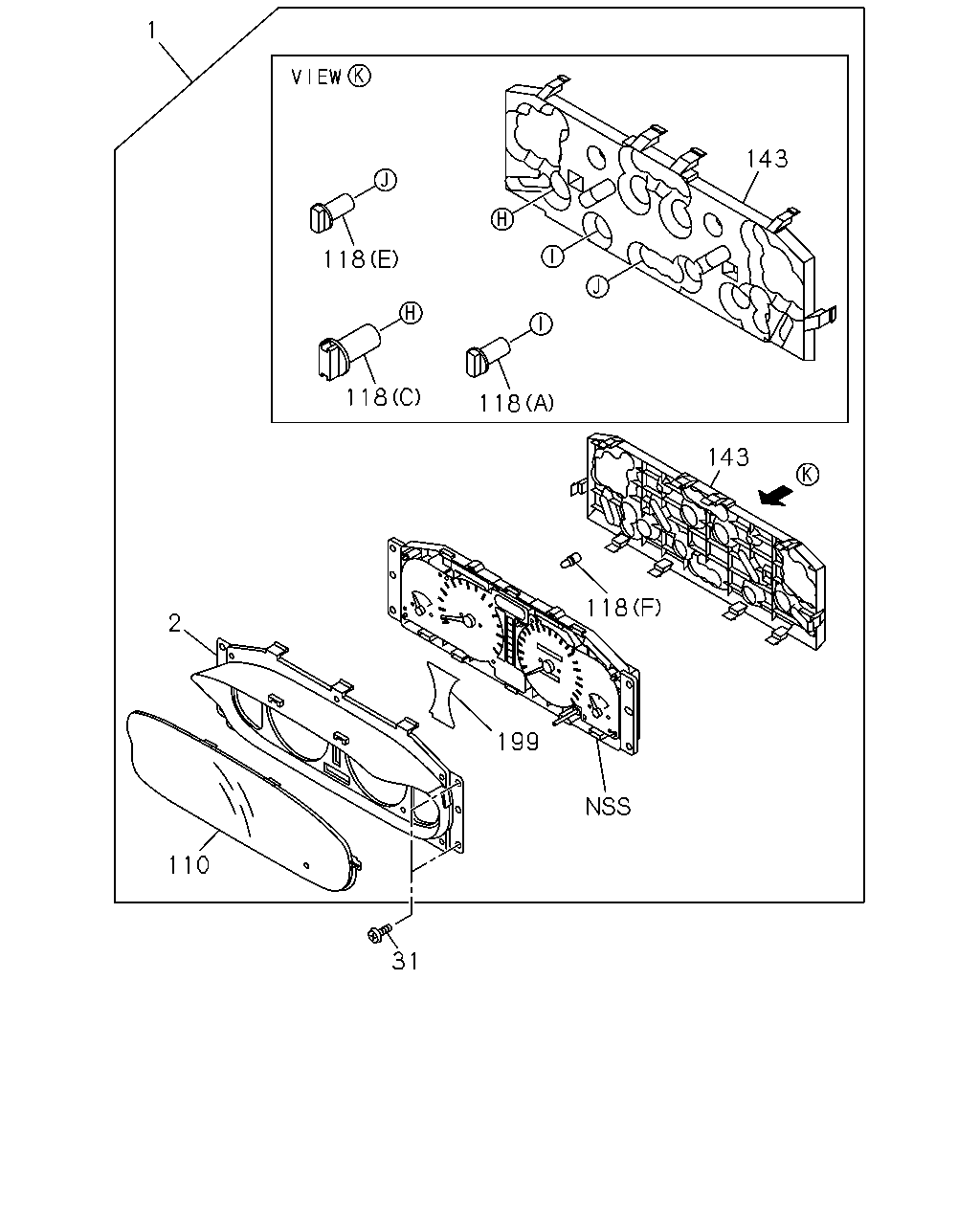

1 143 118 118 118 143 118 2 199 110 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.735 METER COMPL; CLUSTER USA	8-97184-605-2	01	1	9811-0012	●
1	09.735 METER COMPL; CLUSTER A/T THM 4 SPEED(RMQ) TORQUE ON DEMAND(7HA) USA	8-97223-915-0	01	1	0101-		●
1	09.735 METER COMPL; CLUSTER A/T THM 4 SPEED(RMQ) USA	8-97184-607-3	01	1	9811-0012		●
1	09.735 METER COMPL; CLUSTER A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) USA	8-97223-914-0	01	1	0101-		●
1	09.735 METER COMPL; CLUSTER M/T MUA 5 SPEED(RMN) USA	8-97184-606-3	01	1	9811-0012		●
1	09.735 METER COMPL; CLUSTER M/T MUA 5 SPEED(RMN) USA	8-97223-913-0	01	1	0101-		●
2	09.735 PANEL; CLUSTER USA	8-97178-033-0	01	1	9811-0012	●	●
2	09.735 PANEL; CLUSTER USA	8-97231-562-0	01	1	0101-		●
31	09.761 SCREW; METER,INST PANEL 09.743 M5X16 USA	8-94295-854-0	04	1	9811-0012	●	●
31	09.761 SCREW; METER,INST PANEL 09.743 M5X16 USA	8-94295-854-0	04	1	0101-		●
110	09.748 GLASS; CLUSTER METER USA	8-97178-031-0	01	1	9811-0012	●	●
110	09.748 GLASS; CLUSTER METER USA	8-97231-561-0	01	1	0101-		●
118	08.991 BULB; CLUSTER METER M/T MUA 5 SPEED(RMN),A/T THM 4 SPEED(RMQ) (B) 14V 3.4W WITH BULB CAP USA	8-97178-046-0	AR	1	9811-0012	●	●
118	08.991 BULB; CLUSTER METER M/T MUA 5 SPEED(RMN),A/T THM 4 SPEED(RMQ) (A) 14V 1.4W USA	8-97178-047-0	AR	1	9811-0012	●	●
118	08.991 BULB; CLUSTER METER (A) 14V 1.4W USA	8-97178-047-0	AR	1	0101-		●
118	08.991 BULB; CLUSTER METER M/T MUA 5 SPEED(RMN),A/T THM 4 SPEED(RMQ) (C) 14V 2W USA	8-97178-048-0	AR	1	9811-0012	●	●
118	08.991 BULB; CLUSTER METER (C) 14V 2W USA	8-97178-048-0	AR	1	0101-		●
118	08.991 BULB; CLUSTER METER M/T MUA 5 SPEED(RMN),A/T THM 4 SPEED(RMQ) (D) 14V 1.4W USA	8-97178-049-0	AR	1	9811-0012	●	●
118	08.991 BULB; CLUSTER METER (E) 14V 3.4W USA	8-97182-029-0	AR	1	0101-		●
118	08.991 BULB; CLUSTER METER (F) 14V 80MA USA	8-97253-899-0	AR	1	0101-		●
118	08.991 BULB; CLUSTER METER 14V 2W USA	8-97331-581-0	AR	1	0212-		●
143	09.715 COVER; CLUSTER METER A/T THM 4 SPEED(RMQ) TORQUE ON DEMAND(7HA) USA	8-97253-898-0	01	1	0101-		●
143	09.715 COVER; CLUSTER METER EXC. TORQUE ON DEMAND(7HA) USA	8-97231-563-0	01	1	0101-		●
199	09.772 LENS; WARNING LAMP A/T THM 4 SPEED(RMQ) USA	8-97178-042-0	01	1	9811-0012		●
199	09.772 LENS; WARNING LAMP A/T THM 4 SPEED(RMQ) USA	8-97231-564-0	01	1	0101-		●
199	09.772 LENS; WARNING LAMP M/T MUA 5 SPEED(RMN) USA	8-97231-565-0	01	1	0101-		●
