Sayfa 8-16 - Isuzu EPC

8-16 — WIRING HARNESS CONNECTOR (#32677) — 62 parça

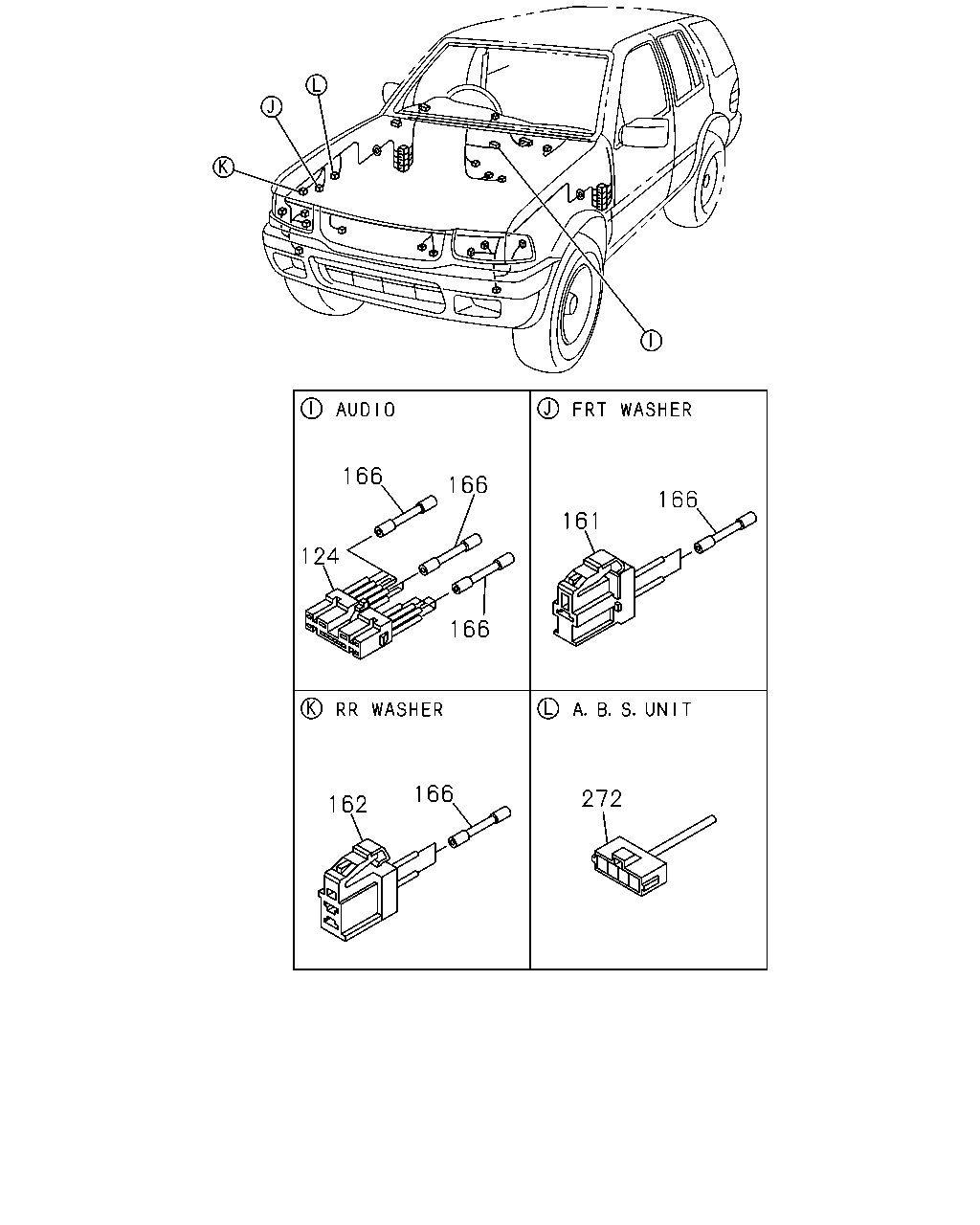

166 166 166 161 124 166 166 272 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
124	02.483 CONNECTOR; AUDIO 16P FEMALE	8-97193-468-0	AR	1	9811-0012	●	●
124	02.483 CONNECTOR; AUDIO 16P FEMALE	8-97193-468-0	AR	1	0101-		●
161	02.483 CONNECTOR; FRT WASHER 2P FEMALE	8-97214-661-0	AR	1	9811-0012	●	●
161	02.483 CONNECTOR; FRT WASHER 2P FEMALE	8-97214-661-0	AR	1	0101-		●
162	02.483 CONNECTOR; RR WASHER 2P FEMALE	8-97214-662-0	AR	1	9811-0012	●	●
162	02.483 CONNECTOR; RR WASHER 2P FEMALE	8-97214-662-0	AR	1	0101-		●
166	02.483 TERMINAL; JOINT WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	AR	1	9811-0012	●	●
166	02.483 TERMINAL; JOINT WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	AR	1	0101-		●
166	02.483 TERMINAL; JOINT WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	AR	1	9811-0012	●	●
166	02.483 TERMINAL; JOINT WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	AR	1	0101-		●
272	02.483 CONNECTOR; ABS	8-97174-442-1	01	1	0206-		●

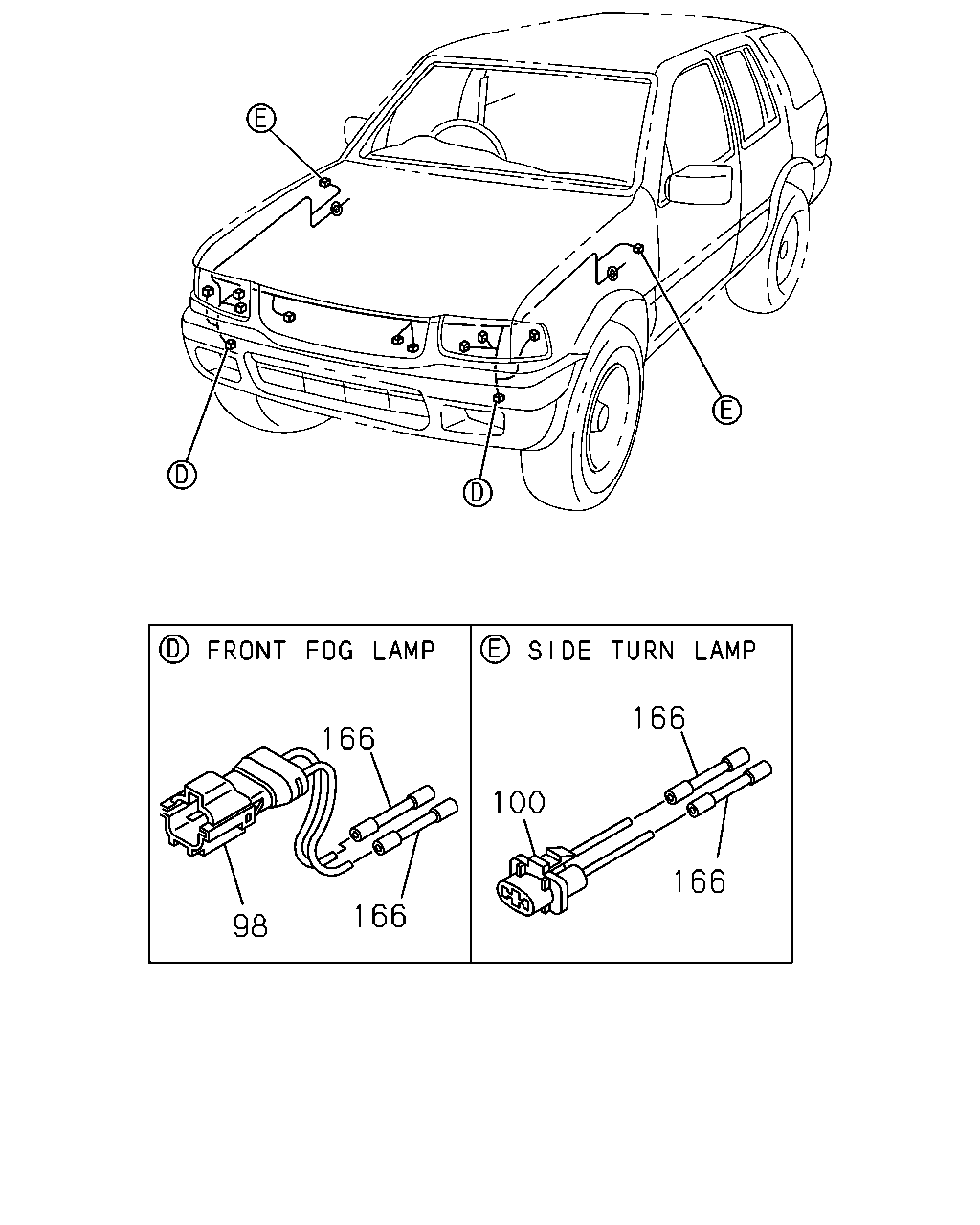

166 166 100 166 166 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
98	02.483 CONNECTOR; FRT FOG LAMP FOG LAMP HALOGEN<T37> 2P MALE GRAY	8-97170-984-0	AR	1	9811-0012	●	●
98	02.483 CONNECTOR; FRT FOG LAMP FOG LAMP HALOGEN<T37> 2P MALE GRAY	8-97170-984-0	AR	1	0101-		●
100	02.483 CONNECTOR; SIDE TURN LAMP	8-97174-886-0	AR	1	9811-0012	●	●
100	02.483 CONNECTOR; SIDE TURN LAMP	8-97174-886-0	AR	1	0101-		●
166	02.483 TERMINAL; JOINT WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	AR	1	9811-0012	●	●
166	02.483 TERMINAL; JOINT WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	AR	1	0101-		●
166	02.483 TERMINAL; JOINT WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	AR	1	9811-0012	●	●
166	02.483 TERMINAL; JOINT WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	AR	1	0101-		●

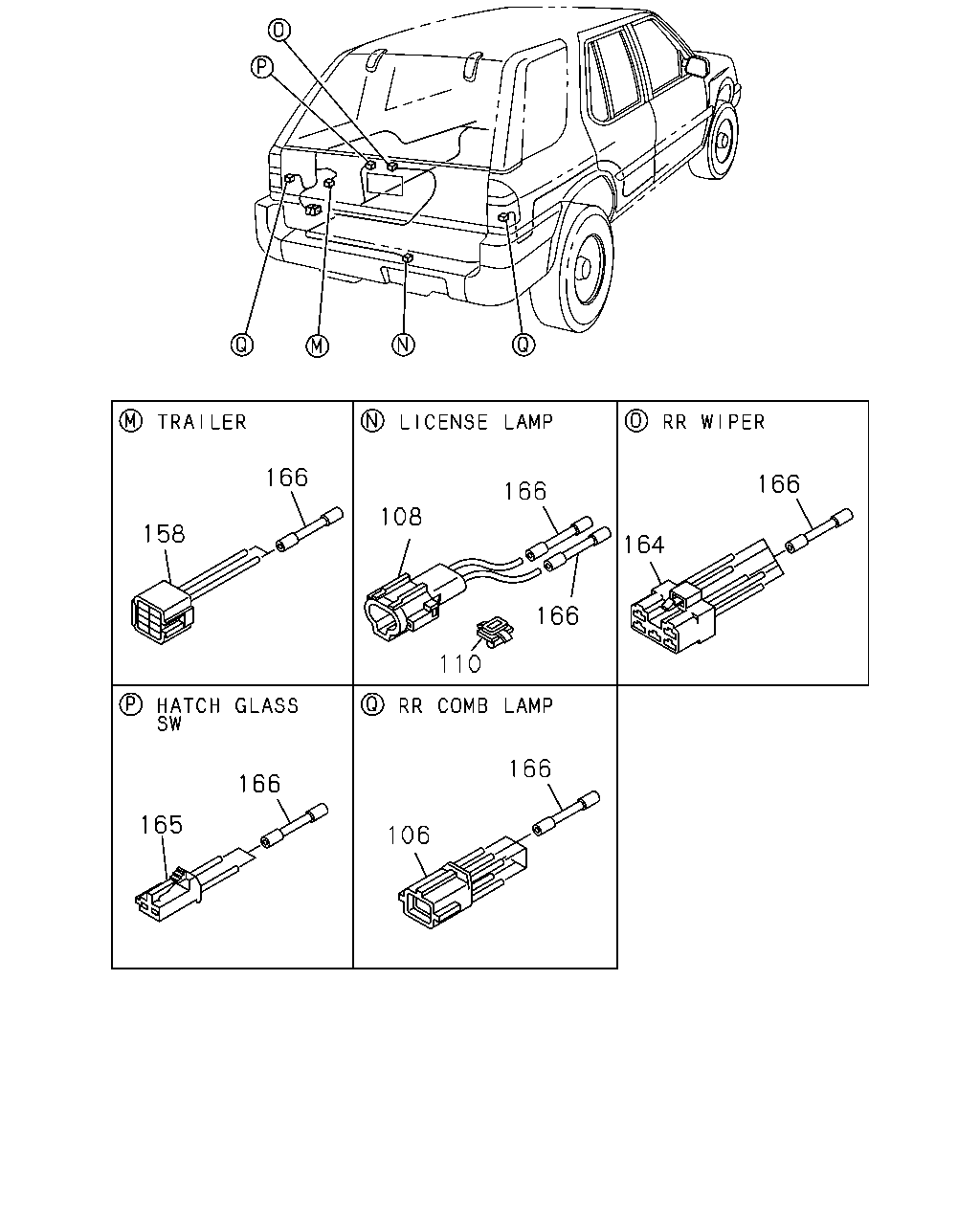

166 166 166 108 158 164 166 110 166 166 165 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
106	02.483 CONNECTOR; RR COMB LAMP	8-97220-472-0	01	1	9811-0003	●	●
106	02.483 CONNECTOR; RR COMB LAMP	8-97220-471-0	01	1	9811-0003	●	●
106	02.483 CONNECTOR; RR COMB LAMP	8-97192-984-0	AR	1	0004-0012	●	●
106	02.483 CONNECTOR; RR COMB LAMP	8-97192-984-0	AR	1	0101-		●
108	02.483 CONNECTOR; LICENSE LAMP	8-97192-985-0	AR	1	9811-0012	●	●
108	02.483 CONNECTOR; LICENSE LAMP	8-97192-985-0	AR	1	0101-		●
110	02.483 CLIP; CONNECTOR 02.559 L=15	8-94315-436-1	AR	1	9811-0012	●	●
110	02.483 CLIP; CONNECTOR 02.559 L=15	8-94315-436-1	AR	1	0101-		●
158	02.483 CONNECTOR; TRAILER 8P FEMALE	8-97214-665-0	AR	1	9811-0012	●	●
158	02.483 CONNECTOR; TRAILER 8P FEMALE	8-97214-665-0	AR	1	0101-		●
164	02.483 CONNECTOR; RR WIPER	8-97214-663-0	AR	1	9811-0012		●
165	02.483 CONNECTOR; HATCH GLASS SW	8-97214-664-0	AR	1	9811-0012		●
165	02.483 CONNECTOR; HATCH GLASS SW	8-97214-664-0	AR	1	0101-		●
166	02.483 TERMINAL; JOINT WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	AR	1	9811-0012	●	●
166	02.483 TERMINAL; JOINT WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	AR	1	0101-		●
166	02.483 TERMINAL; JOINT WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	AR	1	9811-0012	●	●
166	02.483 TERMINAL; JOINT WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	AR	1	0101-		●

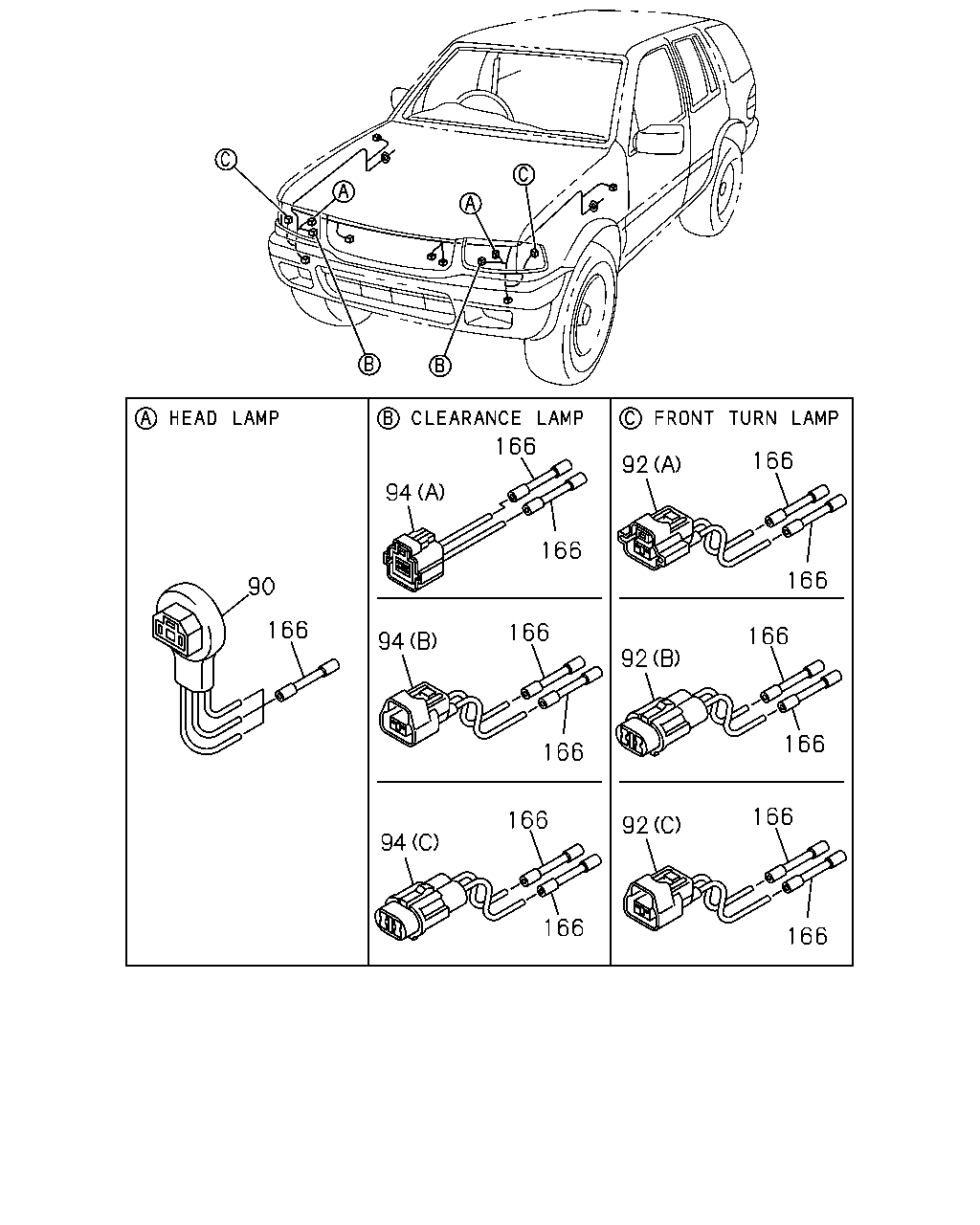

166 166 92 94 166 166 90 166 166 166 94 92 166 166 166 166 92 94 166 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
90	02.483 CONNECTOR; HEAD LAMP 3P FEMALE BLACK	8-97170-978-0	AR	1	9811-0012	●	●
90	02.483 CONNECTOR; HEAD LAMP 3P FEMALE BLACK	8-97170-978-0	AR	1	0101-		●
92	02.483 CONNECTOR; FRT TURN LAMP (A)	8-97192-981-0	AR	1	9811-0003	●	●
92	02.483 CONNECTOR; FRT TURN LAMP (B)	8-97240-687-0	AR	1	0004-0005	●	●
92	02.483 CONNECTOR; FRT TURN LAMP (C)	8-97257-617-0	AR	1	0006-0012	●	●
92	02.483 CONNECTOR; FRT TURN LAMP (C)	8-97257-617-0	AR	1	0101-0205		●
92	02.483 CONNECTOR; FRT TURN LAMP (C)	8-97257-615-0	AR	1	0206-		●
94	02.483 CONNECTOR; CLEARANCE LAMP (A)	8-97192-980-0	AR	1	9811-0003	●	●
94	02.483 CONNECTOR; CLEARANCE LAMP (B)	8-97240-688-0	AR	1	0004-0005	●	●
94	02.483 CONNECTOR; CLEARANCE LAMP (C)	8-97257-615-0	AR	1	0006-0012	●	●
94	02.483 CONNECTOR; CLEARANCE LAMP (C)	8-97257-615-0	AR	1	0101-0205		●
94	02.483 CONNECTOR; CLEARANCE LAMP (C)	8-97257-617-0	AR	1	0206-		●
166	02.483 TERMINAL; JOINT WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	AR	1	9811-0012	●	●
166	02.483 TERMINAL; JOINT WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	AR	1	0101-		●
166	02.483 TERMINAL; JOINT WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	AR	1	9811-0012	●	●
166	02.483 TERMINAL; JOINT WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	AR	1	0101-		●

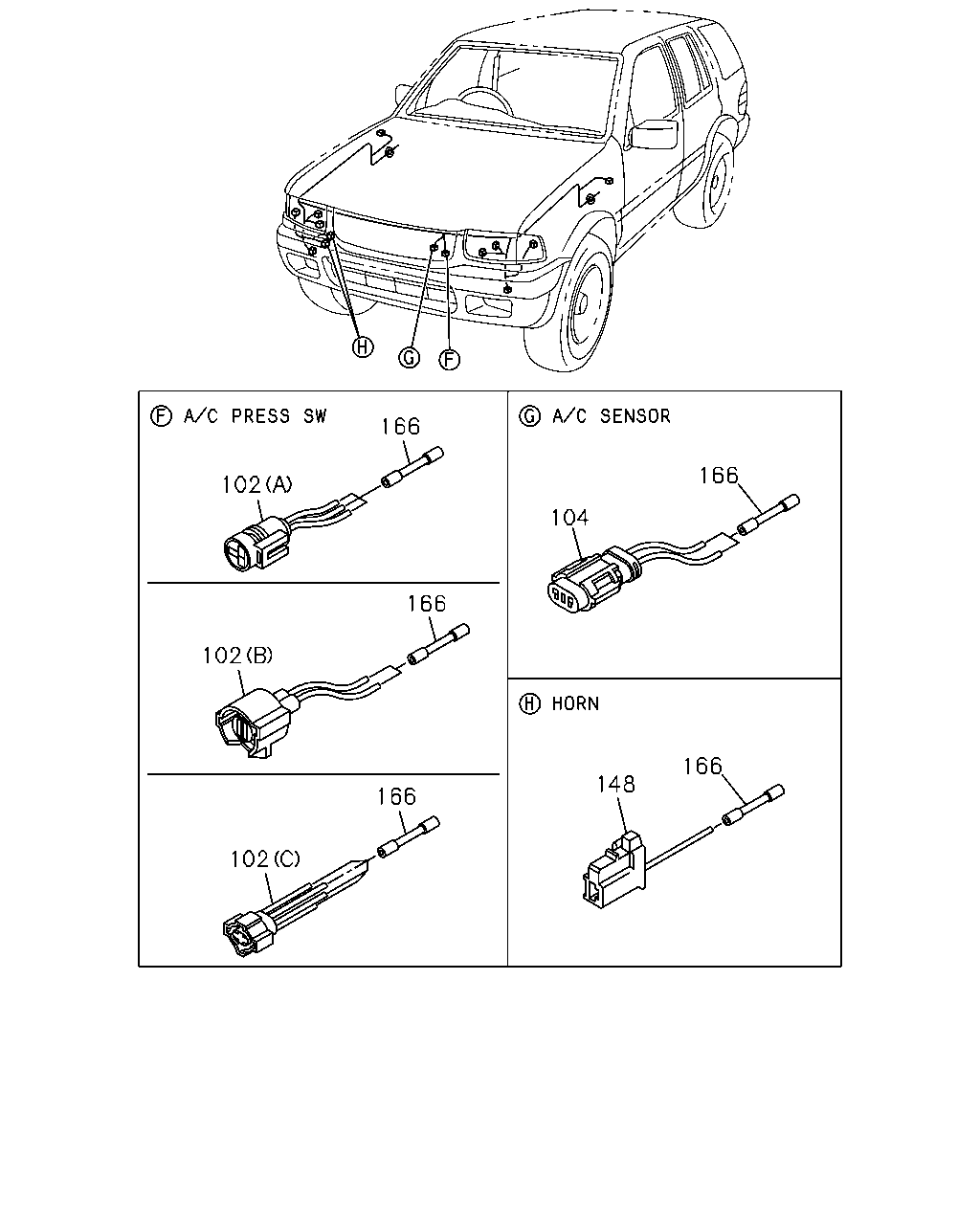

166 166 102 104 166 102 166 148 166 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
102	02.483 CONNECTOR; A/C PRESS SW (A)	8-97220-469-0	AR	1	9811-0012	●
102	02.483 CONNECTOR; A/C PRESS SW A/T THM 4 SPEED(RMQ) (C) 4P FEMALE	8-97220-470-0	AR	1	9811-		●
102	02.483 CONNECTOR; A/C PRESS SW M/T MUA 5 SPEED(RMN) (B)	8-97174-883-0	AR	1	9811-		●
104	02.483 CONNECTOR; A/C SENSOR AIR CONDITIONER AUTOMATIC CONT(C61)	8-97192-620-0	AR	1	9811-		●
148	02.483 CONNECTOR; HORN 1P FEMALE BLACK	8-97220-510-0	AR	1	9811-0012	●	●
148	02.483 CONNECTOR; HORN 1P FEMALE BLACK	8-97220-510-0	AR	1	0101-		●
166	02.483 TERMINAL; JOINT WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	AR	1	9811-0012	●	●
166	02.483 TERMINAL; JOINT WIRE SIZE=0.3-0.5 USE TIN PLATE	8-97169-473-0	AR	1	0101-		●
166	02.483 TERMINAL; JOINT WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	AR	1	9811-0012	●	●
166	02.483 TERMINAL; JOINT WIRE SIZE=0.75-1.25 USE TIN PLATE	8-97169-474-0	AR	1	0101-		●
