◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#32675) — 178 parça

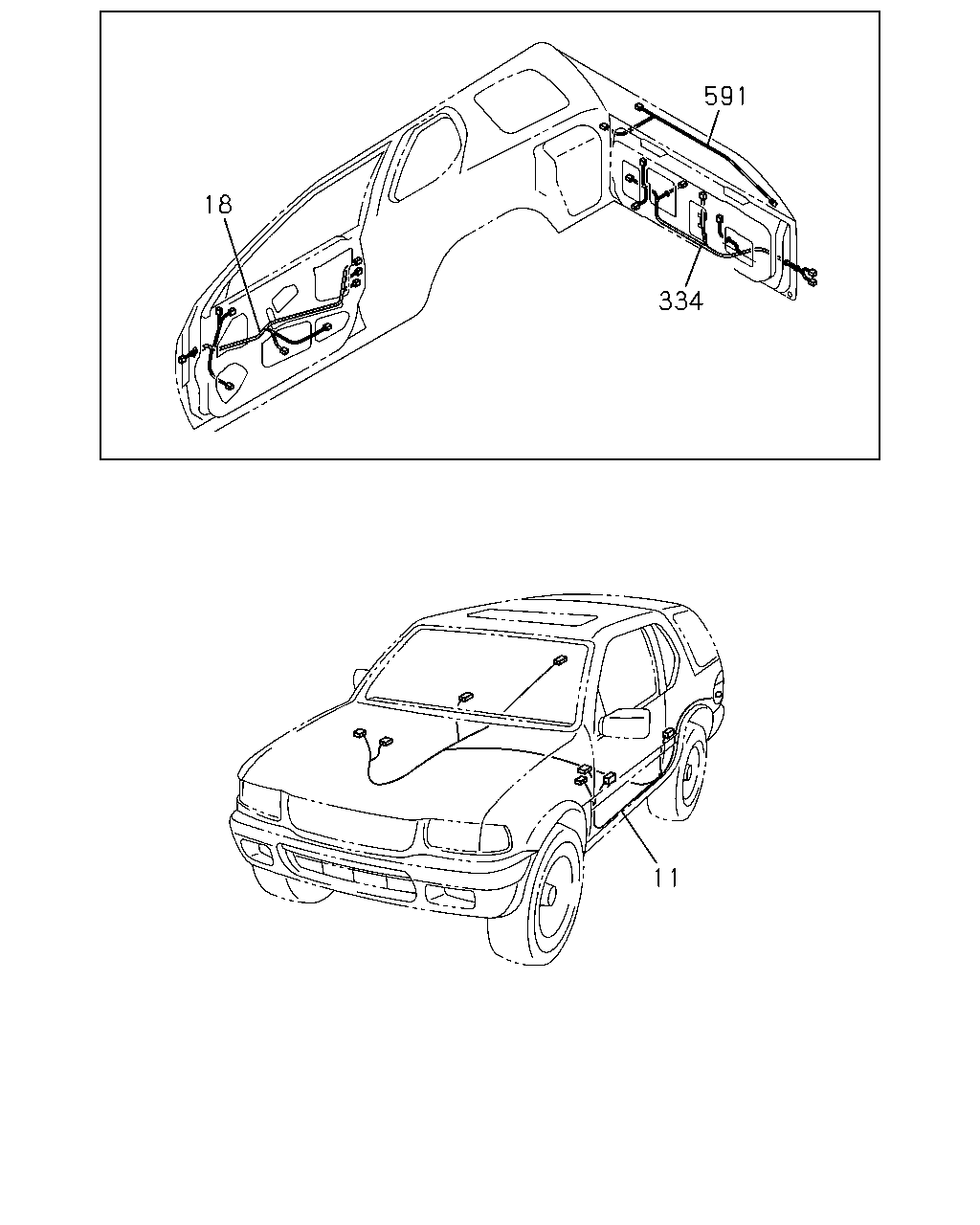

çizim 4649
591 18 334 11
BalonParca AdiParca NoAdetTipApplied Date A B
11 02.480 HARNESS; BODY
USA 		8-97183-417-1 01 1 9811-0003 ●
11 02.480 HARNESS; BODY
USA 		8-97240-677-0 01 1 0004-0012 ●
11 02.480 HARNESS; BODY
ACTIVE RIDE CONTROL(7WD) USA 		8-97253-230-3 01 1 0101-0108 ●
11 02.480 HARNESS; BODY
ACTIVE RIDE CONTROL(7WD) USA 		8-97305-161-4 01 1 0109- ●
11 02.480 HARNESS; BODY
A/T THM 4 SPEED(RMQ) USA 		8-97187-938-2 01 1 9811-0003 ●
11 02.480 HARNESS; BODY
A/T THM 4 SPEED(RMQ) USA 		8-97240-679-2 01 1 0004-0012 ●
11 02.480 HARNESS; BODY
M/T MUA 5 SPEED(RMN) USA 		8-97183-419-2 01 1 9811-0003 ●
11 02.480 HARNESS; BODY
M/T MUA 5 SPEED(RMN) USA 		8-97240-678-2 01 1 0004-0012 ●
11 02.480 HARNESS; BODY
EXC. ACTIVE RIDE CONTROL(7WD) USA 		8-97253-229-3 01 1 0101-0108 ●
11 02.480 HARNESS; BODY
EXC. ACTIVE RIDE CONTROL(7WD) USA 		8-97305-158-4 01 1 0109- ●
18 02.480 HARNESS; DOOR
USA 		8-97139-924-3 01 1 9811-0003 ● ●
18 02.480 HARNESS; DOOR
USA 		8-97220-215-1 01 1 0004-0012 ● ●
18 02.480 HARNESS; DOOR
USA 		8-97224-512-2 01 1 0101- ●
18 02.480 HARNESS; DOOR
USA 		8-97208-087-1 01 1 9811-0003 ● ●
18 02.480 HARNESS; DOOR
USA 		8-97246-976-0 01 1 0004-0012 ● ●
18 02.480 HARNESS; DOOR
USA 		8-97224-511-2 01 1 0101- ●
334 02.480 HARNESS; CABLE,BACK DOOR
USA 		8-97136-964-1 01 1 9811-0012 ●
334 02.480 HARNESS; CABLE,BACK DOOR
USA 		8-97124-994-4 01 1 9811-0012 ●
334 02.480 HARNESS; CABLE,BACK DOOR
USA 		8-97208-800-2 01 1 0101- ●
591 02.480 HARNESS; RESIN TOP
USA 		8-97141-771-2 01 1 9811-0012 ●

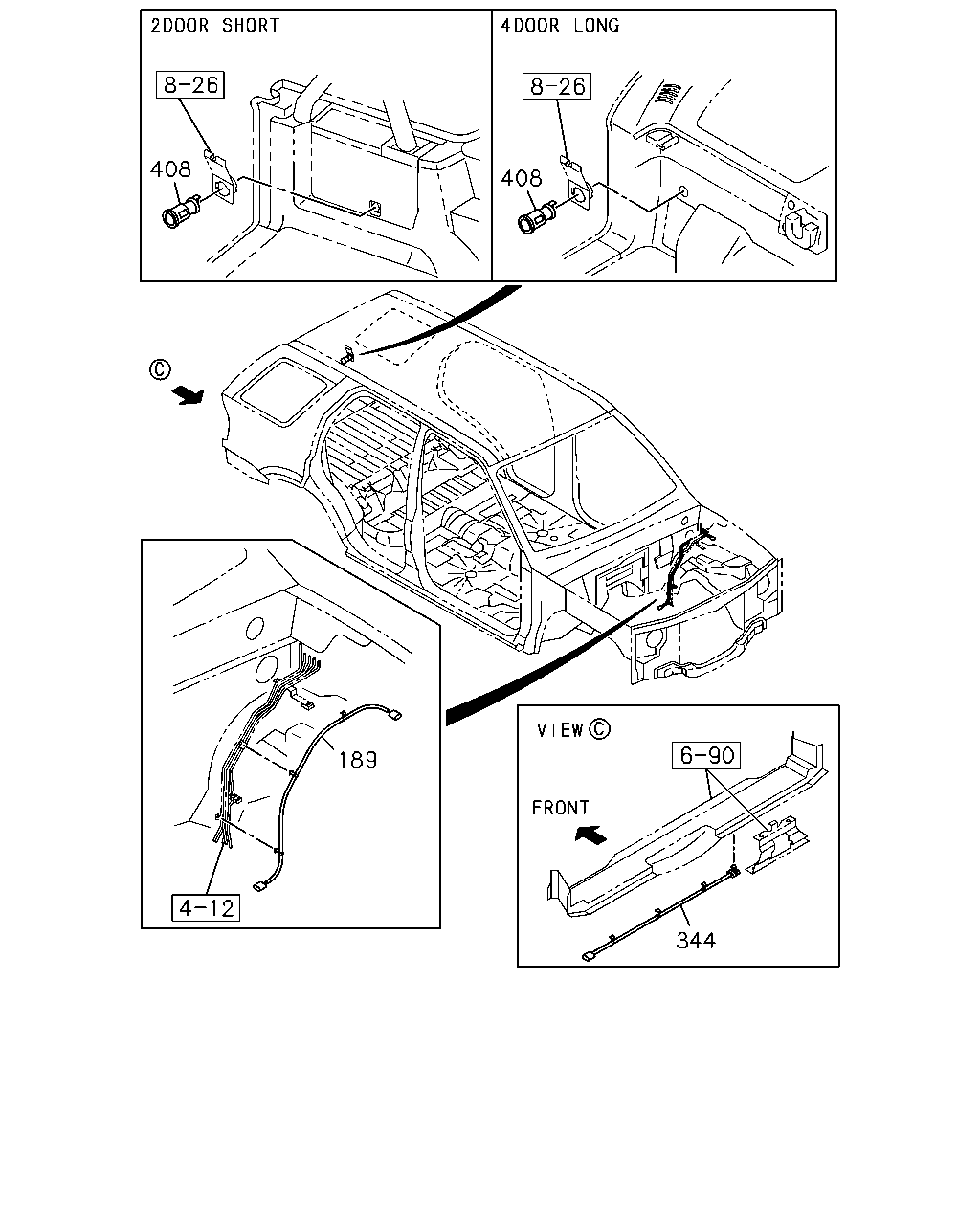

çizim 4650
408 408 189 344
BalonParca AdiParca NoAdetTipApplied Date A B
189 02.480 HARNESS; EXT
USA 		8-97135-102-1 01 1 9811-0012 ● ●
344 02.480 HARNESS; CABLE,LICENSE LAMP
USA 		8-97127-981-0 01 1 9811-0012 ● ●
344 02.480 HARNESS; CABLE,LICENSE LAMP
USA 		8-97208-724-1 01 1 0101- ●
408 02.575 SOCKET ASM; ACCESSORY
USA 		8-94382-451-1 01 1 9811-0012 ● ●
408 02.575 SOCKET ASM; ACCESSORY
USA 		8-94382-451-1 01 1 0101- ●

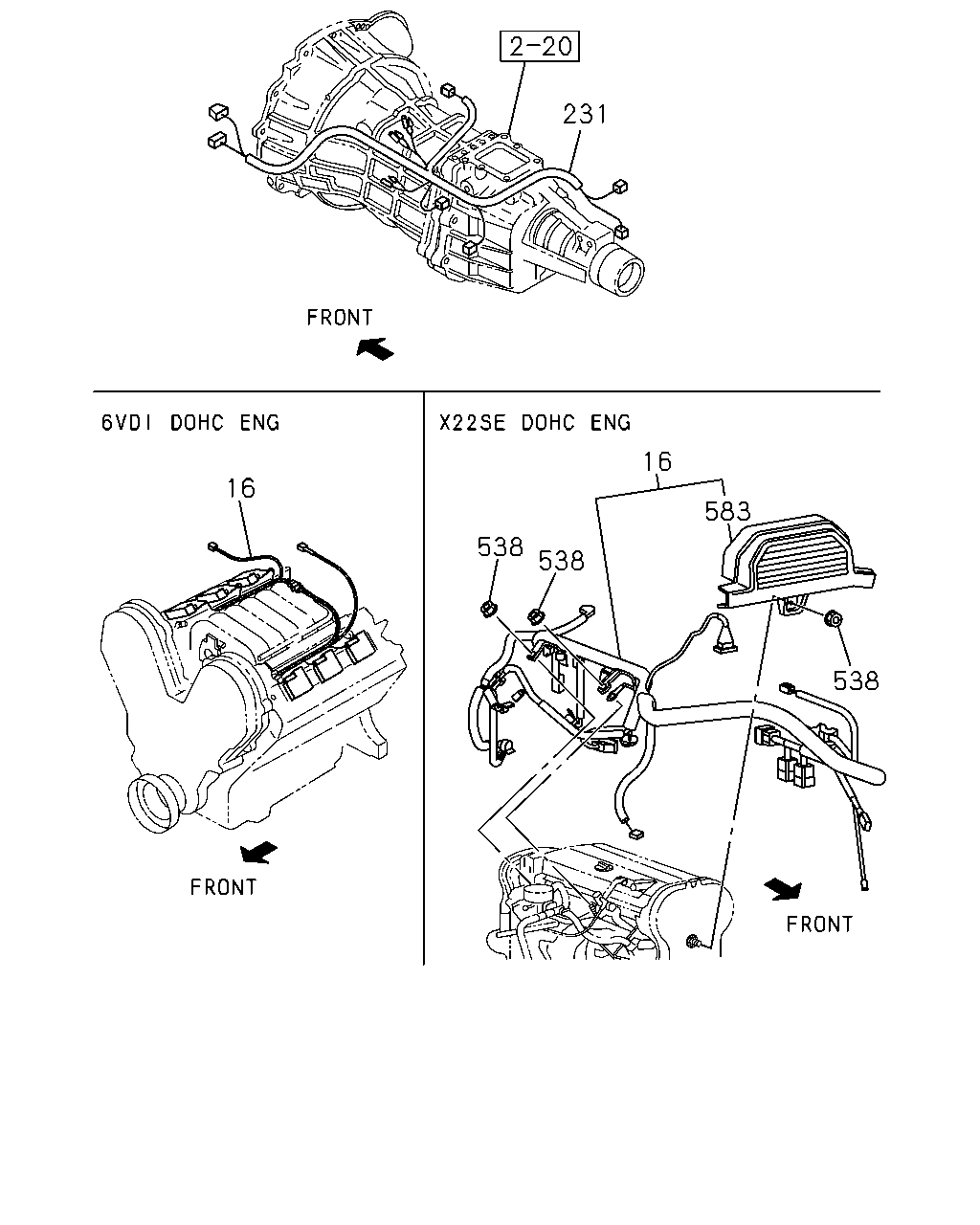

çizim 36038
231 16 16 583 538 538 538
BalonParca AdiParca NoAdetTipApplied Date A B
16 02.525 HARNESS; ENG,ECGI
AUS 		8-92062-717-0 01 1 9811-0012 ●
16 02.525 HARNESS; ENG,ECGI
M/T MUA 5 SPEED(RMN) 		8-97247-602-3 01 1 0101-0106 ●
16 02.525 HARNESS; ENG,ECGI
M/T MUA 5 SPEED(RMN) 		8-97310-277-0 01 1 0107-0108 ●
16 02.525 HARNESS; ENG,ECGI
M/T MUA 5 SPEED(RMN) 		8-97262-072-2 01 1 0109- ●
16 02.525 HARNESS; ENG,ECGI 8-97131-972-8 01 1 9811-0012 ●
16 02.525 HARNESS; ENG,ECGI
A/T THM 4 SPEED(RMQ) 		8-97247-601-3 01 1 0101-0106 ●
16 02.525 HARNESS; ENG,ECGI
A/T THM 4 SPEED(RMQ) 		8-97310-278-0 01 1 0107-0108 ●
16 02.525 HARNESS; ENG,ECGI
A/T THM 4 SPEED(RMQ) 		8-97262-071-2 01 1 0109- ●
231 02.480 HARNESS; TRANS
USA 		8-97184-610-0 01 1 9811-0012 ●
231 02.480 HARNESS; TRANS
A/T THM 4 SPEED(RMQ) USA 		8-97176-098-2 01 1 9811-0012 ●
231 02.480 HARNESS; TRANS
M/T MUA 5 SPEED(RMN) USA 		8-97184-609-0 01 1 9811-0012 ●
538 02.483 NUT
03.275 AUS 		8-11094-423-0 03 1 9811-0012 ●
583 02.559 COVER; HARNESS
AUS 		8-92063-618-0 01 1 9811-0012 ●

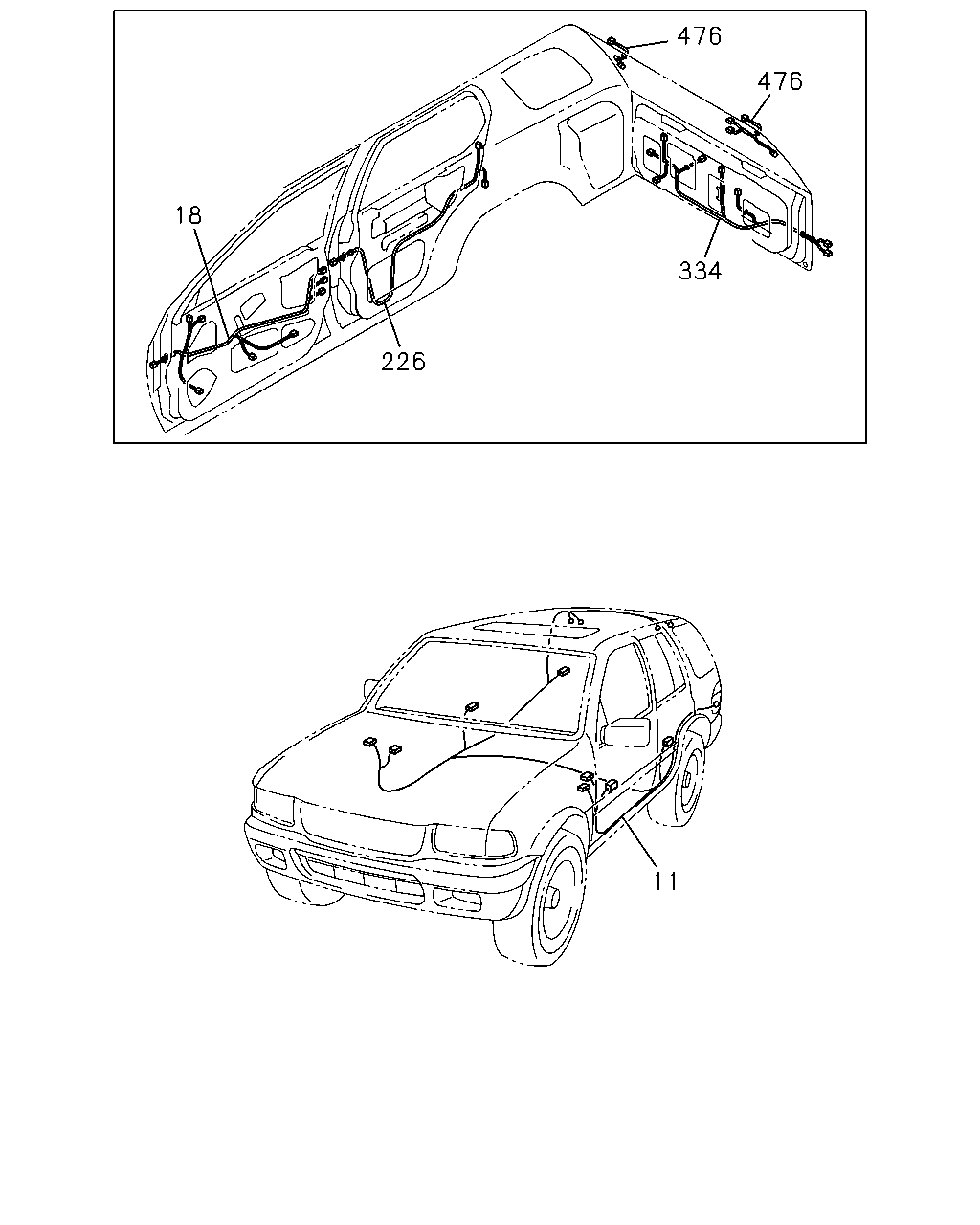

çizim 36711
476 476 18 334 226 11
BalonParca AdiParca NoAdetTipApplied Date A B
11 02.480 HARNESS; BODY
USA 		8-97183-417-1 01 1 9811-0003 ●
11 02.480 HARNESS; BODY
USA 		8-97240-677-0 01 1 0004-0012 ●
11 02.480 HARNESS; BODY
ACTIVE RIDE CONTROL(7WD) USA 		8-97253-230-3 01 1 0101-0108 ●
11 02.480 HARNESS; BODY
ACTIVE RIDE CONTROL(7WD) USA 		8-97305-161-4 01 1 0109- ●
11 02.480 HARNESS; BODY
A/T THM 4 SPEED(RMQ) USA 		8-97187-938-2 01 1 9811-0003 ●
11 02.480 HARNESS; BODY
A/T THM 4 SPEED(RMQ) USA 		8-97240-679-2 01 1 0004-0012 ●
11 02.480 HARNESS; BODY
M/T MUA 5 SPEED(RMN) USA 		8-97183-419-2 01 1 9811-0003 ●
11 02.480 HARNESS; BODY
M/T MUA 5 SPEED(RMN) USA 		8-97240-678-2 01 1 0004-0012 ●
11 02.480 HARNESS; BODY
EXC. ACTIVE RIDE CONTROL(7WD) USA 		8-97253-229-3 01 1 0101-0108 ●
11 02.480 HARNESS; BODY
EXC. ACTIVE RIDE CONTROL(7WD) USA 		8-97305-158-4 01 1 0109- ●
18 02.480 HARNESS; DOOR
USA 		8-97139-924-3 01 1 9811-0003 ● ●
18 02.480 HARNESS; DOOR
USA 		8-97220-215-1 01 1 0004-0012 ● ●
18 02.480 HARNESS; DOOR
USA 		8-97224-512-2 01 1 0101- ●
18 02.480 HARNESS; DOOR
USA 		8-97208-087-1 01 1 9811-0003 ● ●
18 02.480 HARNESS; DOOR
USA 		8-97246-976-0 01 1 0004-0012 ● ●
18 02.480 HARNESS; DOOR
USA 		8-97224-511-2 01 1 0101- ●
226 02.480 HARNESS; RR DOOR
USA 		8-97124-993-4 02 1 9811-0012 ●
226 02.480 HARNESS; RR DOOR
USA 		8-97220-894-2 02 1 0101- ●
334 02.480 HARNESS; CABLE,BACK DOOR
USA 		8-97136-964-1 01 1 9811-0012 ●
334 02.480 HARNESS; CABLE,BACK DOOR
USA 		8-97124-994-4 01 1 9811-0012 ●
334 02.480 HARNESS; CABLE,BACK DOOR
USA 		8-97208-800-2 01 1 0101- ●
476 02.480 HARNESS; HATCH GLASS
USA 		8-97124-988-4 01 1 9811-0001 ●
476 02.480 HARNESS; HATCH GLASS
USA 		8-97208-814-2 01 1 0002- ●
476 02.480 HARNESS; HATCH GLASS
USA 		8-97124-987-2 01 1 9811-0001 ●
476 02.480 HARNESS; HATCH GLASS
USA 		8-97208-813-2 01 1 0002- ●
çizim 36723
16 606 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 02.525 HARNESS; ENG,ECGI
AUS 		8-92062-717-0 01 1 9811-0012 ●
16 02.525 HARNESS; ENG,ECGI
M/T MUA 5 SPEED(RMN) 		8-97247-602-3 01 1 0101-0106 ●
16 02.525 HARNESS; ENG,ECGI
M/T MUA 5 SPEED(RMN) 		8-97310-277-0 01 1 0107-0108 ●
16 02.525 HARNESS; ENG,ECGI
M/T MUA 5 SPEED(RMN) 		8-97262-072-2 01 1 0109- ●
16 02.525 HARNESS; ENG,ECGI 8-97131-972-8 01 1 9811-0012 ●
16 02.525 HARNESS; ENG,ECGI
A/T THM 4 SPEED(RMQ) 		8-97247-601-3 01 1 0101-0106 ●
16 02.525 HARNESS; ENG,ECGI
A/T THM 4 SPEED(RMQ) 		8-97310-278-0 01 1 0107-0108 ●
16 02.525 HARNESS; ENG,ECGI
A/T THM 4 SPEED(RMQ) 		8-97262-071-2 01 1 0109- ●
606 02.480 HARNESS; EXT,TOD
TORQUE ON DEMAND(7HA) USA 		8-97229-548-3 01 1 0101- ●

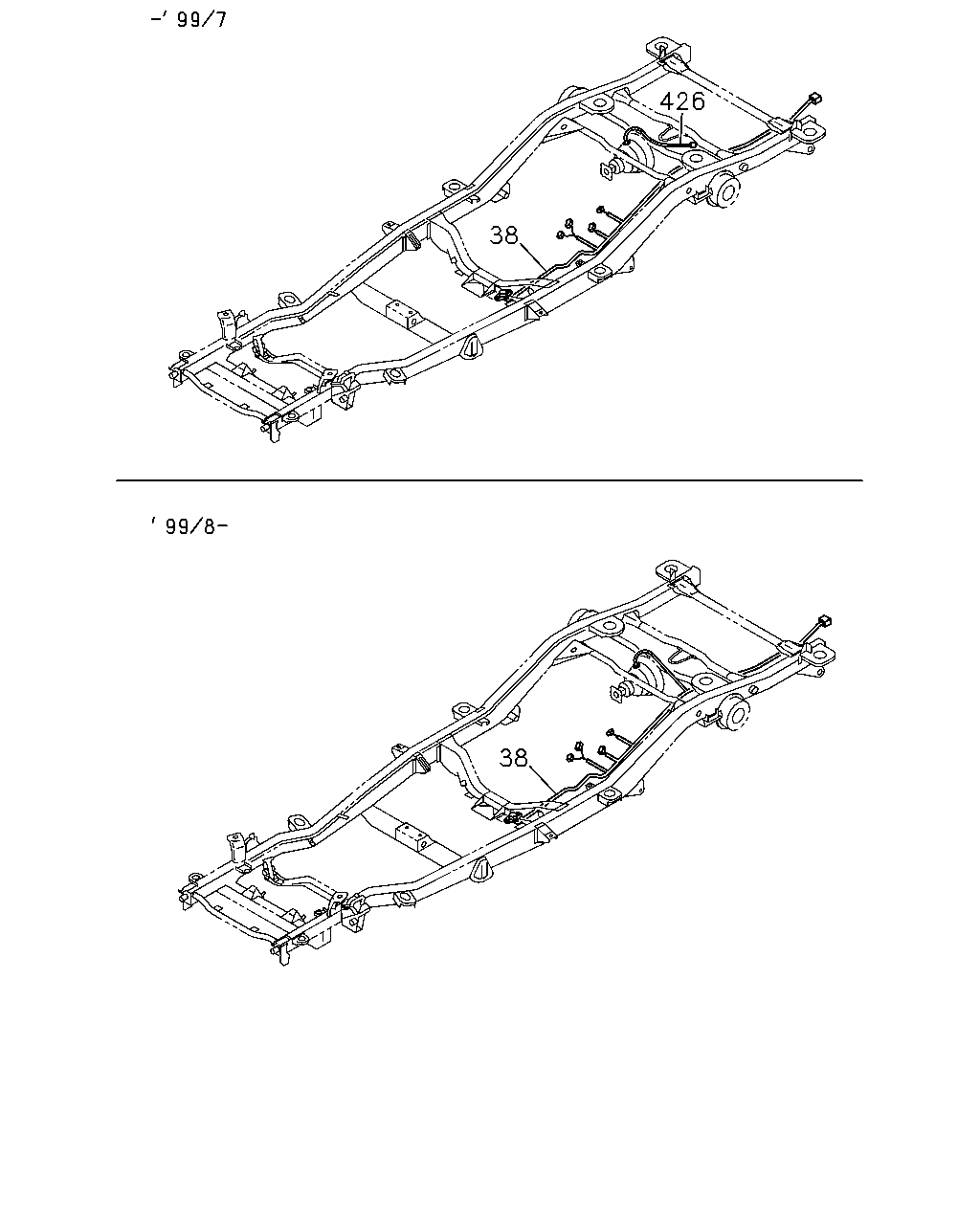

çizim 36732
426 38 38
BalonParca AdiParca NoAdetTipApplied Date A B
38 02.480 HARNESS; CHAS
USA 		8-97203-863-1 01 1 9811-9907 ●
38 02.480 HARNESS; CHAS
USA 		8-97233-284-0 01 1 9908-0012 ●
38 02.480 HARNESS; CHAS
EXC. ACTIVE RIDE CONTROL(7WD) USA 		8-97263-271-0 01 1 0101- ●
38 02.480 HARNESS; CHAS
USA 		8-97202-005-0 01 1 9811-9907 ●
38 02.480 HARNESS; CHAS
USA 		8-97233-283-1 01 1 9908-0012 ●
38 02.480 HARNESS; CHAS
ACTIVE RIDE CONTROL(7WD) USA 		8-97263-272-1 01 1 0101- ●
426 02.480 HARNESS; ABS
USA 		8-97138-834-3 01 1 9811-9907 ● ●

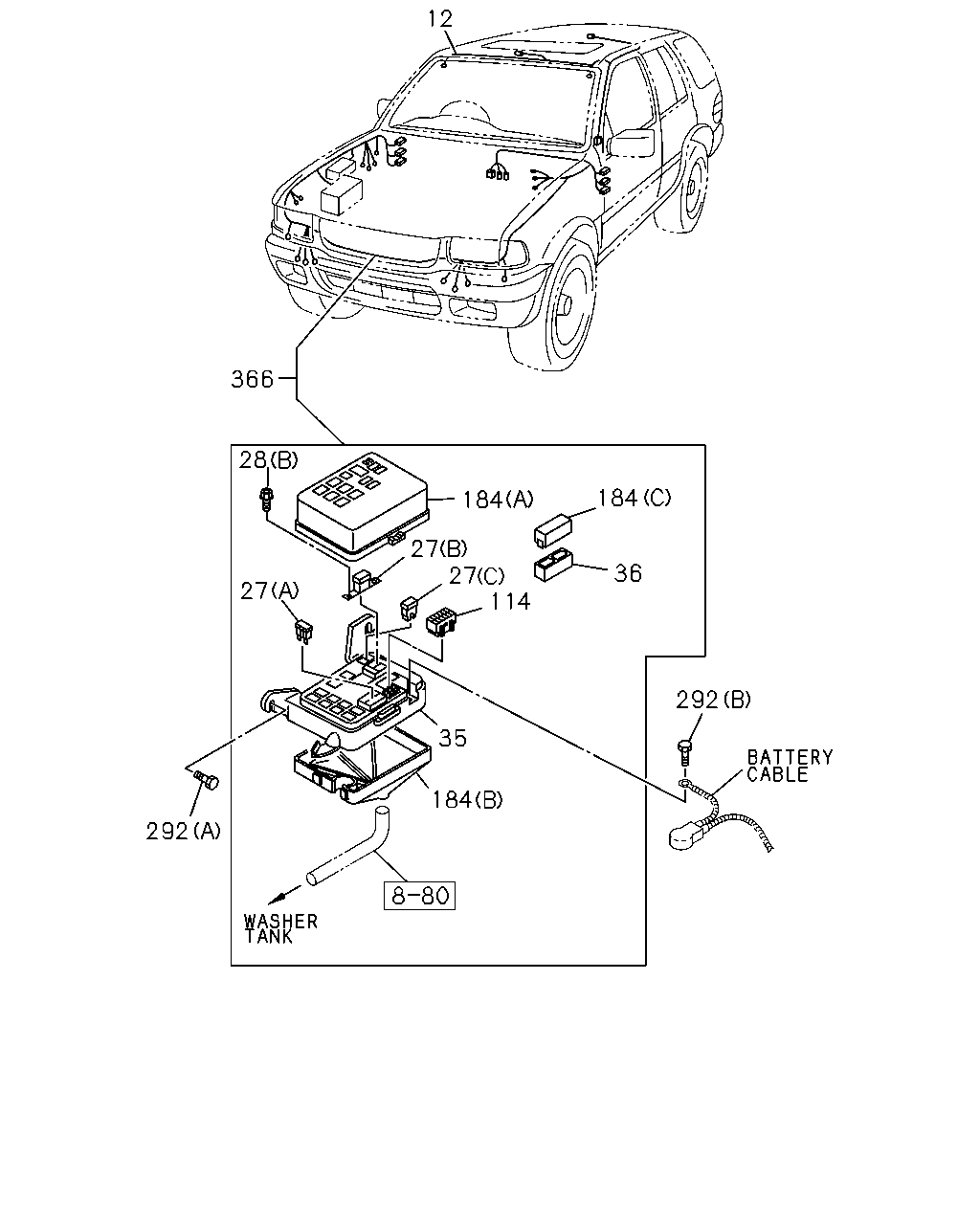

çizim 37683
12 366 28 184 184 27 27 114 36 27 292 35 184 292
BalonParca AdiParca NoAdetTipApplied Date A B
12 02.480 HARNESS; ROOF
USA 		8-97130-939-3 01 1 9811-0012 ●
12 02.480 HARNESS; ROOF
GRADE LEVEL-1(RBB) EXC. SUN ROOF SLIDING ELEC<CF5> USA 		8-97124-995-3 01 1 9811-0012 ●
12 02.480 HARNESS; ROOF
GRADE LEVEL-1(RBB) EXC. SUN ROOF SLIDING ELEC<CF5> USA 		8-97259-197-2 01 1 0101- ●
12 02.480 HARNESS; ROOF
GRADE LEVEL-2(RBD) EXC. SUN ROOF SLIDING ELEC<CF5> USA 		8-97161-231-2 01 1 9811-0012 ●
12 02.480 HARNESS; ROOF
GRADE LEVEL-2(RBD) EXC. SUN ROOF SLIDING ELEC<CF5> USA 		8-97229-264-4 01 1 0101- ●
12 02.480 HARNESS; ROOF
SUN ROOF SLIDING ELEC<CF5> USA 		8-97130-938-3 01 1 9811-0012 ●
12 02.480 HARNESS; ROOF
SUN ROOF SLIDING ELEC<CF5> USA 		8-97259-199-2 01 1 0101- ●
27 08.965 FUSE UNIT
(B) 60A YELLOW USA 		8-94388-303-0 AR 1 9811-0012 ● ●
27 08.965 FUSE UNIT
(B) 60A YELLOW USA 		8-94388-303-0 AR 1 0101- ●
27 08.965 FUSE UNIT
(B) 100A BLUE USA 		8-94388-306-0 AR 1 9811-0012 ● ●
27 08.965 FUSE UNIT
(B) 100A BLUE USA 		8-94388-306-0 AR 1 0101- ●
27 08.965 FUSE UNIT
(C) 30A PINK USA 		8-94468-661-0 AR 1 9811-0012 ● ●
27 08.965 FUSE UNIT
(C) 30A PINK USA 		8-94468-661-0 AR 1 0101- ●
27 08.965 FUSE UNIT
02.483 (C) 60A YELLOW USA 		8-94468-664-0 AR 1 9811-0012 ● ●
27 08.965 FUSE UNIT
(A) 10A RED USA 		8-97103-481-0 AR 1 9811-0012 ● ●
27 08.965 FUSE UNIT
(A) 10A RED USA 		8-97103-481-0 AR 1 0101- ●
27 08.965 FUSE UNIT
(A) 15A BLUE USA 		8-97103-482-0 AR 1 9811-0012 ● ●
27 08.965 FUSE UNIT
(A) 15A BLUE USA 		8-97103-482-0 AR 1 0101- ●
27 08.965 FUSE UNIT
(A) 20A YELLOW USA 		8-97103-483-0 AR 1 9811-0012 ● ●
27 08.965 FUSE UNIT
(A) 20A YELLOW USA 		8-97103-483-0 AR 1 0101- ●
27 08.965 FUSE UNIT
(C) 30A PINK USA 		8-97183-643-0 AR 1 0101- ●
27 08.965 FUSE UNIT
(C) 50A RED USA 		8-97183-645-0 AR 1 0101- ●
28 02.483 SCREW; FUSE BOX
(B) USA 		8-97249-192-0 04 1 9811-9811 ●
28 02.483 SCREW; FUSE BOX
(B) USA 		8-97249-192-0 04 1 9812-0012 ● ●
28 02.483 SCREW; FUSE BOX
(B) USA 		8-97249-192-0 04 1 0101- ●
28 02.483 SCREW; FUSE BOX
09.743 (A) M5X16 USA 		8-94295-854-0 03 1 9811-0012 ● ●
28 02.483 SCREW; FUSE BOX
09.743 (A) M5X16 USA 		8-94295-854-0 03 1 0101- ●
35 02.530 BOX; RELAY & FUSE
USA 		8-97104-108-2 01 1 9811-0012 ● ●
35 02.530 BOX; RELAY & FUSE
USA 		8-97940-316-1 01 1 0101- ●
36 02.530 BOX; RELAY
USA 		8-97104-122-1 01 1 9811-0012 ●
36 02.530 BOX; RELAY
ACTIVE RIDE CONTROL(7WD) USA 		8-97104-122-1 01 1 0101- ●
114 02.483 BOX ASM; FUSE
USA 		8-97104-121-0 01 1 9811-0012 ● ●
184 02.559 COVER; RELAY & FUSE BOX
(C) USA 		8-97203-207-0 01 1 9811-0012 ●
184 02.559 COVER; RELAY & FUSE BOX
ACTIVE RIDE CONTROL(7WD) (C) USA 		8-97225-105-1 01 1 0101- ●
184 02.559 COVER; RELAY & FUSE BOX
(A) USA 		8-97209-404-1 01 1 9811-0012 ●
184 02.559 COVER; RELAY & FUSE BOX
(A) USA 		8-97252-859-0 01 1 0101- ●
184 02.559 COVER; RELAY & FUSE BOX
(B) USA 		8-97104-115-1 01 1 9811-0012 ● ●
184 02.559 COVER; RELAY & FUSE BOX
(B) USA 		8-97104-115-0 01 1 0101- ●
184 02.559 COVER; RELAY & FUSE BOX
(A) USA 		8-97209-403-1 01 1 9811-0012 ●
292 02.483 BOLT; BOX
04.439 (B) M6X16 FLANGE USA 		0-28680-616-0 01 1 9811-0012 ● ●
292 02.483 BOLT; BOX
04.439 (B) M6X16 FLANGE USA 		0-28680-616-0 02 1 0101- ●
292 02.483 BOLT; BOX
03.885 (A) M6X20 		8-94412-422-0 02 1 9811-0012 ● ●
292 02.483 BOLT; BOX
03.885 (A) M6X20 		8-94412-422-0 02 1 0101- ●
366 02.525 HARNESS; CABLE,ENG ROOM
USA 		8-97181-980-1 01 1 9811-0003 ●
366 02.525 HARNESS; CABLE,ENG ROOM
USA 		8-97240-681-1 01 1 0004-0012 ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED(RMN) USA 		8-97253-237-3 01 1 0101-0108 ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED(RMN) USA 		8-97301-046-3 01 1 0109- ●
366 02.525 HARNESS; CABLE,ENG ROOM
A/T THM 4 SPEED(RMQ) USA 		8-97183-431-3 01 1 9811-0003 ●
366 02.525 HARNESS; CABLE,ENG ROOM
A/T THM 4 SPEED(RMQ) USA 		8-97240-683-1 01 1 0004-0012 ●
366 02.525 HARNESS; CABLE,ENG ROOM
A/T THM 4 SPEED(RMQ) AIR CONDITIONER AUTOMATIC CONT(C61) TORQUE ON DEMAND(7HA) ACTIVE RIDE CONTROL(7WD) USA 		8-97253-232-4 01 1 0101-0108 ●
366 02.525 HARNESS; CABLE,ENG ROOM
A/T THM 4 SPEED(RMQ) AIR CONDITIONER AUTOMATIC CONT(C61) TORQUE ON DEMAND(7HA) ACTIVE RIDE CONTROL(7WD) USA 		8-97301-041-4 01 1 0109- ●
366 02.525 HARNESS; CABLE,ENG ROOM
A/T THM 4 SPEED(RMQ) AIR CONDITIONER AUTOMATIC CONT(C61) ACTIVE RIDE CONTROL(7WD) EXC. TORQUE ON DEMAND(7HA) USA 		8-97253-234-4 01 1 0101-0108 ●
366 02.525 HARNESS; CABLE,ENG ROOM
A/T THM 4 SPEED(RMQ) AIR CONDITIONER AUTOMATIC CONT(C61) ACTIVE RIDE CONTROL(7WD) EXC. TORQUE ON DEMAND(7HA) USA 		8-97301-043-4 01 1 0109- ●
366 02.525 HARNESS; CABLE,ENG ROOM
A/T THM 4 SPEED(RMQ) AIR CONDITIONER AUTOMATIC CONT(C61) TORQUE ON DEMAND(7HA) EXC. ACTIVE RIDE CONTROL(7WD) USA 		8-97253-233-4 01 1 0101-0108 ●
366 02.525 HARNESS; CABLE,ENG ROOM
A/T THM 4 SPEED(RMQ) AIR CONDITIONER AUTOMATIC CONT(C61) TORQUE ON DEMAND(7HA) EXC. ACTIVE RIDE CONTROL(7WD) USA 		8-97301-042-4 01 1 0109- ●
366 02.525 HARNESS; CABLE,ENG ROOM
A/T THM 4 SPEED(RMQ) AIR CONDITIONER AUTOMATIC CONT(C61) EXC. TORQUE ON DEMAND(7HA),ACTIVE RIDE CONTROL(7WD) USA 		8-97253-235-4 01 1 0101-0108 ●
366 02.525 HARNESS; CABLE,ENG ROOM
A/T THM 4 SPEED(RMQ) AIR CONDITIONER AUTOMATIC CONT(C61) EXC. TORQUE ON DEMAND(7HA),ACTIVE RIDE CONTROL(7WD) USA 		8-97301-044-4 01 1 0109- ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED(RMN) USA 		8-97183-429-3 01 1 9811-0003 ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED(RMN) USA 		8-97240-682-1 01 1 0004-0012 ●
366 02.525 HARNESS; CABLE,ENG ROOM
A/T THM 4 SPEED(RMQ) AIR CONDITIONER MANUAL CONT(C60) EXC. TORQUE ON DEMAND(7HA),ACTIVE RIDE CONTROL(7WD) USA 		8-97253-236-4 01 1 0101-0108 ●
366 02.525 HARNESS; CABLE,ENG ROOM
A/T THM 4 SPEED(RMQ) AIR CONDITIONER MANUAL CONT(C60) EXC. TORQUE ON DEMAND(7HA),ACTIVE RIDE CONTROL(7WD) USA 		8-97301-045-4 01 1 0109- ●

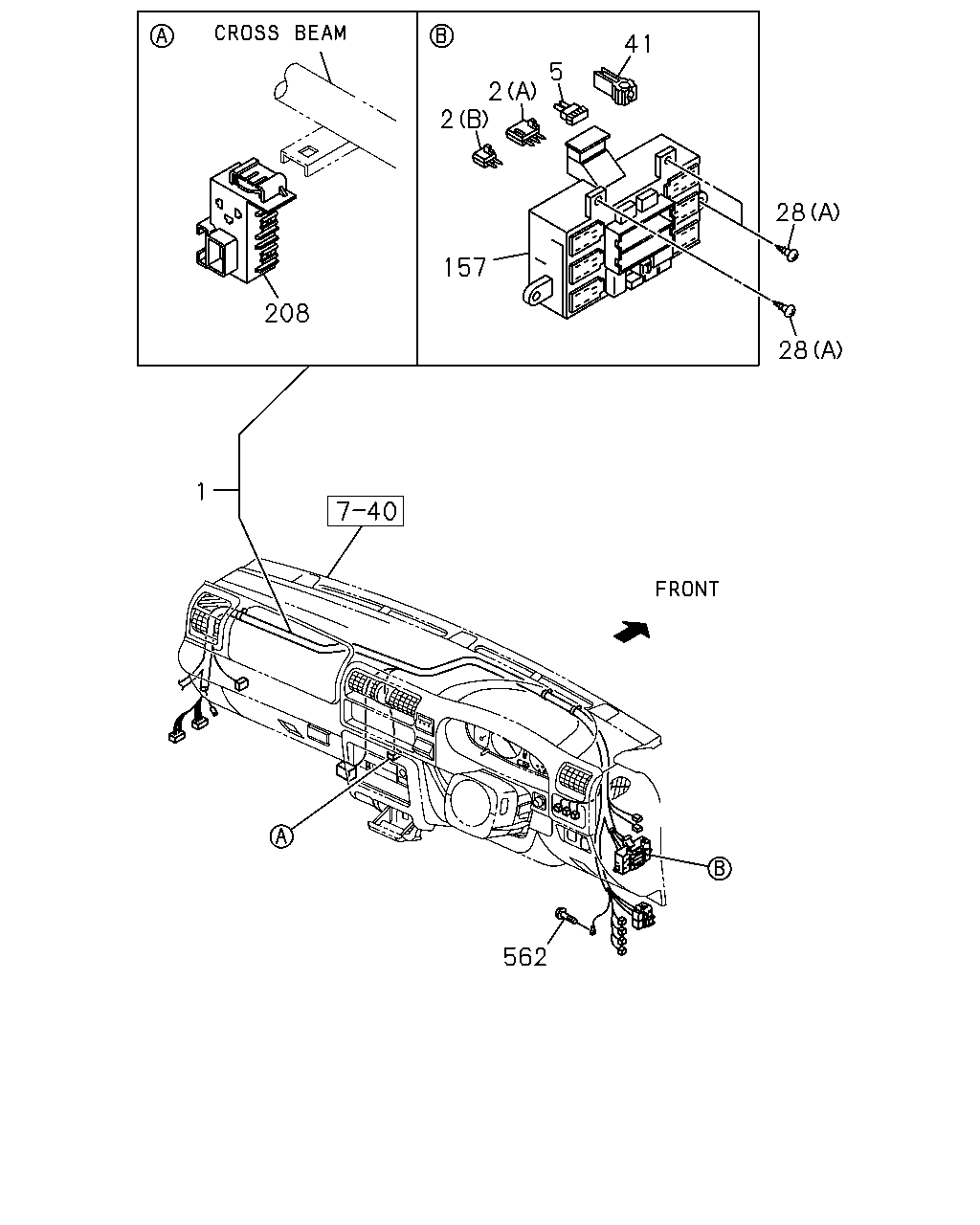

çizim 37684
41 5 2 2 28 157 208 28 1 562
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB
USA 		8-97183-421-4 01 1 9811-0012 ●
1 02.480 HARNESS; CAB
A/T THM 4 SPEED(RMQ) USA 		8-97187-939-4 01 1 9811-0012 ●
1 02.480 HARNESS; CAB
A/T THM 4 SPEED(RMQ) AIR CONDITIONER AUTOMATIC CONT(C61) TORQUE ON DEMAND(7HA) ACTIVE RIDE CONTROL(7WD) USA 		8-97253-270-3 01 1 0101-0108 ●
1 02.480 HARNESS; CAB
A/T THM 4 SPEED(RMQ) AIR CONDITIONER AUTOMATIC CONT(C61) TORQUE ON DEMAND(7HA) ACTIVE RIDE CONTROL(7WD) USA 		8-97301-023-2 01 1 0109- ●
1 02.480 HARNESS; CAB
A/T THM 4 SPEED(RMQ) AIR CONDITIONER AUTOMATIC CONT(C61) ACTIVE RIDE CONTROL(7WD) EXC. TORQUE ON DEMAND(7HA) USA 		8-97253-271-3 01 1 0101-0108 ●
1 02.480 HARNESS; CAB
A/T THM 4 SPEED(RMQ) AIR CONDITIONER AUTOMATIC CONT(C61) ACTIVE RIDE CONTROL(7WD) EXC. TORQUE ON DEMAND(7HA) USA 		8-97301-024-2 01 1 0109- ●
1 02.480 HARNESS; CAB
A/T THM 4 SPEED(RMQ) AIR CONDITIONER AUTOMATIC CONT(C61) TORQUE ON DEMAND(7HA) EXC. ACTIVE RIDE CONTROL(7WD) USA 		8-97253-273-3 01 1 0101-0108 ●
1 02.480 HARNESS; CAB
A/T THM 4 SPEED(RMQ) AIR CONDITIONER AUTOMATIC CONT(C61) TORQUE ON DEMAND(7HA) EXC. ACTIVE RIDE CONTROL(7WD) USA 		8-97301-025-2 01 1 0109- ●
1 02.480 HARNESS; CAB
A/T THM 4 SPEED(RMQ) AIR CONDITIONER AUTOMATIC CONT(C61) EXC. TORQUE ON DEMAND(7HA),ACTIVE RIDE CONTROL(7WD) USA 		8-97253-274-3 01 1 0101-0108 ●
1 02.480 HARNESS; CAB
A/T THM 4 SPEED(RMQ) AIR CONDITIONER AUTOMATIC CONT(C61) EXC. TORQUE ON DEMAND(7HA),ACTIVE RIDE CONTROL(7WD) USA 		8-97301-026-2 01 1 0109- ●
1 02.480 HARNESS; CAB
A/T THM 4 SPEED(RMQ) AIR CONDITIONER MANUAL CONT(C60) EXC. TORQUE ON DEMAND(7HA),ACTIVE RIDE CONTROL(7WD) USA 		8-97253-269-3 01 1 0101-0108 ●
1 02.480 HARNESS; CAB
A/T THM 4 SPEED(RMQ) AIR CONDITIONER MANUAL CONT(C60) EXC. TORQUE ON DEMAND(7HA),ACTIVE RIDE CONTROL(7WD) USA 		8-97301-022-2 01 1 0109- ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED(RMN) USA 		8-97183-423-5 01 1 9811-0012 ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED(RMN) USA 		8-97253-268-4 01 1 0101-0108 ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED(RMN) USA 		8-97301-021-2 01 1 0109- ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A USA 		8-94416-438-1 AR 1 9811-0012 ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A USA 		8-94416-438-1 AR 1 0101- ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A USA 		8-94422-639-1 AR 1 9811-0012 ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A USA 		8-94422-639-1 AR 1 0101- ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED USA 		8-97103-481-0 AR 1 9811-0012 ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED USA 		8-97103-481-0 AR 1 0101- ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE USA 		8-97103-482-0 AR 1 9811-0012 ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE USA 		8-97103-482-0 AR 1 0101- ●
5 02.485 FUSE; FACIA HARNESS
08.965 20A YELLOW USA 		8-97103-483-0 AR 1 9811-0012 ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 20A YELLOW USA 		8-97103-483-0 AR 1 0101- ●
28 02.483 SCREW; FUSE BOX
(B) USA 		8-97249-192-0 04 1 9811-9811 ●
28 02.483 SCREW; FUSE BOX
(B) USA 		8-97249-192-0 04 1 9812-0012 ● ●
28 02.483 SCREW; FUSE BOX
(B) USA 		8-97249-192-0 04 1 0101- ●
28 02.483 SCREW; FUSE BOX
09.743 (A) M5X16 USA 		8-94295-854-0 03 1 9811-0012 ● ●
28 02.483 SCREW; FUSE BOX
09.743 (A) M5X16 USA 		8-94295-854-0 03 1 0101- ●
41 08.821 PULLER; FUSE
USA 		8-97103-388-0 01 1 9811-0012 ● ●
41 08.821 PULLER; FUSE
USA 		8-97103-388-0 01 1 0101- ●
157 02.485 BOX ASM; RELAY & FUSE,BODY HARNE
USA 		8-97126-513-0 01 1 9811-0012 ● ●
157 02.485 BOX ASM; RELAY & FUSE,BODY HARNE
USA 		8-97126-513-0 01 1 0101- ●
208 02.483 HOLDER; CONNECTOR
USA 		8-97127-278-0 01 1 9811-0012 ● ●
208 02.483 HOLDER; CONNECTOR
USA 		8-97127-278-0 01 1 0101- ●
562 02.559 BOLT; GRAND,SRS
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9811-0012 ● ●
562 02.559 BOLT; GRAND,SRS
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0101- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
