8-03 — LAMP; REAR AND REAR SIDE (#32673) — 169 parça

49 52 68 163 51 70 50 71 69 58 54 47 290 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	02.689 REFLECTOR; REFLEX USA	8-97175-453-1	01	1	9811-0003	●	●
40	02.689 REFLECTOR; REFLEX ERP	8-97229-418-0	01	1	0004-0012	●	●
40	02.689 REFLECTOR; REFLEX ERP	8-97229-418-0	01	1	0101-		●
40	02.689 REFLECTOR; REFLEX USA	8-97175-452-1	01	1	9811-0003	●	●
40	02.689 REFLECTOR; REFLEX ERP	8-97229-417-0	01	1	0004-0012	●	●
40	02.689 REFLECTOR; REFLEX ERP	8-97229-417-0	01	1	0101-		●
47	02.689 NUT; REFLECTOR 04.594 M6 FLANGE	0-91150-106-0	02	1	9811-0012	●	●
47	02.689 NUT; REFLECTOR 04.594 M6 FLANGE	0-91150-106-0	02	1	0101-		●
49	02.700 LAMP; LICENSE PLATE	8-97126-975-2	01	1	9811-0012	●	●
49	02.700 LAMP; LICENSE PLATE	8-97126-975-2	01	1	0101-		●
50	02.709 LENS; LICENSE PLATE LAMP	8-94135-878-2	01	1	9811-0012	●	●
50	02.709 LENS; LICENSE PLATE LAMP	8-94135-878-2	01	1	0101-		●
51	08.991 BULB; LICENSE PLATE LAMP 12V 5W USA	8-94124-595-0	01	1	9811-0012	●	●
51	08.991 BULB; LICENSE PLATE LAMP 12V 5W USA	8-94124-595-0	01	1	0101-		●
52	02.708 GROMMET; SCREW,LICENSE PLATE LAM 02.587 D=7.5X7.5 L=7	8-94430-147-0	02	1	9811-0012	●	●
52	02.708 GROMMET; SCREW,LICENSE PLATE LAM 02.587 D=7.5X7.5 L=7	8-94430-147-0	02	1	0101-		●
54	02.708 SCREW; LICENSE PLATE LAMP	8-97178-864-0	02	1	9811-0012	●	●
54	02.708 SCREW; LICENSE PLATE LAMP	8-97178-864-0	02	1	0101-		●
58	02.705 COVER; LICENSE PLATE LAMP BLACK	8-94323-724-0	01	1	9811-0012	●	●
58	02.705 COVER; LICENSE PLATE LAMP BLACK	8-94323-724-0	01	1	0101-		●
68	16.494 LAMP; LUGGAGE ROOM GRAY	8-97198-207-1	01	1	9811-0003		●
68	16.494 LAMP; LUGGAGE ROOM LIGHT GRAY	8-97198-206-1	01	1	0004-0103		●
68	16.494 LAMP; LUGGAGE ROOM LIGHT GRAY	8-97298-890-0	01	1	0104-0209		●
68	16.494 LAMP; LUGGAGE ROOM LIGHT GRAY	8-97394-763-0	01	1	0210-		●
69	16.495 LENS; LUGGAGE ROOM LAMP	8-97178-881-0	01	1	9811-		●
70	08.991 BULB; LUGGAGE ROOM LAMP 12V 5W	8-97178-882-0	01	1	9811-		●
71	16.495 SCREW; LUGGAGE ROOM LAMP 16.175 M4X12 TAPPING	9-07066-412-0	01	1	9811-		●
163	02.705 SPACER; LICENSE PLATE LAMP	8-94232-866-0	01	1	9811-0012	●	●
163	02.705 SPACER; LICENSE PLATE LAMP	8-94232-866-0	01	1	0101-		●
290	02.689 PLATE; BACK,REFLECTOR	8-97207-953-0	01	1	9811-9811	●	●
290	02.689 PLATE; BACK,REFLECTOR USA	8-97219-352-0	01	1	9811-0003	●	●
290	02.689 PLATE; BACK,REFLECTOR	8-97215-753-0	01	1	0004-0012	●	●
290	02.689 PLATE; BACK,REFLECTOR	8-97215-753-0	01	1	0101-		●
290	02.689 PLATE; BACK,REFLECTOR	8-97207-952-0	01	1	9811-9811	●	●
290	02.689 PLATE; BACK,REFLECTOR USA	8-97219-351-0	01	1	9811-0003	●	●
290	02.689 PLATE; BACK,REFLECTOR	8-97215-752-0	01	1	0004-0012	●	●
290	02.689 PLATE; BACK,REFLECTOR	8-97215-752-0	01	1	0101-		●

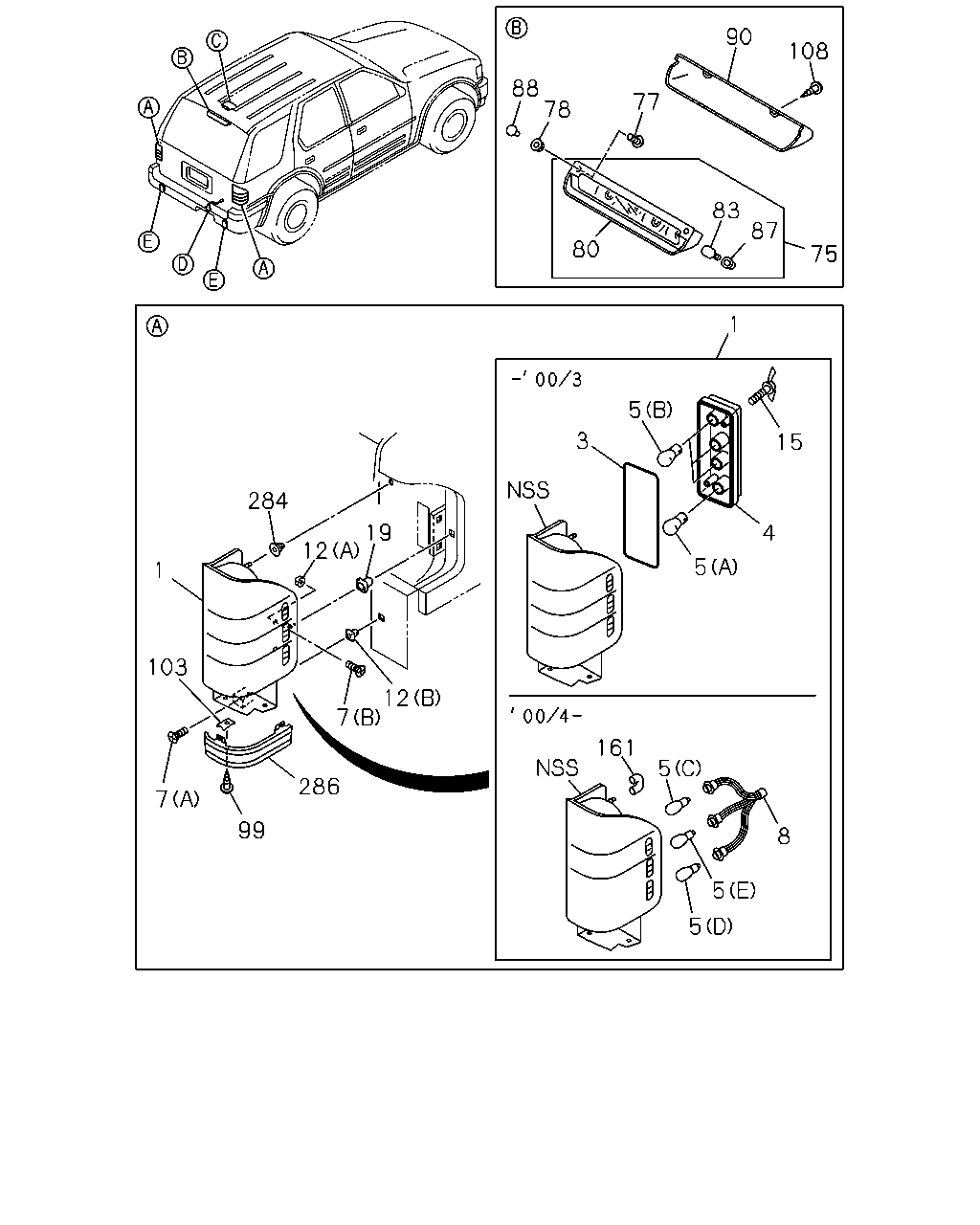

90 108 88 78 77 83 87 80 75 1 5 3 15 284 19 4 12 5 1 103 12 7 161 5 286 7 99 8 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.679 LAMP ASM; RR COMB USA	8-97143-952-2	01	1	9811-0003	●	●
1	02.679 LAMP ASM; RR COMB USA	8-97941-422-0	01	1	0004-0012	●	●
1	02.679 LAMP ASM; RR COMB USA	8-97941-422-0	01	1	0101-		●
1	02.679 LAMP ASM; RR COMB USA	8-97143-951-2	01	1	9811-0003	●	●
1	02.679 LAMP ASM; RR COMB USA	8-97941-421-0	01	1	0004-0012	●	●
1	02.679 LAMP ASM; RR COMB USA	8-97941-421-0	01	1	0101-		●
3	02.684 GASKET; RR COMB LAMP USA	8-97231-338-0	02	1	9811-0003	●	●
4	02.680 COVER; RR,RR COMB LAMP USA	8-97231-332-0	01	1	9811-0003	●	●
4	02.680 COVER; RR,RR COMB LAMP USA	8-97231-333-0	01	1	9811-0003	●	●
5	08.991 BULB; RR COMB LAMP (A) USA	8-97231-335-0	02	1	9811-0003	●	●
5	08.991 BULB; RR COMB LAMP (D) 12V 21/5W USA	8-94125-959-0	02	1	0004-0012	●	●
5	08.991 BULB; RR COMB LAMP (D) 12V 21/5W USA	8-94125-959-0	02	1	0101-		●
5	08.991 BULB; RR COMB LAMP (B) USA	8-97231-336-0	06	1	9811-0003	●	●
5	08.991 BULB; RR COMB LAMP (E) 12V 18W	8-94372-897-0	02	1	0004-0012	●	●
5	08.991 BULB; RR COMB LAMP (E) 12V 18W	8-94372-897-0	02	1	0101-		●
5	08.991 BULB; RR COMB LAMP (C) 12V 21W USA	8-97179-967-0	02	1	0004-0012	●	●
5	08.991 BULB; RR COMB LAMP (C) 12V 21W USA	8-97179-967-0	02	1	0101-		●
7	02.664 SCREW; RR COMB LAMP 01.269 (A) M5X20	8-94436-927-0	02	1	9811-9911	●	●
7	02.664 SCREW; RR COMB LAMP (A) M5X20 TAPPING	8-97240-077-0	02	1	9912-0003	●	●
7	02.664 SCREW; RR COMB LAMP (A),(B) M5X20 TAPPING	8-97240-077-0	06	1	0004-0012	●	●
7	02.664 SCREW; RR COMB LAMP (A),(B) M5X20 TAPPING	8-97240-077-0	06	1	0101-		●
7	02.664 SCREW; RR COMB LAMP (B) M5X20	8-97811-082-0	04	1	9811-0003	●	●
8	02.664 HARNESS; RR COMB LAMP USA	8-97941-424-0	02	1	0004-0012	●	●
8	02.664 HARNESS; RR COMB LAMP USA	8-97941-424-0	02	1	0101-		●
12	02.664 GROMMET; RR COMB LAMP 16.588 (A) D=7X7 L=7.5	5-09983-007-0	04	1	9811-0012	●	●
12	02.664 GROMMET; RR COMB LAMP 16.588 (A) D=7X7 L=7.5	5-09983-007-0	04	1	0101-		●
12	02.664 GROMMET; RR COMB LAMP 12.182 (B) D=7.9X7.9 L=11.4 M5	8-94367-528-0	02	1	9811-9911	●	●
12	02.664 GROMMET; RR COMB LAMP 02.679 (B) D=7.9X7.9 L=20 M5 THA	8-94441-539-0	02	1	9912-0012	●	●
12	02.664 GROMMET; RR COMB LAMP 02.679 (B) D=7.9X7.9 L=20 M5 THA	8-94441-539-0	02	1	0101-		●
15	02.664 SCREW; RR COMB LAMP USA	8-97231-337-0	04	1	9811-0003	●	●
19	02.684 SEAL; RR COMB LAMP USA	8-97124-975-0	02	1	9811-0012	●	●
19	02.684 SEAL; RR COMB LAMP USA	8-97124-975-0	02	1	0101-		●
75	02.679 LAMP ASM; STOP,HIGHMOUNTED USA	8-97201-488-0	01	1	9811-0012	●
75	02.679 LAMP ASM; STOP,HIGHMOUNTED USA	8-97147-866-0	01	1	9811-9905		●
75	02.679 LAMP ASM; STOP,HIGHMOUNTED USA	8-97220-553-0	01	1	9906-		●
77	02.679 BOLT; STOP LAMP,HIGHMOUNTED 16.173 M6X12 W/LK&PL WASHER USA	8-94279-329-0	02	1	9811-		●
78	02.679 GROMMET; STOP LAMP USA	8-97124-866-0	02	1	9811-		●
80	02.679 UNIT; STOP LAMP USA	8-97200-279-0	01	1	9811-		●
83	08.991 BULB; STOP LAMP,HIGHMOUNTED 12V 5W USA	8-94124-595-0	04	1	9811-0012	●	●
83	08.991 BULB; STOP LAMP,HIGHMOUNTED 12V 5W USA	8-94124-595-0	04	1	0101-		●
87	02.694 SOCKET; STOP LAMP USA	8-94419-202-0	04	1	9811-		●
88	02.689 NUT; STOP LAMP USA	8-97124-867-0	02	1	9811-		●
90	02.680 COVER; STOP LAMP USA	8-97145-254-0	01	1	9811-		●
99	02.708 SCREW 01.269 M5X20	8-94436-927-0	04	1	9811-0003	●	●
99	02.708 SCREW M5X16	8-97221-612-0	04	1	0004-0012	●	●
99	02.708 SCREW M5X16	8-97221-612-0	04	1	0101-0304		●
99	02.708 SCREW 02.688 M5X16	8-94384-690-0	04	1	0305-		●
103	02.708 NUT	8-97162-032-0	04	1	9811-0012	●	●
103	02.708 NUT	8-97162-032-0	04	1	0101-		●
108	02.689 SCREW; COVER,STOP LAMP 16.495 M4X14 TAPPING	0-71080-414-0	02	1	9811-		●
161	02.689 TUBE; RR COMB LAMP USA	8-97941-425-0	04	1	0004-0012	●	●
161	02.689 TUBE; RR COMB LAMP USA	8-97941-425-0	04	1	0101-		●
284	02.705 FASTENER; RR COMB LAMP USA	8-97124-974-0	02	1	9811-0012	●	●
284	02.705 FASTENER; RR COMB LAMP USA	8-97124-974-0	02	1	0101-		●
286	02.680 PANEL; RR COMB LAMP LWR USA	8-97124-385-2	01	1	9811-		●
286	02.680 PANEL; RR COMB LAMP LWR USA	8-97124-384-3	01	1	9811-		●

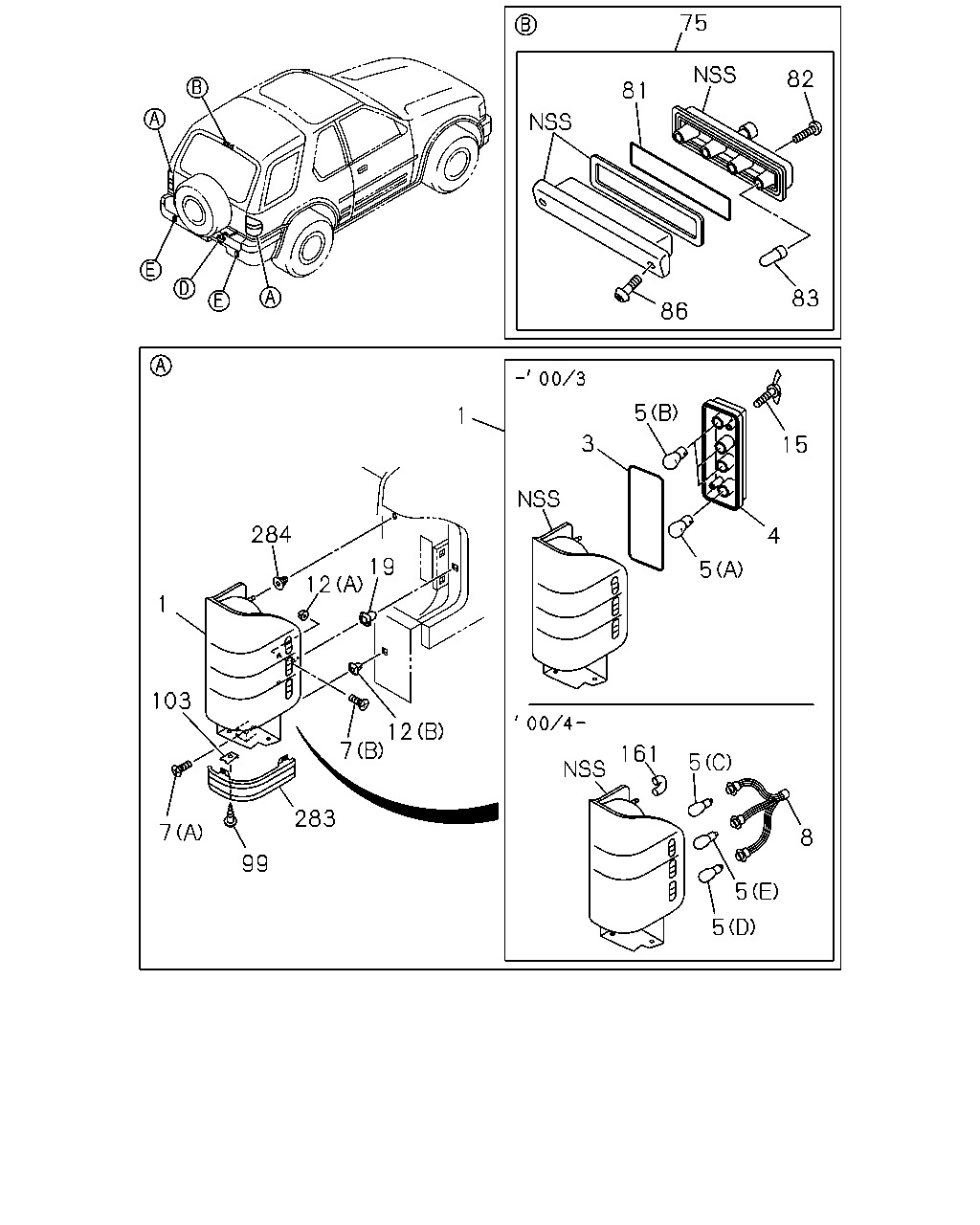

75 82 81 83 86 5 1 3 15 284 4 19 5 12 1 103 12 7 161 5 283 7 8 99 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.679 LAMP ASM; RR COMB USA	8-97143-952-2	01	1	9811-0003	●	●
1	02.679 LAMP ASM; RR COMB USA	8-97941-422-0	01	1	0004-0012	●	●
1	02.679 LAMP ASM; RR COMB USA	8-97941-422-0	01	1	0101-		●
1	02.679 LAMP ASM; RR COMB USA	8-97143-951-2	01	1	9811-0003	●	●
1	02.679 LAMP ASM; RR COMB USA	8-97941-421-0	01	1	0004-0012	●	●
1	02.679 LAMP ASM; RR COMB USA	8-97941-421-0	01	1	0101-		●
3	02.684 GASKET; RR COMB LAMP USA	8-97231-338-0	02	1	9811-0003	●	●
4	02.680 COVER; RR,RR COMB LAMP USA	8-97231-332-0	01	1	9811-0003	●	●
4	02.680 COVER; RR,RR COMB LAMP USA	8-97231-333-0	01	1	9811-0003	●	●
5	08.991 BULB; RR COMB LAMP (A) USA	8-97231-335-0	02	1	9811-0003	●	●
5	08.991 BULB; RR COMB LAMP (D) 12V 21/5W USA	8-94125-959-0	02	1	0004-0012	●	●
5	08.991 BULB; RR COMB LAMP (D) 12V 21/5W USA	8-94125-959-0	02	1	0101-		●
5	08.991 BULB; RR COMB LAMP (B) USA	8-97231-336-0	06	1	9811-0003	●	●
5	08.991 BULB; RR COMB LAMP (E) 12V 18W	8-94372-897-0	02	1	0004-0012	●	●
5	08.991 BULB; RR COMB LAMP (E) 12V 18W	8-94372-897-0	02	1	0101-		●
5	08.991 BULB; RR COMB LAMP (C) 12V 21W USA	8-97179-967-0	02	1	0004-0012	●	●
5	08.991 BULB; RR COMB LAMP (C) 12V 21W USA	8-97179-967-0	02	1	0101-		●
7	02.664 SCREW; RR COMB LAMP 01.269 (A) M5X20	8-94436-927-0	02	1	9811-9911	●	●
7	02.664 SCREW; RR COMB LAMP (A) M5X20 TAPPING	8-97240-077-0	02	1	9912-0003	●	●
7	02.664 SCREW; RR COMB LAMP (A),(B) M5X20 TAPPING	8-97240-077-0	06	1	0004-0012	●	●
7	02.664 SCREW; RR COMB LAMP (A),(B) M5X20 TAPPING	8-97240-077-0	06	1	0101-		●
7	02.664 SCREW; RR COMB LAMP (B) M5X20	8-97811-082-0	04	1	9811-0003	●	●
8	02.664 HARNESS; RR COMB LAMP USA	8-97941-424-0	02	1	0004-0012	●	●
8	02.664 HARNESS; RR COMB LAMP USA	8-97941-424-0	02	1	0101-		●
12	02.664 GROMMET; RR COMB LAMP 16.588 (A) D=7X7 L=7.5	5-09983-007-0	04	1	9811-0012	●	●
12	02.664 GROMMET; RR COMB LAMP 16.588 (A) D=7X7 L=7.5	5-09983-007-0	04	1	0101-		●
12	02.664 GROMMET; RR COMB LAMP 12.182 (B) D=7.9X7.9 L=11.4 M5	8-94367-528-0	02	1	9811-9911	●	●
12	02.664 GROMMET; RR COMB LAMP 02.679 (B) D=7.9X7.9 L=20 M5 THA	8-94441-539-0	02	1	9912-0012	●	●
12	02.664 GROMMET; RR COMB LAMP 02.679 (B) D=7.9X7.9 L=20 M5 THA	8-94441-539-0	02	1	0101-		●
15	02.664 SCREW; RR COMB LAMP USA	8-97231-337-0	04	1	9811-0003	●	●
19	02.684 SEAL; RR COMB LAMP USA	8-97124-975-0	02	1	9811-0012	●	●
19	02.684 SEAL; RR COMB LAMP USA	8-97124-975-0	02	1	0101-		●
75	02.679 LAMP ASM; STOP,HIGHMOUNTED USA	8-97201-488-0	01	1	9811-0012	●
75	02.679 LAMP ASM; STOP,HIGHMOUNTED USA	8-97147-866-0	01	1	9811-9905		●
75	02.679 LAMP ASM; STOP,HIGHMOUNTED USA	8-97220-553-0	01	1	9906-		●
81	02.694 GASKET; STOP LAMP USA	8-97184-825-0	01	1	9811-0012	●
82	02.662 SCREW; LAMP UNIT TO SOCKET USA	8-97184-823-0	02	1	9811-0012	●
83	08.991 BULB; STOP LAMP,HIGHMOUNTED 12V 5W USA	8-94124-595-0	04	1	9811-0012	●	●
83	08.991 BULB; STOP LAMP,HIGHMOUNTED 12V 5W USA	8-94124-595-0	04	1	0101-		●
86	02.688 SCREW; LENS TO HSG USA	8-97184-827-0	02	1	9811-0012	●
99	02.708 SCREW 01.269 M5X20	8-94436-927-0	04	1	9811-0003	●	●
99	02.708 SCREW M5X16	8-97221-612-0	04	1	0004-0012	●	●
99	02.708 SCREW M5X16	8-97221-612-0	04	1	0101-0304		●
99	02.708 SCREW 02.688 M5X16	8-94384-690-0	04	1	0305-		●
103	02.708 NUT	8-97162-032-0	04	1	9811-0012	●	●
103	02.708 NUT	8-97162-032-0	04	1	0101-		●
161	02.689 TUBE; RR COMB LAMP USA	8-97941-425-0	04	1	0004-0012	●	●
161	02.689 TUBE; RR COMB LAMP USA	8-97941-425-0	04	1	0101-		●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR BRIGHT SILVER MET(835) SILVER USA	8-97198-805-0	01	1	9811-0003	●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR ZEPHYR GREEN MICA(898) LIGHT GREEN USA	8-97198-158-0	01	1	0004-0012	●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR BRIGHT SILVER MET(835) SILVER USA	8-97198-798-0	01	1	9811-0003	●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR ZEPHYR GREEN MICA(898) LIGHT GREEN USA	8-97198-157-0	01	1	0004-0012	●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR CAPRICE BLUE MET(836) BLUE USA	8-97198-806-0	01	1	9811-0003	●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR CAPRICE BLUE MET(836) BLUE USA	8-97198-799-0	01	1	9811-0003	●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR COPPER ORANGE MICA(838) ORANGE USA	8-97198-807-0	01	1	9811-0003	●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR COPPER ORANGE MICA(838) ORANGE USA	8-97158-183-0	01	1	0004-0012	●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR COPPER ORANGE MICA(838) ORANGE USA	8-97198-800-0	01	1	9811-0003	●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR COPPER ORANGE MICA(838) ORANGE USA	8-97158-178-0	01	1	0004-0012	●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR CREAM WHITE(752) WHITE USA	8-97198-801-0	01	1	9811-0003	●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR ALPINE WHITE(861) WHITE USA	8-97291-704-0	01	1	0004-0012	●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR CREAM WHITE(752) WHITE USA	8-97198-794-0	01	1	9811-0003	●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR ALPINE WHITE(861) WHITE USA	8-97291-701-0	01	1	0004-0012	●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR EBONY BLACK(826) BLACK USA	8-97198-803-0	01	1	9811-0003	●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR EBONY BLACK(826) BLACK USA	8-97159-927-0	01	1	0004-0012	●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR EBONY BLACK(826) BLACK USA	8-97198-796-0	01	1	9811-0003	●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR EBONY BLACK(826) BLACK USA	8-97159-926-0	01	1	0004-0012	●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR PALAZZO RED MICA(806) DARK RED USA	8-97198-802-0	01	1	9811-0003	●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR PALAZZO RED MICA(806) DARK RED USA	8-97198-188-0	01	1	0004-0012	●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR PALAZZO RED MICA(806) DARK RED USA	8-97198-795-0	01	1	9811-0003	●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR PALAZZO RED MICA(806) DARK RED USA	8-97198-187-0	01	1	0004-0012	●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR SPRUCE GREEN MICA(833) DARK RED USA	8-97198-804-0	01	1	9811-0003	●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR CANAL BLUE MICA(862) BLUE USA	8-97291-705-0	01	1	0004-0012	●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR SPRUCE GREEN MICA(833) DARK GREEN USA	8-97198-797-0	01	1	9811-0003	●
283	02.708 EXTENSION; RR COMB LAMP LWR BODY COLOR CANAL BLUE MICA(862) DARK RED USA	8-97291-702-0	01	1	0004-0012	●
284	02.705 FASTENER; RR COMB LAMP USA	8-97124-974-0	02	1	9811-0012	●	●
284	02.705 FASTENER; RR COMB LAMP USA	8-97124-974-0	02	1	0101-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
