◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#32672) — 165 parça

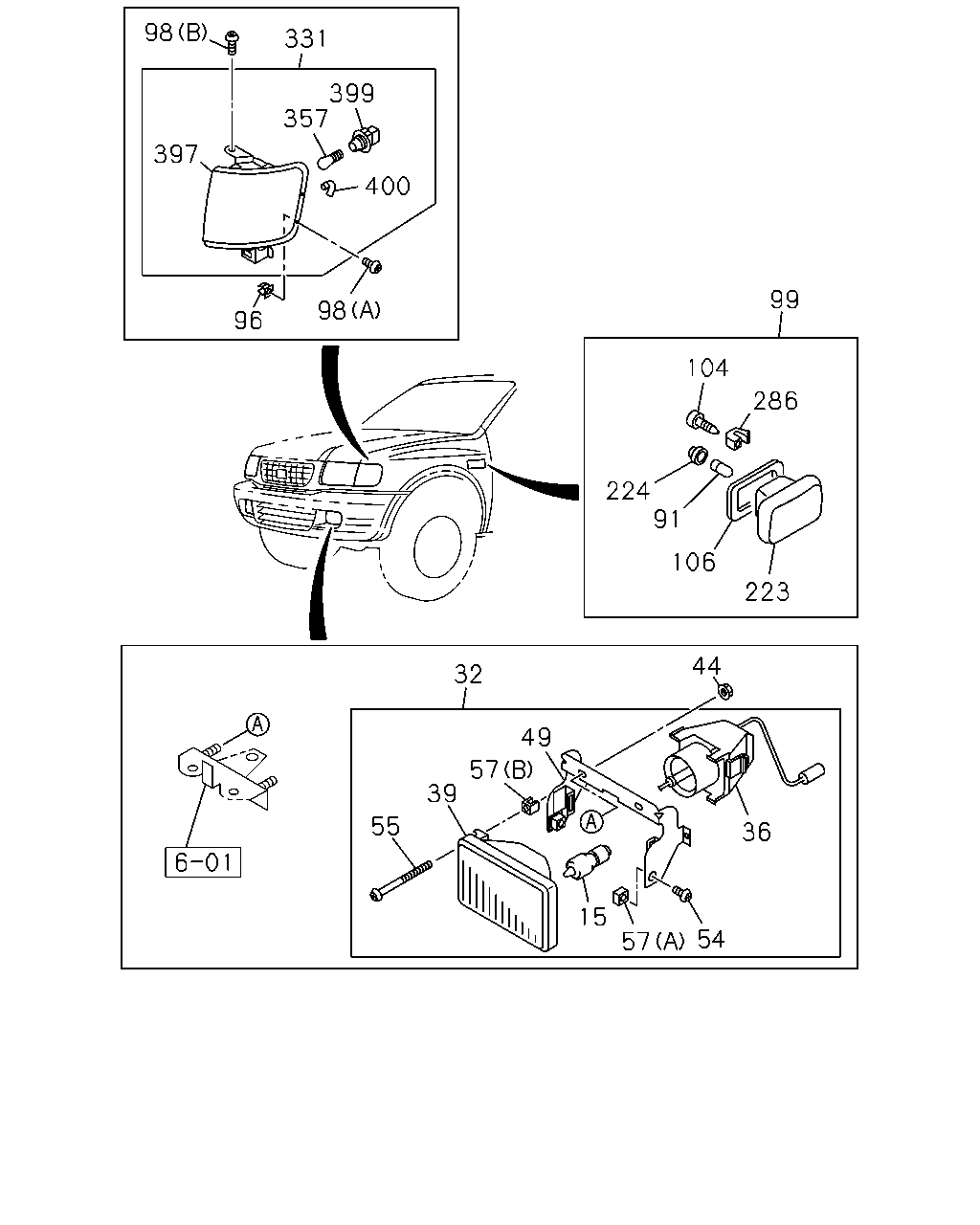

çizim 36601
98 331 399 357 397 400 99 98 96 104 286 224 91 106 223 44 32 49 57 39 55 36 1 54 57
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.725 LAMP ASM; HEAD
USA 		8-97136-928-2 01 1 9811-0003 ● ●
1 02.725 LAMP ASM; HEAD
USA 		8-97215-642-1 01 1 0004-0012 ● ●
1 02.725 LAMP ASM; HEAD
USA 		8-97215-642-3 01 1 0101- ●
1 02.725 LAMP ASM; HEAD
USA 		8-97136-927-2 01 1 9811-0003 ● ●
1 02.725 LAMP ASM; HEAD
USA 		8-97215-641-1 01 1 0004-0012 ● ●
1 02.725 LAMP ASM; HEAD
USA 		8-97215-641-3 01 1 0101- ●
32 02.725 LAMP ASM; FOG
FOG LAMP HALOGEN<T37> 		8-97124-001-3 01 1 9811-0003 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP HALOGEN<T37> 		8-97124-000-3 01 1 9811-0003 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP HALOGEN<T37> 		8-97208-464-1 02 1 0004-0012 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP HALOGEN<T37> 		8-97208-464-1 02 1 0101-0109 ●
32 02.725 LAMP ASM; FOG
FOG LAMP HALOGEN<T37> 		8-97288-898-0 02 1 0110- ●
36 02.727 CORD; FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97178-070-0 02 1 9811-0003 ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97232-499-0 02 1 0004-0012 ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97232-499-0 02 1 0101-0109 ●
36 02.727 CORD; FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97095-518-0 02 1 0110- ●
39 02.727 UNIT; FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97178-069-0 01 1 9811-0003 ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97178-068-0 01 1 9811-0003 ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97232-495-0 02 1 0004-0012 ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97232-495-0 02 1 0101- ●
44 02.737 NUT; FOG LAMP
FOG LAMP HALOGEN<T37> 04.594 M6 FLANGE 		0-91150-106-0 04 1 9811-0012 ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP HALOGEN<T37> 04.594 M6 FLANGE 		0-91150-106-0 04 1 0101- ●
49 02.726 BRACKET; LAMP
FOG LAMP HALOGEN<T37> 		8-97178-071-0 02 1 9811-0003 ● ●
54 02.726 BOLT; MTG RING,FOG LAMP
FOG LAMP HALOGEN<T37> M5X12 		8-94379-803-0 04 1 9811-0012 ● ●
54 02.726 BOLT; MTG RING,FOG LAMP
FOG LAMP HALOGEN<T37> M5X12 		8-94379-803-0 04 1 0101- ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP HALOGEN<T37> 02.726 		8-97016-275-0 02 1 9811-0003 ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97232-497-0 02 1 0004-0012 ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97232-497-0 02 1 0101- ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP HALOGEN<T37> (A) 		8-94379-802-0 04 1 9811-0003 ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP HALOGEN<T37> (B) 		8-94379-806-0 02 1 9811-0003 ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97232-500-0 02 1 0004-0012 ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97232-500-0 02 1 0101- ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W USA 		8-94124-595-0 02 1 9811-0012 ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W USA 		8-94124-595-0 02 1 0101- ●
96 02.575 GROMMET; SCREW,SIDE COMB LAMP
02.587 D=7.5X7.5 L=7 		8-94430-147-0 04 1 9811-0012 ● ●
96 02.575 GROMMET; SCREW,SIDE COMB LAMP
02.587 D=7.5X7.5 L=7 		8-94430-147-0 04 1 0101- ●
98 02.895 SCREW; SIDE COMB LAMP
(A) M4X20 		8-94446-971-0 04 1 9811-0012 ● ●
98 02.895 SCREW; SIDE COMB LAMP
(A) M4X20 		8-94446-971-0 04 1 0101- ●
98 02.895 SCREW; SIDE COMB LAMP
02.587 (B) M4X16 W/WASHER 		8-97809-122-0 02 1 9811-0012 ● ●
98 02.895 SCREW; SIDE COMB LAMP
02.587 (B) M4X16 W/WASHER 		8-97809-122-0 02 1 0101- ●
99 02.585 LAMP; SIDE FLASHER 8-97131-931-0 02 1 9811-0012 ● ●
99 02.585 LAMP; SIDE FLASHER 8-97131-931-0 02 1 0101- ●
104 02.587 SCREW; SIDE TURN SIGNAL
06.514 M3X10 TAPPING 		9-07076-310-0 02 1 9811-0012 ● ●
104 02.587 SCREW; SIDE TURN SIGNAL
06.514 M3X10 TAPPING 		9-07076-310-0 02 1 0101- ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97032-884-0 02 1 9811-0012 ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97032-884-0 02 1 0101- ●
223 02.575 UNIT; LAMP,SIDE FLASHER 8-97162-067-0 02 1 9811-0012 ● ●
223 02.575 UNIT; LAMP,SIDE FLASHER 8-97162-067-0 02 1 0101- ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97162-068-0 02 1 9811-0012 ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97162-068-0 02 1 0101- ●
286 02.587 CLIP; SIDE TURN SIGNAL 8-97032-883-0 02 1 9811-0012 ● ●
286 02.587 CLIP; SIDE TURN SIGNAL 8-97032-883-0 02 1 0101- ●
331 02.585 LAMP; TURN SIGNAL
USA 		8-97209-562-0 01 1 9811-0003 ● ●
331 02.585 LAMP; TURN SIGNAL
USA 		8-97249-631-1 01 1 0004-0012 ● ●
331 02.585 LAMP; TURN SIGNAL
USA 		8-97249-631-1 01 1 0101-0103 ●
331 02.585 LAMP; TURN SIGNAL
USA 		8-97313-144-0 01 1 0104- ●
331 02.585 LAMP; TURN SIGNAL
USA 		8-97209-561-0 01 1 9811-0003 ● ●
331 02.585 LAMP; TURN SIGNAL
USA 		8-97249-630-1 01 1 0004-0012 ● ●
331 02.585 LAMP; TURN SIGNAL
USA 		8-97249-630-1 01 1 0101-0103 ●
331 02.585 LAMP; TURN SIGNAL
USA 		8-97313-143-0 01 1 0104- ●
357 08.991 BULB; TURN SIGNAL
12V 21/5W USA 		8-94125-959-0 02 1 9811-0003 ● ●
357 08.991 BULB; TURN SIGNAL
12V 21W USA 		8-97179-967-0 02 1 0004-0012 ● ●
357 08.991 BULB; TURN SIGNAL
12V 21W USA 		8-97179-967-0 02 1 0101- ●
397 02.585 LAMP UNIT; TURN SIGNAL
USA 		8-97184-810-0 01 1 9811-0003 ● ●
397 02.585 LAMP UNIT; TURN SIGNAL
USA 		8-97184-809-0 01 1 9811-0003 ● ●
399 02.596 SOCKET; TURN SIGNAL
USA 		8-97174-902-0 02 1 9811-0003 ● ●
399 02.596 SOCKET; TURN SIGNAL
USA 		8-97232-489-0 02 1 0004-0012 ● ●
399 02.596 SOCKET; TURN SIGNAL
USA 		8-97232-489-0 02 1 0101- ●
400 02.593 TUBE; TURN SIGNAL
02.728 USA 		8-97174-904-0 04 1 9811-0003 ● ●
400 02.593 TUBE; TURN SIGNAL
02.728 USA 		8-97232-493-0 02 1 0004-0012 ● ●
400 02.593 TUBE; TURN SIGNAL
02.728 USA 		8-97232-493-0 02 1 0101- ●

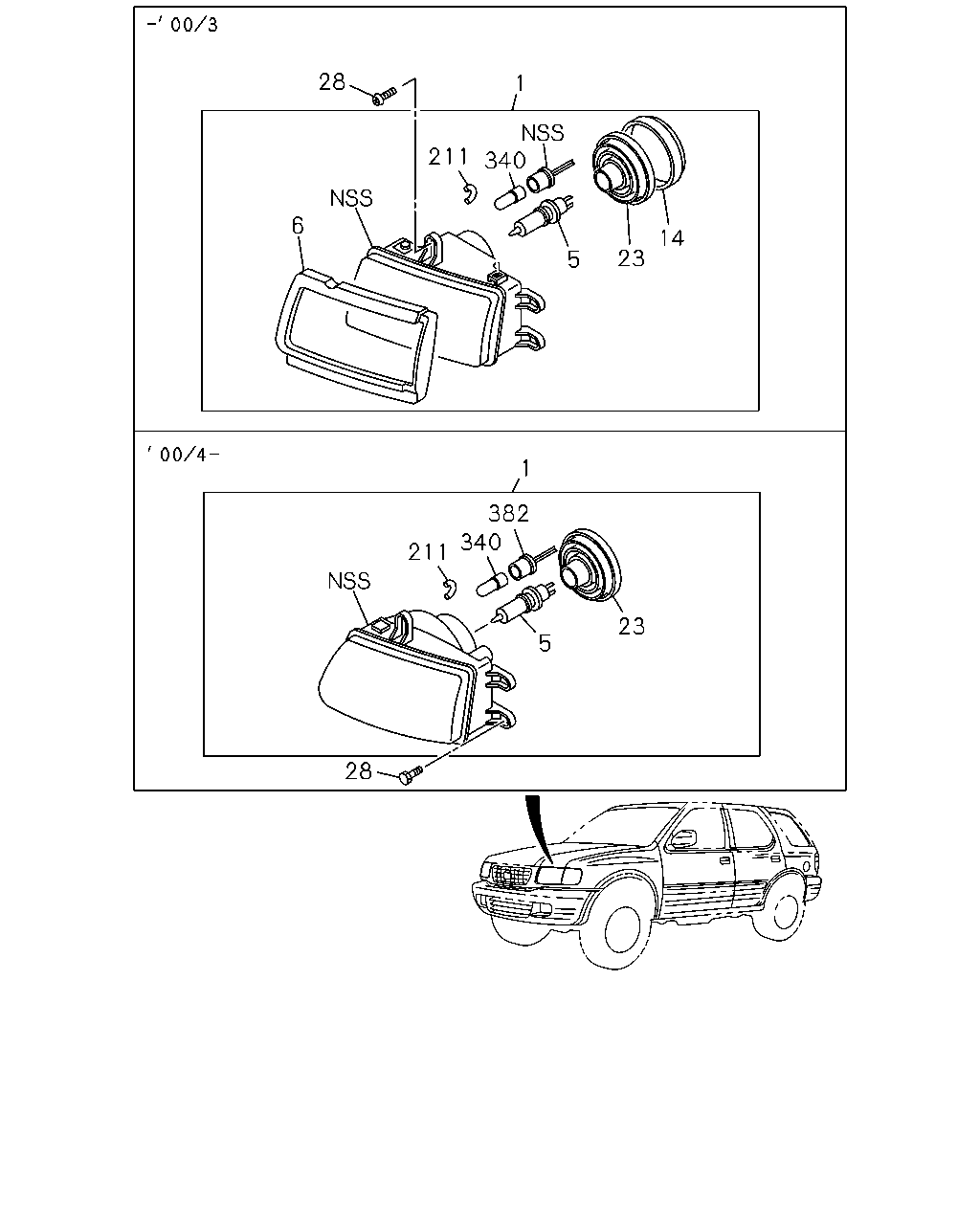

çizim 36614
28 1 340 211 6 14 23 5 1 382 340 211 23 5 28
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.725 LAMP ASM; HEAD
USA 		8-97136-928-2 01 1 9811-0003 ● ●
1 02.725 LAMP ASM; HEAD
USA 		8-97215-642-1 01 1 0004-0012 ● ●
1 02.725 LAMP ASM; HEAD
USA 		8-97215-642-3 01 1 0101- ●
1 02.725 LAMP ASM; HEAD
USA 		8-97136-927-2 01 1 9811-0003 ● ●
1 02.725 LAMP ASM; HEAD
USA 		8-97215-641-1 01 1 0004-0012 ● ●
1 02.725 LAMP ASM; HEAD
USA 		8-97215-641-3 01 1 0101- ●
5 02.727 BULB; HEADLAMP
12V 60/55W USA 		8-94217-817-0 02 1 9811-0003 ● ●
5 02.727 BULB; HEADLAMP
12V 60/55W USA 		8-97214-872-0 02 1 0004-0012 ● ●
5 02.727 BULB; HEADLAMP
12V 60/55W USA 		8-97214-872-0 02 1 0101- ●
6 02.728 RIM; HEADLAMP
USA 		8-97184-805-0 01 1 9811-0003 ● ●
6 02.728 RIM; HEADLAMP
USA 		8-97184-804-0 01 1 9811-0003 ● ●
14 02.727 CAP; BULB,LAMP
USA 		8-97184-803-0 02 1 9811-0003 ● ●
23 02.727 COVER; BULB,HEADLAMP
USA 		8-97184-802-0 02 1 9811-0003 ● ●
23 02.727 COVER; BULB,HEADLAMP
USA 		8-97232-491-0 02 1 0004-0012 ● ●
23 02.727 COVER; BULB,HEADLAMP
USA 		8-97232-491-0 02 1 0101- ●
28 02.762 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER USA 		8-97147-194-0 08 1 9811-0012 ● ●
28 02.762 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER USA 		8-97147-194-0 08 1 0101- ●
211 02.728 TUBE; HEADLAMP
USA 		8-97184-806-0 04 1 9811-0003 ● ●
211 02.728 TUBE; HEADLAMP
USA 		8-97232-492-0 04 1 0004-0012 ● ●
211 02.728 TUBE; HEADLAMP
USA 		8-97232-492-0 04 1 0101- ●
340 08.991 BULB; POSITION
12V 5W USA 		8-94124-595-0 02 1 9811-0012 ● ●
340 08.991 BULB; POSITION
12V 5W USA 		8-94124-595-0 02 1 0101- ●
382 02.575 PLUG; SOCKET,HEADLAMP
USA 		8-97232-488-0 02 1 0004-0012 ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
USA 		8-97232-488-0 02 1 0101- ●

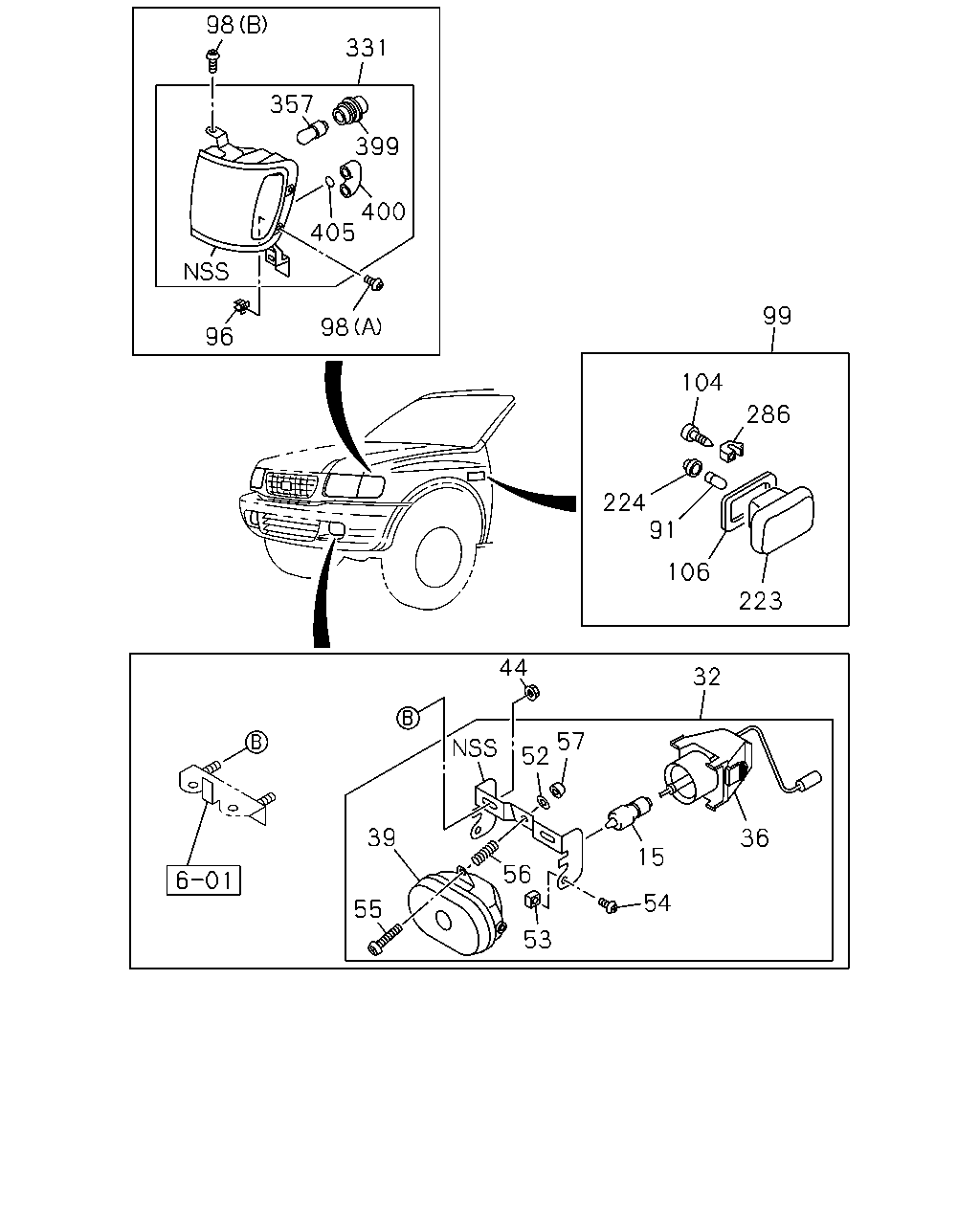

çizim 37279
98 331 357 399 400 405 99 98 96 104 286 224 91 106 223 44 32 57 52 56 39 36 15 54 55 53
BalonParca AdiParca NoAdetTipApplied Date A B
15 08.991 BULB; FOG LAMP
FOG LAMP HALOGEN<T37> 12V 55W 		8-94458-282-0 02 1 9811-0012 ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP HALOGEN<T37> 12V 55W 		8-94458-282-0 02 1 0101- ●
32 02.725 LAMP ASM; FOG
FOG LAMP HALOGEN<T37> 		8-97124-001-3 01 1 9811-0003 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP HALOGEN<T37> 		8-97124-000-3 01 1 9811-0003 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP HALOGEN<T37> 		8-97208-464-1 02 1 0004-0012 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP HALOGEN<T37> 		8-97208-464-1 02 1 0101-0109 ●
32 02.725 LAMP ASM; FOG
FOG LAMP HALOGEN<T37> 		8-97288-898-0 02 1 0110- ●
36 02.727 CORD; FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97178-070-0 02 1 9811-0003 ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97232-499-0 02 1 0004-0012 ● ●
36 02.727 CORD; FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97232-499-0 02 1 0101-0109 ●
36 02.727 CORD; FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97095-518-0 02 1 0110- ●
39 02.727 UNIT; FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97178-069-0 01 1 9811-0003 ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97178-068-0 01 1 9811-0003 ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97232-495-0 02 1 0004-0012 ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97232-495-0 02 1 0101- ●
44 02.737 NUT; FOG LAMP
FOG LAMP HALOGEN<T37> 04.594 M6 FLANGE 		0-91150-106-0 04 1 9811-0012 ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP HALOGEN<T37> 04.594 M6 FLANGE 		0-91150-106-0 04 1 0101- ●
52 02.726 RING; MTG,FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97232-496-0 02 1 0004-0012 ● ●
52 02.726 RING; MTG,FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97232-496-0 02 1 0101- ●
53 02.726 NUT; MTG RING,FOG LAMP
FOG LAMP HALOGEN<T37> 		8-94379-802-0 04 1 0004-0012 ● ●
53 02.726 NUT; MTG RING,FOG LAMP
FOG LAMP HALOGEN<T37> 		8-94379-802-0 04 1 0101- ●
54 02.726 BOLT; MTG RING,FOG LAMP
FOG LAMP HALOGEN<T37> M5X12 		8-94379-803-0 04 1 9811-0012 ● ●
54 02.726 BOLT; MTG RING,FOG LAMP
FOG LAMP HALOGEN<T37> M5X12 		8-94379-803-0 04 1 0101- ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP HALOGEN<T37> 02.726 		8-97016-275-0 02 1 9811-0003 ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97232-497-0 02 1 0004-0012 ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97232-497-0 02 1 0101- ●
56 02.737 SPRING; COIL,FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97232-498-0 02 1 0004-0012 ● ●
56 02.737 SPRING; COIL,FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97232-498-0 02 1 0101- ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP HALOGEN<T37> (A) 		8-94379-802-0 04 1 9811-0003 ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP HALOGEN<T37> (B) 		8-94379-806-0 02 1 9811-0003 ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97232-500-0 02 1 0004-0012 ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP HALOGEN<T37> 		8-97232-500-0 02 1 0101- ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W USA 		8-94124-595-0 02 1 9811-0012 ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W USA 		8-94124-595-0 02 1 0101- ●
96 02.575 GROMMET; SCREW,SIDE COMB LAMP
02.587 D=7.5X7.5 L=7 		8-94430-147-0 04 1 9811-0012 ● ●
96 02.575 GROMMET; SCREW,SIDE COMB LAMP
02.587 D=7.5X7.5 L=7 		8-94430-147-0 04 1 0101- ●
98 02.895 SCREW; SIDE COMB LAMP
(A) M4X20 		8-94446-971-0 04 1 9811-0012 ● ●
98 02.895 SCREW; SIDE COMB LAMP
(A) M4X20 		8-94446-971-0 04 1 0101- ●
98 02.895 SCREW; SIDE COMB LAMP
02.587 (B) M4X16 W/WASHER 		8-97809-122-0 02 1 9811-0012 ● ●
98 02.895 SCREW; SIDE COMB LAMP
02.587 (B) M4X16 W/WASHER 		8-97809-122-0 02 1 0101- ●
99 02.585 LAMP; SIDE FLASHER 8-97131-931-0 02 1 9811-0012 ● ●
99 02.585 LAMP; SIDE FLASHER 8-97131-931-0 02 1 0101- ●
104 02.587 SCREW; SIDE TURN SIGNAL
06.514 M3X10 TAPPING 		9-07076-310-0 02 1 9811-0012 ● ●
104 02.587 SCREW; SIDE TURN SIGNAL
06.514 M3X10 TAPPING 		9-07076-310-0 02 1 0101- ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97032-884-0 02 1 9811-0012 ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97032-884-0 02 1 0101- ●
223 02.575 UNIT; LAMP,SIDE FLASHER 8-97162-067-0 02 1 9811-0012 ● ●
223 02.575 UNIT; LAMP,SIDE FLASHER 8-97162-067-0 02 1 0101- ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97162-068-0 02 1 9811-0012 ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97162-068-0 02 1 0101- ●
286 02.587 CLIP; SIDE TURN SIGNAL 8-97032-883-0 02 1 9811-0012 ● ●
286 02.587 CLIP; SIDE TURN SIGNAL 8-97032-883-0 02 1 0101- ●
331 02.585 LAMP; TURN SIGNAL
USA 		8-97209-562-0 01 1 9811-0003 ● ●
331 02.585 LAMP; TURN SIGNAL
USA 		8-97249-631-1 01 1 0004-0012 ● ●
331 02.585 LAMP; TURN SIGNAL
USA 		8-97249-631-1 01 1 0101-0103 ●
331 02.585 LAMP; TURN SIGNAL
USA 		8-97313-144-0 01 1 0104- ●
331 02.585 LAMP; TURN SIGNAL
USA 		8-97209-561-0 01 1 9811-0003 ● ●
331 02.585 LAMP; TURN SIGNAL
USA 		8-97249-630-1 01 1 0004-0012 ● ●
331 02.585 LAMP; TURN SIGNAL
USA 		8-97249-630-1 01 1 0101-0103 ●
331 02.585 LAMP; TURN SIGNAL
USA 		8-97313-143-0 01 1 0104- ●
357 08.991 BULB; TURN SIGNAL
12V 21/5W USA 		8-94125-959-0 02 1 9811-0003 ● ●
357 08.991 BULB; TURN SIGNAL
12V 21W USA 		8-97179-967-0 02 1 0004-0012 ● ●
357 08.991 BULB; TURN SIGNAL
12V 21W USA 		8-97179-967-0 02 1 0101- ●
399 02.596 SOCKET; TURN SIGNAL
USA 		8-97174-902-0 02 1 9811-0003 ● ●
399 02.596 SOCKET; TURN SIGNAL
USA 		8-97232-489-0 02 1 0004-0012 ● ●
399 02.596 SOCKET; TURN SIGNAL
USA 		8-97232-489-0 02 1 0101- ●
400 02.593 TUBE; TURN SIGNAL
02.728 USA 		8-97174-904-0 04 1 9811-0003 ● ●
400 02.593 TUBE; TURN SIGNAL
02.728 USA 		8-97232-493-0 02 1 0004-0012 ● ●
400 02.593 TUBE; TURN SIGNAL
02.728 USA 		8-97232-493-0 02 1 0101- ●
405 02.596 FILTER; SIDE COMB LAMP
USA 		8-97232-494-0 02 1 0004-0012 ● ●
405 02.596 FILTER; SIDE COMB LAMP
USA 		8-97232-494-0 02 1 0101- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
