Sayfa 7-55 - Isuzu EPC

7-55 — REAR SEAT (#32670) — 356 parça

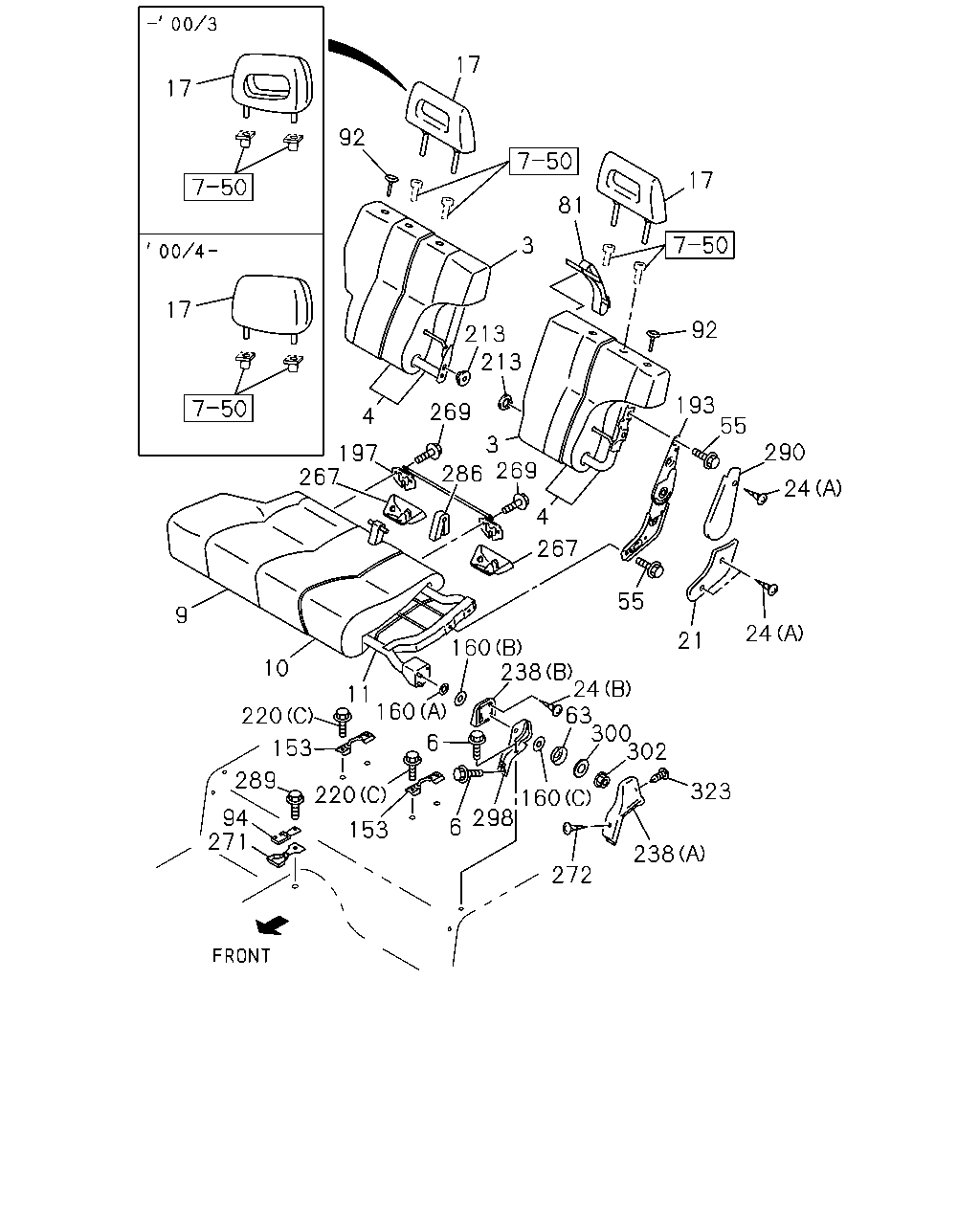

17 17 92 17 81 3 17 92 213 213 193 55 269 4 3 269 290 197 267 286 24 4 267 55 9 24 21 160 238 24 63 300 302 10 11 160 220 6 153 220 289 323 160 298 94 271 6 153 238 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	16.714 COVER; TRIM,RR SEAT BACK 2DOOR SHORT(UE***C) GRAY USA	8-97198-509-1	01	1	9811-0003	●
3	16.714 COVER; TRIM,RR SEAT BACK 2DOOR SHORT(UE***C) GRAY USA	8-97293-487-1	01	1	0004-0012	●
3	16.714 COVER; TRIM,RR SEAT BACK GRAY USA	8-97298-221-0	01	1	0101-	●
3	16.714 COVER; TRIM,RR SEAT BACK 2DOOR SHORT(UE***C) GRAY USA	8-97198-507-0	01	1	9811-0003	●
3	16.714 COVER; TRIM,RR SEAT BACK 2DOOR SHORT(UE***C) GRAY USA	8-97293-485-1	01	1	0004-0012	●
3	16.714 COVER; TRIM,RR SEAT BACK GRAY USA	8-97298-217-0	01	1	0101-	●
3	16.714 COVER; TRIM,RR SEAT BACK 4DOOR LONG(UE***F) GRAY USA	8-97198-567-2	01	1	9811-0003	●
3	16.714 COVER; TRIM,RR SEAT BACK 4DOOR LONG(UE***F) GRAY USA	8-97293-267-2	01	1	0004-0012	●
3	16.714 COVER; TRIM,RR SEAT BACK GRAY USA	8-97293-267-2	01	1	0004-0012		●
3	16.714 COVER; TRIM,RR SEAT BACK GRAY USA	8-97293-267-2	01	1	0101-		●
3	16.714 COVER; TRIM,RR SEAT BACK 4DOOR LONG(UE***F) GRAY USA	8-97198-563-2	01	1	9811-0003	●
3	16.714 COVER; TRIM,RR SEAT BACK 4DOOR LONG(UE***F) GRAY USA	8-97293-261-2	01	1	0004-0012	●
3	16.714 COVER; TRIM,RR SEAT BACK GRAY USA	8-97293-261-2	01	1	0004-0012		●
3	16.714 COVER; TRIM,RR SEAT BACK GRAY USA	8-97293-261-2	01	1	0101-		●
3	16.714 COVER; TRIM,RR SEAT BACK GRAY USA	8-97159-748-1	01	1	9811-0003		●
3	16.714 COVER; TRIM,RR SEAT BACK GRAY USA	8-97159-743-1	01	1	9811-0003		●
4	16.720 PAD; RR,SEAT BACK 2DOOR SHORT(UE***C) USA	8-97181-656-1	01	1	9811-0012	●
4	16.720 PAD; RR,SEAT BACK 2DOOR SHORT(UE***C) USA	8-97181-655-1	01	1	9811-0012	●
4	16.720 PAD; RR,SEAT BACK USA	8-97181-276-0	01	1	9811-0003		●
4	16.720 PAD; RR,SEAT BACK 4DOOR LONG(UE***F) USA	8-97181-276-0	01	1	0004-0012	●
4	16.720 PAD; RR,SEAT BACK USA	8-97181-276-0	01	1	0004-0012		●
4	16.720 PAD; RR,SEAT BACK USA	8-97181-276-0	01	1	0101-	●	●
4	16.720 PAD; RR,SEAT BACK USA	8-97181-275-0	01	1	9811-0003		●
4	16.720 PAD; RR,SEAT BACK 4DOOR LONG(UE***F) USA	8-97181-275-0	01	1	0004-0012	●
4	16.720 PAD; RR,SEAT BACK USA	8-97181-275-0	01	1	0004-0012		●
4	16.720 PAD; RR,SEAT BACK USA	8-97181-275-0	01	1	0101-	●	●
6	16.679 BOLT; RR SEAT 2DOOR SHORT(UE***C) 03.611 M10X20 FLANGE	0-28681-020-0	04	1	9811-0012	●
6	16.679 BOLT; RR SEAT 4DOOR LONG(UE***F) 03.611 M10X20 FLANGE	0-28681-020-0	06	1	9811-0012	●	●
6	16.679 BOLT; RR SEAT 03.611 M10X20 FLANGE	0-28681-020-0	06	1	0101-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION GRAY USA	8-97298-219-0	01	1	0101-	●
9	16.717 COVER ASM; TRIM,RR,CUSHION 2DOOR SHORT(UE***C) GRAY USA	8-97198-504-0	01	1	9811-0003	●
9	16.717 COVER ASM; TRIM,RR,CUSHION 2DOOR SHORT(UE***C) GRAY USA	8-97293-483-1	01	1	0004-0012	●
9	16.717 COVER ASM; TRIM,RR,CUSHION GRAY USA	8-97298-215-0	01	1	0101-	●
9	16.717 COVER ASM; TRIM,RR,CUSHION 4DOOR LONG(UE***F) GRAY USA	8-97198-565-0	01	1	9811-0003	●
9	16.717 COVER ASM; TRIM,RR,CUSHION 4DOOR LONG(UE***F) GRAY USA	8-97293-265-1	01	1	0004-0012	●
9	16.717 COVER ASM; TRIM,RR,CUSHION GRAY USA	8-97293-265-1	01	1	0004-0012		●
9	16.717 COVER ASM; TRIM,RR,CUSHION GRAY USA	8-97293-265-1	01	1	0101-		●
9	16.717 COVER ASM; TRIM,RR,CUSHION 4DOOR LONG(UE***F) GRAY USA	8-97198-561-0	01	1	9811-0003	●
9	16.717 COVER ASM; TRIM,RR,CUSHION 4DOOR LONG(UE***F) GRAY USA	8-97293-259-1	01	1	0004-0012	●
9	16.717 COVER ASM; TRIM,RR,CUSHION GRAY USA	8-97293-259-1	01	1	0004-0012		●
9	16.717 COVER ASM; TRIM,RR,CUSHION GRAY USA	8-97293-259-1	01	1	0101-		●
9	16.717 COVER ASM; TRIM,RR,CUSHION GRAY USA	8-97159-725-0	01	1	9811-0003		●
9	16.717 COVER ASM; TRIM,RR,CUSHION GRAY USA	8-97159-720-0	01	1	9811-0003		●
10	16.716 PAD; CUSHION,RR SEAT 2DOOR SHORT(UE***C) USA	8-97181-653-0	01	1	9811-0012	●
10	16.716 PAD; CUSHION,RR SEAT USA	8-97181-274-1	01	1	9811-0003		●
10	16.716 PAD; CUSHION,RR SEAT 4DOOR LONG(UE***F) USA	8-97181-274-2	01	1	0004-0012	●
10	16.716 PAD; CUSHION,RR SEAT USA	8-97181-274-2	01	1	0004-0012		●
10	16.716 PAD; CUSHION,RR SEAT USA	8-97181-274-2	01	1	0101-	●	●
10	16.716 PAD; CUSHION,RR SEAT USA	8-97181-273-1	01	1	9811-0003		●
10	16.716 PAD; CUSHION,RR SEAT 4DOOR LONG(UE***F) USA	8-97181-273-2	01	1	0004-0012	●
10	16.716 PAD; CUSHION,RR SEAT USA	8-97181-273-2	01	1	0004-0012		●
10	16.716 PAD; CUSHION,RR SEAT USA	8-97181-273-2	01	1	0101-	●	●
11	16.716 FRAME ASM; CUSHION,RR SEAT 2DOOR SHORT(UE***C) USA	8-97142-054-1	01	1	9811-0012	●
11	16.716 FRAME ASM; CUSHION,RR SEAT USA	8-97121-476-4	01	1	9811-0003		●
11	16.716 FRAME ASM; CUSHION,RR SEAT 4DOOR LONG(UE***F) USA	8-97121-476-4	01	1	0004-0012	●
11	16.716 FRAME ASM; CUSHION,RR SEAT USA	8-97121-476-4	01	1	0004-0012		●
11	16.716 FRAME ASM; CUSHION,RR SEAT USA	8-97121-476-4	01	1	0101-	●	●
11	16.716 FRAME ASM; CUSHION,RR SEAT USA	8-97121-475-4	01	1	9811-0003		●
11	16.716 FRAME ASM; CUSHION,RR SEAT 4DOOR LONG(UE***F) USA	8-97121-475-4	01	1	0004-0012	●
11	16.716 FRAME ASM; CUSHION,RR SEAT USA	8-97121-475-4	01	1	0004-0012		●
11	16.716 FRAME ASM; CUSHION,RR SEAT USA	8-97121-475-4	01	1	0101-	●	●
17	16.718 REST; HD,RR SEAT GRAY USA	8-97198-491-1	02	1	9811-0003	●
17	16.718 REST; HD,RR SEAT 2DOOR SHORT(UE***C) GRAY USA	8-97293-455-5	02	1	0004-0012	●
17	16.718 REST; HD,RR SEAT GRAY USA	8-97298-203-1	02	1	0101-0108	●
17	16.718 REST; HD,RR SEAT GRAY USA	8-97298-806-1	02	1	0109-	●
17	16.718 REST; HD,RR SEAT GRAY USA	8-97198-572-1	02	1	9811-0003		●
17	16.718 REST; HD,RR SEAT 4DOOR LONG(UE***F) GRAY USA	8-97293-245-5	02	1	0004-0012	●
17	16.718 REST; HD,RR SEAT GRAY USA	8-97293-245-5	02	1	0004-0012		●
17	16.718 REST; HD,RR SEAT GRAY USA	8-97293-245-5	02	1	0101-0108		●
17	16.718 REST; HD,RR SEAT GRAY USA	8-97298-884-5	02	1	0109-		●
21	16.682 COVER; RECLINING DEVICE,LWR 2DOOR SHORT(UE***C) GRAY USA	8-97196-141-0	01	1	9811-0012	●
21	16.682 COVER; RECLINING DEVICE,LWR 2DOOR SHORT(UE***C) GRAY USA	8-97196-140-0	01	1	9811-0012	●
24	16.682 SCREW; COVER 2DOOR SHORT(UE***C) (A) M5X10 TAPPING W/PL WASHER	0-74110-510-0	06	1	9811-0012	●
24	16.682 SCREW; COVER 2DOOR SHORT(UE***C) (B) M6X18 USA	8-94492-914-0	06	1	9811-0012	●
55	16.716 BOLT; HINGE,RR SEAT 2DOOR SHORT(UE***C) 11.377 M10X20 W/LK WASHER	0-50041-020-0	08	1	9811-0012	●
55	16.716 BOLT; HINGE,RR SEAT 16.682 M10X25 USA	8-97066-704-0	06	1	9811-0003		●
55	16.716 BOLT; HINGE,RR SEAT 4DOOR LONG(UE***F) 16.682 M10X25 USA	8-97066-704-0	06	1	0004-0012	●
55	16.716 BOLT; HINGE,RR SEAT 16.682 M10X25 USA	8-97066-704-0	06	1	0004-0012		●
55	16.716 BOLT; HINGE,RR SEAT 16.682 M10X25 USA	8-97066-704-0	06	1	0101-	●	●
63	16.717 PLATE; HINGE,RR SEAT 2DOOR SHORT(UE***C) USA	8-97185-820-0	02	1	9811-0012	●
81	16.714 BAND; RR SEAT BACK 2DOOR SHORT(UE***C) GRAY USA	8-97198-510-1	01	1	9811-0012	●
81	16.714 BAND; RR SEAT BACK GRAY USA	8-97159-752-2	02	1	9811-0003		●
81	16.714 BAND; RR SEAT BACK 4DOOR LONG(UE***F) GRAY USA	8-97159-752-2	02	1	0004-0012	●
81	16.714 BAND; RR SEAT BACK GRAY USA	8-97159-752-2	02	1	0004-0012		●
81	16.714 BAND; RR SEAT BACK GRAY USA	8-97159-752-2	02	1	0101-	●	●
92	16.674 KNOB; RR SEAT BACK,LK GRAY USA	8-97159-751-0	02	1	9811-	●	●
94	16.682 HOOK; SEAT 2DOOR SHORT(UE***C)	8-97203-564-0	01	1	9811-0012	●
153	16.674 STRIKER; SEAT LOCK 2DOOR SHORT(UE***C) USA	8-97135-098-1	02	1	9811-0012	●
153	16.674 STRIKER; SEAT LOCK 4DOOR LONG(UE***F) USA	8-97121-467-1	02	1	9811-0012	●	●
153	16.674 STRIKER; SEAT LOCK USA	8-97121-467-1	02	1	0101-	●	●
160	16.716 WASHER; RR SEAT HINGE 2DOOR SHORT(UE***C) (A) USA	8-97185-837-0	02	1	9811-0012	●
160	16.716 WASHER; RR SEAT HINGE 2DOOR SHORT(UE***C) (B) USA	8-97185-838-0	02	1	9811-0012	●
160	16.716 WASHER; RR SEAT HINGE 2DOOR SHORT(UE***C) (C) USA	8-97185-839-0	02	1	9811-0012	●
193	16.674 HINGE; RR BACK OUTER 2DOOR SHORT(UE***C) USA	8-97142-056-0	01	1	9811-0012	●
193	16.674 HINGE; RR BACK OUTER 2DOOR SHORT(UE***C) USA	8-97142-055-0	01	1	9811-0012	●
193	16.674 HINGE; RR BACK OUTER USA	8-97121-558-2	01	1	9811-0003		●
193	16.674 HINGE; RR BACK OUTER 4DOOR LONG(UE***F) USA	8-97121-558-2	01	1	0004-0012	●
193	16.674 HINGE; RR BACK OUTER USA	8-97121-558-2	01	1	0004-0012		●
193	16.674 HINGE; RR BACK OUTER USA	8-97121-558-2	01	1	0101-	●	●
193	16.674 HINGE; RR BACK OUTER USA	8-97121-557-2	01	1	9811-0003		●
193	16.674 HINGE; RR BACK OUTER 4DOOR LONG(UE***F) USA	8-97121-557-2	01	1	0004-0012	●
193	16.674 HINGE; RR BACK OUTER USA	8-97121-557-2	01	1	0004-0012		●
193	16.674 HINGE; RR BACK OUTER USA	8-97121-557-2	01	1	0101-	●	●
197	16.716 LOCK; FLOOR,RR CUSHION 2DOOR SHORT(UE***C) GRAY USA	8-97196-135-1	01	1	9811-0012	●
197	16.716 LOCK; FLOOR,RR CUSHION GRAY USA	8-97159-730-1	01	1	9811-0003		●
197	16.716 LOCK; FLOOR,RR CUSHION 4DOOR LONG(UE***F) GRAY USA	8-97159-730-2	01	1	0004-0012	●
197	16.716 LOCK; FLOOR,RR CUSHION GRAY USA	8-97159-730-2	01	1	0004-0012		●
197	16.716 LOCK; FLOOR,RR CUSHION GRAY USA	8-97159-730-2	01	1	0101-	●	●
197	16.716 LOCK; FLOOR,RR CUSHION GRAY USA	8-97159-729-1	01	1	9811-0003		●
197	16.716 LOCK; FLOOR,RR CUSHION 4DOOR LONG(UE***F) GRAY USA	8-97159-729-2	01	1	0004-0012	●
197	16.716 LOCK; FLOOR,RR CUSHION GRAY USA	8-97159-729-2	01	1	0004-0012		●
197	16.716 LOCK; FLOOR,RR CUSHION GRAY USA	8-97159-729-2	01	1	0101-	●	●
213	16.716 BUSHING; RR SEAT HINGE 2DOOR SHORT(UE***C) USA	8-97186-299-0	02	1	9811-0012	●
220	16.674 BOLT; STRIKER TO BODY 2DOOR SHORT(UE***C) (C) USA	8-97035-067-0	04	1	9811-0012	●
220	16.674 BOLT; STRIKER TO BODY 4DOOR LONG(UE***F) 02.664 (A) M8X20 FLANGE USA	0-28680-820-0	04	1	9811-0012	●	●
220	16.674 BOLT; STRIKER TO BODY 02.664 (A) M8X20 FLANGE USA	0-28680-820-0	04	1	0101-	●	●
220	16.674 BOLT; STRIKER TO BODY 4DOOR LONG(UE***F) (B) USA	8-97035-067-0	08	1	9811-0012	●	●
220	16.674 BOLT; STRIKER TO BODY (B) USA	8-97035-067-0	08	1	0101-	●	●
238	16.674 COVER; LEG 2DOOR SHORT(UE***C) (B) GRAY USA	8-97196-137-3	01	1	9811-0012	●
238	16.674 COVER; LEG 2DOOR SHORT(UE***C) (B) GRAY USA	8-97196-136-3	01	1	9811-0012	●
238	16.674 COVER; LEG 2DOOR SHORT(UE***C) (A) GRAY USA	8-97158-219-2	01	1	9811-0012	●	●
238	16.674 COVER; LEG 2DOOR SHORT(UE***C) (A) GRAY USA	8-97158-218-2	01	1	9811-0012	●	●
238	16.674 COVER; LEG 4DOOR LONG(UE***F) (C) GRAY USA	8-97157-407-2	04	1	9811-0012	●	●
238	16.674 COVER; LEG (C) GRAY USA	8-97157-407-3	04	1	0101-	●	●
267	16.715 COVER; RR SEAT LOCK 2DOOR SHORT(UE***C) GRAY USA	8-97158-226-1	02	1	9811-0012	●	●
269	16.716 BOLT; FLOOR LOCK 7/16"X31 UNF USA	8-94371-938-0	04	1	9811-	●	●
271	16.720 COVER; HOOK 2DOOR SHORT(UE***C) GRAY	8-97198-407-0	01	1	9811-0012	●	●
272	16.720 SCREW; COVER 2DOOR SHORT(UE***C) 11.950 M5X10 USA	9-09829-320-1	02	1	9811-0012	●
286	16.716 COVER; HINGE 2DOOR SHORT(UE***C) GRAY USA	8-97198-505-0	01	1	9811-0012	●
289	16.715 BOLT; BRKT 2DOOR SHORT(UE***C) 01.062 M8X16 FLANGE USA	0-28080-816-0	01	1	9811-0012	●
290	16.682 COVER; RECLINING DEVICE,UPR 2DOOR SHORT(UE***C) GRAY USA	8-97196-139-0	01	1	9811-0012	●
290	16.682 COVER; RECLINING DEVICE,UPR 2DOOR SHORT(UE***C) GRAY USA	8-97196-138-0	01	1	9811-0012	●
298	16.716 LEG ASM; RR SEAT CUSHION 2DOOR SHORT(UE***C) USA	8-97131-471-2	01	1	9811-0012	●
298	16.716 LEG ASM; RR SEAT CUSHION 2DOOR SHORT(UE***C) USA	8-97131-470-2	01	1	9811-0012	●
298	16.716 LEG ASM; RR SEAT CUSHION USA	8-97084-271-1	04	1	9811-0003		●
298	16.716 LEG ASM; RR SEAT CUSHION 4DOOR LONG(UE***F) USA	8-97084-271-1	04	1	0004-0012	●
298	16.716 LEG ASM; RR SEAT CUSHION USA	8-97084-271-1	04	1	0004-0012		●
298	16.716 LEG ASM; RR SEAT CUSHION USA	8-97084-271-1	04	1	0101-	●	●
300	16.716 RUBBER; RR SEAT CUSHION 2DOOR SHORT(UE***C) USA	8-97185-825-0	02	1	9811-0012	●
302	16.715 NUT; RR SEAT 2DOOR SHORT(UE***C) 16.682 USA	8-97185-833-0	02	1	9811-0012	●
323	16.717 CLIP; COVER 2DOOR SHORT(UE***C) 08.856 GRAY	8-97157-300-0	02	1	9811-0012	●	●

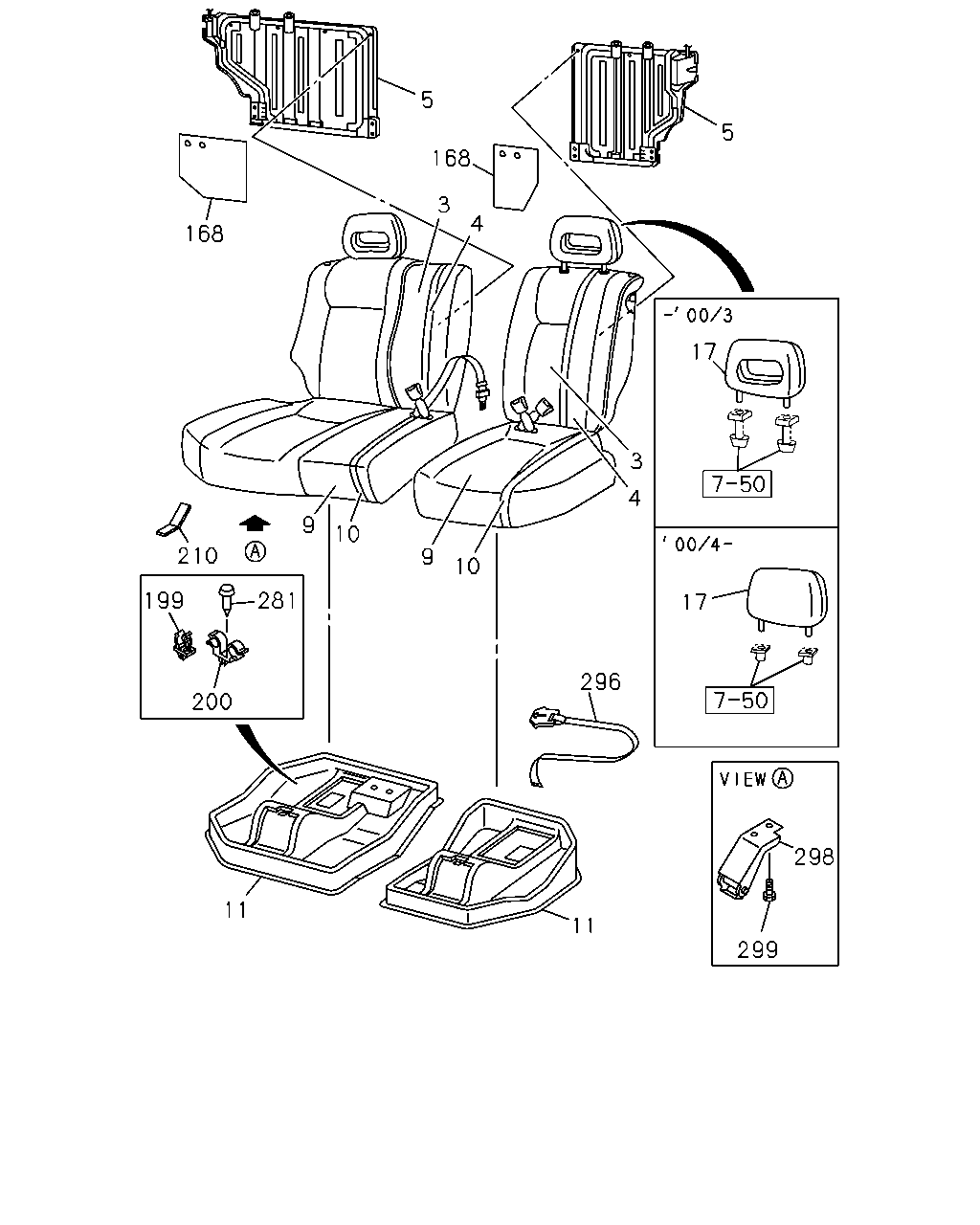

5 5 168 3 4 168 17 3 4 9 10 210 9 10 199 281 17 296 200 298 11 11 299

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	16.714 COVER; TRIM,RR SEAT BACK 2DOOR SHORT(UE***C) GRAY USA	8-97198-509-1	01	1	9811-0003	●
3	16.714 COVER; TRIM,RR SEAT BACK 2DOOR SHORT(UE***C) GRAY USA	8-97293-487-1	01	1	0004-0012	●
3	16.714 COVER; TRIM,RR SEAT BACK GRAY USA	8-97298-221-0	01	1	0101-	●
3	16.714 COVER; TRIM,RR SEAT BACK 2DOOR SHORT(UE***C) GRAY USA	8-97198-507-0	01	1	9811-0003	●
3	16.714 COVER; TRIM,RR SEAT BACK 2DOOR SHORT(UE***C) GRAY USA	8-97293-485-1	01	1	0004-0012	●
3	16.714 COVER; TRIM,RR SEAT BACK GRAY USA	8-97298-217-0	01	1	0101-	●
3	16.714 COVER; TRIM,RR SEAT BACK 4DOOR LONG(UE***F) GRAY USA	8-97198-567-2	01	1	9811-0003	●
3	16.714 COVER; TRIM,RR SEAT BACK 4DOOR LONG(UE***F) GRAY USA	8-97293-267-2	01	1	0004-0012	●
3	16.714 COVER; TRIM,RR SEAT BACK GRAY USA	8-97293-267-2	01	1	0004-0012		●
3	16.714 COVER; TRIM,RR SEAT BACK GRAY USA	8-97293-267-2	01	1	0101-		●
3	16.714 COVER; TRIM,RR SEAT BACK 4DOOR LONG(UE***F) GRAY USA	8-97198-563-2	01	1	9811-0003	●
3	16.714 COVER; TRIM,RR SEAT BACK 4DOOR LONG(UE***F) GRAY USA	8-97293-261-2	01	1	0004-0012	●
3	16.714 COVER; TRIM,RR SEAT BACK GRAY USA	8-97293-261-2	01	1	0004-0012		●
3	16.714 COVER; TRIM,RR SEAT BACK GRAY USA	8-97293-261-2	01	1	0101-		●
3	16.714 COVER; TRIM,RR SEAT BACK GRAY USA	8-97159-748-1	01	1	9811-0003		●
3	16.714 COVER; TRIM,RR SEAT BACK GRAY USA	8-97159-743-1	01	1	9811-0003		●
4	16.720 PAD; RR,SEAT BACK 2DOOR SHORT(UE***C) USA	8-97181-656-1	01	1	9811-0012	●
4	16.720 PAD; RR,SEAT BACK 2DOOR SHORT(UE***C) USA	8-97181-655-1	01	1	9811-0012	●
4	16.720 PAD; RR,SEAT BACK USA	8-97181-276-0	01	1	9811-0003		●
4	16.720 PAD; RR,SEAT BACK 4DOOR LONG(UE***F) USA	8-97181-276-0	01	1	0004-0012	●
4	16.720 PAD; RR,SEAT BACK USA	8-97181-276-0	01	1	0004-0012		●
4	16.720 PAD; RR,SEAT BACK USA	8-97181-276-0	01	1	0101-	●	●
4	16.720 PAD; RR,SEAT BACK USA	8-97181-275-0	01	1	9811-0003		●
4	16.720 PAD; RR,SEAT BACK 4DOOR LONG(UE***F) USA	8-97181-275-0	01	1	0004-0012	●
4	16.720 PAD; RR,SEAT BACK USA	8-97181-275-0	01	1	0004-0012		●
4	16.720 PAD; RR,SEAT BACK USA	8-97181-275-0	01	1	0101-	●	●
5	16.720 FRAME ASM; RR SEAT BACK USA	8-97121-566-3	01	1	9811-0003		●
5	16.720 FRAME ASM; RR SEAT BACK 4DOOR LONG(UE***F) USA	8-97121-566-4	01	1	0004-0012	●
5	16.720 FRAME ASM; RR SEAT BACK USA	8-97121-566-4	01	1	0004-0012		●
5	16.720 FRAME ASM; RR SEAT BACK USA	8-97121-566-4	01	1	0101-	●	●
5	16.720 FRAME ASM; RR SEAT BACK USA	8-97121-565-3	01	1	9811-0003		●
5	16.720 FRAME ASM; RR SEAT BACK 4DOOR LONG(UE***F) USA	8-97121-565-5	01	1	0004-0012	●
5	16.720 FRAME ASM; RR SEAT BACK USA	8-97121-565-5	01	1	0004-0012		●
5	16.720 FRAME ASM; RR SEAT BACK USA	8-97121-565-5	01	1	0101-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION GRAY USA	8-97298-219-0	01	1	0101-	●
9	16.717 COVER ASM; TRIM,RR,CUSHION 2DOOR SHORT(UE***C) GRAY USA	8-97198-504-0	01	1	9811-0003	●
9	16.717 COVER ASM; TRIM,RR,CUSHION 2DOOR SHORT(UE***C) GRAY USA	8-97293-483-1	01	1	0004-0012	●
9	16.717 COVER ASM; TRIM,RR,CUSHION GRAY USA	8-97298-215-0	01	1	0101-	●
9	16.717 COVER ASM; TRIM,RR,CUSHION 4DOOR LONG(UE***F) GRAY USA	8-97198-565-0	01	1	9811-0003	●
9	16.717 COVER ASM; TRIM,RR,CUSHION 4DOOR LONG(UE***F) GRAY USA	8-97293-265-1	01	1	0004-0012	●
9	16.717 COVER ASM; TRIM,RR,CUSHION GRAY USA	8-97293-265-1	01	1	0004-0012		●
9	16.717 COVER ASM; TRIM,RR,CUSHION GRAY USA	8-97293-265-1	01	1	0101-		●
9	16.717 COVER ASM; TRIM,RR,CUSHION 4DOOR LONG(UE***F) GRAY USA	8-97198-561-0	01	1	9811-0003	●
9	16.717 COVER ASM; TRIM,RR,CUSHION 4DOOR LONG(UE***F) GRAY USA	8-97293-259-1	01	1	0004-0012	●
9	16.717 COVER ASM; TRIM,RR,CUSHION GRAY USA	8-97293-259-1	01	1	0004-0012		●
9	16.717 COVER ASM; TRIM,RR,CUSHION GRAY USA	8-97293-259-1	01	1	0101-		●
9	16.717 COVER ASM; TRIM,RR,CUSHION GRAY USA	8-97159-725-0	01	1	9811-0003		●
9	16.717 COVER ASM; TRIM,RR,CUSHION GRAY USA	8-97159-720-0	01	1	9811-0003		●
10	16.716 PAD; CUSHION,RR SEAT 2DOOR SHORT(UE***C) USA	8-97181-653-0	01	1	9811-0012	●
10	16.716 PAD; CUSHION,RR SEAT USA	8-97181-274-1	01	1	9811-0003		●
10	16.716 PAD; CUSHION,RR SEAT 4DOOR LONG(UE***F) USA	8-97181-274-2	01	1	0004-0012	●
10	16.716 PAD; CUSHION,RR SEAT USA	8-97181-274-2	01	1	0004-0012		●
10	16.716 PAD; CUSHION,RR SEAT USA	8-97181-274-2	01	1	0101-	●	●
10	16.716 PAD; CUSHION,RR SEAT USA	8-97181-273-1	01	1	9811-0003		●
10	16.716 PAD; CUSHION,RR SEAT 4DOOR LONG(UE***F) USA	8-97181-273-2	01	1	0004-0012	●
10	16.716 PAD; CUSHION,RR SEAT USA	8-97181-273-2	01	1	0004-0012		●
10	16.716 PAD; CUSHION,RR SEAT USA	8-97181-273-2	01	1	0101-	●	●
11	16.716 FRAME ASM; CUSHION,RR SEAT 2DOOR SHORT(UE***C) USA	8-97142-054-1	01	1	9811-0012	●
11	16.716 FRAME ASM; CUSHION,RR SEAT USA	8-97121-476-4	01	1	9811-0003		●
11	16.716 FRAME ASM; CUSHION,RR SEAT 4DOOR LONG(UE***F) USA	8-97121-476-4	01	1	0004-0012	●
11	16.716 FRAME ASM; CUSHION,RR SEAT USA	8-97121-476-4	01	1	0004-0012		●
11	16.716 FRAME ASM; CUSHION,RR SEAT USA	8-97121-476-4	01	1	0101-	●	●
11	16.716 FRAME ASM; CUSHION,RR SEAT USA	8-97121-475-4	01	1	9811-0003		●
11	16.716 FRAME ASM; CUSHION,RR SEAT 4DOOR LONG(UE***F) USA	8-97121-475-4	01	1	0004-0012	●
11	16.716 FRAME ASM; CUSHION,RR SEAT USA	8-97121-475-4	01	1	0004-0012		●
11	16.716 FRAME ASM; CUSHION,RR SEAT USA	8-97121-475-4	01	1	0101-	●	●
17	16.718 REST; HD,RR SEAT GRAY USA	8-97198-491-1	02	1	9811-0003	●
17	16.718 REST; HD,RR SEAT 2DOOR SHORT(UE***C) GRAY USA	8-97293-455-5	02	1	0004-0012	●
17	16.718 REST; HD,RR SEAT GRAY USA	8-97298-203-1	02	1	0101-0108	●
17	16.718 REST; HD,RR SEAT GRAY USA	8-97298-806-1	02	1	0109-	●
17	16.718 REST; HD,RR SEAT GRAY USA	8-97198-572-1	02	1	9811-0003		●
17	16.718 REST; HD,RR SEAT 4DOOR LONG(UE***F) GRAY USA	8-97293-245-5	02	1	0004-0012	●
17	16.718 REST; HD,RR SEAT GRAY USA	8-97293-245-5	02	1	0004-0012		●
17	16.718 REST; HD,RR SEAT GRAY USA	8-97293-245-5	02	1	0101-0108		●
17	16.718 REST; HD,RR SEAT GRAY USA	8-97298-884-5	02	1	0109-		●
168	16.165 SUPPORT; RR BACK 4DOOR LONG(UE***F) USA	8-97230-488-0	01	1	0004-0012	●
168	16.165 SUPPORT; RR BACK USA	8-97230-488-0	01	1	0004-0012		●
168	16.165 SUPPORT; RR BACK USA	8-97230-488-0	01	1	0101-	●	●
168	16.165 SUPPORT; RR BACK USA	8-97185-135-0	02	1	9811-0003		●
168	16.165 SUPPORT; RR BACK 4DOOR LONG(UE***F) USA	8-97185-135-0	01	1	0004-0012	●
168	16.165 SUPPORT; RR BACK USA	8-97185-135-0	01	1	0004-0012		●
168	16.165 SUPPORT; RR BACK USA	8-97185-135-0	01	1	0101-	●	●
199	08.820 HOLDER; WHEEL WRENCH USA	8-97181-786-0	03	1	9811-0003		●
199	08.820 HOLDER; WHEEL WRENCH 4DOOR LONG(UE***F) USA	8-97181-786-0	03	1	0004-0012	●
199	08.820 HOLDER; WHEEL WRENCH USA	8-97181-786-0	03	1	0004-0012		●
199	08.820 HOLDER; WHEEL WRENCH USA	8-97181-786-0	03	1	0101-	●	●
200	08.820 HOLDER; JACK USA	8-97074-761-0	02	1	9811-0003		●
200	08.820 HOLDER; JACK 4DOOR LONG(UE***F) USA	8-97074-761-0	02	1	0004-0012	●
200	08.820 HOLDER; JACK USA	8-97074-761-0	02	1	0004-0012		●
200	08.820 HOLDER; JACK USA	8-97074-761-0	02	1	0101-	●	●
210	16.682 SUPPORT USA	8-97185-149-0	02	1	9811-0003		●
210	16.682 SUPPORT 4DOOR LONG(UE***F) USA	8-97185-149-0	02	1	0004-0012	●
210	16.682 SUPPORT USA	8-97185-149-0	02	1	0004-0012		●
210	16.682 SUPPORT USA	8-97185-149-0	02	1	0101-	●	●
281	16.715 SCREW 11.377 M4X12 TAPPING	0-71080-412-0	05	1	9811-0003		●
281	16.715 SCREW 4DOOR LONG(UE***F) 11.377 M4X12 TAPPING	0-71080-412-0	05	1	0004-0012	●
281	16.715 SCREW 11.377 M4X12 TAPPING	0-71080-412-0	05	1	0004-0012		●
281	16.715 SCREW 11.377 M4X12 TAPPING	0-71080-412-0	05	1	0101-	●	●
296	16.716 BAND; RR SEAT CUSHION GRAY USA	8-97195-944-0	02	1	9811-0003		●
296	16.716 BAND; RR SEAT CUSHION 4DOOR LONG(UE***F) GRAY USA	8-97195-944-0	02	1	0004-0012	●
296	16.716 BAND; RR SEAT CUSHION GRAY USA	8-97195-944-0	02	1	0004-0012		●
296	16.716 BAND; RR SEAT CUSHION GRAY USA	8-97195-944-0	02	1	0101-	●	●
298	16.716 LEG ASM; RR SEAT CUSHION 2DOOR SHORT(UE***C) USA	8-97131-471-2	01	1	9811-0012	●
298	16.716 LEG ASM; RR SEAT CUSHION 2DOOR SHORT(UE***C) USA	8-97131-470-2	01	1	9811-0012	●
298	16.716 LEG ASM; RR SEAT CUSHION USA	8-97084-271-1	04	1	9811-0003		●
298	16.716 LEG ASM; RR SEAT CUSHION 4DOOR LONG(UE***F) USA	8-97084-271-1	04	1	0004-0012	●
298	16.716 LEG ASM; RR SEAT CUSHION USA	8-97084-271-1	04	1	0004-0012		●
298	16.716 LEG ASM; RR SEAT CUSHION USA	8-97084-271-1	04	1	0101-	●	●
299	16.716 BOLT; LEG USA	8-97181-785-0	08	1	9811-0003		●
299	16.716 BOLT; LEG 4DOOR LONG(UE***F) USA	8-97181-785-0	08	1	0004-0012	●
299	16.716 BOLT; LEG USA	8-97181-785-0	08	1	0004-0012		●
299	16.716 BOLT; LEG USA	8-97181-785-0	08	1	0101-	●	●

207 336 82 81 307 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	16.714 BAND; RR SEAT BACK 2DOOR SHORT(UE***C) GRAY USA	8-97198-510-1	01	1	9811-0012	●
81	16.714 BAND; RR SEAT BACK GRAY USA	8-97159-752-2	02	1	9811-0003		●
81	16.714 BAND; RR SEAT BACK 4DOOR LONG(UE***F) GRAY USA	8-97159-752-2	02	1	0004-0012	●
81	16.714 BAND; RR SEAT BACK GRAY USA	8-97159-752-2	02	1	0004-0012		●
81	16.714 BAND; RR SEAT BACK GRAY USA	8-97159-752-2	02	1	0101-	●	●
82	16.714 SCREW; BAND TO SEAT 11.950 M5X10 USA	9-09829-320-1	02	1	9811-0003		●
82	16.714 SCREW; BAND TO SEAT 4DOOR LONG(UE***F) 11.950 M5X10 USA	9-09829-320-1	02	1	0004-0012	●
82	16.714 SCREW; BAND TO SEAT 11.950 M5X10 USA	9-09829-320-1	02	1	0004-0012		●
82	16.714 SCREW; BAND TO SEAT 11.950 M5X10 USA	9-09829-320-1	02	1	0101-	●	●
207	16.716 LOCK ASM; RR SEAT USA	8-97121-556-7	01	1	9811-0003		●
207	16.716 LOCK ASM; RR SEAT 4DOOR LONG(UE***F) USA	8-97121-556-7	01	1	0004-0012	●
207	16.716 LOCK ASM; RR SEAT USA	8-97121-556-7	01	1	0004-0012		●
207	16.716 LOCK ASM; RR SEAT USA	8-97121-556-7	01	1	0101-0110	●	●
207	16.716 LOCK ASM; RR SEAT USA	8-97327-608-0	01	1	0111-	●	●
207	16.716 LOCK ASM; RR SEAT USA	8-97121-555-7	01	1	9811-0003		●
207	16.716 LOCK ASM; RR SEAT 4DOOR LONG(UE***F) USA	8-97121-555-7	01	1	0004-0012	●
207	16.716 LOCK ASM; RR SEAT USA	8-97121-555-7	01	1	0004-0012		●
207	16.716 LOCK ASM; RR SEAT USA	8-97121-555-7	01	1	0101-0110	●	●
207	16.716 LOCK ASM; RR SEAT USA	8-97327-607-0	01	1	0111-	●	●
287	16.716 SCREW; COVER 4DOOR LONG(UE***F) 11.950 M5X10 USA	9-09829-320-1	02	1	9811-0012	●	●
287	16.716 SCREW; COVER 11.950 M5X10 USA	9-09829-320-1	02	1	0101-	●	●
307	16.717 COVER; LOCK,RR BACK 4DOOR LONG(UE***F) GRAY USA	8-97157-828-0	01	1	9811-0012	●	●
307	16.717 COVER; LOCK,RR BACK GRAY USA	8-97157-828-0	01	1	0101-	●	●
307	16.717 COVER; LOCK,RR BACK 4DOOR LONG(UE***F) GRAY USA	8-97157-827-0	01	1	9811-0012	●	●
307	16.717 COVER; LOCK,RR BACK GRAY USA	8-97157-827-0	01	1	0101-	●	●
336	16.716 BOLT; RR SEAT BACK 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	9811-0003		●
336	16.716 BOLT; RR SEAT BACK 4DOOR LONG(UE***F) 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	0004-0012	●
336	16.716 BOLT; RR SEAT BACK 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	0004-0012		●
336	16.716 BOLT; RR SEAT BACK 12.187 M6X16 W/LK&PL WASHER	0-50140-616-0	04	1	0101-	●	●

92 193 46 57 55 46 92 238 305 90 79 216 6 6 55 57 55 193 269 269 197 197 220 219 220 219 220 153 220 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	16.679 BOLT; RR SEAT 2DOOR SHORT(UE***C) 03.611 M10X20 FLANGE	0-28681-020-0	04	1	9811-0012	●
6	16.679 BOLT; RR SEAT 4DOOR LONG(UE***F) 03.611 M10X20 FLANGE	0-28681-020-0	06	1	9811-0012	●	●
6	16.679 BOLT; RR SEAT 03.611 M10X20 FLANGE	0-28681-020-0	06	1	0101-	●	●
46	16.679 BRACKET; RR SEAT 4DOOR LONG(UE***F) (B) USA	8-97251-962-0	01	1	0004-0012	●
46	16.679 BRACKET; RR SEAT (B) USA	8-97251-962-0	01	1	0004-0012		●
46	16.679 BRACKET; RR SEAT 4DOOR LONG(UE***F) (B) USA	8-97251-961-0	01	1	0004-0012	●
46	16.679 BRACKET; RR SEAT (B) USA	8-97251-961-0	01	1	0004-0012		●
46	16.679 BRACKET; RR SEAT (A) USA	8-97185-130-1	02	1	9811-0003		●
46	16.679 BRACKET; RR SEAT 4DOOR LONG(UE***F) (A) USA	8-97185-130-1	02	1	0004-0012	●
46	16.679 BRACKET; RR SEAT (A) USA	8-97185-130-1	02	1	0004-0012		●
46	16.679 BRACKET; RR SEAT (A) USA	8-97185-130-1	02	1	0101-	●	●
55	16.716 BOLT; HINGE,RR SEAT 2DOOR SHORT(UE***C) 11.377 M10X20 W/LK WASHER	0-50041-020-0	08	1	9811-0012	●
55	16.716 BOLT; HINGE,RR SEAT 16.682 M10X25 USA	8-97066-704-0	06	1	9811-0003		●
55	16.716 BOLT; HINGE,RR SEAT 4DOOR LONG(UE***F) 16.682 M10X25 USA	8-97066-704-0	06	1	0004-0012	●
55	16.716 BOLT; HINGE,RR SEAT 16.682 M10X25 USA	8-97066-704-0	06	1	0004-0012		●
55	16.716 BOLT; HINGE,RR SEAT 16.682 M10X25 USA	8-97066-704-0	06	1	0101-	●	●
57	16.715 NUT; RR SEAT STOPPER 4DOOR LONG(UE***F) 08.917 M10 FLANGE	0-91150-210-0	02	1	9811-0012	●	●
57	16.715 NUT; RR SEAT STOPPER 08.917 M10 FLANGE	0-91150-210-0	02	1	0101-	●	●
79	16.715 PLATE ASM; LK USA	8-97185-131-1	02	1	9811-0003		●
79	16.715 PLATE ASM; LK 4DOOR LONG(UE***F) USA	8-97185-131-1	02	1	0004-0012	●
79	16.715 PLATE ASM; LK USA	8-97185-131-1	02	1	0004-0012		●
79	16.715 PLATE ASM; LK USA	8-97185-131-1	02	1	0101-	●	●
90	16.682 NUT; LOCK USA	8-97185-833-0	06	1	9811-0003		●
90	16.682 NUT; LOCK 4DOOR LONG(UE***F) USA	8-97185-833-0	06	1	0004-0012	●
90	16.682 NUT; LOCK USA	8-97185-833-0	06	1	0004-0012		●
90	16.682 NUT; LOCK USA	8-97185-833-0	06	1	0101-0108	●	●
90	16.682 NUT; LOCK USA	8-97185-833-0	04	1	0109-	●	●
92	16.674 KNOB; RR SEAT BACK,LK GRAY USA	8-97159-751-0	02	1	9811-	●	●
153	16.674 STRIKER; SEAT LOCK 2DOOR SHORT(UE***C) USA	8-97135-098-1	02	1	9811-0012	●
153	16.674 STRIKER; SEAT LOCK 4DOOR LONG(UE***F) USA	8-97121-467-1	02	1	9811-0012	●	●
153	16.674 STRIKER; SEAT LOCK USA	8-97121-467-1	02	1	0101-	●	●
193	16.674 HINGE; RR BACK OUTER 2DOOR SHORT(UE***C) USA	8-97142-056-0	01	1	9811-0012	●
193	16.674 HINGE; RR BACK OUTER 2DOOR SHORT(UE***C) USA	8-97142-055-0	01	1	9811-0012	●
193	16.674 HINGE; RR BACK OUTER USA	8-97121-558-2	01	1	9811-0003		●
193	16.674 HINGE; RR BACK OUTER 4DOOR LONG(UE***F) USA	8-97121-558-2	01	1	0004-0012	●
193	16.674 HINGE; RR BACK OUTER USA	8-97121-558-2	01	1	0004-0012		●
193	16.674 HINGE; RR BACK OUTER USA	8-97121-558-2	01	1	0101-	●	●
193	16.674 HINGE; RR BACK OUTER USA	8-97121-557-2	01	1	9811-0003		●
193	16.674 HINGE; RR BACK OUTER 4DOOR LONG(UE***F) USA	8-97121-557-2	01	1	0004-0012	●
193	16.674 HINGE; RR BACK OUTER USA	8-97121-557-2	01	1	0004-0012		●
193	16.674 HINGE; RR BACK OUTER USA	8-97121-557-2	01	1	0101-	●	●
197	16.716 LOCK; FLOOR,RR CUSHION 2DOOR SHORT(UE***C) GRAY USA	8-97196-135-1	01	1	9811-0012	●
197	16.716 LOCK; FLOOR,RR CUSHION GRAY USA	8-97159-730-1	01	1	9811-0003		●
197	16.716 LOCK; FLOOR,RR CUSHION 4DOOR LONG(UE***F) GRAY USA	8-97159-730-2	01	1	0004-0012	●
197	16.716 LOCK; FLOOR,RR CUSHION GRAY USA	8-97159-730-2	01	1	0004-0012		●
197	16.716 LOCK; FLOOR,RR CUSHION GRAY USA	8-97159-730-2	01	1	0101-	●	●
197	16.716 LOCK; FLOOR,RR CUSHION GRAY USA	8-97159-729-1	01	1	9811-0003		●
197	16.716 LOCK; FLOOR,RR CUSHION 4DOOR LONG(UE***F) GRAY USA	8-97159-729-2	01	1	0004-0012	●
197	16.716 LOCK; FLOOR,RR CUSHION GRAY USA	8-97159-729-2	01	1	0004-0012		●
197	16.716 LOCK; FLOOR,RR CUSHION GRAY USA	8-97159-729-2	01	1	0101-	●	●
216	16.674 HINGE; RR CENTER USA	8-97121-559-2	01	1	9811-0003		●
216	16.674 HINGE; RR CENTER 4DOOR LONG(UE***F) USA	8-97121-559-2	01	1	0004-0012	●
216	16.674 HINGE; RR CENTER USA	8-97121-559-2	01	1	0004-0012		●
216	16.674 HINGE; RR CENTER USA	8-97121-559-2	01	1	0101-	●	●
219	16.674 STRIKER ASM; RR SEAT BACK 4DOOR LONG(UE***F) USA	8-97121-466-0	01	1	9811-0012	●	●
219	16.674 STRIKER ASM; RR SEAT BACK USA	8-97121-466-0	01	1	0101-	●	●
219	16.674 STRIKER ASM; RR SEAT BACK 4DOOR LONG(UE***F) USA	8-97121-465-0	01	1	9811-0012	●	●
219	16.674 STRIKER ASM; RR SEAT BACK USA	8-97121-465-0	01	1	0101-	●	●
220	16.674 BOLT; STRIKER TO BODY 2DOOR SHORT(UE***C) (C) USA	8-97035-067-0	04	1	9811-0012	●
220	16.674 BOLT; STRIKER TO BODY 4DOOR LONG(UE***F) 02.664 (A) M8X20 FLANGE USA	0-28680-820-0	04	1	9811-0012	●	●
220	16.674 BOLT; STRIKER TO BODY 02.664 (A) M8X20 FLANGE USA	0-28680-820-0	04	1	0101-	●	●
220	16.674 BOLT; STRIKER TO BODY 4DOOR LONG(UE***F) (B) USA	8-97035-067-0	08	1	9811-0012	●	●
220	16.674 BOLT; STRIKER TO BODY (B) USA	8-97035-067-0	08	1	0101-	●	●
238	16.674 COVER; LEG 2DOOR SHORT(UE***C) (B) GRAY USA	8-97196-137-3	01	1	9811-0012	●
238	16.674 COVER; LEG 2DOOR SHORT(UE***C) (B) GRAY USA	8-97196-136-3	01	1	9811-0012	●
238	16.674 COVER; LEG 2DOOR SHORT(UE***C) (A) GRAY USA	8-97158-219-2	01	1	9811-0012	●	●
238	16.674 COVER; LEG 2DOOR SHORT(UE***C) (A) GRAY USA	8-97158-218-2	01	1	9811-0012	●	●
238	16.674 COVER; LEG 4DOOR LONG(UE***F) (C) GRAY USA	8-97157-407-2	04	1	9811-0012	●	●
238	16.674 COVER; LEG (C) GRAY USA	8-97157-407-3	04	1	0101-	●	●
269	16.716 BOLT; FLOOR LOCK 7/16"X31 UNF USA	8-94371-938-0	04	1	9811-	●	●
305	16.715 BOLT; RR SEAT 16.682 M10X25 USA	8-97066-704-0	02	1	9811-0003		●
305	16.715 BOLT; RR SEAT 4DOOR LONG(UE***F) 16.682 M10X25 USA	8-97066-704-0	02	1	0004-0012	●
305	16.715 BOLT; RR SEAT 16.682 M10X25 USA	8-97066-704-0	02	1	0004-0012		●
305	16.715 BOLT; RR SEAT 16.682 M10X25 USA	8-97066-704-0	02	1	0101-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
