Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#32669) — 313 parça

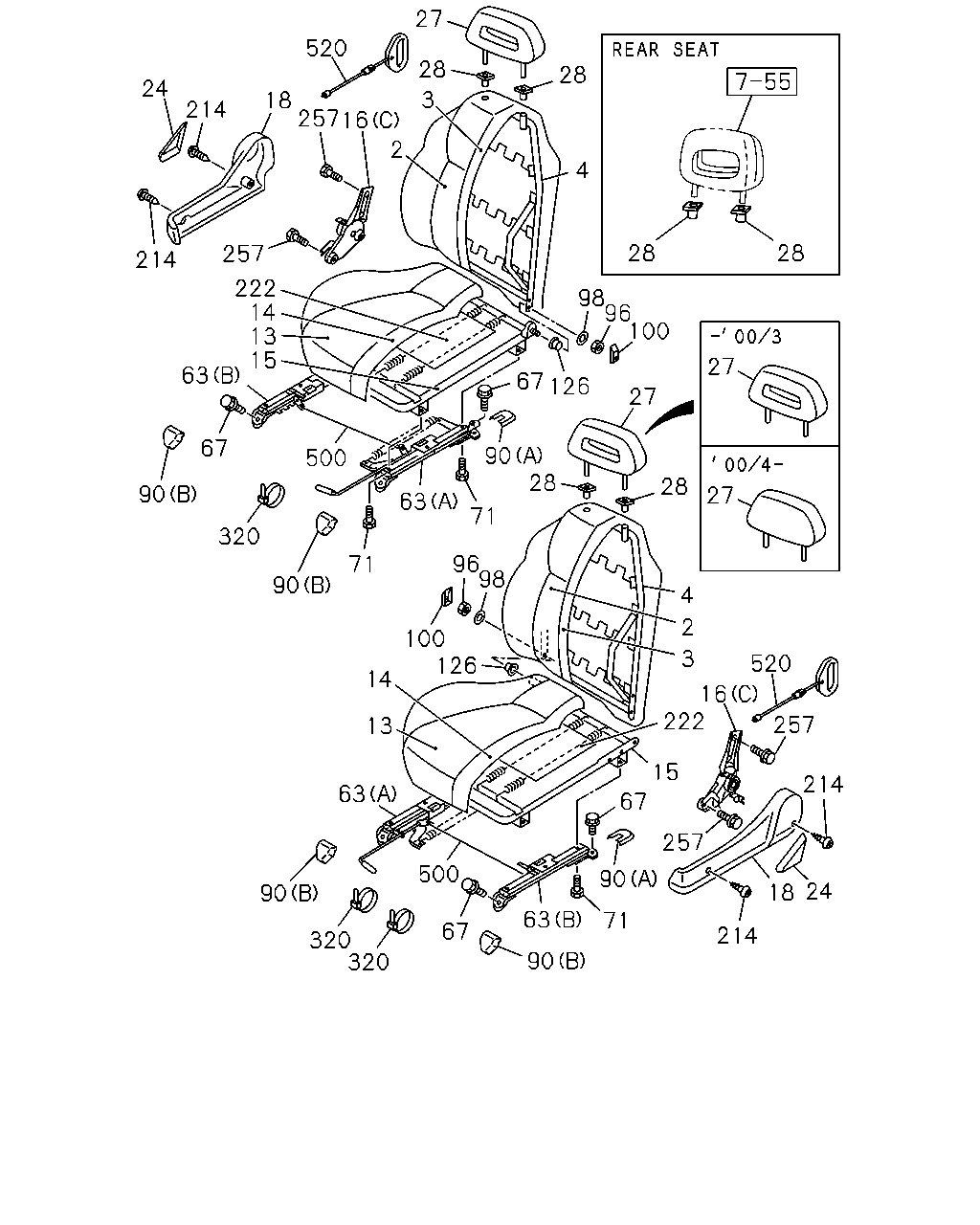

27 520 28 28 24 3 18 214 2 4 214 28 28 257 222 14 13 15 98 96 100 27 63 67 126 27 90 28 67 500 28 90 27 63 71 320 96 98 71 90 4 2 100 126 3 520 14 16 222 257 13 15 214 63 67 257 500 90 24 18 90 63 71 67 214 320 320 90 257 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97198-501-0	01	1	9811-9907	●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97292-497-0	01	1	9908-0003	●
2	16.724 COVER; TRIM,FRT SEAT,BACK 2DOOR SHORT(UE***C) GRAY USA	8-97293-480-2	01	1	0004-0012	●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97298-213-0	01	1	0101-0108	●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97299-441-0	01	1	0109-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97198-496-0	01	1	9811-9907	●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97292-496-0	01	1	9908-0003	●
2	16.724 COVER; TRIM,FRT SEAT,BACK 2DOOR SHORT(UE***C) GRAY USA	8-97293-475-2	01	1	0004-0012	●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97298-208-0	01	1	0101-0108	●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97299-436-0	01	1	0109-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97159-698-0	01	1	9811-9907		●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97292-493-0	01	1	9908-0003		●
2	16.724 COVER; TRIM,FRT SEAT,BACK 4DOOR LONG(UE***F) GRAY USA	8-97293-257-2	01	1	0004-0012	●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97293-257-2	01	1	0004-0012		●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97293-257-2	01	1	0101-0108		●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97298-912-0	01	1	0109-		●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97159-693-0	01	1	9811-9907		●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97292-489-0	01	1	9908-0003		●
2	16.724 COVER; TRIM,FRT SEAT,BACK 4DOOR LONG(UE***F) GRAY USA	8-97293-250-2	01	1	0004-0012	●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97293-250-2	01	1	0004-0012		●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97293-250-2	01	1	0101-0108		●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97298-908-0	01	1	0109-		●
3	16.720 PAD; FRT SEAT BACK USA	8-97181-271-0	01	1	9811-0003	●	●
3	16.720 PAD; FRT SEAT BACK USA	8-97229-573-1	01	1	0004-	●	●
3	16.720 PAD; FRT SEAT BACK USA	8-97181-270-0	01	1	9811-0003	●	●
3	16.720 PAD; FRT SEAT BACK USA	8-97229-572-1	01	1	0004-	●	●
4	16.720 FRAME ASM; FRT SEAT USA	8-97121-501-2	01	1	9811-0003	●	●
4	16.720 FRAME ASM; FRT SEAT USA	8-97229-604-0	01	1	0004-0108	●	●
4	16.720 FRAME ASM; FRT SEAT USA	8-97230-447-1	01	1	0109-	●	●
4	16.720 FRAME ASM; FRT SEAT USA	8-97121-500-2	01	1	9811-0003	●	●
4	16.720 FRAME ASM; FRT SEAT USA	8-97229-603-0	01	1	0004-0108	●	●
4	16.720 FRAME ASM; FRT SEAT USA	8-97230-446-1	01	1	0109-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97198-499-0	01	1	9811-0003	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION 2DOOR SHORT(UE***C) GRAY USA	8-97293-478-1	01	1	0004-0012	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97298-211-0	01	1	0101-0108	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97299-439-0	01	1	0109-	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97198-494-0	01	1	9811-0003	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION 2DOOR SHORT(UE***C) GRAY USA	8-97293-473-1	01	1	0004-0012	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97298-206-0	01	1	0101-0108	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97299-434-0	01	1	0109-	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97159-678-0	01	1	9811-0003		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION 4DOOR LONG(UE***F) GRAY USA	8-97293-255-1	01	1	0004-0012	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97293-255-1	01	1	0004-0012		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97293-255-1	01	1	0101-0108		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97295-121-0	01	1	0109-		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97159-673-0	01	1	9811-0003		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION 4DOOR LONG(UE***F) GRAY USA	8-97293-248-1	01	1	0004-0012	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97293-248-1	01	1	0004-0012		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97293-248-1	01	1	0101-0108		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97298-906-0	01	1	0109-		●
14	16.716 PAD; FRT SEAT CUSHION USA	8-97181-269-1	01	1	9811-0003	●	●
14	16.716 PAD; FRT SEAT CUSHION USA	8-97229-508-0	01	1	0004-0108	●	●
14	16.716 PAD; FRT SEAT CUSHION USA	8-97230-437-1	01	1	0109-	●	●
14	16.716 PAD; FRT SEAT CUSHION USA	8-97181-268-1	01	1	9811-0003	●	●
14	16.716 PAD; FRT SEAT CUSHION USA	8-97229-507-0	01	1	0004-0108	●	●
14	16.716 PAD; FRT SEAT CUSHION USA	8-97230-436-1	01	1	0109-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT USA	8-97121-507-1	01	1	9811-0003	●	●
15	16.716 FRAME; CUSHION,FRT SEAT USA	8-97229-511-0	01	1	0004-0108	●	●
15	16.716 FRAME; CUSHION,FRT SEAT USA	8-97121-506-1	01	1	9811-0003	●	●
15	16.716 FRAME; CUSHION,FRT SEAT USA	8-97229-510-0	01	1	0004-0108	●	●
15	16.716 FRAME; CUSHION,FRT SEAT USA	8-97302-354-1	02	1	0109-	●	●
16	16.682 ADJUSTER ASM; RECLINING 2DOOR SHORT(UE***C) (C) USA	8-97142-501-4	01	1	9811-0012	●
16	16.682 ADJUSTER ASM; RECLINING 2DOOR SHORT(UE***C) (C) USA	8-97142-500-4	01	1	9811-0012	●
16	16.682 ADJUSTER ASM; RECLINING (B) USA	8-97302-399-1	01	1	0109-	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) USA	8-97302-393-1	01	1	0109-	●	●
16	16.682 ADJUSTER ASM; RECLINING (C) USA	8-97121-509-4	01	1	9811-0003		●
16	16.682 ADJUSTER ASM; RECLINING 4DOOR LONG(UE***F) (C) USA	8-97121-509-4	01	1	0004-0012	●
16	16.682 ADJUSTER ASM; RECLINING (C) USA	8-97121-509-4	01	1	0004-0012		●
16	16.682 ADJUSTER ASM; RECLINING (C) USA	8-97121-509-4	01	1	0101-0108	●	●
16	16.682 ADJUSTER ASM; RECLINING (A) USA	8-97302-384-2	01	1	0109-	●	●
16	16.682 ADJUSTER ASM; RECLINING (C) USA	8-97121-508-4	01	1	9811-0003		●
16	16.682 ADJUSTER ASM; RECLINING 4DOOR LONG(UE***F) (C) USA	8-97121-508-4	01	1	0004-0012	●
16	16.682 ADJUSTER ASM; RECLINING (C) USA	8-97121-508-4	01	1	0004-0012		●
16	16.682 ADJUSTER ASM; RECLINING (C) USA	8-97121-508-4	01	1	0101-0108	●	●
16	16.682 ADJUSTER ASM; RECLINING (A) USA	8-97302-383-2	01	1	0109-	●	●
18	16.682 COVER; RECLINING 2DOOR SHORT(UE***C) GRAY USA	8-97196-113-3	01	1	9811-0012	●
18	16.682 COVER; RECLINING 2DOOR SHORT(UE***C) GRAY USA	8-97196-107-3	01	1	9811-0012	●
18	16.682 COVER; RECLINING GRAY USA	8-97159-704-3	01	1	9811-0003		●
18	16.682 COVER; RECLINING 4DOOR LONG(UE***F) GRAY USA	8-97159-704-3	01	1	0004-0012	●
18	16.682 COVER; RECLINING GRAY USA	8-97159-704-3	01	1	0004-0012		●
18	16.682 COVER; RECLINING GRAY USA	8-97159-704-3	01	1	0101-0108	●	●
18	16.682 COVER; RECLINING GRAY USA	8-97298-821-1	01	1	0109-	●	●
18	16.682 COVER; RECLINING GRAY USA	8-97159-703-3	01	1	9811-0003		●
18	16.682 COVER; RECLINING 4DOOR LONG(UE***F) GRAY USA	8-97159-703-3	01	1	0004-0012	●
18	16.682 COVER; RECLINING GRAY USA	8-97159-703-3	01	1	0004-0012		●
18	16.682 COVER; RECLINING GRAY USA	8-97159-703-3	01	1	0101-0108	●	●
18	16.682 COVER; RECLINING GRAY USA	8-97298-812-1	01	1	0109-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY USA	8-97159-707-0	01	1	9811-0102	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY USA	8-97299-468-0	01	1	0103-0108	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY USA	8-97298-824-2	01	1	0109-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY USA	8-97159-706-0	01	1	9811-0102	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY USA	8-97299-466-0	01	1	0103-0108	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY USA	8-97298-815-2	01	1	0109-	●	●
27	16.718 REST; HD,FRT SEAT GRAY USA	8-97198-491-1	02	1	9811-0003	●
27	16.718 REST; HD,FRT SEAT 2DOOR SHORT(UE***C) GRAY USA	8-97293-455-5	02	1	0004-0012	●
27	16.718 REST; HD,FRT SEAT GRAY USA	8-97298-203-1	02	1	0101-0108	●
27	16.718 REST; HD,FRT SEAT GRAY USA	8-97298-806-1	02	1	0109-	●
27	16.718 REST; HD,FRT SEAT GRAY USA	8-97198-572-1	02	1	9811-0003		●
27	16.718 REST; HD,FRT SEAT 4DOOR LONG(UE***F) GRAY USA	8-97293-245-5	02	1	0004-0012	●
27	16.718 REST; HD,FRT SEAT GRAY USA	8-97293-245-5	02	1	0004-0012		●
27	16.718 REST; HD,FRT SEAT GRAY USA	8-97293-245-5	02	1	0101-0108		●
27	16.718 REST; HD,FRT SEAT GRAY USA	8-97298-884-5	02	1	0109-		●
28	16.718 HOLDER; GUIDE,HD REST LOCK GRAY USA	8-97159-701-3	04	1	9811-	●	●
28	16.718 HOLDER; GUIDE,HD REST FREE GRAY USA	8-97159-702-3	04	1	9811-	●	●
63	16.682 ADJUSTER; SEAT SLIDE 2DOOR SHORT(UE***C) (B) USA	8-97131-454-3	01	1	9811-0003	●
63	16.682 ADJUSTER; SEAT SLIDE 2DOOR SHORT(UE***C) (B) USA	8-97229-607-0	01	1	0004-0012	●
63	16.682 ADJUSTER; SEAT SLIDE 2DOOR SHORT(UE***C) (A) USA	8-97142-499-3	01	1	9811-0003	●
63	16.682 ADJUSTER; SEAT SLIDE 2DOOR SHORT(UE***C) (A) USA	8-97229-608-0	01	1	0004-0012	●
63	16.682 ADJUSTER; SEAT SLIDE 2DOOR SHORT(UE***C) (B) USA	8-97131-453-3	01	1	9811-0003	●
63	16.682 ADJUSTER; SEAT SLIDE 2DOOR SHORT(UE***C) (B) USA	8-97212-213-0	01	1	0004-0012	●
63	16.682 ADJUSTER; SEAT SLIDE 2DOOR SHORT(UE***C) (A) USA	8-97142-613-2	01	1	9811-0003	●
63	16.682 ADJUSTER; SEAT SLIDE 2DOOR SHORT(UE***C) (A) USA	8-97229-676-0	01	1	0004-0012	●
63	16.682 ADJUSTER; SEAT SLIDE (B) USA	8-97121-511-3	01	1	9811-0003		●
63	16.682 ADJUSTER; SEAT SLIDE 4DOOR LONG(UE***F) (B) USA	8-97229-606-0	01	1	0004-0012	●
63	16.682 ADJUSTER; SEAT SLIDE (B) USA	8-97229-606-0	01	1	0004-0012		●
63	16.682 ADJUSTER; SEAT SLIDE (B) USA	8-97248-268-1	01	1	0101-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) USA	8-97121-513-3	01	1	9811-0003		●
63	16.682 ADJUSTER; SEAT SLIDE 4DOOR LONG(UE***F) (A) USA	8-97229-610-0	01	1	0004-0012	●
63	16.682 ADJUSTER; SEAT SLIDE (A) USA	8-97229-610-0	01	1	0004-0012		●
63	16.682 ADJUSTER; SEAT SLIDE (A) USA	8-97248-273-1	01	1	0101-0108	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) USA	8-97316-457-0	01	1	0109-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (B) USA	8-97121-510-3	01	1	9811-0003		●
63	16.682 ADJUSTER; SEAT SLIDE 4DOOR LONG(UE***F) (B) USA	8-97229-605-0	01	1	0004-0012	●
63	16.682 ADJUSTER; SEAT SLIDE (B) USA	8-97229-605-0	01	1	0004-0012		●
63	16.682 ADJUSTER; SEAT SLIDE (B) USA	8-97248-267-1	01	1	0101-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) USA	8-97121-512-3	01	1	9811-0003		●
63	16.682 ADJUSTER; SEAT SLIDE 4DOOR LONG(UE***F) (A) USA	8-97229-609-0	01	1	0004-0012	●
63	16.682 ADJUSTER; SEAT SLIDE (A) USA	8-97229-609-0	01	1	0004-0012		●
63	16.682 ADJUSTER; SEAT SLIDE (A) USA	8-97248-272-1	01	1	0101-0108	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) USA	8-97316-456-0	01	1	0109-	●	●
67	16.682 BOLT; FRT SEAT TO BODY M10X25 USA	8-97178-440-2	08	1	9811-	●	●
71	16.682 BOLT; ADJ TO SEAT M8X20 USA	8-97066-705-0	08	1	9811-	●	●
90	16.682 COVER; SEAT ADJ BRKT 16.714 (A) OUTER GRAY USA	8-97157-829-2	02	1	9811-	●	●
90	16.682 COVER; SEAT ADJ BRKT (A) INNER GRAY USA	8-97159-066-0	01	1	9811-	●	●
90	16.682 COVER; SEAT ADJ BRKT (A) INNER GRAY USA	8-97159-065-0	01	1	9811-	●	●
90	16.682 COVER; SEAT ADJ BRKT (B) GRAY USA	8-97294-897-2	04	1	0101-0106	●	●
90	16.682 COVER; SEAT ADJ BRKT 16.714 (B) GRAY USA	8-97297-527-0	04	1	0107-0201	●	●
90	16.682 COVER; SEAT ADJ BRKT (B) GRAY USA	8-97394-204-0	04	1	0202-	●	●
96	16.716 NUT; LK,HINGE 11.377 M8 FLANGE USA	8-94152-886-0	02	1	9811-0108	●	●
98	16.716 WASHER; HINGE 11.377 ID=8.4 OD=20 USA	8-94408-413-0	02	1	9811-0108	●	●
100	16.686 COVER; HINGE GRAY USA	8-97159-705-0	02	1	9811-0108	●	●
126	16.686 BUSHING; HINGE,RECLINING USA	8-97091-047-2	02	1	9811-0108	●	●
214	16.682 SCREW; SIDE COVER 16.802 M5X16 TAPPING W/PL WASHER USA	0-74310-516-0	04	1	9811-0108	●	●
214	16.682 SCREW; SIDE COVER M5X10 TAPPING W/PL WASHER	0-74110-510-0	16	1	0109-	●	●
222	16.716 SUPPORT; PAD USA	8-97181-725-1	02	1	9811-0003	●	●
222	16.716 SUPPORT; PAD USA	8-97230-487-1	02	1	0004-	●	●
257	16.682 BOLT; RECLINING DEVICE M10X25 USA	8-97066-704-0	08	1	9811-0108	●	●
257	16.682 BOLT; RECLINING DEVICE M10X27 W/LK&PL WASHER USA	8-97322-866-0	14	1	0109-	●	●
320	16.679 CLIP; BAND,SEAT 2DOOR SHORT(UE***C) 03.162 L=140	5-09707-031-1	03	1	9811-0012	●
320	16.679 CLIP; BAND,SEAT 03.162 L=140	5-09707-031-1	02	1	9811-0003		●
320	16.679 CLIP; BAND,SEAT 4DOOR LONG(UE***F) 03.162 L=140	5-09707-031-1	02	1	0004-0012	●
320	16.679 CLIP; BAND,SEAT 03.162 L=140	5-09707-031-1	02	1	0004-0012		●
320	16.679 CLIP; BAND,SEAT 03.162 L=140	5-09707-031-1	02	1	0101-0108	●	●
320	16.679 CLIP; BAND,SEAT 03.162 L=140	5-09707-031-1	01	1	0109-	●	●
500	16.682 WIRE; SEAT CUSHION USA	8-97181-728-1	02	1	9811-	●	●
520	16.682 GRIP ASM 2DOOR SHORT(UE***C) USA	8-97173-464-1	02	1	9811-0012	●

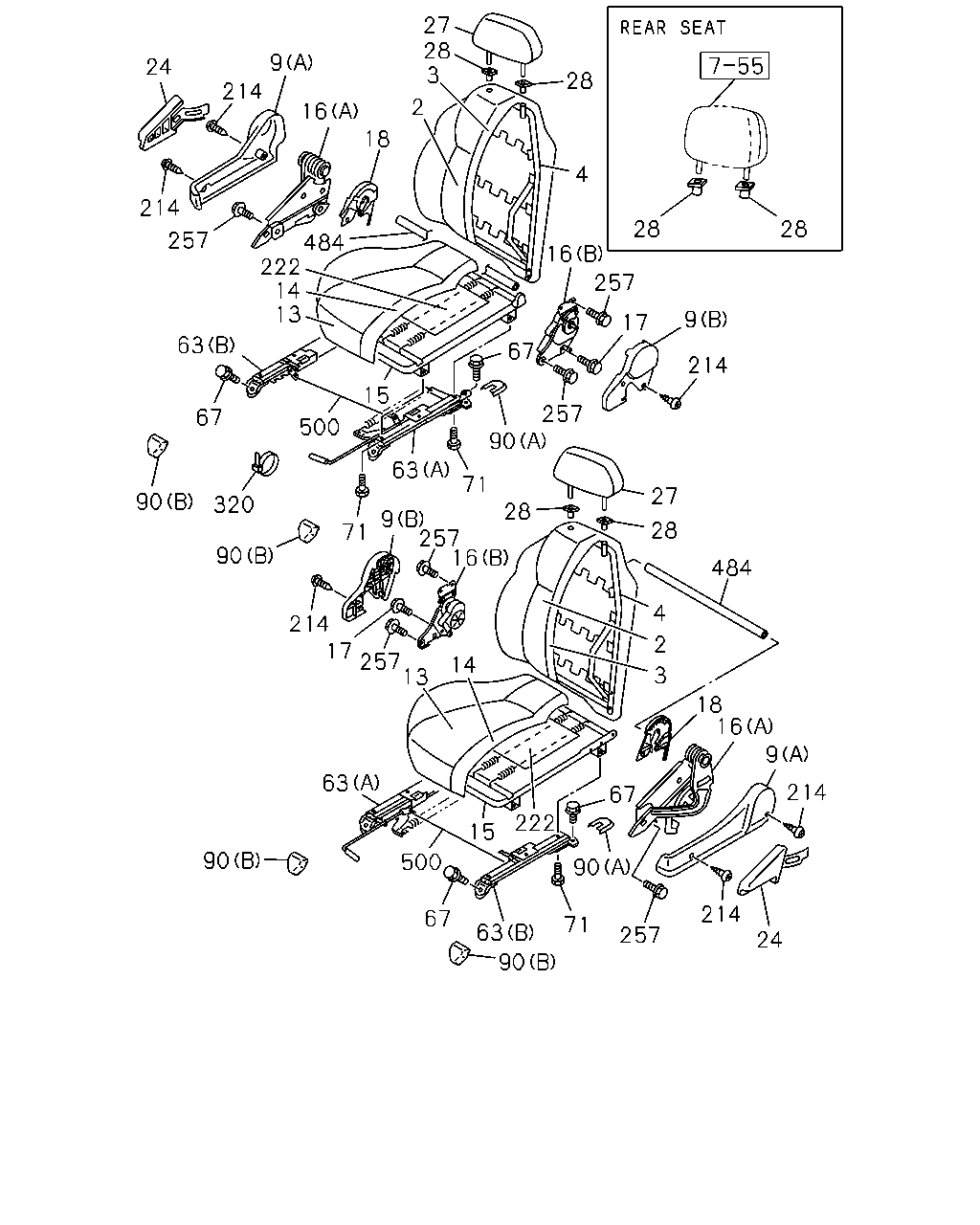

27 28 3 9 24 28 214 2 16 18 4 214 28 28 257 484 222 14 13 16 257 9 17 63 67 214 15 257 67 500 90 63 71 27 90 320 28 9 257 16 28 71 90 484 4 214 2 17 27 13 14 3 18 16 9 63 214 67 222 15 90 500 90 214 67 71 63 257 24 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97198-501-0	01	1	9811-9907	●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97292-497-0	01	1	9908-0003	●
2	16.724 COVER; TRIM,FRT SEAT,BACK 2DOOR SHORT(UE***C) GRAY USA	8-97293-480-2	01	1	0004-0012	●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97298-213-0	01	1	0101-0108	●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97299-441-0	01	1	0109-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97198-496-0	01	1	9811-9907	●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97292-496-0	01	1	9908-0003	●
2	16.724 COVER; TRIM,FRT SEAT,BACK 2DOOR SHORT(UE***C) GRAY USA	8-97293-475-2	01	1	0004-0012	●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97298-208-0	01	1	0101-0108	●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97299-436-0	01	1	0109-	●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97159-698-0	01	1	9811-9907		●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97292-493-0	01	1	9908-0003		●
2	16.724 COVER; TRIM,FRT SEAT,BACK 4DOOR LONG(UE***F) GRAY USA	8-97293-257-2	01	1	0004-0012	●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97293-257-2	01	1	0004-0012		●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97293-257-2	01	1	0101-0108		●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97298-912-0	01	1	0109-		●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97159-693-0	01	1	9811-9907		●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97292-489-0	01	1	9908-0003		●
2	16.724 COVER; TRIM,FRT SEAT,BACK 4DOOR LONG(UE***F) GRAY USA	8-97293-250-2	01	1	0004-0012	●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97293-250-2	01	1	0004-0012		●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97293-250-2	01	1	0101-0108		●
2	16.724 COVER; TRIM,FRT SEAT,BACK GRAY USA	8-97298-908-0	01	1	0109-		●
3	16.720 PAD; FRT SEAT BACK USA	8-97181-271-0	01	1	9811-0003	●	●
3	16.720 PAD; FRT SEAT BACK USA	8-97229-573-1	01	1	0004-	●	●
3	16.720 PAD; FRT SEAT BACK USA	8-97181-270-0	01	1	9811-0003	●	●
3	16.720 PAD; FRT SEAT BACK USA	8-97229-572-1	01	1	0004-	●	●
4	16.720 FRAME ASM; FRT SEAT USA	8-97121-501-2	01	1	9811-0003	●	●
4	16.720 FRAME ASM; FRT SEAT USA	8-97229-604-0	01	1	0004-0108	●	●
4	16.720 FRAME ASM; FRT SEAT USA	8-97230-447-1	01	1	0109-	●	●
4	16.720 FRAME ASM; FRT SEAT USA	8-97121-500-2	01	1	9811-0003	●	●
4	16.720 FRAME ASM; FRT SEAT USA	8-97229-603-0	01	1	0004-0108	●	●
4	16.720 FRAME ASM; FRT SEAT USA	8-97230-446-1	01	1	0109-	●	●
9	16.682 COVER; SIDE (B) GRAY USA	8-97298-823-1	01	1	0109-	●	●
9	16.682 COVER; SIDE (A) GRAY USA	8-97298-847-1	01	1	0109-	●	●
9	16.682 COVER; SIDE (B) GRAY USA	8-97298-814-1	01	1	0109-	●	●
9	16.682 COVER; SIDE (A) GRAY USA	8-97298-839-1	01	1	0109-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97198-499-0	01	1	9811-0003	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION 2DOOR SHORT(UE***C) GRAY USA	8-97293-478-1	01	1	0004-0012	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97298-211-0	01	1	0101-0108	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97299-439-0	01	1	0109-	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97198-494-0	01	1	9811-0003	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION 2DOOR SHORT(UE***C) GRAY USA	8-97293-473-1	01	1	0004-0012	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97298-206-0	01	1	0101-0108	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97299-434-0	01	1	0109-	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97159-678-0	01	1	9811-0003		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION 4DOOR LONG(UE***F) GRAY USA	8-97293-255-1	01	1	0004-0012	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97293-255-1	01	1	0004-0012		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97293-255-1	01	1	0101-0108		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97295-121-0	01	1	0109-		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97159-673-0	01	1	9811-0003		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION 4DOOR LONG(UE***F) GRAY USA	8-97293-248-1	01	1	0004-0012	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97293-248-1	01	1	0004-0012		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97293-248-1	01	1	0101-0108		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION GRAY USA	8-97298-906-0	01	1	0109-		●
14	16.716 PAD; FRT SEAT CUSHION USA	8-97181-269-1	01	1	9811-0003	●	●
14	16.716 PAD; FRT SEAT CUSHION USA	8-97229-508-0	01	1	0004-0108	●	●
14	16.716 PAD; FRT SEAT CUSHION USA	8-97230-437-1	01	1	0109-	●	●
14	16.716 PAD; FRT SEAT CUSHION USA	8-97181-268-1	01	1	9811-0003	●	●
14	16.716 PAD; FRT SEAT CUSHION USA	8-97229-507-0	01	1	0004-0108	●	●
14	16.716 PAD; FRT SEAT CUSHION USA	8-97230-436-1	01	1	0109-	●	●
15	16.716 FRAME; CUSHION,FRT SEAT USA	8-97121-507-1	01	1	9811-0003	●	●
15	16.716 FRAME; CUSHION,FRT SEAT USA	8-97229-511-0	01	1	0004-0108	●	●
15	16.716 FRAME; CUSHION,FRT SEAT USA	8-97121-506-1	01	1	9811-0003	●	●
15	16.716 FRAME; CUSHION,FRT SEAT USA	8-97229-510-0	01	1	0004-0108	●	●
15	16.716 FRAME; CUSHION,FRT SEAT USA	8-97302-354-1	02	1	0109-	●	●
16	16.682 ADJUSTER ASM; RECLINING 2DOOR SHORT(UE***C) (C) USA	8-97142-501-4	01	1	9811-0012	●
16	16.682 ADJUSTER ASM; RECLINING 2DOOR SHORT(UE***C) (C) USA	8-97142-500-4	01	1	9811-0012	●
16	16.682 ADJUSTER ASM; RECLINING (B) USA	8-97302-399-1	01	1	0109-	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) USA	8-97302-393-1	01	1	0109-	●	●
16	16.682 ADJUSTER ASM; RECLINING (C) USA	8-97121-509-4	01	1	9811-0003		●
16	16.682 ADJUSTER ASM; RECLINING 4DOOR LONG(UE***F) (C) USA	8-97121-509-4	01	1	0004-0012	●
16	16.682 ADJUSTER ASM; RECLINING (C) USA	8-97121-509-4	01	1	0004-0012		●
16	16.682 ADJUSTER ASM; RECLINING (C) USA	8-97121-509-4	01	1	0101-0108	●	●
16	16.682 ADJUSTER ASM; RECLINING (A) USA	8-97302-384-2	01	1	0109-	●	●
16	16.682 ADJUSTER ASM; RECLINING (C) USA	8-97121-508-4	01	1	9811-0003		●
16	16.682 ADJUSTER ASM; RECLINING 4DOOR LONG(UE***F) (C) USA	8-97121-508-4	01	1	0004-0012	●
16	16.682 ADJUSTER ASM; RECLINING (C) USA	8-97121-508-4	01	1	0004-0012		●
16	16.682 ADJUSTER ASM; RECLINING (C) USA	8-97121-508-4	01	1	0101-0108	●	●
16	16.682 ADJUSTER ASM; RECLINING (A) USA	8-97302-383-2	01	1	0109-	●	●
17	16.682 BOLT; RECLINING M10X25 FLANGE USA	8-97322-867-0	02	1	0109-	●	●
18	16.682 COVER; RECLINING 2DOOR SHORT(UE***C) GRAY USA	8-97196-113-3	01	1	9811-0012	●
18	16.682 COVER; RECLINING 2DOOR SHORT(UE***C) GRAY USA	8-97196-107-3	01	1	9811-0012	●
18	16.682 COVER; RECLINING GRAY USA	8-97159-704-3	01	1	9811-0003		●
18	16.682 COVER; RECLINING 4DOOR LONG(UE***F) GRAY USA	8-97159-704-3	01	1	0004-0012	●
18	16.682 COVER; RECLINING GRAY USA	8-97159-704-3	01	1	0004-0012		●
18	16.682 COVER; RECLINING GRAY USA	8-97159-704-3	01	1	0101-0108	●	●
18	16.682 COVER; RECLINING GRAY USA	8-97298-821-1	01	1	0109-	●	●
18	16.682 COVER; RECLINING GRAY USA	8-97159-703-3	01	1	9811-0003		●
18	16.682 COVER; RECLINING 4DOOR LONG(UE***F) GRAY USA	8-97159-703-3	01	1	0004-0012	●
18	16.682 COVER; RECLINING GRAY USA	8-97159-703-3	01	1	0004-0012		●
18	16.682 COVER; RECLINING GRAY USA	8-97159-703-3	01	1	0101-0108	●	●
18	16.682 COVER; RECLINING GRAY USA	8-97298-812-1	01	1	0109-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY USA	8-97159-707-0	01	1	9811-0102	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY USA	8-97299-468-0	01	1	0103-0108	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY USA	8-97298-824-2	01	1	0109-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY USA	8-97159-706-0	01	1	9811-0102	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY USA	8-97299-466-0	01	1	0103-0108	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY USA	8-97298-815-2	01	1	0109-	●	●
27	16.718 REST; HD,FRT SEAT GRAY USA	8-97198-491-1	02	1	9811-0003	●
27	16.718 REST; HD,FRT SEAT 2DOOR SHORT(UE***C) GRAY USA	8-97293-455-5	02	1	0004-0012	●
27	16.718 REST; HD,FRT SEAT GRAY USA	8-97298-203-1	02	1	0101-0108	●
27	16.718 REST; HD,FRT SEAT GRAY USA	8-97298-806-1	02	1	0109-	●
27	16.718 REST; HD,FRT SEAT GRAY USA	8-97198-572-1	02	1	9811-0003		●
27	16.718 REST; HD,FRT SEAT 4DOOR LONG(UE***F) GRAY USA	8-97293-245-5	02	1	0004-0012	●
27	16.718 REST; HD,FRT SEAT GRAY USA	8-97293-245-5	02	1	0004-0012		●
27	16.718 REST; HD,FRT SEAT GRAY USA	8-97293-245-5	02	1	0101-0108		●
27	16.718 REST; HD,FRT SEAT GRAY USA	8-97298-884-5	02	1	0109-		●
28	16.718 HOLDER; GUIDE,HD REST LOCK GRAY USA	8-97159-701-3	04	1	9811-	●	●
28	16.718 HOLDER; GUIDE,HD REST FREE GRAY USA	8-97159-702-3	04	1	9811-	●	●
63	16.682 ADJUSTER; SEAT SLIDE 2DOOR SHORT(UE***C) (B) USA	8-97131-454-3	01	1	9811-0003	●
63	16.682 ADJUSTER; SEAT SLIDE 2DOOR SHORT(UE***C) (B) USA	8-97229-607-0	01	1	0004-0012	●
63	16.682 ADJUSTER; SEAT SLIDE 2DOOR SHORT(UE***C) (A) USA	8-97142-499-3	01	1	9811-0003	●
63	16.682 ADJUSTER; SEAT SLIDE 2DOOR SHORT(UE***C) (A) USA	8-97229-608-0	01	1	0004-0012	●
63	16.682 ADJUSTER; SEAT SLIDE 2DOOR SHORT(UE***C) (B) USA	8-97131-453-3	01	1	9811-0003	●
63	16.682 ADJUSTER; SEAT SLIDE 2DOOR SHORT(UE***C) (B) USA	8-97212-213-0	01	1	0004-0012	●
63	16.682 ADJUSTER; SEAT SLIDE 2DOOR SHORT(UE***C) (A) USA	8-97142-613-2	01	1	9811-0003	●
63	16.682 ADJUSTER; SEAT SLIDE 2DOOR SHORT(UE***C) (A) USA	8-97229-676-0	01	1	0004-0012	●
63	16.682 ADJUSTER; SEAT SLIDE (B) USA	8-97121-511-3	01	1	9811-0003		●
63	16.682 ADJUSTER; SEAT SLIDE 4DOOR LONG(UE***F) (B) USA	8-97229-606-0	01	1	0004-0012	●
63	16.682 ADJUSTER; SEAT SLIDE (B) USA	8-97229-606-0	01	1	0004-0012		●
63	16.682 ADJUSTER; SEAT SLIDE (B) USA	8-97248-268-1	01	1	0101-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) USA	8-97121-513-3	01	1	9811-0003		●
63	16.682 ADJUSTER; SEAT SLIDE 4DOOR LONG(UE***F) (A) USA	8-97229-610-0	01	1	0004-0012	●
63	16.682 ADJUSTER; SEAT SLIDE (A) USA	8-97229-610-0	01	1	0004-0012		●
63	16.682 ADJUSTER; SEAT SLIDE (A) USA	8-97248-273-1	01	1	0101-0108	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) USA	8-97316-457-0	01	1	0109-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (B) USA	8-97121-510-3	01	1	9811-0003		●
63	16.682 ADJUSTER; SEAT SLIDE 4DOOR LONG(UE***F) (B) USA	8-97229-605-0	01	1	0004-0012	●
63	16.682 ADJUSTER; SEAT SLIDE (B) USA	8-97229-605-0	01	1	0004-0012		●
63	16.682 ADJUSTER; SEAT SLIDE (B) USA	8-97248-267-1	01	1	0101-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) USA	8-97121-512-3	01	1	9811-0003		●
63	16.682 ADJUSTER; SEAT SLIDE 4DOOR LONG(UE***F) (A) USA	8-97229-609-0	01	1	0004-0012	●
63	16.682 ADJUSTER; SEAT SLIDE (A) USA	8-97229-609-0	01	1	0004-0012		●
63	16.682 ADJUSTER; SEAT SLIDE (A) USA	8-97248-272-1	01	1	0101-0108	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) USA	8-97316-456-0	01	1	0109-	●	●
67	16.682 BOLT; FRT SEAT TO BODY M10X25 USA	8-97178-440-2	08	1	9811-	●	●
71	16.682 BOLT; ADJ TO SEAT M8X20 USA	8-97066-705-0	08	1	9811-	●	●
90	16.682 COVER; SEAT ADJ BRKT 16.714 (A) OUTER GRAY USA	8-97157-829-2	02	1	9811-	●	●
90	16.682 COVER; SEAT ADJ BRKT (A) INNER GRAY USA	8-97159-066-0	01	1	9811-	●	●
90	16.682 COVER; SEAT ADJ BRKT (A) INNER GRAY USA	8-97159-065-0	01	1	9811-	●	●
90	16.682 COVER; SEAT ADJ BRKT (B) GRAY USA	8-97294-897-2	04	1	0101-0106	●	●
90	16.682 COVER; SEAT ADJ BRKT 16.714 (B) GRAY USA	8-97297-527-0	04	1	0107-0201	●	●
90	16.682 COVER; SEAT ADJ BRKT (B) GRAY USA	8-97394-204-0	04	1	0202-	●	●
214	16.682 SCREW; SIDE COVER 16.802 M5X16 TAPPING W/PL WASHER USA	0-74310-516-0	04	1	9811-0108	●	●
214	16.682 SCREW; SIDE COVER M5X10 TAPPING W/PL WASHER	0-74110-510-0	16	1	0109-	●	●
222	16.716 SUPPORT; PAD USA	8-97181-725-1	02	1	9811-0003	●	●
222	16.716 SUPPORT; PAD USA	8-97230-487-1	02	1	0004-	●	●
257	16.682 BOLT; RECLINING DEVICE M10X25 USA	8-97066-704-0	08	1	9811-0108	●	●
257	16.682 BOLT; RECLINING DEVICE M10X27 W/LK&PL WASHER USA	8-97322-866-0	14	1	0109-	●	●
320	16.679 CLIP; BAND,SEAT 2DOOR SHORT(UE***C) 03.162 L=140	5-09707-031-1	03	1	9811-0012	●
320	16.679 CLIP; BAND,SEAT 03.162 L=140	5-09707-031-1	02	1	9811-0003		●
320	16.679 CLIP; BAND,SEAT 4DOOR LONG(UE***F) 03.162 L=140	5-09707-031-1	02	1	0004-0012	●
320	16.679 CLIP; BAND,SEAT 03.162 L=140	5-09707-031-1	02	1	0004-0012		●
320	16.679 CLIP; BAND,SEAT 03.162 L=140	5-09707-031-1	02	1	0101-0108	●	●
320	16.679 CLIP; BAND,SEAT 03.162 L=140	5-09707-031-1	01	1	0109-	●	●
484	16.682 PIPE; CONNECTING USA	8-97302-405-0	02	1	0109-	●	●
500	16.682 WIRE; SEAT CUSHION USA	8-97181-728-1	02	1	9811-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
