◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#32668) — 71 parça

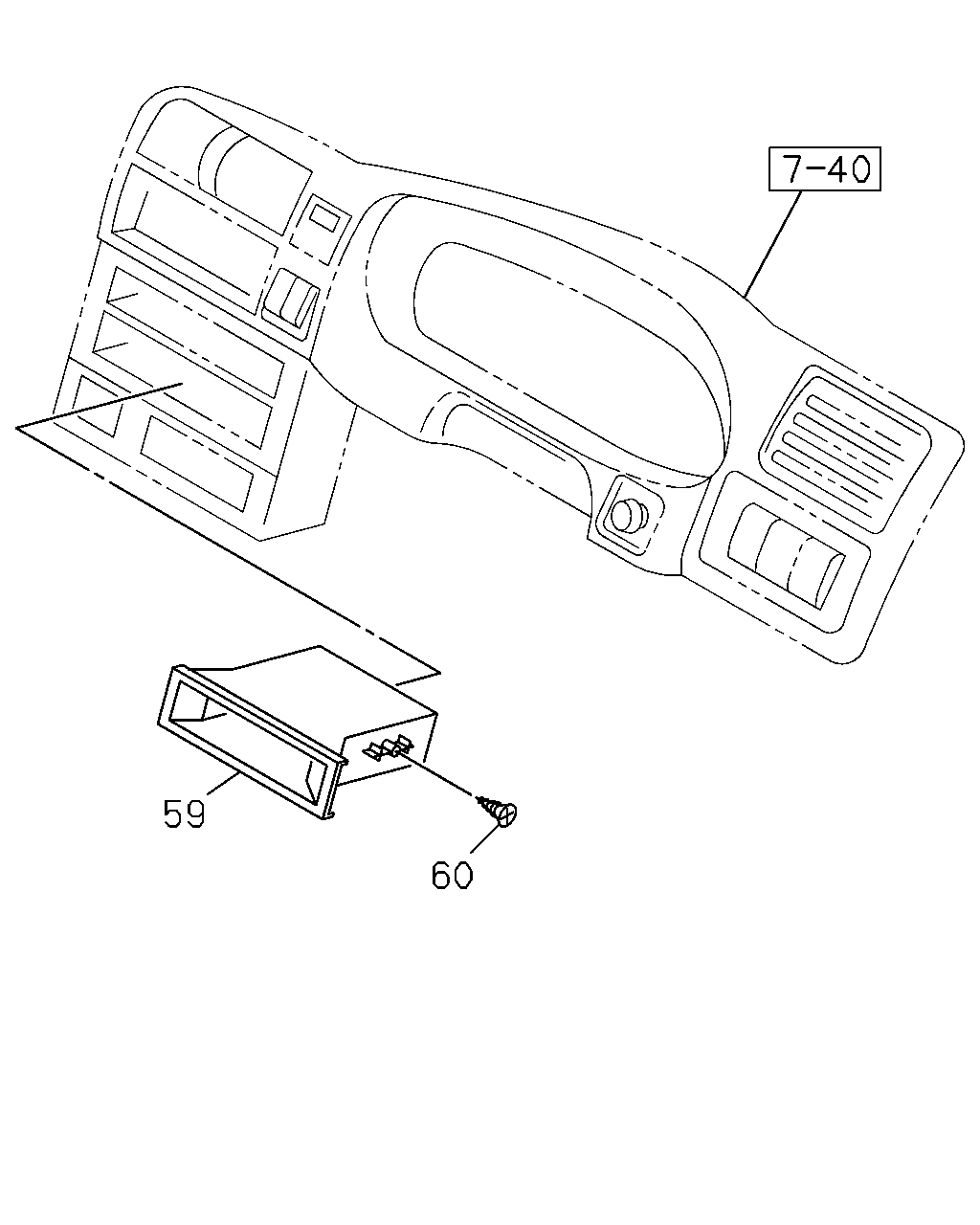

çizim 6064
59 60
BalonParca AdiParca NoAdetTipApplied Date A B
59 16.650 BOX; FRT CONSOLE
USA 		8-97129-980-0 01 1 9811-0012 ●
59 16.650 BOX; FRT CONSOLE
USA 		8-97129-980-0 01 1 0102- ●
60 16.650 SCREW; BOX
09.743 M5X16 USA 		8-94295-854-0 02 1 9811- ●

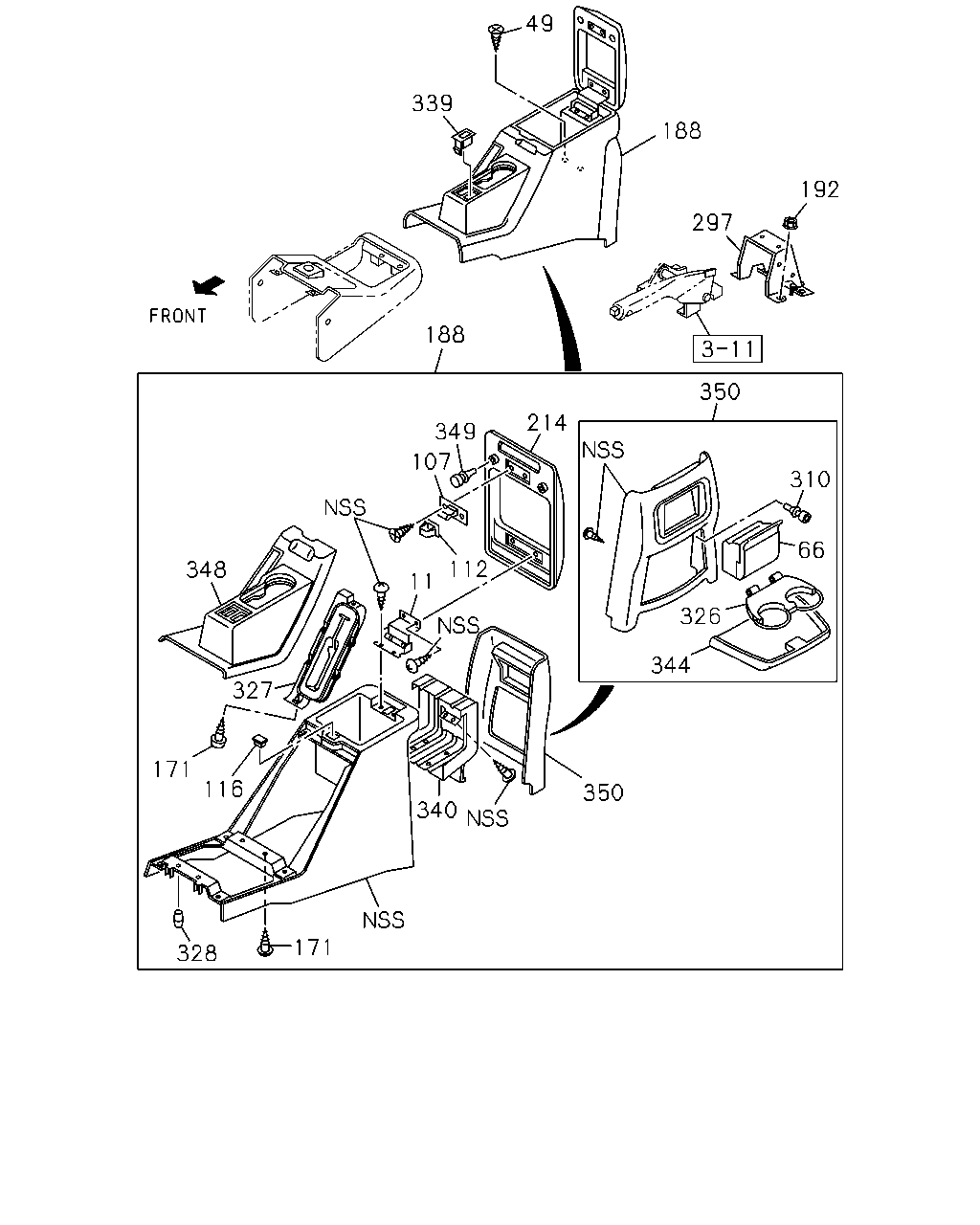

çizim 37085
49 339 188 192 297 188 350 214 349 107 310 66 112 348 11 326 344 327 171 116 350 340 171 328
BalonParca AdiParca NoAdetTipApplied Date A B
11 16.650 HINGE; CONSOLE LID
USA 		8-97144-231-0 01 1 9811- ● ●
49 04.017 SCREW; CONSOLE
09.743 M5X16 USA 		8-94295-854-0 02 1 9811- ● ●
66 16.120 TRAY ASM; ASH
GRAY 		8-97157-415-1 01 1 9811- ● ●
107 16.650 LOCK; LID,RR CONSOLE
USA 		8-97046-948-1 01 1 9811-0108 ● ●
112 16.650 LOCK; HOLE,RR CONSOLE
USA 		8-97046-949-0 01 1 9811-0108 ● ●
116 16.650 COVER; HOLE,CONSOLE,RR
GRAY USA 		8-97299-396-1 01 1 0109- ● ●
171 16.650 SCREW; CONSOLE BOX
09.743 M5X16 USA 		8-94295-854-0 06 1 9811- ● ●
188 16.650 CONSOLE; RR
2DOOR SHORT(UE***C) GRAY USA 		8-97159-892-4 01 1 9811-0012 ● ●
188 16.650 CONSOLE; RR
4DOOR LONG(UE***F) GRAY USA 		8-97198-181-5 01 1 9811-0012 ● ●
188 16.650 CONSOLE; RR
GRAY USA 		8-97198-181-7 01 1 0101-0108 ● ●
188 16.650 CONSOLE; RR
GRAY USA 		8-97298-381-5 01 1 0109- ● ●
192 16.100 NUT; BRKT
07.833 M6 FLANGE 		8-97063-399-0 04 1 9811- ● ●
214 16.650 LID; CONSOLE
GRAY USA 		8-97157-414-0 01 1 9811-0108 ● ●
214 16.650 LID; CONSOLE
GRAY USA 		8-97299-158-2 01 1 0109- ● ●
297 16.650 BRACKET; RR CONSOLE
USA 		8-97121-744-1 01 1 9811- ● ●
310 16.650 CUSHION; CTR CONSOLE
4DOOR LONG(UE***F) USA 		8-97135-790-0 03 1 9811-0012 ● ●
310 16.650 CUSHION; CTR CONSOLE
USA 		8-97135-790-0 03 1 0101- ● ●
326 16.650 HOLDER; CUP
4DOOR LONG(UE***F) GRAY USA 		8-97199-130-0 01 1 9811-0012 ● ●
326 16.650 HOLDER; CUP
GRAY USA 		8-97199-130-1 01 1 0101- ● ●
327 16.650 STRIPE; HAND BRAKE
USA 		8-97187-651-0 01 1 9811- ● ●
328 16.650 CLIP
04.010 USA 		8-97144-233-0 02 1 9811- ● ●
339 16.650 HOLDER; COIN
USA 		8-97140-081-0 01 1 9811-0012 ● ●
339 16.650 HOLDER; COIN
M/T MUA 5 SPEED(RMN) USA 		8-97140-081-0 01 1 9811-0012 ● ●
339 16.650 HOLDER; COIN
EXC. ACTIVE RIDE CONTROL(7WD) USA 		8-97140-081-0 01 1 0101- ● ●
339 16.650 HOLDER; COIN
M/T MUA 5 SPEED(RMN) USA 		8-97140-081-0 01 1 0101- ● ●
340 16.650 BRACKET; CONSOLE BOX
2DOOR SHORT(UE***C) USA 		8-97135-792-2 01 1 9811-0012 ● ●
340 16.650 BRACKET; CONSOLE BOX
4DOOR LONG(UE***F) USA 		8-97148-777-1 01 1 9811-0012 ● ●
340 16.650 BRACKET; CONSOLE BOX
USA 		8-97148-777-1 01 1 0101- ● ●
344 16.650 LID; CUP HOLDER
4DOOR LONG(UE***F) GRAY USA 		8-97198-424-2 01 1 9811-0012 ● ●
344 16.650 LID; CUP HOLDER
GRAY USA 		8-97198-424-3 01 1 0101- ● ●
348 16.650 BEZEL; CUP HOLDER
BLACK USA 		8-97198-420-0 01 1 9811-0108 ● ●
348 16.650 BEZEL; CUP HOLDER
BLACK USA 		8-97298-387-1 01 1 0109- ● ●
349 16.650 CUSHION; CONSOLE LID
USA 		8-97135-790-0 02 1 9811- ● ●
350 16.650 COVER; CONSOLE
2DOOR SHORT(UE***C) GRAY USA 		8-97157-416-1 01 1 9811-0012 ● ●
350 16.650 COVER; CONSOLE
4DOOR LONG(UE***F) 16.674 GRAY USA 		8-97198-421-3 01 1 9811-0012 ● ●
350 16.650 COVER; CONSOLE
16.674 GRAY USA 		8-97198-421-5 01 1 0101- ● ●
çizim 37086
62 234 217 62 217 74 237 74 237
BalonParca AdiParca NoAdetTipApplied Date A B
62 16.650 SCREW; BRKT
4DOOR LONG(UE***F) EXC. SUN ROOF SLIDING ELEC<CF5> 10.240 (A) M5X14 		8-94120-095-0 02 1 9811-0012 ●
62 16.650 SCREW; BRKT
EXC. SUN ROOF SLIDING ELEC<CF5> 10.240 (A) M5X14 		8-94120-095-0 02 1 0101- ●
62 16.650 SCREW; BRKT
4DOOR LONG(UE***F) EXC. SUN ROOF SLIDING ELEC<CF5> 09.743 (B) M5X16 USA 		8-94295-854-0 02 1 9811-0012 ●
62 16.650 SCREW; BRKT
EXC. SUN ROOF SLIDING ELEC<CF5> 09.743 (B) M5X16 USA 		8-94295-854-0 02 1 0101- ●
74 08.991 BULB; CONSOLE
4DOOR LONG(UE***F) EXC. SUN ROOF SLIDING ELEC<CF5> 		8-97214-694-0 02 1 9811-0012 ●
74 08.991 BULB; CONSOLE
EXC. SUN ROOF SLIDING ELEC<CF5> 		8-97214-694-0 02 1 0101- ●
217 16.745 CONSOLE; HEADER
4DOOR LONG(UE***F) EXC. SUN ROOF SLIDING ELEC<CF5> GRAY 		8-97159-911-4 01 1 9811-0012 ●
217 16.745 CONSOLE; HEADER
EXC. SUN ROOF SLIDING ELEC<CF5> GRAY 		8-97159-911-6 01 1 0101- ●
234 16.742 BRACKET; HEADER CONSOLE
4DOOR LONG(UE***F) EXC. SUN ROOF SLIDING ELEC<CF5> 		8-97177-758-3 01 1 9811-0012 ●
234 16.742 BRACKET; HEADER CONSOLE
EXC. SUN ROOF SLIDING ELEC<CF5> 		8-97177-758-3 01 1 0101- ●
237 16.650 LENS; HEADER CONSOLE
4DOOR LONG(UE***F) EXC. SUN ROOF SLIDING ELEC<CF5> (A) 		8-97214-693-0 01 1 9811-0012 ●
237 16.650 LENS; HEADER CONSOLE
EXC. SUN ROOF SLIDING ELEC<CF5> (A) 		8-97214-693-0 01 1 0101- ●
237 16.650 LENS; HEADER CONSOLE
4DOOR LONG(UE***F) EXC. SUN ROOF SLIDING ELEC<CF5> (B) 		8-97214-692-0 01 1 9811-0012 ●
237 16.650 LENS; HEADER CONSOLE
EXC. SUN ROOF SLIDING ELEC<CF5> (B) 		8-97214-692-0 01 1 0101- ●

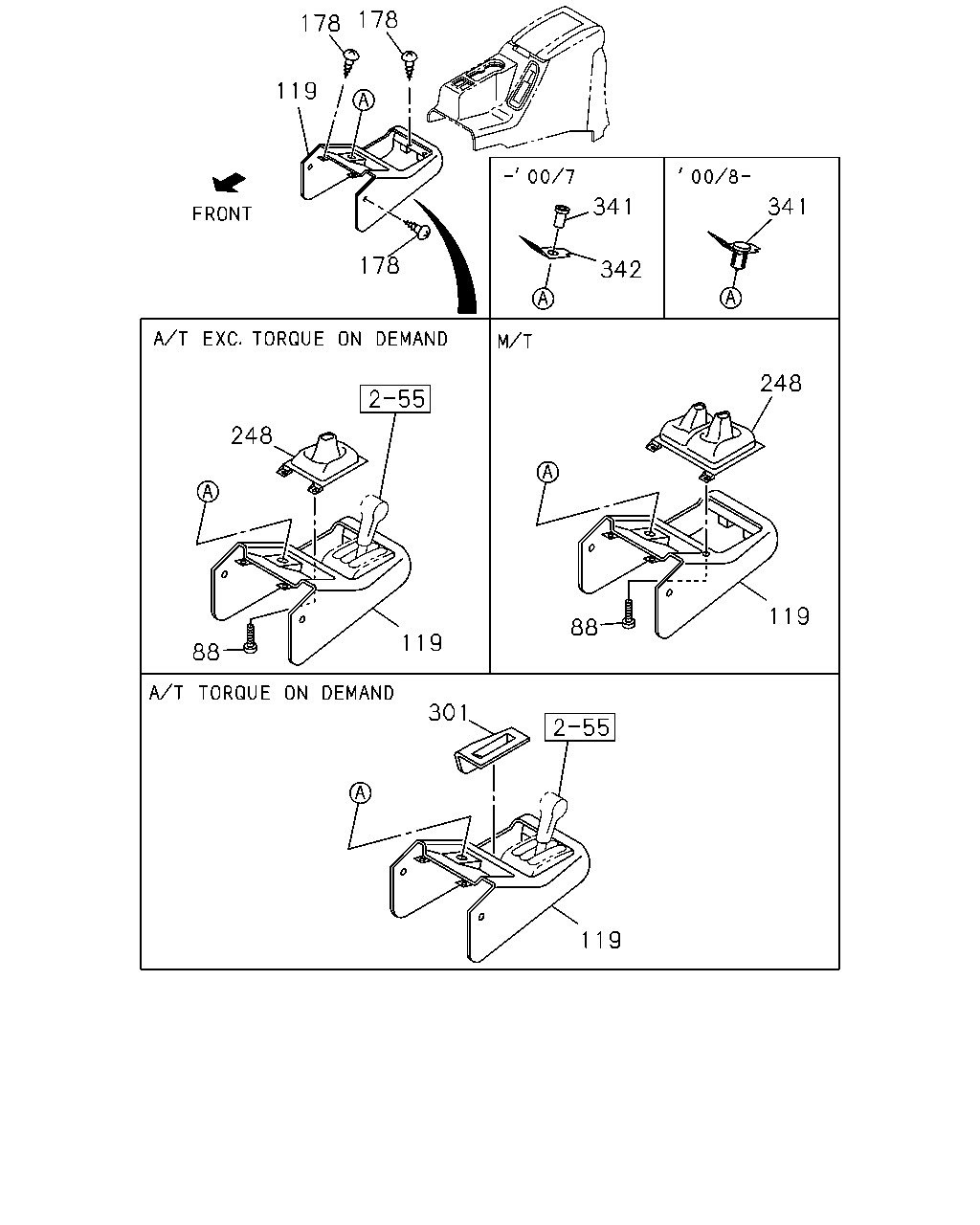

çizim 37283
178 178 119 341 341 178 342 248 248 119 88 119 88 301 119
BalonParca AdiParca NoAdetTipApplied Date A B
88 16.650 SCREW
A/T THM 4 SPEED(RMQ) 09.743 M5X16 USA 		8-94295-854-0 01 1 9811-0012 ● ●
88 16.650 SCREW
A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) 09.743 M5X16 USA 		8-94295-854-0 01 1 0101- ● ●
88 16.650 SCREW
M/T MUA 5 SPEED(RMN) 09.743 M5X16 USA 		8-94295-854-0 02 1 9811- ● ●
119 04.015 CONSOLE; SHIFT LEVER
GRAY USA 		8-97157-417-0 01 1 9811-0012 ● ●
119 04.015 CONSOLE; SHIFT LEVER
EXC. TORQUE ON DEMAND(7HA) GRAY USA 		8-97157-417-0 01 1 0101-0109 ● ●
119 04.015 CONSOLE; SHIFT LEVER
EXC. TORQUE ON DEMAND(7HA) GRAY USA 		8-97392-830-0 01 1 0110- ● ●
119 04.015 CONSOLE; SHIFT LEVER
TORQUE ON DEMAND(7HA) GRAY USA 		8-97157-419-0 01 1 0101-0109 ● ●
119 04.015 CONSOLE; SHIFT LEVER
TORQUE ON DEMAND(7HA) GRAY USA 		8-97392-844-0 01 1 0110- ● ●
178 16.650 SCREW; CTR,CONSOLE
09.743 M5X16 USA 		8-94295-854-0 06 1 9811- ● ●
248 04.015 BOOT; SHIFT CONT
A/T THM 4 SPEED(RMQ) BLACK USA 		8-97195-881-2 01 1 9811-0012 ● ●
248 04.015 BOOT; SHIFT CONT
A/T THM 4 SPEED(RMQ) EXC. TORQUE ON DEMAND(7HA) BLACK USA 		8-97195-881-2 01 1 0101- ● ●
248 04.015 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) BLACK USA 		8-97195-880-2 01 1 9811-0011 ● ●
248 04.015 BOOT; SHIFT CONT
M/T MUA 5 SPEED(RMN) BLACK USA 		8-97298-390-0 01 1 0012- ● ●
301 16.650 BEZEL; CONSOLE
TORQUE ON DEMAND(7HA) BLACK USA 		8-97197-332-1 01 1 0101- ● ●
341 16.650 SOCKET; ACCESSORY
02.575 USA 		8-94382-451-1 01 1 9811-0007 ● ●
341 16.650 SOCKET; ACCESSORY
BLACK 		8-97296-235-1 01 1 0008- ● ●
342 16.650 COVER; SOCKET
04.115 		8-97146-121-0 01 1 9811-9911 ● ●
342 16.650 COVER; SOCKET
04.115 BLACK USA 		8-97293-933-0 01 1 9912-0007 ● ●
