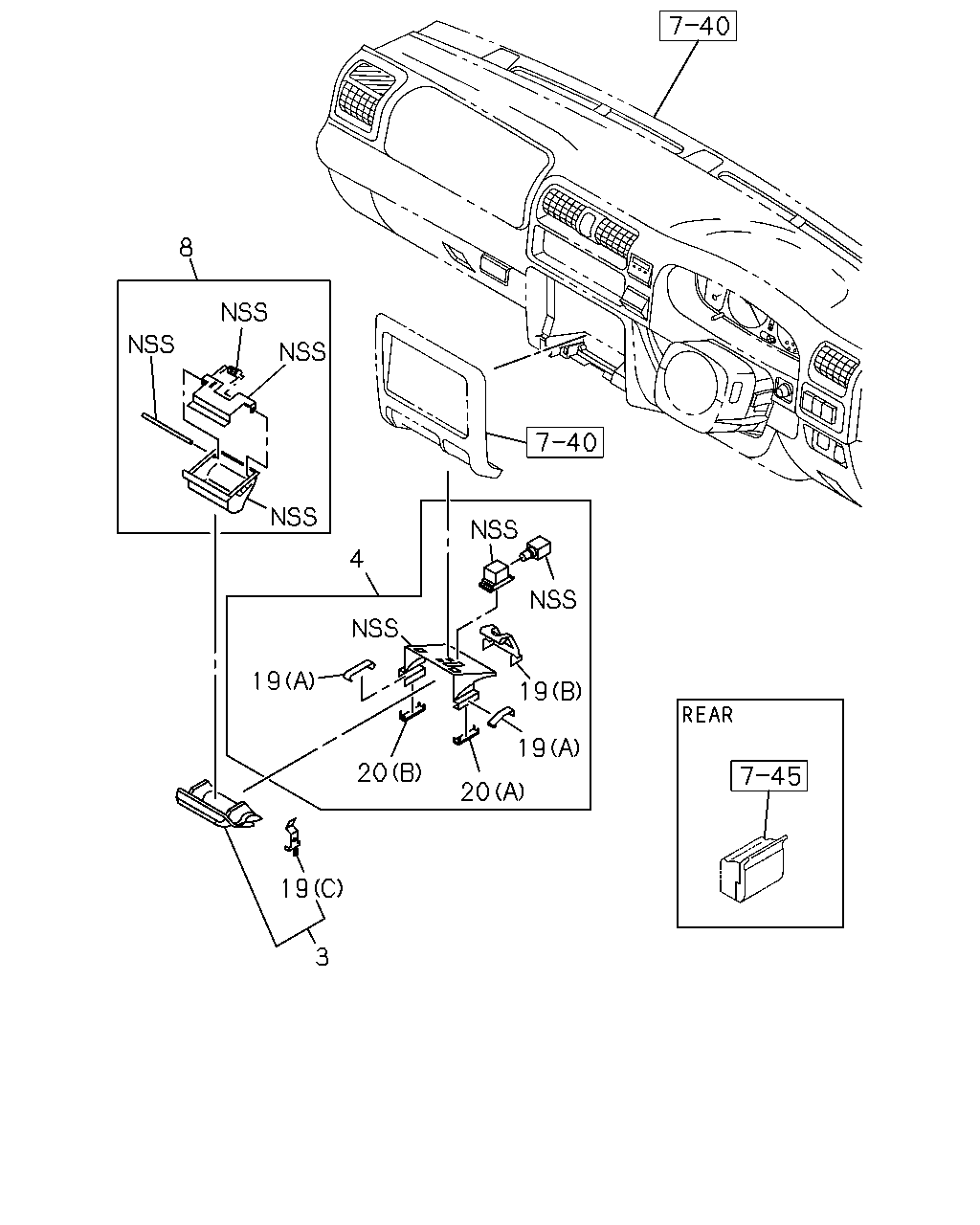

7-42 — ASH TRAY (#32666) — 23 parça

8 4 19 19 19 20 20 19 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	16.120 CASE ASM; ASH TRAY INNER USA	8-97146-539-0	01	1	9811-0003	●	●
3	16.120 CASE ASM; ASH TRAY INNER USA	8-97146-539-0	01	1	0004-0012	●	●
3	16.120 CASE ASM; ASH TRAY INNER USA	8-97146-539-0	01	1	0101-		●
4	16.120 CASE ASM; ASH TRAY OUTER USA	8-97146-543-0	01	1	9811-0003	●	●
4	16.120 CASE ASM; ASH TRAY OUTER USA	8-97146-543-0	01	1	0004-0012	●	●
4	16.120 CASE ASM; ASH TRAY OUTER USA	8-97146-543-0	01	1	0101-		●
8	16.120 TRAY ASM; ASH USA	8-97121-711-2	01	1	9811-0012	●	●
8	16.120 TRAY ASM; ASH USA	8-97121-711-2	01	1	0101-		●
19	12.009 SPRING; ASH TRAY (A) USA	8-97146-536-0	02	1	9811-0003	●	●
19	12.009 SPRING; ASH TRAY (A) USA	8-97146-536-0	02	1	0004-0012	●	●
19	12.009 SPRING; ASH TRAY (A) USA	8-97146-536-0	02	1	0101-		●
19	12.009 SPRING; ASH TRAY (B) USA	8-97146-537-0	01	1	9811-0003	●	●
19	12.009 SPRING; ASH TRAY (B) USA	8-97146-537-0	01	1	0004-0012	●	●
19	12.009 SPRING; ASH TRAY (B) USA	8-97146-537-0	01	1	0101-		●
19	12.009 SPRING; ASH TRAY (C) USA	8-97174-394-0	02	1	9811-0003	●	●
19	12.009 SPRING; ASH TRAY (C) USA	8-97174-394-0	02	1	0004-0012	●	●
19	12.009 SPRING; ASH TRAY (C) USA	8-97174-394-0	02	1	0101-		●
20	12.009 GUIDE; RAIL,ASH TRAY (A) USA	8-97146-538-0	01	1	9811-0003	●	●
20	12.009 GUIDE; RAIL,ASH TRAY (A) USA	8-97146-538-0	01	1	0004-0012	●	●
20	12.009 GUIDE; RAIL,ASH TRAY (A) USA	8-97146-538-0	01	1	0101-		●
20	12.009 GUIDE; RAIL,ASH TRAY (B) USA	8-97173-730-0	01	1	9811-0003	●	●
20	12.009 GUIDE; RAIL,ASH TRAY (B) USA	8-97173-730-0	01	1	0004-0012	●	●
20	12.009 GUIDE; RAIL,ASH TRAY (B) USA	8-97173-730-0	01	1	0101-		●
