7-40 — INSTRUMENT PANEL AND BOX (#32665) — 98 parça

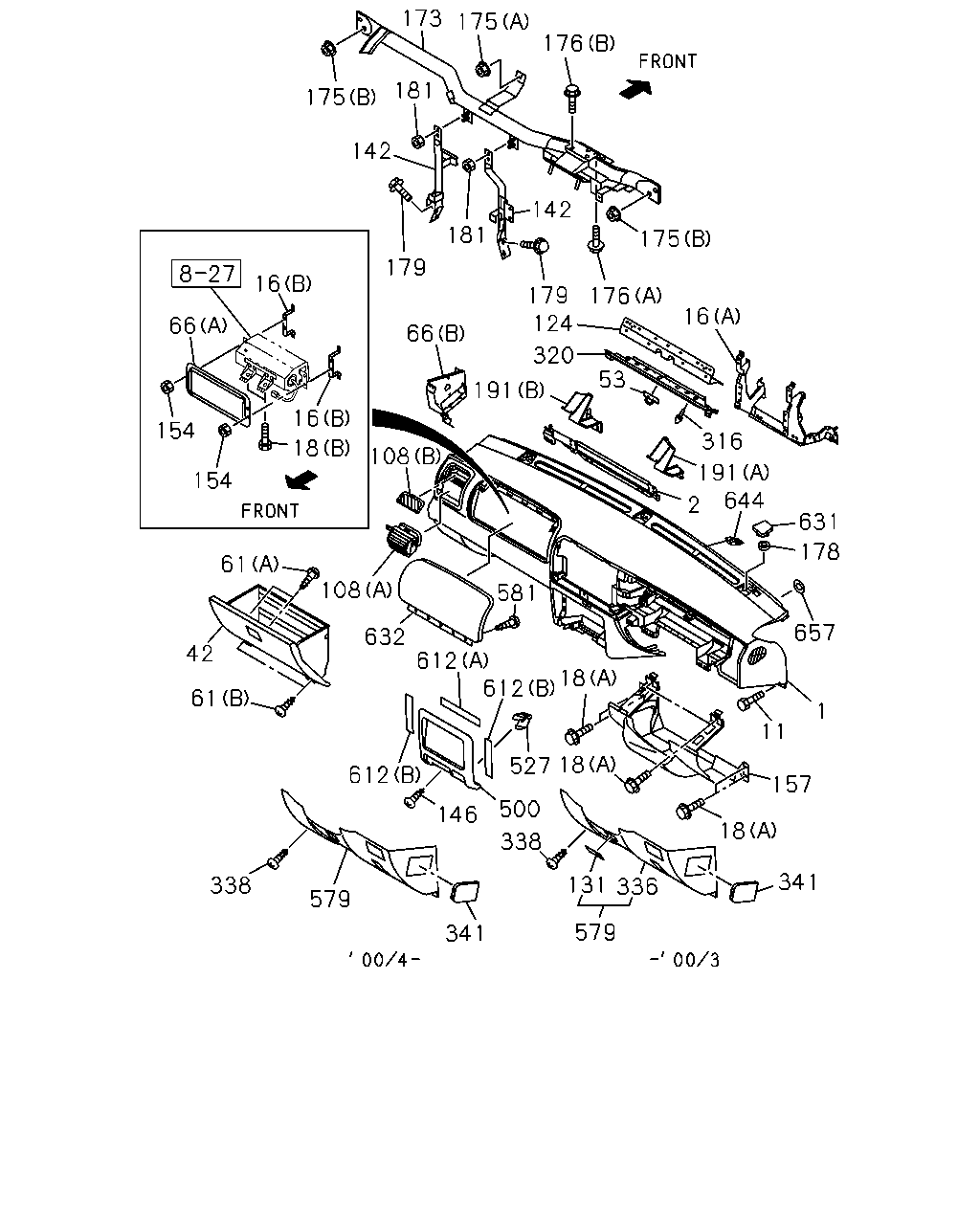

çizim 5220
173 175 176 181 175 142 142 181 175 179 16 179 124 320 176 16 66 66 16 18 53 191 154 316 191 2 644 108 154 631 178 61 108 581 657 632 612 18 612 42 61 1 11 612 157 500 338 146 18 341 338 579 579 341 131 336 527 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.080 PANEL; INST
GRAY USA 		8-97196-052-7 01 1 9811-0012 ● ●
1 16.080 PANEL; INST
GRAY USA 		8-97196-052-8 01 1 0101- ●
2 16.081 REINFORCEMENT; INST PNL,LWR
USA 		8-97137-262-0 01 1 9811-0012 ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
USA 		8-97137-262-0 01 1 0101- ●
11 16.090 BOLT; INST PNL
01.287 M6X25 W/LK&PL WASHER USA 		8-94416-136-0 06 1 9811-0012 ● ●
11 16.090 BOLT; INST PNL
01.287 M6X25 W/LK&PL WASHER USA 		8-94416-136-0 06 1 0101- ●
16 16.085 BRACKET; INST PNL
(A) USA 		8-97121-686-0 01 1 9811-0012 ● ●
16 16.085 BRACKET; INST PNL
(A) USA 		8-97121-686-0 01 1 0101- ●
16 16.085 BRACKET; INST PNL
(B) USA 		8-97146-480-1 02 1 9811-0012 ● ●
16 16.085 BRACKET; INST PNL
(B) USA 		8-97146-480-1 02 1 0101- ●
18 16.085 BOLT; BRKT
02.334 (A) M8X18 		8-94478-122-0 06 1 9811-0012 ● ●
18 16.085 BOLT; BRKT
02.334 (A) M8X18 		8-94478-122-0 06 1 0101- ●
18 16.085 BOLT; BRKT
16.328 (B) M6X18 W/LK&PL WASHER THA 		8-97060-719-0 02 1 9811-0012 ● ●
18 16.085 BOLT; BRKT
16.328 (B) M6X18 W/LK&PL WASHER THA 		8-97060-719-0 02 1 0101- ●
42 16.100 BOX; GLOVE,INST PNL
GRAY 		8-97197-261-0 01 1 9811-0003 ● ●
42 16.100 BOX; GLOVE,INST PNL
GRAY USA 		8-97291-615-1 01 1 0004-0012 ● ●
42 16.100 BOX; GLOVE,INST PNL
GRAY USA 		8-97298-750-1 01 1 0101- ●
53 16.115 STRIKER; GLOVE BOX
USA 		8-97121-685-0 01 1 9811-0012 ● ●
53 16.115 STRIKER; GLOVE BOX
USA 		8-97121-685-0 01 1 0101- ●
61 16.100 SCREW; GLOVE BOX
16.115 (A) M5X16 USA 		8-94279-312-0 02 1 9811-0012 ● ●
61 16.100 SCREW; GLOVE BOX
16.115 (A) M5X16 USA 		8-94279-312-0 02 1 0101- ●
61 16.100 SCREW; GLOVE BOX
(B) M4X14 TAPPING 		8-97111-555-0 02 1 9811-0012 ● ●
61 16.100 SCREW; GLOVE BOX
(B) M4X14 TAPPING 		8-97111-555-0 02 1 0101- ●
66 16.085 REINFORCEMENT; INST PANEL
(A) USA 		8-97145-951-1 01 1 9811-0003 ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) USA 		8-97146-483-3 01 1 9811-0012 ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) USA 		8-97146-483-3 01 1 0101- ●
108 09.264 GRILLE; INST PNL
(A) GRAY USA 		8-97157-473-2 01 1 9811-0012 ● ●
108 09.264 GRILLE; INST PNL
(A) GRAY USA 		8-97157-473-2 01 1 0101- ●
108 09.264 GRILLE; INST PNL
(B) GRAY USA 		8-97198-568-0 01 1 9811-0012 ● ●
108 09.264 GRILLE; INST PNL
(B) GRAY USA 		8-97198-568-0 01 1 0101- ●
124 16.081 REINFORCEMENT; INST PNL,UPR
USA 		8-97121-682-1 01 1 9811-0012 ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR
USA 		8-97121-682-1 01 1 0101- ●
131 09.264 GRILLE ASM; LAP VENT
USA 		8-97146-566-0 01 1 9811-0003 ● ●
142 16.085 STAY; INST PANEL
USA 		8-97121-729-1 01 1 9811-0012 ● ●
142 16.085 STAY; INST PANEL
USA 		8-97121-729-1 01 1 0101- ●
142 16.085 STAY; INST PANEL
USA 		8-97121-727-0 01 1 9811-0012 ● ●
142 16.085 STAY; INST PANEL
USA 		8-97121-727-0 01 1 0101- ●
146 16.100 SCREW; TAP
09.743 M5X16 USA 		8-94295-854-0 01 1 9811-0012 ● ●
146 16.100 SCREW; TAP
09.743 M5X16 USA 		8-94295-854-0 01 1 0101- ●
154 16.085 NUT
07.833 M6 W/DISHED WASHER THA 		8-94170-192-0 04 1 9811-0012 ● ●
154 16.085 NUT
07.833 M6 W/DISHED WASHER THA 		8-94170-192-0 04 1 0101- ●
157 16.090 PAD ASM; KNEE
USA 		8-97121-731-2 01 1 9811-0012 ● ●
157 16.090 PAD ASM; KNEE
USA 		8-97121-731-2 01 1 0101- ●
173 16.081 BEAM ASM; CROSS,INST PANEL
USA 		8-97121-725-0 01 1 9811-0003 ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
USA 		8-97226-817-1 01 1 0004-0012 ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
USA 		8-97226-817-1 01 1 0101-0101 ●
173 16.081 BEAM ASM; CROSS,INST PANEL
USA 		8-97310-738-0 01 1 0102- ●
175 16.085 NUT; CROSS BEAM
07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 9811-0012 ● ●
175 16.085 NUT; CROSS BEAM
07.833 (A) M6 FLANGE 		8-97063-399-0 01 1 0101- ●
175 16.085 NUT; CROSS BEAM
09.011 (B) M8 W/LK WASHER 		8-97065-435-0 04 1 9811-0012 ● ●
175 16.085 NUT; CROSS BEAM
09.011 (B) M8 W/LK WASHER 		8-97065-435-0 04 1 0101- ●
176 16.085 BOLT; CROSS BEAM
01.062 (A) M8X16 FLANGE USA 		0-28080-816-0 01 1 9811-0012 ● ●
176 16.085 BOLT; CROSS BEAM
01.062 (A) M8X16 FLANGE USA 		0-28080-816-0 01 1 0101- ●
176 16.085 BOLT; CROSS BEAM
02.334 (B) M8X18 		8-94478-122-0 02 1 9811-0012 ● ●
176 16.085 BOLT; CROSS BEAM
02.334 (B) M8X18 		8-94478-122-0 02 1 0101- ●
178 16.085 NUT; INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 9811-0012 ● ●
178 16.085 NUT; INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 0101- ●
179 16.085 BOLT; STAY,INST PANEL
02.334 M8X18 		8-94478-122-0 04 1 9811-0012 ● ●
179 16.085 BOLT; STAY,INST PANEL
02.334 M8X18 		8-94478-122-0 04 1 0101- ●
181 16.085 NUT; STAY,INST PANEL
04.594 M6 FLANGE 		0-91150-106-0 04 1 9811-0012 ● ●
181 16.085 NUT; STAY,INST PANEL
04.594 M6 FLANGE 		0-91150-106-0 04 1 0101- ●
191 16.100 REINFORCEMENT; GLOVE BOX
(A) USA 		8-97121-734-1 01 1 9811-0012 ● ●
191 16.100 REINFORCEMENT; GLOVE BOX
(A) USA 		8-97121-734-1 01 1 0101- ●
191 16.100 REINFORCEMENT; GLOVE BOX
(B) USA 		8-97121-736-1 01 1 9811-0012 ● ●
191 16.100 REINFORCEMENT; GLOVE BOX
(B) USA 		8-97121-736-1 01 1 0101- ●
316 16.081 RUBBER; CUSHION,GLOVE BOX LID
USA 		8-97146-481-0 03 1 9811-0012 ● ●
316 16.081 RUBBER; CUSHION,GLOVE BOX LID
USA 		8-97146-481-0 03 1 0101- ●
320 16.081 COVER; GLOVE BOX
GRAY USA 		8-97196-053-1 01 1 9811-0012 ● ●
320 16.081 COVER; GLOVE BOX
GRAY USA 		8-97196-053-1 01 1 0101- ●
336 16.081 COVER; INST PANEL SIDE
GRAY USA 		8-97195-900-1 01 1 9811-0003 ● ●
338 16.081 SCREW; COVER
09.743 M5X16 USA 		8-94295-854-0 01 1 9811-0012 ● ●
338 16.081 SCREW; COVER
09.743 M5X16 USA 		8-94295-854-0 01 1 0101- ●
341 16.110 LID; FUSE BOX
GRAY USA 		8-97157-337-1 01 1 9811-0012 ● ●
341 16.110 LID; FUSE BOX
GRAY USA 		8-97157-337-1 01 1 0101- ●
500 16.081 CLUSTER; INST CENTER
USA 		8-97146-486-1 01 1 9811-9905 ● ●
500 16.081 CLUSTER; INST CENTER
BLACK USA 		8-97292-557-1 01 1 9906-0012 ● ●
500 16.081 CLUSTER; INST CENTER
BLACK USA 		8-97292-557-1 01 1 0101- ●
527 16.100 CLIP; INST CLUSTER
USA 		8-97238-828-0 04 1 9811-0012 ● ●
527 16.100 CLIP; INST CLUSTER
USA 		8-97238-828-0 04 1 0101- ●
579 16.080 COVER; INST PNL
GRAY USA 		8-97159-898-1 01 1 9811-0003 ● ●
579 16.080 COVER; INST PNL
GRAY USA 		8-97292-362-3 01 1 0004-0012 ● ●
579 16.080 COVER; INST PNL
GRAY USA 		8-97292-362-3 01 1 0101- ●
581 09.744 SCREW
09.743 M5X16 USA 		8-94295-854-0 04 1 9811-0012 ● ●
581 09.744 SCREW
09.743 M5X16 USA 		8-94295-854-0 04 1 0101- ●
612 16.081 TAPE; SOFT
(A) USA 		8-97146-531-0 01 1 9811-0003 ● ●
612 16.081 TAPE; SOFT
(A) USA 		8-97146-531-0 01 1 0004-0012 ● ●
612 16.081 TAPE; SOFT
(A) USA 		8-97146-531-0 01 1 0101- ●
612 16.081 TAPE; SOFT
(B) USA 		8-97146-532-0 02 1 9811-0003 ● ●
612 16.081 TAPE; SOFT
(B) USA 		8-97146-532-0 02 1 0004-0012 ● ●
612 16.081 TAPE; SOFT
(B) USA 		8-97146-532-0 02 1 0101- ●
631 16.110 CAP; INST PANEL
GRAY USA 		8-97157-321-3 03 1 9811-0012 ● ●
631 16.110 CAP; INST PANEL
GRAY USA 		8-97157-321-3 03 1 0101- ●
632 16.110 DOOR; AIR BAG
GRAY USA 		8-97157-328-3 01 1 9811-0012 ● ●
632 16.110 DOOR; AIR BAG
GRAY USA 		8-97157-328-3 01 1 0101- ●
644 16.085 PIN; INST PANEL
USA 		8-97146-479-0 02 1 9811-0012 ● ●
644 16.085 PIN; INST PANEL
USA 		8-97146-479-0 02 1 0101- ●
657 16.080 FELT; INST PANEL
USA 		8-97219-713-0 02 1 9902-0012 ● ●
657 16.080 FELT; INST PANEL
USA 		8-97219-713-0 02 1 0101- ●
