7-30 — LOCK CYLINDER SET (#32664) — 91 parça

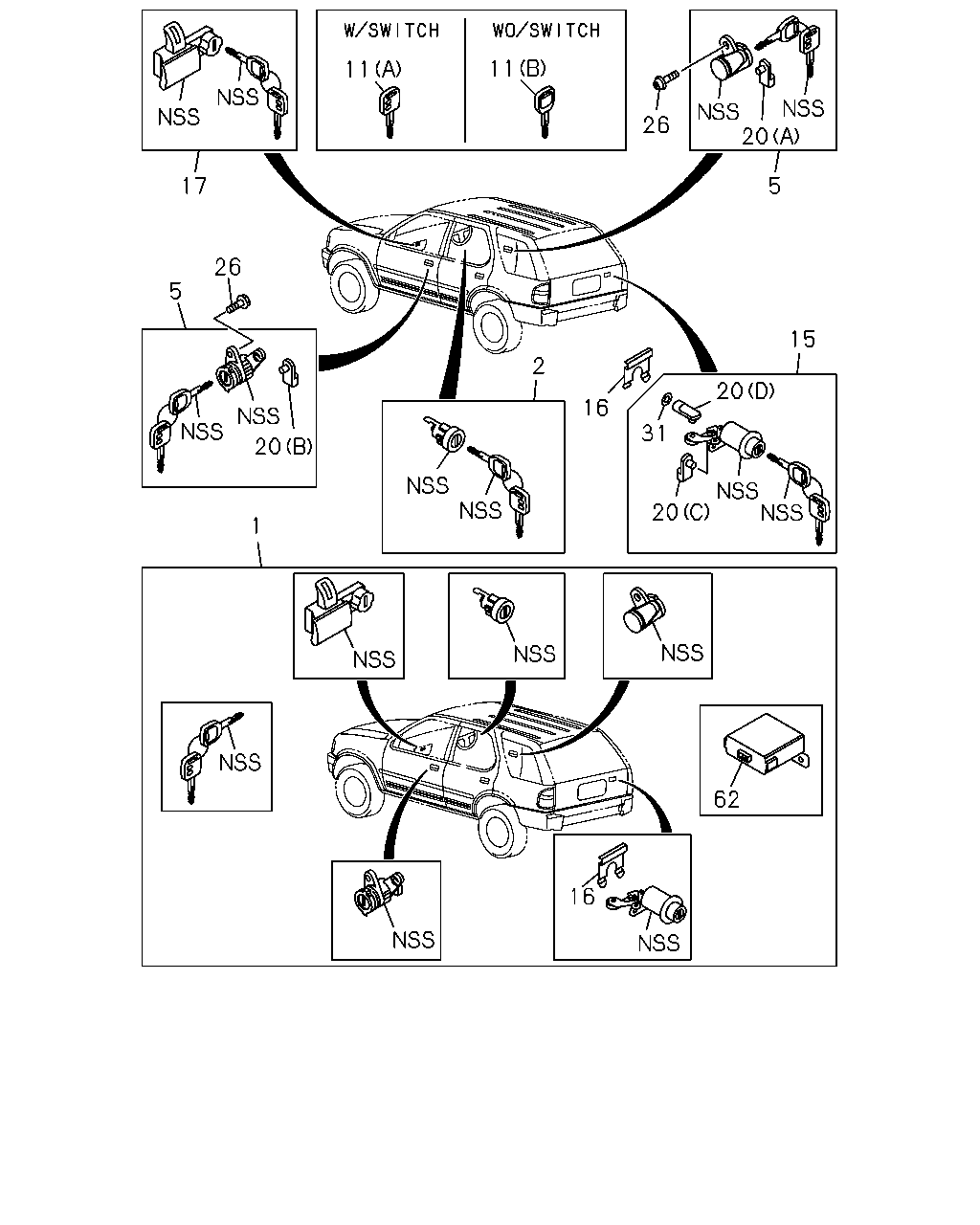

11 11 20 26 17 5 26 5 15 2 20 16 20 31 20 1 62 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.188 CYLINDER SET; CAR LOCK GRAY USA	8-97198-486-1	01	1	9811-0012	●
1	02.188 CYLINDER SET; CAR LOCK GRAY USA	8-97198-485-2	01	1	9811-9906		●
1	02.188 CYLINDER SET; CAR LOCK GRAY USA	8-97292-576-0	01	1	9907-9910		●
1	02.188 CYLINDER SET; CAR LOCK GRAY USA	8-97294-081-1	01	1	9911-0012		●
1	02.188 CYLINDER SET; CAR LOCK GRAY USA	8-97295-007-0	01	1	0101-		●
2	02.188 BARREL ASM; W/KEY,STRG LOCK USA	8-97213-273-0	01	1	9811-0012	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK USA	8-97213-279-0	01	1	9811-9910		●
2	02.188 BARREL ASM; W/KEY,STRG LOCK USA	8-97238-955-1	01	1	9911-0012		●
2	02.188 BARREL ASM; W/KEY,STRG LOCK USA	8-97304-388-0	01	1	0101-		●
5	16.328 CYLINDER ASM; DOOR LOCK USA	8-97213-276-0	01	1	9811-0012	●
5	16.328 CYLINDER ASM; DOOR LOCK USA	8-97213-275-0	01	1	9811-0012	●
5	16.328 CYLINDER ASM; DOOR LOCK USA	8-97213-282-0	01	1	9811-9910		●
5	16.328 CYLINDER ASM; DOOR LOCK USA	8-97238-958-1	01	1	9911-0012		●
5	16.328 CYLINDER ASM; DOOR LOCK USA	8-97304-391-0	01	1	0101-		●
5	16.328 CYLINDER ASM; DOOR LOCK USA	8-97213-281-0	01	1	9811-9910		●
5	16.328 CYLINDER ASM; DOOR LOCK USA	8-97238-957-1	01	1	9911-0012		●
5	16.328 CYLINDER ASM; DOOR LOCK USA	8-97304-390-0	01	1	0101-		●
11	02.187 KEY; BLANK (B) WO/SWITCH USA	8-97201-564-0	AR	1	9811-0012	●	●
11	02.187 KEY; BLANK (B) WO/SWITCH USA	8-97201-566-0	AR	1	0101-		●
11	02.187 KEY; BLANK (A) W/SWITCH USA	8-97201-565-0	AR	1	9811-9910		●
11	02.187 KEY; BLANK (A) W/SWITCH USA	8-97238-295-1	AR	1	9911-0012		●
15	16.650 CYLINDER ASM; W/KEY,TAIL GATE LO USA	8-97213-278-0	01	1	9811-0012	●
15	16.650 CYLINDER ASM; W/KEY,TAIL GATE LO USA	8-97213-283-0	01	1	9811-9906		●
15	16.650 CYLINDER ASM; W/KEY,TAIL GATE LO USA	8-97227-516-0	01	1	9907-9910		●
15	16.650 CYLINDER ASM; W/KEY,TAIL GATE LO USA	8-97238-959-1	01	1	9911-0012		●
15	16.650 CYLINDER ASM; W/KEY,TAIL GATE LO USA	8-97304-392-0	01	1	0101-		●
16	16.650 RETAINER; TAIL GATE LOCK CYL USA	8-97131-020-0	01	1	9811-0012	●	●
16	16.650 RETAINER; TAIL GATE LOCK CYL USA	8-97131-020-0	01	1	0101-		●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO USA	8-97213-274-0	01	1	9811-0012	●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO USA	8-97213-280-0	01	1	9811-9906		●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO USA	5-87410-721-0	01	1	9907-9910		●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO USA	5-87410-717-1	01	1	9911-0012		●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO USA	5-87410-775-0	01	1	0101-		●
20	16.328 SNAP; DOOR LOCK CYL (D) USA	8-97179-563-0	01	1	9811-0012	●
20	16.328 SNAP; DOOR LOCK CYL (A) USA	8-97179-551-0	01	1	9811-0012	●	●
20	16.328 SNAP; DOOR LOCK CYL (A) USA	8-97179-551-0	01	1	0101-		●
20	16.328 SNAP; DOOR LOCK CYL (B) USA	8-97179-552-0	01	1	9811-0012	●	●
20	16.328 SNAP; DOOR LOCK CYL (B) USA	8-97179-552-0	01	1	0101-		●
20	16.328 SNAP; DOOR LOCK CYL (C) USA	8-97179-562-0	01	1	9811-0012	●	●
20	16.328 SNAP; DOOR LOCK CYL (C) USA	8-97179-562-0	01	1	0101-		●
20	16.328 SNAP; DOOR LOCK CYL (D) USA	8-97179-564-0	01	1	9811-		●
26	16.328 BOLT; KEY CYL,DOOR M6X8 FLANGE	8-97175-668-0	02	1	9811-0012	●	●
26	16.328 BOLT; KEY CYL,DOOR M6X8 FLANGE	8-97175-668-0	02	1	0101-		●
31	16.335 GASKET; TAIL GATE LOCK CYL USA	8-97179-561-0	01	1	9811-0012	●	●
31	16.335 GASKET; TAIL GATE LOCK CYL USA	8-97179-561-0	01	1	0101-		●
62	02.195 CONTROLLER; LOCK CYL,12V USA	8-97188-536-0	01	1	9911-0012		●

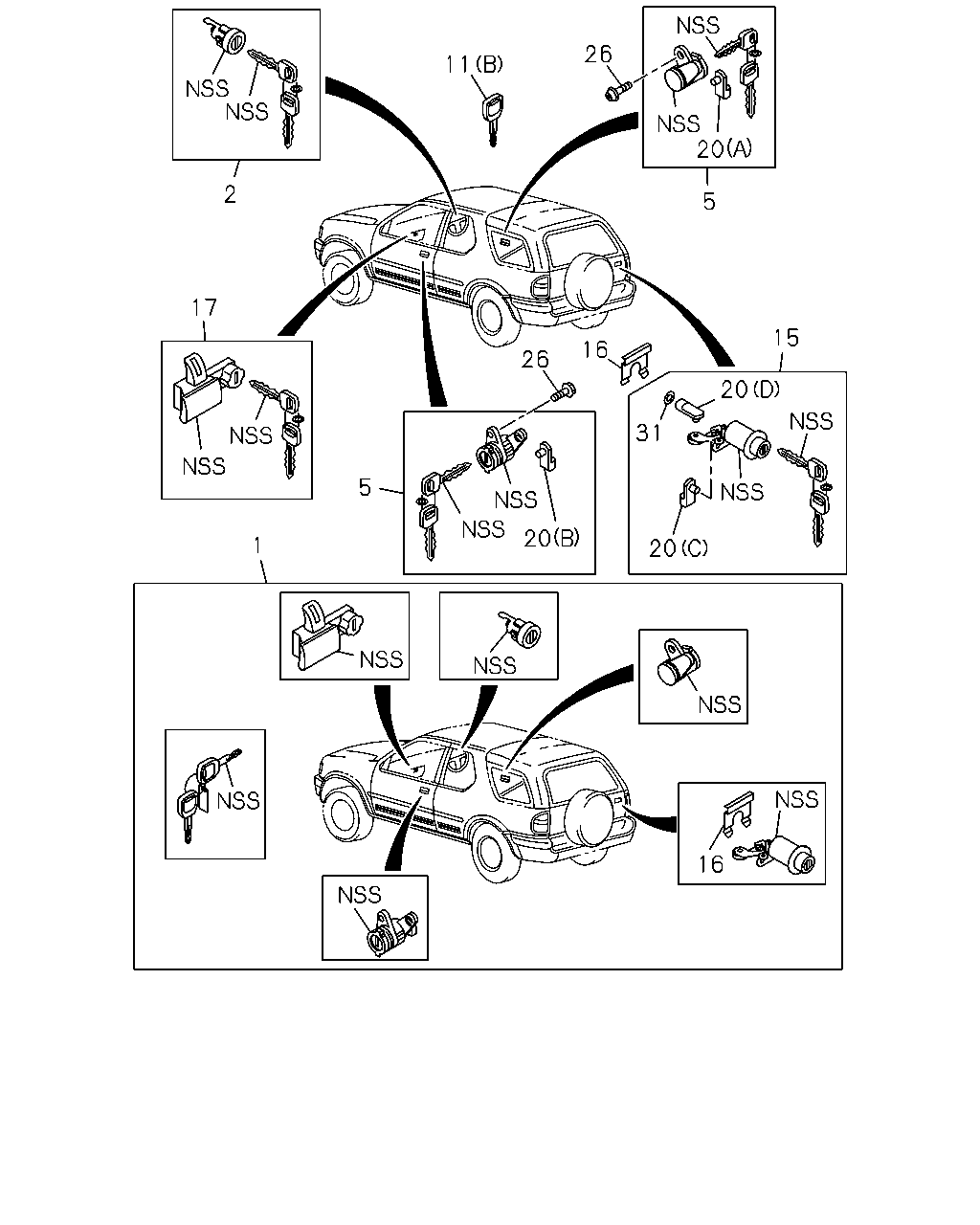

26 11 20 2 5 17 15 16 26 20 31 5 20 1 20 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.188 CYLINDER SET; CAR LOCK GRAY USA	8-97198-486-1	01	1	9811-0012	●
1	02.188 CYLINDER SET; CAR LOCK GRAY USA	8-97198-485-2	01	1	9811-9906		●
1	02.188 CYLINDER SET; CAR LOCK GRAY USA	8-97292-576-0	01	1	9907-9910		●
1	02.188 CYLINDER SET; CAR LOCK GRAY USA	8-97294-081-1	01	1	9911-0012		●
1	02.188 CYLINDER SET; CAR LOCK GRAY USA	8-97295-007-0	01	1	0101-		●
2	02.188 BARREL ASM; W/KEY,STRG LOCK USA	8-97213-273-0	01	1	9811-0012	●
2	02.188 BARREL ASM; W/KEY,STRG LOCK USA	8-97213-279-0	01	1	9811-9910		●
2	02.188 BARREL ASM; W/KEY,STRG LOCK USA	8-97238-955-1	01	1	9911-0012		●
2	02.188 BARREL ASM; W/KEY,STRG LOCK USA	8-97304-388-0	01	1	0101-		●
5	16.328 CYLINDER ASM; DOOR LOCK USA	8-97213-276-0	01	1	9811-0012	●
5	16.328 CYLINDER ASM; DOOR LOCK USA	8-97213-275-0	01	1	9811-0012	●
5	16.328 CYLINDER ASM; DOOR LOCK USA	8-97213-282-0	01	1	9811-9910		●
5	16.328 CYLINDER ASM; DOOR LOCK USA	8-97238-958-1	01	1	9911-0012		●
5	16.328 CYLINDER ASM; DOOR LOCK USA	8-97304-391-0	01	1	0101-		●
5	16.328 CYLINDER ASM; DOOR LOCK USA	8-97213-281-0	01	1	9811-9910		●
5	16.328 CYLINDER ASM; DOOR LOCK USA	8-97238-957-1	01	1	9911-0012		●
5	16.328 CYLINDER ASM; DOOR LOCK USA	8-97304-390-0	01	1	0101-		●
11	02.187 KEY; BLANK (B) WO/SWITCH USA	8-97201-564-0	AR	1	9811-0012	●	●
11	02.187 KEY; BLANK (B) WO/SWITCH USA	8-97201-566-0	AR	1	0101-		●
11	02.187 KEY; BLANK (A) W/SWITCH USA	8-97201-565-0	AR	1	9811-9910		●
11	02.187 KEY; BLANK (A) W/SWITCH USA	8-97238-295-1	AR	1	9911-0012		●
15	16.650 CYLINDER ASM; W/KEY,TAIL GATE LO USA	8-97213-278-0	01	1	9811-0012	●
15	16.650 CYLINDER ASM; W/KEY,TAIL GATE LO USA	8-97213-283-0	01	1	9811-9906		●
15	16.650 CYLINDER ASM; W/KEY,TAIL GATE LO USA	8-97227-516-0	01	1	9907-9910		●
15	16.650 CYLINDER ASM; W/KEY,TAIL GATE LO USA	8-97238-959-1	01	1	9911-0012		●
15	16.650 CYLINDER ASM; W/KEY,TAIL GATE LO USA	8-97304-392-0	01	1	0101-		●
16	16.650 RETAINER; TAIL GATE LOCK CYL USA	8-97131-020-0	01	1	9811-0012	●	●
16	16.650 RETAINER; TAIL GATE LOCK CYL USA	8-97131-020-0	01	1	0101-		●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO USA	8-97213-274-0	01	1	9811-0012	●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO USA	8-97213-280-0	01	1	9811-9906		●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO USA	5-87410-721-0	01	1	9907-9910		●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO USA	5-87410-717-1	01	1	9911-0012		●
17	16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO USA	5-87410-775-0	01	1	0101-		●
20	16.328 SNAP; DOOR LOCK CYL (D) USA	8-97179-563-0	01	1	9811-0012	●
20	16.328 SNAP; DOOR LOCK CYL (A) USA	8-97179-551-0	01	1	9811-0012	●	●
20	16.328 SNAP; DOOR LOCK CYL (A) USA	8-97179-551-0	01	1	0101-		●
20	16.328 SNAP; DOOR LOCK CYL (B) USA	8-97179-552-0	01	1	9811-0012	●	●
20	16.328 SNAP; DOOR LOCK CYL (B) USA	8-97179-552-0	01	1	0101-		●
20	16.328 SNAP; DOOR LOCK CYL (C) USA	8-97179-562-0	01	1	9811-0012	●	●
20	16.328 SNAP; DOOR LOCK CYL (C) USA	8-97179-562-0	01	1	0101-		●
20	16.328 SNAP; DOOR LOCK CYL (D) USA	8-97179-564-0	01	1	9811-		●
26	16.328 BOLT; KEY CYL,DOOR M6X8 FLANGE	8-97175-668-0	02	1	9811-0012	●	●
26	16.328 BOLT; KEY CYL,DOOR M6X8 FLANGE	8-97175-668-0	02	1	0101-		●
31	16.335 GASKET; TAIL GATE LOCK CYL USA	8-97179-561-0	01	1	9811-0012	●	●
31	16.335 GASKET; TAIL GATE LOCK CYL USA	8-97179-561-0	01	1	0101-		●
