◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#32662) — 12 parça

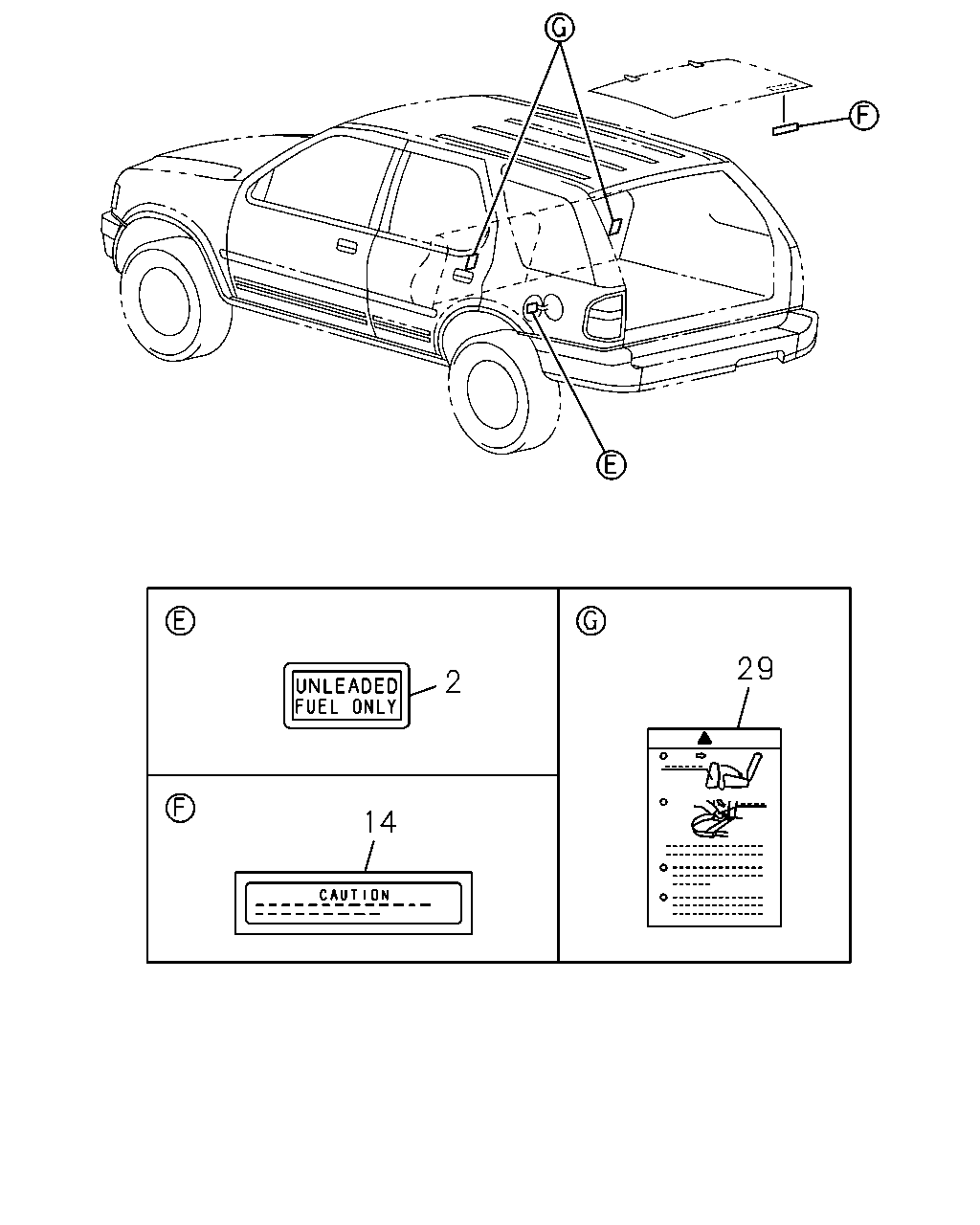

çizim 5219
29 2 14
BalonParca AdiParca NoAdetTipApplied Date A B
2 03.680 LABEL; FUEL CAUTION
USA 		8-14107-916-0 01 1 9811-0012 ● ●
2 03.680 LABEL; FUEL CAUTION
USA 		8-14107-916-0 01 1 0101- ●
14 17.204 LABEL; CAUTION,TAIL GATE 8-97136-203-0 01 1 9811- ●
29 08.808 PLATE; CAUTION,RR CUSHION
USA 		8-97185-136-1 02 1 9811- ●
çizim 36316
5 49
BalonParca AdiParca NoAdetTipApplied Date A B
5 05.880 LABEL; TIRE AIR PRESSURE 8-97184-675-0 01 1 9811-0012 ● ●
5 05.880 LABEL; TIRE AIR PRESSURE 8-97184-675-0 01 1 0101-0108 ●
5 05.880 LABEL; TIRE AIR PRESSURE 8-97301-086-0 01 1 0109- ●
49 08.808 PLATE; CAUTION,FUSE BOX
USA 		8-97183-425-0 01 1 9811-0012 ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
USA 		8-97246-770-0 01 1 0101- ●

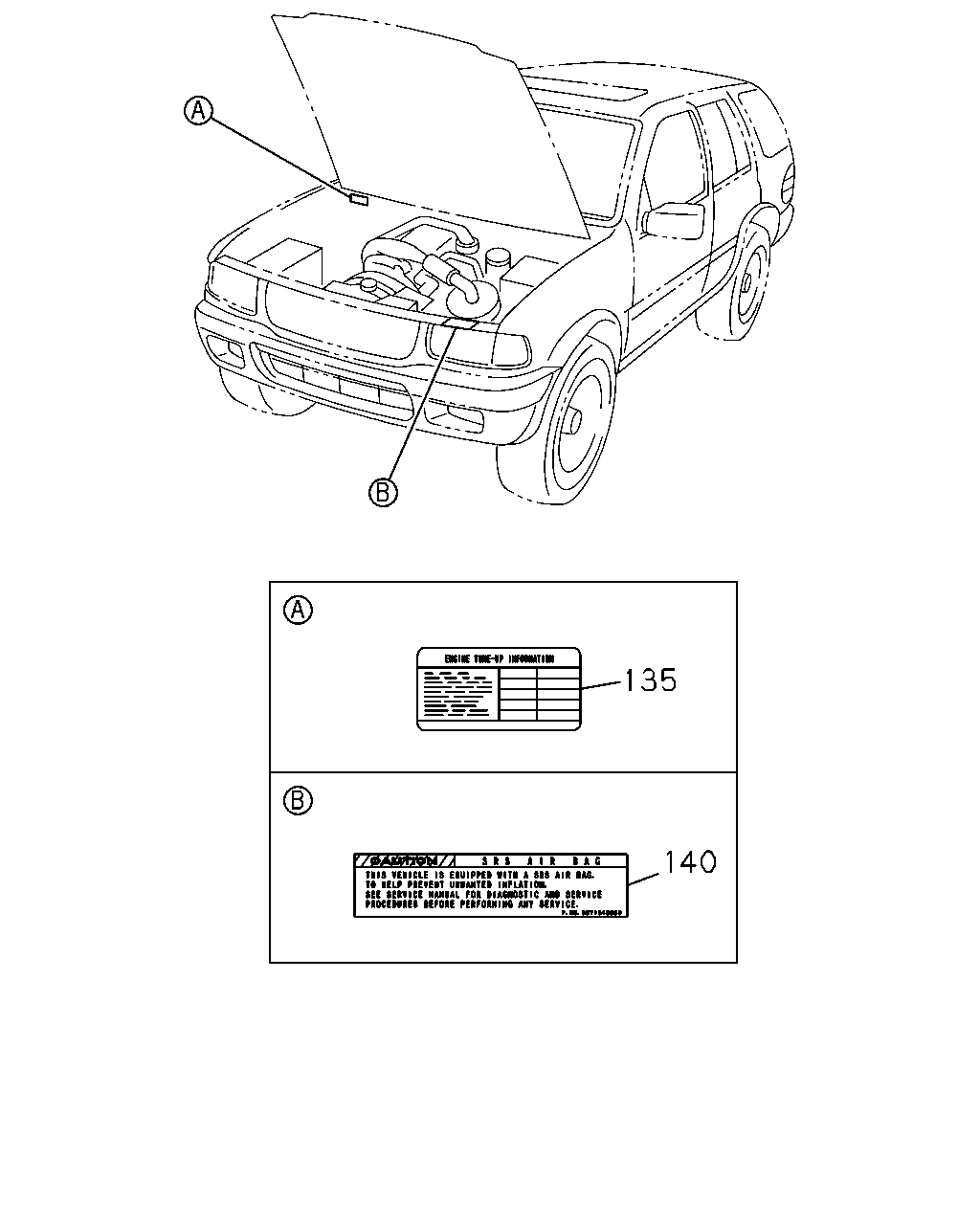

çizim 36995
135 140
BalonParca AdiParca NoAdetTipApplied Date A B
135 08.808 PLATE; CAUTION,ENGINE 8-97184-480-0 01 1 9811- ●
140 08.808 PLATE; CAUTION,SRS 8-97134-568-0 01 1 9811-0012 ● ●
140 08.808 PLATE; CAUTION,SRS 8-97134-568-0 01 1 0101- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
