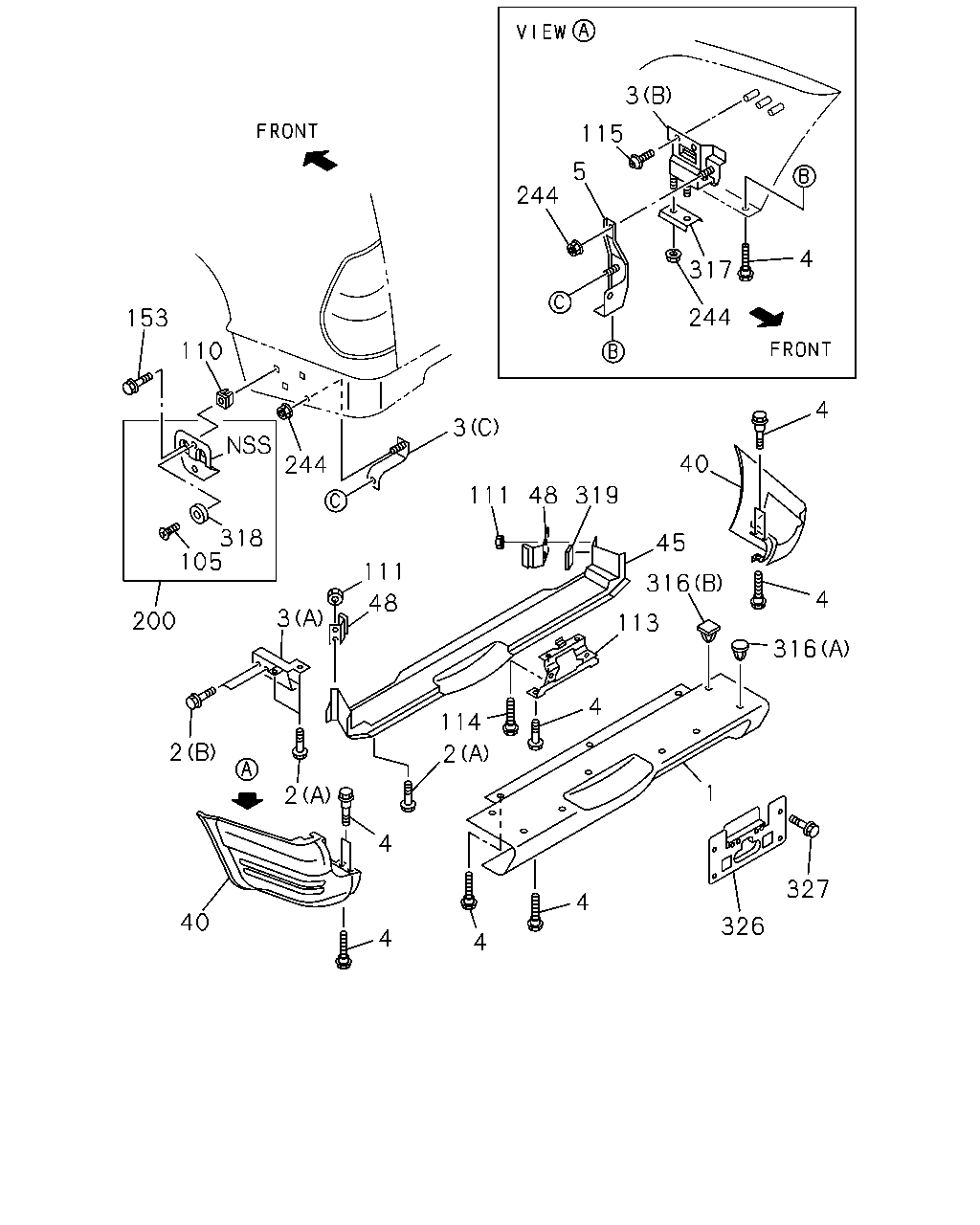

6-90 — REAR BUMPER (#32660) — 79 parça

3 115 5 244 4 317 244 153 110 4 3 40 244 48 319 111 318 105 45 111 316 4 48 3 200 113 316 4 114 2 2 1 2 4 327 4 40 326 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.070 BUMPER; RR USA	8-97188-515-1	01	1	9811-0003	●
1	07.070 BUMPER; RR EXC. COLOR KEYED BUMPER<S4H> USA	8-97188-515-1	01	1	9811-0003		●
1	07.070 BUMPER; RR USA	8-97235-575-0	01	1	0004-0012	●
1	07.070 BUMPER; RR EXC. COLOR KEYED BUMPER<S4H> USA	8-97235-575-0	01	1	0004-0012		●
1	07.070 BUMPER; RR EXC. COLOR KEYED BUMPER<S4H> USA	8-97235-575-0	01	1	0101-		●
1	07.070 BUMPER; RR COLOR KEYED BUMPER<S4H> PRIMER USA	8-97207-075-0	01	1	9811-0003		●
1	07.070 BUMPER; RR COLOR KEYED BUMPER<S4H> PRIMER USA	8-97225-010-1	01	1	0004-		●
2	07.874 BOLT; BACK BAR 02.664 (A) M8X20 FLANGE USA	0-28680-820-0	06	1	9811-0012	●	●
2	07.874 BOLT; BACK BAR 02.664 (A) M8X20 FLANGE USA	0-28680-820-0	06	1	0101-		●
2	07.874 BOLT; BACK BAR (B) M12X30 FLANGE USA	8-97161-815-0	04	1	9811-0012	●	●
2	07.874 BOLT; BACK BAR (B) M12X30 FLANGE USA	8-97161-815-1	04	1	0101-		●
3	07.875 BRACKET; BUMPER (C) USA	8-97139-527-0	02	1	9811-0012	●	●
3	07.875 BRACKET; BUMPER (C) USA	8-97139-527-0	02	1	0101-		●
3	07.875 BRACKET; BUMPER (A) USA	8-97125-802-5	01	1	9811-0012	●	●
3	07.875 BRACKET; BUMPER (A) USA	8-97125-802-5	01	1	0101-		●
3	07.875 BRACKET; BUMPER (B) USA	8-97125-810-1	01	1	9811-0012	●	●
3	07.875 BRACKET; BUMPER (B) USA	8-97125-810-1	01	1	0101-		●
3	07.875 BRACKET; BUMPER (A) USA	8-97125-801-5	01	1	9811-0012	●	●
3	07.875 BRACKET; BUMPER (A) USA	8-97125-801-5	01	1	0101-		●
3	07.875 BRACKET; BUMPER (B) USA	8-97125-809-1	01	1	9811-0012	●	●
3	07.875 BRACKET; BUMPER (B) USA	8-97125-809-1	01	1	0101-		●
4	07.070 BOLT; BUMPER 07.875 M6X16 FLANGE	8-97804-671-1	16	1	9811-0012	●	●
4	07.070 BOLT; BUMPER 07.875 M6X16 FLANGE	8-97804-671-1	08	1	0101-		●
4	07.070 BOLT; BUMPER 07.875 M6X16 FLANGE	8-97804-671-1	08	1	0101-		●
5	07.829 SUPPORT; RR BUMPER	8-97139-418-1	01	1	9811-0012	●
5	07.829 SUPPORT; RR BUMPER	8-97139-417-1	01	1	9811-0012	●
5	07.829 SUPPORT; RR BUMPER USA	8-97139-416-1	01	1	9811-		●
5	07.829 SUPPORT; RR BUMPER USA	8-97139-415-1	01	1	9811-		●
40	07.831 BUMPER; RR SIDE USA	8-97143-320-4	01	1	9811-0003	●
40	07.831 BUMPER; RR SIDE USA	8-97235-826-0	01	1	0004-0012	●
40	07.831 BUMPER; RR SIDE USA	8-97143-319-4	01	1	9811-0003	●
40	07.831 BUMPER; RR SIDE USA	8-97235-825-0	01	1	0004-0012	●
40	07.831 BUMPER; RR SIDE PRIMER USA	8-97221-630-2	01	1	0101-		●
40	07.831 BUMPER; RR SIDE PRIMER USA	8-97221-629-2	01	1	0101-		●
40	07.831 BUMPER; RR SIDE COLOR KEYED BUMPER<S4H> PRIMER USA	8-97179-709-0	01	1	9811-0003		●
40	07.831 BUMPER; RR SIDE COLOR KEYED BUMPER<S4H> PRIMER USA	8-97179-693-0	01	1	9811-0003		●
40	07.831 BUMPER; RR SIDE COLOR KEYED BUMPER<S4H> PRIMER USA	8-97221-629-2	01	1	0004-0012		●
40	07.831 BUMPER; RR SIDE COLOR KEYED BUMPER<S4H> PRIMER USA	8-97221-630-2	01	1	0004-0012		●
40	07.831 BUMPER; RR SIDE EXC. COLOR KEYED BUMPER<S4H> USA	8-97138-420-4	01	1	9811-0003		●
40	07.831 BUMPER; RR SIDE EXC. COLOR KEYED BUMPER<S4H> USA	8-97235-742-0	01	1	0004-0012		●
40	07.831 BUMPER; RR SIDE EXC. COLOR KEYED BUMPER<S4H> USA	8-97138-419-4	01	1	9811-0003		●
40	07.831 BUMPER; RR SIDE EXC. COLOR KEYED BUMPER<S4H> USA	8-97235-741-0	01	1	0004-0012		●
45	07.831 REINFORCEMENT; RR BUMPER USA	8-97138-822-4	01	1	9811-0012	●	●
45	07.831 REINFORCEMENT; RR BUMPER USA	8-97138-822-5	01	1	0101-		●
48	07.875 RETAINER; BUMPER RR SIDE USA	8-97141-779-0	02	1	9811-0012	●	●
48	07.875 RETAINER; BUMPER RR SIDE USA	8-97141-779-0	02	1	0101-		●
105	07.832 SCREW; SLIDER M6X18	8-97805-235-0	02	1	9811-0012	●	●
105	07.832 SCREW; SLIDER M6X18	8-97805-235-0	02	1	0101-		●
110	07.832 GROMMET; BUMPER 09.190 D=9.7X9.7 L=8 THA	8-94222-314-0	06	1	9811-0012	●	●
110	07.832 GROMMET; BUMPER 09.190 D=9.7X9.7 L=8 THA	8-94222-314-0	06	1	0101-		●
111	02.662 NUT; FLANGE 04.594 M6 FLANGE	0-91150-106-0	04	1	9811-0012	●	●
111	02.662 NUT; FLANGE 04.594 M6 FLANGE	0-91150-106-0	04	1	0101-		●
113	07.800 BRACKET; LICENSE PLATE USA	8-97125-807-2	01	1	9811-0012	●	●
113	07.800 BRACKET; LICENSE PLATE USA	8-97125-807-2	01	1	0101-		●
114	07.800 BOLT; BRKT,LICENSE PLATE 02.664 M8X20 FLANGE USA	0-28680-820-0	02	1	0101-		●
115	07.800 SCREW; BRKT 16.081 M4X16 TAPPING W/PL WASHER	0-74300-416-0	04	1	9811-0012	●	●
115	07.800 SCREW; BRKT 16.081 M4X16 TAPPING W/PL WASHER	0-74300-416-0	04	1	0101-		●
153	07.800 BOLT; BRKT 16.085 M6X16	8-94493-405-0	06	1	9811-0012	●	●
153	07.800 BOLT; BRKT 16.085 M6X16	8-94493-405-0	06	1	0101-		●
200	07.829 SLIDER; RR	8-97148-451-0	01	1	9811-0012	●	●
200	07.829 SLIDER; RR	8-97148-451-0	01	1	0101-		●
200	07.829 SLIDER; RR	8-97148-450-0	01	1	9811-0012	●	●
200	07.829 SLIDER; RR	8-97148-450-0	01	1	0101-		●
244	07.070 NUT; BUMPER RR 04.594 M6 FLANGE	0-91150-106-0	10	1	9811-0012	●	●
244	07.070 NUT; BUMPER RR 04.594 M6 FLANGE	0-91150-106-0	10	1	0101-		●
316	08.228 FASTENER; STEP (A) USA	8-97125-839-2	06	1	9811-0012	●	●
316	08.228 FASTENER; STEP (A) USA	8-97125-839-2	06	1	0101-		●
316	08.228 FASTENER; STEP (B) USA	8-97142-091-2	02	1	9811-0012	●	●
316	08.228 FASTENER; STEP (B) USA	8-97142-091-2	02	1	0101-		●
317	07.800 PLATE; BUMPER SIDE USA	8-97143-287-0	02	1	9811-0012	●	●
317	07.800 PLATE; BUMPER SIDE USA	8-97143-287-0	02	1	0101-		●
318	07.829 SLIDER; RR BUMPER 07.832	8-97805-152-2	02	1	9811-0012	●	●
318	07.829 SLIDER; RR BUMPER 07.832	8-97805-152-2	02	1	0101-		●
319	07.828 PAD; SIDE,RR BUMPER USA	8-97172-510-1	01	1	9811-0012	●	●
319	07.828 PAD; SIDE,RR BUMPER USA	8-97172-510-1	01	1	0101-		●
326	07.800 EXTENSION; LICENSE PLATE	8-97190-878-2	01	1	9811-0012	●	●
326	07.800 EXTENSION; LICENSE PLATE	8-97190-878-2	01	1	0101-		●
327	07.800 BOLT; EXTENSION 04.439 M6X16 FLANGE USA	0-28680-616-0	02	1	9811-0012	●	●
327	07.800 BOLT; EXTENSION 04.439 M6X16 FLANGE USA	0-28680-616-0	02	1	0101-		●
