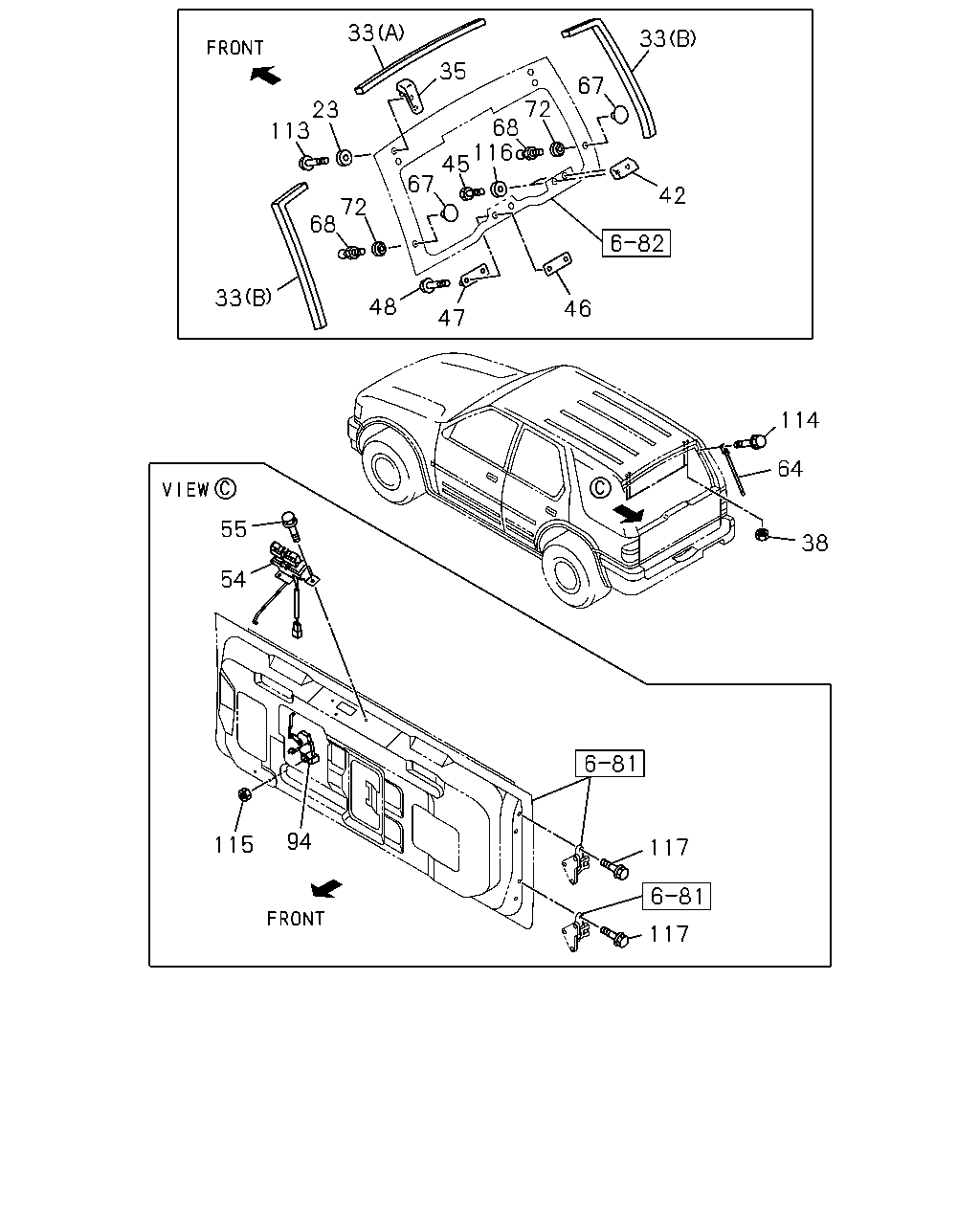

6-88 — HARD COVER AND TARPAULIN (#32659) — 88 parça

33 33 35 72 68 45 67 67 23 113 42 72 68 33 48 46 47 114 64 55 38 54 94 115 117 117 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	17.208 PATCH; HINGE,HATCH GATE USA	8-97125-000-0	04	1	9811-	●
33	17.204 SEAL; HATCH GATE (C) USA	8-97146-747-2	01	1	9811-0012		●
33	17.204 SEAL; HATCH GATE (A) USA	8-97124-151-2	01	1	9811-	●
33	17.204 SEAL; HATCH GATE (B) USA	8-97147-977-3	01	1	9811-0003	●
33	17.204 SEAL; HATCH GATE (B) USA	8-97222-128-0	01	1	0004-	●
33	17.204 SEAL; HATCH GATE (B) USA	8-97147-976-3	01	1	9811-0003	●
33	17.204 SEAL; HATCH GATE (B) USA	8-97222-127-0	01	1	0004-	●
35	17.208 HINGE; TONNEAU COVER USA	8-97125-494-7	01	1	9811-	●
35	17.208 HINGE; TONNEAU COVER USA	8-97125-493-7	01	1	9811-	●
38	17.208 NUT; HINGE 10.710 M6 FLANGE	8-94253-333-0	04	1	9811-	●
42	17.204 GRIP; HATCH GATE HANDLE USA	8-97180-049-0	01	1	9811-	●
45	17.208 SCREW; HANDLE 16.173 M6X12 W/LK&PL WASHER USA	8-94279-329-0	02	1	9811-	●
46	17.198 FASTENER; STRIKER	8-94198-964-1	01	1	9811-	●
47	17.198 STRIKER; TONNEAU COVER USA	8-97166-568-0	01	1	9811-	●
48	17.215 SCREW; STRIKER 16.173 M6X12 W/LK&PL WASHER USA	8-94279-329-0	02	1	9811-	●
54	17.215 LOCK ASM; TONNEAU COVER USA	8-97124-135-4	01	1	9811-0008	●
54	17.215 LOCK ASM; TONNEAU COVER USA	8-97289-653-0	01	1	0009-0012	●
54	17.215 LOCK ASM; TONNEAU COVER USA	8-97289-653-0	01	1	0101-	●
55	17.215 BOLT; TONNEAU COVER LOCK 06.635 M6X16 FLANGE	0-28480-616-0	03	1	9811-	●
64	17.198 STAY ASM; GAS,HATCH GATE USA	8-97137-770-1	01	1	9811-0012		●
64	17.198 STAY ASM; GAS,HATCH GATE USA	8-97130-418-1	01	1	9811-0012		●
64	17.198 STAY ASM; GAS,HATCH GATE USA	8-97124-871-3	01	1	9811-	●
64	17.198 STAY ASM; GAS,HATCH GATE USA	8-97124-131-3	01	1	9811-	●
67	17.198 FASTENER; GAS STAY	8-94198-640-1	02	1	9811-	●
68	17.198 STUD; BALL,GAS STAY 12.187	8-94243-335-0	02	1	9811-	●
72	16.588 SPACER; BALL STUD	8-97164-710-0	02	1	9811-9811	●
72	16.588 SPACER; BALL STUD	8-97218-954-0	02	1	9812-0003	●
72	16.588 SPACER; BALL STUD	8-97222-129-0	02	1	0004-	●
94	17.198 ACTUATOR; HATCH GATE USA	8-97130-423-4	01	1	9811-0012		●
94	17.198 ACTUATOR; HATCH GATE USA	8-97124-134-4	01	1	9811-0012	●
94	17.198 ACTUATOR; HATCH GATE USA	8-97124-134-4	01	1	0101-	●
113	17.208 SCREW; HINGE 16.173 M6X12 W/LK&PL WASHER USA	8-94279-329-0	04	1	9811-0008	●
113	17.208 SCREW; HINGE M6X18 W/PL WASHER USA	8-97289-644-0	04	1	0009-	●
114	17.198 BOLT; STAY 08.080 M6X16 FLANGE	8-97803-298-0	04	1	9811-	●
115	17.198 NUT; ACTUATOR 07.833 M6 FLANGE	8-97063-399-0	02	1	9811-0012	●	●
115	17.198 NUT; ACTUATOR 07.833 M6 FLANGE	8-97063-399-0	02	1	0101-	●
116	17.208 PATCH; GLASS HANDLE USA	8-97125-000-0	02	1	9811-	●
117	16.588 BOLT; HINGE,TAIL GATE 16.165 M8X30 USA	8-97035-384-0	04	1	9811-0012	●	●
117	16.588 BOLT; HINGE,TAIL GATE 16.165 M8X30 USA	8-97035-384-0	04	1	0101-	●

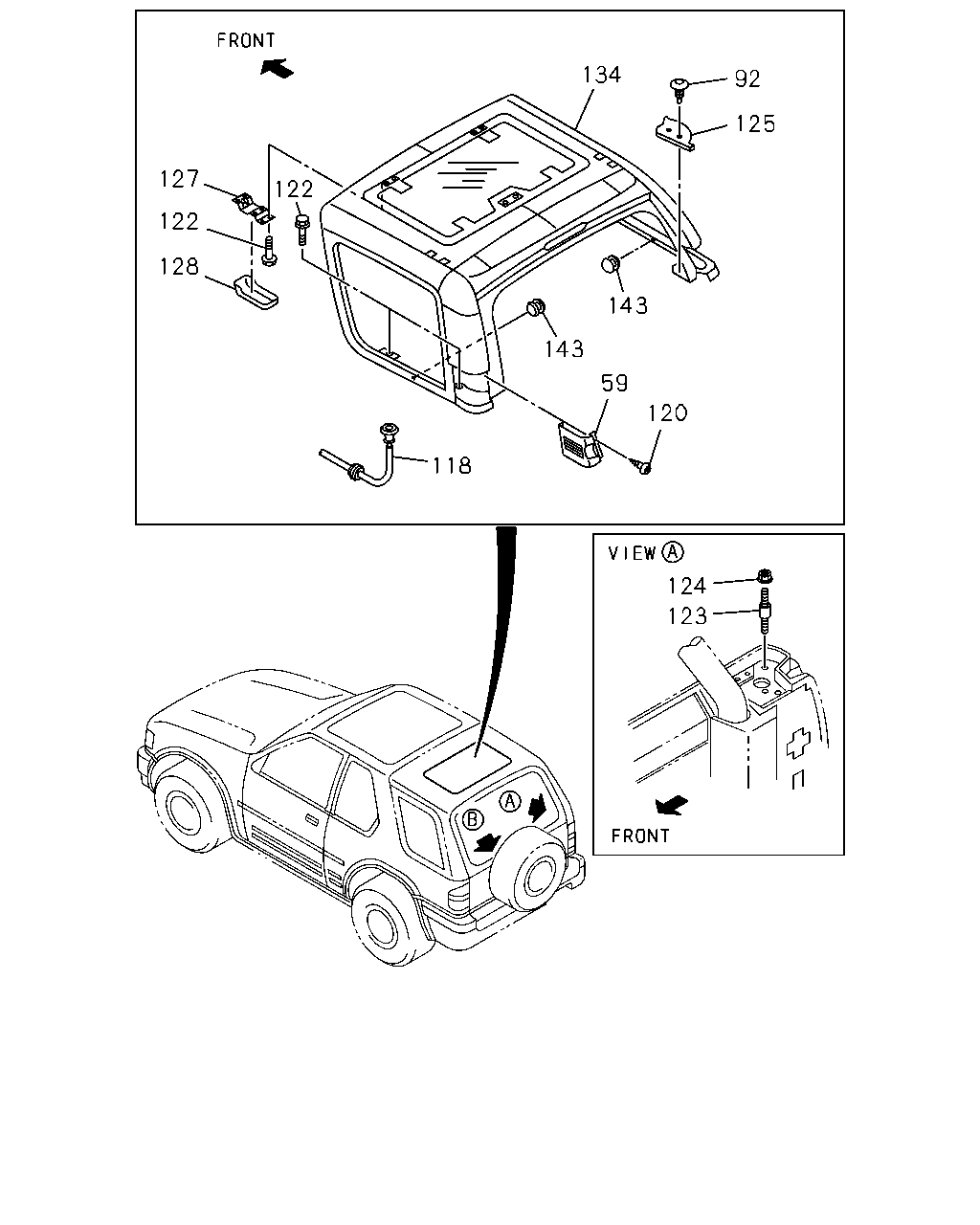

134 92 125 122 127 122 128 143 143 59 120 118 124 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
59	16.585 GRILLE; AIR OUTLET USA	8-97216-174-0	01	1	9811-0012	●
59	16.585 GRILLE; AIR OUTLET USA	8-97216-173-0	01	1	9811-0012	●
92	17.204 CLIP; COVER GRAY	8-97159-917-0	04	1	9811-0012	●
118	16.585 HOSE; RR PILLAR USA	8-97143-040-0	01	1	9811-0012	●
118	16.585 HOSE; RR PILLAR USA	8-97143-041-2	01	1	9811-0012	●
120	17.204 SCREW; GRILLE,AIR OUTLET 11.010 M5X20	9-03810-520-0	04	1	9811-0012	●
122	16.586 BOLT; CANOPY 03.670 M8X23 FLANGE USA	8-94103-629-2	12	1	9811-0012	●
123	16.585 ROD; CANOPY M8X12 L=25	0-49740-825-0	02	1	9811-0012	●
124	16.586 NUT; CANOPY 01.540 M8 FLANGE	0-91150-208-0	02	1	9811-0012	●
125	16.585 COVER; CANOPY GRAY USA	8-97159-916-3	01	1	9811-0012	●
125	16.585 COVER; CANOPY GRAY USA	8-97159-915-3	01	1	9811-0012	●
127	16.585 BRACKET; FRONT BODY USA	8-97137-291-1	01	1	9811-0012	●
127	16.585 BRACKET; FRONT BODY USA	8-97137-290-1	01	1	9811-0012	●
128	16.585 COVER; ROOF TRIM LIGHT GRAY USA	8-97159-259-3	02	1	9811-0012	●
134	16.585 SHELL ASM; CANOPY LIGHT GRAY USA	8-97199-736-1	01	1	9811-0012	●
143	17.208 GROMMET; PLUG HOLE	8-97201-568-0	02	1	9811-0012	●

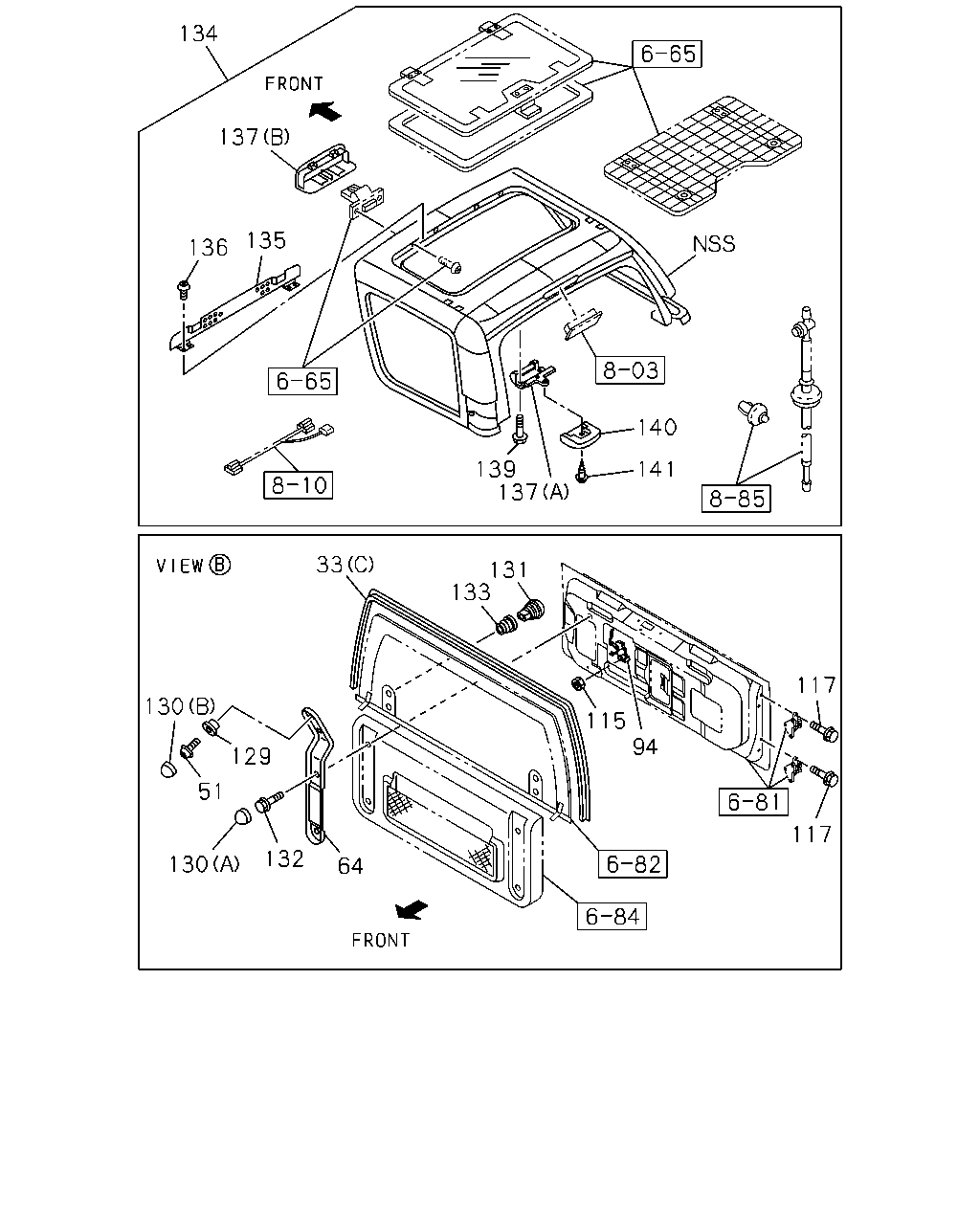

134 137 135 136 140 139 137 141 33 131 133 117 130 115 94 129 51 117 132 130 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	17.204 SEAL; HATCH GATE (C) USA	8-97146-747-2	01	1	9811-0012		●
33	17.204 SEAL; HATCH GATE (A) USA	8-97124-151-2	01	1	9811-	●
33	17.204 SEAL; HATCH GATE (B) USA	8-97147-977-3	01	1	9811-0003	●
33	17.204 SEAL; HATCH GATE (B) USA	8-97222-128-0	01	1	0004-	●
33	17.204 SEAL; HATCH GATE (B) USA	8-97147-976-3	01	1	9811-0003	●
33	17.204 SEAL; HATCH GATE (B) USA	8-97222-127-0	01	1	0004-	●
51	17.204 SCREW; HATCH GATE 03.485 M5X10 W/LK WASHER	9-03910-510-0	04	1	9811-0012		●
64	17.198 STAY ASM; GAS,HATCH GATE USA	8-97137-770-1	01	1	9811-0012		●
64	17.198 STAY ASM; GAS,HATCH GATE USA	8-97130-418-1	01	1	9811-0012		●
64	17.198 STAY ASM; GAS,HATCH GATE USA	8-97124-871-3	01	1	9811-	●
64	17.198 STAY ASM; GAS,HATCH GATE USA	8-97124-131-3	01	1	9811-	●
94	17.198 ACTUATOR; HATCH GATE USA	8-97130-423-4	01	1	9811-0012		●
94	17.198 ACTUATOR; HATCH GATE USA	8-97124-134-4	01	1	9811-0012	●
94	17.198 ACTUATOR; HATCH GATE USA	8-97124-134-4	01	1	0101-	●
115	17.198 NUT; ACTUATOR 07.833 M6 FLANGE	8-97063-399-0	02	1	9811-0012	●	●
115	17.198 NUT; ACTUATOR 07.833 M6 FLANGE	8-97063-399-0	02	1	0101-	●
117	16.588 BOLT; HINGE,TAIL GATE 16.165 M8X30 USA	8-97035-384-0	04	1	9811-0012	●	●
117	16.588 BOLT; HINGE,TAIL GATE 16.165 M8X30 USA	8-97035-384-0	04	1	0101-	●
129	16.585 COLLAR; HATCH GLASS USA	8-90089-797-0	04	1	9811-0012		●
130	16.585 CAP; GLASS STAY (A) USA	8-90196-251-0	04	1	9811-0012		●
130	16.585 CAP; GLASS STAY (B)	8-97189-529-0	04	1	9811-0012		●
131	16.585 NUT USA	8-91142-300-0	04	1	9811-0012		●
132	16.586 BOLT 02.559 M8X25 FLANGE USA	0-28680-825-0	04	1	9811-0003		●
132	16.586 BOLT 08.155 M8X25 FLANGE	0-28480-825-0	04	1	0004-0012		●
133	16.586 GROMMET; HATCH GLASS	8-97180-370-0	04	1	9811-0012		●
134	16.585 SHELL ASM; CANOPY LIGHT GRAY USA	8-97199-736-1	01	1	9811-0012		●
135	16.585 DEFLECTOR; WIND USA	8-97182-074-2	01	1	9811-0012		●
136	16.586 SCREW; DEFLECTOR 16.682 M4X6 USA	8-94186-602-0	04	1	9811-0012		●
137	16.585 GRILLE; CANOPY INNER (A) USA	8-97135-625-2	01	1	9811-0012		●
137	16.585 GRILLE; CANOPY INNER (B) LIGHT GRAY USA	8-97195-894-2	02	1	9811-0012		●
139	16.586 BOLT; BASE PLATE 00.738 M6X16 FLANGE USA	0-28080-616-0	03	1	9811-0012		●
140	16.585 COVER; BASE PLATE 14.575 LIGHT GRAY USA	8-97158-223-2	01	1	9811-0012		●
141	16.586 SCREW; COVER M5X10 CK-HEAD	9-93090-510-0	01	1	9811-0012		●
