◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-86 - TRUNK OPENER AND FUEL LID ▶
6-86 — TRUNK OPENER AND FUEL LID (#32657) — 53 parça

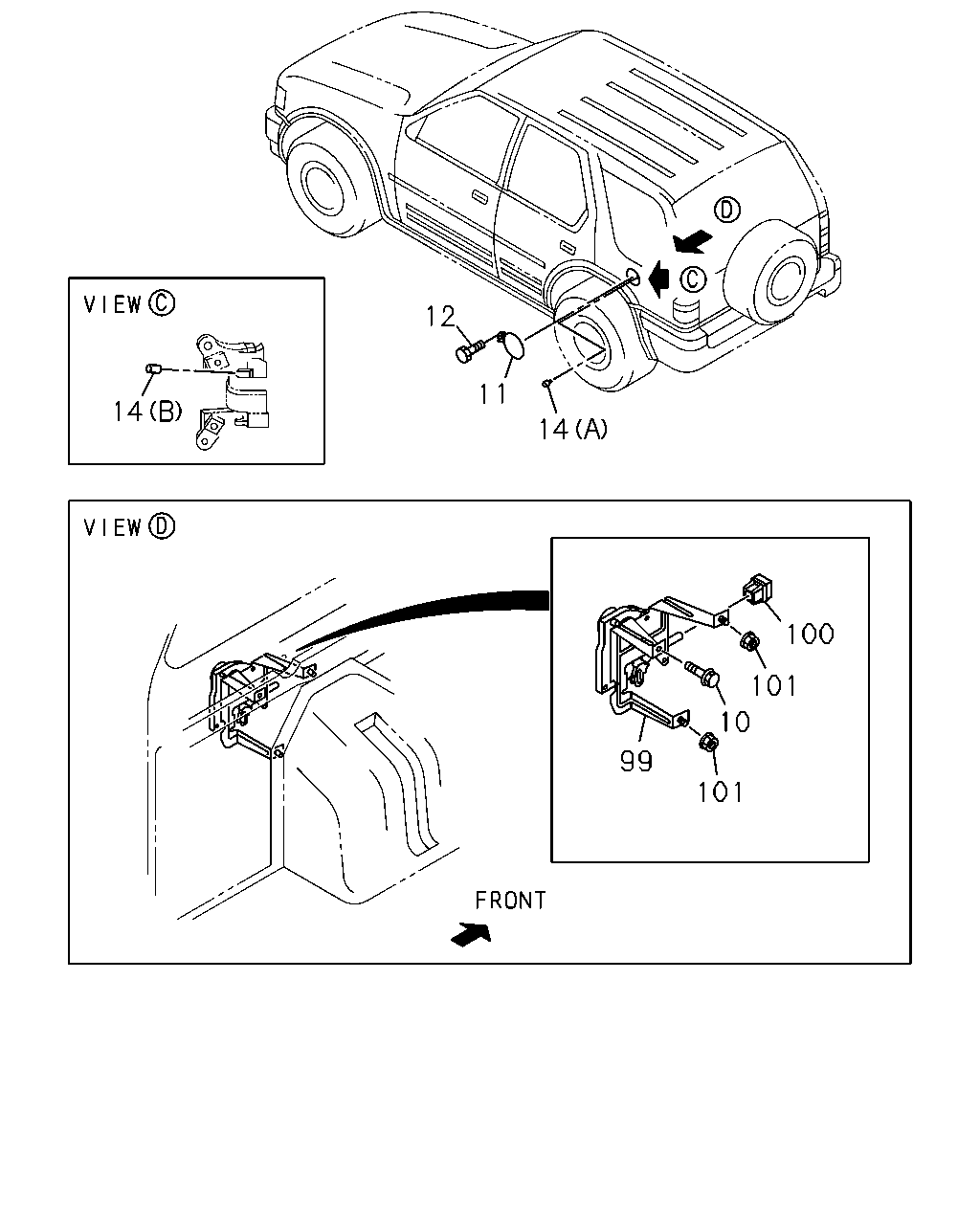

çizim 36315
12 11 14 14 100 101 10 99 101
BalonParca AdiParca NoAdetTipApplied Date A B
10 17.505 BOLT; FUEL FILLER LID
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9811-0012 ●
10 17.505 BOLT; FUEL FILLER LID
02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9811- ●
11 17.505 LID; FUEL
USA 		8-97147-822-1 01 1 9811-0012 ● ●
11 17.505 LID; FUEL
USA 		8-97147-822-1 01 1 0101-0104 ●
11 17.505 LID; FUEL
USA 		8-97314-428-1 01 1 0105- ●
12 17.505 SCREW; FUEL LID
USA 		8-15953-840-0 02 1 9811-0012 ● ●
12 17.505 SCREW; FUEL LID
USA 		8-15953-840-0 02 1 0101- ●
14 17.505 CUSHION; RUBBER,FUEL LID
(A) USA 		8-15521-576-0 02 1 9811-0012 ● ●
14 17.505 CUSHION; RUBBER,FUEL LID
(A) USA 		8-15521-576-0 02 1 0101- ●
14 17.505 CUSHION; RUBBER,FUEL LID
(B) USA 		8-97178-438-0 02 1 9811-0012 ● ●
14 17.505 CUSHION; RUBBER,FUEL LID
(B) USA 		8-97178-438-0 02 1 0101-0201 ●
14 17.505 CUSHION; RUBBER,FUEL LID
(B) USA 		8-97178-438-0 01 1 0202- ●
99 17.505 ACTUATOR; FUEL FILLER DOOR LOCK
USA 		8-97137-757-1 01 1 9811-0012 ●
99 17.505 ACTUATOR; FUEL FILLER DOOR LOCK
USA 		8-97137-756-1 01 1 9811- ●
100 17.505 CAP; FUEL FILLER DOOR LOCK
USA 		8-97137-758-0 01 1 9811-0012 ● ●
100 17.505 CAP; FUEL FILLER DOOR LOCK
USA 		8-97137-758-0 01 1 0101- ●
101 17.505 NUT; FUEL FILLER
04.594 M6 FLANGE 		0-91150-106-0 01 1 9811-0012 ●
101 17.505 NUT; FUEL FILLER
04.594 M6 FLANGE 		0-91150-106-0 02 1 9811- ●

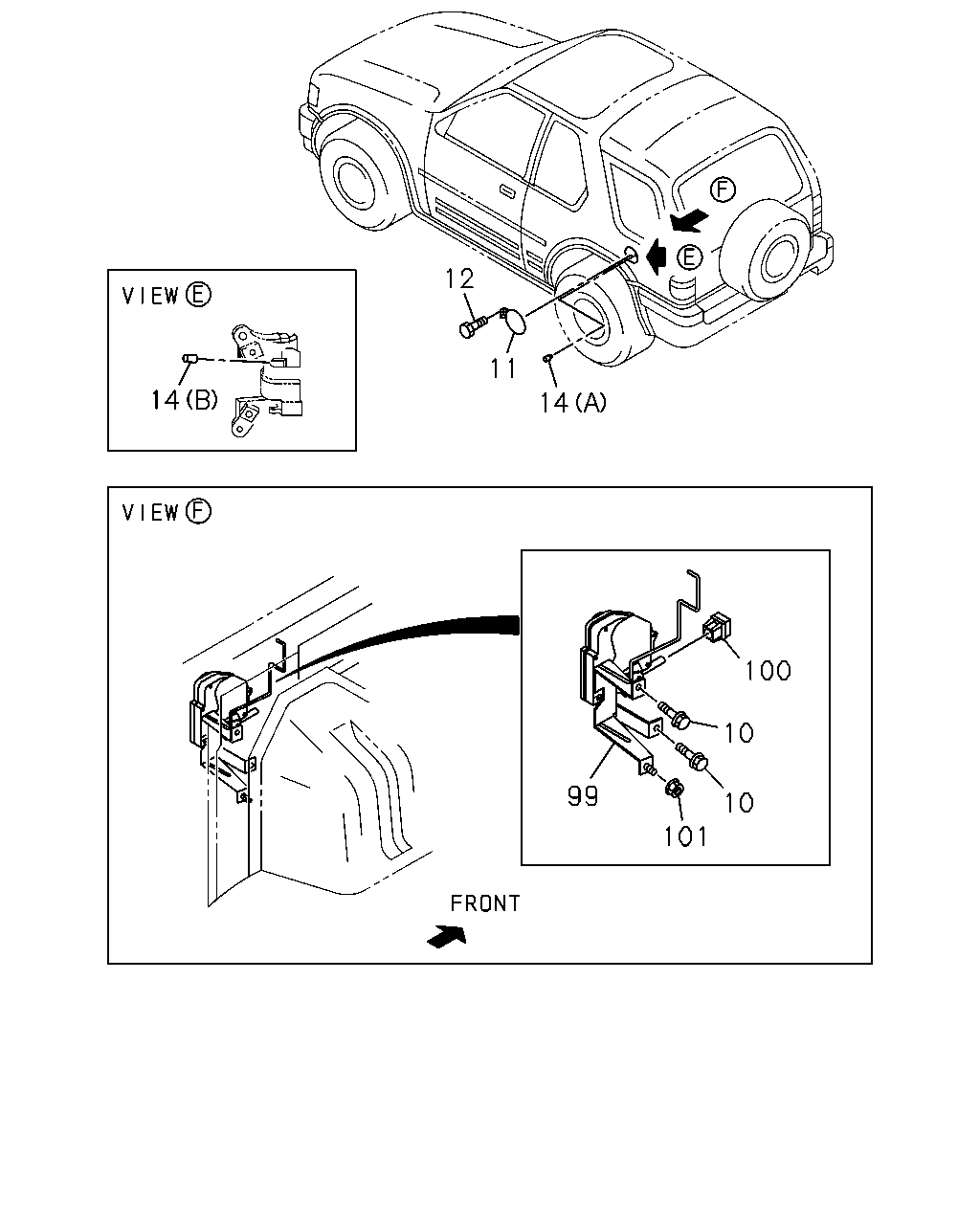

çizim 38259
12 11 14 14 100 10 99 10 101
BalonParca AdiParca NoAdetTipApplied Date A B
10 17.505 BOLT; FUEL FILLER LID
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9811-0012 ●
10 17.505 BOLT; FUEL FILLER LID
02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9811- ●
11 17.505 LID; FUEL
USA 		8-97147-822-1 01 1 9811-0012 ● ●
11 17.505 LID; FUEL
USA 		8-97147-822-1 01 1 0101-0104 ●
11 17.505 LID; FUEL
USA 		8-97314-428-1 01 1 0105- ●
12 17.505 SCREW; FUEL LID
USA 		8-15953-840-0 02 1 9811-0012 ● ●
12 17.505 SCREW; FUEL LID
USA 		8-15953-840-0 02 1 0101- ●
14 17.505 CUSHION; RUBBER,FUEL LID
(A) USA 		8-15521-576-0 02 1 9811-0012 ● ●
14 17.505 CUSHION; RUBBER,FUEL LID
(A) USA 		8-15521-576-0 02 1 0101- ●
14 17.505 CUSHION; RUBBER,FUEL LID
(B) USA 		8-97178-438-0 02 1 9811-0012 ● ●
14 17.505 CUSHION; RUBBER,FUEL LID
(B) USA 		8-97178-438-0 02 1 0101-0201 ●
14 17.505 CUSHION; RUBBER,FUEL LID
(B) USA 		8-97178-438-0 01 1 0202- ●
99 17.505 ACTUATOR; FUEL FILLER DOOR LOCK
USA 		8-97137-757-1 01 1 9811-0012 ●
99 17.505 ACTUATOR; FUEL FILLER DOOR LOCK
USA 		8-97137-756-1 01 1 9811- ●
100 17.505 CAP; FUEL FILLER DOOR LOCK
USA 		8-97137-758-0 01 1 9811-0012 ● ●
100 17.505 CAP; FUEL FILLER DOOR LOCK
USA 		8-97137-758-0 01 1 0101- ●
101 17.505 NUT; FUEL FILLER
04.594 M6 FLANGE 		0-91150-106-0 01 1 9811-0012 ●
101 17.505 NUT; FUEL FILLER
04.594 M6 FLANGE 		0-91150-106-0 02 1 9811- ●

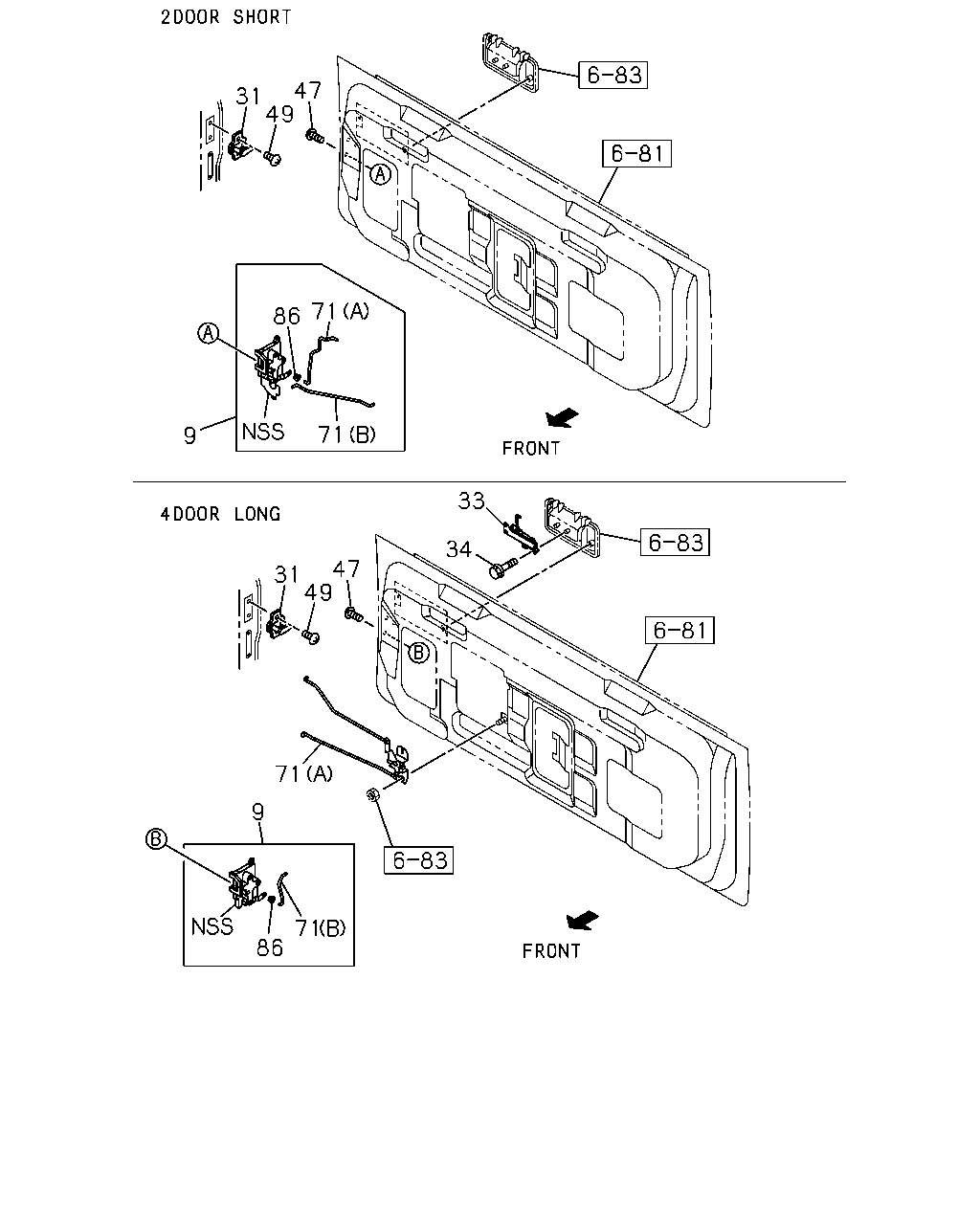

çizim 38288
31 47 49 86 71 71 9 33 34 31 47 49 71 9 71 86
BalonParca AdiParca NoAdetTipApplied Date A B
9 17.198 LOCK; TRUNK LID
USA 		8-97130-519-2 01 1 9811-0012 ●
9 17.198 LOCK; TRUNK LID
USA 		8-97124-126-2 01 1 9811- ●
31 17.198 STRIKER; TAIL GATE
USA 		8-21090-040-0 01 1 9811-0012 ● ●
31 17.198 STRIKER; TAIL GATE
USA 		8-21090-040-0 01 1 0101- ●
33 17.198 CRANK ASM; TAIL GATE LK
USA 		8-97124-837-1 01 1 9811- ●
34 17.198 BOLT; BELL CRANK,DOOR LOCK
10.701 M6X8 		8-94155-893-0 02 1 9811- ●
47 17.185 SCREW; TAIL GATE LK
USA 		8-15685-550-0 03 1 9811-0012 ● ●
47 17.185 SCREW; TAIL GATE LK
USA 		8-15685-550-0 03 1 0101-0102 ●
47 17.185 SCREW; TAIL GATE LK
16.330 USA 		8-97310-734-0 03 1 0103- ●
49 17.208 SCREW; STRIKER TO TAIL GATE
USA 		8-09442-471-0 02 1 9811-0012 ● ●
49 17.208 SCREW; STRIKER TO TAIL GATE
USA 		8-09442-471-0 02 1 0101- ●
71 17.225 LINK; TAIL GATE
(A) USA 		8-16636-039-1 01 1 9811-0012 ●
71 17.225 LINK; TAIL GATE
(B) USA 		8-16636-046-1 01 1 9811-0012 ●
71 17.225 LINK; TAIL GATE
(B) USA 		8-16636-038-1 01 1 9811- ●
71 17.225 LINK; TAIL GATE
(A) USA 		8-97124-132-3 01 1 9811- ●
86 17.198 HOLDER; LINK ROD
USA 		8-16632-180-0 01 1 9811-0012 ● ●
86 17.198 HOLDER; LINK ROD
USA 		8-16632-180-0 01 1 0101- ●
