◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#32656) — 9 parça

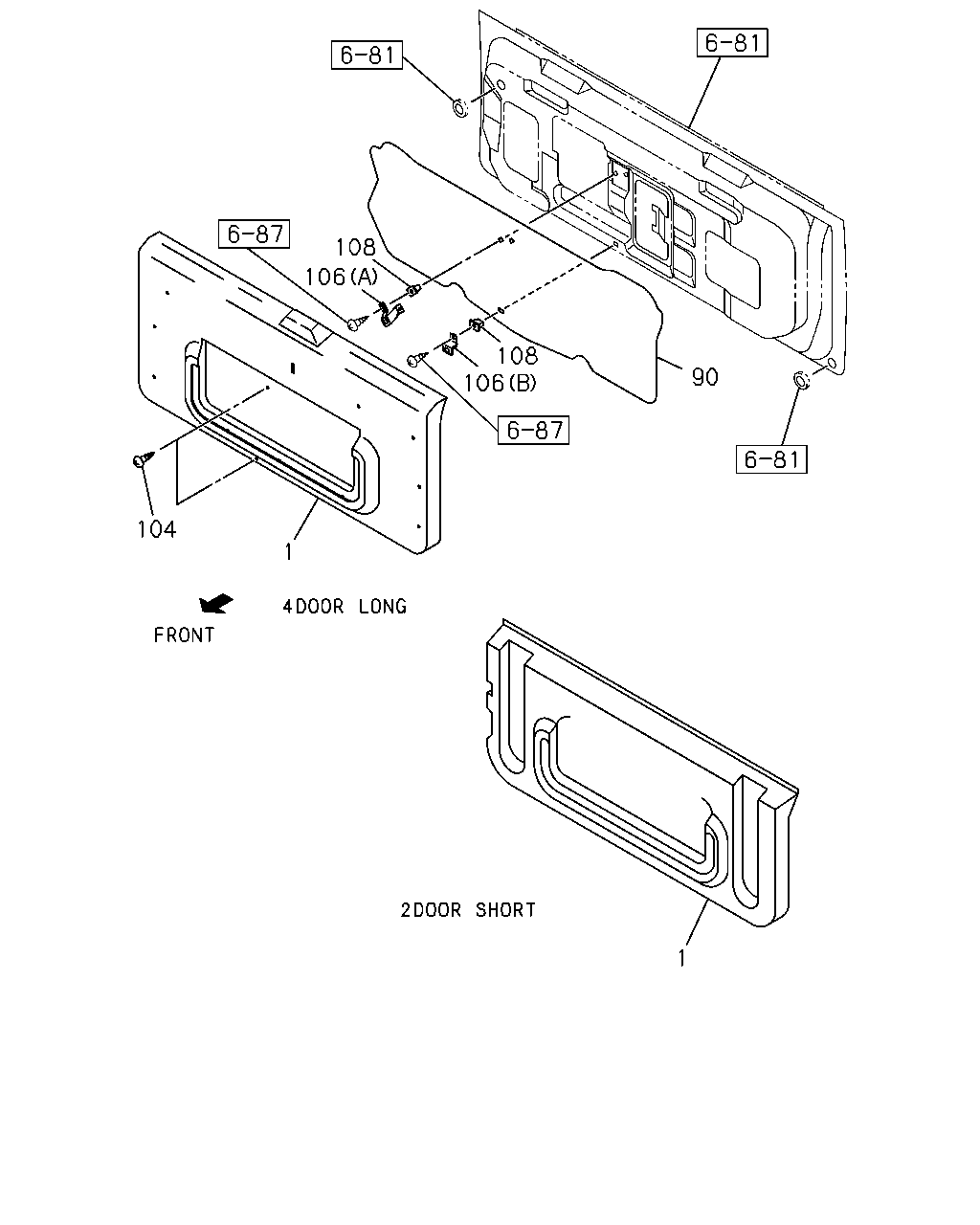

çizim 36314
108 106 108 106 90 104 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.165 PAD; TRIM,BACK DOOR
2DOOR SHORT(UE***C) GRAY USA 		8-97159-946-2 01 1 9811-9904 ● ●
1 16.165 PAD; TRIM,BACK DOOR
2DOOR SHORT(UE***C) GRAY USA 		8-97292-223-0 01 1 9905-0012 ● ●
1 16.165 PAD; TRIM,BACK DOOR
4DOOR LONG(UE***F) GRAY USA 		8-97195-767-2 01 1 9811-0012 ● ●
1 16.165 PAD; TRIM,BACK DOOR
GRAY USA 		8-97195-767-2 01 1 0101- ● ●
90 16.165 SHEET; WATER PROOF,BACK DOOR
17.185 USA 		8-97124-137-0 01 1 9811- ● ●
104 17.225 SCREW; BACK TRIM
16.650 M5X25 		5-09981-093-0 02 1 9811- ● ●
106 17.225 BRACKET; BACK TRIM
(A) UPPER USA 		8-97143-588-0 01 1 9811- ● ●
106 17.225 BRACKET; BACK TRIM
(B) LOWER USA 		8-97143-589-0 01 1 9811- ● ●
108 16.584 GROMMET; SCREW
16.450 		5-09470-001-0 03 1 9811- ● ●
