Isuzu WW
▶
SUV
▶
UES
▶
50807 - UES(AUSTRALIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-83 - BACK DOOR LOCK AND HANDLE
▶

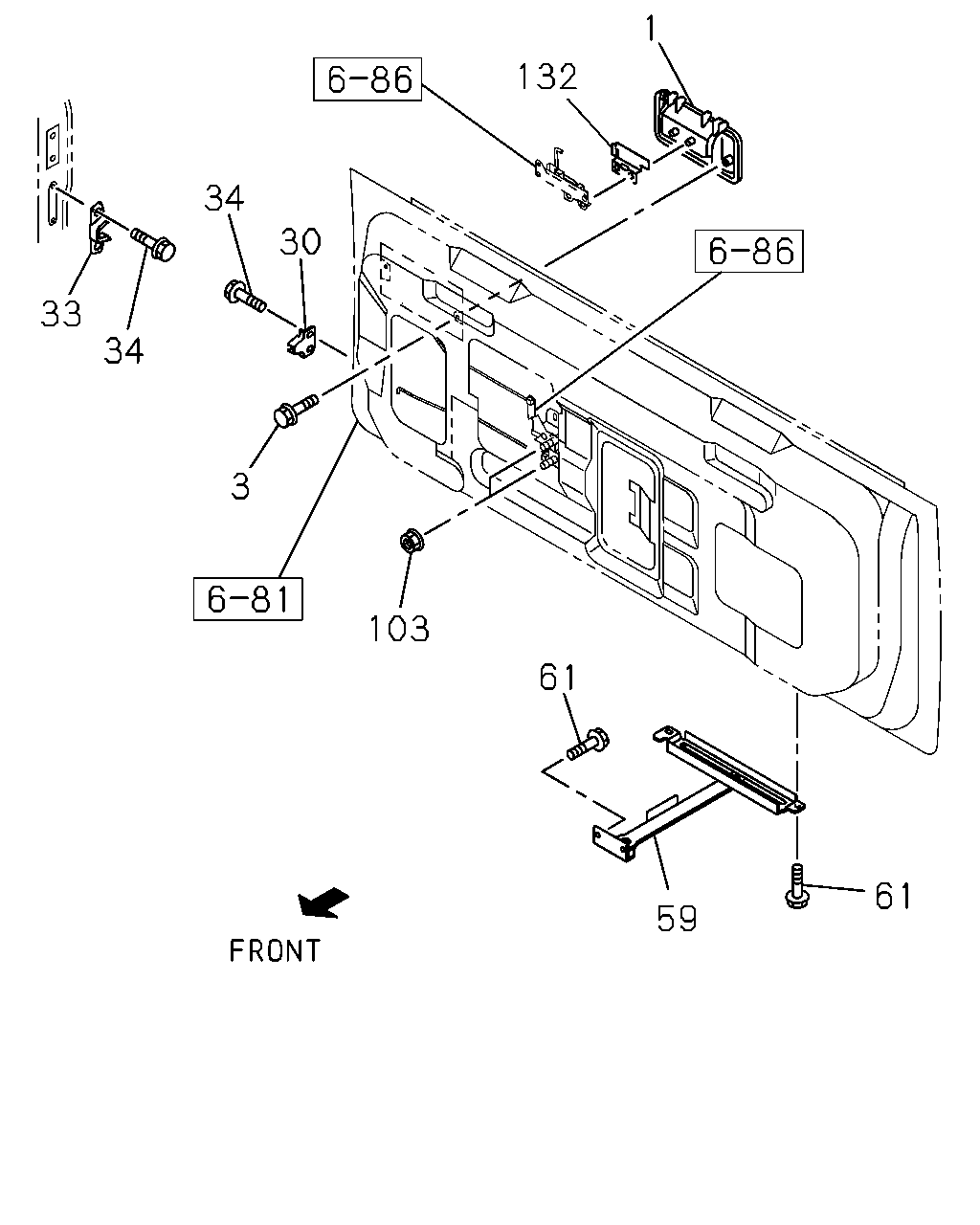

6-83 — BACK DOOR LOCK AND HANDLE
(#32655) — 21 parça
Tümü
A - UES5VC
B - UES5VF
1
132
34
30
33
34
3
103
61
61
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.350 HANDLE; OUTSIDE,BACK DOOR
USA
8-97137-977-1
01
1
9811-0012
●
1
16.350 HANDLE; OUTSIDE,BACK DOOR
EXC. O/S HANDLE BODY COLOR KEYED<7PT> USA
8-97137-977-1
01
1
9811-0012
●
1
16.350 HANDLE; OUTSIDE,BACK DOOR
GRADE LEVEL-1(RBB) USA
8-97137-977-1
01
1
0101-
●
1
16.350 HANDLE; OUTSIDE,BACK DOOR
O/S HANDLE BODY COLOR KEYED<7PT> PRIMER USA
8-97185-529-0
01
1
9811-0012
●
1
16.350 HANDLE; OUTSIDE,BACK DOOR
GRADE LEVEL-2(RBD) PRIMER USA
8-97185-529-0
01
1
0101-
●
3
17.208 BOLT; TAIL GATE HANDLE
10.701 M6X8
8-94155-893-0
02
1
9811-0012
●
●
3
17.208 BOLT; TAIL GATE HANDLE
10.701 M6X8
8-94155-893-0
02
1
0101-
●
30
16.335 DOVETAIL; BACK DOOR
8-97167-936-0
01
1
9811-0003
●
●
30
16.335 DOVETAIL; BACK DOOR
8-97245-728-0
01
1
0004-0012
●
●
30
16.335 DOVETAIL; BACK DOOR
8-97245-728-0
01
1
0101-
●
33
16.335 STRIKER; DOVETAIL
8-97167-807-0
01
1
9811-0012
●
●
33
16.335 STRIKER; DOVETAIL
8-97167-807-0
01
1
0101-
●
34
16.335 BOLT; DOVETAIL TO BACK DOOR
M8X20 FLANGE USA
8-97165-883-0
04
1
9811-0012
●
●
34
16.335 BOLT; DOVETAIL TO BACK DOOR
M8X20 FLANGE USA
8-97165-883-0
04
1
0101-
●
59
16.437 ARM ASM; CHECK,BACK DOOR
USA
8-97143-145-2
01
1
9811-0001
●
●
59
16.437 ARM ASM; CHECK,BACK DOOR
USA
8-97233-796-0
01
1
0002-0012
●
●
59
16.437 ARM ASM; CHECK,BACK DOOR
USA
8-97233-796-0
01
1
0101-
●
61
16.325 BOLT; TAIL GATE STOPPER
16.320 M8X23 FLANGE USA
8-97105-376-0
04
1
9811-0012
●
●
61
16.325 BOLT; TAIL GATE STOPPER
16.320 M8X23 FLANGE USA
8-97105-376-0
04
1
0101-
●
103
16.325 NUT
07.833 M6 FLANGE
8-97063-399-0
02
1
9811-
●
132
16.350 PLATE; HANDLE
8-97170-766-1
01
1
9811-
●
