◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-82 - BACK GLASS AND WEATHERSTRIP ▶
6-82 — BACK GLASS AND WEATHERSTRIP (#32654) — 10 parça

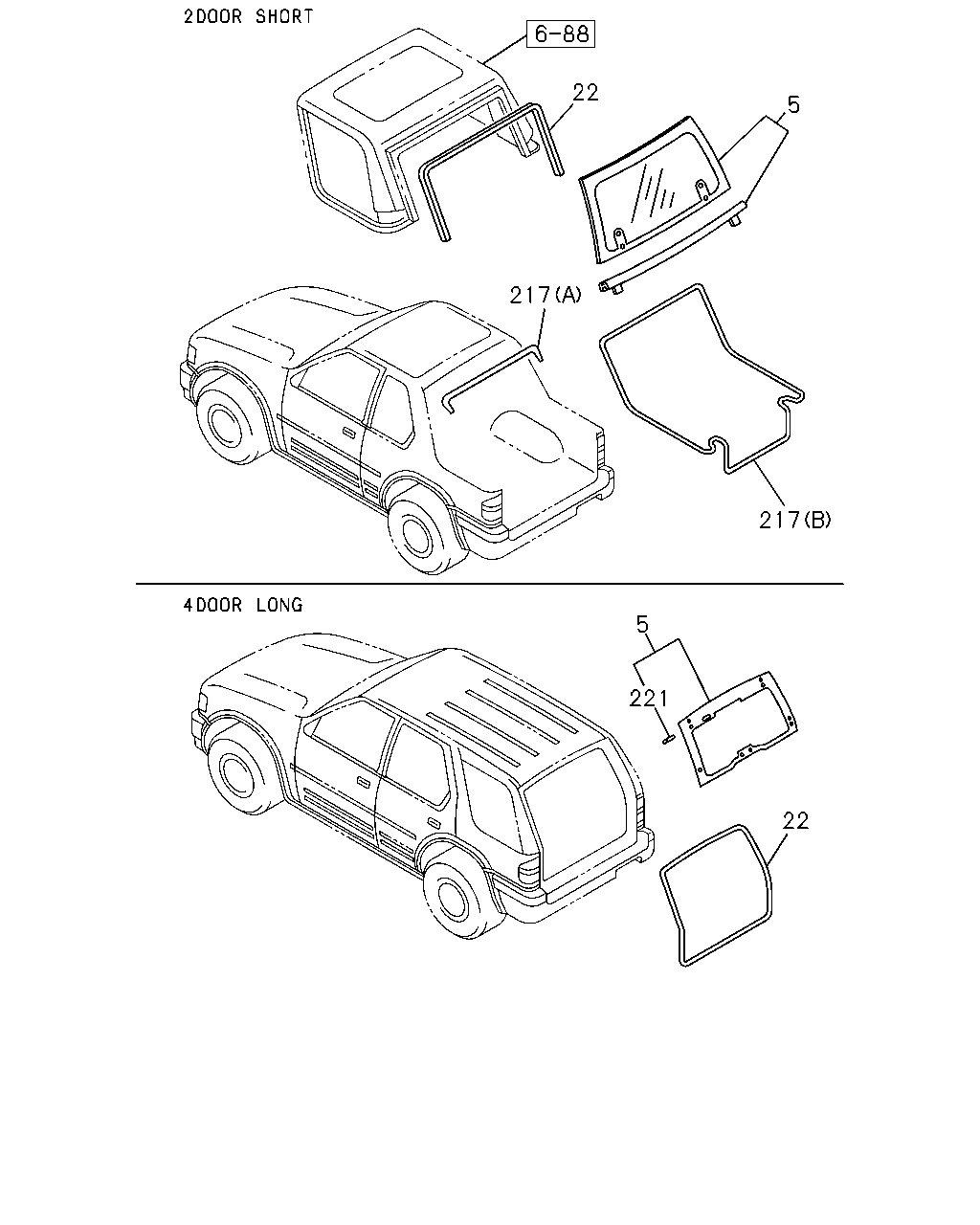

çizim 36333
22 5 217 217 5 221 22
BalonParca AdiParca NoAdetTipApplied Date A B
5 16.464 GLASS; TAIL GATE
USA 		8-97187-613-1 01 1 9811-9901 ●
5 16.464 GLASS; TAIL GATE
USA 		8-97219-233-0 01 1 9902-0012 ●
5 16.464 GLASS; TAIL GATE
USA 		8-97167-485-2 01 1 9811-0012 ●
5 16.464 GLASS; TAIL GATE
USA 		8-97286-926-2 01 1 0101- ●
22 16.227 WEATHERSTRIP; BACK DOOR 8-97144-452-1 01 1 9811-0012 ●
22 16.227 WEATHERSTRIP; BACK DOOR
USA 		8-97124-149-4 01 1 9811- ●
217 16.470 WEATHERSTRIP; CANOPY
(A) USA 		8-97130-414-3 01 1 9811-9905 ●
217 16.470 WEATHERSTRIP; CANOPY
(A) USA 		8-97224-266-0 01 1 9906-0012 ●
217 16.470 WEATHERSTRIP; CANOPY
(B) USA 		8-97130-415-4 01 1 9811-0012 ●
221 16.475 PROTECTOR; HARNESS
USA 		8-97127-270-0 01 1 9811- ●
