6-81 — BACK DOOR AND HINGE
(#32653) — 25 parça
Tümü
A - UES5VC
B - UES5VF
◀

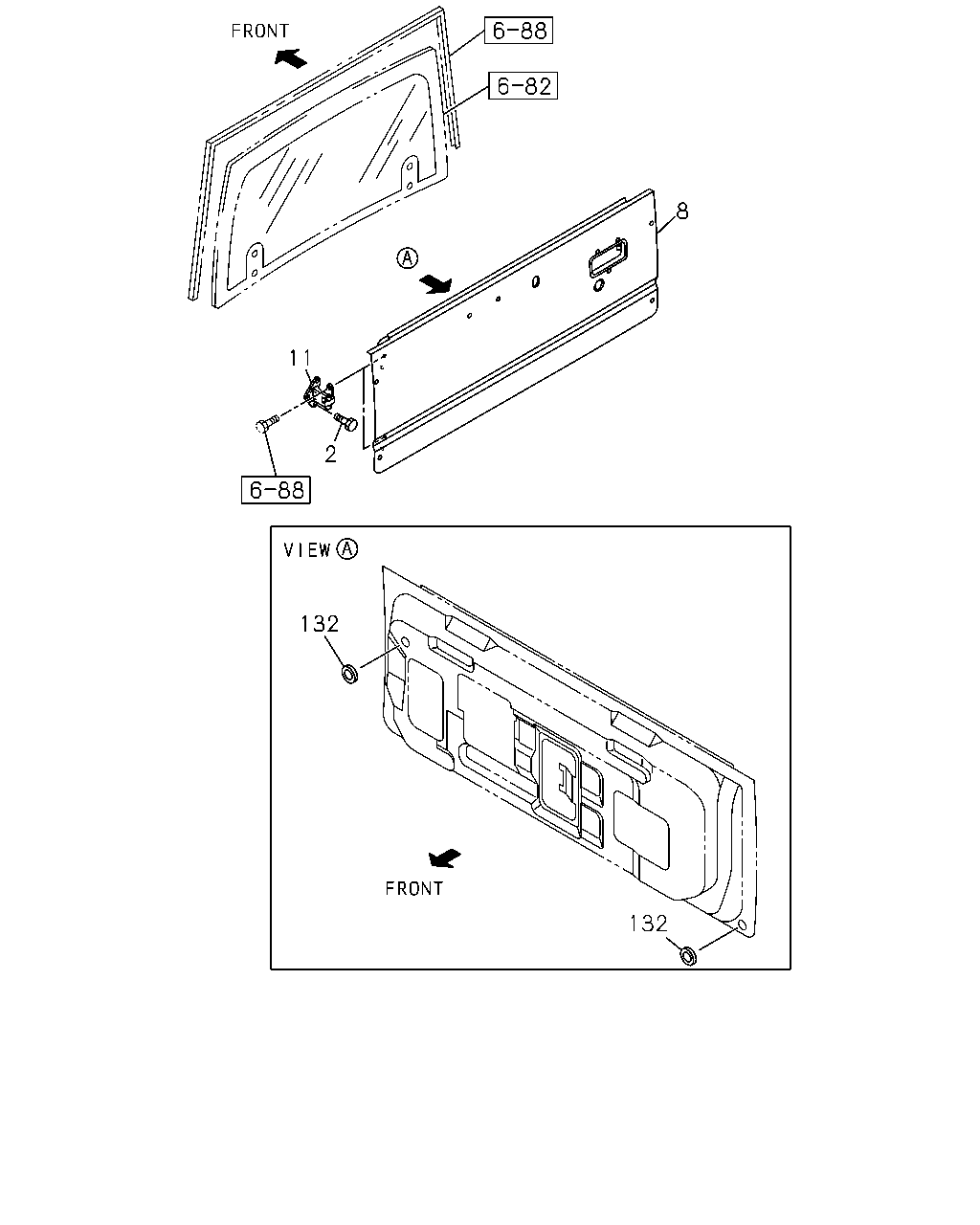

[681A] 2DOOR SHORT (9 parça)

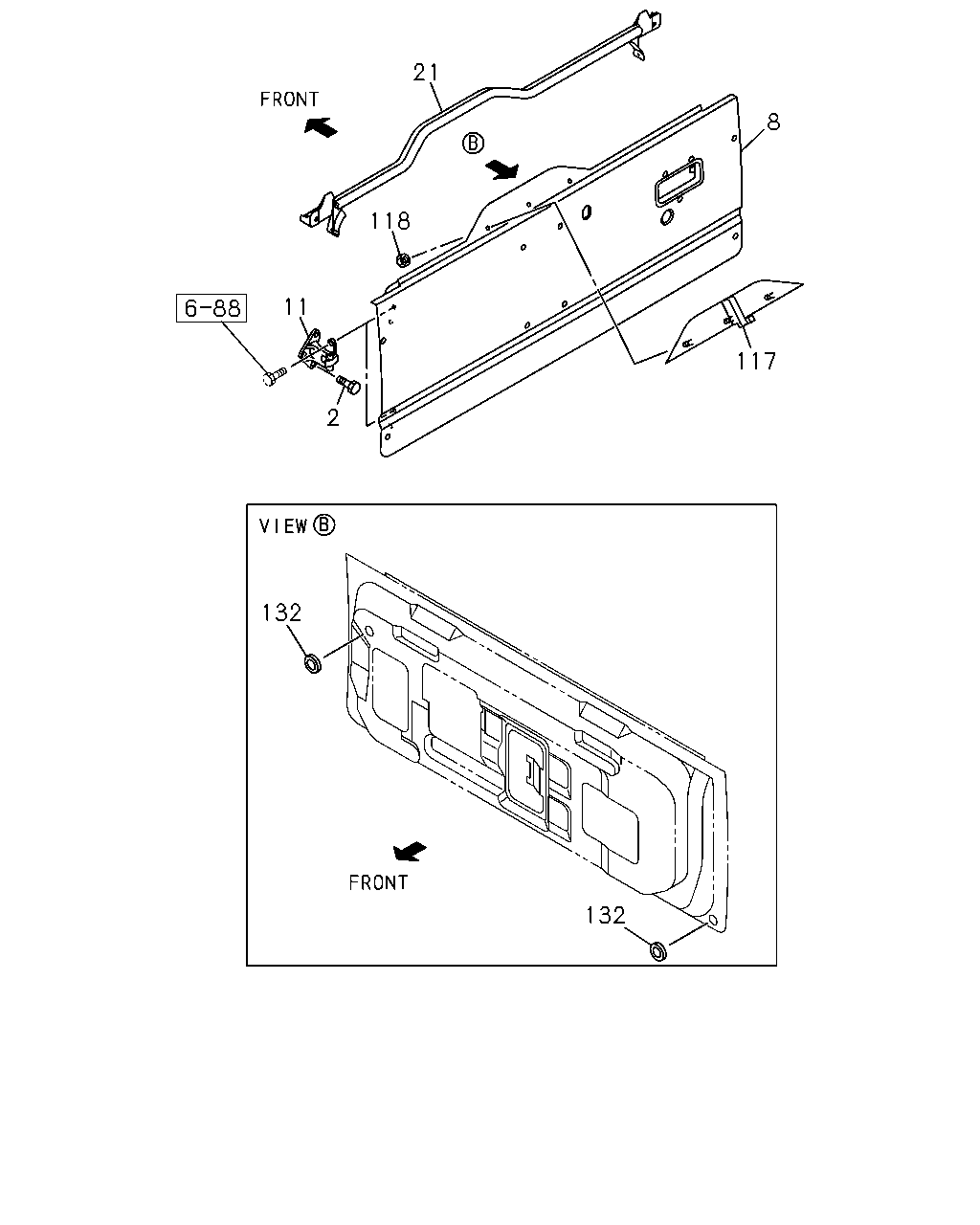

[681A] 4DOOR LONG (16 parça)
▶
8
11
2
132
132
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
16.165 BOLT; HINGE TO BODY,BACK DOOR
10.463 M8X23 FLANGE
8-94174-559-2
06
1
9811-0012
●
●
2
16.165 BOLT; HINGE TO BODY,BACK DOOR
10.463 M8X23 FLANGE
8-94174-559-2
06
1
0101-
●
8
17.185 PANEL; TAIL GATE
USA
8-97201-433-0
01
1
9811-0012
●
8
17.185 PANEL; TAIL GATE
USA
8-97201-432-0
01
1
9811-0012
●
8
17.185 PANEL; TAIL GATE
USA
8-97201-432-1
01
1
0101-
●
11
17.208 HINGE; TAIL GATE
8-97125-492-2
02
1
9811-0012
●
●
11
17.208 HINGE; TAIL GATE
8-97125-492-2
02
1
0101-
●
132
17.208 GROMMET; DRAIN HOLE
12.182 OD=26
8-94141-484-0
02
1
9811-0012
●
●
132
17.208 GROMMET; DRAIN HOLE
12.182 OD=26
8-94141-484-0
02
1
0101-
●
21
8
118
11
117
2
132
132
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
16.165 BOLT; HINGE TO BODY,BACK DOOR
10.463 M8X23 FLANGE
8-94174-559-2
06
1
9811-0012
●
●
2
16.165 BOLT; HINGE TO BODY,BACK DOOR
10.463 M8X23 FLANGE
8-94174-559-2
06
1
0101-
●
8
17.185 PANEL; TAIL GATE
USA
8-97201-433-0
01
1
9811-0012
●
8
17.185 PANEL; TAIL GATE
USA
8-97201-432-0
01
1
9811-0012
●
8
17.185 PANEL; TAIL GATE
USA
8-97201-432-1
01
1
0101-
●
11
17.208 HINGE; TAIL GATE
8-97125-492-2
02
1
9811-0012
●
●
11
17.208 HINGE; TAIL GATE
8-97125-492-2
02
1
0101-
●
21
17.208 SEAL; TAIL GATE WAIST
USA
8-97124-150-4
01
1
9811-0012
●
21
17.208 SEAL; TAIL GATE WAIST
USA
8-97124-150-4
01
1
0101-
●
117
17.208 GARNISH
USA
8-97125-322-2
01
1
9811-9912
●
117
17.208 GARNISH
USA
8-97247-184-0
01
1
0001-0012
●
117
17.208 GARNISH
USA
8-97247-184-0
01
1
0101-
●
118
17.208 NUT; GARNISH
07.833 M6 FLANGE
8-97063-399-0
01
1
9811-0012
●
118
17.208 NUT; GARNISH
07.833 M6 FLANGE
8-97063-399-0
01
1
0101-
●
132
17.208 GROMMET; DRAIN HOLE
12.182 OD=26
8-94141-484-0
02
1
9811-0012
●
●
132
17.208 GROMMET; DRAIN HOLE
12.182 OD=26
8-94141-484-0
02
1
0101-
●
