◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#32651) — 24 parça

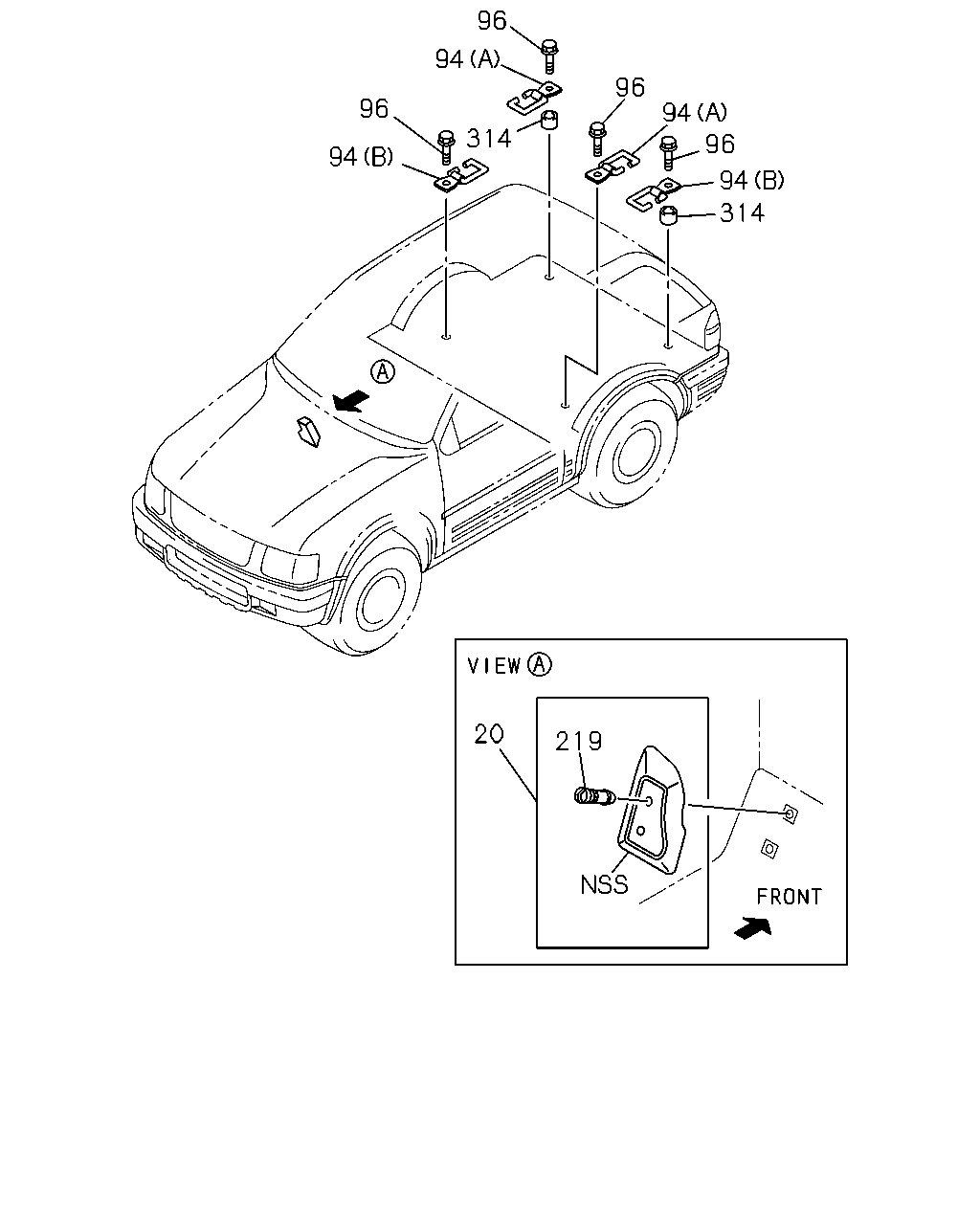

çizim 5403
96 94 96 94 96 94 314 96 314 94 20 219
BalonParca AdiParca NoAdetTipApplied Date A B
20 16.547 REST; FOOT 8-97079-268-1 01 1 9811-0012 ● ●
20 16.547 REST; FOOT 8-97079-268-1 01 1 0101- ●
94 16.545 HOOK ASM; ROPE
16.585 (A) 		8-94181-223-0 02 1 9811-0012 ● ●
94 16.545 HOOK ASM; ROPE
16.585 (A) 		8-94181-223-0 02 1 0101- ●
94 16.545 HOOK ASM; ROPE
16.585 (B) 		8-94181-224-0 02 1 9811-0012 ● ●
94 16.545 HOOK ASM; ROPE
16.585 (B) 		8-94181-224-0 02 1 0101- ●
96 16.545 BOLT; ROPE HOOK FIX
02.183 M8X35 FLANGE 		0-28680-835-0 04 1 9811-0012 ● ●
96 16.545 BOLT; ROPE HOOK FIX
02.183 M8X35 FLANGE 		0-28680-835-0 04 1 0101-0108 ●
96 16.545 BOLT; ROPE HOOK FIX
M8X35 FLANGE USA 		8-97300-316-0 04 1 0109- ●
219 16.549 CLIP 8-97081-555-0 02 1 9811-0012 ● ●
219 16.549 CLIP 8-97081-555-0 02 1 0101- ●
314 16.545 COLLAR; ROPE HOOK 8-97183-950-0 02 1 9811-0012 ●

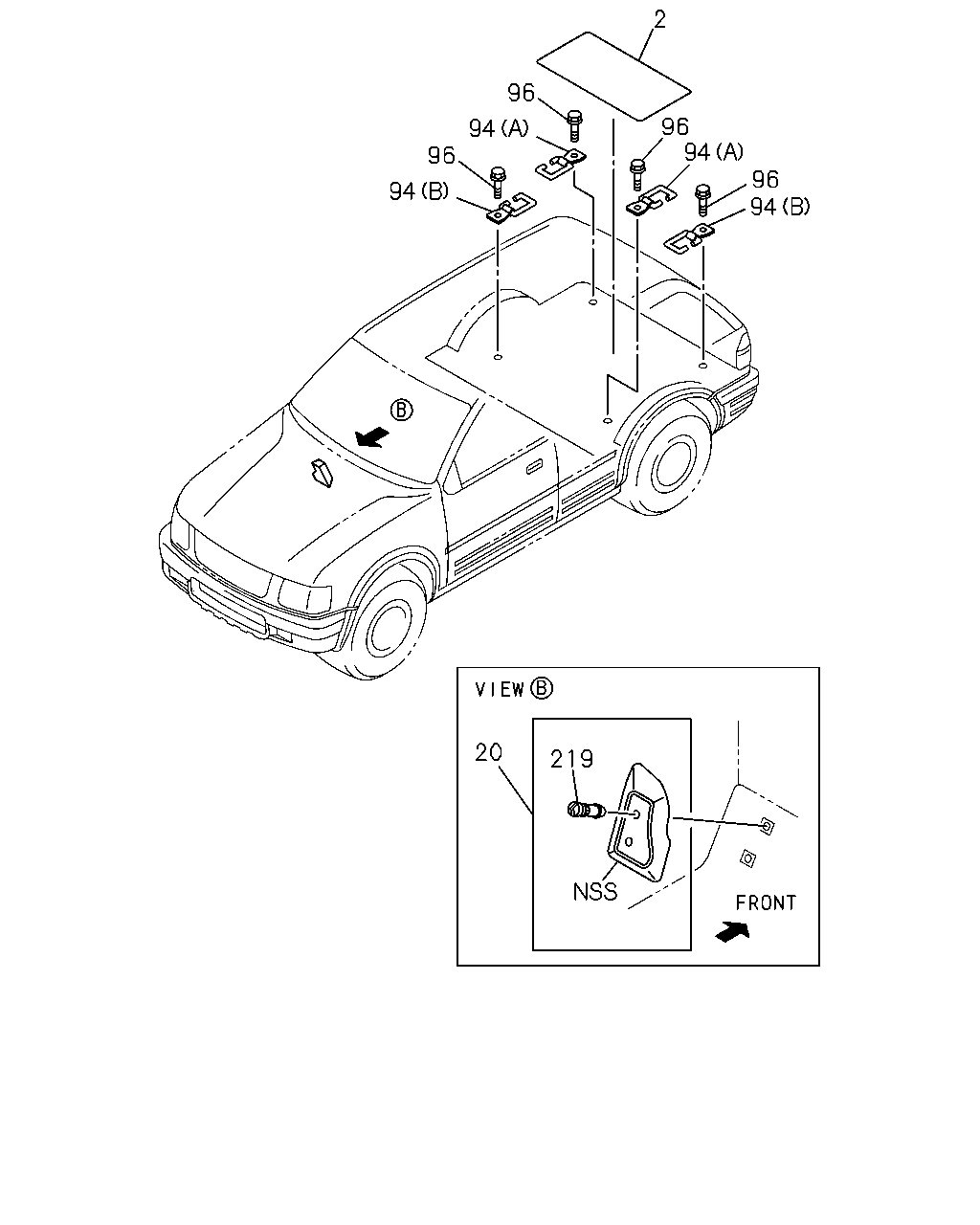

çizim 38261
2 96 94 96 94 96 94 96 94 20 219
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.549 SHEET; MELTING,RR FLOOR
USA 		8-97211-788-0 01 1 9811- ●
20 16.547 REST; FOOT 8-97079-268-1 01 1 9811-0012 ● ●
20 16.547 REST; FOOT 8-97079-268-1 01 1 0101- ●
94 16.545 HOOK ASM; ROPE
16.585 (A) 		8-94181-223-0 02 1 9811-0012 ● ●
94 16.545 HOOK ASM; ROPE
16.585 (A) 		8-94181-223-0 02 1 0101- ●
94 16.545 HOOK ASM; ROPE
16.585 (B) 		8-94181-224-0 02 1 9811-0012 ● ●
94 16.545 HOOK ASM; ROPE
16.585 (B) 		8-94181-224-0 02 1 0101- ●
96 16.545 BOLT; ROPE HOOK FIX
02.183 M8X35 FLANGE 		0-28680-835-0 04 1 9811-0012 ● ●
96 16.545 BOLT; ROPE HOOK FIX
02.183 M8X35 FLANGE 		0-28680-835-0 04 1 0101-0108 ●
96 16.545 BOLT; ROPE HOOK FIX
M8X35 FLANGE USA 		8-97300-316-0 04 1 0109- ●
219 16.549 CLIP 8-97081-555-0 02 1 9811-0012 ● ●
219 16.549 CLIP 8-97081-555-0 02 1 0101- ●
