6-75 — MAT AND CARPET (#32650) — 57 parça

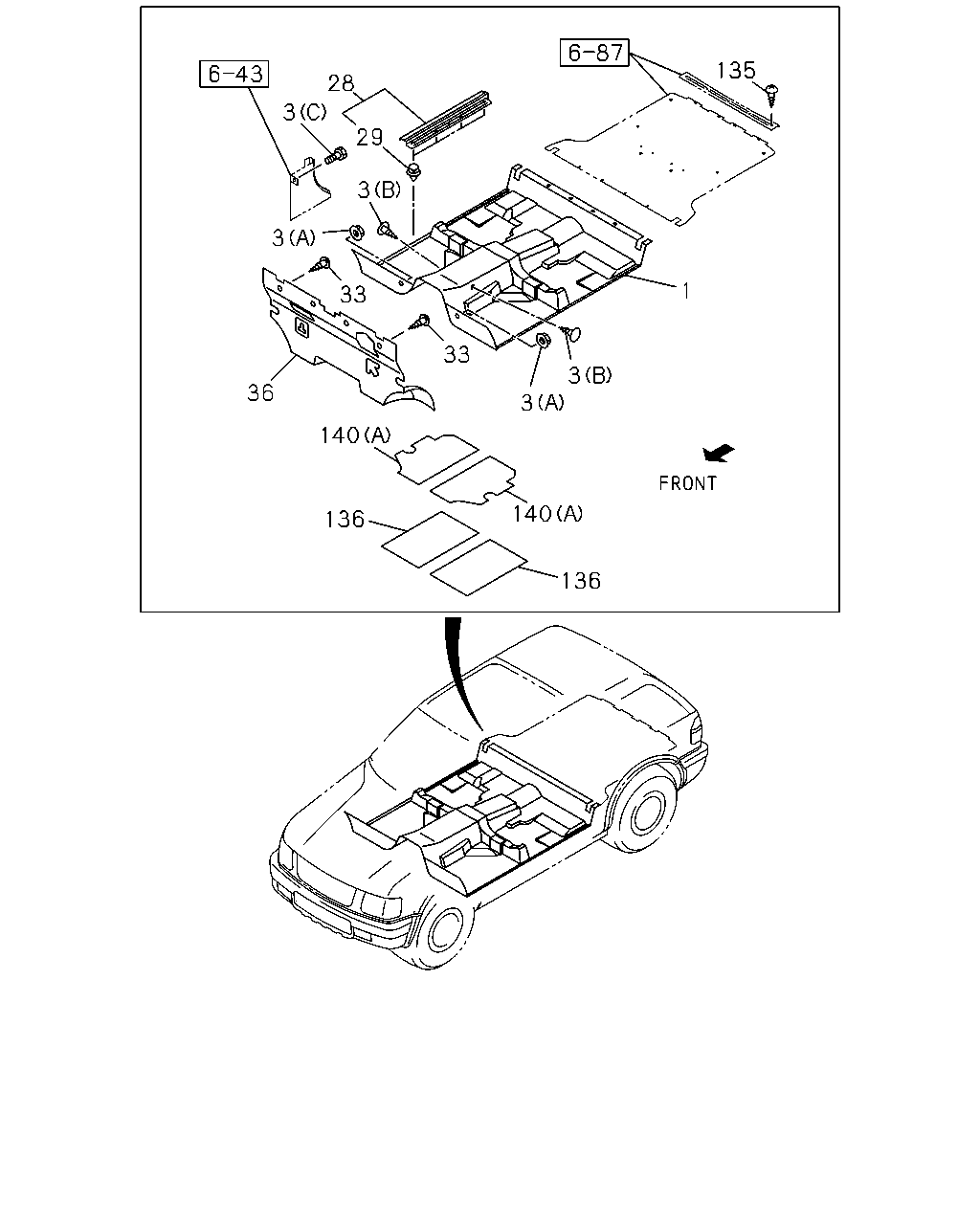

135 28 3 29 3 3 1 33 33 3 36 3 140 140 136 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.850 CARPET; FLOOR,FRT 2DOOR SHORT(UE***C) USA	8-97198-467-2	01	1	9811-0012	●	●
1	16.850 CARPET; FLOOR,FRT 4DOOR LONG(UE***F) USA	8-97198-468-0	01	1	9811-0005	●	●
1	16.850 CARPET; FLOOR,FRT 4DOOR LONG(UE***F) USA	8-97296-798-1	01	1	0006-0012	●	●
1	16.850 CARPET; FLOOR,FRT USA	8-97297-908-2	01	1	0101-	●	●
3	16.800 CLIP; CARPET FIX 16.550 (A) H=10.5	8-94441-810-0	02	1	9811-0003	●	●
3	16.800 CLIP; CARPET FIX 16.550 (A) H=10.5	8-94441-810-0	02	1	0004-	●	●
3	16.800 CLIP; CARPET FIX 08.856 (B) GRAY	8-97157-300-0	02	1	9811-0209	●	●
3	16.800 CLIP; CARPET FIX (B) DARK GRAY	8-97391-623-0	02	1	0210-	●	●
3	16.800 CLIP; CARPET FIX (C) GRAY	8-97157-324-0	02	1	9811-0212	●	●
3	16.800 CLIP; CARPET FIX USA	8-97351-343-0	02	1	0301-	●	●
28	16.870 PLATE; SILL,FRT GRAY USA	8-97157-305-2	01	1	9811-	●	●
28	16.870 PLATE; SILL,FRT GRAY USA	8-97157-304-2	01	1	9811-	●	●
29	16.870 RETAINER; FRT SILL PLATE USA	8-97178-530-0	08	1	9811-	●	●
33	16.550 CLIP; INSULATION BROWN	8-94476-811-0	02	1	9811-	●	●
36	16.550 INSULATION; PAD,DASH INNER USA	8-97211-036-0	01	1	9811-0003	●	●
36	16.550 INSULATION; PAD,DASH INNER USA	8-97226-115-0	01	1	0004-	●	●
135	16.802 SCREW; MAT TO FLOOR 10.240 M5X20 USA	9-09829-324-1	05	1	9811-	●	●
136	16.585 INSULATION; HEAT,FRT FLOOR USA	8-97130-178-1	02	1	9811-	●	●
140	16.570 DEADENER; DASH LWR PANEL (A) USA	8-94331-142-1	02	1	9811-0012	●	●
140	16.570 DEADENER; DASH LWR PANEL (A) USA	8-97227-553-0	02	1	0101-	●	●
140	16.570 DEADENER; DASH LWR PANEL (B) USA	8-97260-046-0	01	1	0101-	●	●
140	16.570 DEADENER; DASH LWR PANEL (B) USA	8-97260-045-0	01	1	0101-	●	●

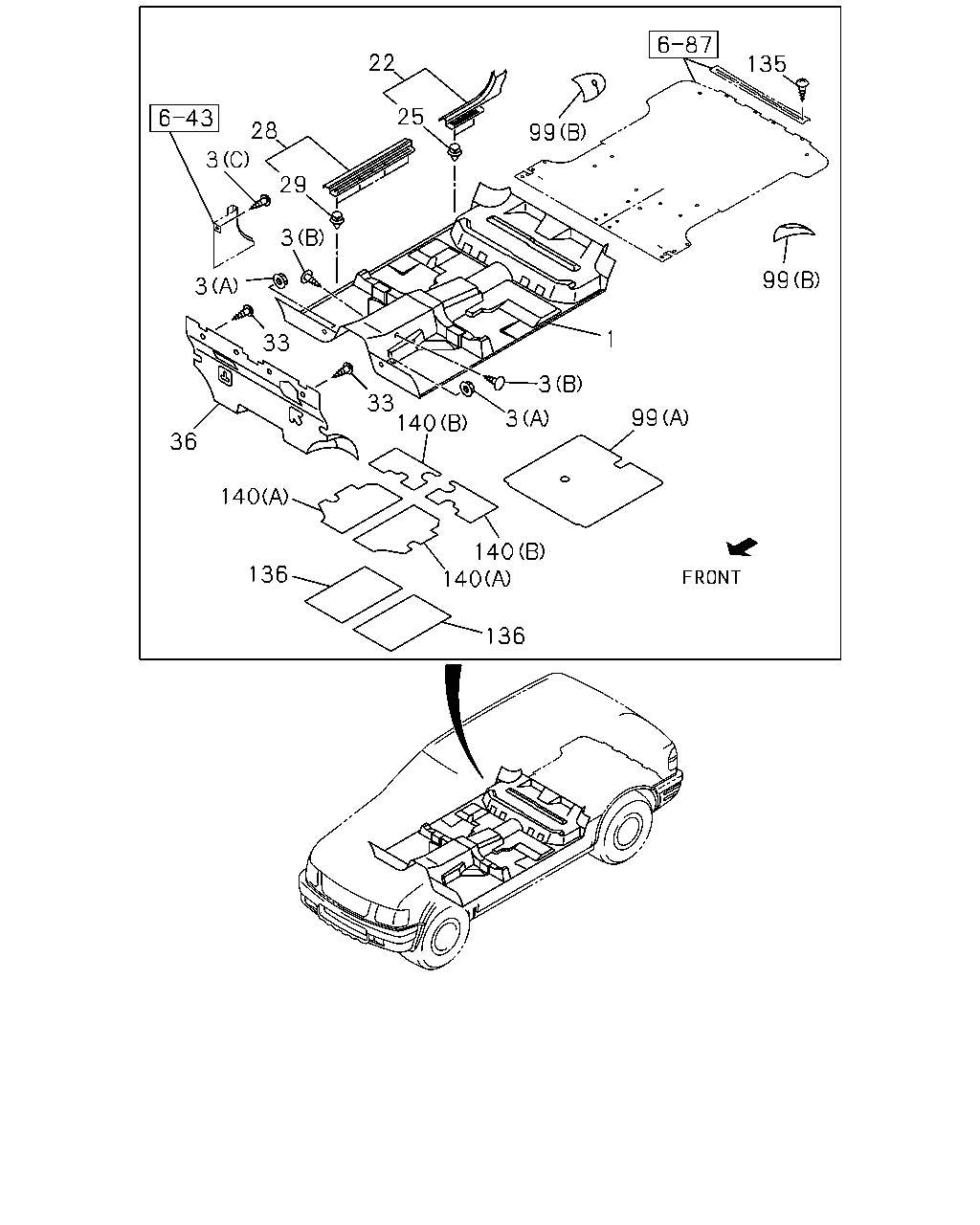

22 135 25 28 99 3 29 3 99 3 1 33 3 33 140 99 3 36 140 140 136 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.850 CARPET; FLOOR,FRT 2DOOR SHORT(UE***C) USA	8-97198-467-2	01	1	9811-0012	●	●
1	16.850 CARPET; FLOOR,FRT 4DOOR LONG(UE***F) USA	8-97198-468-0	01	1	9811-0005	●	●
1	16.850 CARPET; FLOOR,FRT 4DOOR LONG(UE***F) USA	8-97296-798-1	01	1	0006-0012	●	●
1	16.850 CARPET; FLOOR,FRT USA	8-97297-908-2	01	1	0101-	●	●
3	16.800 CLIP; CARPET FIX 16.550 (A) H=10.5	8-94441-810-0	02	1	9811-0003	●	●
3	16.800 CLIP; CARPET FIX 16.550 (A) H=10.5	8-94441-810-0	02	1	0004-	●	●
3	16.800 CLIP; CARPET FIX 08.856 (B) GRAY	8-97157-300-0	02	1	9811-0209	●	●
3	16.800 CLIP; CARPET FIX (B) DARK GRAY	8-97391-623-0	02	1	0210-	●	●
3	16.800 CLIP; CARPET FIX (C) GRAY	8-97157-324-0	02	1	9811-0212	●	●
3	16.800 CLIP; CARPET FIX USA	8-97351-343-0	02	1	0301-	●	●
22	16.870 PLATE; SILL,RR 4DOOR LONG(UE***F) GRAY USA	8-97157-303-2	01	1	9811-0012	●	●
22	16.870 PLATE; SILL,RR GRAY USA	8-97157-303-2	01	1	0101-	●	●
22	16.870 PLATE; SILL,RR 4DOOR LONG(UE***F) GRAY USA	8-97157-302-2	01	1	9811-0012	●	●
22	16.870 PLATE; SILL,RR GRAY USA	8-97157-302-2	01	1	0101-	●	●
25	16.870 RETAINER; RR SILL PLATE 4DOOR LONG(UE***F) USA	8-97178-530-0	04	1	9811-0012	●	●
25	16.870 RETAINER; RR SILL PLATE USA	8-97178-530-0	04	1	0101-	●	●
28	16.870 PLATE; SILL,FRT GRAY USA	8-97157-305-2	01	1	9811-	●	●
28	16.870 PLATE; SILL,FRT GRAY USA	8-97157-304-2	01	1	9811-	●	●
29	16.870 RETAINER; FRT SILL PLATE USA	8-97178-530-0	08	1	9811-	●	●
33	16.550 CLIP; INSULATION BROWN	8-94476-811-0	02	1	9811-	●	●
36	16.550 INSULATION; PAD,DASH INNER USA	8-97211-036-0	01	1	9811-0003	●	●
36	16.550 INSULATION; PAD,DASH INNER USA	8-97226-115-0	01	1	0004-	●	●
99	16.110 DEADENER; FLOOR 4DOOR LONG(UE***F) (A) USA	8-97211-787-0	01	1	9811-0006	●	●
99	16.110 DEADENER; FLOOR 4DOOR LONG(UE***F) (A) USA	8-97249-652-0	01	1	0007-0012	●	●
99	16.110 DEADENER; FLOOR (A) USA	8-97249-652-0	01	1	0101-	●	●
99	16.110 DEADENER; FLOOR 4DOOR LONG(UE***F) (B) USA	8-97164-965-0	01	1	0004-0012	●	●
99	16.110 DEADENER; FLOOR (B) USA	8-97164-965-0	01	1	0101-	●	●
99	16.110 DEADENER; FLOOR 4DOOR LONG(UE***F) (B) USA	8-97164-964-1	01	1	0004-0012	●	●
99	16.110 DEADENER; FLOOR (B) USA	8-97164-964-1	01	1	0101-	●	●
135	16.802 SCREW; MAT TO FLOOR 10.240 M5X20 USA	9-09829-324-1	05	1	9811-	●	●
136	16.585 INSULATION; HEAT,FRT FLOOR USA	8-97130-178-1	02	1	9811-	●	●
140	16.570 DEADENER; DASH LWR PANEL (A) USA	8-94331-142-1	02	1	9811-0012	●	●
140	16.570 DEADENER; DASH LWR PANEL (A) USA	8-97227-553-0	02	1	0101-	●	●
140	16.570 DEADENER; DASH LWR PANEL (B) USA	8-97260-046-0	01	1	0101-	●	●
140	16.570 DEADENER; DASH LWR PANEL (B) USA	8-97260-045-0	01	1	0101-	●	●
