Sayfa 0-66 - Isuzu EPC

0-66 — GENERATOR (#3265) — 528 parça

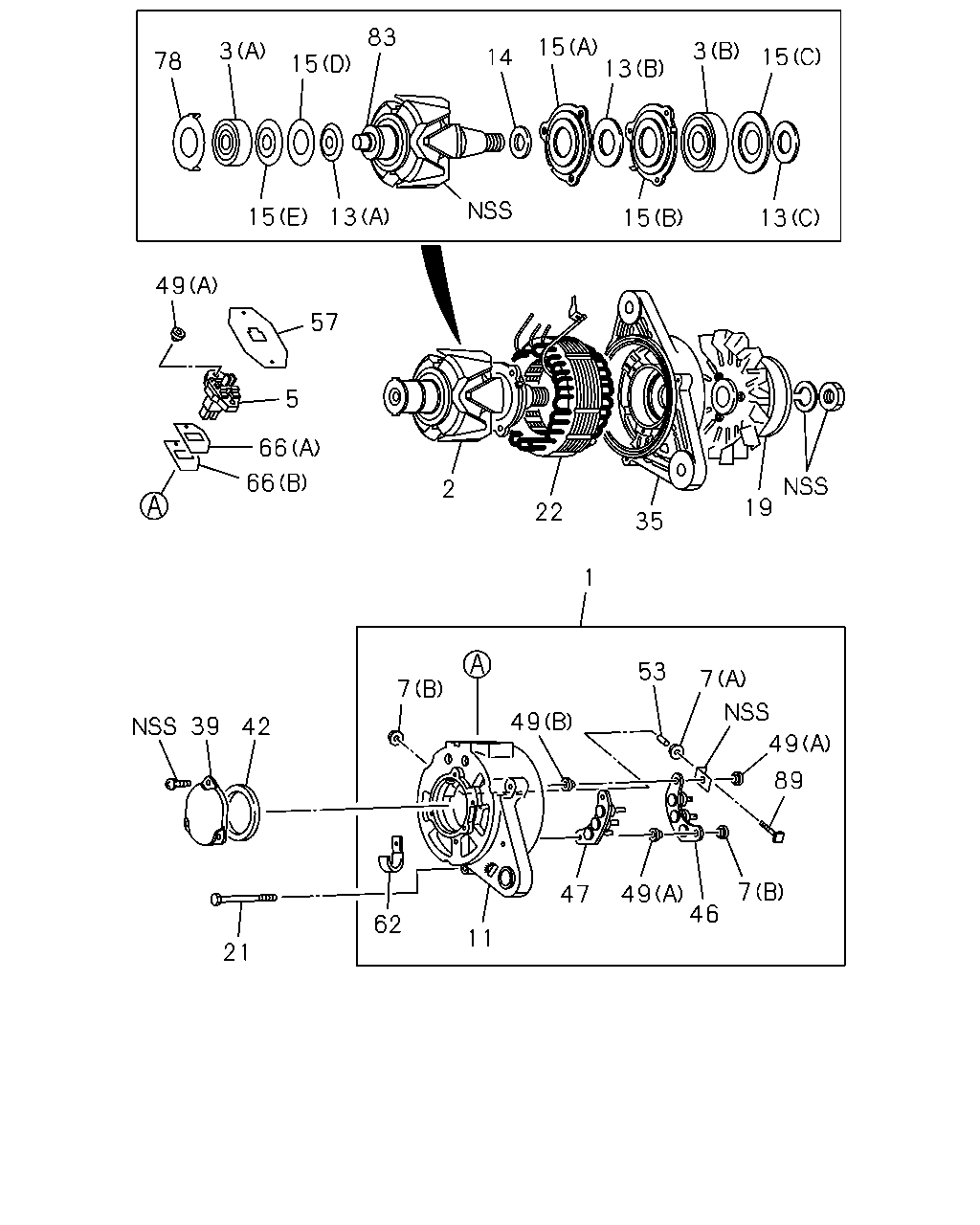

83 15 13 3 3 15 14 78 15 15 13 15 13 49 57 5 66 66 2 19 22 35 1 53 7 7 49 39 42 49 89 7 49 47 46 62 11 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 1-81200-203-0	1-81214-095-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81214-185-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: F = 5-81200-165-2	1-81214-187-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: G = 5-81200-180-3	1-81214-312-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 1-81200-414-1	1-81214-318-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: E = 1-81200-455-2	1-81214-327-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: H = 5-81200-235-1	5-81214-061-0	01	1	-
2	ROTOR; GEN ASM PART: C = 1-81200-328-1	1-81211-080-0	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-203-0	1-81221-030-0	01	1	-
2	ROTOR; GEN ASM PART: B = 1-81200-287-2	1-81221-058-0	01	1	-
2	ROTOR; GEN ASM PART: F = 5-81200-165-2	1-81221-083-0	01	1	-
2	ROTOR; GEN ASM PART: G = 5-81200-180-3	1-81221-084-0	01	1	-
2	ROTOR; GEN ASM PART: D = 1-81200-414-1	1-81221-087-0	01	1	-
2	ROTOR; GEN ASM PART: E = 1-81200-455-2	1-81221-095-0	01	1	-
2	ROTOR; GEN ASM PART: H = 5-81200-235-1	5-81221-042-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 1-81200-203-0	1-81229-224-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-203-0	1-81229-225-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: G = 5-81200-180-3	1-81229-576-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: D = 1-81200-414-1	1-81229-628-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-631-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: E = 1-81200-455-2	1-81229-690-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 1-81200-287-2	5-81229-017-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3, H = 5-81200-235-1	5-81229-104-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: A = 1-81200-203-0	1-81217-015-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81217-041-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81217-070-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: H = 5-81200-235-1	5-81217-014-0	01	1	-
7	WASHER; INSULATE,RECTIFIER,GEN (A) ASM PART: A = 1-81200-203-0	1-81229-182-0	01	1	-
7	WASHER; INSULATE,RECTIFIER,GEN (B) ASM PART: A = 1-81200-203-0	1-81229-227-0	02	1	-
11	COVER; RR,GEN ASM PART: A = 1-81200-203-0	1-81214-089-0	01	1	-
13	GASKET; ROTOR,GEN (B) ASM PART: A = 1-81200-203-0	1-81229-162-0	01	1	-
13	GASKET; ROTOR,GEN (C) ASM PART: A = 1-81200-203-0	1-81229-165-0	01	1	-
13	GASKET; ROTOR,GEN (A) ASM PART: A = 1-81200-203-0	1-81229-231-0	01	1	-
13	GASKET; ROTOR,GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-630-0	02	1	-
14	COLLAR; STEEL ASM PART: A = 1-81200-203-0	1-81229-160-0	01	1	-
15	RETAINER; ROTOR,GEN (D) ASM PART: A = 1-81200-203-0	1-81229-123-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: A = 1-81200-203-0	1-81229-161-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: A = 1-81200-203-0	1-81229-163-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: A = 1-81200-203-0	1-81229-164-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: D = 1-81200-414-1	1-81229-190-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-349-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	1-81229-405-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: D = 1-81200-414-1	1-81229-629-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: E = 1-81200-455-2	1-81229-695-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: E = 1-81200-455-2	1-81229-696-0	01	1	-
15	RETAINER; ROTOR,GEN (E) ASM PART: A = 1-81200-203-0	9-82216-060-0	01	1	-
19	PULLEY; GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81222-030-0	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-203-0	1-81222-034-0	01	1	-
19	PULLEY; GEN ASM PART: E = 1-81200-455-2	1-81222-051-0	01	1	-9707
19	PULLEY; GEN ASM PART: D = 1-81200-414-1	1-81222-051-0	01	1	-
19	PULLEY; GEN ASM PART: E = 1-81200-455-2	1-81222-109-0	01	1	9708-
19	PULLEY; GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3, H = 5-81200-235-1	5-81222-043-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 1-81200-203-0	1-81229-097-0	03	1	-
21	BOLT; THROUGH,GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-632-0	04	1	-
21	BOLT; THROUGH,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3, H = 5-81200-235-1	5-81229-106-0	04	1	-
22	STATOR; GEN ASM PART: A = 1-81200-203-0	1-81211-032-0	01	1	-
22	STATOR; GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81211-067-0	01	1	-
22	STATOR; GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81211-099-0	01	1	-
22	STATOR; GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81211-112-0	01	1	-
22	STATOR; GEN ASM PART: H = 5-81200-235-1	5-81211-036-0	01	1	-
35	COVER; FRT,GEN ASM PART: A = 1-81200-203-0	1-81213-024-0	01	1	-
39	COVER; END,RR COVER,GEN ASM PART: A = 1-81200-203-0	1-81214-083-0	01	1	-
39	COVER; END,RR COVER,GEN (A) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81214-186-0	01	1	-
39	COVER; END,RR COVER,GEN ASM PART: F = 5-81200-165-2	1-81214-188-0	01	1	-
39	COVER; END,RR COVER,GEN ASM PART: E = 1-81200-455-2	1-81229-692-0	01	1	-
39	COVER; END,RR COVER,GEN (B) ASM PART: B = 1-81200-287-2	5-81214-028-1	01	1	-
42	GASKET; RR COVER,GEN ASM PART: A = 1-81200-203-0	1-81229-233-0	01	1	-
42	GASKET; RR COVER,GEN ASM PART: E = 1-81200-455-2	1-81229-701-0	01	1	-
46	RECTIFIER; (+),GEN ASM PART: A = 1-81200-203-0	1-81219-015-0	01	1	-
46	RECTIFIER; (+),GEN ASM PART: H = 5-81200-235-1	5-81218-024-0	01	1	-
47	RECTIFIER; (-),GEN ASM PART: A = 1-81200-203-0	1-81219-014-0	01	1	-
47	RECTIFIER; (-),GEN ASM PART: H = 5-81200-235-1	5-81218-023-0	01	1	-
49	BUSHING; RECTIFIER,GEN (A) ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-001-0	02	1	-
49	BUSHING; RECTIFIER,GEN (A) ASM PART: A = 1-81200-203-0	1-81229-042-0	03	1	-
49	BUSHING; RECTIFIER,GEN (B) ASM PART: A = 1-81200-203-0	1-81229-111-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B) ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-352-0	01	1	-
49	BUSHING; RECTIFIER,GEN (C) ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-635-0	01	1	-
53	TUBE; RECTIFIER,GEN ASM PART: A = 1-81200-203-0	1-81229-234-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81217-044-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81217-071-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: A = 1-81200-203-0	1-81229-154-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-639-0	01	1	-
62	CLIP; TERMINAL,BRUSH,GEN ASM PART: A = 1-81200-203-0	1-81118-011-0	01	1	-
62	CLIP; TERMINAL,BRUSH,GEN ASM PART: D = 1-81200-414-1	1-81229-675-0	01	1	-
62	CLIP; TERMINAL,BRUSH,GEN ASM PART: E = 1-81200-455-2	1-81229-700-0	01	1	-
66	GASKET; BRUSH HOLDER,GEN (A) ASM PART: A = 1-81200-203-0	1-81229-226-0	01	1	-
66	GASKET; BRUSH HOLDER,GEN (B) ASM PART: A = 1-81200-203-0	1-81229-232-0	01	1	-
78	CLIP; ROTOR,GEN ASM PART: E = 1-81200-455-2	1-81229-195-0	01	1	-
78	CLIP; ROTOR,GEN ASM PART: A = 1-81200-203-0	1-81229-230-0	01	1	-
83	RING; SLIP,ROTOR,GEN ASM PART: A = 1-81200-203-0	1-81224-009-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: A = 1-81200-203-0	1-81229-112-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: D = 1-81200-414-1	1-81229-278-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: E = 1-81200-455-2	1-81229-698-0	01	1	-

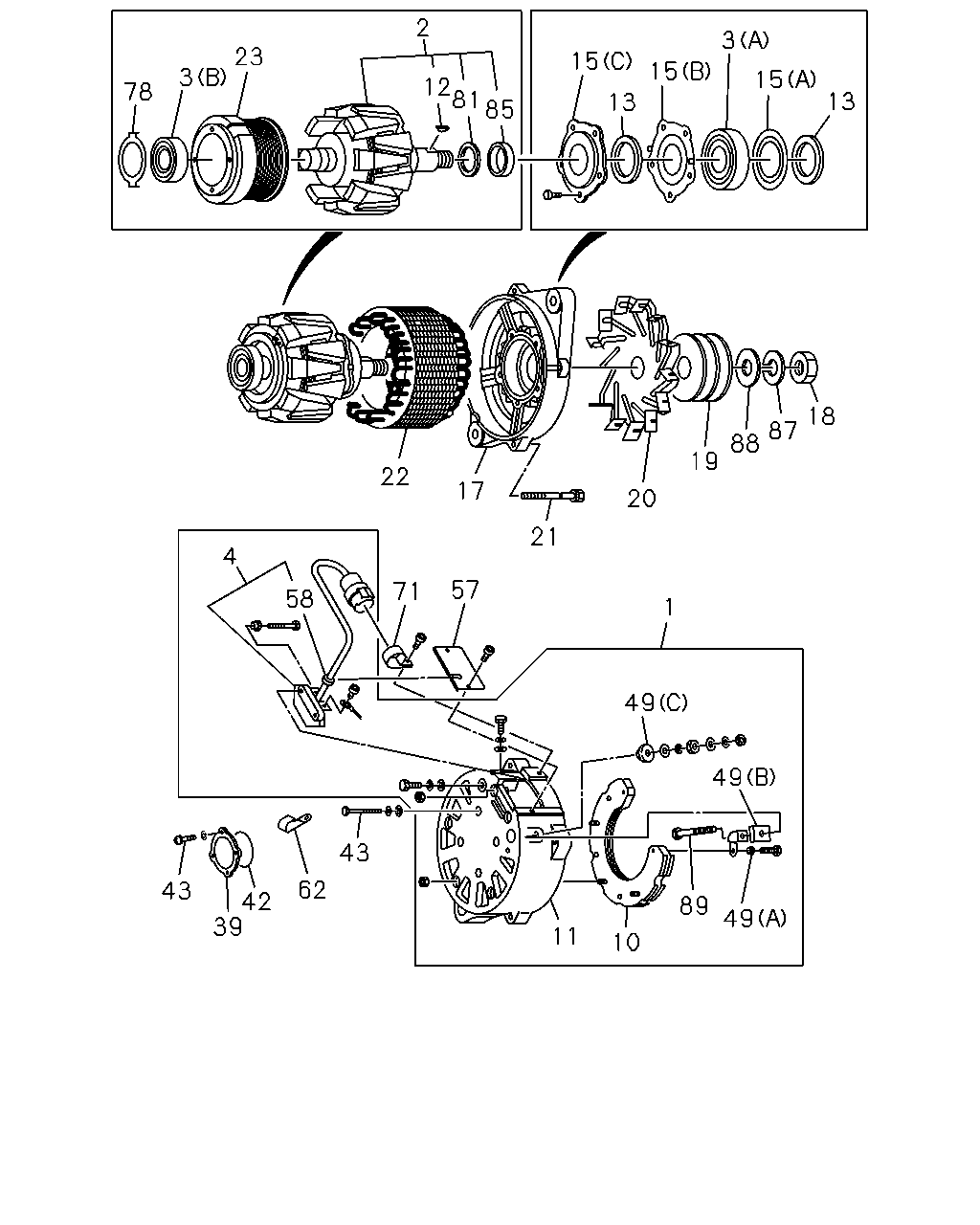

2 3 23 3 15 15 15 12 81 85 78 13 13 18 87 88 19 22 17 20 21 4 57 71 58 1 49 49 43 62 43 42 39 89 49 11 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 1-81200-203-0	1-81214-095-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81214-185-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: F = 5-81200-165-2	1-81214-187-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: G = 5-81200-180-3	1-81214-312-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 1-81200-414-1	1-81214-318-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: E = 1-81200-455-2	1-81214-327-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: H = 5-81200-235-1	5-81214-061-0	01	1	-
2	ROTOR; GEN ASM PART: C = 1-81200-328-1	1-81211-080-0	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-203-0	1-81221-030-0	01	1	-
2	ROTOR; GEN ASM PART: B = 1-81200-287-2	1-81221-058-0	01	1	-
2	ROTOR; GEN ASM PART: F = 5-81200-165-2	1-81221-083-0	01	1	-
2	ROTOR; GEN ASM PART: G = 5-81200-180-3	1-81221-084-0	01	1	-
2	ROTOR; GEN ASM PART: D = 1-81200-414-1	1-81221-087-0	01	1	-
2	ROTOR; GEN ASM PART: E = 1-81200-455-2	1-81221-095-0	01	1	-
2	ROTOR; GEN ASM PART: H = 5-81200-235-1	5-81221-042-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 1-81200-203-0	1-81229-224-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-203-0	1-81229-225-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: G = 5-81200-180-3	1-81229-576-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: D = 1-81200-414-1	1-81229-628-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-631-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: E = 1-81200-455-2	1-81229-690-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 1-81200-287-2	5-81229-017-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3, H = 5-81200-235-1	5-81229-104-0	01	1	-
4	TERMINAL; BRUSH,GEN ASM PART: D = 1-81200-414-1	1-81229-677-0	01	1	-
4	TERMINAL; BRUSH,GEN ASM PART: E = 1-81200-455-2	1-81229-693-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81217-042-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81217-043-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81219-101-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81219-102-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 1-81200-414-1	1-81219-109-0	01	1	-9311
10	RECTIFIER; GEN ASM PART: E = 1-81200-455-2	1-81219-114-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 1-81200-414-1	1-81219-114-0	01	1	9312-
11	COVER; RR,GEN ASM PART: A = 1-81200-203-0	1-81214-089-0	01	1	-
12	KEY; ROTOR,GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	9-82215-867-0	01	1	-
13	GASKET; ROTOR,GEN (B) ASM PART: A = 1-81200-203-0	1-81229-162-0	01	1	-
13	GASKET; ROTOR,GEN (C) ASM PART: A = 1-81200-203-0	1-81229-165-0	01	1	-
13	GASKET; ROTOR,GEN (A) ASM PART: A = 1-81200-203-0	1-81229-231-0	01	1	-
13	GASKET; ROTOR,GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-630-0	02	1	-
15	RETAINER; ROTOR,GEN (D) ASM PART: A = 1-81200-203-0	1-81229-123-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: A = 1-81200-203-0	1-81229-161-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: A = 1-81200-203-0	1-81229-163-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: A = 1-81200-203-0	1-81229-164-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: D = 1-81200-414-1	1-81229-190-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-349-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	1-81229-405-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: D = 1-81200-414-1	1-81229-629-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: E = 1-81200-455-2	1-81229-695-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: E = 1-81200-455-2	1-81229-696-0	01	1	-
15	RETAINER; ROTOR,GEN (E) ASM PART: A = 1-81200-203-0	9-82216-060-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81213-055-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 1-81200-414-1	1-81213-073-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: E = 1-81200-455-2	1-81213-087-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, H = 5-81200-235-1	5-81213-029-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3, H = 5-81200-235-1	8-94167-948-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	9-82216-098-0	01	1	-
19	PULLEY; GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81222-030-0	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-203-0	1-81222-034-0	01	1	-
19	PULLEY; GEN ASM PART: E = 1-81200-455-2	1-81222-051-0	01	1	-9707
19	PULLEY; GEN ASM PART: D = 1-81200-414-1	1-81222-051-0	01	1	-
19	PULLEY; GEN ASM PART: E = 1-81200-455-2	1-81222-109-0	01	1	9708-
19	PULLEY; GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3, H = 5-81200-235-1	5-81222-043-0	01	1	-
20	FAN; GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81211-078-0	01	1	-
20	FAN; GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81223-003-0	01	1	-
20	FAN; GEN ASM PART: H = 5-81200-235-1	5-81223-006-0	01	1	-
20	FAN; GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	5-81223-007-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 1-81200-203-0	1-81229-097-0	03	1	-
21	BOLT; THROUGH,GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-632-0	04	1	-
21	BOLT; THROUGH,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3, H = 5-81200-235-1	5-81229-106-0	04	1	-
22	STATOR; GEN ASM PART: A = 1-81200-203-0	1-81211-032-0	01	1	-
22	STATOR; GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81211-067-0	01	1	-
22	STATOR; GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81211-099-0	01	1	-
22	STATOR; GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81211-112-0	01	1	-
22	STATOR; GEN ASM PART: H = 5-81200-235-1	5-81211-036-0	01	1	-
23	COIL; ROTOR GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81212-010-0	01	1	-
39	COVER; END,RR COVER,GEN ASM PART: A = 1-81200-203-0	1-81214-083-0	01	1	-
39	COVER; END,RR COVER,GEN (A) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81214-186-0	01	1	-
39	COVER; END,RR COVER,GEN ASM PART: F = 5-81200-165-2	1-81214-188-0	01	1	-
39	COVER; END,RR COVER,GEN ASM PART: E = 1-81200-455-2	1-81229-692-0	01	1	-
39	COVER; END,RR COVER,GEN (B) ASM PART: B = 1-81200-287-2	5-81214-028-1	01	1	-
42	GASKET; RR COVER,GEN ASM PART: A = 1-81200-203-0	1-81229-233-0	01	1	-
42	GASKET; RR COVER,GEN ASM PART: E = 1-81200-455-2	1-81229-701-0	01	1	-
43	SCREW; RR END COVER ASM PART: B = 1-81200-287-2	1-81229-416-0	03	1	-
43	SCREW; RR END COVER ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-641-0	04	1	-
49	BUSHING; RECTIFIER,GEN (A) ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-001-0	02	1	-
49	BUSHING; RECTIFIER,GEN (A) ASM PART: A = 1-81200-203-0	1-81229-042-0	03	1	-
49	BUSHING; RECTIFIER,GEN (B) ASM PART: A = 1-81200-203-0	1-81229-111-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B) ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-352-0	01	1	-
49	BUSHING; RECTIFIER,GEN (C) ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-635-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81217-044-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81217-071-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: A = 1-81200-203-0	1-81229-154-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-639-0	01	1	-
58	BUSHING; BRUSH,GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-640-0	01	1	-
62	CLIP; TERMINAL,BRUSH,GEN ASM PART: A = 1-81200-203-0	1-81118-011-0	01	1	-
62	CLIP; TERMINAL,BRUSH,GEN ASM PART: D = 1-81200-414-1	1-81229-675-0	01	1	-
62	CLIP; TERMINAL,BRUSH,GEN ASM PART: E = 1-81200-455-2	1-81229-700-0	01	1	-
71	HOLDER; TERMINAL,GEN ASM PART: D = 1-81200-414-1	1-81229-687-0	01	1	-
71	HOLDER; TERMINAL,GEN ASM PART: E = 1-81200-455-2	1-81229-687-0	01	1	-9409
71	HOLDER; TERMINAL,GEN ASM PART: E = 1-81200-455-2	1-81229-703-0	01	1	9410-
78	CLIP; ROTOR,GEN ASM PART: E = 1-81200-455-2	1-81229-195-0	01	1	-
78	CLIP; ROTOR,GEN ASM PART: A = 1-81200-203-0	1-81229-230-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	1-81229-403-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-627-0	01	1	-
85	SPACER; PULLEY,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	1-81229-415-0	01	1	-
85	SPACER; PULLEY,GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-626-0	01	1	-
87	WASHER; PULLEY,GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-672-0	01	1	-
88	WASHER; PL,PULLEY GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-673-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: A = 1-81200-203-0	1-81229-112-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: D = 1-81200-414-1	1-81229-278-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: E = 1-81200-455-2	1-81229-698-0	01	1	-

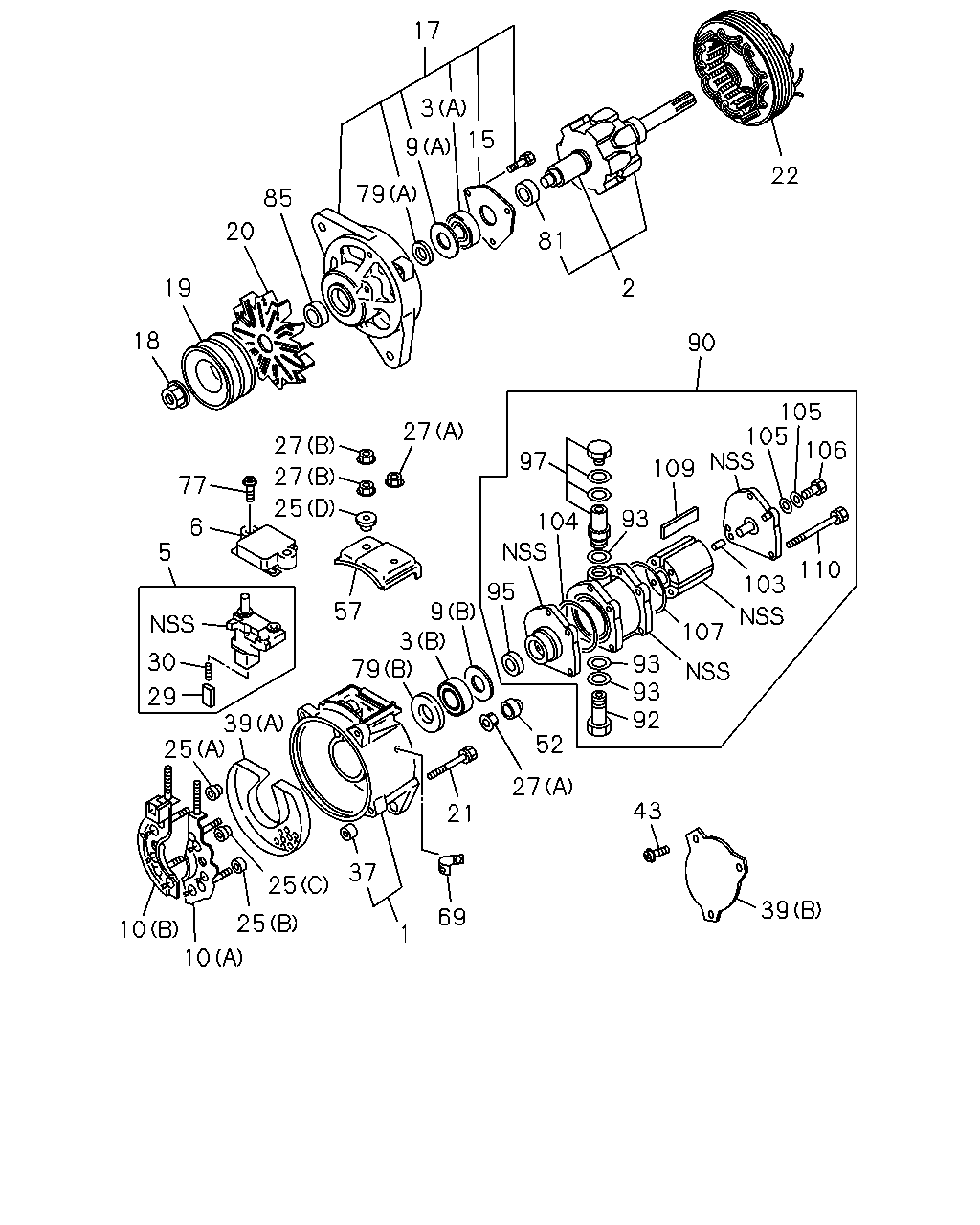

17 3 15 9 22 79 85 20 81 19 2 18 90 105 105 27 27 106 97 109 27 25 93 104 57 5 110 103 95 3 107 25 79 30 93 93 92 29 39 25 27 21 25 37 69 25 10 10 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 1-81200-203-0	1-81214-095-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81214-185-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: F = 5-81200-165-2	1-81214-187-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: G = 5-81200-180-3	1-81214-312-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 1-81200-414-1	1-81214-318-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: E = 1-81200-455-2	1-81214-327-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: H = 5-81200-235-1	5-81214-061-0	01	1	-
2	ROTOR; GEN ASM PART: C = 1-81200-328-1	1-81211-080-0	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-203-0	1-81221-030-0	01	1	-
2	ROTOR; GEN ASM PART: B = 1-81200-287-2	1-81221-058-0	01	1	-
2	ROTOR; GEN ASM PART: F = 5-81200-165-2	1-81221-083-0	01	1	-
2	ROTOR; GEN ASM PART: G = 5-81200-180-3	1-81221-084-0	01	1	-
2	ROTOR; GEN ASM PART: D = 1-81200-414-1	1-81221-087-0	01	1	-
2	ROTOR; GEN ASM PART: E = 1-81200-455-2	1-81221-095-0	01	1	-
2	ROTOR; GEN ASM PART: H = 5-81200-235-1	5-81221-042-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 1-81200-203-0	1-81229-224-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-203-0	1-81229-225-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: G = 5-81200-180-3	1-81229-576-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: D = 1-81200-414-1	1-81229-628-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-631-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: E = 1-81200-455-2	1-81229-690-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 1-81200-287-2	5-81229-017-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3, H = 5-81200-235-1	5-81229-104-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: A = 1-81200-203-0	1-81217-015-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81217-041-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81217-070-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: H = 5-81200-235-1	5-81217-014-0	01	1	-
9	COVER; FELT WASHER,ROTOR,GEN (A) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	1-81214-102-0	01	1	-
9	COVER; FELT WASHER,ROTOR,GEN (B) ASM PART: B = 1-81200-287-2	5-81214-059-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81217-042-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81217-043-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81219-101-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81219-102-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 1-81200-414-1	1-81219-109-0	01	1	-9311
10	RECTIFIER; GEN ASM PART: E = 1-81200-455-2	1-81219-114-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 1-81200-414-1	1-81219-114-0	01	1	9312-
15	RETAINER; ROTOR,GEN (D) ASM PART: A = 1-81200-203-0	1-81229-123-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: A = 1-81200-203-0	1-81229-161-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: A = 1-81200-203-0	1-81229-163-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: A = 1-81200-203-0	1-81229-164-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: D = 1-81200-414-1	1-81229-190-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-349-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	1-81229-405-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: D = 1-81200-414-1	1-81229-629-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: E = 1-81200-455-2	1-81229-695-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: E = 1-81200-455-2	1-81229-696-0	01	1	-
15	RETAINER; ROTOR,GEN (E) ASM PART: A = 1-81200-203-0	9-82216-060-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81213-055-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 1-81200-414-1	1-81213-073-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: E = 1-81200-455-2	1-81213-087-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, H = 5-81200-235-1	5-81213-029-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3, H = 5-81200-235-1	8-94167-948-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	9-82216-098-0	01	1	-
19	PULLEY; GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81222-030-0	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-203-0	1-81222-034-0	01	1	-
19	PULLEY; GEN ASM PART: E = 1-81200-455-2	1-81222-051-0	01	1	-9707
19	PULLEY; GEN ASM PART: D = 1-81200-414-1	1-81222-051-0	01	1	-
19	PULLEY; GEN ASM PART: E = 1-81200-455-2	1-81222-109-0	01	1	9708-
19	PULLEY; GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3, H = 5-81200-235-1	5-81222-043-0	01	1	-
20	FAN; GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81211-078-0	01	1	-
20	FAN; GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81223-003-0	01	1	-
20	FAN; GEN ASM PART: H = 5-81200-235-1	5-81223-006-0	01	1	-
20	FAN; GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	5-81223-007-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 1-81200-203-0	1-81229-097-0	03	1	-
21	BOLT; THROUGH,GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-632-0	04	1	-
21	BOLT; THROUGH,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3, H = 5-81200-235-1	5-81229-106-0	04	1	-
22	STATOR; GEN ASM PART: A = 1-81200-203-0	1-81211-032-0	01	1	-
22	STATOR; GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81211-067-0	01	1	-
22	STATOR; GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81211-099-0	01	1	-
22	STATOR; GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81211-112-0	01	1	-
22	STATOR; GEN ASM PART: H = 5-81200-235-1	5-81211-036-0	01	1	-
25	BUSHING; INSULATION TERMINAL (B) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	1-81229-410-0	02	1	-
25	BUSHING; INSULATION TERMINAL (C) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	1-81229-411-0	02	1	-
25	BUSHING; INSULATION TERMINAL (D) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	1-81229-413-0	01	1	-
25	BUSHING; INSULATION TERMINAL (E) ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81229-590-0	01	1	-
25	BUSHING; INSULATION TERMINAL (A) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, H = 5-81200-235-1	5-81229-105-0	02	1	-
25	BUSHING; INSULATION TERMINAL (A) ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	5-81229-105-0	04	1	-
27	NUT; RECTIFIER,GEN (B) ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	8-94206-186-0	01	1	-
27	NUT; RECTIFIER,GEN (B) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	8-94206-186-0	02	1	-
27	NUT; RECTIFIER,GEN (A) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	8-94206-188-0	06	1	-
27	NUT; RECTIFIER,GEN (A) ASM PART: H = 5-81200-235-1	8-94206-188-0	08	1	-
29	BRUSH; GEN ASM PART: F = 5-81200-165-2	5-81215-018-0	01	1	-
29	BRUSH; GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, G = 5-81200-180-3, H = 5-81200-235-1	5-81215-018-0	02	1	-
30	SPRING; BRUSH,GEN ASM PART: F = 5-81200-165-2	5-81216-002-0	01	1	-
30	SPRING; BRUSH,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, G = 5-81200-180-3, H = 5-81200-235-1	5-81216-002-0	02	1	-
37	BUSHING; RR COVER,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3, H = 5-81200-235-1	9-82215-879-0	01	1	-
39	COVER; END,RR COVER,GEN ASM PART: A = 1-81200-203-0	1-81214-083-0	01	1	-
39	COVER; END,RR COVER,GEN (A) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81214-186-0	01	1	-
39	COVER; END,RR COVER,GEN ASM PART: F = 5-81200-165-2	1-81214-188-0	01	1	-
39	COVER; END,RR COVER,GEN ASM PART: E = 1-81200-455-2	1-81229-692-0	01	1	-
39	COVER; END,RR COVER,GEN (B) ASM PART: B = 1-81200-287-2	5-81214-028-1	01	1	-
57	COVER; BRUSH,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81217-044-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81217-071-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: A = 1-81200-203-0	1-81229-154-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-639-0	01	1	-
69	CLIP; WIRE,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	1-81229-534-0	01	1	-
79	WASHER; FELT,ROTOR,GEN (B) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	5-81229-039-0	01	1	-
79	WASHER; FELT,ROTOR,GEN (A) ASM PART: H = 5-81200-235-1	9-82215-707-0	02	1	-
79	WASHER; FELT,ROTOR,GEN (A) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	9-82215-707-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	1-81229-403-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-627-0	01	1	-
85	SPACER; PULLEY,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	1-81229-415-0	01	1	-
85	SPACER; PULLEY,GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-626-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: C = 1-81200-328-1, H = 5-81200-235-1	5-19600-001-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: F = 5-81200-165-2	5-19600-015-0	01	1	-
92	BOLT; DELIVERY,VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	9-88130-101-0	01	1	-
93	GASKET; CONN,VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	9-88130-126-0	03	1	-
95	SEAL; VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	5-09625-033-1	01	1	-
97	VALVE; VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	9-19665-015-0	01	1	-
103	PIN; VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	5-09740-009-0	04	1	-
104	GASKET; FRT COVER,VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2	5-09623-016-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP ASM PART: H = 5-81200-235-1	5-09623-016-0	02	1	-
105	WASHER; CONN BOLT,VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	9-88130-087-0	02	1	-
106	BOLT; OIL CONN,VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	9-88130-088-0	01	1	-
107	GASKET; RR COVER,VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2	5-09623-016-0	01	1	-
109	VANE; VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	5-19629-001-0	04	1	-
110	BOLT; THROUGH ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	5-19619-009-0	03	1	-

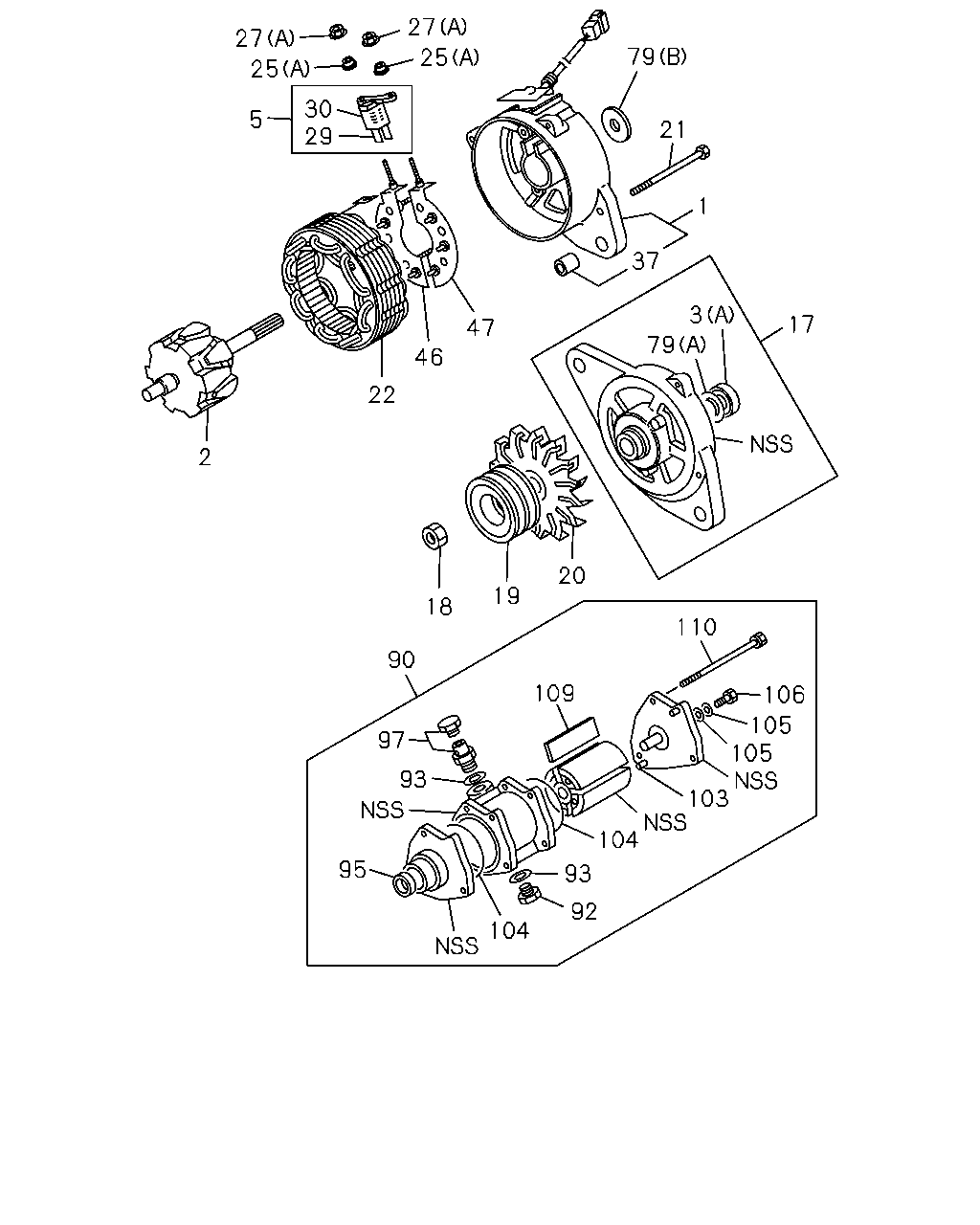

27 27 79 25 25 30 29 5 21 1 37 3 17 47 79 46 22 2 20 19 18 110 90 109 106 105 105 103 104 97 93 95 93 92 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 1-81200-203-0	1-81214-095-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81214-185-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: F = 5-81200-165-2	1-81214-187-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: G = 5-81200-180-3	1-81214-312-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 1-81200-414-1	1-81214-318-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: E = 1-81200-455-2	1-81214-327-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: H = 5-81200-235-1	5-81214-061-0	01	1	-
2	ROTOR; GEN ASM PART: C = 1-81200-328-1	1-81211-080-0	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-203-0	1-81221-030-0	01	1	-
2	ROTOR; GEN ASM PART: B = 1-81200-287-2	1-81221-058-0	01	1	-
2	ROTOR; GEN ASM PART: F = 5-81200-165-2	1-81221-083-0	01	1	-
2	ROTOR; GEN ASM PART: G = 5-81200-180-3	1-81221-084-0	01	1	-
2	ROTOR; GEN ASM PART: D = 1-81200-414-1	1-81221-087-0	01	1	-
2	ROTOR; GEN ASM PART: E = 1-81200-455-2	1-81221-095-0	01	1	-
2	ROTOR; GEN ASM PART: H = 5-81200-235-1	5-81221-042-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 1-81200-203-0	1-81229-224-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-203-0	1-81229-225-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: G = 5-81200-180-3	1-81229-576-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: D = 1-81200-414-1	1-81229-628-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-631-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: E = 1-81200-455-2	1-81229-690-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 1-81200-287-2	5-81229-017-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3, H = 5-81200-235-1	5-81229-104-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: A = 1-81200-203-0	1-81217-015-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81217-041-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81217-070-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: H = 5-81200-235-1	5-81217-014-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81213-055-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 1-81200-414-1	1-81213-073-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: E = 1-81200-455-2	1-81213-087-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, H = 5-81200-235-1	5-81213-029-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3, H = 5-81200-235-1	8-94167-948-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	9-82216-098-0	01	1	-
19	PULLEY; GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81222-030-0	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-203-0	1-81222-034-0	01	1	-
19	PULLEY; GEN ASM PART: E = 1-81200-455-2	1-81222-051-0	01	1	-9707
19	PULLEY; GEN ASM PART: D = 1-81200-414-1	1-81222-051-0	01	1	-
19	PULLEY; GEN ASM PART: E = 1-81200-455-2	1-81222-109-0	01	1	9708-
19	PULLEY; GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3, H = 5-81200-235-1	5-81222-043-0	01	1	-
20	FAN; GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81211-078-0	01	1	-
20	FAN; GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81223-003-0	01	1	-
20	FAN; GEN ASM PART: H = 5-81200-235-1	5-81223-006-0	01	1	-
20	FAN; GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	5-81223-007-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 1-81200-203-0	1-81229-097-0	03	1	-
21	BOLT; THROUGH,GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-632-0	04	1	-
21	BOLT; THROUGH,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3, H = 5-81200-235-1	5-81229-106-0	04	1	-
22	STATOR; GEN ASM PART: A = 1-81200-203-0	1-81211-032-0	01	1	-
22	STATOR; GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81211-067-0	01	1	-
22	STATOR; GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81211-099-0	01	1	-
22	STATOR; GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81211-112-0	01	1	-
22	STATOR; GEN ASM PART: H = 5-81200-235-1	5-81211-036-0	01	1	-
25	BUSHING; INSULATION TERMINAL (B) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	1-81229-410-0	02	1	-
25	BUSHING; INSULATION TERMINAL (C) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	1-81229-411-0	02	1	-
25	BUSHING; INSULATION TERMINAL (D) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	1-81229-413-0	01	1	-
25	BUSHING; INSULATION TERMINAL (E) ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81229-590-0	01	1	-
25	BUSHING; INSULATION TERMINAL (A) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, H = 5-81200-235-1	5-81229-105-0	02	1	-
25	BUSHING; INSULATION TERMINAL (A) ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	5-81229-105-0	04	1	-
27	NUT; RECTIFIER,GEN (B) ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	8-94206-186-0	01	1	-
27	NUT; RECTIFIER,GEN (B) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	8-94206-186-0	02	1	-
27	NUT; RECTIFIER,GEN (A) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	8-94206-188-0	06	1	-
27	NUT; RECTIFIER,GEN (A) ASM PART: H = 5-81200-235-1	8-94206-188-0	08	1	-
29	BRUSH; GEN ASM PART: F = 5-81200-165-2	5-81215-018-0	01	1	-
29	BRUSH; GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, G = 5-81200-180-3, H = 5-81200-235-1	5-81215-018-0	02	1	-
30	SPRING; BRUSH,GEN ASM PART: F = 5-81200-165-2	5-81216-002-0	01	1	-
30	SPRING; BRUSH,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, G = 5-81200-180-3, H = 5-81200-235-1	5-81216-002-0	02	1	-
37	BUSHING; RR COVER,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3, H = 5-81200-235-1	9-82215-879-0	01	1	-
46	RECTIFIER; (+),GEN ASM PART: A = 1-81200-203-0	1-81219-015-0	01	1	-
46	RECTIFIER; (+),GEN ASM PART: H = 5-81200-235-1	5-81218-024-0	01	1	-
47	RECTIFIER; (-),GEN ASM PART: A = 1-81200-203-0	1-81219-014-0	01	1	-
47	RECTIFIER; (-),GEN ASM PART: H = 5-81200-235-1	5-81218-023-0	01	1	-
79	WASHER; FELT,ROTOR,GEN (B) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	5-81229-039-0	01	1	-
79	WASHER; FELT,ROTOR,GEN (A) ASM PART: H = 5-81200-235-1	9-82215-707-0	02	1	-
79	WASHER; FELT,ROTOR,GEN (A) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	9-82215-707-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: C = 1-81200-328-1, H = 5-81200-235-1	5-19600-001-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: F = 5-81200-165-2	5-19600-015-0	01	1	-
92	BOLT; DELIVERY,VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	9-88130-101-0	01	1	-
93	GASKET; CONN,VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	9-88130-126-0	03	1	-
95	SEAL; VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	5-09625-033-1	01	1	-
97	VALVE; VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	9-19665-015-0	01	1	-
103	PIN; VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	5-09740-009-0	04	1	-
104	GASKET; FRT COVER,VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2	5-09623-016-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP ASM PART: H = 5-81200-235-1	5-09623-016-0	02	1	-
105	WASHER; CONN BOLT,VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	9-88130-087-0	02	1	-
106	BOLT; OIL CONN,VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	9-88130-088-0	01	1	-
109	VANE; VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	5-19629-001-0	04	1	-
110	BOLT; THROUGH ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	5-19619-009-0	03	1	-

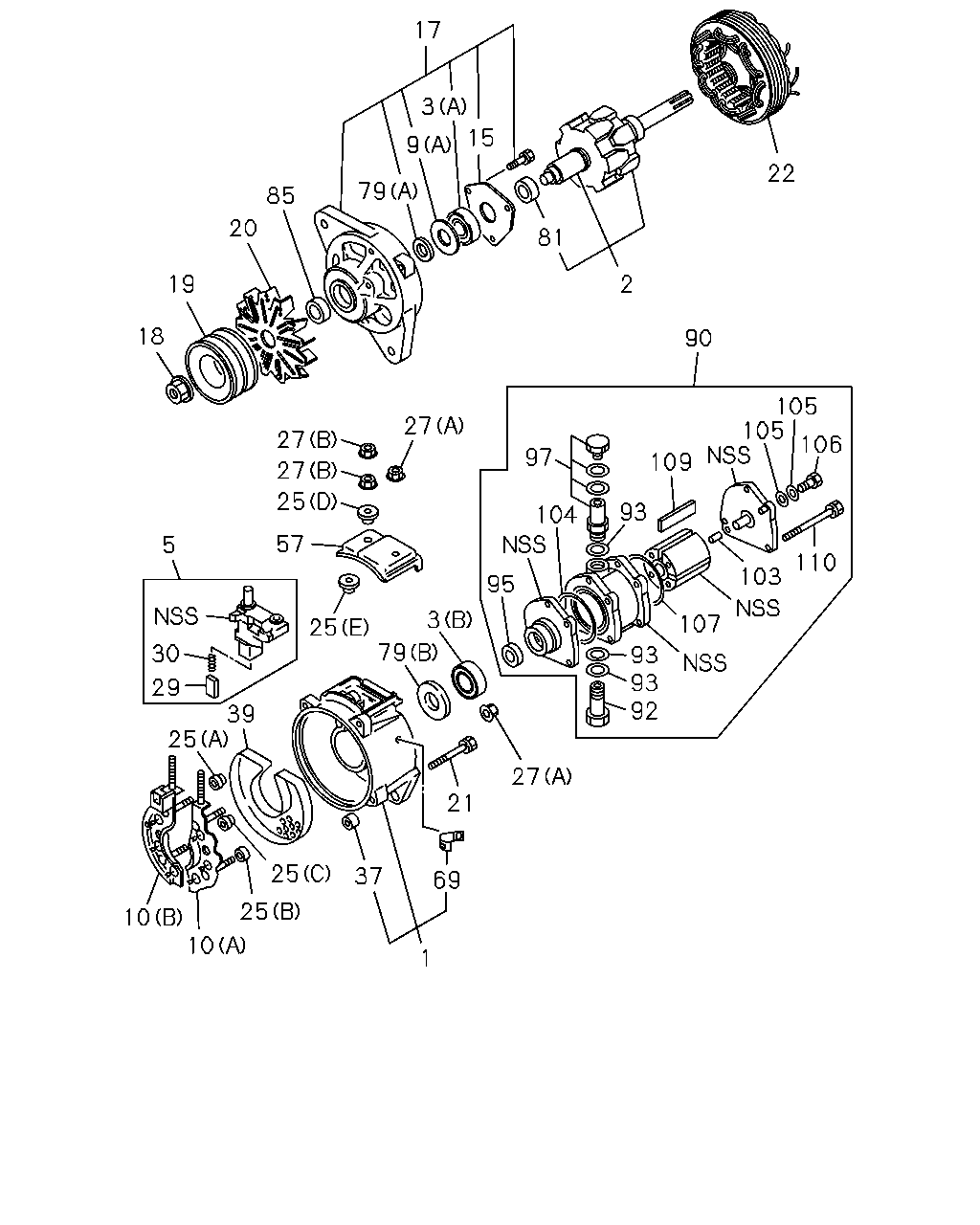

17 3 15 9 22 79 85 20 81 19 2 18 90 105 105 27 27 106 97 109 27 77 25 93 104 6 5 110 103 95 57 9 3 79 107 30 93 93 92 29 39 52 25 27 43 21 37 25 39 69 25 10 10 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 1-81200-203-0	1-81214-095-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81214-185-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: F = 5-81200-165-2	1-81214-187-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: G = 5-81200-180-3	1-81214-312-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: D = 1-81200-414-1	1-81214-318-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: E = 1-81200-455-2	1-81214-327-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: H = 5-81200-235-1	5-81214-061-0	01	1	-
2	ROTOR; GEN ASM PART: C = 1-81200-328-1	1-81211-080-0	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-203-0	1-81221-030-0	01	1	-
2	ROTOR; GEN ASM PART: B = 1-81200-287-2	1-81221-058-0	01	1	-
2	ROTOR; GEN ASM PART: F = 5-81200-165-2	1-81221-083-0	01	1	-
2	ROTOR; GEN ASM PART: G = 5-81200-180-3	1-81221-084-0	01	1	-
2	ROTOR; GEN ASM PART: D = 1-81200-414-1	1-81221-087-0	01	1	-
2	ROTOR; GEN ASM PART: E = 1-81200-455-2	1-81221-095-0	01	1	-
2	ROTOR; GEN ASM PART: H = 5-81200-235-1	5-81221-042-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 1-81200-203-0	1-81229-224-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 1-81200-203-0	1-81229-225-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: G = 5-81200-180-3	1-81229-576-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: D = 1-81200-414-1	1-81229-628-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-631-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: E = 1-81200-455-2	1-81229-690-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 1-81200-287-2	5-81229-017-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3, H = 5-81200-235-1	5-81229-104-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: A = 1-81200-203-0	1-81217-015-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81217-041-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81217-070-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: H = 5-81200-235-1	5-81217-014-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81270-011-0	01	1	-
9	COVER; FELT WASHER,ROTOR,GEN (A) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	1-81214-102-0	01	1	-
9	COVER; FELT WASHER,ROTOR,GEN (B) ASM PART: B = 1-81200-287-2	5-81214-059-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81217-042-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81217-043-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81219-101-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81219-102-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 1-81200-414-1	1-81219-109-0	01	1	-9311
10	RECTIFIER; GEN ASM PART: E = 1-81200-455-2	1-81219-114-0	01	1	-
10	RECTIFIER; GEN ASM PART: D = 1-81200-414-1	1-81219-114-0	01	1	9312-
15	RETAINER; ROTOR,GEN (D) ASM PART: A = 1-81200-203-0	1-81229-123-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: A = 1-81200-203-0	1-81229-161-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: A = 1-81200-203-0	1-81229-163-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: A = 1-81200-203-0	1-81229-164-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: D = 1-81200-414-1	1-81229-190-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-349-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	1-81229-405-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: D = 1-81200-414-1	1-81229-629-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: E = 1-81200-455-2	1-81229-695-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: E = 1-81200-455-2	1-81229-696-0	01	1	-
15	RETAINER; ROTOR,GEN (E) ASM PART: A = 1-81200-203-0	9-82216-060-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81213-055-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: D = 1-81200-414-1	1-81213-073-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: E = 1-81200-455-2	1-81213-087-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, H = 5-81200-235-1	5-81213-029-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3, H = 5-81200-235-1	8-94167-948-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	9-82216-098-0	01	1	-
19	PULLEY; GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81222-030-0	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-203-0	1-81222-034-0	01	1	-
19	PULLEY; GEN ASM PART: E = 1-81200-455-2	1-81222-051-0	01	1	-9707
19	PULLEY; GEN ASM PART: D = 1-81200-414-1	1-81222-051-0	01	1	-
19	PULLEY; GEN ASM PART: E = 1-81200-455-2	1-81222-109-0	01	1	9708-
19	PULLEY; GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3, H = 5-81200-235-1	5-81222-043-0	01	1	-
20	FAN; GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81211-078-0	01	1	-
20	FAN; GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81223-003-0	01	1	-
20	FAN; GEN ASM PART: H = 5-81200-235-1	5-81223-006-0	01	1	-
20	FAN; GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	5-81223-007-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 1-81200-203-0	1-81229-097-0	03	1	-
21	BOLT; THROUGH,GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-632-0	04	1	-
21	BOLT; THROUGH,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3, H = 5-81200-235-1	5-81229-106-0	04	1	-
22	STATOR; GEN ASM PART: A = 1-81200-203-0	1-81211-032-0	01	1	-
22	STATOR; GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81211-067-0	01	1	-
22	STATOR; GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81211-099-0	01	1	-
22	STATOR; GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81211-112-0	01	1	-
22	STATOR; GEN ASM PART: H = 5-81200-235-1	5-81211-036-0	01	1	-
25	BUSHING; INSULATION TERMINAL (B) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	1-81229-410-0	02	1	-
25	BUSHING; INSULATION TERMINAL (C) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	1-81229-411-0	02	1	-
25	BUSHING; INSULATION TERMINAL (D) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	1-81229-413-0	01	1	-
25	BUSHING; INSULATION TERMINAL (E) ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81229-590-0	01	1	-
25	BUSHING; INSULATION TERMINAL (A) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, H = 5-81200-235-1	5-81229-105-0	02	1	-
25	BUSHING; INSULATION TERMINAL (A) ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	5-81229-105-0	04	1	-
27	NUT; RECTIFIER,GEN (B) ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	8-94206-186-0	01	1	-
27	NUT; RECTIFIER,GEN (B) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	8-94206-186-0	02	1	-
27	NUT; RECTIFIER,GEN (A) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	8-94206-188-0	06	1	-
27	NUT; RECTIFIER,GEN (A) ASM PART: H = 5-81200-235-1	8-94206-188-0	08	1	-
29	BRUSH; GEN ASM PART: F = 5-81200-165-2	5-81215-018-0	01	1	-
29	BRUSH; GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, G = 5-81200-180-3, H = 5-81200-235-1	5-81215-018-0	02	1	-
30	SPRING; BRUSH,GEN ASM PART: F = 5-81200-165-2	5-81216-002-0	01	1	-
30	SPRING; BRUSH,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, G = 5-81200-180-3, H = 5-81200-235-1	5-81216-002-0	02	1	-
37	BUSHING; RR COVER,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3, H = 5-81200-235-1	9-82215-879-0	01	1	-
39	COVER; END,RR COVER,GEN ASM PART: A = 1-81200-203-0	1-81214-083-0	01	1	-
39	COVER; END,RR COVER,GEN (A) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81214-186-0	01	1	-
39	COVER; END,RR COVER,GEN ASM PART: F = 5-81200-165-2	1-81214-188-0	01	1	-
39	COVER; END,RR COVER,GEN ASM PART: E = 1-81200-455-2	1-81229-692-0	01	1	-
39	COVER; END,RR COVER,GEN (B) ASM PART: B = 1-81200-287-2	5-81214-028-1	01	1	-
43	SCREW; RR END COVER ASM PART: B = 1-81200-287-2	1-81229-416-0	03	1	-
43	SCREW; RR END COVER ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-641-0	04	1	-
52	CAP; RUBBER,TERMINAL ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81229-417-0	02	1	-
57	COVER; BRUSH,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81217-044-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: F = 5-81200-165-2, G = 5-81200-180-3	1-81217-071-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: A = 1-81200-203-0	1-81229-154-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-639-0	01	1	-
69	CLIP; WIRE,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	1-81229-534-0	01	1	-
77	SCREW; REG ASM PART: B = 1-81200-287-2, C = 1-81200-328-1	1-81229-419-0	04	1	-
79	WASHER; FELT,ROTOR,GEN (B) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	5-81229-039-0	01	1	-
79	WASHER; FELT,ROTOR,GEN (A) ASM PART: H = 5-81200-235-1	9-82215-707-0	02	1	-
79	WASHER; FELT,ROTOR,GEN (A) ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	9-82215-707-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	1-81229-403-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-627-0	01	1	-
85	SPACER; PULLEY,GEN ASM PART: B = 1-81200-287-2, C = 1-81200-328-1, F = 5-81200-165-2, G = 5-81200-180-3	1-81229-415-0	01	1	-
85	SPACER; PULLEY,GEN ASM PART: D = 1-81200-414-1, E = 1-81200-455-2	1-81229-626-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: C = 1-81200-328-1, H = 5-81200-235-1	5-19600-001-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: F = 5-81200-165-2	5-19600-015-0	01	1	-
92	BOLT; DELIVERY,VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	9-88130-101-0	01	1	-
93	GASKET; CONN,VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	9-88130-126-0	03	1	-
95	SEAL; VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	5-09625-033-1	01	1	-
97	VALVE; VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	9-19665-015-0	01	1	-
103	PIN; VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	5-09740-009-0	04	1	-
104	GASKET; FRT COVER,VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2	5-09623-016-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP ASM PART: H = 5-81200-235-1	5-09623-016-0	02	1	-
105	WASHER; CONN BOLT,VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	9-88130-087-0	02	1	-
106	BOLT; OIL CONN,VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	9-88130-088-0	01	1	-
107	GASKET; RR COVER,VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2	5-09623-016-0	01	1	-
109	VANE; VAC PUMP ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	5-19629-001-0	04	1	-
110	BOLT; THROUGH ASM PART: C = 1-81200-328-1, F = 5-81200-165-2, H = 5-81200-235-1	5-19619-009-0	03	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
