6-70 — FLOOR PANEL (#32649) — 176 parça

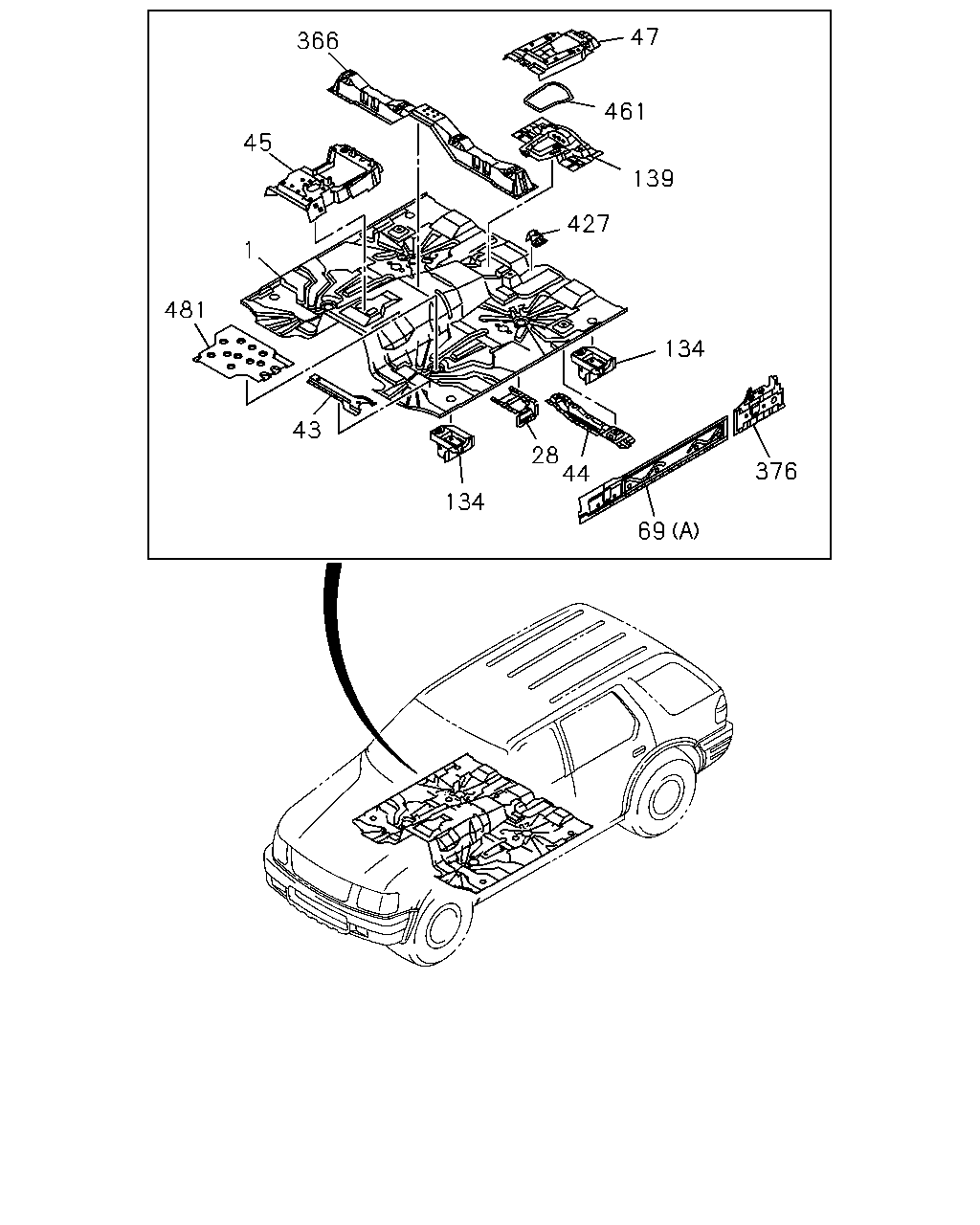

çizim 36857
47 366 461 45 139 427 1 481 134 43 28 44 376 134 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.545 PANEL; FLOOR
USA 		8-97123-401-5 01 1 9811-9907 ●
1 16.545 PANEL; FLOOR
M/T MUA 5 SPEED(RMN) USA 		8-97123-401-5 01 1 9811-9907 ●
1 16.545 PANEL; FLOOR
USA 		8-97220-478-0 01 1 9908-0012 ●
1 16.545 PANEL; FLOOR
M/T MUA 5 SPEED(RMN) USA 		8-97220-478-0 01 1 9908-0012 ●
1 16.545 PANEL; FLOOR
M/T MUA 5 SPEED(RMN) USA 		8-97220-478-0 01 1 0101-0209 ●
1 16.545 PANEL; FLOOR
A/T THM 4 SPEED(RMQ) USA 		8-97123-758-5 01 1 9811-9907 ●
1 16.545 PANEL; FLOOR
A/T THM 4 SPEED(RMQ) USA 		8-97220-479-0 01 1 9908-0209 ●
1 16.545 PANEL; FLOOR
A/T THM 4 SPEED(RMQ) USA 		8-97220-479-0 01 1 0210- ●
1 16.545 PANEL; FLOOR
M/T MUA 5 SPEED(RMN) USA 		8-97220-478-0 01 1 0210- ●
28 16.545 GUSSET; FLOOR PANEL SIDE
USA 		8-97125-034-1 02 1 9811-0012 ● ●
28 16.545 GUSSET; FLOOR PANEL SIDE
USA 		8-97125-034-1 02 1 0101- ●
43 16.545 BAR; FRT COMPT PAN,FRT
USA 		8-97125-197-1 02 1 9811-0012 ● ●
44 16.545 BAR; FRT COMPT PAN,RR
USA 		8-97125-213-2 01 1 9811-0012 ● ●
44 16.545 BAR; FRT COMPT PAN,RR
USA 		8-97125-213-2 01 1 0101-0209 ●
44 16.545 BAR; FRT COMPT PAN,RR
USA 		8-97125-212-2 01 1 9811-0012 ● ●
44 16.545 BAR; FRT COMPT PAN,RR
USA 		8-97125-212-2 01 1 0101-0209 ●
44 16.545 BAR; FRT COMPT PAN,RR
USA 		8-97125-212-2 01 1 0210- ●
44 16.545 BAR; FRT COMPT PAN,RR
USA 		8-97125-213-2 01 1 0210- ●
45 16.545 REINFORCEMENT; TUNNEL,FRT
USA 		8-97124-952-1 01 1 9811-0012 ● ●
45 16.545 REINFORCEMENT; TUNNEL,FRT
USA 		8-97124-952-1 01 1 0101- ●
47 16.545 REINFORCEMENT; TUNNEL,RR
USA 		8-97125-036-2 01 1 9811-0012 ● ●
47 16.545 REINFORCEMENT; TUNNEL,RR
USA 		8-97125-036-2 01 1 0101- ●
69 16.545 PANEL; ROCKER INNER
(A) USA 		8-97125-042-3 01 1 9811-0012 ● ●
69 16.545 PANEL; ROCKER INNER
(A) USA 		8-97215-773-5 01 1 0101-0209 ●
69 16.545 PANEL; ROCKER INNER
(A) USA 		8-97125-041-3 01 1 9811-0012 ● ●
69 16.545 PANEL; ROCKER INNER
(A) USA 		8-97215-769-5 01 1 0101-0209 ●
69 16.545 PANEL; ROCKER INNER
(B) USA 		8-97125-065-5 01 1 9811-0210 ●
69 16.545 PANEL; ROCKER INNER
(B) USA 		8-97264-175-0 01 1 0211- ●
69 16.545 PANEL; ROCKER INNER
(B) USA 		8-97125-062-5 01 1 9811-0210 ●
69 16.545 PANEL; ROCKER INNER
(B) USA 		8-97264-174-0 01 1 0211- ●
69 16.545 PANEL; ROCKER INNER
(A) USA 		8-97215-769-5 01 1 0211- ●
69 16.545 PANEL; ROCKER INNER
(A) USA 		8-97215-773-5 01 1 0211- ●
134 16.545 BRACKET; BODY MTG
NO.2 MTG LH, NO.3 MTG USA 		8-97209-733-0 03 1 9811-0008 ● ●
134 16.545 BRACKET; BODY MTG
NO.2 MTG LH, NO.3 MTG USA 		8-97256-449-1 03 1 0009-0012 ● ●
134 16.545 BRACKET; BODY MTG
NO.2 MTG LH, NO.3 MTG USA 		8-97256-449-1 03 1 0101-0209 ●
134 16.545 BRACKET; BODY MTG
NO.2 MTG RH USA 		8-97209-734-0 01 1 9811-0008 ● ●
134 16.545 BRACKET; BODY MTG
NO.2 MTG RH USA 		8-97256-448-1 01 1 0009-0012 ● ●
134 16.545 BRACKET; BODY MTG
NO.2 MTG RH USA 		8-97256-448-1 01 1 0101-0209 ●
134 16.545 BRACKET; BODY MTG
NO.4 MTG USA 		8-97175-667-0 01 1 9811- ●
134 16.545 BRACKET; BODY MTG
NO.4 MTG USA 		8-97175-666-0 01 1 9811- ●
134 16.545 BRACKET; BODY MTG
NO.2 MTG RH USA 		8-97256-448-1 01 1 0210- ●
134 16.545 BRACKET; BODY MTG
NO.2 MTG LH, NO.3 MTG USA 		8-97256-449-1 03 1 0210- ●
139 16.545 BRACKET; HAND BRAKE LEVER
USA 		8-97125-039-2 01 1 9811-0012 ● ●
139 16.545 BRACKET; HAND BRAKE LEVER
USA 		8-97125-039-2 01 1 0101- ●
366 16.674 BAR ASM; FRT SEAT MTG
USA 		8-97201-806-0 01 1 9811-9909 ● ●
366 16.674 BAR ASM; FRT SEAT MTG
USA 		8-97225-307-0 01 1 9910-0012 ● ●
366 16.674 BAR ASM; FRT SEAT MTG
USA 		8-97225-307-0 01 1 0101- ●
376 16.545 CLOSING; PILLAR,LWR
USA 		8-97125-050-2 01 1 9811-0012 ● ●
376 16.545 CLOSING; PILLAR,LWR
USA 		8-97215-788-2 01 1 0101-0209 ●
376 16.545 CLOSING; PILLAR,LWR
USA 		8-97125-049-2 01 1 9811-0012 ● ●
376 16.545 CLOSING; PILLAR,LWR
USA 		8-97215-786-2 01 1 0101-0209 ●
376 16.545 CLOSING; PILLAR,LWR
USA 		8-97215-788-2 01 1 0210- ●
376 16.545 CLOSING; PILLAR,LWR
USA 		8-97215-786-2 01 1 0210- ●
427 16.545 BRACKET; CABLE 8-97137-202-2 01 1 9811-0012 ● ●
427 16.545 BRACKET; CABLE 8-97137-202-2 01 1 0101- ●
461 16.520 SEAL; HAND BRK
USA 		8-97173-633-0 01 1 9811-0012 ● ●
461 16.520 SEAL; HAND BRK
USA 		8-97173-633-0 01 1 0101-0209 ●
481 16.545 PATCH; FRT FLOOR
USA 		8-97226-211-1 01 1 0101-0209 ●
481 16.545 PATCH; FRT FLOOR
USA 		8-97226-210-1 01 1 0101-0209 ●
481 16.545 PATCH; FRT FLOOR
USA 		8-97226-211-1 01 1 0210- ●
481 16.545 PATCH; FRT FLOOR
USA 		8-97226-210-1 01 1 0210- ●

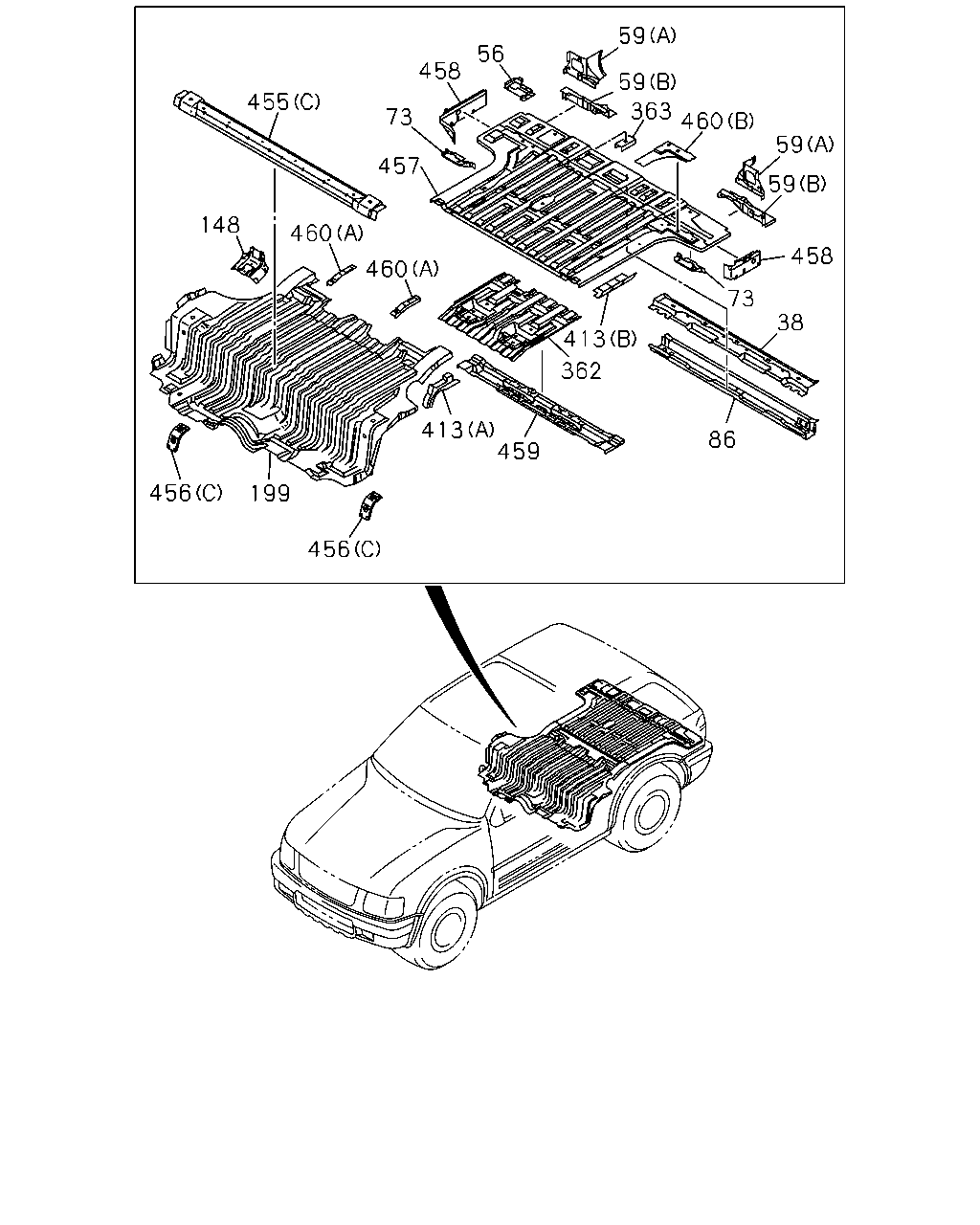

çizim 37142
59 56 458 59 455 363 460 73 59 457 59 148 460 458 460 73 38 413 362 413 459 86 456 199 456
BalonParca AdiParca NoAdetTipApplied Date A B
38 16.588 CLOSING; RR END
USA 		8-97125-074-2 01 1 9811-0012 ● ●
38 16.588 CLOSING; RR END
USA 		8-97125-074-2 01 1 0101- ●
56 08.820 BRACKET; JACK
USA 		8-97135-522-3 01 1 9811-0012 ●
56 08.820 BRACKET; JACK
USA 		8-97125-083-2 01 1 9811- ●
59 16.545 EXTENSION; RR END CLOSING
(A) USA 		8-97125-082-3 01 1 9811-0012 ● ●
59 16.545 EXTENSION; RR END CLOSING
(A) USA 		8-97125-082-3 01 1 0101- ●
59 16.545 EXTENSION; RR END CLOSING
(B) USA 		8-97209-736-0 01 1 9811-0012 ● ●
59 16.545 EXTENSION; RR END CLOSING
(B) USA 		8-97209-736-0 01 1 0101- ●
59 16.545 EXTENSION; RR END CLOSING
(A) USA 		8-97125-080-2 01 1 9811-0012 ● ●
59 16.545 EXTENSION; RR END CLOSING
(A) USA 		8-97125-080-2 01 1 0101- ●
59 16.545 EXTENSION; RR END CLOSING
(B) USA 		8-97209-735-0 01 1 9811-0012 ● ●
59 16.545 EXTENSION; RR END CLOSING
(B) USA 		8-97209-735-0 01 1 0101- ●
73 16.545 BRACKET; SUPPORT,FLOOR PANEL
USA 		8-97130-825-1 01 1 9811-0012 ●
73 16.545 BRACKET; SUPPORT,FLOOR PANEL
USA 		8-97130-824-1 01 1 9811-0012 ●
86 16.545 BAR; RR END
USA 		8-97125-225-2 01 1 9811-0012 ● ●
86 16.545 BAR; RR END
USA 		8-97125-225-2 01 1 0101- ●
148 16.674 BRACKET; SEAT
USA 		8-97161-828-0 01 1 9811-0012 ●
199 16.545 PANEL; RR FLOOR
USA 		8-97130-813-4 01 1 9811-0012 ●
199 16.545 PANEL; RR FLOOR
USA 		8-97125-055-1 01 1 9811- ●
362 16.545 REINFORCEMENT; RR SEAT LOCK
USA 		8-97130-820-0 01 1 9811-0012 ●
363 16.545 PATCH; TETHER ANCHOR 8-97209-307-0 02 1 9811-0012 ●
363 16.545 PATCH; TETHER ANCHOR 8-97209-307-0 03 1 9811- ●
413 16.545 PATCH; WHEEL HOUSE
(A) 		8-97209-191-0 01 1 9811-0012 ●
413 16.545 PATCH; WHEEL HOUSE
(B) 		8-97209-193-0 01 1 9811-0012 ●
413 16.545 PATCH; WHEEL HOUSE
(A) 		8-97209-190-0 01 1 9811-0012 ●
413 16.545 PATCH; WHEEL HOUSE
(B) 		8-97209-192-0 01 1 9811-0012 ●
455 16.545 BAR; RR FLOOR
(C) USA 		8-97143-677-2 01 1 9811-0012 ●
455 16.545 BAR; RR FLOOR
(A) USA 		8-94328-471-2 01 1 9811- ●
455 16.545 BAR; RR FLOOR
(B) USA 		8-97218-298-0 01 1 9811-0005 ●
455 16.545 BAR; RR FLOOR
(B) USA 		8-97246-831-2 01 1 0006- ●
456 16.545 PATCH; RR SEAT
(C) USA 		8-97130-814-0 02 1 9811-0012 ●
456 16.545 PATCH; RR SEAT
(A) USA 		8-97125-058-1 02 1 9811- ●
456 16.545 PATCH; RR SEAT
(B) USA 		8-97141-161-2 04 1 9811- ●
457 16.545 PAN; LUG FLOOR
USA 		8-97209-339-0 01 1 9811-0005 ●
457 16.545 PAN; LUG FLOOR
USA 		8-97236-616-0 01 1 0006-0006 ●
457 16.545 PAN; LUG FLOOR
USA 		8-97209-339-0 01 1 0007-0007 ●
457 16.545 PAN; LUG FLOOR
USA 		8-97286-968-0 01 1 0007-0012 ●
457 16.545 PAN; LUG FLOOR
USA 		8-97209-338-0 01 1 9811-0005 ●
457 16.545 PAN; LUG FLOOR
USA 		8-97236-615-0 01 1 0006-0006 ●
457 16.545 PAN; LUG FLOOR
USA 		8-97209-338-0 01 1 0007-0007 ●
457 16.545 PAN; LUG FLOOR
USA 		8-97286-932-0 01 1 0007- ●
458 16.545 PANEL; LUG FLOOR
USA 		8-97130-819-0 01 1 9811-0012 ●
458 16.545 PANEL; LUG FLOOR
USA 		8-97130-818-0 01 1 9811-0012 ●
458 16.545 PANEL; LUG FLOOR
USA 		8-97125-073-0 01 1 9811- ●
458 16.545 PANEL; LUG FLOOR
USA 		8-97125-072-0 01 1 9811- ●
459 16.545 BOLSTER; LUG FLOOR
USA 		8-97174-677-0 01 1 9811-0003 ●
459 16.545 BOLSTER; LUG FLOOR
USA 		8-97236-626-0 01 1 0004-0012 ●
459 16.545 BOLSTER; LUG FLOOR
USA 		8-97135-895-4 01 1 9811-0003 ●
459 16.545 BOLSTER; LUG FLOOR
USA 		8-97236-624-0 01 1 0004- ●
460 16.545 PATCH; LUG FLOOR
(B) 		8-97169-862-0 01 1 9811-0012 ●
460 16.545 PATCH; LUG FLOOR
(A) USA 		8-97147-946-0 01 1 9811-0012 ●
460 16.545 PATCH; LUG FLOOR
(A) USA 		8-97147-945-0 01 1 9811-0012 ●

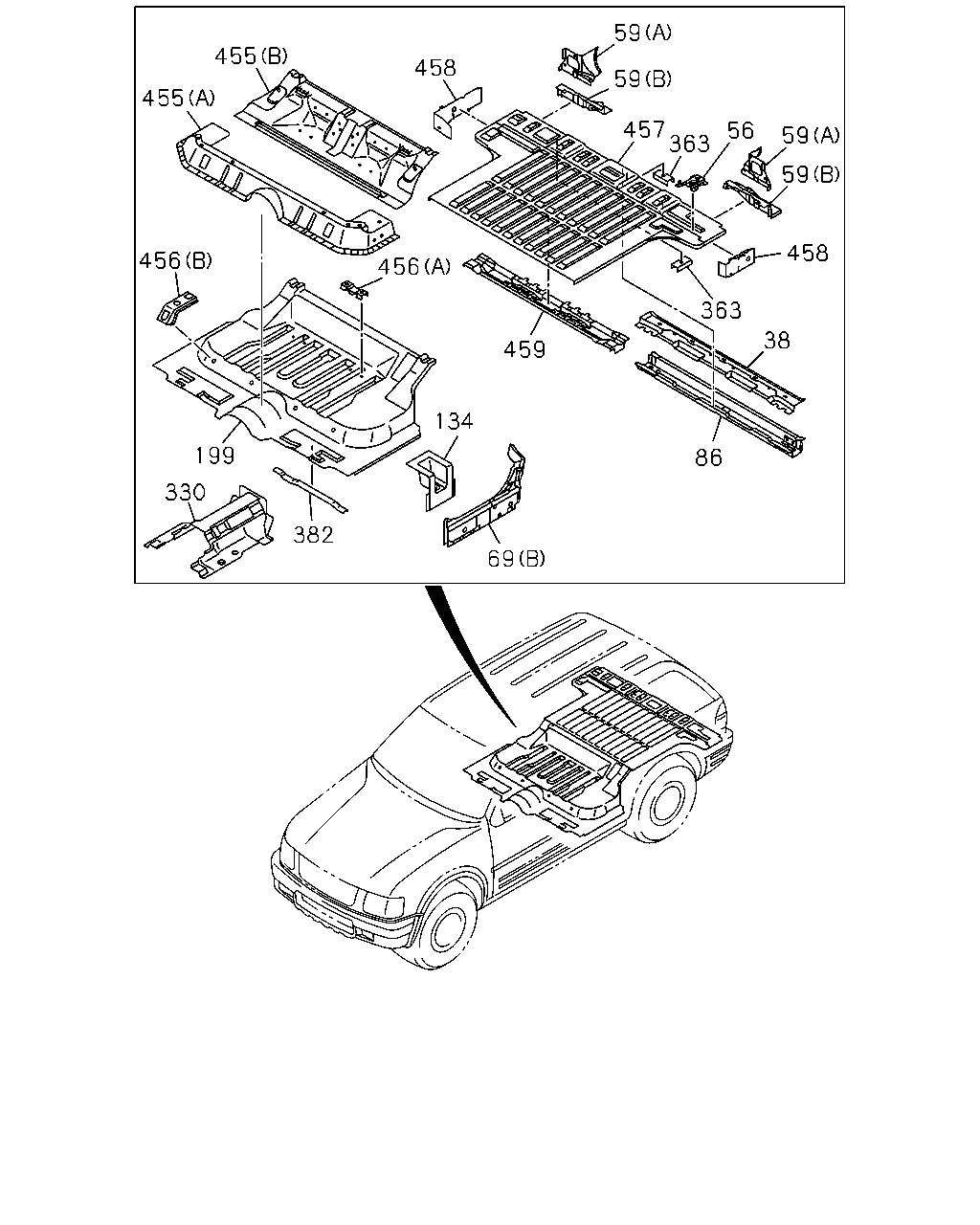

çizim 37811
59 455 458 59 455 457 363 56 59 59 458 456 456 363 38 459 134 199 86 330 382 69
BalonParca AdiParca NoAdetTipApplied Date A B
38 16.588 CLOSING; RR END
USA 		8-97125-074-2 01 1 9811-0012 ● ●
38 16.588 CLOSING; RR END
USA 		8-97125-074-2 01 1 0101- ●
56 08.820 BRACKET; JACK
USA 		8-97135-522-3 01 1 9811-0012 ●
56 08.820 BRACKET; JACK
USA 		8-97125-083-2 01 1 9811- ●
59 16.545 EXTENSION; RR END CLOSING
(A) USA 		8-97125-082-3 01 1 9811-0012 ● ●
59 16.545 EXTENSION; RR END CLOSING
(A) USA 		8-97125-082-3 01 1 0101- ●
59 16.545 EXTENSION; RR END CLOSING
(B) USA 		8-97209-736-0 01 1 9811-0012 ● ●
59 16.545 EXTENSION; RR END CLOSING
(B) USA 		8-97209-736-0 01 1 0101- ●
59 16.545 EXTENSION; RR END CLOSING
(A) USA 		8-97125-080-2 01 1 9811-0012 ● ●
59 16.545 EXTENSION; RR END CLOSING
(A) USA 		8-97125-080-2 01 1 0101- ●
59 16.545 EXTENSION; RR END CLOSING
(B) USA 		8-97209-735-0 01 1 9811-0012 ● ●
59 16.545 EXTENSION; RR END CLOSING
(B) USA 		8-97209-735-0 01 1 0101- ●
69 16.545 PANEL; ROCKER INNER
(A) USA 		8-97125-042-3 01 1 9811-0012 ● ●
69 16.545 PANEL; ROCKER INNER
(A) USA 		8-97215-773-5 01 1 0101-0209 ●
69 16.545 PANEL; ROCKER INNER
(A) USA 		8-97125-041-3 01 1 9811-0012 ● ●
69 16.545 PANEL; ROCKER INNER
(A) USA 		8-97215-769-5 01 1 0101-0209 ●
69 16.545 PANEL; ROCKER INNER
(B) USA 		8-97125-065-5 01 1 9811-0210 ●
69 16.545 PANEL; ROCKER INNER
(B) USA 		8-97264-175-0 01 1 0211- ●
69 16.545 PANEL; ROCKER INNER
(B) USA 		8-97125-062-5 01 1 9811-0210 ●
69 16.545 PANEL; ROCKER INNER
(B) USA 		8-97264-174-0 01 1 0211- ●
69 16.545 PANEL; ROCKER INNER
(A) USA 		8-97215-769-5 01 1 0211- ●
69 16.545 PANEL; ROCKER INNER
(A) USA 		8-97215-773-5 01 1 0211- ●
86 16.545 BAR; RR END
USA 		8-97125-225-2 01 1 9811-0012 ● ●
86 16.545 BAR; RR END
USA 		8-97125-225-2 01 1 0101- ●
134 16.545 BRACKET; BODY MTG
NO.2 MTG LH, NO.3 MTG USA 		8-97209-733-0 03 1 9811-0008 ● ●
134 16.545 BRACKET; BODY MTG
NO.2 MTG LH, NO.3 MTG USA 		8-97256-449-1 03 1 0009-0012 ● ●
134 16.545 BRACKET; BODY MTG
NO.2 MTG LH, NO.3 MTG USA 		8-97256-449-1 03 1 0101-0209 ●
134 16.545 BRACKET; BODY MTG
NO.2 MTG RH USA 		8-97209-734-0 01 1 9811-0008 ● ●
134 16.545 BRACKET; BODY MTG
NO.2 MTG RH USA 		8-97256-448-1 01 1 0009-0012 ● ●
134 16.545 BRACKET; BODY MTG
NO.2 MTG RH USA 		8-97256-448-1 01 1 0101-0209 ●
134 16.545 BRACKET; BODY MTG
NO.4 MTG USA 		8-97175-667-0 01 1 9811- ●
134 16.545 BRACKET; BODY MTG
NO.4 MTG USA 		8-97175-666-0 01 1 9811- ●
134 16.545 BRACKET; BODY MTG
NO.2 MTG RH USA 		8-97256-448-1 01 1 0210- ●
134 16.545 BRACKET; BODY MTG
NO.2 MTG LH, NO.3 MTG USA 		8-97256-449-1 03 1 0210- ●
199 16.545 PANEL; RR FLOOR
USA 		8-97130-813-4 01 1 9811-0012 ●
199 16.545 PANEL; RR FLOOR
USA 		8-97125-055-1 01 1 9811- ●
330 16.545 REINFORCEMENT; FLOOR
USA 		8-97254-071-1 01 1 0101- ●
363 16.545 PATCH; TETHER ANCHOR 8-97209-307-0 02 1 9811-0012 ●
363 16.545 PATCH; TETHER ANCHOR 8-97209-307-0 03 1 9811- ●
382 16.545 STIFFENER; RR FLOOR
USA 		8-94368-858-2 02 1 9811- ●
455 16.545 BAR; RR FLOOR
(C) USA 		8-97143-677-2 01 1 9811-0012 ●
455 16.545 BAR; RR FLOOR
(A) USA 		8-94328-471-2 01 1 9811- ●
455 16.545 BAR; RR FLOOR
(B) USA 		8-97218-298-0 01 1 9811-0005 ●
455 16.545 BAR; RR FLOOR
(B) USA 		8-97246-831-2 01 1 0006- ●
456 16.545 PATCH; RR SEAT
(C) USA 		8-97130-814-0 02 1 9811-0012 ●
456 16.545 PATCH; RR SEAT
(A) USA 		8-97125-058-1 02 1 9811- ●
456 16.545 PATCH; RR SEAT
(B) USA 		8-97141-161-2 04 1 9811- ●
457 16.545 PAN; LUG FLOOR
USA 		8-97209-339-0 01 1 9811-0005 ●
457 16.545 PAN; LUG FLOOR
USA 		8-97236-616-0 01 1 0006-0006 ●
457 16.545 PAN; LUG FLOOR
USA 		8-97209-339-0 01 1 0007-0007 ●
457 16.545 PAN; LUG FLOOR
USA 		8-97286-968-0 01 1 0007-0012 ●
457 16.545 PAN; LUG FLOOR
USA 		8-97209-338-0 01 1 9811-0005 ●
457 16.545 PAN; LUG FLOOR
USA 		8-97236-615-0 01 1 0006-0006 ●
457 16.545 PAN; LUG FLOOR
USA 		8-97209-338-0 01 1 0007-0007 ●
457 16.545 PAN; LUG FLOOR
USA 		8-97286-932-0 01 1 0007- ●
458 16.545 PANEL; LUG FLOOR
USA 		8-97130-819-0 01 1 9811-0012 ●
458 16.545 PANEL; LUG FLOOR
USA 		8-97130-818-0 01 1 9811-0012 ●
458 16.545 PANEL; LUG FLOOR
USA 		8-97125-073-0 01 1 9811- ●
458 16.545 PANEL; LUG FLOOR
USA 		8-97125-072-0 01 1 9811- ●
459 16.545 BOLSTER; LUG FLOOR
USA 		8-97174-677-0 01 1 9811-0003 ●
459 16.545 BOLSTER; LUG FLOOR
USA 		8-97236-626-0 01 1 0004-0012 ●
459 16.545 BOLSTER; LUG FLOOR
USA 		8-97135-895-4 01 1 9811-0003 ●
459 16.545 BOLSTER; LUG FLOOR
USA 		8-97236-624-0 01 1 0004- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
