Sayfa 6-66 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶

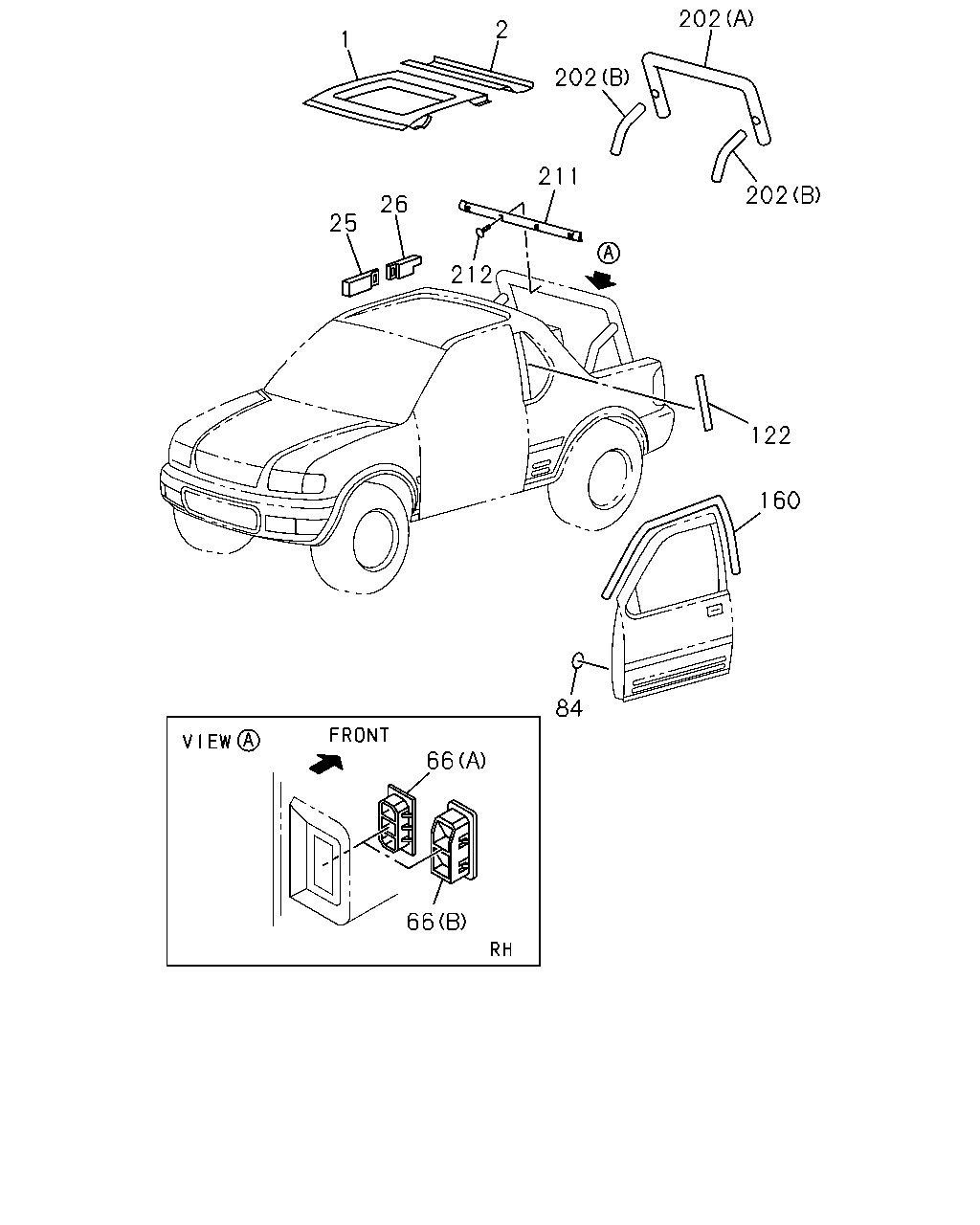

6-66 — HEAD LINING AND TRIM (#32648) — 125 parça

202 2 1 202 211 212 202 26 25 122 160 84 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.742 LINING; HD 4DOOR LONG(UE***F) EXC. SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97157-338-2	01	1	9811-0010	●
1	16.742 LINING; HD 4DOOR LONG(UE***F) EXC. SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97296-732-0	01	1	0011-0012	●
1	16.742 LINING; HD 4DOOR LONG(UE***F) EXC. SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97296-732-0	01	1	0101-0201	●	●
1	16.742 LINING; HD 4DOOR LONG(UE***F) EXC. SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97392-797-2	01	1	0202-	●	●
1	16.742 LINING; HD 2DOOR SHORT(UE***C) LIGHT GRAY USA	8-97197-223-1	01	1	9811-0008	●	●
1	16.742 LINING; HD 2DOOR SHORT(UE***C) LIGHT GRAY USA	8-97297-884-0	01	1	0009-0012	●	●
1	16.742 LINING; HD 4DOOR LONG(UE***F) SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97157-339-3	01	1	9811-0010	●	●
1	16.742 LINING; HD 4DOOR LONG(UE***F) SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97296-734-0	01	1	0011-0012	●	●
1	16.742 LINING; HD 4DOOR LONG(UE***F) SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97296-734-0	01	1	0101-0201	●	●
1	16.742 LINING; HD 4DOOR LONG(UE***F) SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97392-798-3	01	1	0202-	●	●
1	16.742 LINING; HD 4DOOR LONG(UE***F) EXC. SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97198-186-0	01	1	9811-0010		●
1	16.742 LINING; HD EXC. SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97297-902-0	01	1	0011-0106		●
1	16.742 LINING; HD EXC. SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97392-027-0	01	1	0107-0201		●
1	16.742 LINING; HD EXC. SUN ROOF SLIDING ELEC<CF5> USA	8-97392-795-2	01	1	0202-		●
2	16.742 LINING; HD,ROOF RR 2DOOR SHORT(UE***C) LIGHT GRAY USA	8-97159-257-3	01	1	9811-0012	●	●
2	16.742 LINING; HD,ROOF RR 4DOOR LONG(UE***F) LIGHT GRAY USA	8-97159-256-1	01	1	9811-0003	●	●
2	16.742 LINING; HD,ROOF RR 4DOOR LONG(UE***F) LIGHT GRAY USA	8-97294-769-0	01	1	0004-0012	●	●
2	16.742 LINING; HD,ROOF RR LIGHT GRAY USA	8-97294-769-0	01	1	0101-0205	●	●
2	16.742 LINING; HD,ROOF RR LIGHT GRAY USA	8-97395-018-2	01	1	0206-	●	●
25	16.165 PAD; ROOF	8-97162-645-2	01	1	9811-0006	●	●
25	16.165 PAD; ROOF	8-97260-113-0	01	1	0007-0110	●	●
25	16.165 PAD; ROOF	8-97316-725-1	01	1	0111-	●	●
25	16.165 PAD; ROOF	8-97162-644-2	01	1	9811-0006	●	●
25	16.165 PAD; ROOF	8-97260-112-0	01	1	0007-0110	●	●
25	16.165 PAD; ROOF	8-97316-724-1	01	1	0111-	●	●
26	16.165 PAD; ROOF 2DOOR SHORT(UE***C) USA	8-97162-658-2	01	1	9811-0012	●
26	16.165 PAD; ROOF 2DOOR SHORT(UE***C) USA	8-97162-657-2	01	1	9811-0012	●
26	16.165 PAD; ROOF 4DOOR LONG(UE***F) USA	8-97162-647-1	01	1	9811-0012	●	●
26	16.165 PAD; ROOF USA	8-97162-647-1	01	1	0101-	●	●
26	16.165 PAD; ROOF 4DOOR LONG(UE***F) USA	8-97162-646-1	01	1	9811-0012	●	●
26	16.165 PAD; ROOF USA	8-97162-646-1	01	1	0101-	●	●
66	16.576 GRILLE; AIR OUTLET 2DOOR SHORT(UE***C) (A) USA	8-97124-471-1	01	1	9811-0003	●
66	16.576 GRILLE; AIR OUTLET 2DOOR SHORT(UE***C) (B)	8-97246-720-0	01	1	0004-0012	●
66	16.576 GRILLE; AIR OUTLET 4DOOR LONG(UE***F) (A) USA	8-97124-471-1	02	1	9811-0003	●	●
66	16.576 GRILLE; AIR OUTLET 4DOOR LONG(UE***F) (B)	8-97246-720-0	02	1	0004-0012	●	●
66	16.576 GRILLE; AIR OUTLET (B)	8-97246-720-0	02	1	0101-0202	●	●
66	16.576 GRILLE; AIR OUTLET (B)	8-97333-993-0	02	1	0203-	●	●
84	16.165 PATCH; WATER PROOF SHEET,DOOR 08.010	8-97808-119-1	02	1	9811-0112	●	●
84	16.165 PATCH; WATER PROOF SHEET,DOOR OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0201-	●	●
122	16.570 SEAL; CENTER PILLAR 2DOOR SHORT(UE***C) USA	8-97137-760-3	01	1	9811-0012	●	●
122	16.570 SEAL; CENTER PILLAR 2DOOR SHORT(UE***C) USA	8-97137-759-3	01	1	9811-0012	●	●
160	16.165 SEAL; DRIP 2DOOR SHORT(UE***C) USA	8-97130-999-2	01	1	9811-0003	●
160	16.165 SEAL; DRIP 2DOOR SHORT(UE***C) USA	8-97231-081-0	01	1	0004-0012	●
160	16.165 SEAL; DRIP 2DOOR SHORT(UE***C) USA	8-97130-998-2	01	1	9811-0003	●
160	16.165 SEAL; DRIP 2DOOR SHORT(UE***C) USA	8-97231-080-0	01	1	0004-0012	●
160	16.165 SEAL; DRIP 4DOOR LONG(UE***F) USA	8-97124-813-3	01	1	9811-0003	●	●
160	16.165 SEAL; DRIP 4DOOR LONG(UE***F) USA	8-97231-079-0	01	1	0004-0012	●	●
160	16.165 SEAL; DRIP USA	8-97231-079-0	01	1	0101-0102	●	●
160	16.165 SEAL; DRIP USA	8-97311-911-0	01	1	0103-0109	●	●
160	16.165 SEAL; DRIP USA	8-97319-796-0	01	1	0110-	●	●
160	16.165 SEAL; DRIP 4DOOR LONG(UE***F) USA	8-97124-812-3	01	1	9811-0003	●	●
160	16.165 SEAL; DRIP 4DOOR LONG(UE***F) USA	8-97231-078-0	01	1	0004-0012	●	●
160	16.165 SEAL; DRIP USA	8-97231-078-0	01	1	0101-0102	●	●
160	16.165 SEAL; DRIP USA	8-97311-910-0	01	1	0103-0109	●	●
160	16.165 SEAL; DRIP USA	8-97319-795-0	01	1	0110-	●	●
202	16.165 COVER; PAD,SPORTS BAR 2DOOR SHORT(UE***C) (A) DARK GRAY USA	8-97198-439-0	01	1	9811-0003	●	●
202	16.165 COVER; PAD,SPORTS BAR 2DOOR SHORT(UE***C) (A) DARK GRAY USA	8-97291-490-0	01	1	0004-0012	●	●
202	16.165 COVER; PAD,SPORTS BAR 2DOOR SHORT(UE***C) (B) DARK GRAY USA	8-97159-158-2	01	1	9811-0012	●	●
202	16.165 COVER; PAD,SPORTS BAR 2DOOR SHORT(UE***C) (B) DARK GRAY USA	8-97159-157-2	01	1	9811-0012	●	●
211	16.165 PAD; TRIM,SPORTS BAR 2DOOR SHORT(UE***C) USA	8-97215-975-1	01	1	0004-0012	●
212	16.165 CLIP; TRIM PAD,SPORTS BAR 2DOOR SHORT(UE***C) 16.742 LIGHT GRAY	8-97158-658-0	04	1	0004-0012	●

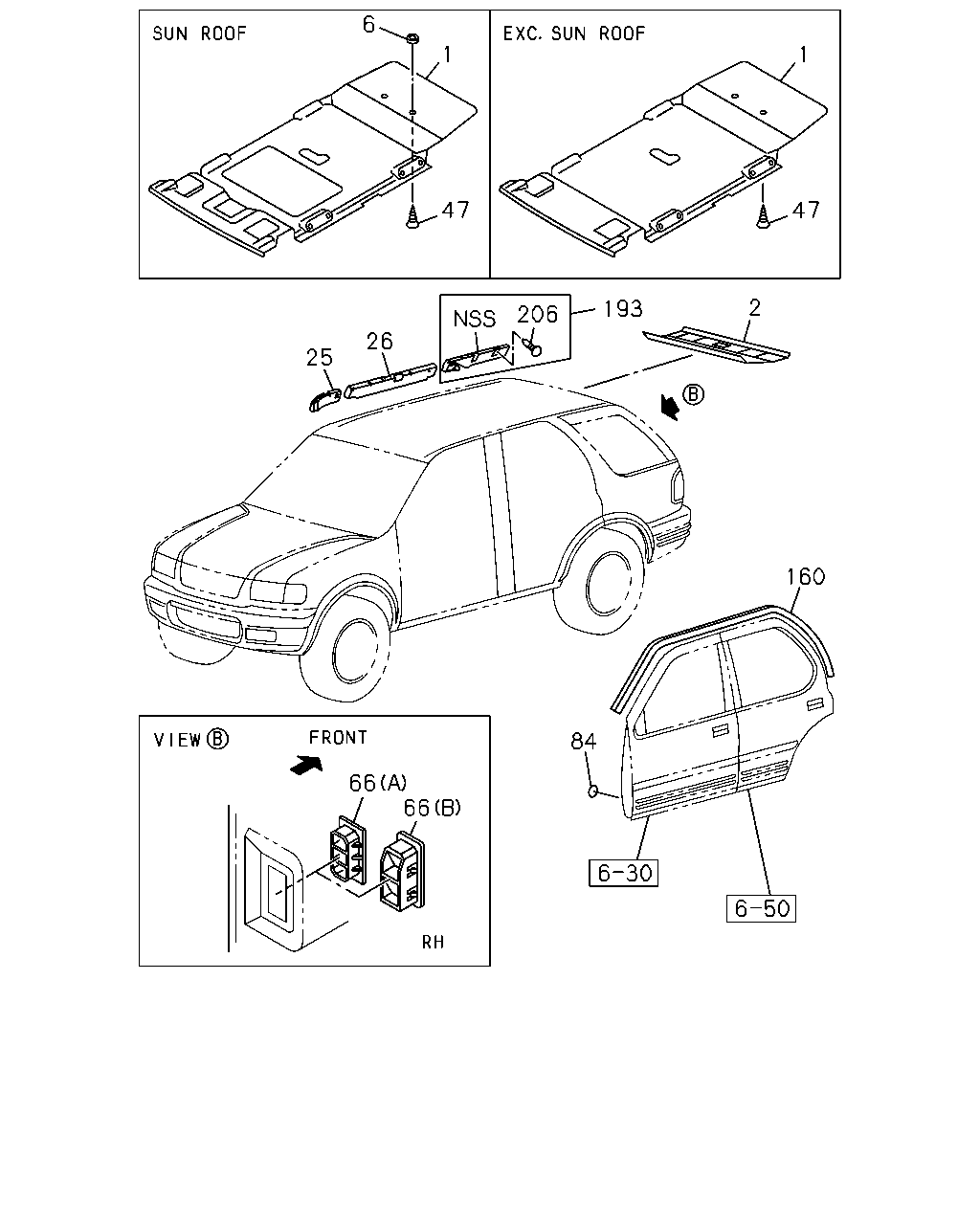

6 1 1 47 47 2 193 206 26 25 160 84 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.742 LINING; HD 4DOOR LONG(UE***F) EXC. SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97157-338-2	01	1	9811-0010	●
1	16.742 LINING; HD 4DOOR LONG(UE***F) EXC. SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97296-732-0	01	1	0011-0012	●
1	16.742 LINING; HD 4DOOR LONG(UE***F) EXC. SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97296-732-0	01	1	0101-0201	●	●
1	16.742 LINING; HD 4DOOR LONG(UE***F) EXC. SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97392-797-2	01	1	0202-	●	●
1	16.742 LINING; HD 2DOOR SHORT(UE***C) LIGHT GRAY USA	8-97197-223-1	01	1	9811-0008	●	●
1	16.742 LINING; HD 2DOOR SHORT(UE***C) LIGHT GRAY USA	8-97297-884-0	01	1	0009-0012	●	●
1	16.742 LINING; HD 4DOOR LONG(UE***F) SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97157-339-3	01	1	9811-0010	●	●
1	16.742 LINING; HD 4DOOR LONG(UE***F) SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97296-734-0	01	1	0011-0012	●	●
1	16.742 LINING; HD 4DOOR LONG(UE***F) SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97296-734-0	01	1	0101-0201	●	●
1	16.742 LINING; HD 4DOOR LONG(UE***F) SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97392-798-3	01	1	0202-	●	●
1	16.742 LINING; HD 4DOOR LONG(UE***F) EXC. SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97198-186-0	01	1	9811-0010		●
1	16.742 LINING; HD EXC. SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97297-902-0	01	1	0011-0106		●
1	16.742 LINING; HD EXC. SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97392-027-0	01	1	0107-0201		●
1	16.742 LINING; HD EXC. SUN ROOF SLIDING ELEC<CF5> USA	8-97392-795-2	01	1	0202-		●
2	16.742 LINING; HD,ROOF RR 2DOOR SHORT(UE***C) LIGHT GRAY USA	8-97159-257-3	01	1	9811-0012	●	●
2	16.742 LINING; HD,ROOF RR 4DOOR LONG(UE***F) LIGHT GRAY USA	8-97159-256-1	01	1	9811-0003	●	●
2	16.742 LINING; HD,ROOF RR 4DOOR LONG(UE***F) LIGHT GRAY USA	8-97294-769-0	01	1	0004-0012	●	●
2	16.742 LINING; HD,ROOF RR LIGHT GRAY USA	8-97294-769-0	01	1	0101-0205	●	●
2	16.742 LINING; HD,ROOF RR LIGHT GRAY USA	8-97395-018-2	01	1	0206-	●	●
6	16.742 SPACER; HD LINING 4DOOR LONG(UE***F) SUN ROOF SLIDING ELEC<CF5> USA	8-97184-457-1	02	1	9811-	●	●
25	16.165 PAD; ROOF	8-97162-645-2	01	1	9811-0006	●	●
25	16.165 PAD; ROOF	8-97260-113-0	01	1	0007-0110	●	●
25	16.165 PAD; ROOF	8-97316-725-1	01	1	0111-	●	●
25	16.165 PAD; ROOF	8-97162-644-2	01	1	9811-0006	●	●
25	16.165 PAD; ROOF	8-97260-112-0	01	1	0007-0110	●	●
25	16.165 PAD; ROOF	8-97316-724-1	01	1	0111-	●	●
26	16.165 PAD; ROOF 2DOOR SHORT(UE***C) USA	8-97162-658-2	01	1	9811-0012	●
26	16.165 PAD; ROOF 2DOOR SHORT(UE***C) USA	8-97162-657-2	01	1	9811-0012	●
26	16.165 PAD; ROOF 4DOOR LONG(UE***F) USA	8-97162-647-1	01	1	9811-0012	●	●
26	16.165 PAD; ROOF USA	8-97162-647-1	01	1	0101-	●	●
26	16.165 PAD; ROOF 4DOOR LONG(UE***F) USA	8-97162-646-1	01	1	9811-0012	●	●
26	16.165 PAD; ROOF USA	8-97162-646-1	01	1	0101-	●	●
47	16.742 CLIP; HEADLINING 4DOOR LONG(UE***F) SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY	8-97158-658-0	02	1	9811-0209	●	●
47	16.742 CLIP; HEADLINING 4DOOR LONG(UE***F) SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY	8-97391-687-0	02	1	0210-	●	●
47	16.742 CLIP; HEADLINING 4DOOR LONG(UE***F) EXC. SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY	8-97157-340-0	02	1	9811-0209	●	●
47	16.742 CLIP; HEADLINING 4DOOR LONG(UE***F) EXC. SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY	8-97391-686-0	02	1	0210-	●	●
66	16.576 GRILLE; AIR OUTLET 2DOOR SHORT(UE***C) (A) USA	8-97124-471-1	01	1	9811-0003	●
66	16.576 GRILLE; AIR OUTLET 2DOOR SHORT(UE***C) (B)	8-97246-720-0	01	1	0004-0012	●
66	16.576 GRILLE; AIR OUTLET 4DOOR LONG(UE***F) (A) USA	8-97124-471-1	02	1	9811-0003	●	●
66	16.576 GRILLE; AIR OUTLET 4DOOR LONG(UE***F) (B)	8-97246-720-0	02	1	0004-0012	●	●
66	16.576 GRILLE; AIR OUTLET (B)	8-97246-720-0	02	1	0101-0202	●	●
66	16.576 GRILLE; AIR OUTLET (B)	8-97333-993-0	02	1	0203-	●	●
84	16.165 PATCH; WATER PROOF SHEET,DOOR 08.010	8-97808-119-1	02	1	9811-0112	●	●
84	16.165 PATCH; WATER PROOF SHEET,DOOR OD=20 T=0.05 BLACK	5-76777-036-0	02	1	0201-	●	●
160	16.165 SEAL; DRIP 2DOOR SHORT(UE***C) USA	8-97130-999-2	01	1	9811-0003	●
160	16.165 SEAL; DRIP 2DOOR SHORT(UE***C) USA	8-97231-081-0	01	1	0004-0012	●
160	16.165 SEAL; DRIP 2DOOR SHORT(UE***C) USA	8-97130-998-2	01	1	9811-0003	●
160	16.165 SEAL; DRIP 2DOOR SHORT(UE***C) USA	8-97231-080-0	01	1	0004-0012	●
160	16.165 SEAL; DRIP 4DOOR LONG(UE***F) USA	8-97124-813-3	01	1	9811-0003	●	●
160	16.165 SEAL; DRIP 4DOOR LONG(UE***F) USA	8-97231-079-0	01	1	0004-0012	●	●
160	16.165 SEAL; DRIP USA	8-97231-079-0	01	1	0101-0102	●	●
160	16.165 SEAL; DRIP USA	8-97311-911-0	01	1	0103-0109	●	●
160	16.165 SEAL; DRIP USA	8-97319-796-0	01	1	0110-	●	●
160	16.165 SEAL; DRIP 4DOOR LONG(UE***F) USA	8-97124-812-3	01	1	9811-0003	●	●
160	16.165 SEAL; DRIP 4DOOR LONG(UE***F) USA	8-97231-078-0	01	1	0004-0012	●	●
160	16.165 SEAL; DRIP USA	8-97231-078-0	01	1	0101-0102	●	●
160	16.165 SEAL; DRIP USA	8-97311-910-0	01	1	0103-0109	●	●
160	16.165 SEAL; DRIP USA	8-97319-795-0	01	1	0110-	●	●
193	16.165 PAD; REAR QUARTER 4DOOR LONG(UE***F) USA	8-97176-452-4	01	1	9811-0012	●	●
193	16.165 PAD; REAR QUARTER USA	8-97176-452-4	01	1	0101-	●	●
193	16.165 PAD; REAR QUARTER 4DOOR LONG(UE***F) USA	8-97176-451-4	01	1	9811-0012	●	●
193	16.165 PAD; REAR QUARTER USA	8-97176-451-4	01	1	0101-	●	●
206	16.165 CLIP; PAD,RR QTR 4DOOR LONG(UE***F) 15.222 USA	8-97031-665-1	04	1	9811-0012	●	●
206	16.165 CLIP; PAD,RR QTR 15.222 USA	8-97031-665-1	04	1	0101-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
