6-65 — SUNROOF (#32647) — 118 parça

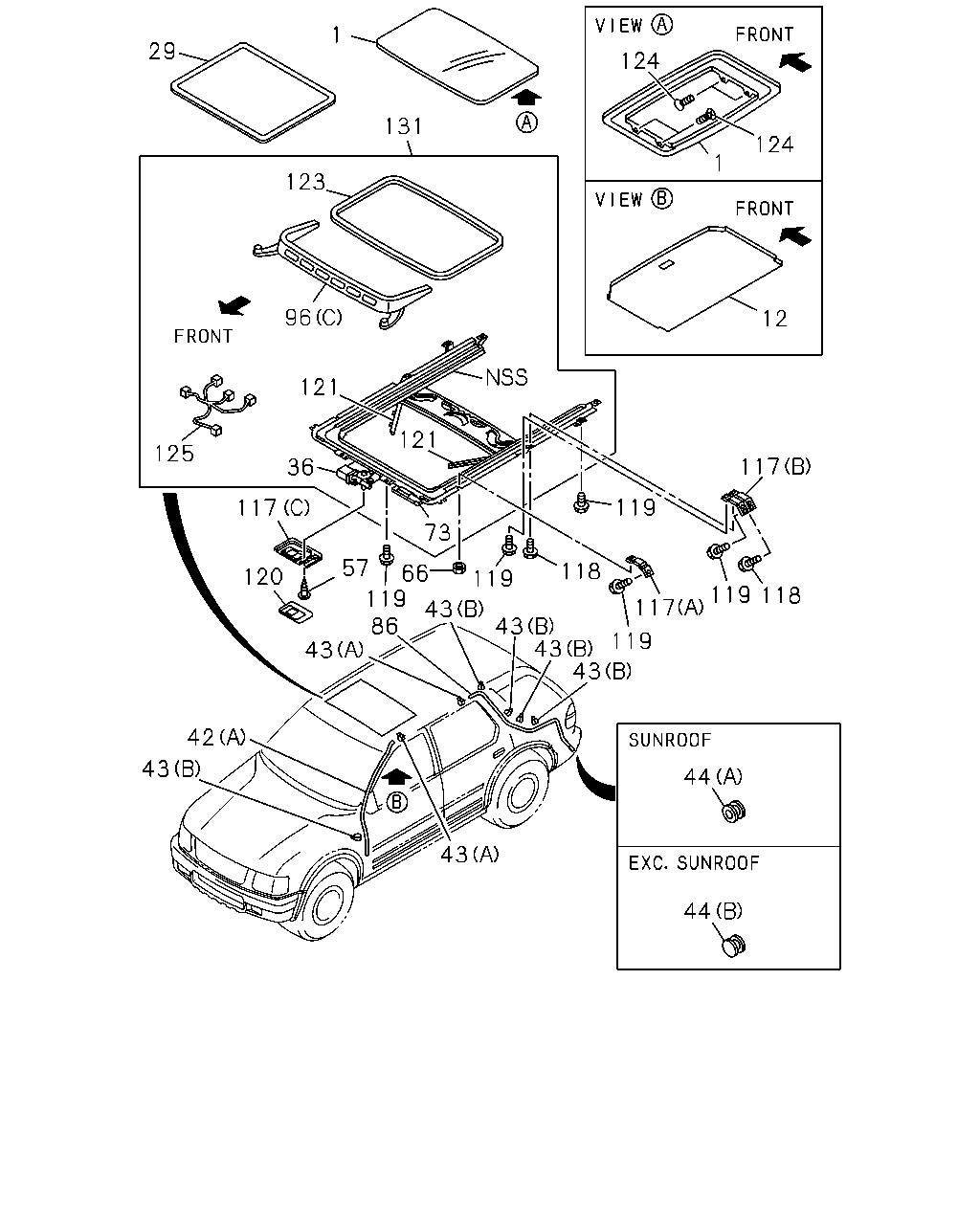

1 29 124 131 124 1 123 96 12 121 121 125 117 36 119 117 73 57 118 66 119 86 120 119 119 118 117 43 43 43 43 119 43 42 43 44 43 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	14.090 GLASS; SUNROOF REAR LIGHT GRAY USA	8-97198-901-0	01	1	9811-0012	●
1	14.090 GLASS; SUNROOF FRONT USA	8-97211-696-0	01	1	9811-0012	●
1	14.090 GLASS; SUNROOF SUN ROOF SLIDING ELEC<CF5>	8-97170-496-0	01	1	9811-		●
12	14.090 SUNSHADE; SUNROOF FRONT LIGHT GRAY USA	8-97158-192-1	01	1	9811-9901	●
12	14.090 SUNSHADE; SUNROOF FRONT LIGHT GRAY USA	8-97292-179-0	01	1	9902-0012	●
12	14.090 SUNSHADE; SUNROOF REAR LIGHT GRAY USA	8-97195-955-1	01	1	9811-9902	●
12	14.090 SUNSHADE; SUNROOF REAR LIGHT GRAY USA	8-97292-180-0	01	1	9903-0012	●
12	14.090 SUNSHADE; SUNROOF SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97170-500-1	01	1	9811-0108		●
12	14.090 SUNSHADE; SUNROOF LIGHT GRAY USA	8-97170-500-1	01	1	0109-0109		●
12	14.090 SUNSHADE; SUNROOF LIGHT GRAY	8-97392-810-1	01	1	0110-0202		●
12	14.090 SUNSHADE; SUNROOF LIGHT BEIGE	8-97394-470-1	01	1	0203-		●
29	16.742 FINISHER; SUNROOF SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY	8-97170-499-0	01	1	9811-0108		●
29	16.742 FINISHER; SUNROOF LIGHT GRAY	8-97170-499-0	01	1	0109-		●
36	14.550 MOTOR; SUNROOF SUN ROOF SLIDING ELEC<CF5>	8-97170-497-0	01	1	9811-0203		●
36	14.550 MOTOR; SUNROOF	8-97351-528-0	01	1	0204-		●
42	16.585 HOSE; DRAIN,FRT,SUNROOF (A) USA	8-97135-550-0	02	1	9811-0003	●
42	16.585 HOSE; DRAIN,FRT,SUNROOF SUN ROOF SLIDING ELEC<CF5> (A) USA	8-97135-550-0	02	1	9811-0003		●
42	16.585 HOSE; DRAIN,FRT,SUNROOF (A) USA	8-97232-612-0	02	1	0004-0012	●
42	16.585 HOSE; DRAIN,FRT,SUNROOF SUN ROOF SLIDING ELEC<CF5> (A) USA	8-97232-612-0	02	1	0004-0012		●
42	16.585 HOSE; DRAIN,FRT,SUNROOF SUN ROOF SLIDING ELEC<CF5> (A) USA	8-97232-612-0	02	1	0101-		●
42	16.585 HOSE; DRAIN,FRT,SUNROOF (B) USA	8-97135-551-1	02	1	9811-0012	●
43	03.163 CLIP; DRAIN HOSE 01.219 (A) ID=13	8-94238-571-0	04	1	9811-0012	●
43	03.163 CLIP; DRAIN HOSE SUN ROOF SLIDING ELEC<CF5> 01.219 (A) ID=13	8-94238-571-0	04	1	9811-0012		●
43	03.163 CLIP; DRAIN HOSE SUN ROOF SLIDING ELEC<CF5> 01.219 (A) ID=13	8-94238-571-0	04	1	0101-		●
43	03.163 CLIP; DRAIN HOSE (B)	8-97809-578-0	06	1	9811-0012	●
43	03.163 CLIP; DRAIN HOSE SUN ROOF SLIDING ELEC<CF5> (B)	8-97809-578-0	10	1	9811-		●
44	01.409 GROMMET; DRAIN HOSE (A)	8-97809-167-0	02	1	9811-0012	●
44	01.409 GROMMET; DRAIN HOSE SUN ROOF SLIDING ELEC<CF5> (A)	8-97809-167-0	02	1	9811-0012		●
44	01.409 GROMMET; DRAIN HOSE SUN ROOF SLIDING ELEC<CF5> (A)	8-97809-167-0	02	1	0101-		●
44	01.409 GROMMET; DRAIN HOSE EXC. SUN ROOF SLIDING ELEC<CF5> 12.182 (B) OD=26	8-94141-484-0	02	1	9811-		●
57	16.325 SCREW; SUNROOF 09.743 M5X16 USA	8-94295-854-0	03	1	0101-		●
57	16.325 SCREW; SUNROOF SUN ROOF SLIDING ELEC<CF5> 09.743 M5X16 USA	8-94295-854-0	03	1	9811-0012		●
66	16.585 NUT 07.833 M6 FLANGE	8-97063-399-0	03	1	9811-0012	●
66	16.585 NUT SUN ROOF SLIDING ELEC<CF5> 07.833 M6 FLANGE	8-97063-399-0	02	1	9811-		●
73	14.090 CONTROLLER; SUNROOF SUN ROOF SLIDING ELEC<CF5>	8-97170-498-0	01	1	9811-		●
86	16.585 HOSE; DRAIN,SUNROOF RR SUN ROOF SLIDING ELEC<CF5> USA	8-97136-093-0	02	1	9811-		●
96	16.585 DEFLECTOR; AIR (B) USA	8-97172-782-2	01	1	9811-0012	●
96	16.585 DEFLECTOR; AIR (A) USA	8-97172-781-2	01	1	9811-0012	●
96	16.585 DEFLECTOR; AIR (A) USA	8-97172-780-2	01	1	9811-0012	●
96	16.585 DEFLECTOR; AIR SUN ROOF SLIDING ELEC<CF5> (C)	8-97177-444-0	01	1	9811-0203		●
96	16.585 DEFLECTOR; AIR (C)	8-97351-529-0	01	1	0204-		●
117	14.565 BRACKET; SUNROOF (C)	8-97160-915-1	01	1	0101-		●
117	14.565 BRACKET; SUNROOF SUN ROOF SLIDING ELEC<CF5> (A) USA	8-97136-087-1	02	1	9811-		●
117	14.565 BRACKET; SUNROOF SUN ROOF SLIDING ELEC<CF5> (B) USA	8-97136-088-2	02	1	9811-		●
117	14.565 BRACKET; SUNROOF SUN ROOF SLIDING ELEC<CF5> (C)	8-97160-915-1	01	1	9811-0012		●
118	14.090 BOLT; EARTH BRKT SUN ROOF SLIDING ELEC<CF5> 17.215 M6X16 W/LK&PL WASHER	8-97146-388-0	04	1	9811-		●
119	14.090 BOLT SUN ROOF SLIDING ELEC<CF5> 16.505 M6X12 FLANGE	0-28480-612-0	10	1	9811-		●
120	14.575 COVER; MOTOR SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97141-183-2	01	1	9811-0108		●
120	14.575 COVER; MOTOR SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97297-824-1	01	1	0109-		●
121	14.575 SHIELD; SIGHT SUN ROOF SLIDING ELEC<CF5>	8-97170-503-0	01	1	9811-0203		●
121	14.575 SHIELD; SIGHT SUN ROOF SLIDING ELEC<CF5>	8-97170-502-0	01	1	9811-0203		●
123	16.585 WEATHERSTRIP; GLASS SUN ROOF SLIDING ELEC<CF5>	8-97177-442-0	01	1	9811-		●
124	16.585 SCREW; SET SUN ROOF SLIDING ELEC<CF5>	8-97177-443-0	01	1	9811-		●
125	16.585 HARNESS; SUNROOF SUN ROOF SLIDING ELEC<CF5>	8-97177-445-0	01	1	9811-		●
131	16.585 SUNROOF SUB ASM SUN ROOF SLIDING ELEC<CF5> USA	8-97311-021-0	01	1	9811-0108		●
131	16.585 SUNROOF SUB ASM	8-97351-530-0	01	1	0109-		●

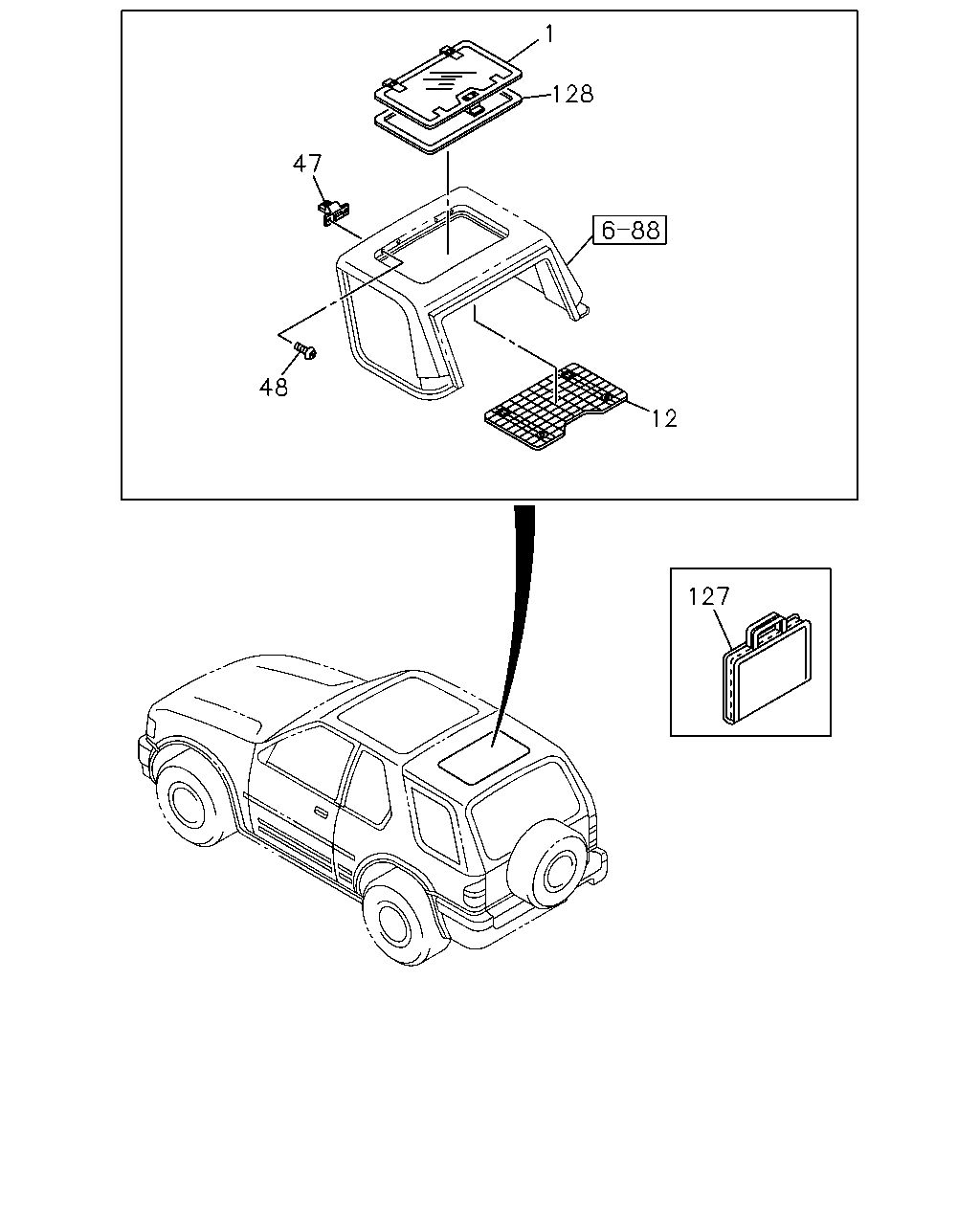

1 128 47 48 12 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	14.090 GLASS; SUNROOF REAR LIGHT GRAY USA	8-97198-901-0	01	1	9811-0012	●
1	14.090 GLASS; SUNROOF FRONT USA	8-97211-696-0	01	1	9811-0012	●
1	14.090 GLASS; SUNROOF SUN ROOF SLIDING ELEC<CF5>	8-97170-496-0	01	1	9811-		●
12	14.090 SUNSHADE; SUNROOF FRONT LIGHT GRAY USA	8-97158-192-1	01	1	9811-9901	●
12	14.090 SUNSHADE; SUNROOF FRONT LIGHT GRAY USA	8-97292-179-0	01	1	9902-0012	●
12	14.090 SUNSHADE; SUNROOF REAR LIGHT GRAY USA	8-97195-955-1	01	1	9811-9902	●
12	14.090 SUNSHADE; SUNROOF REAR LIGHT GRAY USA	8-97292-180-0	01	1	9903-0012	●
12	14.090 SUNSHADE; SUNROOF SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97170-500-1	01	1	9811-0108		●
12	14.090 SUNSHADE; SUNROOF LIGHT GRAY USA	8-97170-500-1	01	1	0109-0109		●
12	14.090 SUNSHADE; SUNROOF LIGHT GRAY	8-97392-810-1	01	1	0110-0202		●
12	14.090 SUNSHADE; SUNROOF LIGHT BEIGE	8-97394-470-1	01	1	0203-		●
47	16.585 HINGE; FEMALE,SUNROOF USA	8-97148-065-0	02	1	9811-0012	●
47	16.585 HINGE; FEMALE,SUNROOF USA	8-97148-065-0	02	1	9811-0012	●
48	16.585 SCREW; HINGE,SUNROOF	8-97174-620-0	04	1	9811-0012	●
48	16.585 SCREW; HINGE,SUNROOF	8-97174-620-0	04	1	9811-0012	●
127	16.585 BAG; SUNROOF GLASS USA	8-97181-471-0	01	1	9811-0012	●
128	14.575 STRIP; SUNROOF LIGHT GRAY USA	8-97195-893-1	01	1	9811-0012	●

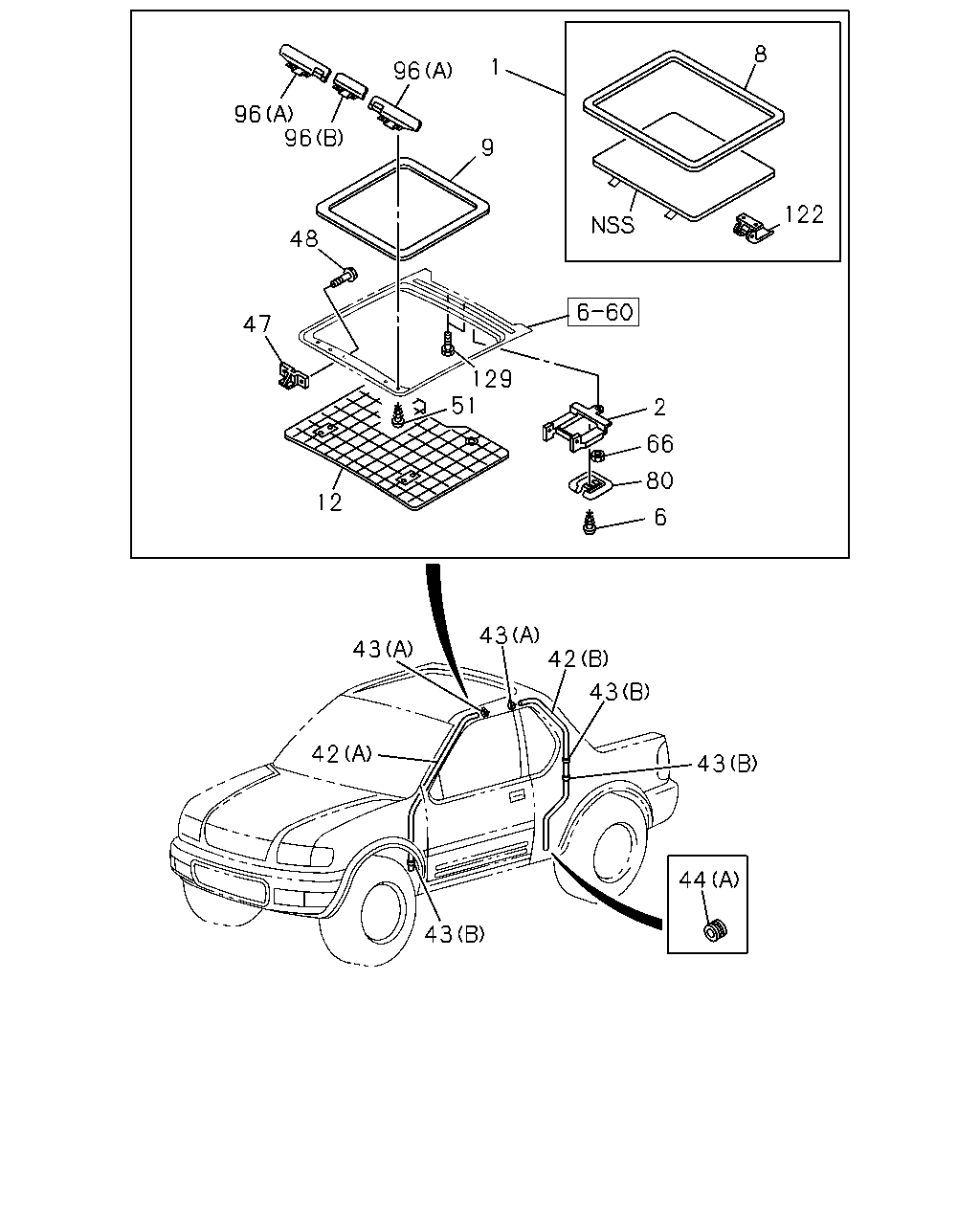

8 1 96 96 96 9 122 48 47 129 51 2 66 80 12 6 43 42 43 43 42 43 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	14.090 GLASS; SUNROOF REAR LIGHT GRAY USA	8-97198-901-0	01	1	9811-0012	●
1	14.090 GLASS; SUNROOF FRONT USA	8-97211-696-0	01	1	9811-0012	●
1	14.090 GLASS; SUNROOF SUN ROOF SLIDING ELEC<CF5>	8-97170-496-0	01	1	9811-		●
2	14.090 PLATE; SUNROOF 16.585 USA	8-97135-625-2	01	1	9811-0012	●
6	14.090 SCREW; COVER 02.487 M5X12 CK-HEAD	9-93090-512-0	01	1	9811-0012	●
8	16.585 WEATHERSTRIP; OUTER SUNROOF USA	8-97147-285-0	01	1	9811-0012	●
9	16.585 WEATHERSTRIP; INNER SUNROOF LIGHT GRAY USA	8-97158-222-3	01	1	9811-0012	●
12	14.090 SUNSHADE; SUNROOF FRONT LIGHT GRAY USA	8-97158-192-1	01	1	9811-9901	●
12	14.090 SUNSHADE; SUNROOF FRONT LIGHT GRAY USA	8-97292-179-0	01	1	9902-0012	●
12	14.090 SUNSHADE; SUNROOF REAR LIGHT GRAY USA	8-97195-955-1	01	1	9811-9902	●
12	14.090 SUNSHADE; SUNROOF REAR LIGHT GRAY USA	8-97292-180-0	01	1	9903-0012	●
12	14.090 SUNSHADE; SUNROOF SUN ROOF SLIDING ELEC<CF5> LIGHT GRAY USA	8-97170-500-1	01	1	9811-0108		●
12	14.090 SUNSHADE; SUNROOF LIGHT GRAY USA	8-97170-500-1	01	1	0109-0109		●
12	14.090 SUNSHADE; SUNROOF LIGHT GRAY	8-97392-810-1	01	1	0110-0202		●
12	14.090 SUNSHADE; SUNROOF LIGHT BEIGE	8-97394-470-1	01	1	0203-		●
42	16.585 HOSE; DRAIN,FRT,SUNROOF (A) USA	8-97135-550-0	02	1	9811-0003	●
42	16.585 HOSE; DRAIN,FRT,SUNROOF SUN ROOF SLIDING ELEC<CF5> (A) USA	8-97135-550-0	02	1	9811-0003		●
42	16.585 HOSE; DRAIN,FRT,SUNROOF (A) USA	8-97232-612-0	02	1	0004-0012	●
42	16.585 HOSE; DRAIN,FRT,SUNROOF SUN ROOF SLIDING ELEC<CF5> (A) USA	8-97232-612-0	02	1	0004-0012		●
42	16.585 HOSE; DRAIN,FRT,SUNROOF SUN ROOF SLIDING ELEC<CF5> (A) USA	8-97232-612-0	02	1	0101-		●
42	16.585 HOSE; DRAIN,FRT,SUNROOF (B) USA	8-97135-551-1	02	1	9811-0012	●
43	03.163 CLIP; DRAIN HOSE 01.219 (A) ID=13	8-94238-571-0	04	1	9811-0012	●
43	03.163 CLIP; DRAIN HOSE SUN ROOF SLIDING ELEC<CF5> 01.219 (A) ID=13	8-94238-571-0	04	1	9811-0012		●
43	03.163 CLIP; DRAIN HOSE SUN ROOF SLIDING ELEC<CF5> 01.219 (A) ID=13	8-94238-571-0	04	1	0101-		●
43	03.163 CLIP; DRAIN HOSE (B)	8-97809-578-0	06	1	9811-0012	●
43	03.163 CLIP; DRAIN HOSE SUN ROOF SLIDING ELEC<CF5> (B)	8-97809-578-0	10	1	9811-		●
44	01.409 GROMMET; DRAIN HOSE (A)	8-97809-167-0	02	1	9811-0012	●
44	01.409 GROMMET; DRAIN HOSE SUN ROOF SLIDING ELEC<CF5> (A)	8-97809-167-0	02	1	9811-0012		●
44	01.409 GROMMET; DRAIN HOSE SUN ROOF SLIDING ELEC<CF5> (A)	8-97809-167-0	02	1	0101-		●
44	01.409 GROMMET; DRAIN HOSE EXC. SUN ROOF SLIDING ELEC<CF5> 12.182 (B) OD=26	8-94141-484-0	02	1	9811-		●
47	16.585 HINGE; FEMALE,SUNROOF USA	8-97148-065-0	02	1	9811-0012	●
47	16.585 HINGE; FEMALE,SUNROOF USA	8-97148-065-0	02	1	9811-0012	●
48	16.585 SCREW; HINGE,SUNROOF	8-97174-620-0	04	1	9811-0012	●
48	16.585 SCREW; HINGE,SUNROOF	8-97174-620-0	04	1	9811-0012	●
51	16.585 SCREW; DEFLECTOR TO FRAME M4X10 W/PL&SPONGE WASHER	8-94332-931-0	06	1	9811-0012	●
66	16.585 NUT 07.833 M6 FLANGE	8-97063-399-0	03	1	9811-0012	●
66	16.585 NUT SUN ROOF SLIDING ELEC<CF5> 07.833 M6 FLANGE	8-97063-399-0	02	1	9811-		●
80	14.575 COVER LIGHT GRAY USA	8-97158-223-2	01	1	9811-0012	●
96	16.585 DEFLECTOR; AIR (B) USA	8-97172-782-2	01	1	9811-0012	●
96	16.585 DEFLECTOR; AIR (A) USA	8-97172-781-2	01	1	9811-0012	●
96	16.585 DEFLECTOR; AIR (A) USA	8-97172-780-2	01	1	9811-0012	●
96	16.585 DEFLECTOR; AIR SUN ROOF SLIDING ELEC<CF5> (C)	8-97177-444-0	01	1	9811-0203		●
96	16.585 DEFLECTOR; AIR (C)	8-97351-529-0	01	1	0204-		●
122	16.585 HANDLE; SUNROOF USA	8-97147-284-0	01	1	9811-0012	●
129	14.575 BOLT; REINF,SUNROOF 08.900 M8X12 FLANGE USA	0-28080-812-0	02	1	9811-0012	●
