6-60 — ROOF PANEL (#32646) — 86 parça

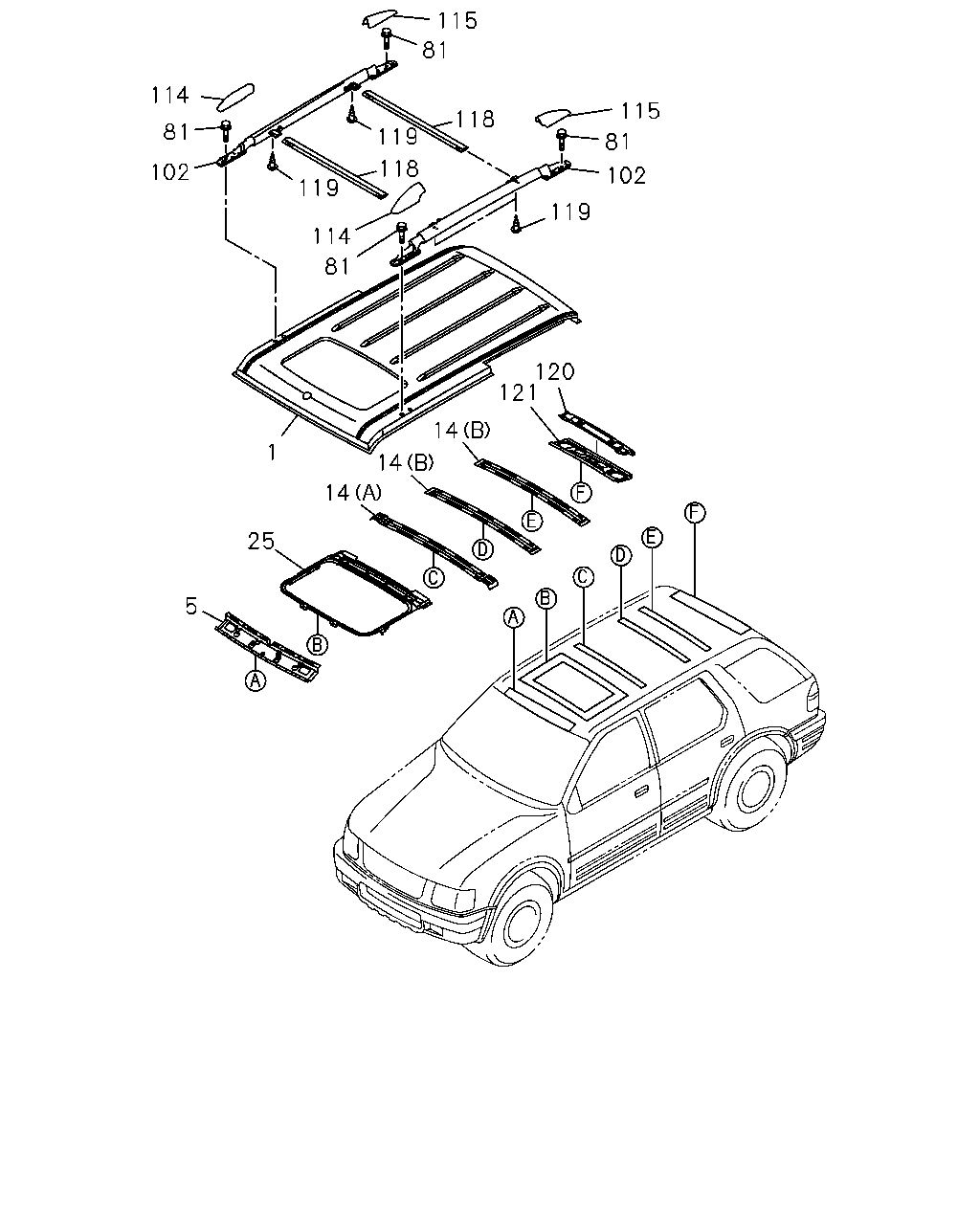

115 81 114 115 81 102 118 81 119 118 102 119 119 114 81 120 121 14 14 14 1 25 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.585 PANEL; ROOF USA	8-97130-742-3	01	1	9811-0012	●
1	16.585 PANEL; ROOF SUN ROOF SLIDING ELEC<CF5> USA	8-97123-585-5	01	1	9811-		●
1	16.585 PANEL; ROOF EXC. SUN ROOF SLIDING ELEC<CF5> USA	8-97123-380-4	01	1	9811-		●
5	61.321 RAIL; WINDOW SHIELD HEADER USA	8-97124-189-5	01	1	9811-0012	●	●
5	61.321 RAIL; WINDOW SHIELD HEADER USA	8-97124-189-5	01	1	0101-		●
14	16.585 SUPPORT; ROOF (A) USA	8-97124-192-3	01	1	9811-		●
14	16.585 SUPPORT; ROOF (B) USA	8-97124-193-4	02	1	9811-		●
14	16.585 SUPPORT; ROOF EXC. SUN ROOF SLIDING ELEC<CF5> (C) USA	8-97124-190-2	01	1	9811-		●
14	16.585 SUPPORT; ROOF EXC. SUN ROOF SLIDING ELEC<CF5> (D) USA	8-97124-191-2	01	1	9811-		●
25	16.570 REINFORCEMENT; SUNROOF USA	8-97130-965-1	01	1	9811-0012	●
25	16.570 REINFORCEMENT; SUNROOF SUN ROOF SLIDING ELEC<CF5> USA	8-97128-795-4	01	1	9811-		●
81	16.585 BOLT; ROOF 00.738 M6X16 FLANGE USA	0-28080-616-0	04	1	9811-0012	●
81	16.585 BOLT; ROOF ROOF RAIL<7LC> M6X35 W/WASHER USA	8-97135-839-1	08	1	9811-0003		●
81	16.585 BOLT; ROOF ROOF RAIL WITH CROSS BAR<8BV> M6X32 FLANGE	8-97251-447-0	08	1	0004-0108		●
81	16.585 BOLT; ROOF ROOF RAIL WITH CROSS BAR<8BV> M6X32 FLANGE	8-97251-447-0	16	1	0109-		●
102	16.585 RAIL ASM; ROOF ROOF RAIL<7LC> USA	8-97201-533-0	01	1	9811-0003		●
102	16.585 RAIL ASM; ROOF ROOF RAIL WITH CROSS BAR<8BV> USA	8-97201-533-0	01	1	0004-		●
102	16.585 RAIL ASM; ROOF ROOF RAIL<7LC> USA	8-97201-532-0	01	1	9811-0003		●
102	16.585 RAIL ASM; ROOF ROOF RAIL WITH CROSS BAR<8BV> USA	8-97201-532-0	01	1	0004-		●
114	16.585 COVER; ROOF RAIL FRT ROOF RAIL<7LC> USA	8-97135-375-2	01	1	9811-0003		●
114	16.585 COVER; ROOF RAIL FRT ROOF RAIL WITH CROSS BAR<8BV> USA	8-97135-375-3	01	1	0004-		●
114	16.585 COVER; ROOF RAIL FRT ROOF RAIL<7LC> USA	8-97135-374-2	01	1	9811-0003		●
114	16.585 COVER; ROOF RAIL FRT ROOF RAIL WITH CROSS BAR<8BV> USA	8-97135-374-3	01	1	0004-		●
115	16.585 COVER; ROOF RAIL RR ROOF RAIL<7LC> USA	8-97135-377-2	01	1	9811-0003		●
115	16.585 COVER; ROOF RAIL RR ROOF RAIL WITH CROSS BAR<8BV> USA	8-97135-377-3	01	1	0004-		●
115	16.585 COVER; ROOF RAIL RR ROOF RAIL<7LC> USA	8-97135-376-2	01	1	9811-0003		●
115	16.585 COVER; ROOF RAIL RR ROOF RAIL WITH CROSS BAR<8BV> USA	8-97135-376-3	01	1	0004-		●
118	16.585 BAR; CROSS ROOF RAIL<7LC> USA	8-97135-373-1	02	1	9811-0003		●
118	16.585 BAR; CROSS ROOF RAIL WITH CROSS BAR<8BV> USA	8-97135-373-1	02	1	0004-		●
119	16.585 SCREW; RAIL ROOF RAIL<7LC> USA	8-11509-253-0	08	1	9811-0003		●
119	16.585 SCREW; RAIL ROOF RAIL WITH CROSS BAR<8BV> USA	8-11509-253-0	08	1	0004-		●
120	16.585 RAIL; BACK LIGHT UPR USA	8-97130-743-1	01	1	9811-0012	●
120	16.585 RAIL; BACK LIGHT UPR USA	8-97124-195-2	01	1	9811-		●
121	16.585 CLOSING; BACK LIGHT UPR USA	8-97130-750-0	01	1	9811-0012	●
121	16.585 CLOSING; BACK LIGHT UPR USA	8-97124-196-1	01	1	9811-		●

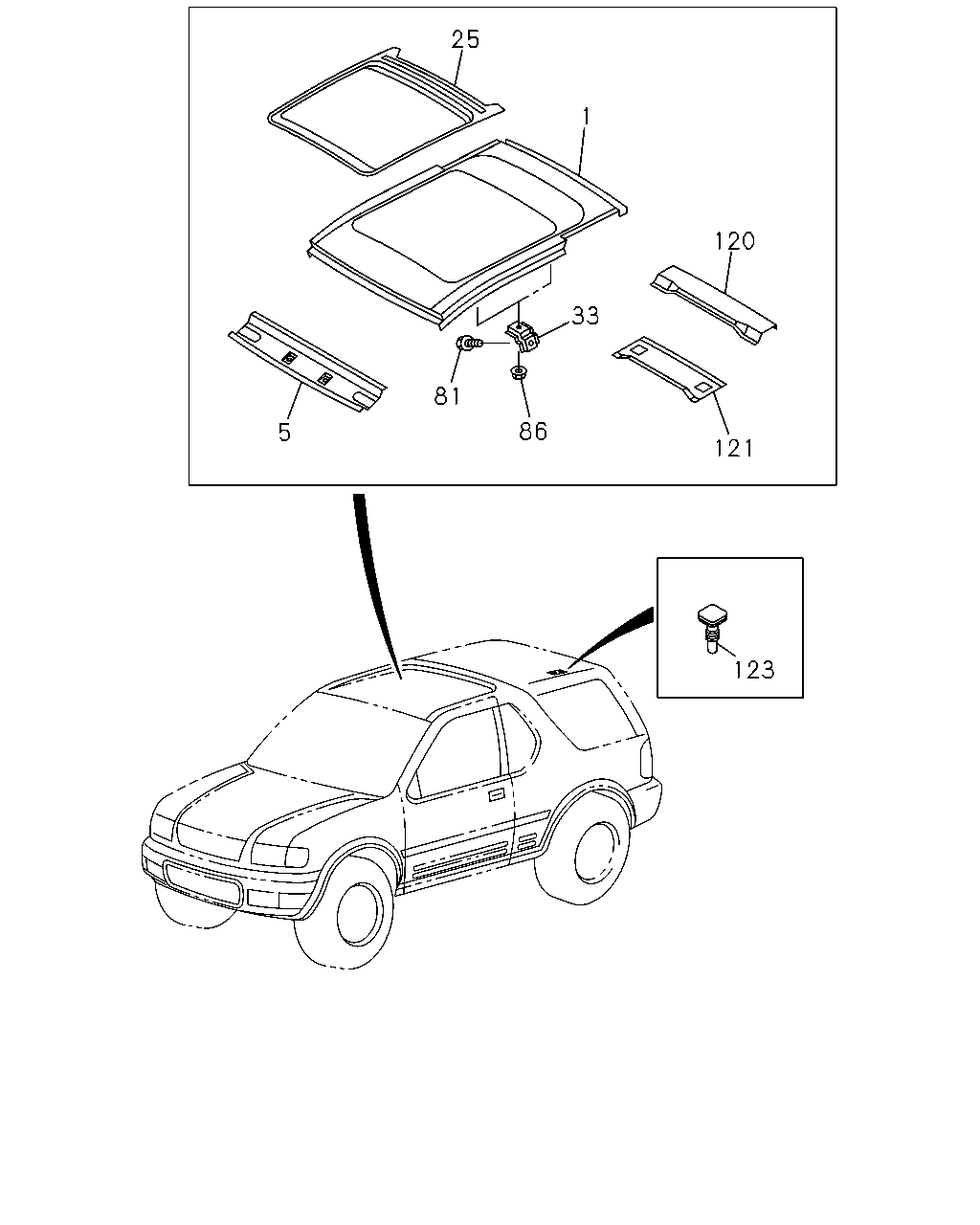

25 1 120 33 81 86 5 121 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.585 PANEL; ROOF USA	8-97130-742-3	01	1	9811-0012	●
1	16.585 PANEL; ROOF SUN ROOF SLIDING ELEC<CF5> USA	8-97123-585-5	01	1	9811-		●
1	16.585 PANEL; ROOF EXC. SUN ROOF SLIDING ELEC<CF5> USA	8-97123-380-4	01	1	9811-		●
5	61.321 RAIL; WINDOW SHIELD HEADER USA	8-97124-189-5	01	1	9811-0012	●	●
5	61.321 RAIL; WINDOW SHIELD HEADER USA	8-97124-189-5	01	1	0101-		●
25	16.570 REINFORCEMENT; SUNROOF USA	8-97130-965-1	01	1	9811-0012	●
25	16.570 REINFORCEMENT; SUNROOF SUN ROOF SLIDING ELEC<CF5> USA	8-97128-795-4	01	1	9811-		●
33	16.585 BRACKET; SUNROOF USA	8-97135-511-0	04	1	9811-0012	●
81	16.585 BOLT; ROOF 00.738 M6X16 FLANGE USA	0-28080-616-0	04	1	9811-0012	●
81	16.585 BOLT; ROOF ROOF RAIL<7LC> M6X35 W/WASHER USA	8-97135-839-1	08	1	9811-0003		●
81	16.585 BOLT; ROOF ROOF RAIL WITH CROSS BAR<8BV> M6X32 FLANGE	8-97251-447-0	08	1	0004-0108		●
81	16.585 BOLT; ROOF ROOF RAIL WITH CROSS BAR<8BV> M6X32 FLANGE	8-97251-447-0	16	1	0109-		●
86	16.585 NUT; ROOF 10.710 M6 FLANGE	8-94253-333-0	04	1	9811-0012	●
120	16.585 RAIL; BACK LIGHT UPR USA	8-97130-743-1	01	1	9811-0012	●
120	16.585 RAIL; BACK LIGHT UPR USA	8-97124-195-2	01	1	9811-		●
121	16.585 CLOSING; BACK LIGHT UPR USA	8-97130-750-0	01	1	9811-0012	●
121	16.585 CLOSING; BACK LIGHT UPR USA	8-97124-196-1	01	1	9811-		●
123	16.585 COVER; HOLE,ROOF RAIL	8-97176-966-2	04	1	9811-0012	●

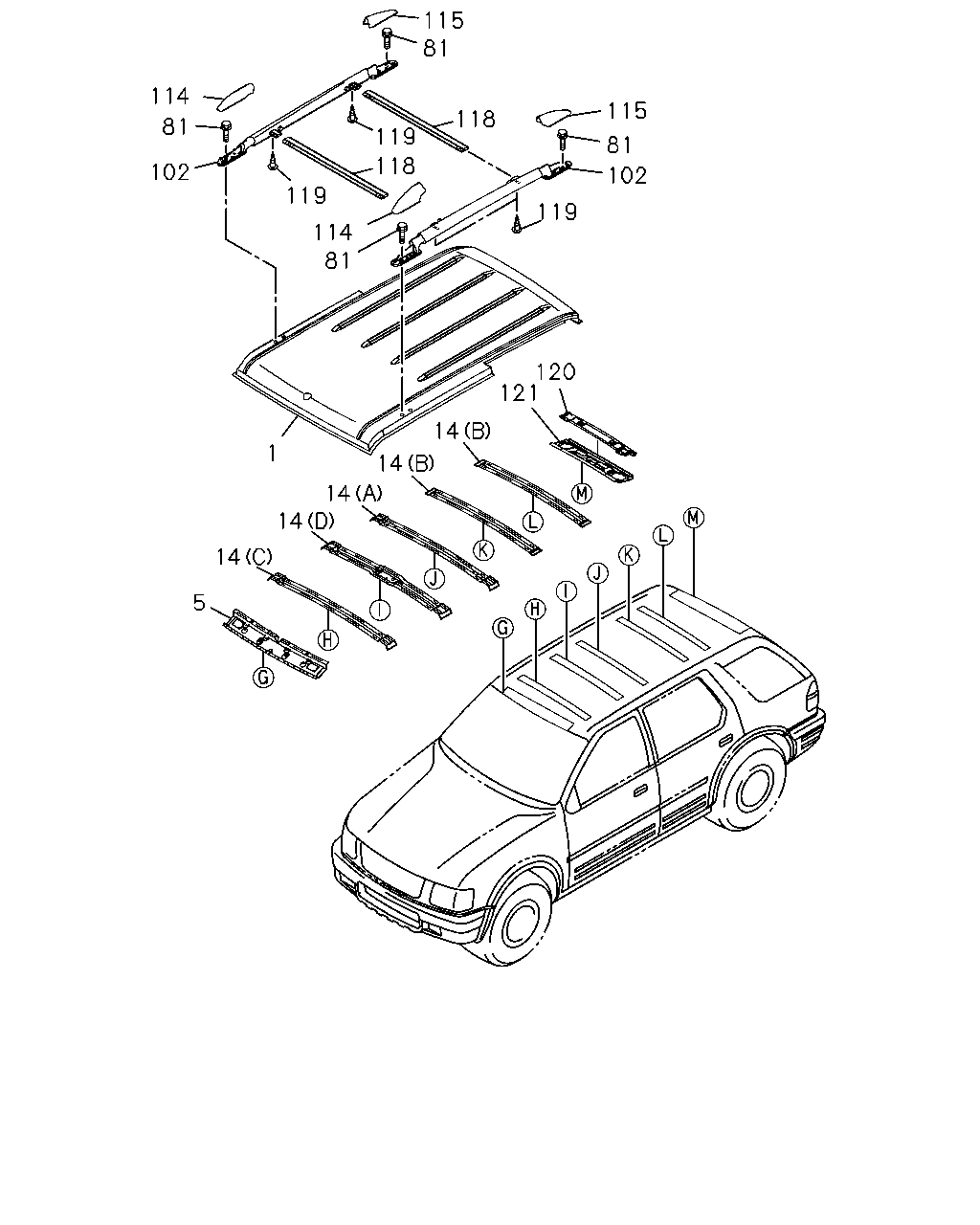

115 81 114 81 115 81 102 118 119 118 102 119 119 114 81 120 121 14 14 14 14 1 14 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.585 PANEL; ROOF USA	8-97130-742-3	01	1	9811-0012	●
1	16.585 PANEL; ROOF SUN ROOF SLIDING ELEC<CF5> USA	8-97123-585-5	01	1	9811-		●
1	16.585 PANEL; ROOF EXC. SUN ROOF SLIDING ELEC<CF5> USA	8-97123-380-4	01	1	9811-		●
5	61.321 RAIL; WINDOW SHIELD HEADER USA	8-97124-189-5	01	1	9811-0012	●	●
5	61.321 RAIL; WINDOW SHIELD HEADER USA	8-97124-189-5	01	1	0101-		●
14	16.585 SUPPORT; ROOF (A) USA	8-97124-192-3	01	1	9811-		●
14	16.585 SUPPORT; ROOF (B) USA	8-97124-193-4	02	1	9811-		●
14	16.585 SUPPORT; ROOF EXC. SUN ROOF SLIDING ELEC<CF5> (C) USA	8-97124-190-2	01	1	9811-		●
14	16.585 SUPPORT; ROOF EXC. SUN ROOF SLIDING ELEC<CF5> (D) USA	8-97124-191-2	01	1	9811-		●
81	16.585 BOLT; ROOF 00.738 M6X16 FLANGE USA	0-28080-616-0	04	1	9811-0012	●
81	16.585 BOLT; ROOF ROOF RAIL<7LC> M6X35 W/WASHER USA	8-97135-839-1	08	1	9811-0003		●
81	16.585 BOLT; ROOF ROOF RAIL WITH CROSS BAR<8BV> M6X32 FLANGE	8-97251-447-0	08	1	0004-0108		●
81	16.585 BOLT; ROOF ROOF RAIL WITH CROSS BAR<8BV> M6X32 FLANGE	8-97251-447-0	16	1	0109-		●
102	16.585 RAIL ASM; ROOF ROOF RAIL<7LC> USA	8-97201-533-0	01	1	9811-0003		●
102	16.585 RAIL ASM; ROOF ROOF RAIL WITH CROSS BAR<8BV> USA	8-97201-533-0	01	1	0004-		●
102	16.585 RAIL ASM; ROOF ROOF RAIL<7LC> USA	8-97201-532-0	01	1	9811-0003		●
102	16.585 RAIL ASM; ROOF ROOF RAIL WITH CROSS BAR<8BV> USA	8-97201-532-0	01	1	0004-		●
114	16.585 COVER; ROOF RAIL FRT ROOF RAIL<7LC> USA	8-97135-375-2	01	1	9811-0003		●
114	16.585 COVER; ROOF RAIL FRT ROOF RAIL WITH CROSS BAR<8BV> USA	8-97135-375-3	01	1	0004-		●
114	16.585 COVER; ROOF RAIL FRT ROOF RAIL<7LC> USA	8-97135-374-2	01	1	9811-0003		●
114	16.585 COVER; ROOF RAIL FRT ROOF RAIL WITH CROSS BAR<8BV> USA	8-97135-374-3	01	1	0004-		●
115	16.585 COVER; ROOF RAIL RR ROOF RAIL<7LC> USA	8-97135-377-2	01	1	9811-0003		●
115	16.585 COVER; ROOF RAIL RR ROOF RAIL WITH CROSS BAR<8BV> USA	8-97135-377-3	01	1	0004-		●
115	16.585 COVER; ROOF RAIL RR ROOF RAIL<7LC> USA	8-97135-376-2	01	1	9811-0003		●
115	16.585 COVER; ROOF RAIL RR ROOF RAIL WITH CROSS BAR<8BV> USA	8-97135-376-3	01	1	0004-		●
118	16.585 BAR; CROSS ROOF RAIL<7LC> USA	8-97135-373-1	02	1	9811-0003		●
118	16.585 BAR; CROSS ROOF RAIL WITH CROSS BAR<8BV> USA	8-97135-373-1	02	1	0004-		●
119	16.585 SCREW; RAIL ROOF RAIL<7LC> USA	8-11509-253-0	08	1	9811-0003		●
119	16.585 SCREW; RAIL ROOF RAIL WITH CROSS BAR<8BV> USA	8-11509-253-0	08	1	0004-		●
120	16.585 RAIL; BACK LIGHT UPR USA	8-97130-743-1	01	1	9811-0012	●
120	16.585 RAIL; BACK LIGHT UPR USA	8-97124-195-2	01	1	9811-		●
121	16.585 CLOSING; BACK LIGHT UPR USA	8-97130-750-0	01	1	9811-0012	●
121	16.585 CLOSING; BACK LIGHT UPR USA	8-97124-196-1	01	1	9811-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
