6-55 — REAR DOOR TRIM (#32645) — 131 parça

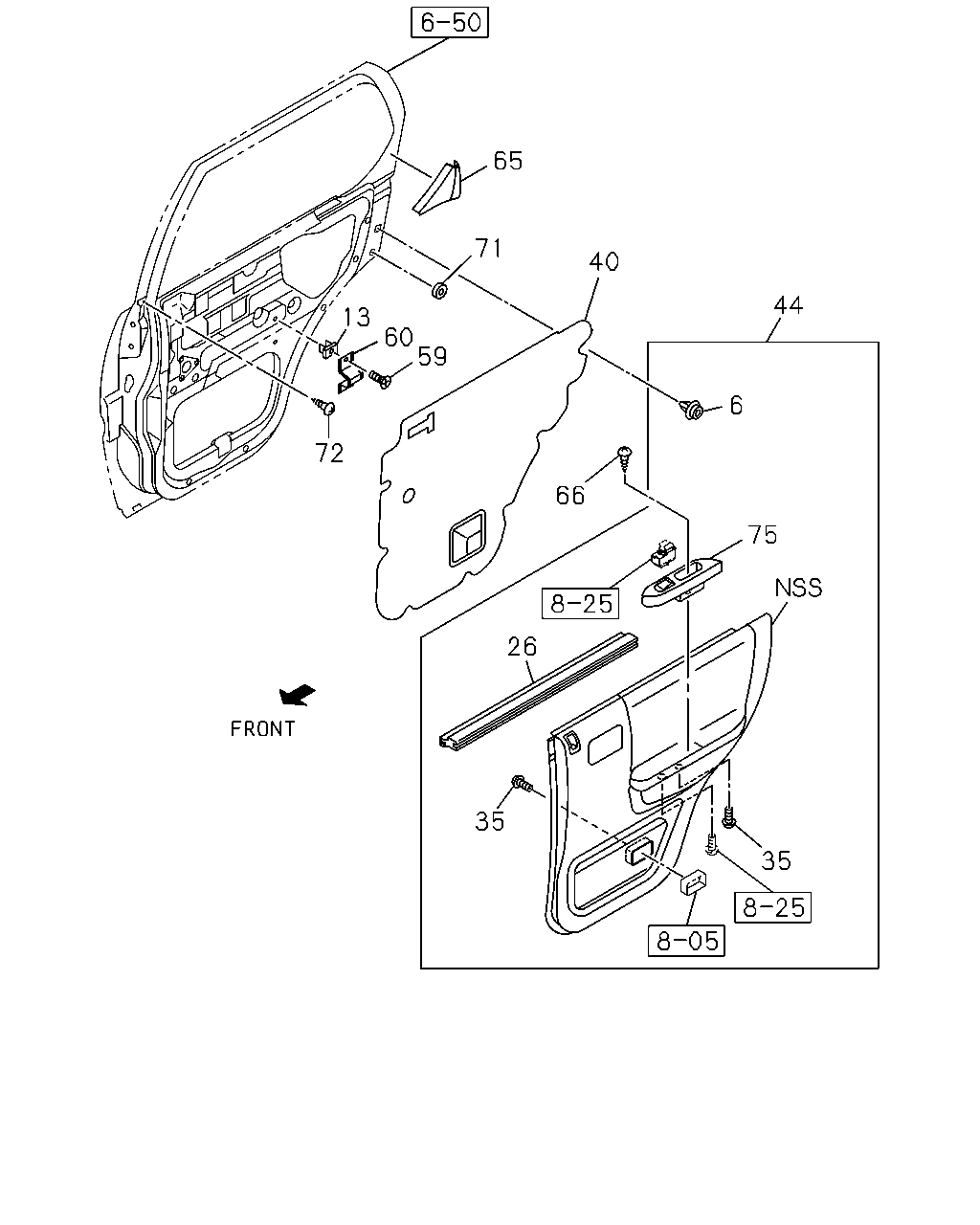

65 71 40 13 44 60 59 6 72 66 75 26 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	16.165 CLIP; DOOR PAD H=16.7 USA	8-97022-017-0	16	1	9811-0003	●
6	16.165 CLIP; DOOR PAD 4DOOR LONG(UE***F) H=16.7 USA	8-97022-017-0	16	1	0004-0012	●	●
6	16.165 CLIP; DOOR PAD H=16.7 USA	8-97022-017-0	16	1	0101-	●	●
13	16.165 GROMMET; SCREW,ARM REST 4DOOR LONG(UE***F) 16.450	5-09470-001-0	04	1	9811-0012	●	●
13	16.165 GROMMET; SCREW,ARM REST 16.450	5-09470-001-0	04	1	0101-	●	●
26	16.165 SEAL; WAIST,RR DOOR INNER 4DOOR LONG(UE***F) USA	8-97124-811-1	01	1	9811-0012	●	●
26	16.165 SEAL; WAIST,RR DOOR INNER USA	8-97124-811-1	01	1	0101-	●	●
26	16.165 SEAL; WAIST,RR DOOR INNER 4DOOR LONG(UE***F) USA	8-97124-810-1	01	1	9811-0012	●	●
26	16.165 SEAL; WAIST,RR DOOR INNER USA	8-97124-810-1	01	1	0101-	●	●
35	16.166 SCREW; TRIM PAD M12X16 USA	8-97026-494-0	06	1	9811-0003	●
35	16.166 SCREW; TRIM PAD 4DOOR LONG(UE***F) M12X16 USA	8-97026-494-0	06	1	0004-0012	●	●
35	16.166 SCREW; TRIM PAD M12X16 USA	8-97026-494-0	02	1	0101-	●	●
40	16.165 SHEET; WATER PROOF,RR DOOR USA	8-97228-260-1	01	1	0101-0103	●	●
40	16.165 SHEET; WATER PROOF,RR DOOR USA	8-97313-261-0	01	1	0104-	●	●
40	16.165 SHEET; WATER PROOF,RR DOOR 4DOOR LONG(UE***F) USA	8-97124-802-0	02	1	9811-0012	●	●
40	16.165 SHEET; WATER PROOF,RR DOOR USA	8-97228-259-1	01	1	0101-0103	●	●
40	16.165 SHEET; WATER PROOF,RR DOOR USA	8-97313-260-0	01	1	0104-	●	●
44	16.165 TRIM; DOOR,RR 4DOOR LONG(UE***F) GRAY USA	8-97159-945-2	01	1	9811-0003		●
44	16.165 TRIM; DOOR,RR 4DOOR LONG(UE***F) GRAY USA	8-97159-944-2	01	1	9811-0003		●
44	16.165 TRIM; DOOR,RR GRAY USA	8-97157-384-7	01	1	9811-0003	●
44	16.165 TRIM; DOOR,RR 4DOOR LONG(UE***F) GRAY USA	8-97291-523-0	01	1	0004-0005	●	●
44	16.165 TRIM; DOOR,RR USA	8-97296-806-1	01	1	0006-0012	●	●
44	16.165 TRIM; DOOR,RR USA	8-97298-196-2	01	1	0101-		●
44	16.165 TRIM; DOOR,RR GRAY USA	8-97157-383-7	01	1	9811-0003	●
44	16.165 TRIM; DOOR,RR 4DOOR LONG(UE***F) GRAY USA	8-97291-522-0	01	1	0004-0005	●	●
44	16.165 TRIM; DOOR,RR USA	8-97296-805-1	01	1	0006-0012	●	●
44	16.165 TRIM; DOOR,RR USA	8-97298-195-2	01	1	0101-		●
44	16.165 TRIM; DOOR,RR USA	8-97296-927-5	01	1	0101-	●
44	16.165 TRIM; DOOR,RR USA	8-97296-926-5	01	1	0101-	●
59	16.166 SCREW; PANEL 4DOOR LONG(UE***F) 16.165 M6X14 SELF TAPPING USA	9-09629-040-0	04	1	9811-0012	●	●
59	16.166 SCREW; PANEL 16.165 M6X14 SELF TAPPING USA	9-09629-040-0	04	1	0101-	●	●
60	16.165 BRACKET; BOX 4DOOR LONG(UE***F) USA	8-97124-976-0	02	1	9811-0012	●	●
60	16.165 BRACKET; BOX USA	8-97124-976-0	02	1	0101-	●	●
65	16.445 GARNISH; RR DOOR 4DOOR LONG(UE***F) BLACK USA	8-97157-388-3	01	1	9811-0012	●	●
65	16.445 GARNISH; RR DOOR BLACK USA	8-97157-388-4	01	1	0101-	●	●
65	16.445 GARNISH; RR DOOR 4DOOR LONG(UE***F) BLACK USA	8-97157-387-3	01	1	9811-0012	●	●
65	16.445 GARNISH; RR DOOR BLACK USA	8-97157-387-4	01	1	0101-	●	●
66	16.450 SCREW; PULL BOX 4DOOR LONG(UE***F) 16.165 M6X14 SELF TAPPING USA	9-09629-040-0	02	1	9811-0012	●	●
66	16.450 SCREW; PULL BOX 16.165 M6X14 SELF TAPPING USA	9-09629-040-0	02	1	0101-	●	●
71	16.165 GROMMET; WATER PROOF 4DOOR LONG(UE***F) 12.182 OD=26	8-94141-484-0	02	1	9811-0012	●	●
71	16.165 GROMMET; WATER PROOF 12.182 OD=26	8-94141-484-0	02	1	0101-0209	●	●
72	16.165 SCREW; WEATHER STRIP 4DOOR LONG(UE***F) M5X8 USA	8-97165-795-0	02	1	9811-0012	●	●
72	16.165 SCREW; WEATHER STRIP M5X8 USA	8-97165-795-0	02	1	0101-	●	●
75	16.165 TRIM; PULL BOX BLACK USA	8-97195-819-2	01	1	9811-0003	●
75	16.165 TRIM; PULL BOX 4DOOR LONG(UE***F) GRAY USA	8-97159-010-2	01	1	0004-0005	●	●
75	16.165 TRIM; PULL BOX 4DOOR LONG(UE***F) BLACK USA	8-97195-819-2	01	1	0006-0012	●	●
75	16.165 TRIM; PULL BOX BLACK USA	8-97195-819-3	01	1	0101-	●	●
75	16.165 TRIM; PULL BOX BLACK USA	8-97195-818-2	01	1	9811-0003	●
75	16.165 TRIM; PULL BOX 4DOOR LONG(UE***F) GRAY USA	8-97159-008-2	01	1	0004-0005	●	●
75	16.165 TRIM; PULL BOX 4DOOR LONG(UE***F) BLACK USA	8-97195-818-2	01	1	0006-0012	●	●
75	16.165 TRIM; PULL BOX BLACK USA	8-97195-818-3	01	1	0101-	●	●

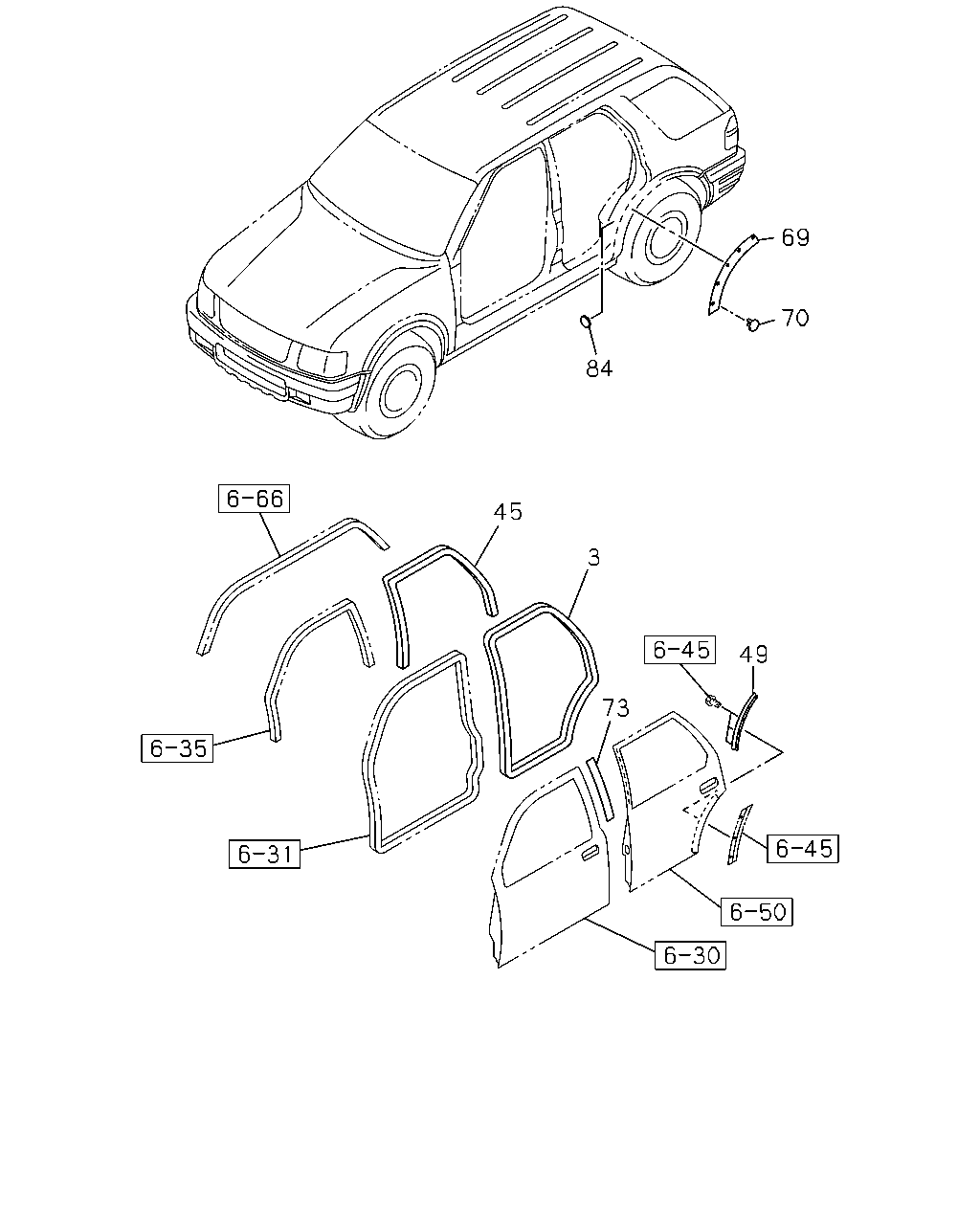

69 70 84 45 3 49 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	16.225 WEATHERSTRIP; RR DOOR 4DOOR LONG(UE***F) USA	8-97124-817-2	01	1	9811-0003	●	●
3	16.225 WEATHERSTRIP; RR DOOR 4DOOR LONG(UE***F) USA	8-97231-066-0	01	1	0004-0010	●	●
3	16.225 WEATHERSTRIP; RR DOOR 4DOOR LONG(UE***F) USA	8-97304-398-0	01	1	0011-0012	●	●
3	16.225 WEATHERSTRIP; RR DOOR USA	8-97304-398-3	01	1	0101-	●	●
3	16.225 WEATHERSTRIP; RR DOOR 4DOOR LONG(UE***F) USA	8-97124-816-2	01	1	9811-0003	●	●
3	16.225 WEATHERSTRIP; RR DOOR 4DOOR LONG(UE***F) USA	8-97231-065-0	01	1	0004-0010	●	●
3	16.225 WEATHERSTRIP; RR DOOR 4DOOR LONG(UE***F) USA	8-97304-397-0	01	1	0011-0012	●	●
3	16.225 WEATHERSTRIP; RR DOOR USA	8-97304-397-3	01	1	0101-	●	●
45	16.183 FINISHER; RR DOOR 4DOOR LONG(UE***F) USA	8-97124-821-3	01	1	9811-0012	●	●
45	16.183 FINISHER; RR DOOR USA	8-97124-821-3	01	1	0101-	●	●
45	16.183 FINISHER; RR DOOR 4DOOR LONG(UE***F) USA	8-97124-820-3	01	1	9811-0012	●	●
45	16.183 FINISHER; RR DOOR USA	8-97124-820-3	01	1	0101-	●	●
49	16.165 SEAL; DOOR 4DOOR LONG(UE***F) USA	8-97124-823-2	01	1	9811-9904	●	●
49	16.165 SEAL; DOOR 4DOOR LONG(UE***F) USA	8-97224-433-0	01	1	9905-0012	●	●
49	16.165 SEAL; DOOR USA	8-97224-433-2	01	1	0101-	●	●
49	16.165 SEAL; DOOR 4DOOR LONG(UE***F) USA	8-97124-822-2	01	1	9811-9904	●	●
49	16.165 SEAL; DOOR 4DOOR LONG(UE***F) USA	8-97224-432-0	01	1	9905-0012	●	●
49	16.165 SEAL; DOOR USA	8-97224-432-2	01	1	0101-	●	●
69	16.165 COVER; WHEEL ARCH 4DOOR LONG(UE***F) USA	8-97124-825-1	01	1	9811-0012	●	●
69	16.165 COVER; WHEEL ARCH USA	8-97124-825-1	01	1	0101-	●	●
69	16.165 COVER; WHEEL ARCH 4DOOR LONG(UE***F) USA	8-97124-824-1	01	1	9811-0012	●	●
69	16.165 COVER; WHEEL ARCH USA	8-97124-824-1	01	1	0101-	●	●
70	16.166 SCREW; COVER 4DOOR LONG(UE***F) USA	8-97184-422-0	08	1	9811-0012	●	●
70	16.166 SCREW; COVER USA	8-97184-422-0	08	1	0101-	●	●
73	16.165 SEAL; PILLAR 4DOOR LONG(UE***F) USA	8-97213-641-0	01	1	9811-0012	●	●
73	16.165 SEAL; PILLAR USA	8-97213-641-0	01	1	0101-	●	●
73	16.165 SEAL; PILLAR 4DOOR LONG(UE***F) USA	8-97213-640-0	01	1	9811-0012	●	●
73	16.165 SEAL; PILLAR USA	8-97213-640-0	01	1	0101-	●	●
84	16.165 SEAL; WATER PROOF 17.185 OD=30	8-97040-577-0	02	1	0210-	●	●

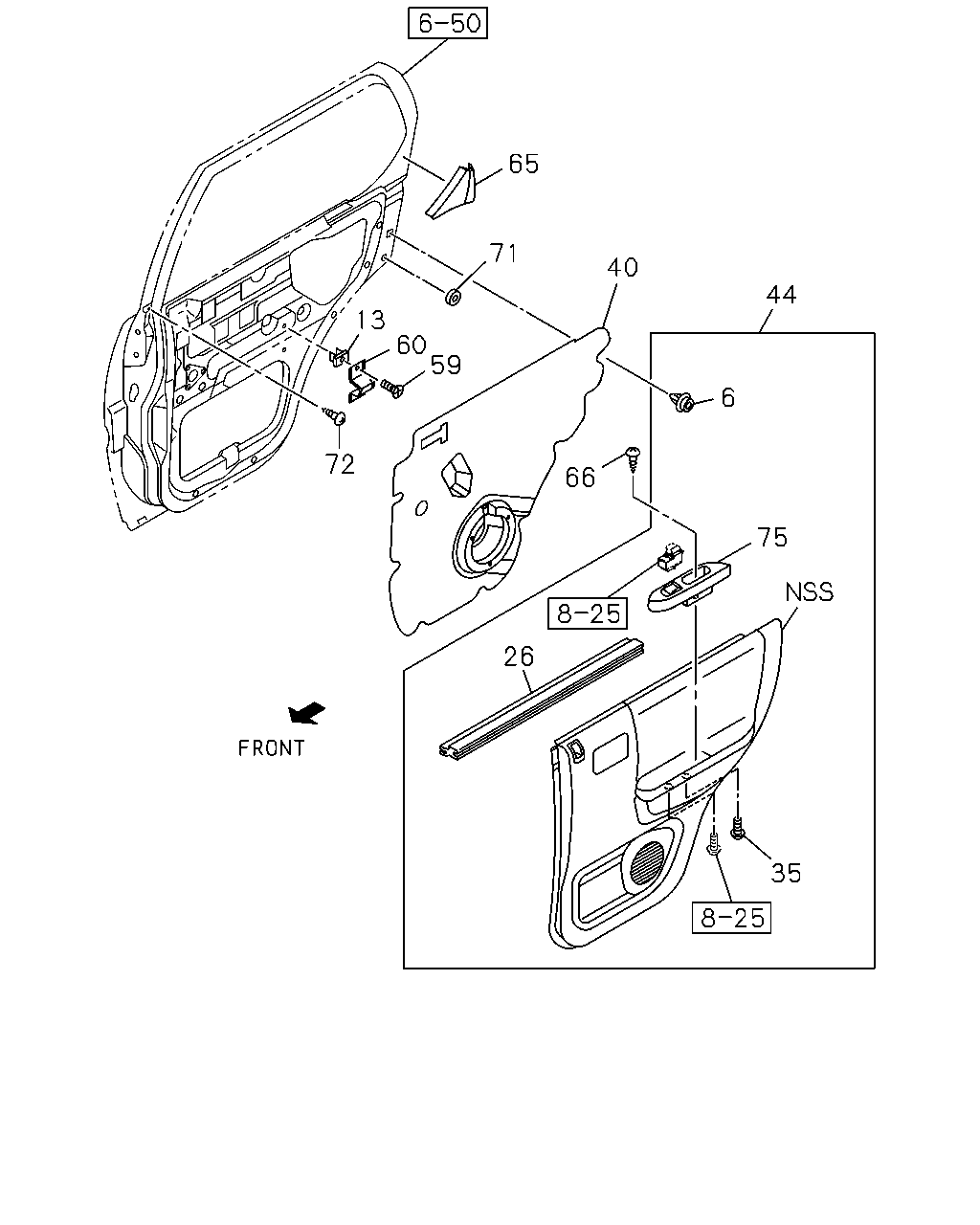

65 71 40 44 13 60 59 6 72 66 75 26 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	16.165 CLIP; DOOR PAD H=16.7 USA	8-97022-017-0	16	1	9811-0003	●
6	16.165 CLIP; DOOR PAD 4DOOR LONG(UE***F) H=16.7 USA	8-97022-017-0	16	1	0004-0012	●	●
6	16.165 CLIP; DOOR PAD H=16.7 USA	8-97022-017-0	16	1	0101-	●	●
13	16.165 GROMMET; SCREW,ARM REST 4DOOR LONG(UE***F) 16.450	5-09470-001-0	04	1	9811-0012	●	●
13	16.165 GROMMET; SCREW,ARM REST 16.450	5-09470-001-0	04	1	0101-	●	●
26	16.165 SEAL; WAIST,RR DOOR INNER 4DOOR LONG(UE***F) USA	8-97124-811-1	01	1	9811-0012	●	●
26	16.165 SEAL; WAIST,RR DOOR INNER USA	8-97124-811-1	01	1	0101-	●	●
26	16.165 SEAL; WAIST,RR DOOR INNER 4DOOR LONG(UE***F) USA	8-97124-810-1	01	1	9811-0012	●	●
26	16.165 SEAL; WAIST,RR DOOR INNER USA	8-97124-810-1	01	1	0101-	●	●
35	16.166 SCREW; TRIM PAD M12X16 USA	8-97026-494-0	06	1	9811-0003	●
35	16.166 SCREW; TRIM PAD 4DOOR LONG(UE***F) M12X16 USA	8-97026-494-0	06	1	0004-0012	●	●
35	16.166 SCREW; TRIM PAD M12X16 USA	8-97026-494-0	02	1	0101-	●	●
40	16.165 SHEET; WATER PROOF,RR DOOR USA	8-97228-260-1	01	1	0101-0103	●	●
40	16.165 SHEET; WATER PROOF,RR DOOR USA	8-97313-261-0	01	1	0104-	●	●
40	16.165 SHEET; WATER PROOF,RR DOOR 4DOOR LONG(UE***F) USA	8-97124-802-0	02	1	9811-0012	●	●
40	16.165 SHEET; WATER PROOF,RR DOOR USA	8-97228-259-1	01	1	0101-0103	●	●
40	16.165 SHEET; WATER PROOF,RR DOOR USA	8-97313-260-0	01	1	0104-	●	●
44	16.165 TRIM; DOOR,RR 4DOOR LONG(UE***F) GRAY USA	8-97159-945-2	01	1	9811-0003		●
44	16.165 TRIM; DOOR,RR 4DOOR LONG(UE***F) GRAY USA	8-97159-944-2	01	1	9811-0003		●
44	16.165 TRIM; DOOR,RR GRAY USA	8-97157-384-7	01	1	9811-0003	●
44	16.165 TRIM; DOOR,RR 4DOOR LONG(UE***F) GRAY USA	8-97291-523-0	01	1	0004-0005	●	●
44	16.165 TRIM; DOOR,RR USA	8-97296-806-1	01	1	0006-0012	●	●
44	16.165 TRIM; DOOR,RR USA	8-97298-196-2	01	1	0101-		●
44	16.165 TRIM; DOOR,RR GRAY USA	8-97157-383-7	01	1	9811-0003	●
44	16.165 TRIM; DOOR,RR 4DOOR LONG(UE***F) GRAY USA	8-97291-522-0	01	1	0004-0005	●	●
44	16.165 TRIM; DOOR,RR USA	8-97296-805-1	01	1	0006-0012	●	●
44	16.165 TRIM; DOOR,RR USA	8-97298-195-2	01	1	0101-		●
44	16.165 TRIM; DOOR,RR USA	8-97296-927-5	01	1	0101-	●
44	16.165 TRIM; DOOR,RR USA	8-97296-926-5	01	1	0101-	●
59	16.166 SCREW; PANEL 4DOOR LONG(UE***F) 16.165 M6X14 SELF TAPPING USA	9-09629-040-0	04	1	9811-0012	●	●
59	16.166 SCREW; PANEL 16.165 M6X14 SELF TAPPING USA	9-09629-040-0	04	1	0101-	●	●
60	16.165 BRACKET; BOX 4DOOR LONG(UE***F) USA	8-97124-976-0	02	1	9811-0012	●	●
60	16.165 BRACKET; BOX USA	8-97124-976-0	02	1	0101-	●	●
65	16.445 GARNISH; RR DOOR 4DOOR LONG(UE***F) BLACK USA	8-97157-388-3	01	1	9811-0012	●	●
65	16.445 GARNISH; RR DOOR BLACK USA	8-97157-388-4	01	1	0101-	●	●
65	16.445 GARNISH; RR DOOR 4DOOR LONG(UE***F) BLACK USA	8-97157-387-3	01	1	9811-0012	●	●
65	16.445 GARNISH; RR DOOR BLACK USA	8-97157-387-4	01	1	0101-	●	●
66	16.450 SCREW; PULL BOX 4DOOR LONG(UE***F) 16.165 M6X14 SELF TAPPING USA	9-09629-040-0	02	1	9811-0012	●	●
66	16.450 SCREW; PULL BOX 16.165 M6X14 SELF TAPPING USA	9-09629-040-0	02	1	0101-	●	●
71	16.165 GROMMET; WATER PROOF 4DOOR LONG(UE***F) 12.182 OD=26	8-94141-484-0	02	1	9811-0012	●	●
71	16.165 GROMMET; WATER PROOF 12.182 OD=26	8-94141-484-0	02	1	0101-0209	●	●
72	16.165 SCREW; WEATHER STRIP 4DOOR LONG(UE***F) M5X8 USA	8-97165-795-0	02	1	9811-0012	●	●
72	16.165 SCREW; WEATHER STRIP M5X8 USA	8-97165-795-0	02	1	0101-	●	●
75	16.165 TRIM; PULL BOX BLACK USA	8-97195-819-2	01	1	9811-0003	●
75	16.165 TRIM; PULL BOX 4DOOR LONG(UE***F) GRAY USA	8-97159-010-2	01	1	0004-0005	●	●
75	16.165 TRIM; PULL BOX 4DOOR LONG(UE***F) BLACK USA	8-97195-819-2	01	1	0006-0012	●	●
75	16.165 TRIM; PULL BOX BLACK USA	8-97195-819-3	01	1	0101-	●	●
75	16.165 TRIM; PULL BOX BLACK USA	8-97195-818-2	01	1	9811-0003	●
75	16.165 TRIM; PULL BOX 4DOOR LONG(UE***F) GRAY USA	8-97159-008-2	01	1	0004-0005	●	●
75	16.165 TRIM; PULL BOX 4DOOR LONG(UE***F) BLACK USA	8-97195-818-2	01	1	0006-0012	●	●
75	16.165 TRIM; PULL BOX BLACK USA	8-97195-818-3	01	1	0101-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
