◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#32641) — 50 parça
çizim 4145
28 332 353
BalonParca AdiParca NoAdetTipApplied Date A B
28 08.154 CLIP
OD=22 L=10.7 THA 		8-94215-211-0 02 1 9811-0012 ● ●
28 08.154 CLIP
OD=22 L=10.7 THA 		8-94215-211-0 02 1 0101- ●
332 08.155 COVER; FRT FENDER 8-97174-474-0 01 1 9811-0012 ● ●
332 08.155 COVER; FRT FENDER 8-97174-474-1 01 1 0101- ●
353 08.131 TAPE; FENDER,CHIPPING GUARD 8-97214-893-0 02 1 0004-0012 ● ●
353 08.131 TAPE; FENDER,CHIPPING GUARD 8-97214-893-0 02 1 0101- ●

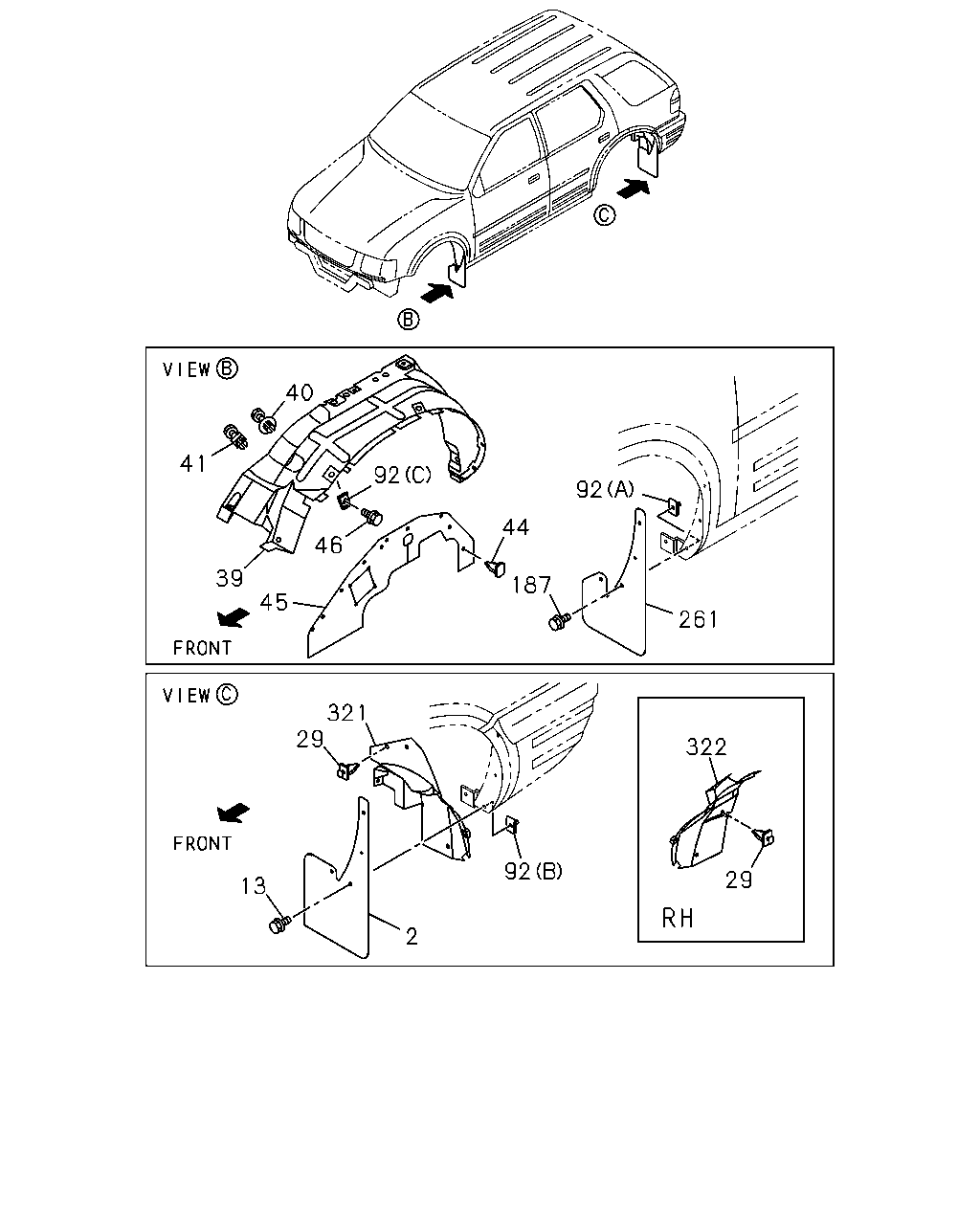

çizim 36776
40 41 92 92 44 46 39 187 45 261 321 29 322 92 29 13 2
BalonParca AdiParca NoAdetTipApplied Date A B
2 08.154 COVER; MUD,TIRE RR
USA 		8-97124-481-1 02 1 9811-0012 ● ●
2 08.154 COVER; MUD,TIRE RR
USA 		8-97124-481-1 02 1 0101- ●
13 08.155 SCREW; RR MUD FLAP
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 08 1 9811-0012 ● ●
13 08.155 SCREW; RR MUD FLAP
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 08 1 0101- ●
29 08.155 RIVET
08.154 THA 		8-94221-150-0 08 1 9811-0012 ● ●
29 08.155 RIVET
08.154 THA 		8-94221-150-0 08 1 0101- ●
39 08.131 LINER; FENDER
USA 		8-97216-280-0 01 1 9811-9812 ● ●
39 08.131 LINER; FENDER
USA 		8-97223-909-0 01 1 9901-9911 ● ●
39 08.131 LINER; FENDER
USA 		8-97240-462-0 01 1 9912-0012 ● ●
39 08.131 LINER; FENDER
USA 		8-97240-462-0 01 1 0101- ●
39 08.131 LINER; FENDER
USA 		8-97124-425-5 01 1 9811-9812 ● ●
39 08.131 LINER; FENDER
USA 		8-97223-908-0 01 1 9901-9911 ● ●
39 08.131 LINER; FENDER
USA 		8-97240-460-0 01 1 9912-0012 ● ●
39 08.131 LINER; FENDER
USA 		8-97240-460-0 01 1 0101- ●
40 08.155 CLIP; INNER LINER
M5 SCREW & GROMMET 		8-94328-493-2 14 1 9907-0012 ● ●
40 08.155 CLIP; INNER LINER
OVER FENDER<6GH> M5 SCREW & GROMMET 		8-94328-493-2 14 1 0101-0304 ●
40 08.155 CLIP; INNER LINER
EXC. OVER FENDER<6GH> M5 SCREW & GROMMET 		8-94328-493-2 22 1 0101-0304 ●
41 08.155 RIVET; INNER LINER
08.154 THA 		8-94221-150-0 14 1 9811-9906 ● ●
44 08.154 CLIP; ANCHOR
03.163 		8-97809-579-0 17 1 9811-0012 ● ●
44 08.154 CLIP; ANCHOR
03.163 		8-97809-579-0 17 1 0101- ●
45 08.153 COVER; MUD,FENDER SKIRT
USA 		8-97143-636-3 01 1 9811-9908 ● ●
45 08.153 COVER; MUD,FENDER SKIRT
USA 		8-97222-728-1 01 1 9909-0012 ● ●
45 08.153 COVER; MUD,FENDER SKIRT
USA 		8-97222-728-1 01 1 0101- ●
45 08.153 COVER; MUD,FENDER SKIRT
USA 		8-97143-635-2 01 1 9811-9908 ● ●
45 08.153 COVER; MUD,FENDER SKIRT
USA 		8-97222-727-1 01 1 9909-0012 ● ●
45 08.153 COVER; MUD,FENDER SKIRT
USA 		8-97222-727-1 01 1 0101- ●
46 08.155 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 04 1 9811-0012 ● ●
46 08.155 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 04 1 0101- ●
92 08.155 NUT; MUD COVER
(C) USA 		8-97125-519-0 04 1 9811-0012 ● ●
92 08.155 NUT; MUD COVER
(C) USA 		8-97125-519-0 04 1 0101- ●
92 08.155 NUT; MUD COVER
(A) USA 		8-97125-519-0 10 1 9811-0012 ● ●
92 08.155 NUT; MUD COVER
(A) USA 		8-97125-519-0 10 1 0101- ●
92 08.155 NUT; MUD COVER
(B) 		8-97160-230-0 06 1 9811-0012 ● ●
92 08.155 NUT; MUD COVER
(B) 		8-97160-230-0 06 1 0101- ●
187 08.155 SCREW; FENDER COVER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 08 1 9811-9904 ● ●
187 08.155 SCREW; FENDER COVER
M6X25 W/PL WASHER TAPPING 		8-97094-909-1 08 1 9905-0012 ● ●
187 08.155 SCREW; FENDER COVER
M6X25 W/PL WASHER TAPPING 		8-97094-909-1 08 1 0101- ●
261 08.155 RUBBER; FRT,MUD GUARD
USA 		8-97124-480-0 02 1 9811-0007 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
USA 		8-97261-990-0 02 1 0008-0012 ● ●
261 08.155 RUBBER; FRT,MUD GUARD
USA 		8-97261-990-0 02 1 0101- ●
321 08.155 PROTECTOR; FUEL FILLER
USA 		8-97124-849-1 01 1 9811-0012 ● ●
321 08.155 PROTECTOR; FUEL FILLER
USA 		8-97124-849-1 01 1 0101- ●
322 08.155 PROTECTOR; RR WHEEL
USA 		8-97137-631-1 01 1 9811-0012 ● ●
322 08.155 PROTECTOR; RR WHEEL
USA 		8-97137-631-1 01 1 0101- ●
