0-65 — STARTER (#3264) — 116 parça

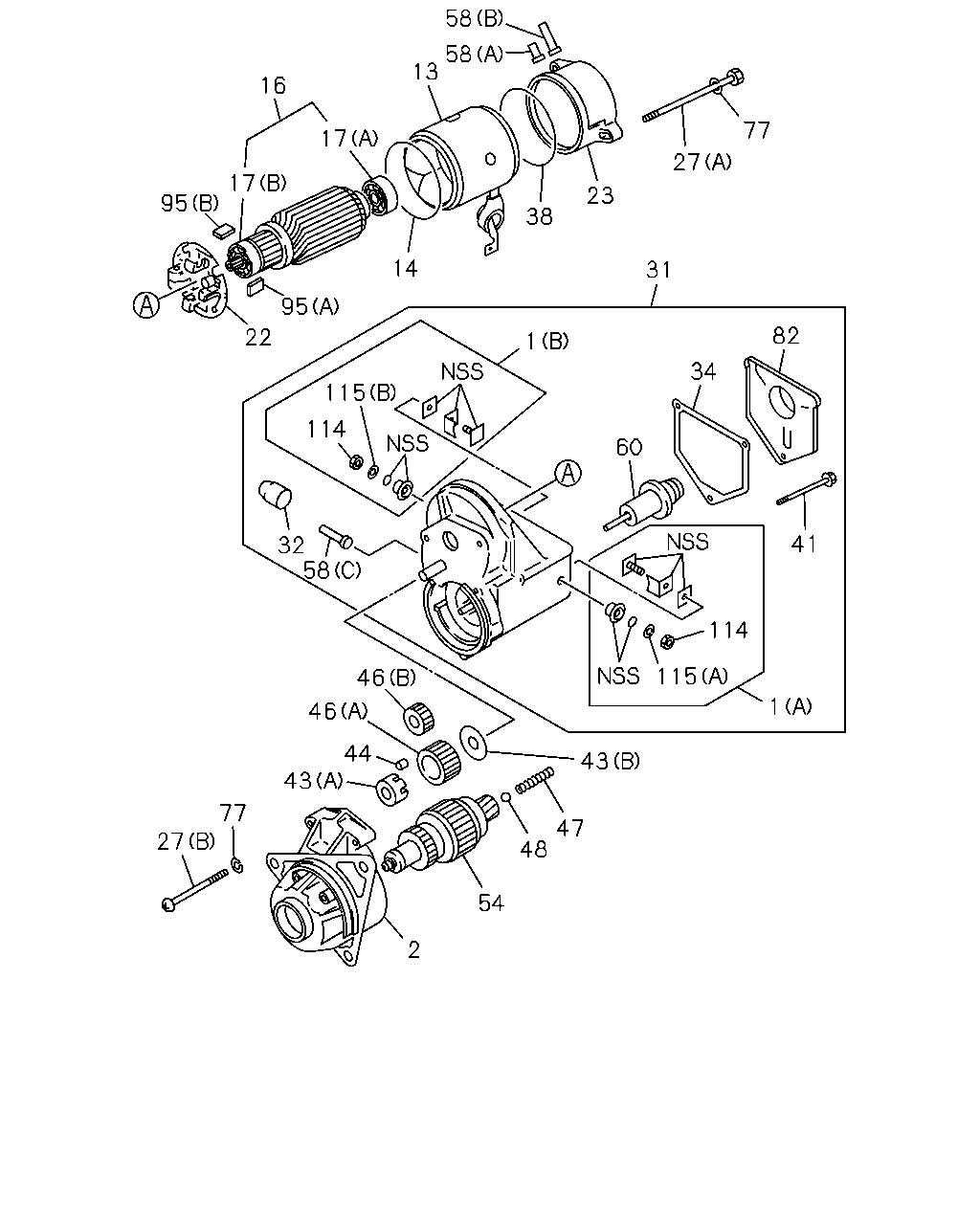

58 58 13 16 77 17 27 17 23 95 38 14 31 95 82 22 1 34 115 114 60 41 32 58 114 115 46 1 46 44 43 43 77 27 47 48 54 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEAL KIT; STARTER (A) ASM PART: B = 1-81100-234-1	1-81129-506-0	01	1	-
1	SEAL KIT; STARTER (B) ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81129-507-0	01	1	-
1	SEAL KIT; STARTER (A) ASM PART: C = 8-97119-749-0, D = 8-97174-043-0	1-81129-719-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81113-092-0	01	1	-
2	CASE; PINION,STARTER ASM PART: A = 1-81100-141-1	1-81114-018-0	01	1	9708-
2	CASE; PINION,STARTER ASM PART: A = 1-81100-141-1	5-81113-035-0	01	1	-9707
13	YOKE; STARTER ASM PART: B = 1-81100-234-1, C = 8-97119-749-0	1-81111-003-0	01	1	-
13	YOKE; STARTER ASM PART: D = 8-97174-043-0	1-81111-011-0	01	1	-
13	YOKE; STARTER ASM PART: A = 1-81100-141-1	1-81129-696-0	01	1	9708-
13	YOKE; STARTER ASM PART: A = 1-81100-141-1	5-81153-001-0	01	1	-9707
14	GASKET; YOKE,STARTER ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81129-502-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81121-042-0	01	1	-
16	ARMATURE; STARTER DENSO ASM PART: A = 1-81100-141-1	1-81121-052-1	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81129-495-0	01	1	-
17	BEARING; ARMATURE,STARTER (A), DENSO ASM PART: A = 1-81100-141-1	5-09800-041-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 1-81100-141-1	5-09800-064-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	5-09800-081-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81118-043-0	01	1	-
22	HOLDER; BRUSH STARTER DENSO ASM PART: A = 1-81100-141-1	5-81118-013-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81115-188-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-141-1	1-81115-236-0	01	1	9708-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-141-1	5-81156-002-0	01	1	-9707
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81129-483-0	03	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: B = 1-81100-234-1	1-81129-498-0	02	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: C = 8-97119-749-0, D = 8-97174-043-0	1-81129-675-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: A = 1-81100-141-1	1-81129-698-0	02	1	9708-
27	BOLT; THROUGH,STARTER ASM PART: A = 1-81100-141-1	5-81129-123-0	02	1	-9707
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-141-1	1-81151-034-0	01	1	9708-
31	SWITCH; ENGAGE STARTER ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81151-067-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-141-1	5-81151-039-0	01	1	-9707
32	COVER; RUBBER,STARTER ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81129-504-0	01	1	-
34	GASKET; TERMINAL ENGAGE SW STARTER ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81129-500-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81129-502-0	01	1	-
41	SCREW; RR COVER,STARTER ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81129-667-0	03	1	-
41	SCREW; RR COVER,STARTER ASM PART: A = 1-81100-141-1	5-81129-130-0	02	1	9708-
43	RETAINER; PINION STARTER (A) ASM PART: A = 1-81100-141-1, B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	5-81129-121-0	01	1	-
43	RETAINER; PINION STARTER (B) ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	5-81129-127-0	01	1	-
43	RETAINER; PINION STARTER (B) ASM PART: A = 1-81100-141-1	5-81129-127-0	01	1	9708-
44	ROLLER; PINION STARTER ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	5-81129-120-0	05	1	-
44	ROLLER; PINION STARTER ASM PART: A = 1-81100-141-1	5-81129-120-0	06	1	-
46	GEAR; CLU STARTER (A) ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81123-034-0	01	1	-
46	GEAR; CLU STARTER (B) ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81123-035-0	01	1	-
46	GEAR; CLU STARTER ASM PART: A = 1-81100-141-1	5-81123-018-0	01	1	-
47	SPRING; PINION STARTER ASM PART: A = 1-81100-141-1, B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	5-81129-119-0	01	1	-
48	BALL; PINION,STARTER ASM PART: A = 1-81100-141-1, B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	5-81129-092-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 1-81100-141-1	5-81124-004-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (A) ASM PART: B = 1-81100-234-1	1-81129-668-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (B) ASM PART: C = 8-97119-749-0, D = 8-97174-043-0	1-81129-717-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER (C) ASM PART: C = 8-97119-749-0, D = 8-97174-043-0	1-81129-718-0	01	1	-
60	PLUNGER; ENGAGE SW STARTER ASM PART: C = 8-97119-749-0, D = 8-97174-043-0	1-81129-499-0	01	1	-
60	PLUNGER; ENGAGE SW STARTER ASM PART: B = 1-81100-234-1	1-81129-669-0	01	1	-
77	WASHER; THROUGH BOLT,STARTER ASM PART: A = 1-81100-141-1	5-81128-002-0	02	1	-9707
77	WASHER; THROUGH BOLT,STARTER ASM PART: B = 1-81100-234-1	9-88130-033-0	02	1	-
82	COVER; DUST ENGAGE SW STARTER ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81129-501-0	01	1	-
95	BRUSH ASM; STARTER (A) ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81116-048-0	02	1	-
95	BRUSH ASM; STARTER (B) ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81116-049-0	02	1	-
114	NUT; TERMINAL ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	5-81129-126-0	02	1	-
114	NUT; TERMINAL ASM PART: A = 1-81100-141-1	5-81129-126-0	01	1	9708-
115	WASHER; TERMINAL (A) ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	5-81129-129-0	01	1	-
115	WASHER; TERMINAL (B) ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	5-81129-134-0	01	1	-
115	WASHER; TERMINAL (B) ASM PART: A = 1-81100-141-1	5-81129-134-0	01	1	9708-

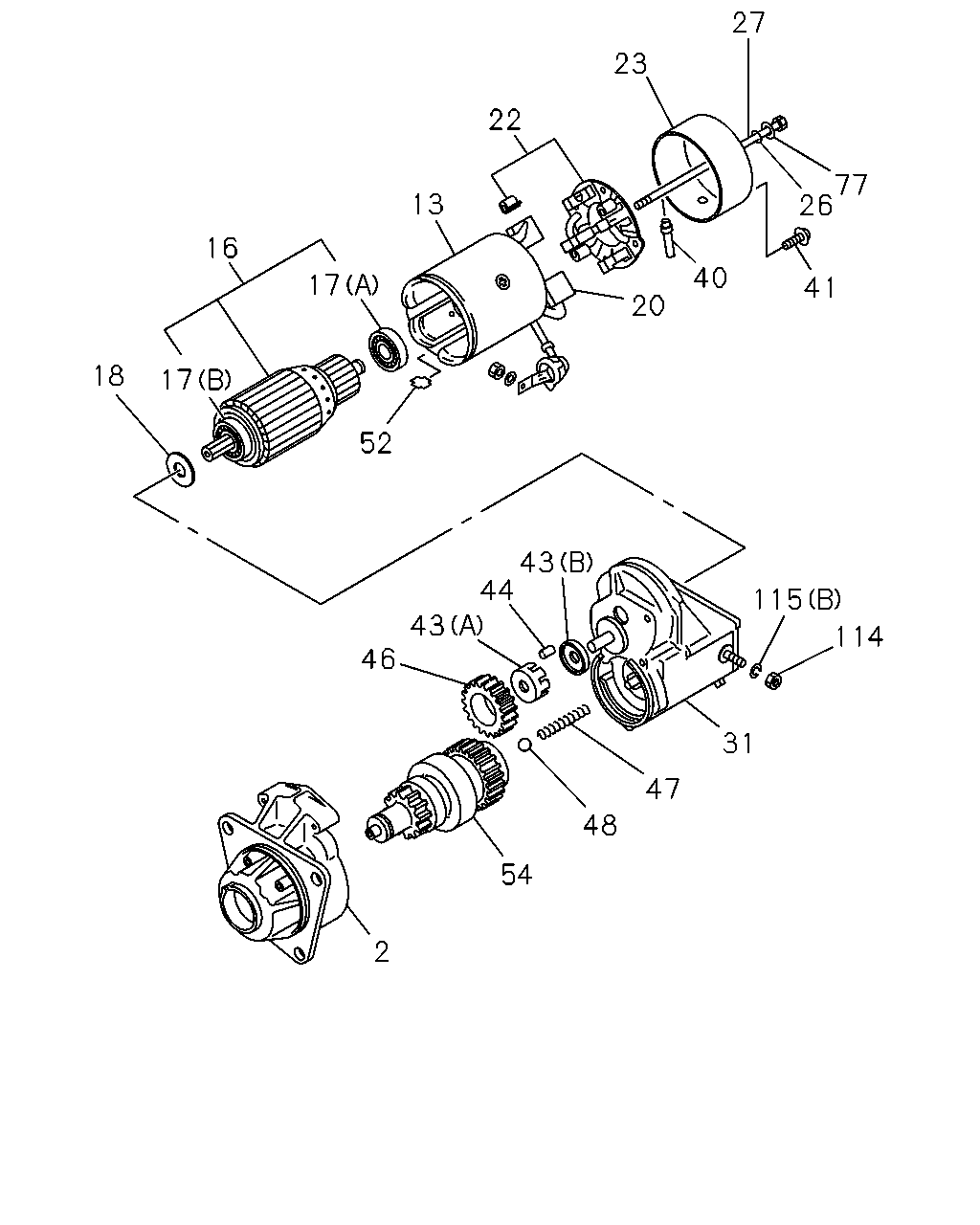

27 23 22 77 26 13 16 40 17 41 20 18 17 52 43 44 115 43 114 46 31 47 48 54 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81113-092-0	01	1	-
2	CASE; PINION,STARTER ASM PART: A = 1-81100-141-1	1-81114-018-0	01	1	9708-
2	CASE; PINION,STARTER ASM PART: A = 1-81100-141-1	5-81113-035-0	01	1	-9707
13	YOKE; STARTER ASM PART: B = 1-81100-234-1, C = 8-97119-749-0	1-81111-003-0	01	1	-
13	YOKE; STARTER ASM PART: D = 8-97174-043-0	1-81111-011-0	01	1	-
13	YOKE; STARTER ASM PART: A = 1-81100-141-1	1-81129-696-0	01	1	9708-
13	YOKE; STARTER ASM PART: A = 1-81100-141-1	5-81153-001-0	01	1	-9707
16	ARMATURE; STARTER ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81121-042-0	01	1	-
16	ARMATURE; STARTER DENSO ASM PART: A = 1-81100-141-1	1-81121-052-1	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81129-495-0	01	1	-
17	BEARING; ARMATURE,STARTER (A), DENSO ASM PART: A = 1-81100-141-1	5-09800-041-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 1-81100-141-1	5-09800-064-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	5-09800-081-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER ASM PART: A = 1-81100-141-1	5-81129-128-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: A = 1-81100-141-1	5-81126-002-0	02	1	-9707
20	BRUSH; (+),STARTER ASM PART: A = 1-81100-141-1	8-94171-853-0	02	1	9708-
22	HOLDER; BRUSH STARTER ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81118-043-0	01	1	-
22	HOLDER; BRUSH STARTER DENSO ASM PART: A = 1-81100-141-1	5-81118-013-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81115-188-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-141-1	1-81115-236-0	01	1	9708-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-141-1	5-81156-002-0	01	1	-9707
26	SEAL; THROUGH BOLT STARTER DENSO ASM PART: A = 1-81100-141-1	5-81129-131-0	02	1	-9707
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81129-483-0	03	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: B = 1-81100-234-1	1-81129-498-0	02	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: C = 8-97119-749-0, D = 8-97174-043-0	1-81129-675-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: A = 1-81100-141-1	1-81129-698-0	02	1	9708-
27	BOLT; THROUGH,STARTER ASM PART: A = 1-81100-141-1	5-81129-123-0	02	1	-9707
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-141-1	1-81151-034-0	01	1	9708-
31	SWITCH; ENGAGE STARTER ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81151-067-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-141-1	5-81151-039-0	01	1	-9707
40	COVER; DUST,RR COVER,STARTER ASM PART: A = 1-81100-141-1	1-81129-677-0	01	1	9708-
40	COVER; DUST,RR COVER,STARTER ASM PART: A = 1-81100-141-1	5-81129-122-0	01	1	-9707
41	SCREW; RR COVER,STARTER ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81129-667-0	03	1	-
41	SCREW; RR COVER,STARTER ASM PART: A = 1-81100-141-1	5-81129-130-0	02	1	9708-
43	RETAINER; PINION STARTER (A) ASM PART: A = 1-81100-141-1, B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	5-81129-121-0	01	1	-
43	RETAINER; PINION STARTER (B) ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	5-81129-127-0	01	1	-
43	RETAINER; PINION STARTER (B) ASM PART: A = 1-81100-141-1	5-81129-127-0	01	1	9708-
44	ROLLER; PINION STARTER ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	5-81129-120-0	05	1	-
44	ROLLER; PINION STARTER ASM PART: A = 1-81100-141-1	5-81129-120-0	06	1	-
46	GEAR; CLU STARTER (A) ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81123-034-0	01	1	-
46	GEAR; CLU STARTER (B) ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81123-035-0	01	1	-
46	GEAR; CLU STARTER ASM PART: A = 1-81100-141-1	5-81123-018-0	01	1	-
47	SPRING; PINION STARTER ASM PART: A = 1-81100-141-1, B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	5-81129-119-0	01	1	-
48	BALL; PINION,STARTER ASM PART: A = 1-81100-141-1, B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	5-81129-092-0	01	1	-
52	PLATE; LK,STARTER ASM PART: A = 1-81100-141-1	5-81129-136-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	1-81122-049-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 1-81100-141-1	5-81124-004-0	01	1	-
77	WASHER; THROUGH BOLT,STARTER ASM PART: A = 1-81100-141-1	5-81128-002-0	02	1	-9707
77	WASHER; THROUGH BOLT,STARTER ASM PART: B = 1-81100-234-1	9-88130-033-0	02	1	-
114	NUT; TERMINAL ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	5-81129-126-0	02	1	-
114	NUT; TERMINAL ASM PART: A = 1-81100-141-1	5-81129-126-0	01	1	9708-
115	WASHER; TERMINAL (A) ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	5-81129-129-0	01	1	-
115	WASHER; TERMINAL (B) ASM PART: B = 1-81100-234-1, C = 8-97119-749-0, D = 8-97174-043-0	5-81129-134-0	01	1	-
115	WASHER; TERMINAL (B) ASM PART: A = 1-81100-141-1	5-81129-134-0	01	1	9708-
