6-43 — SIDE TRIM (#32639) — 138 parça

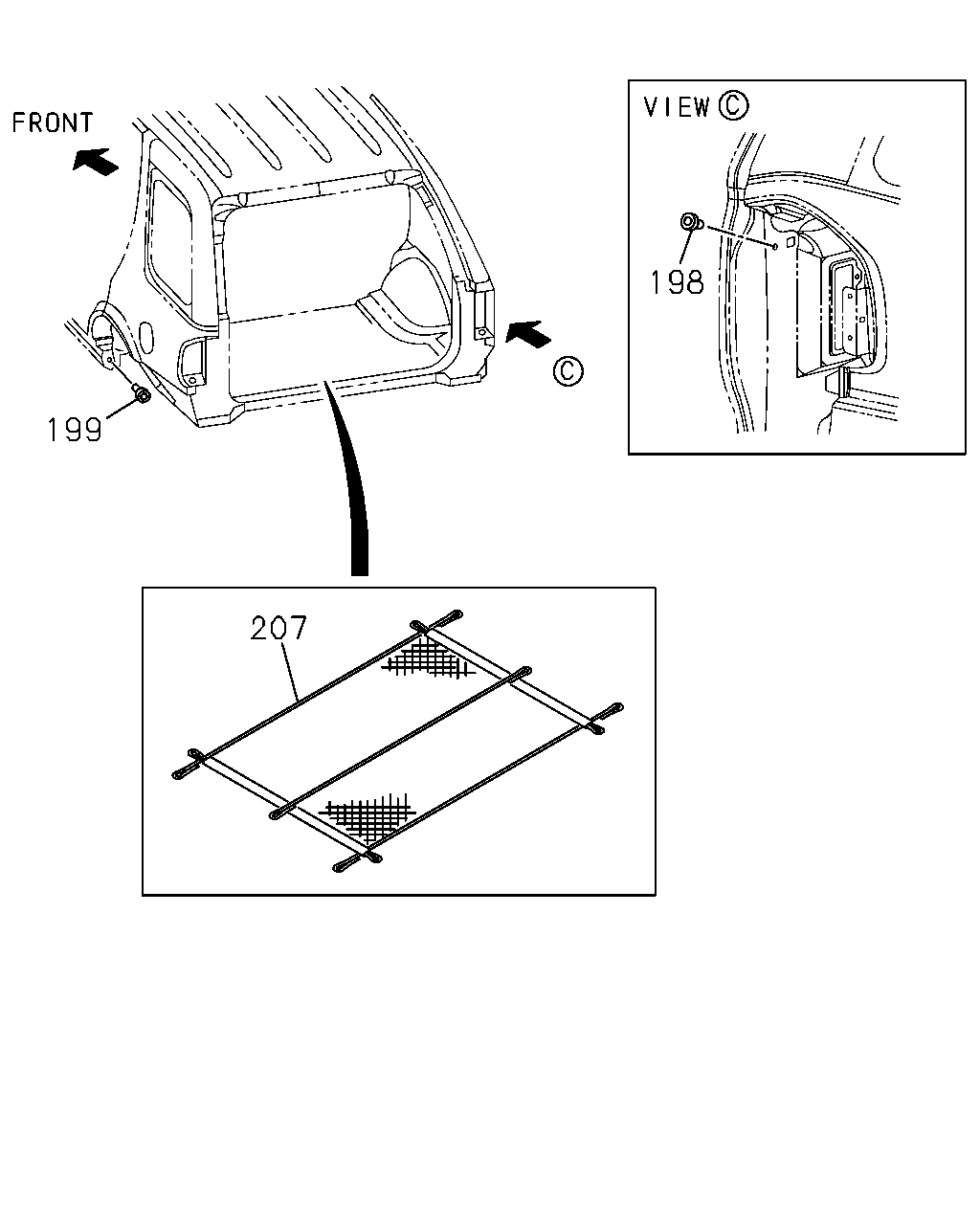

çizim 4144
198 199 207
BalonParca AdiParca NoAdetTipApplied Date A B
198 16.575 GROMMET; QTR RR
16.547 OD=15.0 		8-94279-040-0 01 1 9811-0012 ● ●
198 16.575 GROMMET; QTR RR
16.547 OD=15.0 		8-94279-040-0 01 1 0101- ●
199 16.575 GROMMET; ROCKER RR
09.003 OD=19 THA 		8-94279-055-0 02 1 9811-0012 ● ●
199 16.575 GROMMET; ROCKER RR
09.003 OD=19 THA 		8-94279-055-0 02 1 0101- ●
207 16.165 NET; LUGGAGE
CARGO NET<7PB> USA 		8-97180-782-2 01 1 9811- ●

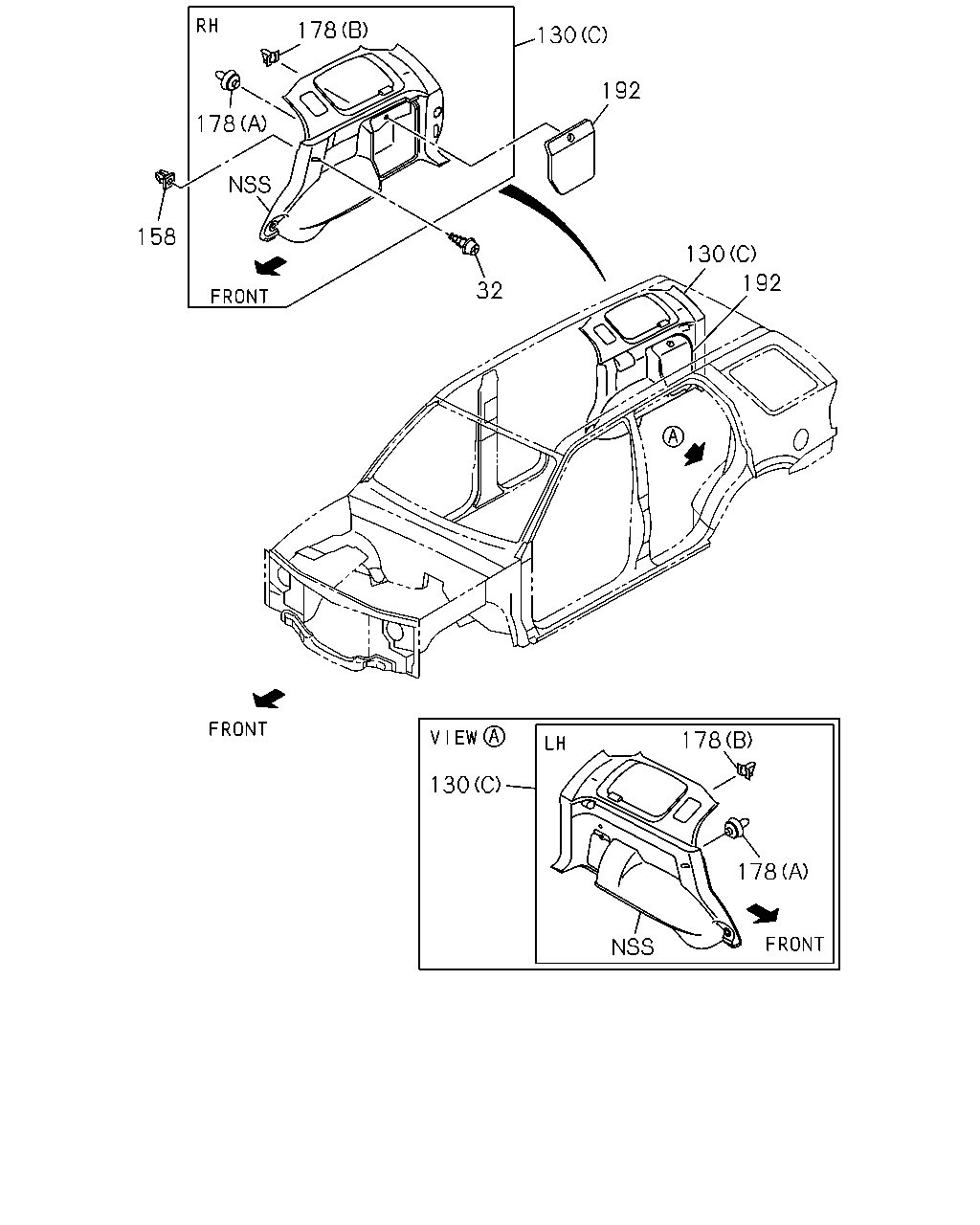

çizim 36690
192 130 192 32 178 178 158 178 130 178 130
BalonParca AdiParca NoAdetTipApplied Date A B
32 16.165 SCREW; TRIM COVER
10.240 M5X20 USA 		9-09829-324-1 02 1 9811-0012 ●
32 16.165 SCREW; TRIM COVER
08.900 M5X16 		8-94380-268-0 01 1 9811- ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(A) LIGHT GRAY USA 		8-97158-195-9 01 1 9811-0012 ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(B) GRAY USA 		8-97158-197-2 01 1 9811-0012 ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(A) LIGHT GRAY USA 		8-97158-194-9 01 1 9811-0012 ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(B) GRAY USA 		8-97158-196-2 01 1 9811-0012 ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(C) LIGHT GRAY USA 		8-97159-919-3 01 1 9811-0003 ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(D) GRAY USA 		8-97291-494-3 01 1 0004-0005 ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(D) GRAY USA 		8-97293-833-2 01 1 0006- ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(C) LIGHT GRAY USA 		8-97159-918-3 01 1 9811-0003 ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(D) GRAY USA 		8-97291-493-3 01 1 0004-0005 ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(D) GRAY USA 		8-97293-831-1 01 1 0006- ●
158 12.941 GROMMET; SCREW,TRIM
16.450 		5-09470-001-0 02 1 9811-0012 ●
158 12.941 GROMMET; SCREW,TRIM
16.450 		5-09470-001-0 01 1 9811- ●
178 16.165 CLIP; TRIM COVER
(A) H=16.7 USA 		8-97022-017-0 16 1 9811-0003 ●
178 16.165 CLIP; TRIM COVER
(A) H=16.7 USA 		8-97022-017-0 24 1 0004- ●
178 16.165 CLIP; TRIM COVER
(B) USA 		8-97139-382-0 11 1 9811- ●
178 16.165 CLIP; TRIM COVER
03.023 (C) ID=6 OD=16 L=18 		8-94178-705-0 02 1 0101-0203 ●
192 12.941 LID; SIDE
GRAY USA 		8-97158-205-0 01 1 9811-0012 ●
192 12.941 LID; SIDE
GRAY USA 		8-97158-204-0 01 1 9811-0012 ●
192 12.941 LID; SIDE
GRAY USA 		8-97195-828-3 01 1 9811- ●

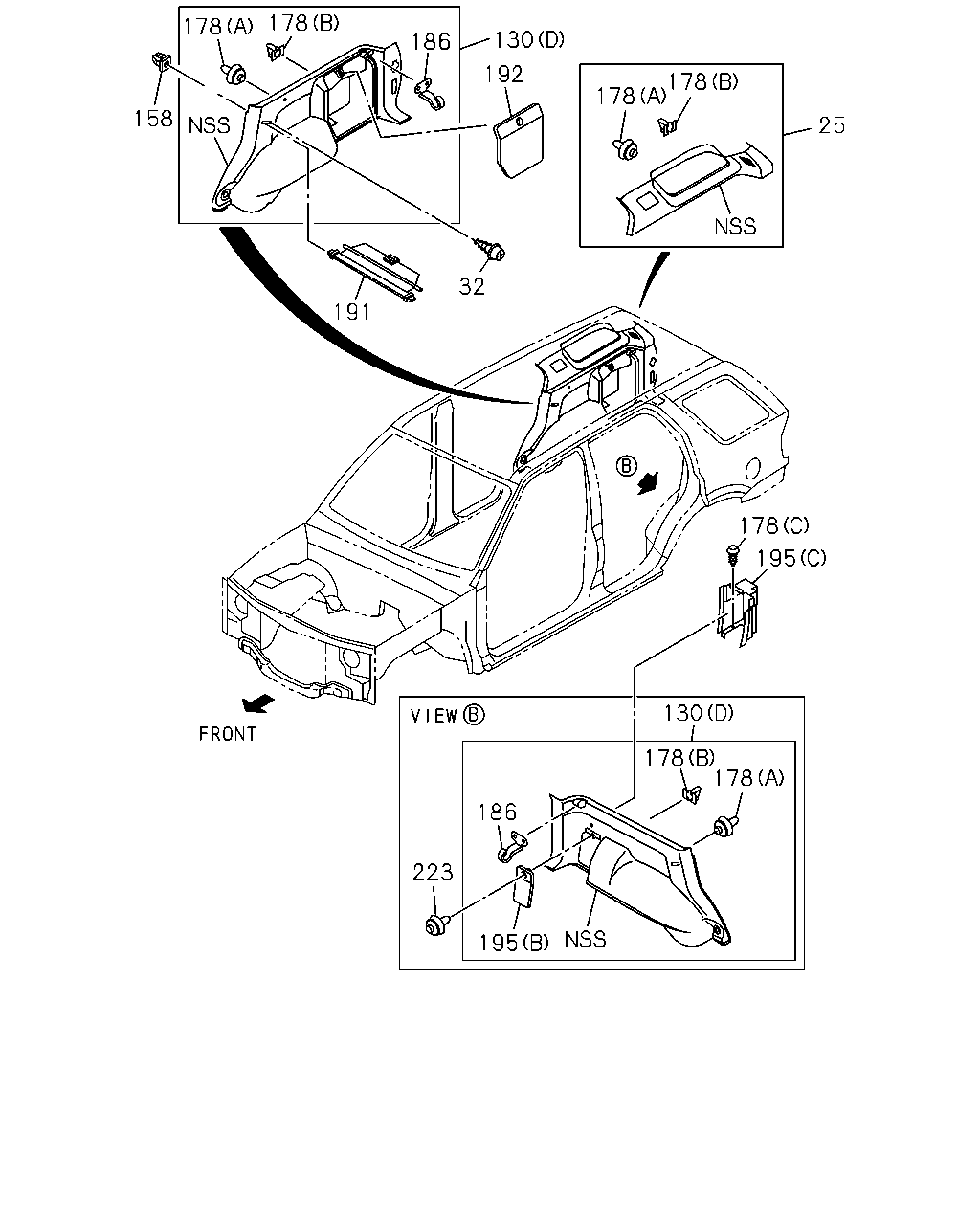

çizim 36735
178 178 130 186 192 178 178 158 25 32 191 178 195 130 178 178 186 223 195
BalonParca AdiParca NoAdetTipApplied Date A B
25 16.165 COVER; TRIM,QUARTER PILLAR,UPR
LIGHT GRAY USA 		8-97291-492-4 01 1 0004- ●
25 16.165 COVER; TRIM,QUARTER PILLAR,UPR
LIGHT GRAY USA 		8-97291-491-4 01 1 0004- ●
32 16.165 SCREW; TRIM COVER
10.240 M5X20 USA 		9-09829-324-1 02 1 9811-0012 ●
32 16.165 SCREW; TRIM COVER
08.900 M5X16 		8-94380-268-0 01 1 9811- ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(A) LIGHT GRAY USA 		8-97158-195-9 01 1 9811-0012 ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(B) GRAY USA 		8-97158-197-2 01 1 9811-0012 ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(A) LIGHT GRAY USA 		8-97158-194-9 01 1 9811-0012 ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(B) GRAY USA 		8-97158-196-2 01 1 9811-0012 ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(C) LIGHT GRAY USA 		8-97159-919-3 01 1 9811-0003 ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(D) GRAY USA 		8-97291-494-3 01 1 0004-0005 ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(D) GRAY USA 		8-97293-833-2 01 1 0006- ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(C) LIGHT GRAY USA 		8-97159-918-3 01 1 9811-0003 ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(D) GRAY USA 		8-97291-493-3 01 1 0004-0005 ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(D) GRAY USA 		8-97293-831-1 01 1 0006- ●
158 12.941 GROMMET; SCREW,TRIM
16.450 		5-09470-001-0 02 1 9811-0012 ●
158 12.941 GROMMET; SCREW,TRIM
16.450 		5-09470-001-0 01 1 9811- ●
178 16.165 CLIP; TRIM COVER
(A) H=16.7 USA 		8-97022-017-0 16 1 9811-0003 ●
178 16.165 CLIP; TRIM COVER
(A) H=16.7 USA 		8-97022-017-0 24 1 0004- ●
178 16.165 CLIP; TRIM COVER
(B) USA 		8-97139-382-0 11 1 9811- ●
178 16.165 CLIP; TRIM COVER
03.023 (C) ID=6 OD=16 L=18 		8-94178-705-0 02 1 0101-0203 ●
186 16.578 HANGER
GRAY USA 		8-97197-095-0 02 1 0004- ●
191 12.941 COVER; TONNEAU
GRAY USA 		8-97291-495-5 01 1 0004- ●
192 12.941 LID; SIDE
GRAY USA 		8-97158-205-0 01 1 9811-0012 ●
192 12.941 LID; SIDE
GRAY USA 		8-97158-204-0 01 1 9811-0012 ●
192 12.941 LID; SIDE
GRAY USA 		8-97195-828-3 01 1 9811- ●
195 16.575 LID; JACK & TOOL
(A) GRAY USA 		8-97158-210-1 01 1 9811-0012 ●
195 16.575 LID; JACK & TOOL
(B) GRAY USA 		8-97197-097-2 01 1 0004- ●
195 16.575 LID; JACK & TOOL
(C) USA 		8-97255-374-0 01 1 0101-0203 ●
223 02.483 LOCK; LID,TRIM COVER
GRAY USA 		8-97394-481-1 02 1 9811-0012 ● ●
223 02.483 LOCK; LID,TRIM COVER
GRAY USA 		8-97394-481-1 02 1 0101- ●

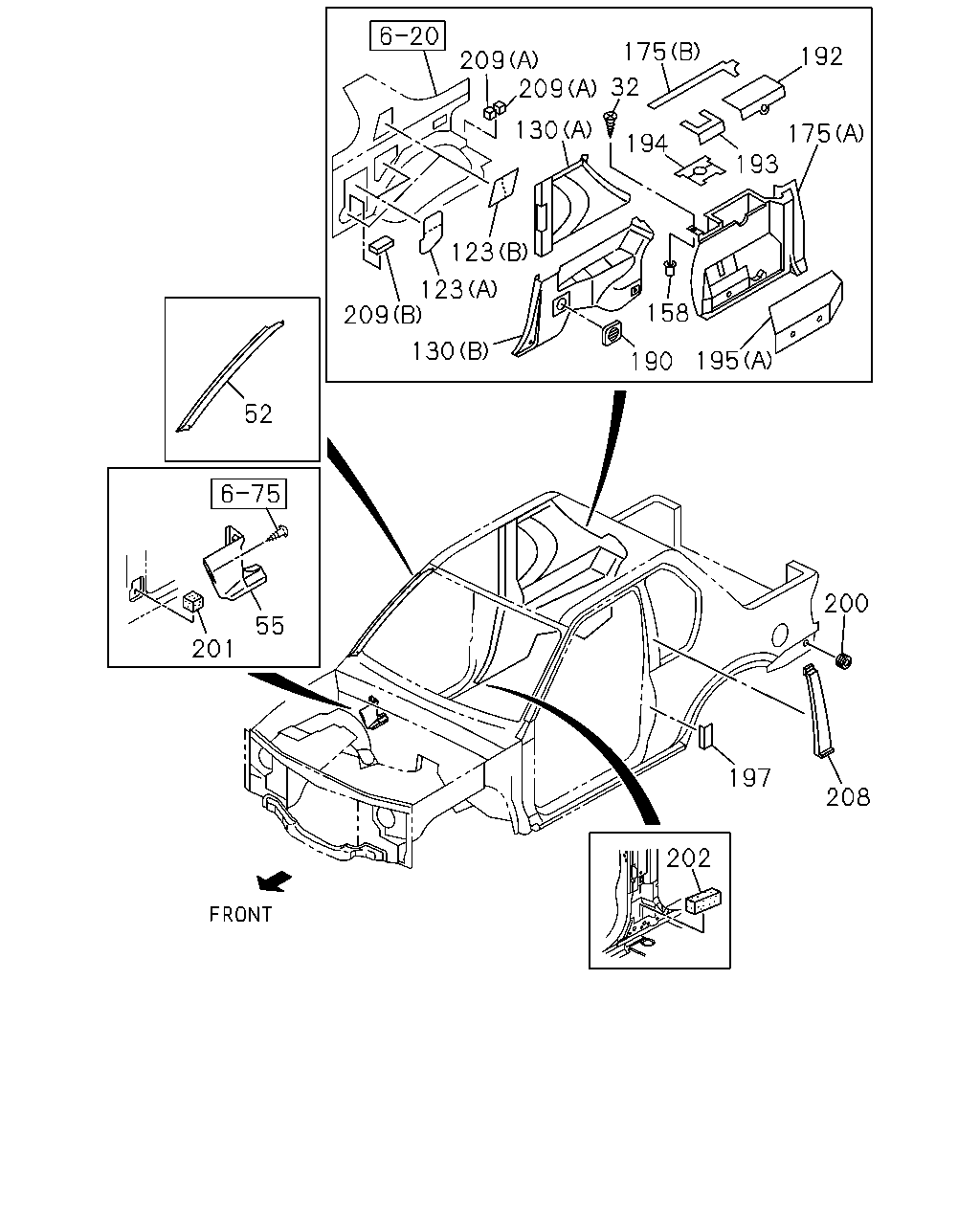

çizim 36781
175 192 209 209 32 130 175 193 194 123 123 209 158 130 195 190 52 200 55 201 197 208 202
BalonParca AdiParca NoAdetTipApplied Date A B
32 16.165 SCREW; TRIM COVER
10.240 M5X20 USA 		9-09829-324-1 02 1 9811-0012 ●
32 16.165 SCREW; TRIM COVER
08.900 M5X16 		8-94380-268-0 01 1 9811- ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY USA 		8-97198-140-0 01 1 9811-9906 ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY USA 		8-97292-220-0 01 1 9907-9907 ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY USA 		8-97294-739-0 01 1 9907-0012 ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY USA 		8-97294-739-0 01 1 0101-0110 ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY USA 		8-97296-032-1 01 1 0111- ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY USA 		8-97198-139-0 01 1 9811-9906 ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY USA 		8-97292-219-0 01 1 9907-9907 ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY USA 		8-97294-737-0 01 1 9907-0012 ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY USA 		8-97294-737-0 01 1 0101-0110 ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY USA 		8-97296-030-1 01 1 0111- ●
55 16.166 PAD; TRIM,DASH SIDE
GRAY USA 		8-97157-323-1 01 1 9811-0012 ● ●
55 16.166 PAD; TRIM,DASH SIDE
GRAY USA 		8-97157-323-1 01 1 0101- ●
55 16.166 PAD; TRIM,DASH SIDE
GRAY USA 		8-97157-322-0 01 1 9811-0012 ● ●
55 16.166 PAD; TRIM,DASH SIDE
GRAY USA 		8-97157-322-0 01 1 0101- ●
123 16.166 SEAL; RR QUARTER
(B) 		8-97160-127-1 02 1 9811-0012 ●
123 16.166 SEAL; RR QUARTER
(A) 		8-97160-130-1 01 1 9811-0012 ●
123 16.166 SEAL; RR QUARTER
(B) 		8-97160-125-1 02 1 9811-0012 ●
123 16.166 SEAL; RR QUARTER
(A) 		8-97160-129-1 01 1 9811-0012 ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(A) LIGHT GRAY USA 		8-97158-195-9 01 1 9811-0012 ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(B) GRAY USA 		8-97158-197-2 01 1 9811-0012 ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(A) LIGHT GRAY USA 		8-97158-194-9 01 1 9811-0012 ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(B) GRAY USA 		8-97158-196-2 01 1 9811-0012 ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(C) LIGHT GRAY USA 		8-97159-919-3 01 1 9811-0003 ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(D) GRAY USA 		8-97291-494-3 01 1 0004-0005 ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(D) GRAY USA 		8-97293-833-2 01 1 0006- ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(C) LIGHT GRAY USA 		8-97159-918-3 01 1 9811-0003 ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(D) GRAY USA 		8-97291-493-3 01 1 0004-0005 ●
130 16.165 COVER; TRIM,QUARTER PILLAR
(D) GRAY USA 		8-97293-831-1 01 1 0006- ●
158 12.941 GROMMET; SCREW,TRIM
16.450 		5-09470-001-0 02 1 9811-0012 ●
158 12.941 GROMMET; SCREW,TRIM
16.450 		5-09470-001-0 01 1 9811- ●
175 16.165 COVER; TRIM,SIDE
(B) GRAY USA 		8-97158-203-0 01 1 9811-0012 ●
175 16.165 COVER; TRIM,SIDE
(A) GRAY USA 		8-97159-921-2 01 1 9811-0012 ●
175 16.165 COVER; TRIM,SIDE
(B) GRAY USA 		8-97158-202-0 01 1 9811-0012 ●
175 16.165 COVER; TRIM,SIDE
(A) GRAY USA 		8-97159-920-2 01 1 9811-0012 ●
190 12.941 GRILLE; SPEAKER
GRAY USA 		8-97158-199-0 01 1 9811-0012 ●
190 12.941 GRILLE; SPEAKER
GRAY USA 		8-97158-198-0 01 1 9811-0012 ●
192 12.941 LID; SIDE
GRAY USA 		8-97158-205-0 01 1 9811-0012 ●
192 12.941 LID; SIDE
GRAY USA 		8-97158-204-0 01 1 9811-0012 ●
192 12.941 LID; SIDE
GRAY USA 		8-97195-828-3 01 1 9811- ●
193 16.575 COVER; SIDE
GRAY USA 		8-97158-207-0 01 1 9811-0012 ●
193 16.575 COVER; SIDE
GRAY USA 		8-97158-206-0 01 1 9811-0012 ●
194 16.575 COVER; ROLL BAR
BLACK USA 		8-97158-209-0 01 1 9811-0012 ●
194 16.575 COVER; ROLL BAR
BLACK USA 		8-97158-208-0 01 1 9811-0012 ●
195 16.575 LID; JACK & TOOL
(A) GRAY USA 		8-97158-210-1 01 1 9811-0012 ●
195 16.575 LID; JACK & TOOL
(B) GRAY USA 		8-97197-097-2 01 1 0004- ●
195 16.575 LID; JACK & TOOL
(C) USA 		8-97255-374-0 01 1 0101-0203 ●
197 16.575 SEAL; PROTECT
USA 		8-97166-504-1 02 1 9811-0012 ●
200 16.165 GROMMET; QTR OUTER
09.003 OD=19 THA 		8-94279-055-0 01 1 9811-0012 ●
201 16.575 SEAL; DASH SIDE LWR
USA 		8-97162-419-1 02 1 9811-0012 ● ●
201 16.575 SEAL; DASH SIDE LWR
USA 		8-97162-419-1 02 1 0101- ●
202 16.575 SEAL; CENTER PILLAR
USA 		8-97162-419-1 02 1 9811-0012 ● ●
202 16.575 SEAL; CENTER PILLAR
USA 		8-97162-419-1 02 1 0101- ●
208 16.165 GARNISH; SIDE WINDOW
USA 		8-97131-003-4 01 1 9811-0012 ●
208 16.165 GARNISH; SIDE WINDOW
USA 		8-97131-002-4 01 1 9811-0012 ●
209 16.165 SEAL; WHEEL HOUSE
(B) USA 		8-97170-575-0 02 1 9811-0012 ●
209 16.165 SEAL; WHEEL HOUSE
16.575 (A) USA 		8-97147-941-0 02 1 9811-0012 ●

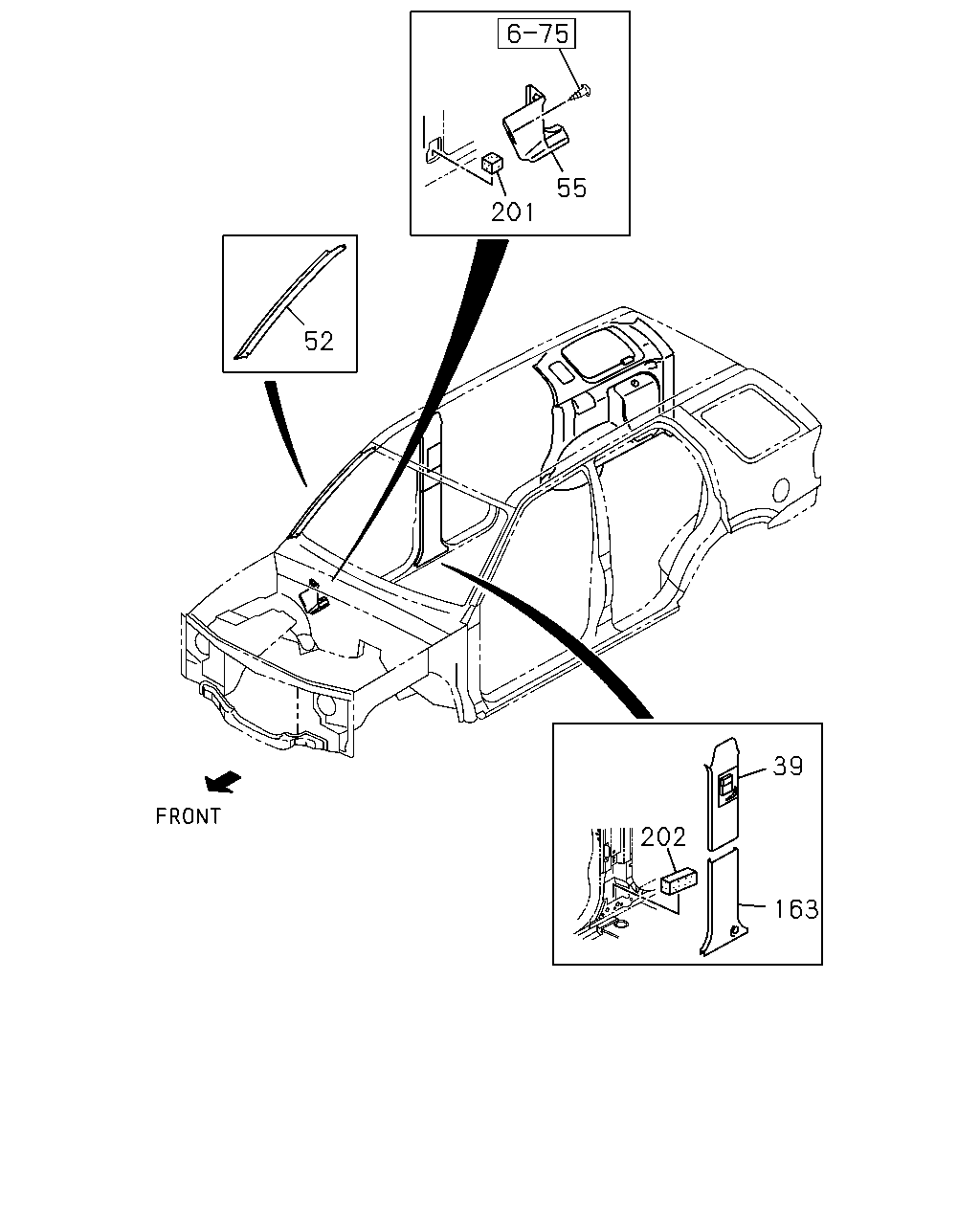

çizim 37322
55 201 52 39 202 163
BalonParca AdiParca NoAdetTipApplied Date A B
39 16.575 COVER; TRIM,CENTER PILLAR
LIGHT GRAY USA 		8-97157-345-4 01 1 9811-0211 ●
39 16.575 COVER; TRIM,CENTER PILLAR
USA 		8-97396-463-0 01 1 0212- ●
39 16.575 COVER; TRIM,CENTER PILLAR
LIGHT GRAY USA 		8-97157-344-4 01 1 9811-0211 ●
39 16.575 COVER; TRIM,CENTER PILLAR
USA 		8-97396-460-0 01 1 0212- ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY USA 		8-97198-140-0 01 1 9811-9906 ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY USA 		8-97292-220-0 01 1 9907-9907 ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY USA 		8-97294-739-0 01 1 9907-0012 ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY USA 		8-97294-739-0 01 1 0101-0110 ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY USA 		8-97296-032-1 01 1 0111- ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY USA 		8-97198-139-0 01 1 9811-9906 ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY USA 		8-97292-219-0 01 1 9907-9907 ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY USA 		8-97294-737-0 01 1 9907-0012 ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY USA 		8-97294-737-0 01 1 0101-0110 ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY USA 		8-97296-030-1 01 1 0111- ●
55 16.166 PAD; TRIM,DASH SIDE
GRAY USA 		8-97157-323-1 01 1 9811-0012 ● ●
55 16.166 PAD; TRIM,DASH SIDE
GRAY USA 		8-97157-323-1 01 1 0101- ●
55 16.166 PAD; TRIM,DASH SIDE
GRAY USA 		8-97157-322-0 01 1 9811-0012 ● ●
55 16.166 PAD; TRIM,DASH SIDE
GRAY USA 		8-97157-322-0 01 1 0101- ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
GRAY USA 		8-97157-347-1 01 1 9811- ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
GRAY USA 		8-97157-346-1 01 1 9811- ●
201 16.575 SEAL; DASH SIDE LWR
USA 		8-97162-419-1 02 1 9811-0012 ● ●
201 16.575 SEAL; DASH SIDE LWR
USA 		8-97162-419-1 02 1 0101- ●
202 16.575 SEAL; CENTER PILLAR
USA 		8-97162-419-1 02 1 9811-0012 ● ●
202 16.575 SEAL; CENTER PILLAR
USA 		8-97162-419-1 02 1 0101- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
