Isuzu WW
▶
SUV
▶
UES
▶
50807 - UES(AUSTRALIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-41 - SIDE WINDOW GLASS AND WEATHERSTRIP
▶
6-41 — SIDE WINDOW GLASS AND WEATHERSTRIP
(#32638) — 21 parça
Tümü
A - UES5VC
B - UES5VF
◀

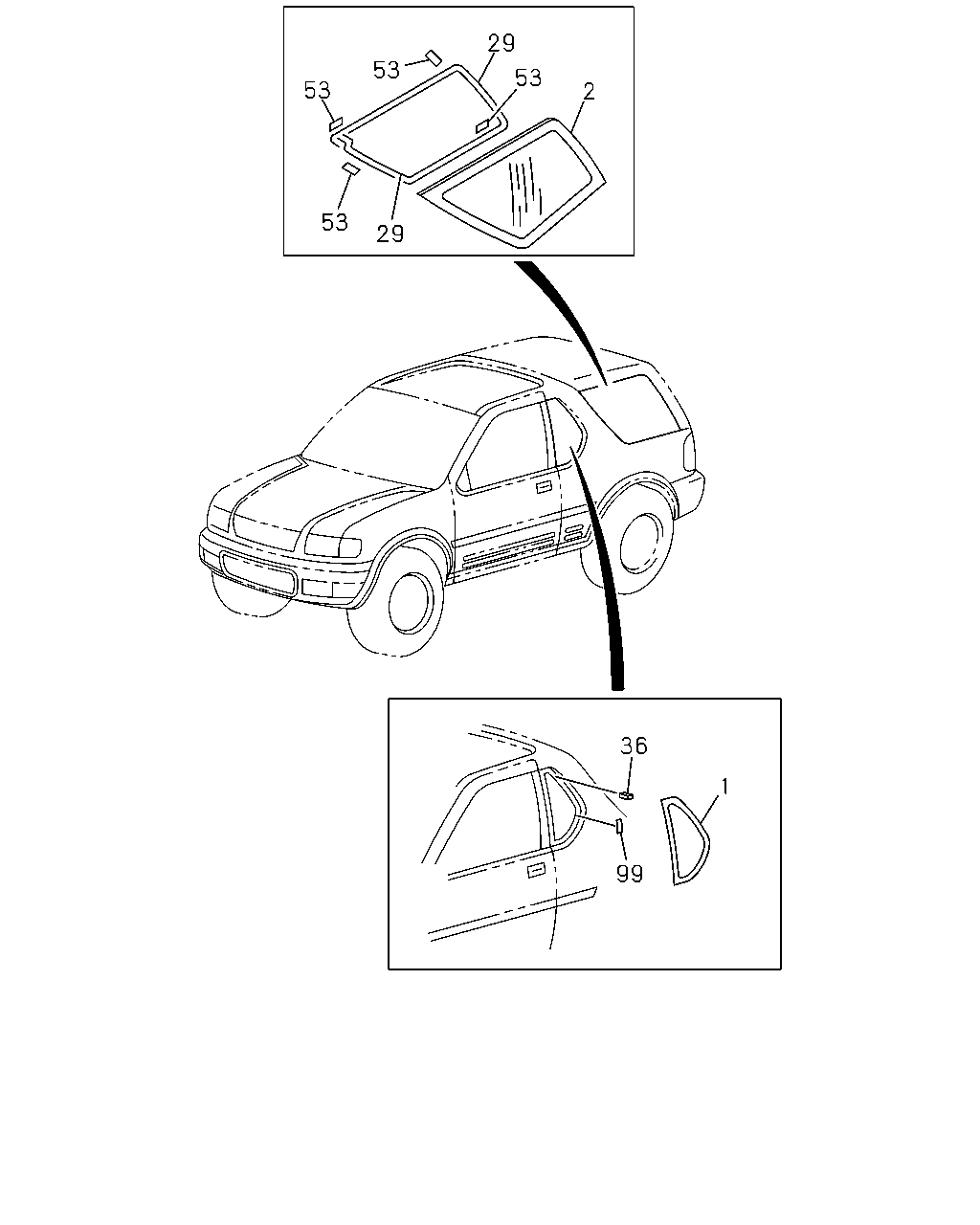

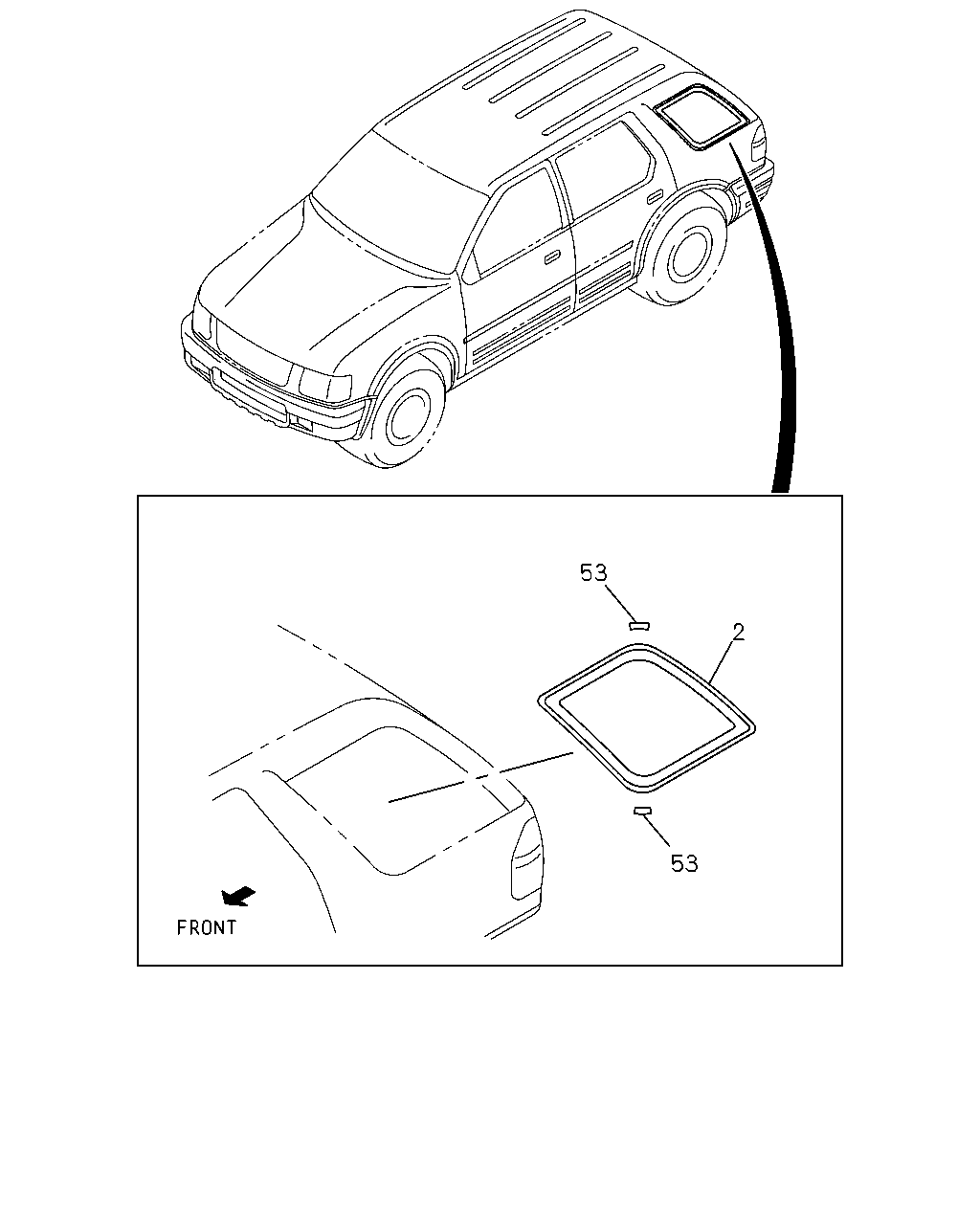

[641A] 4DOOR LONG (8 parça)
[641A] 2DOOR SHORT (13 parça)
▶
53
2
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
16.460 GLASS; RR QUARTER
USA
8-97184-509-0
01
1
9811-0012
●
2
16.460 GLASS; RR QUARTER
USA
8-97184-508-0
01
1
9811-0012
●
2
16.460 GLASS; RR QUARTER
USA
8-97124-464-3
01
1
9811-0012
●
2
16.460 GLASS; RR QUARTER
USA
8-97251-752-1
01
1
0101-
●
2
16.460 GLASS; RR QUARTER
USA
8-97124-463-3
01
1
9811-0012
●
2
16.460 GLASS; RR QUARTER
USA
8-97251-751-1
01
1
0101-
●
53
16.190 FASTENER; RR QUARTER
USA
8-97165-818-0
08
1
9811-0012
●
53
16.190 FASTENER; RR QUARTER
USA
8-97124-467-0
04
1
9811-
●
29
53
53
53
2
53
29
36
1
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.180 GLASS; SIDE WINDOW
USA
8-97131-001-1
01
1
9811-0012
●
1
16.180 GLASS; SIDE WINDOW
USA
8-97131-000-1
01
1
9811-0012
●
2
16.460 GLASS; RR QUARTER
USA
8-97184-509-0
01
1
9811-0012
●
2
16.460 GLASS; RR QUARTER
USA
8-97184-508-0
01
1
9811-0012
●
2
16.460 GLASS; RR QUARTER
USA
8-97124-464-3
01
1
9811-0012
●
2
16.460 GLASS; RR QUARTER
USA
8-97251-752-1
01
1
0101-
●
2
16.460 GLASS; RR QUARTER
USA
8-97124-463-3
01
1
9811-0012
●
2
16.460 GLASS; RR QUARTER
USA
8-97251-751-1
01
1
0101-
●
29
16.460 SEAL; RR QUARTER WINDOW
USA
8-97165-842-3
04
1
9811-0012
●
36
16.183 SPACER; SIDE WINDOW
08.160 USA
8-97169-966-0
02
1
9811-0012
●
53
16.190 FASTENER; RR QUARTER
USA
8-97165-818-0
08
1
9811-0012
●
53
16.190 FASTENER; RR QUARTER
USA
8-97124-467-0
04
1
9811-
●
99
16.183 FASTENER; SIDE WINDOW
16.190 USA
8-97124-467-0
02
1
9811-0012
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
