◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#32637) — 41 parça

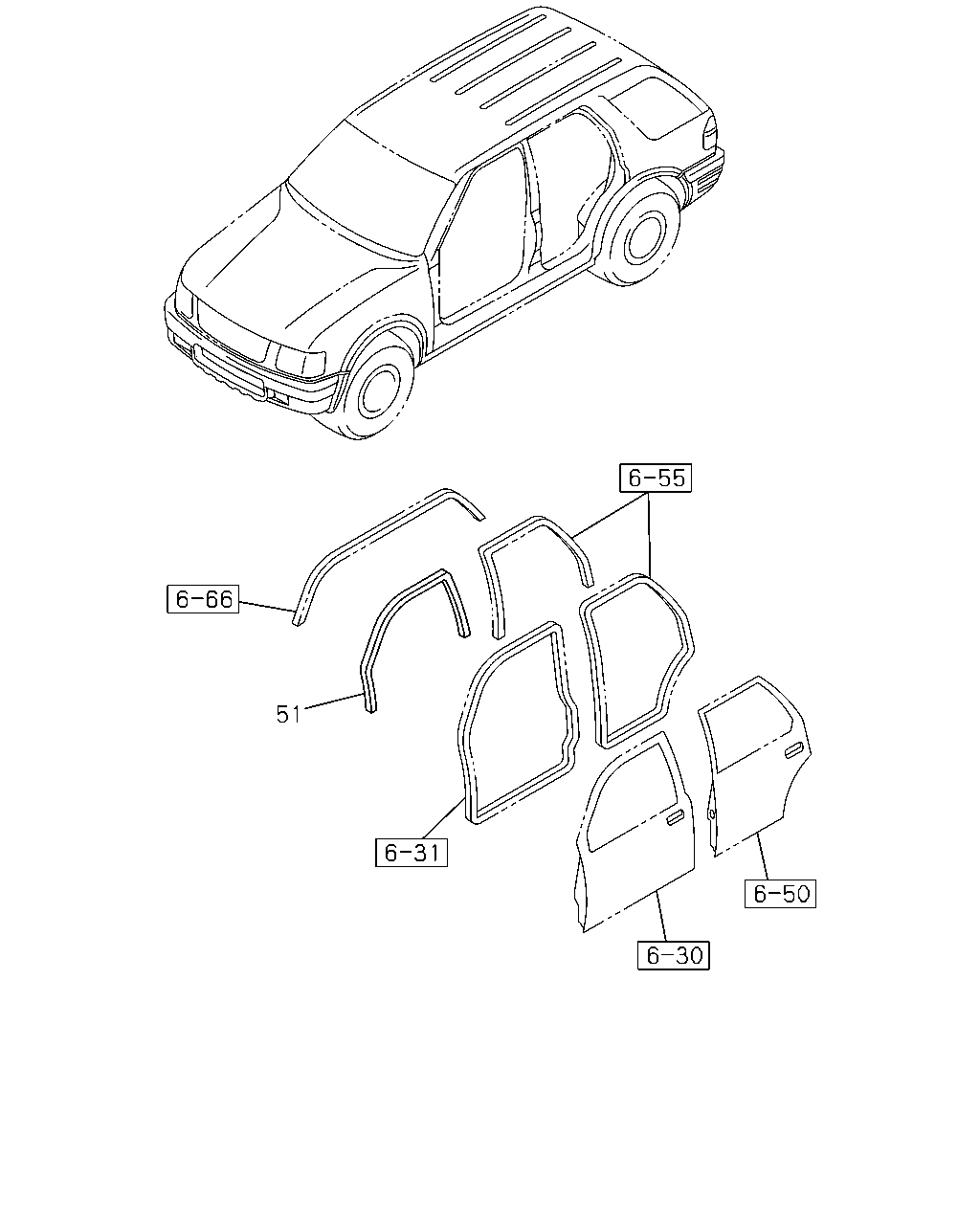

çizim 4142
51
BalonParca AdiParca NoAdetTipApplied Date A B
51 16.225 WEATHERSTRIP; FRONT DOOR
USA 		8-97124-819-3 01 1 9811- ● ●
51 16.225 WEATHERSTRIP; FRONT DOOR
USA 		8-97124-818-3 01 1 9811- ● ●

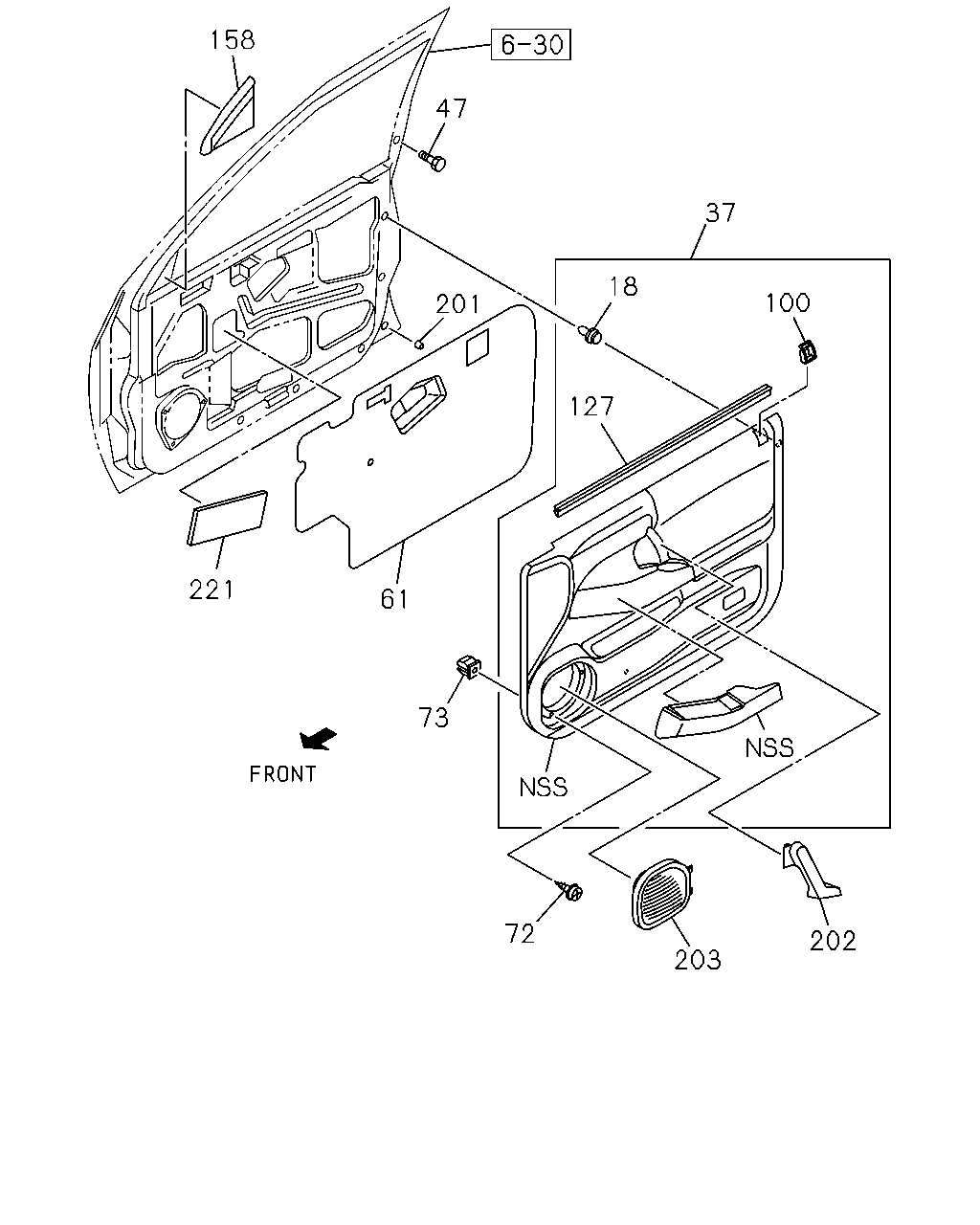

çizim 37286
158 47 37 18 100 201 127 221 61 73 72 202 203
BalonParca AdiParca NoAdetTipApplied Date A B
18 16.165 CLIP; DOOR PAD
H=16.7 USA 		8-97022-017-0 12 1 9811- ● ●
37 16.165 TRIM; FULL FRT DOOR
GRAY USA 		8-97158-978-4 01 1 9811-0003 ●
37 16.165 TRIM; FULL FRT DOOR
2DOOR SHORT(UE***C) GRAY USA 		8-97158-978-4 01 1 9811-0003 ●
37 16.165 TRIM; FULL FRT DOOR
2DOOR SHORT(UE***C) GRAY USA 		8-97291-505-3 01 1 0004-0012 ● ●
37 16.165 TRIM; FULL FRT DOOR
GRAY USA 		8-97294-981-6 01 1 0101- ●
37 16.165 TRIM; FULL FRT DOOR
GRAY USA 		8-97158-977-4 01 1 9811-0003 ●
37 16.165 TRIM; FULL FRT DOOR
2DOOR SHORT(UE***C) GRAY USA 		8-97158-977-4 01 1 9811-0003 ●
37 16.165 TRIM; FULL FRT DOOR
2DOOR SHORT(UE***C) GRAY USA 		8-97291-504-3 01 1 0004-0012 ● ●
37 16.165 TRIM; FULL FRT DOOR
GRAY USA 		8-97294-980-6 01 1 0101- ●
37 16.165 TRIM; FULL FRT DOOR
GRAY USA 		8-97157-364-5 01 1 9811-0003 ●
37 16.165 TRIM; FULL FRT DOOR
4DOOR LONG(UE***F) GRAY USA 		8-97291-507-2 01 1 0004-0007 ● ●
37 16.165 TRIM; FULL FRT DOOR
4DOOR LONG(UE***F) GRAY USA 		8-97296-803-0 01 1 0008-0012 ● ●
37 16.165 TRIM; FULL FRT DOOR
GRAY USA 		8-97296-015-6 01 1 0101- ●
37 16.165 TRIM; FULL FRT DOOR
GRAY USA 		8-97157-363-5 01 1 9811-0003 ●
37 16.165 TRIM; FULL FRT DOOR
4DOOR LONG(UE***F) GRAY USA 		8-97291-506-2 01 1 0004-0007 ● ●
37 16.165 TRIM; FULL FRT DOOR
4DOOR LONG(UE***F) GRAY USA 		8-97296-801-0 01 1 0008-0012 ● ●
37 16.165 TRIM; FULL FRT DOOR
GRAY USA 		8-97296-013-6 01 1 0101- ●
47 16.165 SCREW
M5X8 USA 		8-97165-795-0 02 1 9811- ● ●
61 16.165 SEAL; WATER,DOOR PAD
USA 		8-97124-801-2 01 1 9811-0111 ● ●
61 16.165 SEAL; WATER,DOOR PAD
USA 		8-97328-553-0 01 1 0112- ● ●
61 16.165 SEAL; WATER,DOOR PAD
USA 		8-97124-800-2 01 1 9811-0111 ● ●
61 16.165 SEAL; WATER,DOOR PAD
USA 		8-97328-552-0 01 1 0112- ● ●
72 16.165 SCREW; DOOR TRIM
M6X14 SELF TAPPING USA 		9-09629-040-0 10 1 9811- ● ●
73 16.165 GROMMET; DOOR TRIM
16.450 		5-09470-001-0 10 1 9811- ● ●
100 16.165 GUIDE; HOLE,DOOR LOCK KNOB
GRAY USA 		8-97158-629-1 02 1 9811- ● ●
127 16.183 SEAL; DOOR INNER
USA 		8-97124-809-0 01 1 9811- ● ●
127 16.183 SEAL; DOOR INNER
USA 		8-97124-808-0 01 1 9811- ● ●
158 16.165 GARNISH; DOOR
BLACK USA 		8-97157-374-1 01 1 9811- ● ●
158 16.165 GARNISH; DOOR
BLACK USA 		8-97157-373-1 01 1 9811- ● ●
201 16.400 BUFFER; DOOR
USA 		8-14030-512-0 04 1 9811-0007 ● ●
201 16.400 BUFFER; DOOR 8-97258-864-0 04 1 0008- ● ●
202 16.165 COVER; GRIP
GRAY USA 		8-97157-372-2 01 1 9811- ● ●
202 16.165 COVER; GRIP
GRAY USA 		8-97157-371-2 01 1 9811- ● ●
203 16.165 GRILLE; SPEAKER
GRAY USA 		8-97157-376-1 01 1 9811-0201 ● ●
203 16.165 GRILLE; SPEAKER
GRAY USA 		8-97393-693-1 01 1 0202- ● ●
203 16.165 GRILLE; SPEAKER
GRAY USA 		8-97157-375-1 01 1 9811-0201 ● ●
203 16.165 GRILLE; SPEAKER
GRAY USA 		8-97393-692-1 01 1 0202- ● ●
221 16.165 PAD; INSULATOR
USA 		8-97215-077-0 02 1 0004-0012 ● ●
221 16.165 PAD; INSULATOR
USA 		8-97215-077-0 02 1 9811-0111 ● ●
