◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-32 - FRONT DOOR LOCK AND HANDLE ▶
6-32 — FRONT DOOR LOCK AND HANDLE (#32636) — 60 parça

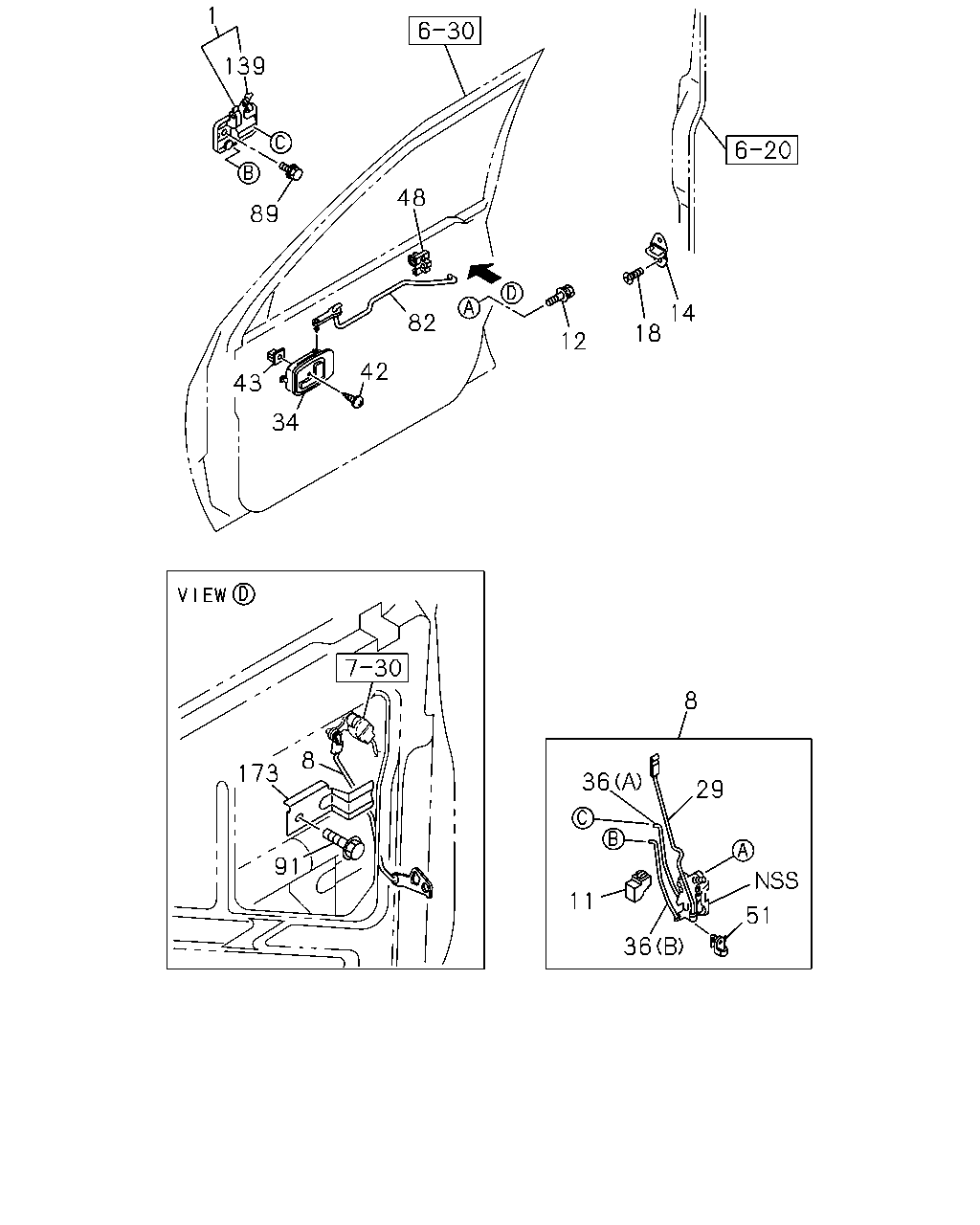

çizim 36490
1 139 48 89 14 82 18 12 42 43 34 8 8 173 36 29 91 11 51 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.350 HANDLE; OUTSIDE,FRT DOOR
USA 		8-97180-791-0 01 1 9811-0012 ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
EXC. O/S HANDLE BODY COLOR KEYED<7PT> USA 		8-97180-791-0 01 1 9811-0012 ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
GRADE LEVEL-1(RBB) USA 		8-97180-791-0 01 1 0101- ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
USA 		8-97180-790-0 01 1 9811-0012 ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
EXC. O/S HANDLE BODY COLOR KEYED<7PT> USA 		8-97180-790-0 01 1 9811-0012 ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
GRADE LEVEL-1(RBB) USA 		8-97180-790-0 01 1 0101- ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
O/S HANDLE BODY COLOR KEYED<7PT> PRIMER USA 		8-97181-730-0 01 1 9811-0012 ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
GRADE LEVEL-2(RBD) PRIMER USA 		8-97181-730-0 01 1 0101- ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
O/S HANDLE BODY COLOR KEYED<7PT> PRIMER USA 		8-97181-729-0 01 1 9811-0012 ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR
GRADE LEVEL-2(RBD) PRIMER USA 		8-97181-729-0 01 1 0101- ●
8 16.330 LOCK; DOOR,FRT DOOR
GRAY USA 		8-97159-931-2 01 1 9811-9901 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
GRAY USA 		8-97292-185-0 01 1 9902-0012 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
GRAY USA 		8-97292-185-0 01 1 0101- ●
8 16.330 LOCK; DOOR,FRT DOOR
GRAY USA 		8-97159-930-2 01 1 9811-9901 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
GRAY USA 		8-97292-184-0 01 1 9902-0012 ● ●
8 16.330 LOCK; DOOR,FRT DOOR
GRAY USA 		8-97292-184-1 01 1 0101- ●
11 16.263 ACTUATOR; DOOR LK,FRT
16.345 USA 		8-16820-539-0 01 1 9811-9901 ● ●
11 16.263 ACTUATOR; DOOR LK,FRT
16.345 USA 		8-16820-538-0 01 1 9811-9901 ● ●
12 16.330 SCREW; DOOR LK
17.185 USA 		8-15685-550-0 06 1 9811-0012 ● ●
12 16.330 SCREW; DOOR LK
17.185 USA 		8-15685-550-0 06 1 0101-0102 ●
12 16.330 SCREW; DOOR LK
USA 		8-97310-734-0 06 1 0103- ●
14 16.335 STRIKER; FRT DOOR
USA 		8-97176-259-0 02 1 9811-0012 ● ●
14 16.335 STRIKER; FRT DOOR
USA 		8-97176-259-0 02 1 0101- ●
18 16.335 SCREW; DOOR STRIKER
17.208 USA 		8-09442-471-0 04 1 9811-0012 ● ●
18 16.335 SCREW; DOOR STRIKER
17.208 USA 		8-09442-471-0 04 1 0101- ●
29 16.341 LINK; SILL CONT
USA 		8-16636-033-0 01 1 9811-9901 ● ●
29 16.341 LINK; SILL CONT
USA 		8-16636-032-0 01 1 9811-9901 ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
GRAY 		8-97157-357-6 01 1 9811-0012 ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
GRAY 		8-97157-357-6 01 1 0101-0207 ●
34 16.345 HANDLE; INSIDE,FRT DOOR
GRAY 		8-97394-049-0 01 1 0208- ●
34 16.345 HANDLE; INSIDE,FRT DOOR
GRAY 		8-97157-356-6 01 1 9811-0012 ● ●
34 16.345 HANDLE; INSIDE,FRT DOOR
GRAY 		8-97157-356-6 01 1 0101-0207 ●
34 16.345 HANDLE; INSIDE,FRT DOOR
GRAY 		8-97394-047-0 01 1 0208- ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(A) USA 		8-16636-029-1 02 1 9811-9901 ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(B) USA 		8-16636-031-0 01 1 9811-9901 ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE
(B) USA 		8-16636-030-0 01 1 9811-9901 ● ●
42 16.345 SCREW; TAPPING,INSIDE LEVER
12.182 M5X14 THA 		8-94152-495-0 02 1 9811-0012 ● ●
42 16.345 SCREW; TAPPING,INSIDE LEVER
12.182 M5X14 THA 		8-94152-495-0 02 1 0101- ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
10.565 THA 		8-94152-494-0 02 1 9811-0012 ● ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
10.565 THA 		8-94152-494-0 02 1 0101- ●
48 16.345 ANTIRATTLER; DOOR LINK
USA 		8-97126-660-0 02 1 9811-0012 ● ●
48 16.345 ANTIRATTLER; DOOR LINK
USA 		8-97126-660-0 02 1 0101- ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
17.198 USA 		8-16632-180-0 01 1 9811-9901 ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
16.345 USA 		8-16632-181-0 01 1 9811-9901 ● ●
82 16.341 LINK; DOOR INSIDE
USA 		8-97124-710-0 01 1 9811-0012 ● ●
82 16.341 LINK; DOOR INSIDE
USA 		8-97124-710-0 01 1 0101- ●
82 16.341 LINK; DOOR INSIDE
USA 		8-97124-709-0 01 1 9811-0012 ● ●
82 16.341 LINK; DOOR INSIDE
USA 		8-97124-709-0 01 1 0101- ●
89 16.350 BOLT; DOOR OUTSIDE HANDLE
10.701 M6X8 		8-94155-893-0 04 1 9811-0012 ● ●
89 16.350 BOLT; DOOR OUTSIDE HANDLE
10.701 M6X8 		8-94155-893-0 04 1 0101- ●
91 16.330 BOLT; DOOR LOCK
16.585 M6X14 FLANGE 		8-94327-380-0 02 1 0011-0012 ● ●
91 16.330 BOLT; DOOR LOCK
16.585 M6X14 FLANGE 		8-94327-380-0 02 1 0101- ●
139 16.350 HOLDER; ROD,DOOR HANDLE
10.529 WHITE USA 		8-97037-508-0 01 1 9811-0012 ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE
10.529 WHITE USA 		8-97037-508-0 01 1 0101- ●
139 16.350 HOLDER; ROD,DOOR HANDLE
YELLOW USA 		8-97044-834-0 01 1 9811-0012 ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE
YELLOW USA 		8-97044-834-0 01 1 0101- ●
173 16.330 PLATE; LINK COVER
USA 		8-97255-691-0 01 1 0011-0012 ● ●
173 16.330 PLATE; LINK COVER
USA 		8-97255-691-3 01 1 0101- ●
173 16.330 PLATE; LINK COVER
USA 		8-97255-690-0 01 1 0011-0012 ● ●
173 16.330 PLATE; LINK COVER
USA 		8-97255-690-3 01 1 0101- ●
