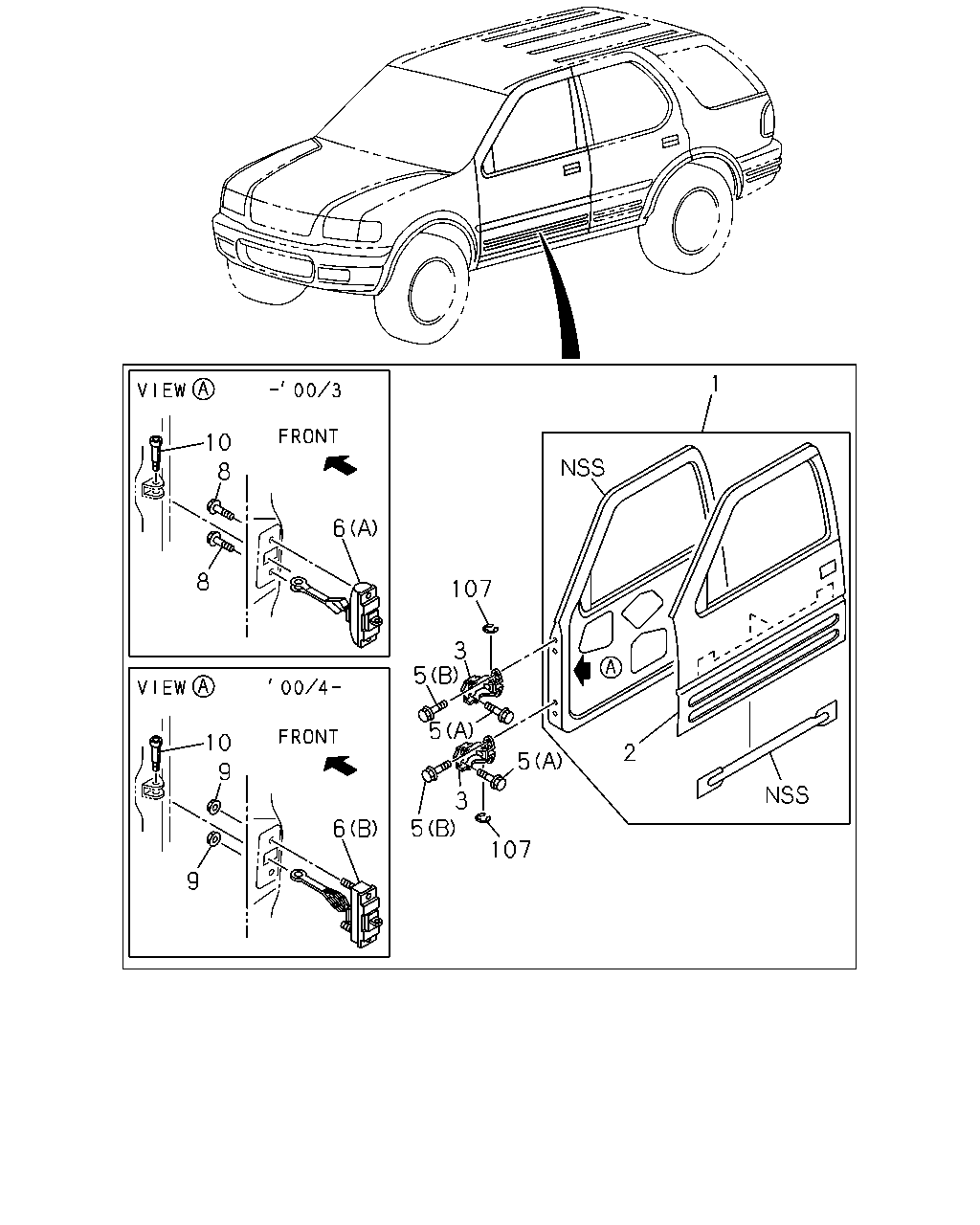

6-30 — FRONT DOOR AND HINGE (#32634) — 32 parça

1 10 8 6 8 107 3 5 5 10 9 2 5 3 5 6 107 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.150 DOOR ASM; FRT,WO/TRIM USA	8-97124-060-4	01	1	9811-0012	●	●
1	16.150 DOOR ASM; FRT,WO/TRIM USA	8-97124-060-4	01	1	0101-		●
1	16.150 DOOR ASM; FRT,WO/TRIM USA	8-97124-059-4	01	1	9811-0012	●	●
1	16.150 DOOR ASM; FRT,WO/TRIM USA	8-97124-059-4	01	1	0101-		●
2	16.152 PANEL; FRT DOOR OUTER USA	8-97135-126-3	01	1	9811-0012	●	●
2	16.152 PANEL; FRT DOOR OUTER USA	8-97135-126-3	01	1	0101-		●
2	16.152 PANEL; FRT DOOR OUTER USA	8-97135-125-3	01	1	9811-0012	●	●
2	16.152 PANEL; FRT DOOR OUTER USA	8-97135-125-3	01	1	0101-		●
3	16.320 HINGE; DOOR FRT UPPER USA	8-97147-592-3	01	1	9811-0012	●	●
3	16.320 HINGE; DOOR FRT UPPER USA	8-97147-592-3	01	1	0101-		●
3	16.320 HINGE; DOOR FRT LOWER USA	8-97147-594-3	01	1	9811-0012	●	●
3	16.320 HINGE; DOOR FRT LOWER USA	8-97147-594-3	01	1	0101-		●
3	16.320 HINGE; DOOR FRT UPPER USA	8-97147-591-3	01	1	9811-0012	●	●
3	16.320 HINGE; DOOR FRT UPPER USA	8-97147-591-3	01	1	0101-		●
3	16.320 HINGE; DOOR FRT LOWER USA	8-97147-593-3	01	1	9811-0012	●	●
3	16.320 HINGE; DOOR FRT LOWER USA	8-97147-593-3	01	1	0101-		●
5	16.320 BOLT; HINGE 10.463 (A) M8X23 FLANGE	8-94174-559-2	08	1	9811-0012	●	●
5	16.320 BOLT; HINGE 10.463 (A) M8X23 FLANGE	8-94174-559-2	08	1	0101-		●
5	16.320 BOLT; HINGE 17.208 (B) M8X20 FLANGE USA	8-97089-067-0	08	1	9811-0012	●	●
5	16.320 BOLT; HINGE 17.208 (B) M8X20 FLANGE USA	8-97089-067-0	08	1	0101-		●
6	16.320 ARM; CHECK,FRT DOOR (A) USA	8-97038-979-2	02	1	9811-0003	●	●
6	16.320 ARM; CHECK,FRT DOOR (B)	8-97233-754-0	02	1	0004-0007	●	●
6	16.320 ARM; CHECK,FRT DOOR (B)	8-97288-285-0	02	1	0008-0012	●	●
6	16.320 ARM; CHECK,FRT DOOR (B)	8-97288-285-0	02	1	0101-0109		●
6	16.320 ARM; CHECK,FRT DOOR (B)	8-97325-331-0	02	1	0110-		●
8	16.320 BOLT; CHECK ARM 04.930 M6X20 FLANGE	0-28680-620-0	04	1	9811-0003	●	●
9	16.320 NUT; CHECK ARM 07.829 M6 FLANGE USA	5-09440-004-0	04	1	0004-0012	●	●
9	16.320 NUT; CHECK ARM 07.829 M6 FLANGE USA	5-09440-004-0	04	1	0101-		●
10	16.320 PIN; CHECK ARM 10.455	8-94111-468-0	02	1	9811-0012	●	●
10	16.320 PIN; CHECK ARM 10.455	8-94111-468-0	02	1	0101-		●
107	16.320 RING; SNAP USA	8-97166-473-0	04	1	9811-0012	●	●
107	16.320 RING; SNAP USA	8-97166-473-0	04	1	0101-		●
