Sayfa 6-20 - Isuzu EPC

6-20 — SIDE PANEL AND STEP (#32633) — 285 parça

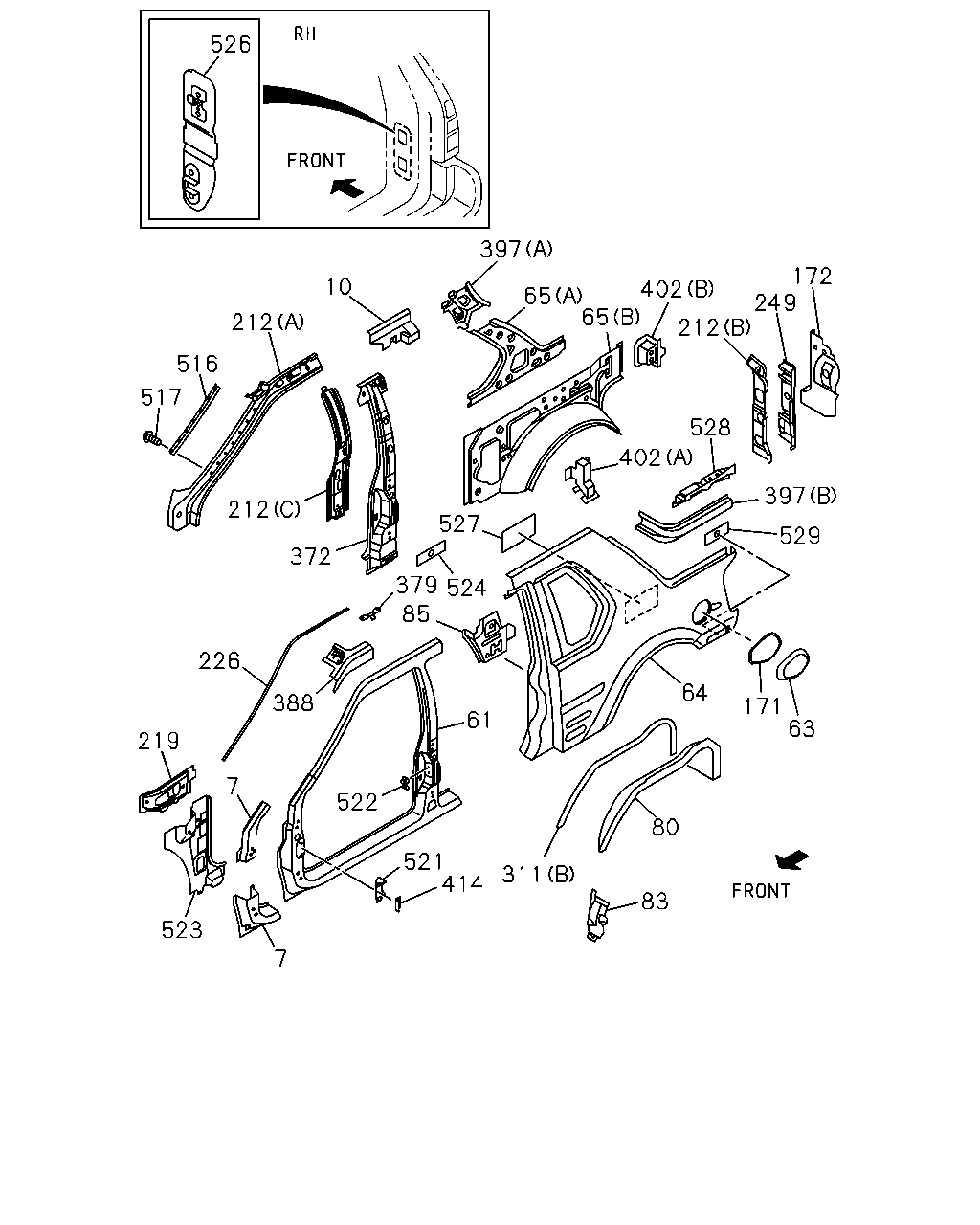

526 397 172 249 212 10 402 65 65 212 516 517 528 402 397 212 527 529 372 379 524 85 226 64 388 171 63 61 219 7 522 80 521 414 311 83 523 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	16.570 REINFORCEMENT; HINGE UPPER USA	8-97124-221-2	01	1	9811-0012	●	●
7	16.570 REINFORCEMENT; HINGE UPPER USA	8-97124-221-3	01	1	0101-		●
7	16.570 REINFORCEMENT; HINGE LOWER USA	8-97124-248-1	01	1	9811-0012	●	●
7	16.570 REINFORCEMENT; HINGE LOWER USA	8-97124-248-2	01	1	0101-		●
7	16.570 REINFORCEMENT; HINGE UPPER USA	8-97124-220-2	01	1	9811-0012	●	●
7	16.570 REINFORCEMENT; HINGE UPPER USA	8-97124-220-3	01	1	0101-		●
7	16.570 REINFORCEMENT; HINGE LOWER USA	8-97124-247-1	01	1	9811-0012	●	●
7	16.570 REINFORCEMENT; HINGE LOWER USA	8-97124-247-2	01	1	0101-		●
10	16.585 CLOSING; ROOF SIDE USA	8-97130-945-1	01	1	9811-0012	●
10	16.585 CLOSING; ROOF SIDE USA	8-97130-765-1	01	1	9811-0012	●
10	16.585 CLOSING; ROOF SIDE USA	8-97124-289-3	01	1	9811-		●
10	16.585 CLOSING; ROOF SIDE USA	8-97124-288-3	01	1	9811-		●
61	16.570 PANEL; SIDE OUTER USA	8-97130-792-4	01	1	9811-0012	●
61	16.570 PANEL; SIDE OUTER USA	8-97130-760-4	01	1	9811-0012	●
61	16.570 PANEL; SIDE OUTER USA	8-97123-581-7	01	1	9811-		●
61	16.570 PANEL; SIDE OUTER USA	8-97123-580-7	01	1	9811-		●
63	16.152 PANEL; FUEL FILLER RECESS USA	8-97139-600-0	01	1	9811-0012	●	●
63	16.152 PANEL; FUEL FILLER RECESS USA	8-97139-600-0	01	1	0101-		●
64	16.570 PANEL; QUARTER OUTER EXC. OVER FENDER USA	8-97130-829-9	01	1	9811-0012	●
64	16.570 PANEL; QUARTER OUTER OVER FENDER USA	8-97148-059-8	01	1	9811-0012	●
64	16.570 PANEL; QUARTER OUTER EXC. OVER FENDER USA	8-97130-770-8	01	1	9811-0012	●
64	16.570 PANEL; QUARTER OUTER OVER FENDER USA	8-97148-057-7	01	1	9811-0012	●
64	16.570 PANEL; QUARTER OUTER USA	8-97123-583-8	01	1	9811-9909		●
64	16.570 PANEL; QUARTER OUTER EXC. OVER FENDER USA	8-97123-583-8	01	1	9910-0003		●
64	16.570 PANEL; QUARTER OUTER EXC. OVER FENDER USA	8-97123-583-8	01	1	0004-		●
64	16.570 PANEL; QUARTER OUTER USA	8-97123-582-7	01	1	9811-9909		●
64	16.570 PANEL; QUARTER OUTER EXC. OVER FENDER USA	8-97123-582-7	01	1	9910-0003		●
64	16.570 PANEL; QUARTER OUTER EXC. OVER FENDER USA	8-97123-582-7	01	1	0004-		●
64	16.570 PANEL; QUARTER OUTER OVER FENDER<6GH> USA	8-97211-822-0	01	1	0004-		●
64	16.570 PANEL; QUARTER OUTER OVER FENDER<6GH> USA	8-97211-821-0	01	1	0004-		●
65	16.675 PANEL; QUARTER,INNER (A) USA	8-97130-874-2	01	1	9811-0012	●
65	16.675 PANEL; QUARTER,INNER (B) USA	8-97130-880-2	01	1	9811-0012	●
65	16.675 PANEL; QUARTER,INNER (A) USA	8-97130-778-2	01	1	9811-0012	●
65	16.675 PANEL; QUARTER,INNER (B) USA	8-97130-779-2	01	1	9811-0012	●
65	16.675 PANEL; QUARTER,INNER (A) USA	8-97123-382-8	01	1	9811-9812		●
65	16.675 PANEL; QUARTER,INNER (A) USA	8-97220-464-2	01	1	9901-0110		●
65	16.675 PANEL; QUARTER,INNER (A) USA	8-97320-282-0	01	1	0111-		●
65	16.675 PANEL; QUARTER,INNER (B) USA	8-97124-647-2	01	1	9811-		●
65	16.675 PANEL; QUARTER,INNER (A) USA	8-97123-381-8	01	1	9811-9812		●
65	16.675 PANEL; QUARTER,INNER (A) USA	8-97220-463-3	01	1	9901-0110		●
65	16.675 PANEL; QUARTER,INNER (A) USA	8-97320-281-0	01	1	0111-		●
65	16.675 PANEL; QUARTER,INNER (B) USA	8-97124-646-2	01	1	9811-0110		●
65	16.675 PANEL; QUARTER,INNER (B) USA	8-97320-275-0	01	1	0111-		●
80	08.153 PANEL; WHEEL HOUSE,INNER USA	8-97130-881-4	01	1	9811-0012	●
80	08.153 PANEL; WHEEL HOUSE,INNER USA	8-97130-780-4	01	1	9811-0012	●
80	08.153 PANEL; WHEEL HOUSE,INNER USA	8-97124-332-3	01	1	9811-		●
80	08.153 PANEL; WHEEL HOUSE,INNER USA	8-97124-331-3	01	1	9811-0110		●
80	08.153 PANEL; WHEEL HOUSE,INNER USA	8-97320-277-0	01	1	0111-		●
83	16.570 COVER; ROCKER RR USA	8-97130-884-3	01	1	9811-0012	●
83	16.570 COVER; ROCKER RR USA	8-97130-787-3	01	1	9811-0012	●
83	16.570 COVER; ROCKER RR USA	8-97124-283-1	01	1	9811-		●
83	16.570 COVER; ROCKER RR USA	8-97124-282-1	01	1	9811-		●
85	16.152 CLOSING; ROCKER USA	8-97130-944-3	01	1	9811-0012	●
85	16.152 CLOSING; ROCKER USA	8-97130-767-3	01	1	9811-0012	●
171	16.570 SEAL; FUEL FILLER RECESS USA	8-97170-324-0	01	1	9811-9905	●	●
172	16.570 EXTENSION; QUARTER PANEL USA	8-97126-169-7	01	1	9811-0012	●
172	16.570 EXTENSION; QUARTER PANEL USA	8-97137-560-7	01	1	9811-0012	●
172	16.570 EXTENSION; QUARTER PANEL (A) USA	8-97123-392-6	01	1	9811-		●
172	16.570 EXTENSION; QUARTER PANEL (B) USA	8-97124-309-1	01	1	9811-		●
172	16.570 EXTENSION; QUARTER PANEL (C) USA	8-97124-317-0	01	1	9811-		●
172	16.570 EXTENSION; QUARTER PANEL (A) USA	8-97123-391-6	01	1	9811-		●
172	16.570 EXTENSION; QUARTER PANEL (B) USA	8-97124-308-1	01	1	9811-		●
172	16.570 EXTENSION; QUARTER PANEL (C) USA	8-97124-316-0	01	1	9811-		●
212	16.588 CLOSING; PILLAR (B) USA	8-97130-883-4	01	1	9811-0012	●
212	16.588 CLOSING; PILLAR (B) USA	8-97130-785-2	01	1	9811-0012	●
212	16.588 CLOSING; PILLAR (A) USA	8-97201-428-2	01	1	9811-0012	●	●
212	16.588 CLOSING; PILLAR (A) USA	8-97208-672-2	01	1	0101-		●
212	16.588 CLOSING; PILLAR (C) USA	8-97211-709-0	01	1	9811-0012	●	●
212	16.588 CLOSING; PILLAR (C) USA	8-97211-709-0	01	1	0101-		●
212	16.588 CLOSING; PILLAR (A) USA	8-97201-427-2	01	1	9811-0012	●	●
212	16.588 CLOSING; PILLAR (A) USA	8-97208-671-2	01	1	0101-		●
212	16.588 CLOSING; PILLAR (C) USA	8-97211-708-0	01	1	9811-0012	●	●
212	16.588 CLOSING; PILLAR (C) USA	8-97211-708-0	01	1	0101-		●
212	16.588 CLOSING; PILLAR (B) USA	8-97124-368-6	01	1	9811-		●
212	16.588 CLOSING; PILLAR (B) USA	8-97124-362-4	01	1	9811-		●
219	16.570 REINFORCEMENT; SIDE PANEL USA	8-97208-041-0	01	1	9811-0012	●	●
219	16.570 REINFORCEMENT; SIDE PANEL USA	8-97208-041-0	01	1	0101-		●
219	16.570 REINFORCEMENT; SIDE PANEL USA	8-97142-614-2	01	1	9811-0012	●	●
219	16.570 REINFORCEMENT; SIDE PANEL USA	8-97142-614-2	01	1	0101-		●
226	16.585 RAIL; DRIP,FRT PILLAR USA	8-97124-213-4	01	1	9811-0012	●	●
226	16.585 RAIL; DRIP,FRT PILLAR USA	8-97124-213-4	01	1	0101-		●
226	16.585 RAIL; DRIP,FRT PILLAR USA	8-97124-212-4	01	1	9811-0012	●	●
226	16.585 RAIL; DRIP,FRT PILLAR USA	8-97124-212-4	01	1	0101-		●
249	16.674 REINFORCEMENT; RR PILLAR LOWER USA	8-97124-318-4	01	1	9811-0012	●	●
249	16.674 REINFORCEMENT; RR PILLAR LOWER USA	8-97124-318-5	01	1	0101-		●
249	16.674 REINFORCEMENT; RR PILLAR LOWER USA	8-97124-325-4	01	1	9811-0012	●	●
249	16.674 REINFORCEMENT; RR PILLAR LOWER USA	8-97124-325-4	01	1	0101-		●
249	16.674 REINFORCEMENT; RR PILLAR UPPER USA	8-97124-375-0	01	1	9811-		●
249	16.674 REINFORCEMENT; RR PILLAR UPPER USA	8-97124-374-0	01	1	9811-		●
311	08.155 SEAL; WHEEL HOUSE (B) USA	8-97170-322-0	04	1	9811-9905	●	●
311	08.155 SEAL; WHEEL HOUSE (A) USA	8-97147-629-0	02	1	9811-0106		●
311	08.155 SEAL; WHEEL HOUSE (A) USA	8-97321-898-0	02	1	0107-		●
372	16.575 REINFORCEMENT; CENTER PILLAR USA	8-97201-826-0	01	1	9811-0012	●
372	16.575 REINFORCEMENT; CENTER PILLAR USA	8-97201-825-0	01	1	9811-0012	●
372	16.575 REINFORCEMENT; CENTER PILLAR USA	8-97201-824-1	01	1	9811-		●
372	16.575 REINFORCEMENT; CENTER PILLAR USA	8-97201-822-1	01	1	9811-		●
379	16.570 PATCH; ROOF RACK USA	8-97138-827-1	02	1	9811-9812	●
379	16.570 PATCH; ROOF RACK ROOF RAIL<7LC> USA	8-97138-827-1	02	1	9811-9812		●
379	16.570 PATCH; ROOF RACK USA	8-97215-724-0	02	1	9901-0003	●
379	16.570 PATCH; ROOF RACK ROOF RAIL<7LC> USA	8-97215-724-0	02	1	9901-0003		●
379	16.570 PATCH; ROOF RACK USA	8-97215-724-0	02	1	0004-0012	●
379	16.570 PATCH; ROOF RACK ROOF RAIL WITH CROSS BAR<8BV> USA	8-97215-724-0	02	1	0004-0012		●
379	16.570 PATCH; ROOF RACK ROOF RAIL WITH CROSS BAR<8BV> USA	8-97215-724-0	02	1	0101-		●
388	16.570 REINFORCEMENT; FRONT PILLAR USA	8-97124-209-5	01	1	9811-0012	●	●
388	16.570 REINFORCEMENT; FRONT PILLAR USA	8-97215-793-0	01	1	0101-		●
388	16.570 REINFORCEMENT; FRONT PILLAR USA	8-97124-208-5	01	1	9811-0012	●	●
388	16.570 REINFORCEMENT; FRONT PILLAR USA	8-97215-792-0	01	1	0101-		●
397	16.575 REINFORCEMENT; QUARTER PILLAR IN (A) USA	8-97134-157-2	01	1	9811-0012	●
397	16.575 REINFORCEMENT; QUARTER PILLAR IN (B) USA	8-97135-940-1	01	1	9811-0012	●
397	16.575 REINFORCEMENT; QUARTER PILLAR IN (A) USA	8-97134-156-2	01	1	9811-0012	●
397	16.575 REINFORCEMENT; QUARTER PILLAR IN (B) USA	8-97135-939-1	01	1	9811-0012	●
402	16.085 BRACKET; SUPPORT (A) USA	8-97130-783-0	02	1	9811-0012	●
402	16.085 BRACKET; SUPPORT (B) USA	8-97144-153-3	01	1	9811-0012	●
402	16.085 BRACKET; SUPPORT (B) USA	8-97144-631-2	01	1	9811-0012	●
414	08.228 BRACKET; FENDER USA	8-97124-218-1	02	1	9811-0012	●	●
414	08.228 BRACKET; FENDER USA	8-97124-218-1	02	1	0101-		●
516	16.585 RAIL; FRT PILLAR INNER USA	8-97160-163-2	02	1	9811-0003	●	●
516	16.585 RAIL; FRT PILLAR INNER USA	8-97215-804-0	02	1	0004-0012	●	●
516	16.585 RAIL; FRT PILLAR INNER USA	8-97215-804-0	02	1	0101-		●
517	16.175 SCREW; TAP M6X18	8-97162-219-0	10	1	9811-9906	●	●
517	16.175 SCREW; TAP M6X9	8-97223-510-0	10	1	9907-0012	●	●
517	16.175 SCREW; TAP M6X9	8-97223-510-0	10	1	0101-		●
521	16.575 REINFORCEMENT; CHECK ARM USA	8-97124-244-0	02	1	9811-0012	●	●
521	16.575 REINFORCEMENT; CHECK ARM USA	8-97124-244-0	02	1	0101-		●
522	16.575 PLATE; TAPPING USA	8-97124-277-1	02	1	9811-0012	●	●
522	16.575 PLATE; TAPPING USA	8-97124-277-1	02	1	0101-		●
523	16.575 PANEL; DASH SIDE USA	8-97137-063-1	01	1	9811-0012	●	●
523	16.575 PANEL; DASH SIDE USA	8-97215-808-1	01	1	0101-		●
523	16.575 PANEL; DASH SIDE USA	8-97137-062-1	01	1	9811-0012	●	●
523	16.575 PANEL; DASH SIDE USA	8-97215-807-2	01	1	0101-		●
524	16.575 RAIL; DRIP RR USA	8-97130-772-0	02	1	9811-0012	●
524	16.575 RAIL; DRIP RR USA	8-97124-328-2	01	1	9811-		●
524	16.575 RAIL; DRIP RR USA	8-97124-327-2	01	1	9811-		●
526	16.575 PATCH; TAIL GATE STRIKER USA	8-97124-366-2	01	1	9811-0012	●	●
526	16.575 PATCH; TAIL GATE STRIKER USA	8-97124-366-2	01	1	0101-		●
527	16.570 STIFFENER; QTR OUTER USA	8-97147-333-0	02	1	9811-0012	●
528	16.570 CLOSING; QTR INNER USA	8-97134-165-1	01	1	9811-0012	●
528	16.570 CLOSING; QTR INNER USA	8-97134-164-1	01	1	9811-0012	●
529	16.570 SUPPORT; WHEEL HOUSE USA	8-97148-244-0	01	1	9811-0012	●
529	16.570 SUPPORT; WHEEL HOUSE USA	8-97148-243-1	01	1	9811-0012	●

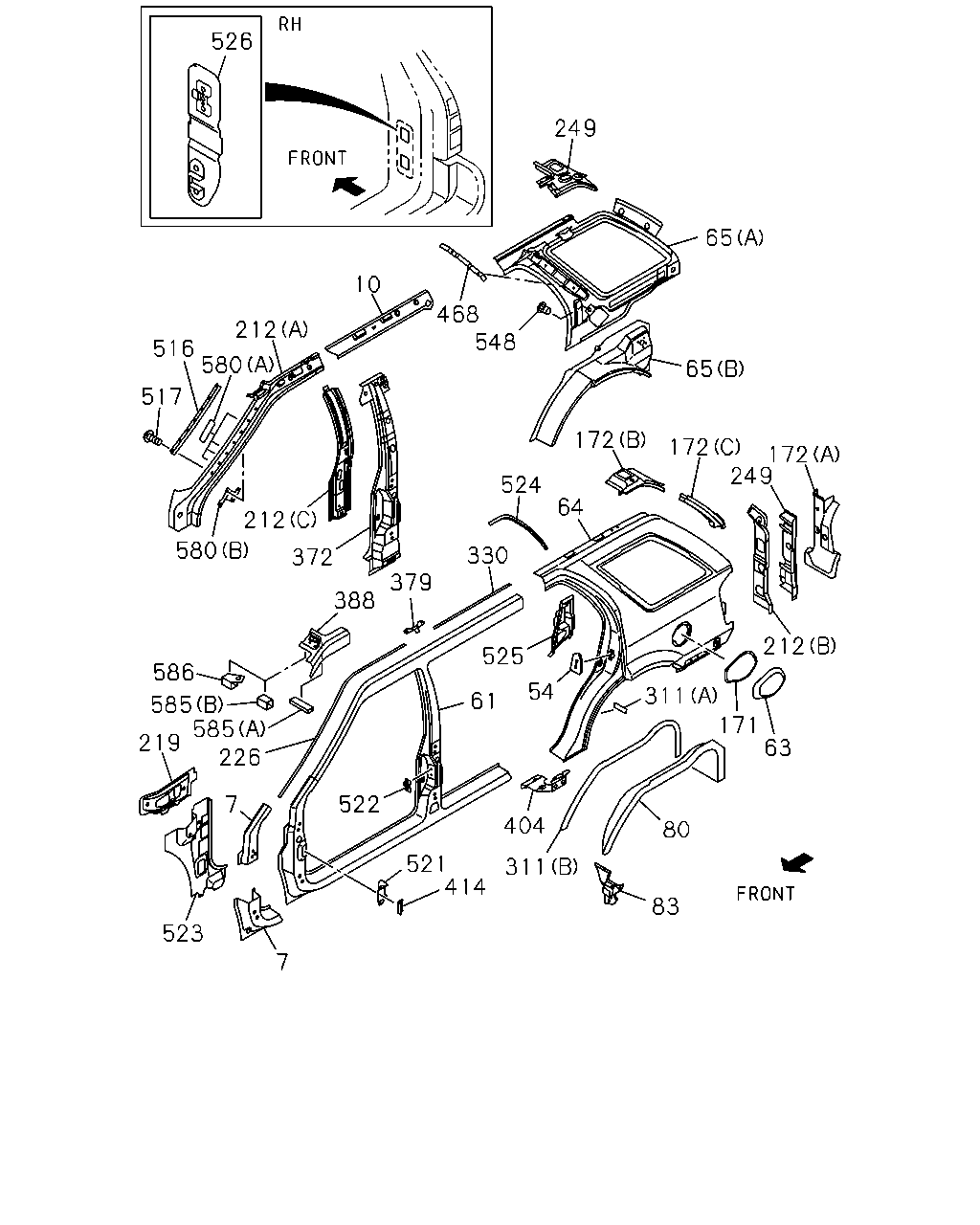

526 249 65 10 468 548 212 516 580 65 517 172 172 172 249 524 64 212 580 330 372 379 388 212 525 586 54 311 61 585 585 226 171 219 63 522 7 404 80 521 414 311 83 523 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	16.570 REINFORCEMENT; HINGE UPPER USA	8-97124-221-2	01	1	9811-0012	●	●
7	16.570 REINFORCEMENT; HINGE UPPER USA	8-97124-221-3	01	1	0101-		●
7	16.570 REINFORCEMENT; HINGE LOWER USA	8-97124-248-1	01	1	9811-0012	●	●
7	16.570 REINFORCEMENT; HINGE LOWER USA	8-97124-248-2	01	1	0101-		●
7	16.570 REINFORCEMENT; HINGE UPPER USA	8-97124-220-2	01	1	9811-0012	●	●
7	16.570 REINFORCEMENT; HINGE UPPER USA	8-97124-220-3	01	1	0101-		●
7	16.570 REINFORCEMENT; HINGE LOWER USA	8-97124-247-1	01	1	9811-0012	●	●
7	16.570 REINFORCEMENT; HINGE LOWER USA	8-97124-247-2	01	1	0101-		●
10	16.585 CLOSING; ROOF SIDE USA	8-97130-945-1	01	1	9811-0012	●
10	16.585 CLOSING; ROOF SIDE USA	8-97130-765-1	01	1	9811-0012	●
10	16.585 CLOSING; ROOF SIDE USA	8-97124-289-3	01	1	9811-		●
10	16.585 CLOSING; ROOF SIDE USA	8-97124-288-3	01	1	9811-		●
54	16.335 PATCH; DOOR STRIKER USA	8-97124-297-1	01	1	9811-		●
54	16.335 PATCH; DOOR STRIKER USA	8-97124-292-1	01	1	9811-		●
61	16.570 PANEL; SIDE OUTER USA	8-97130-792-4	01	1	9811-0012	●
61	16.570 PANEL; SIDE OUTER USA	8-97130-760-4	01	1	9811-0012	●
61	16.570 PANEL; SIDE OUTER USA	8-97123-581-7	01	1	9811-		●
61	16.570 PANEL; SIDE OUTER USA	8-97123-580-7	01	1	9811-		●
63	16.152 PANEL; FUEL FILLER RECESS USA	8-97139-600-0	01	1	9811-0012	●	●
63	16.152 PANEL; FUEL FILLER RECESS USA	8-97139-600-0	01	1	0101-		●
64	16.570 PANEL; QUARTER OUTER EXC. OVER FENDER USA	8-97130-829-9	01	1	9811-0012	●
64	16.570 PANEL; QUARTER OUTER OVER FENDER USA	8-97148-059-8	01	1	9811-0012	●
64	16.570 PANEL; QUARTER OUTER EXC. OVER FENDER USA	8-97130-770-8	01	1	9811-0012	●
64	16.570 PANEL; QUARTER OUTER OVER FENDER USA	8-97148-057-7	01	1	9811-0012	●
64	16.570 PANEL; QUARTER OUTER USA	8-97123-583-8	01	1	9811-9909		●
64	16.570 PANEL; QUARTER OUTER EXC. OVER FENDER USA	8-97123-583-8	01	1	9910-0003		●
64	16.570 PANEL; QUARTER OUTER EXC. OVER FENDER USA	8-97123-583-8	01	1	0004-		●
64	16.570 PANEL; QUARTER OUTER USA	8-97123-582-7	01	1	9811-9909		●
64	16.570 PANEL; QUARTER OUTER EXC. OVER FENDER USA	8-97123-582-7	01	1	9910-0003		●
64	16.570 PANEL; QUARTER OUTER EXC. OVER FENDER USA	8-97123-582-7	01	1	0004-		●
64	16.570 PANEL; QUARTER OUTER OVER FENDER<6GH> USA	8-97211-822-0	01	1	0004-		●
64	16.570 PANEL; QUARTER OUTER OVER FENDER<6GH> USA	8-97211-821-0	01	1	0004-		●
65	16.675 PANEL; QUARTER,INNER (A) USA	8-97130-874-2	01	1	9811-0012	●
65	16.675 PANEL; QUARTER,INNER (B) USA	8-97130-880-2	01	1	9811-0012	●
65	16.675 PANEL; QUARTER,INNER (A) USA	8-97130-778-2	01	1	9811-0012	●
65	16.675 PANEL; QUARTER,INNER (B) USA	8-97130-779-2	01	1	9811-0012	●
65	16.675 PANEL; QUARTER,INNER (A) USA	8-97123-382-8	01	1	9811-9812		●
65	16.675 PANEL; QUARTER,INNER (A) USA	8-97220-464-2	01	1	9901-0110		●
65	16.675 PANEL; QUARTER,INNER (A) USA	8-97320-282-0	01	1	0111-		●
65	16.675 PANEL; QUARTER,INNER (B) USA	8-97124-647-2	01	1	9811-		●
65	16.675 PANEL; QUARTER,INNER (A) USA	8-97123-381-8	01	1	9811-9812		●
65	16.675 PANEL; QUARTER,INNER (A) USA	8-97220-463-3	01	1	9901-0110		●
65	16.675 PANEL; QUARTER,INNER (A) USA	8-97320-281-0	01	1	0111-		●
65	16.675 PANEL; QUARTER,INNER (B) USA	8-97124-646-2	01	1	9811-0110		●
65	16.675 PANEL; QUARTER,INNER (B) USA	8-97320-275-0	01	1	0111-		●
80	08.153 PANEL; WHEEL HOUSE,INNER USA	8-97130-881-4	01	1	9811-0012	●
80	08.153 PANEL; WHEEL HOUSE,INNER USA	8-97130-780-4	01	1	9811-0012	●
80	08.153 PANEL; WHEEL HOUSE,INNER USA	8-97124-332-3	01	1	9811-		●
80	08.153 PANEL; WHEEL HOUSE,INNER USA	8-97124-331-3	01	1	9811-0110		●
80	08.153 PANEL; WHEEL HOUSE,INNER USA	8-97320-277-0	01	1	0111-		●
83	16.570 COVER; ROCKER RR USA	8-97130-884-3	01	1	9811-0012	●
83	16.570 COVER; ROCKER RR USA	8-97130-787-3	01	1	9811-0012	●
83	16.570 COVER; ROCKER RR USA	8-97124-283-1	01	1	9811-		●
83	16.570 COVER; ROCKER RR USA	8-97124-282-1	01	1	9811-		●
171	16.570 SEAL; FUEL FILLER RECESS USA	8-97170-324-0	01	1	9811-9905	●	●
172	16.570 EXTENSION; QUARTER PANEL USA	8-97126-169-7	01	1	9811-0012	●
172	16.570 EXTENSION; QUARTER PANEL USA	8-97137-560-7	01	1	9811-0012	●
172	16.570 EXTENSION; QUARTER PANEL (A) USA	8-97123-392-6	01	1	9811-		●
172	16.570 EXTENSION; QUARTER PANEL (B) USA	8-97124-309-1	01	1	9811-		●
172	16.570 EXTENSION; QUARTER PANEL (C) USA	8-97124-317-0	01	1	9811-		●
172	16.570 EXTENSION; QUARTER PANEL (A) USA	8-97123-391-6	01	1	9811-		●
172	16.570 EXTENSION; QUARTER PANEL (B) USA	8-97124-308-1	01	1	9811-		●
172	16.570 EXTENSION; QUARTER PANEL (C) USA	8-97124-316-0	01	1	9811-		●
212	16.588 CLOSING; PILLAR (B) USA	8-97130-883-4	01	1	9811-0012	●
212	16.588 CLOSING; PILLAR (B) USA	8-97130-785-2	01	1	9811-0012	●
212	16.588 CLOSING; PILLAR (A) USA	8-97201-428-2	01	1	9811-0012	●	●
212	16.588 CLOSING; PILLAR (A) USA	8-97208-672-2	01	1	0101-		●
212	16.588 CLOSING; PILLAR (C) USA	8-97211-709-0	01	1	9811-0012	●	●
212	16.588 CLOSING; PILLAR (C) USA	8-97211-709-0	01	1	0101-		●
212	16.588 CLOSING; PILLAR (A) USA	8-97201-427-2	01	1	9811-0012	●	●
212	16.588 CLOSING; PILLAR (A) USA	8-97208-671-2	01	1	0101-		●
212	16.588 CLOSING; PILLAR (C) USA	8-97211-708-0	01	1	9811-0012	●	●
212	16.588 CLOSING; PILLAR (C) USA	8-97211-708-0	01	1	0101-		●
212	16.588 CLOSING; PILLAR (B) USA	8-97124-368-6	01	1	9811-		●
212	16.588 CLOSING; PILLAR (B) USA	8-97124-362-4	01	1	9811-		●
219	16.570 REINFORCEMENT; SIDE PANEL USA	8-97208-041-0	01	1	9811-0012	●	●
219	16.570 REINFORCEMENT; SIDE PANEL USA	8-97208-041-0	01	1	0101-		●
219	16.570 REINFORCEMENT; SIDE PANEL USA	8-97142-614-2	01	1	9811-0012	●	●
219	16.570 REINFORCEMENT; SIDE PANEL USA	8-97142-614-2	01	1	0101-		●
226	16.585 RAIL; DRIP,FRT PILLAR USA	8-97124-213-4	01	1	9811-0012	●	●
226	16.585 RAIL; DRIP,FRT PILLAR USA	8-97124-213-4	01	1	0101-		●
226	16.585 RAIL; DRIP,FRT PILLAR USA	8-97124-212-4	01	1	9811-0012	●	●
226	16.585 RAIL; DRIP,FRT PILLAR USA	8-97124-212-4	01	1	0101-		●
249	16.674 REINFORCEMENT; RR PILLAR LOWER USA	8-97124-318-4	01	1	9811-0012	●	●
249	16.674 REINFORCEMENT; RR PILLAR LOWER USA	8-97124-318-5	01	1	0101-		●
249	16.674 REINFORCEMENT; RR PILLAR LOWER USA	8-97124-325-4	01	1	9811-0012	●	●
249	16.674 REINFORCEMENT; RR PILLAR LOWER USA	8-97124-325-4	01	1	0101-		●
249	16.674 REINFORCEMENT; RR PILLAR UPPER USA	8-97124-375-0	01	1	9811-		●
249	16.674 REINFORCEMENT; RR PILLAR UPPER USA	8-97124-374-0	01	1	9811-		●
311	08.155 SEAL; WHEEL HOUSE (B) USA	8-97170-322-0	04	1	9811-9905	●	●
311	08.155 SEAL; WHEEL HOUSE (A) USA	8-97147-629-0	02	1	9811-0106		●
311	08.155 SEAL; WHEEL HOUSE (A) USA	8-97321-898-0	02	1	0107-		●
330	16.585 RAIL; CENTER PILLAR,DRIP SIDE USA	8-97124-215-0	01	1	9811-		●
330	16.585 RAIL; CENTER PILLAR,DRIP SIDE USA	8-97124-214-0	01	1	9811-		●
372	16.575 REINFORCEMENT; CENTER PILLAR USA	8-97201-826-0	01	1	9811-0012	●
372	16.575 REINFORCEMENT; CENTER PILLAR USA	8-97201-825-0	01	1	9811-0012	●
372	16.575 REINFORCEMENT; CENTER PILLAR USA	8-97201-824-1	01	1	9811-		●
372	16.575 REINFORCEMENT; CENTER PILLAR USA	8-97201-822-1	01	1	9811-		●
379	16.570 PATCH; ROOF RACK USA	8-97138-827-1	02	1	9811-9812	●
379	16.570 PATCH; ROOF RACK ROOF RAIL<7LC> USA	8-97138-827-1	02	1	9811-9812		●
379	16.570 PATCH; ROOF RACK USA	8-97215-724-0	02	1	9901-0003	●
379	16.570 PATCH; ROOF RACK ROOF RAIL<7LC> USA	8-97215-724-0	02	1	9901-0003		●
379	16.570 PATCH; ROOF RACK USA	8-97215-724-0	02	1	0004-0012	●
379	16.570 PATCH; ROOF RACK ROOF RAIL WITH CROSS BAR<8BV> USA	8-97215-724-0	02	1	0004-0012		●
379	16.570 PATCH; ROOF RACK ROOF RAIL WITH CROSS BAR<8BV> USA	8-97215-724-0	02	1	0101-		●
388	16.570 REINFORCEMENT; FRONT PILLAR USA	8-97124-209-5	01	1	9811-0012	●	●
388	16.570 REINFORCEMENT; FRONT PILLAR USA	8-97215-793-0	01	1	0101-		●
388	16.570 REINFORCEMENT; FRONT PILLAR USA	8-97124-208-5	01	1	9811-0012	●	●
388	16.570 REINFORCEMENT; FRONT PILLAR USA	8-97215-792-0	01	1	0101-		●
404	16.570 BRACKET OVER FENDER<6GH>	8-97232-139-2	01	1	0004-		●
404	16.570 BRACKET OVER FENDER<6GH>	8-97232-138-2	01	1	0004-		●
414	08.228 BRACKET; FENDER USA	8-97124-218-1	02	1	9811-0012	●	●
414	08.228 BRACKET; FENDER USA	8-97124-218-1	02	1	0101-		●
468	16.570 REINFORCEMENT; SEAT BELT ANCHOR USA	8-97138-874-0	02	1	9811-		●
516	16.585 RAIL; FRT PILLAR INNER USA	8-97160-163-2	02	1	9811-0003	●	●
516	16.585 RAIL; FRT PILLAR INNER USA	8-97215-804-0	02	1	0004-0012	●	●
516	16.585 RAIL; FRT PILLAR INNER USA	8-97215-804-0	02	1	0101-		●
517	16.175 SCREW; TAP M6X18	8-97162-219-0	10	1	9811-9906	●	●
517	16.175 SCREW; TAP M6X9	8-97223-510-0	10	1	9907-0012	●	●
517	16.175 SCREW; TAP M6X9	8-97223-510-0	10	1	0101-		●
521	16.575 REINFORCEMENT; CHECK ARM USA	8-97124-244-0	02	1	9811-0012	●	●
521	16.575 REINFORCEMENT; CHECK ARM USA	8-97124-244-0	02	1	0101-		●
522	16.575 PLATE; TAPPING USA	8-97124-277-1	02	1	9811-0012	●	●
522	16.575 PLATE; TAPPING USA	8-97124-277-1	02	1	0101-		●
523	16.575 PANEL; DASH SIDE USA	8-97137-063-1	01	1	9811-0012	●	●
523	16.575 PANEL; DASH SIDE USA	8-97215-808-1	01	1	0101-		●
523	16.575 PANEL; DASH SIDE USA	8-97137-062-1	01	1	9811-0012	●	●
523	16.575 PANEL; DASH SIDE USA	8-97215-807-2	01	1	0101-		●
524	16.575 RAIL; DRIP RR USA	8-97130-772-0	02	1	9811-0012	●
524	16.575 RAIL; DRIP RR USA	8-97124-328-2	01	1	9811-		●
524	16.575 RAIL; DRIP RR USA	8-97124-327-2	01	1	9811-		●
525	16.575 REINFORCEMENT; RR SEAT STRIKER USA	8-97124-349-2	01	1	9811-		●
525	16.575 REINFORCEMENT; RR SEAT STRIKER USA	8-97124-347-2	01	1	9811-		●
526	16.575 PATCH; TAIL GATE STRIKER USA	8-97124-366-2	01	1	9811-0012	●	●
526	16.575 PATCH; TAIL GATE STRIKER USA	8-97124-366-2	01	1	0101-		●
548	16.714 NUT; BRKT 16.069 M6 POP	8-94455-383-0	02	1	9909-		●
580	16.570 SPACER; BODY SIDE (A)	8-97240-951-0	08	1	0101-0110		●
580	16.570 SPACER; BODY SIDE (B)	8-97240-950-0	01	1	0101-0110		●
580	16.570 SPACER; BODY SIDE (B)	8-97302-060-0	01	1	0111-		●
580	16.570 SPACER; BODY SIDE (B)	8-97240-949-0	01	1	0101-0110		●
580	16.570 SPACER; BODY SIDE (B)	8-97302-059-0	01	1	0111-		●
585	16.585 HOSE; FLEX (B) L=35	8-97241-059-0	02	1	0101-0110		●
585	16.585 HOSE; FLEX (A) L=70	8-97245-113-0	02	1	0101-0110		●
586	16.575 PLATE; FLEX HOSE	8-97286-945-2	01	1	0111-		●
586	16.575 PLATE; FLEX HOSE	8-97286-944-2	01	1	0111-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
