◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-14 - DASH PANEL AND FENDER SKIRT ▶
6-14 — DASH PANEL AND FENDER SKIRT (#32632) — 13 parça

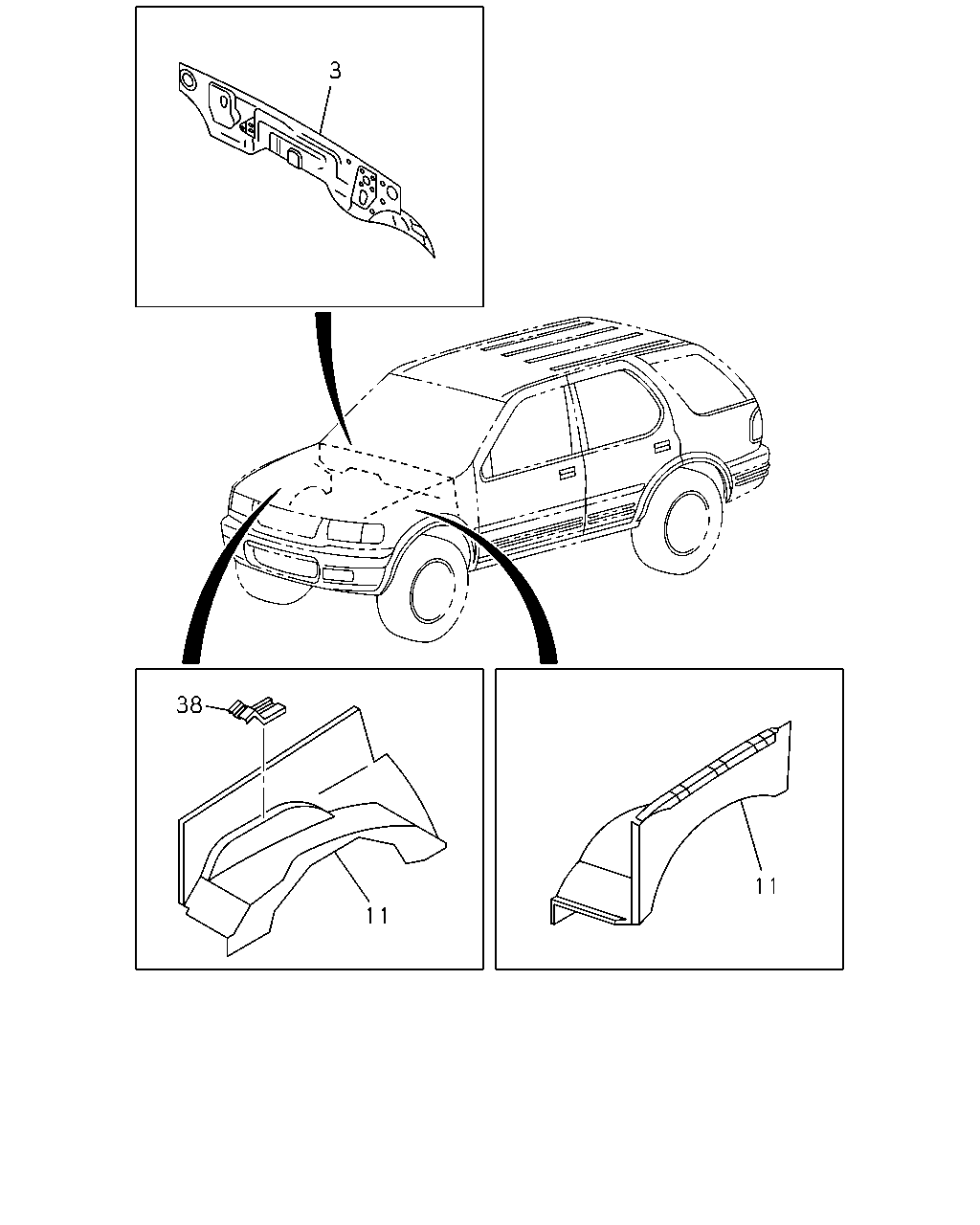

çizim 36478
3 38 11 11
BalonParca AdiParca NoAdetTipApplied Date A B
3 16.550 PANEL; SUB,DASH LWR
USA 		8-97184-687-1 01 1 9811-0012 ●
3 16.550 PANEL; SUB,DASH LWR
A/T THM 4 SPEED(RMQ) USA 		8-97137-142-2 01 1 9811-9911 ●
3 16.550 PANEL; SUB,DASH LWR
A/T THM 4 SPEED(RMQ) USA 		8-97215-758-0 01 1 9912- ●
3 16.550 PANEL; SUB,DASH LWR
M/T MUA 5 SPEED(RMN) USA 		8-97137-158-2 01 1 9811-9911 ●
3 16.550 PANEL; SUB,DASH LWR
M/T MUA 5 SPEED(RMN) USA 		8-97215-759-0 01 1 9912- ●
11 08.153 SKIRT; FRT FENDER PNL
USA 		8-97125-105-4 01 1 9811-9901 ● ●
11 08.153 SKIRT; FRT FENDER PNL
USA 		8-97215-810-1 01 1 9902-0012 ● ●
11 08.153 SKIRT; FRT FENDER PNL
USA 		8-97215-810-2 01 1 0101- ●
11 08.153 SKIRT; FRT FENDER PNL
USA 		8-97125-104-5 01 1 9811-9901 ● ●
11 08.153 SKIRT; FRT FENDER PNL
USA 		8-97221-725-1 01 1 9902-0012 ● ●
11 08.153 SKIRT; FRT FENDER PNL
USA 		8-97221-725-1 01 1 0101- ●
38 07.039 BRACKET; FUSE BOX 8-97161-983-0 01 1 9811-0012 ● ●
38 07.039 BRACKET; FUSE BOX 8-97161-983-0 01 1 0101- ●
