◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UES ▶ 50807 - UES(AUSTRALIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-10 - ENGINE HOOD AND LOCK ▶
6-10 — ENGINE HOOD AND LOCK (#32631) — 42 parça
çizim 36471
2 18 17 18 128 129 46
BalonParca AdiParca NoAdetTipApplied Date A B
2 08.000 PANEL; ENG HOOD
USA 		8-97125-254-2 01 1 9811-0012 ● ●
2 08.000 PANEL; ENG HOOD
USA 		8-97125-254-2 01 1 0101- ●
17 08.015 HINGE; ENG HOOD
USA 		8-97125-195-3 01 1 9811-0012 ● ●
17 08.015 HINGE; ENG HOOD
USA 		8-97125-195-3 01 1 0101- ●
17 08.015 HINGE; ENG HOOD
USA 		8-97125-194-3 01 1 9811-0012 ● ●
17 08.015 HINGE; ENG HOOD
USA 		8-97125-194-3 01 1 0101- ●
18 08.015 BOLT; HINGE
M8X16 USA 		8-94139-492-0 08 1 9811-0012 ● ●
18 08.015 BOLT; HINGE
M8X16 USA 		8-94139-492-0 08 1 0101- ●
46 01.272 SEAL; ENG HOOD
USA 		8-97124-418-0 01 1 9811-0012 ● ●
46 01.272 SEAL; ENG HOOD
USA 		8-97124-418-0 01 1 0101- ●
128 08.010 SEAL; PLATFORM 8-97137-515-1 01 1 9811-0012 ● ●
128 08.010 SEAL; PLATFORM 8-97137-515-1 01 1 0101- ●
129 08.010 CLIP; ENG HOOD SEAL
15.100 BLACK 		8-94104-935-0 07 1 9811-9901 ● ●
129 08.010 CLIP; ENG HOOD SEAL
15.100 BLACK 		8-94104-935-0 05 1 9902-0012 ● ●
129 08.010 CLIP; ENG HOOD SEAL
15.100 BLACK 		8-94104-935-0 05 1 0101- ●

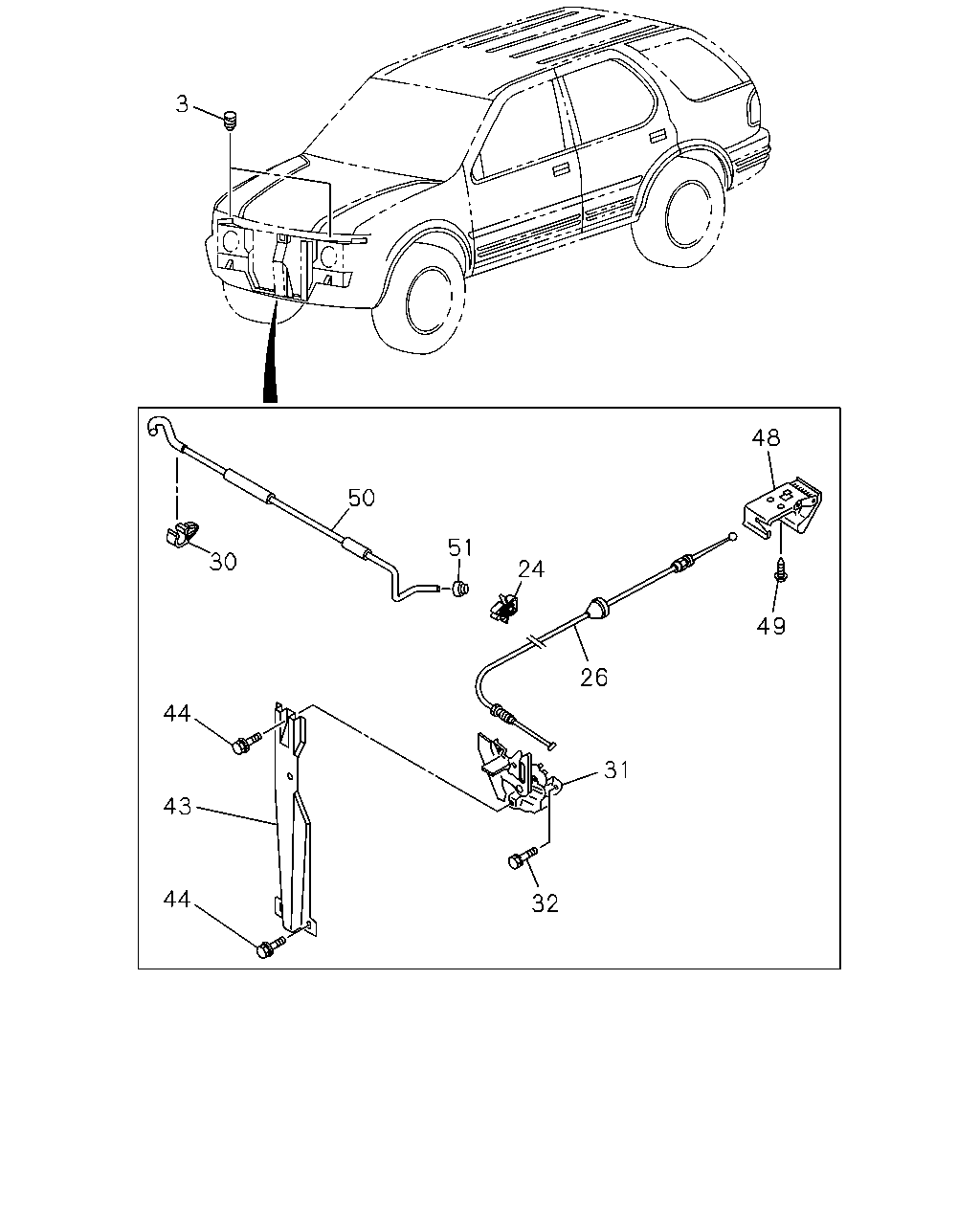

çizim 37228
3 48 50 51 30 24 49 26 44 31 43 44 32
BalonParca AdiParca NoAdetTipApplied Date A B
3 08.077 BUFFER; ENG HOOD,FRT
USA 		8-00472-450-0 02 1 9811-0012 ● ●
3 08.077 BUFFER; ENG HOOD,FRT
USA 		8-00472-450-1 02 1 0101- ●
24 08.077 CLIP; CONT CABLE
USA 		8-97182-405-0 02 1 9811-0012 ● ●
24 08.077 CLIP; CONT CABLE
USA 		8-97182-405-0 02 1 0101- ●
26 08.075 CABLE; ENG HOOD CONT 8-97168-300-2 01 1 9811-9908 ● ●
26 08.075 CABLE; ENG HOOD CONT 8-97229-157-0 01 1 9909-0009 ● ●
26 08.075 CABLE; ENG HOOD CONT 8-97256-005-0 01 1 0010-0012 ● ●
26 08.075 CABLE; ENG HOOD CONT 8-97256-005-0 01 1 0101-0111 ●
26 08.075 CABLE; ENG HOOD CONT 8-97313-471-0 01 1 0112- ●
30 08.077 CLIP; SUPPORT ROD,HOOD
USA 		8-15571-260-0 01 1 9811-0012 ● ●
30 08.077 CLIP; SUPPORT ROD,HOOD
USA 		8-15571-260-0 01 1 0101- ●
31 08.083 LOCK; ENG HOOD 8-97137-769-1 01 1 9811-0012 ● ●
31 08.083 LOCK; ENG HOOD 8-97137-769-1 01 1 0101- ●
32 08.077 BOLT; HOOD LK
M6X18 USA 		8-97071-681-0 02 1 9811-0012 ● ●
32 08.077 BOLT; HOOD LK
M6X18 USA 		8-97071-681-0 02 1 0101- ●
43 08.077 STAY; ENG HOOD,FRT END
USA 		8-97124-417-2 01 1 9811-0012 ● ●
43 08.077 STAY; ENG HOOD,FRT END
USA 		8-97124-417-2 01 1 0101- ●
44 08.077 BOLT; STAY,HOOD
M6X18 USA 		8-97071-681-0 03 1 9811-0012 ● ●
44 08.077 BOLT; STAY,HOOD
M6X18 USA 		8-97071-681-0 03 1 0101- ●
48 08.083 LEVER; ENG HOOD
BLACK 		8-97808-822-0 01 1 9811-0012 ● ●
48 08.083 LEVER; ENG HOOD
BLACK 		8-97808-822-0 01 1 0101- ●
49 08.083 SCREW; LEVER,ENG HOOD OPENER
16.115 M5X16 USA 		8-94279-312-0 02 1 9811-0012 ● ●
49 08.083 SCREW; LEVER,ENG HOOD OPENER
16.115 M5X16 USA 		8-94279-312-0 02 1 0101- ●
50 08.015 ROD; SUPPORT,ENG HOOD
USA 		8-97164-503-4 01 1 9811-0012 ● ●
50 08.015 ROD; SUPPORT,ENG HOOD
USA 		8-97164-503-4 01 1 0101- ●
51 08.080 GROMMET; SUPPORT ROD
USA 		8-10046-775-0 01 1 9811-0012 ● ●
51 08.080 GROMMET; SUPPORT ROD
USA 		8-10046-775-0 01 1 0101- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
