6-01 — FRONT BUMPER (#32627) — 120 parça

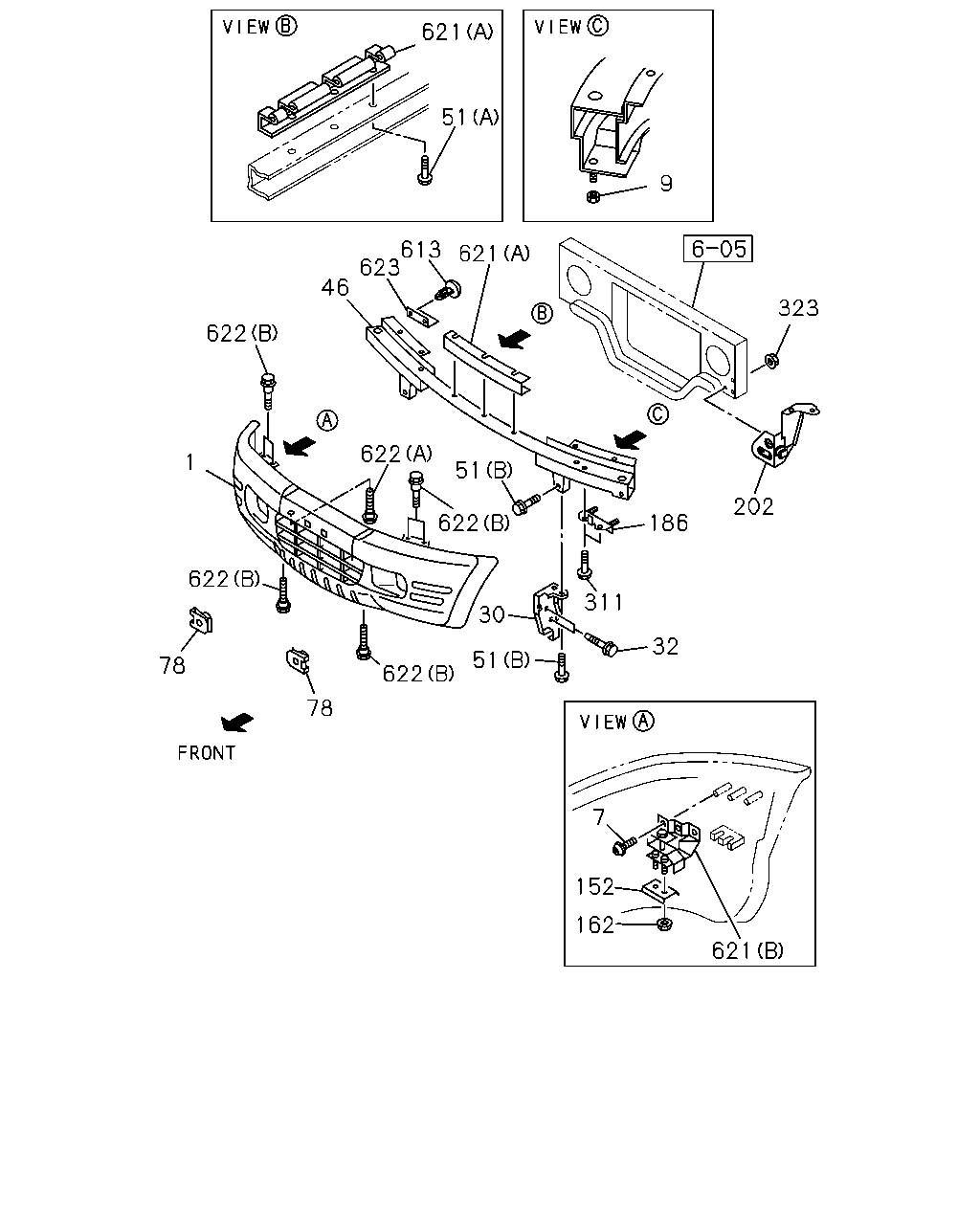

621 51 9 613 623 46 621 323 622 622 1 51 202 186 622 622 311 30 51 32 78 622 78 7 152 162 621

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.831 BUMPER ASM; FRT USA	8-97182-748-0	01	1	9811-0003	●
1	07.831 BUMPER ASM; FRT EXC. COLOR KEYED BUMPER<S4H> USA	8-97182-748-0	01	1	9811-0003		●
1	07.831 BUMPER ASM; FRT USA	8-97236-703-0	01	1	0004-0012	●
1	07.831 BUMPER ASM; FRT EXC. COLOR KEYED BUMPER<S4H> USA	8-97236-703-0	01	1	0004-0012		●
1	07.831 BUMPER ASM; FRT EXC. COLOR KEYED BUMPER<S4H> USA	8-97236-703-0	01	1	0101-		●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER<S4H> PRIMER USA	8-97207-074-0	01	1	9811-0003		●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER<S4H> PRIMER USA	8-97221-626-0	01	1	0004-		●
7	07.833 SCREW; FRT BUMPER 16.081 M4X16 TAPPING W/PL WASHER	0-74300-416-0	04	1	9811-0012	●	●
7	07.833 SCREW; FRT BUMPER 16.081 M4X16 TAPPING W/PL WASHER	0-74300-416-0	04	1	0101-		●
9	07.840 NUT; REINF,FRT BUMPER 04.010 M8 FLANGE	8-97046-127-0	02	1	9811-0012	●	●
9	07.840 NUT; REINF,FRT BUMPER 04.010 M8 FLANGE	8-97046-127-0	02	1	0101-		●
30	07.869 BRACKET; FRT BUMPER USA	8-97138-821-2	01	1	9811-0003	●	●
30	07.869 BRACKET; FRT BUMPER USA	8-97209-086-1	01	1	0004-0012	●	●
30	07.869 BRACKET; FRT BUMPER USA	8-97209-086-1	01	1	0101-		●
30	07.869 BRACKET; FRT BUMPER USA	8-97138-820-2	01	1	9811-0003	●	●
30	07.869 BRACKET; FRT BUMPER USA	8-97209-085-1	01	1	0004-0012	●	●
30	07.869 BRACKET; FRT BUMPER USA	8-97209-085-1	01	1	0101-		●
32	07.874 BOLT; BRKT,BUMPER M12X30 FLANGE USA	8-97161-815-0	04	1	9811-0012	●	●
32	07.874 BOLT; BRKT,BUMPER M12X30 FLANGE USA	8-97161-815-1	04	1	0101-		●
46	07.840 REINFORCEMENT; BUMPER USA	8-97201-017-0	01	1	9811-0003	●	●
46	07.840 REINFORCEMENT; BUMPER USA	8-97214-690-0	01	1	0004-0012	●	●
46	07.840 REINFORCEMENT; BUMPER USA	8-97214-690-1	01	1	0101-		●
51	07.875 BOLT; REINF,BUMPER 02.664 (A) M8X20 FLANGE USA	0-28680-820-0	03	1	9811-0012	●	●
51	07.875 BOLT; REINF,BUMPER 02.664 (A) M8X20 FLANGE USA	0-28680-820-0	03	1	0101-		●
51	07.875 BOLT; REINF,BUMPER 02.559 (B) M8X25 FLANGE USA	0-28680-825-0	06	1	9811-0012	●	●
51	07.875 BOLT; REINF,BUMPER 02.559 (B) M8X25 FLANGE USA	0-28680-825-0	06	1	0101-		●
78	07.874 NUT; SPIRE 07.829	8-94342-576-1	02	1	9811-0012	●	●
78	07.874 NUT; SPIRE 07.829	8-94342-576-1	02	1	0101-		●
152	07.831 PLATE; FRT BUMPER 07.800 USA	8-97143-287-0	02	1	9811-0012	●	●
152	07.831 PLATE; FRT BUMPER 07.800 USA	8-97143-287-0	02	1	0101-		●
162	07.833 NUT; BUMPER SIDE,FRT 04.594 M6 FLANGE	0-91150-106-0	04	1	9811-0012	●	●
162	07.833 NUT; BUMPER SIDE,FRT 04.594 M6 FLANGE	0-91150-106-0	04	1	0101-		●
186	07.869 BRACKET; FOG FOG LAMP HALOGEN<T37> USA	8-97125-757-0	02	1	9811-0003	●	●
186	07.869 BRACKET; FOG FOG LAMP HALOGEN<T37> USA	8-97209-081-0	02	1	0004-0012	●	●
186	07.869 BRACKET; FOG FOG LAMP HALOGEN<T37> USA	8-97209-081-0	02	1	0101-		●
202	07.869 BRACKET; BUMPER SIDE	8-97135-540-1	01	1	9811-0012	●	●
202	07.869 BRACKET; BUMPER SIDE	8-97135-540-1	01	1	0101-		●
202	07.869 BRACKET; BUMPER SIDE	8-97135-539-0	01	1	9811-0012	●	●
202	07.869 BRACKET; BUMPER SIDE	8-97135-539-0	01	1	0101-		●
311	07.833 BOLT; BRKT FOG LAMP HALOGEN<T37> 04.439 M6X16 FLANGE USA	0-28680-616-0	04	1	9811-0012	●	●
311	07.833 BOLT; BRKT FOG LAMP HALOGEN<T37> 04.439 M6X16 FLANGE USA	0-28680-616-0	04	1	0101-		●
323	07.829 NUT; FLANGE 04.594 M6 FLANGE	0-91150-106-0	06	1	9811-0012	●	●
323	07.829 NUT; FLANGE 04.594 M6 FLANGE	0-91150-106-0	06	1	0101-		●
613	07.829 CLIP 15.100 BLACK	8-94204-281-0	02	1	9811-0012	●	●
613	07.829 CLIP 15.100 BLACK	8-94204-281-0	02	1	0101-		●
621	07.831 SUPPORT; FRT BUMPER (A) USA	8-97125-781-0	01	1	9811-0003	●	●
621	07.831 SUPPORT; FRT BUMPER (A) USA	8-97214-689-0	01	1	0004-0012	●	●
621	07.831 SUPPORT; FRT BUMPER (A) USA	8-97214-689-0	01	1	0101-		●
621	07.831 SUPPORT; FRT BUMPER (B) USA	8-97125-784-3	01	1	9811-0012	●	●
621	07.831 SUPPORT; FRT BUMPER (B) USA	8-97125-784-3	01	1	0101-		●
621	07.831 SUPPORT; FRT BUMPER (B) USA	8-97125-783-3	01	1	9811-0012	●	●
621	07.831 SUPPORT; FRT BUMPER (B) USA	8-97125-783-3	01	1	0101-		●
622	07.874 BOLT; FACIA 14.865 (A) M6X12 FLANGE USA	8-94367-945-0	03	1	9811-0012	●	●
622	07.874 BOLT; FACIA 14.865 (A) M6X12 FLANGE USA	8-94367-945-0	03	1	0101-		●
622	07.874 BOLT; FACIA 07.875 (B) M6X16 FLANGE	8-97804-671-1	06	1	9811-0012	●	●
622	07.874 BOLT; FACIA 07.875 (B) M6X16 FLANGE	8-97804-671-1	06	1	0101-		●
623	07.874 PROTECTOR; HORN	8-97169-274-1	01	1	9811-0012	●	●
623	07.874 PROTECTOR; HORN	8-97169-274-1	01	1	0101-		●

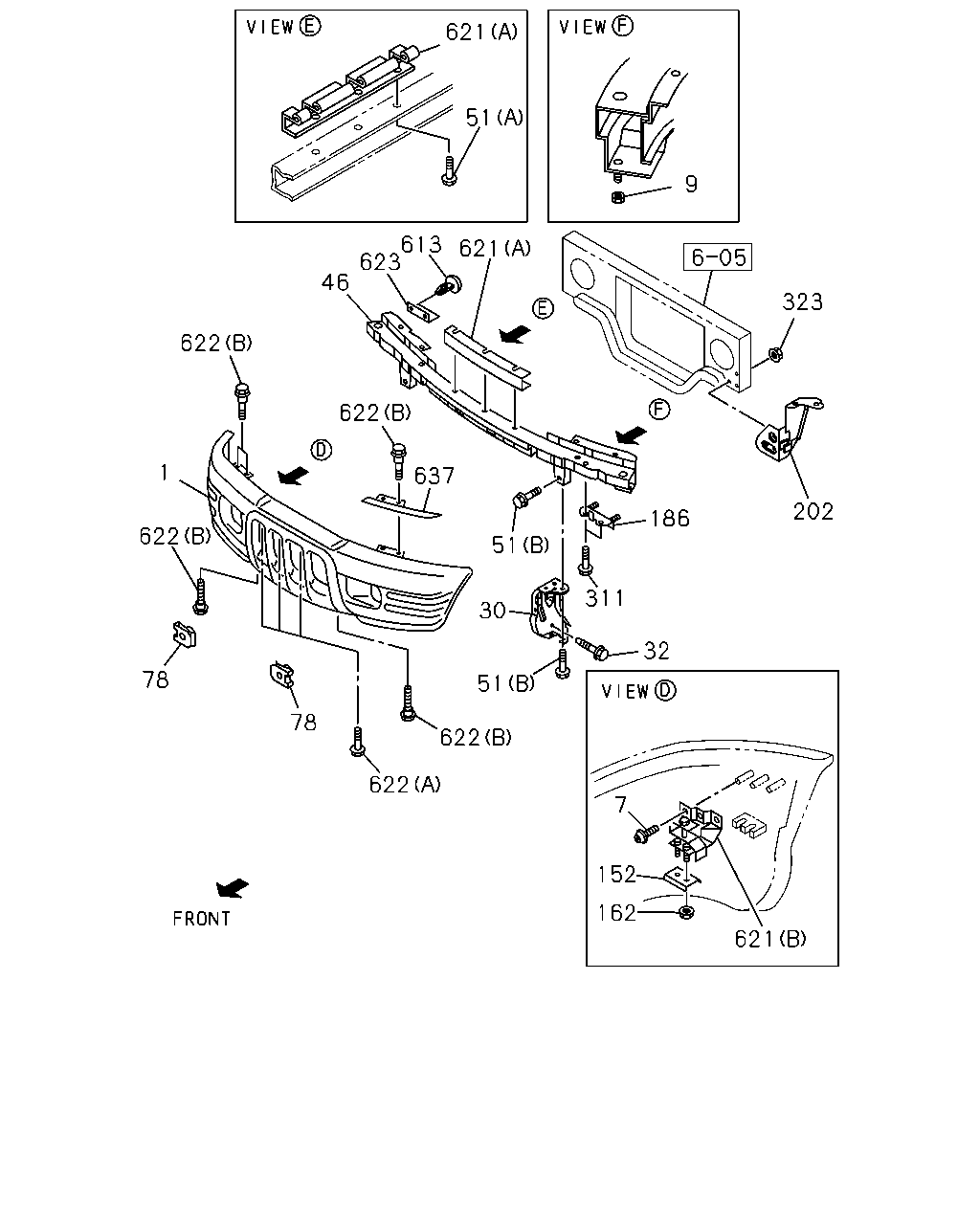

621 51 9 613 623 46 621 323 622 622 1 637 202 186 622 51 311 30 32 78 51 78 622 622 7 152 162 621

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.831 BUMPER ASM; FRT USA	8-97182-748-0	01	1	9811-0003	●
1	07.831 BUMPER ASM; FRT EXC. COLOR KEYED BUMPER<S4H> USA	8-97182-748-0	01	1	9811-0003		●
1	07.831 BUMPER ASM; FRT USA	8-97236-703-0	01	1	0004-0012	●
1	07.831 BUMPER ASM; FRT EXC. COLOR KEYED BUMPER<S4H> USA	8-97236-703-0	01	1	0004-0012		●
1	07.831 BUMPER ASM; FRT EXC. COLOR KEYED BUMPER<S4H> USA	8-97236-703-0	01	1	0101-		●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER<S4H> PRIMER USA	8-97207-074-0	01	1	9811-0003		●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER<S4H> PRIMER USA	8-97221-626-0	01	1	0004-		●
7	07.833 SCREW; FRT BUMPER 16.081 M4X16 TAPPING W/PL WASHER	0-74300-416-0	04	1	9811-0012	●	●
7	07.833 SCREW; FRT BUMPER 16.081 M4X16 TAPPING W/PL WASHER	0-74300-416-0	04	1	0101-		●
9	07.840 NUT; REINF,FRT BUMPER 04.010 M8 FLANGE	8-97046-127-0	02	1	9811-0012	●	●
9	07.840 NUT; REINF,FRT BUMPER 04.010 M8 FLANGE	8-97046-127-0	02	1	0101-		●
30	07.869 BRACKET; FRT BUMPER USA	8-97138-821-2	01	1	9811-0003	●	●
30	07.869 BRACKET; FRT BUMPER USA	8-97209-086-1	01	1	0004-0012	●	●
30	07.869 BRACKET; FRT BUMPER USA	8-97209-086-1	01	1	0101-		●
30	07.869 BRACKET; FRT BUMPER USA	8-97138-820-2	01	1	9811-0003	●	●
30	07.869 BRACKET; FRT BUMPER USA	8-97209-085-1	01	1	0004-0012	●	●
30	07.869 BRACKET; FRT BUMPER USA	8-97209-085-1	01	1	0101-		●
32	07.874 BOLT; BRKT,BUMPER M12X30 FLANGE USA	8-97161-815-0	04	1	9811-0012	●	●
32	07.874 BOLT; BRKT,BUMPER M12X30 FLANGE USA	8-97161-815-1	04	1	0101-		●
46	07.840 REINFORCEMENT; BUMPER USA	8-97201-017-0	01	1	9811-0003	●	●
46	07.840 REINFORCEMENT; BUMPER USA	8-97214-690-0	01	1	0004-0012	●	●
46	07.840 REINFORCEMENT; BUMPER USA	8-97214-690-1	01	1	0101-		●
51	07.875 BOLT; REINF,BUMPER 02.664 (A) M8X20 FLANGE USA	0-28680-820-0	03	1	9811-0012	●	●
51	07.875 BOLT; REINF,BUMPER 02.664 (A) M8X20 FLANGE USA	0-28680-820-0	03	1	0101-		●
51	07.875 BOLT; REINF,BUMPER 02.559 (B) M8X25 FLANGE USA	0-28680-825-0	06	1	9811-0012	●	●
51	07.875 BOLT; REINF,BUMPER 02.559 (B) M8X25 FLANGE USA	0-28680-825-0	06	1	0101-		●
78	07.874 NUT; SPIRE 07.829	8-94342-576-1	02	1	9811-0012	●	●
78	07.874 NUT; SPIRE 07.829	8-94342-576-1	02	1	0101-		●
152	07.831 PLATE; FRT BUMPER 07.800 USA	8-97143-287-0	02	1	9811-0012	●	●
152	07.831 PLATE; FRT BUMPER 07.800 USA	8-97143-287-0	02	1	0101-		●
162	07.833 NUT; BUMPER SIDE,FRT 04.594 M6 FLANGE	0-91150-106-0	04	1	9811-0012	●	●
162	07.833 NUT; BUMPER SIDE,FRT 04.594 M6 FLANGE	0-91150-106-0	04	1	0101-		●
186	07.869 BRACKET; FOG FOG LAMP HALOGEN<T37> USA	8-97125-757-0	02	1	9811-0003	●	●
186	07.869 BRACKET; FOG FOG LAMP HALOGEN<T37> USA	8-97209-081-0	02	1	0004-0012	●	●
186	07.869 BRACKET; FOG FOG LAMP HALOGEN<T37> USA	8-97209-081-0	02	1	0101-		●
202	07.869 BRACKET; BUMPER SIDE	8-97135-540-1	01	1	9811-0012	●	●
202	07.869 BRACKET; BUMPER SIDE	8-97135-540-1	01	1	0101-		●
202	07.869 BRACKET; BUMPER SIDE	8-97135-539-0	01	1	9811-0012	●	●
202	07.869 BRACKET; BUMPER SIDE	8-97135-539-0	01	1	0101-		●
311	07.833 BOLT; BRKT FOG LAMP HALOGEN<T37> 04.439 M6X16 FLANGE USA	0-28680-616-0	04	1	9811-0012	●	●
311	07.833 BOLT; BRKT FOG LAMP HALOGEN<T37> 04.439 M6X16 FLANGE USA	0-28680-616-0	04	1	0101-		●
323	07.829 NUT; FLANGE 04.594 M6 FLANGE	0-91150-106-0	06	1	9811-0012	●	●
323	07.829 NUT; FLANGE 04.594 M6 FLANGE	0-91150-106-0	06	1	0101-		●
613	07.829 CLIP 15.100 BLACK	8-94204-281-0	02	1	9811-0012	●	●
613	07.829 CLIP 15.100 BLACK	8-94204-281-0	02	1	0101-		●
621	07.831 SUPPORT; FRT BUMPER (A) USA	8-97125-781-0	01	1	9811-0003	●	●
621	07.831 SUPPORT; FRT BUMPER (A) USA	8-97214-689-0	01	1	0004-0012	●	●
621	07.831 SUPPORT; FRT BUMPER (A) USA	8-97214-689-0	01	1	0101-		●
621	07.831 SUPPORT; FRT BUMPER (B) USA	8-97125-784-3	01	1	9811-0012	●	●
621	07.831 SUPPORT; FRT BUMPER (B) USA	8-97125-784-3	01	1	0101-		●
621	07.831 SUPPORT; FRT BUMPER (B) USA	8-97125-783-3	01	1	9811-0012	●	●
621	07.831 SUPPORT; FRT BUMPER (B) USA	8-97125-783-3	01	1	0101-		●
622	07.874 BOLT; FACIA 14.865 (A) M6X12 FLANGE USA	8-94367-945-0	03	1	9811-0012	●	●
622	07.874 BOLT; FACIA 14.865 (A) M6X12 FLANGE USA	8-94367-945-0	03	1	0101-		●
622	07.874 BOLT; FACIA 07.875 (B) M6X16 FLANGE	8-97804-671-1	06	1	9811-0012	●	●
622	07.874 BOLT; FACIA 07.875 (B) M6X16 FLANGE	8-97804-671-1	06	1	0101-		●
623	07.874 PROTECTOR; HORN	8-97169-274-1	01	1	9811-0012	●	●
623	07.874 PROTECTOR; HORN	8-97169-274-1	01	1	0101-		●
637	07.832 FILM; PROTECTION,FRT BUMPER	8-97224-914-0	01	1	0004-0012	●	●
637	07.832 FILM; PROTECTION,FRT BUMPER	8-97224-914-0	01	1	0101-		●
637	07.832 FILM; PROTECTION,FRT BUMPER	8-97224-913-0	01	1	0004-0012	●	●
637	07.832 FILM; PROTECTION,FRT BUMPER	8-97224-913-0	01	1	0101-		●
