Sayfa 5-40 - Isuzu EPC

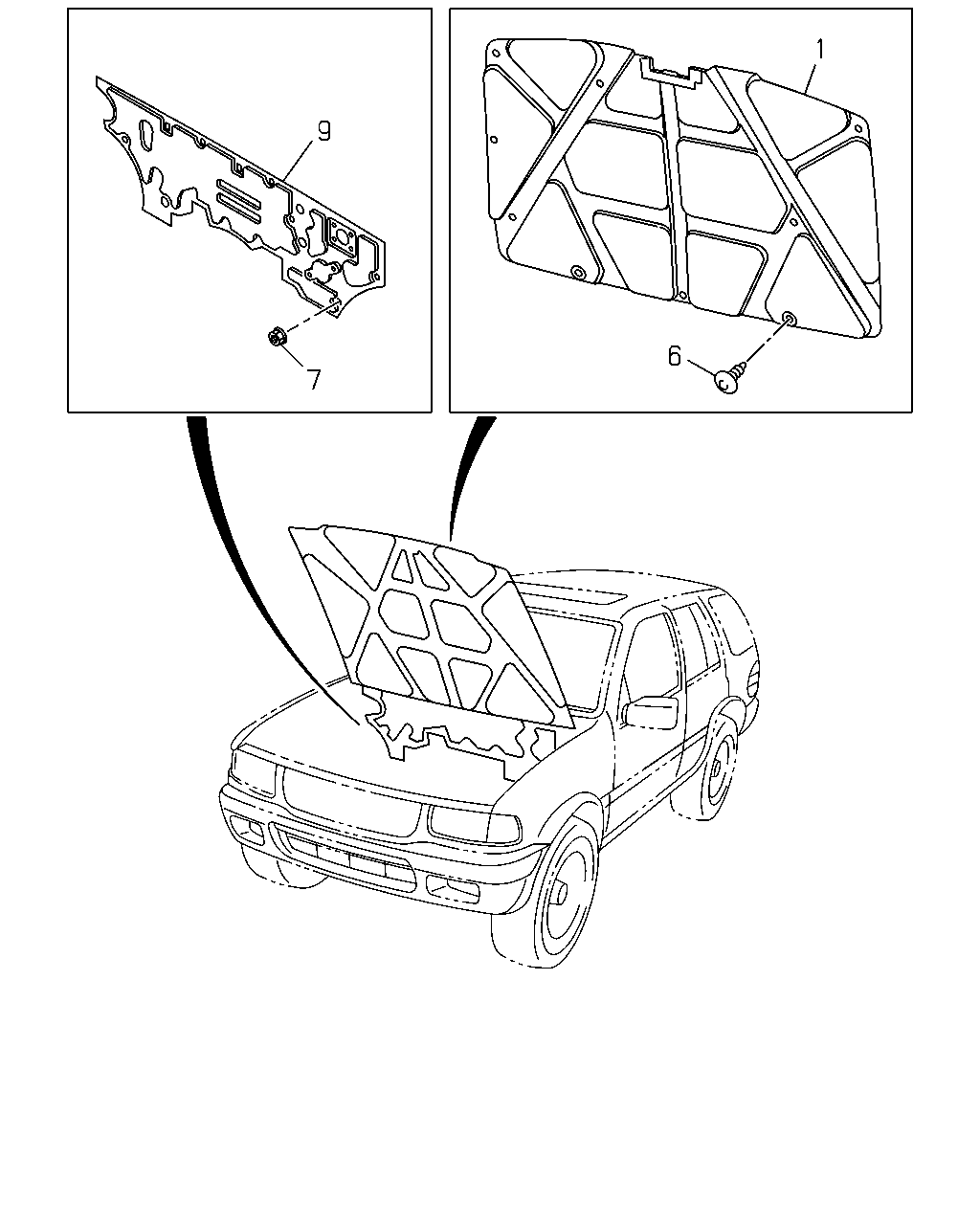

5-40 — ENGINE ROOM INSULATOR (#32626) — 8 parça

1 9 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.021 INSULATION; ENG HOOD USA	8-97137-755-2	01	1	9811-0012	●	●
1	08.021 INSULATION; ENG HOOD USA	8-97137-755-2	01	1	0101-		●
6	08.021 CLIP; ENG HOOD INSULATION ID=6.2 L=11.4 THA	8-97808-623-0	16	1	9811-0012	●	●
6	08.021 CLIP; ENG HOOD INSULATION ID=6.2 L=11.4 THA	8-97808-623-0	16	1	0101-		●
7	08.021 CLIP; INSULATION 16.550 H=10.5	8-94441-810-0	07	1	9811-0012		●
7	08.021 CLIP; INSULATION 16.550 H=10.5	8-94441-810-0	06	1	0101-		●
9	08.021 INSULATION; DASH ENG ROOM	8-97160-977-3	01	1	9811-0107		●
9	08.021 INSULATION; DASH ENG ROOM	8-97321-143-0	01	1	0108-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
